Recurrent Neural Network for Text Classification with Multi-Task Learning

1 Introduction

Distributed representations of words have been widely used in many natural language processing (NLP) tasks. Following this success, it is rising a substantial interest to learn the distributed representations of the continuous words, such as phrases, sentences, paragraphs and documents [Socher et al., 2013; Le and Mikolov, 2014; Kalchbrenner et al., 2014; Liu et al., 2015a]. The primary role of these models is to represent the variable-length sentence or document as a fixedlength vector. A good representation of the variable-length text should fully capture the semantics of natural language.

The deep neural networks (DNN) based methods usually need a large-scale corpus due to the large number of parameters, it is hard to train a network that generalizes well with limited data. However, the costs are extremely expensive to build the large scale resources for some NLP tasks. To deal with this problem, these models often involve an unsupervised pre-training phase. The final model is fine-tuned with respect to a supervised training criterion with a gradient based optimization. Recent studies have demonstrated significant accuracy gains in several NLP tasks [Collobert et al., 2011] with the help of the word representations learned from the large unannotated corpora. Most pre-training methods are based on unsupervised objectives such as word prediction for training [Collobert et al., 2011; Turian et al., 2010; Mikolov et al., 2013]. This unsupervised pre-training is effective to improve the final performance, but it does not directly optimize the desired task.

⇤Corresponding author.

Multi-task learning utilizes the correlation between related tasks to improve classification by learning tasks in parallel. Motivated by the success of multi-task learning [Caruana, 1997], there are several neural network based NLP models [Collobert and Weston, 2008; Liu et al., 2015b] utilize multitask learning to jointly learn several tasks with the aim of mutual benefit. The basic multi-task architectures of these models are to share some lower layers to determine common features. After the shared layers, the remaining layers are split into the multiple specific tasks.

In this paper, we propose three different models of sharing information with recurrent neural network (RNN). All the related tasks are integrated into a single system which is trained jointly. The first model uses just one shared layer for all the tasks. The second model uses different layers for different tasks, but each layer can read information from other layers. The third model not only assigns one specific layer for each task, but also builds a shared layer for all the tasks. Besides, we introduce a gating mechanism to enable the model to selectively utilize the shared information. The entire network is trained jointly on all these tasks.

Experimental results on four text classification tasks show that the joint learning of multiple related tasks together can improve the performance of each task relative to learning them separately.

Our contributions are of two-folds:

• ÷ First, we propose three multi-task architectures for RNN. Although the idea of multi-task learning is not new, our work is novel to integrate RNN into the multilearning framework, which learns to map arbitrary text into semantic vector representations with both taskspecific and shared layers.
• ÷ Second, we demonstrate strong results on several text classification tasks. Our multi-task models outperform most of state-of-the-art baselines.

2 Recurrent Neural Network for Specific-Task Text Classification

The primary role of the neural models is to represent the variable-length text as a fixed-length vector. These models generally consist of a projection layer that maps words, subword units or n-grams to vector representations (often trained beforehand with unsupervised methods), and then combine them with the different architectures of neural networks.

There are several kinds of models to model text, such as Neural Bag-of-Words (NBOW) model, recurrent neural network (RNN) [Chung et al., 2014], recursive neural network (RecNN) [Socher et al., 2012; 2013] and convolutional neural network (CNN) [Collobert et al., 2011; Kalchbrenner et al., 2014]. These models take as input the embeddings of words in the text sequence, and summarize its meaning with a fixed length vectorial representation.

Among them, recurrent neural networks (RNN) are one of the most popular architectures used in NLP problems because their recurrent structure is very suitable to process the variable-length text.

2.1 Recurrent Neural Network

A recurrent neural network (RNN) [Elman, 1990] is able to process a sequence of arbitrary length by recursively applying a transition function to its internal hidden state vector ht of the input sequence. The activation of the hidden state ht at time-step t is computed as a function f of the current input symbol xt and the previous hidden state ht-1

It is common to use the state-to-state transition function f as the composition of an element-wise nonlinearity with an affine transformation of both xt and ht-1.

Traditionally, a simple strategy for modeling sequence is to map the input sequence to a fixed-sized vector using one RNN, and then to feed the vector to a softmax layer for classification or other tasks [Cho et al., 2014].

Unfortunately, a problem with RNNs with transition functions of this form is that during training, components of the gradient vector can grow or decay exponentially over long sequences [Hochreiter et al., 2001; Hochreiter and Schmidhuber, 1997]. This problem with exploding or vanishing gradients makes it difficult for the RNN model to learn longdistance correlations in a sequence.

Long short-term memory network (LSTM) was proposed by [Hochreiter and Schmidhuber, 1997] to specifically address this issue of learning long-term dependencies. The LSTM maintains a separate memory cell inside it that updates and exposes its content only when deemed necessary. A number of minor modifications to the standard LSTM unit have been made. While there are numerous LSTM variants, here we describe the implementation used by Graves [2013].

We define the LSTM units at each time step t to be a collection of vectors in Rd : an input gate it, a forget gate ft, an output gate ot, a memory cell ct and a hidden state ht. d is the number of the LSTM units. The entries of the gating vectors it, ft and ot are in [0↪ 1]. The LSTM transition equations are the following:

where xt is the input at the current time step, σ denotes the logistic sigmoid function and ⊙ denotes elementwise multiplication. Intuitively, the forget gate controls the amount of which each unit of the memory cell is erased, the input gate controls how much each unit is updated, and the output gate controls the exposure of the internal memory state.

2.2 Task-Specific Output Layer

In a single specific task, a simple strategy is to map the input sequence to a fixed-sized vector using one RNN, and then to feed the vector to a softmax layer for classification or other tasks.

Given a text sequence x = ¶x1↪ x2↪ · · · ↪ xT ♦, we first use a lookup layer to get the vector representation (embeddings) xi of the each word xi. The output at the last moment hT can be regarded as the representation of the whole sequence, which has a fully connected layer followed by a softmax non-linear layer that predicts the probability distribution over classes.

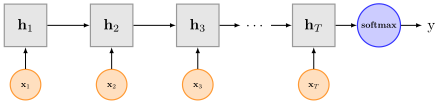

Figure 1 shows the unfolded RNN structure for text classification.

The parameters of the network are trained to minimise the cross-entropy of the predicted and true distributions.

where yj i is the ground-truth label; ˆ yj i is prediction probabilities; N denotes the number of training samples and C is the class number.

3 Three SharingModels for RNN based Multi-Task Learning

Most existing neural network methods are based on supervised training objectives on a single task [Collobert et al., 2011; Socher et al., 2013; Kalchbrenner et al., 2014]. These methods often suffer from the limited amounts of training data. To deal with this problem, these models often involve an unsupervised pre-training phase. This unsupervised pretraining is effective to improve the final performance, but it does not directly optimize the desired task.

Figure 2: Three architectures for modelling text with multitask learning.

Motivated by the success of multi-task learning [Caruana, 1997], we propose three multi-task models to leverage supervised data from many related tasks. Deep neural model is well suited for multi-task learning since the features learned from a task may be useful for other tasks. Figure 2 gives an illustration of our proposed models.

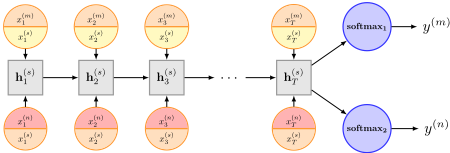

Model-I: Uniform-Layer Architecture In Model-I, the different tasks share a same LSTM layer and an embedding layer besides their own embedding layers.

For task m, the input ˆxt consists of two parts:

where x(m) t , x(s) t denote the task-specific and shared word embeddings respectively, ⊕ denotes the concatenation operation.

The LSTM layer is shared for all tasks. The final sequence representation for task m is the output of LSMT at step T .

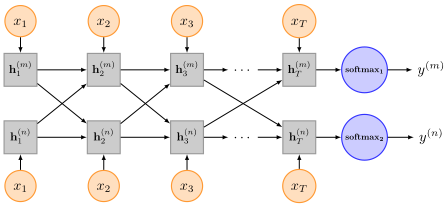

Model-II: Coupled-Layer Architecture In Model-II, we assign a LSTM layer for each task, which can use the information for the LSTM layer of the other task.

Given a pair of tasks (m↪ n), each task has own LSTM in the task-specific model. We denote the outputs at step t of two coupled LSTM layer are h(m) t and h(n) t .

To better control signals flowing from one task to another task, we use a global gating unit which endows the model with the capability of deciding how much information it should accept. We re-define Eqs. (5) and the new memory content of an LSTM at m-th task is computed by:

where g(i!m) = σ(W(m) g xt+U(i) g h(i) t-1 ). The other settings are same to the standard LSTM.

This model can be used to jointly learning for every two tasks. We can get two task specific representations h(m) T and h(n) T for tasks m and n receptively.

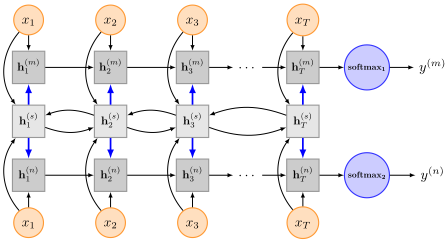

Model-III: Shared-LayerArchitecture Model-III also assigns a separate LSTM layer for each task, but introduces a bidirectional LSTM layer to capture the shared information for all the tasks.

We denote the outputs of the forward and backward LSTMs at step t as -!h (s) t and - h (s) t respectively. The output of shared layer is h(s) t = -!h (s) t ⊕ - h (s) t .

To enhance the interaction between task-specific layers and the shared layer, we use gating mechanism to endow the neurons in task-specific layer with the ability to accept or refuse the information passed by the neuron in shared layers. Unlike Model-II, we compute the new state for LSTM as follows:

where g(m) = σ(W(m) g xt + U(m) g h(m) t-1 ) and g(s!m) = σ(W(m) g xt +U(s!m) g h(s) t ).

4 Training

The task-specific representations, which emittd by the mutitask architectures of all of the above, are ultimately fed into different output layers, which are also task-specific.

where ˆy(m) is prediction probabilities for task m, W(m) is the weight which needs to be learned, and b(m) is a bias term.

Our global cost function is the linear combination of cost function for all joints.

where λm is the weights for each task m respectively.

It is worth noticing that labeled data for training each task can come from completely different datasets. Following [Collobert and Weston, 2008], the training is achieved in a stochastic manner by looping over the tasks:

1. Select a random task.
2. Select a random training example from this task.
3. Update the parameters for this task by taking a gradient step with respect to this example.
4. Go to 1.

Fine Tuning For model-I and model-III, there is a shared layer for all the tasks. Thus, after the joint learning phase, we can use a fine tuning strategy to further optimize the performance for each task.

Pre-training of the shared layer with neural language model For model-III, the shared layer can be initialized by an unsupervised pre-training phase. Here, for the shared LSTM layer in Model-III, we initialize it by a language model [Bengio et al., 2007], which is trained on all the four task dataset.

5 Experiment

In this section, we investigate the empirical performances of our proposed three models on four related text classification tasks and then compare it to other state-of-the-art models.

5.1 Datasets

To show the effectiveness of multi-task learning, we choose four different text classification tasks about movie review. Each task have own dataset, which is briefly described as follows.

• ÷ SST-1 The movie reviews with five classes (negative, somewhat negative, neutral, somewhat positive, positive) in the Stanford Sentiment Treebank 1 [Socher et al., 2013].
• ÷ SST-2 The movie reviews with binary classes. It is also from the Stanford Sentiment Treebank.
• ÷ SUBJ Subjectivity data set where the goal is to classify each instance (snippet) as being subjective or objective. [Pang and Lee, 2004]
• ÷ IMDB The IMDB dataset 2 consists of 100,000 movie reviews with binary classes [Maas et al., 2011]. One key aspect of this dataset is that each movie review has several sentences.

1 http://nlp.stanford.edu/sentiment.

2 http://ai.stanford.edu/⇠amaas/data/sentiment/

The first three datasets are sentence-level, and the last dataset is document-level. The detailed statistics about the four datasets are listed in Table 1.

5.2 Hyperparameters and Training

The network is trained with backpropagation and the gradient-based optimization is performed using the Adagrad update rule [Duchi et al., 2011]. In all of our experiments, the word embeddings are trained using word2vec [Mikolov et al., 2013] on the Wikipedia corpus (1B words). The vocabulary size is about 500,000. The word embeddings are fine-tuned during training to improve the performance [Collobert et al., 2011]. The other parameters are initialized by randomly sampling from uniform distribution in [-0.1, 0.1]. The hyperparameters which achieve the best performance on the development set will be chosen for the final evaluation. For datasets without development set, we use 10-fold crossvalidation (CV) instead.

The final hyper-parameters are as follows. The embedding size for specific task and shared layer are 64. For Model-I, there are two embeddings for each word, and both their sizes are 64. The hidden layer size of LSTM is 50. The initial learning rate is 0▷1. The regularization weight of the parameters is 10-5 .

5.3 Effect of Multi-task Training

We first compare our our proposed models with the standard LSTM for single task classification. We use the implementation of Graves [2013]. The unfolded illustration is shown in Figure 1.

Table 2-4 show the classification accuracies on the four datasets. The second line ("Single Task") of each table shows the result of the standard LSTM for each individual task.

Uniform-layer Architecture For the first uniform-layer architecture, we train the model on four datasets simultaneously. The LSTM layer is shared across all the tasks. The average improvement of the performances on four datasets is 0.8%. With the further fine-tuning phase, the improvement achieves 2.0% on average.

Coupled-layer Architecture For the second coupled-layer architecture, the information is shared with a pair of tasks. Therefore, there are six combinations for the four datasets. We train six models on the different pairs of datasets. We can find that the pair-wise joint learning also improves the performances. The more relevant the tasks are, the more significant the improvements are. Since SST-1 and SST-2 are from the same corpus, their improvements are more significant than the other combinations. The improvement is 2.3% on average with simultaneously learning on SST-1 and SST-2.

Shared-layer Architecture The shared-layer architecture is more general than uniform-layer architecture. Besides a shared layer for all the tasks, each task has own task-specific layer. As shown in Table 4, we can see that the average improvement of the performances on four datasets is 1.4%, which is better than the uniform-layer architecture. We also investigate the strategy of unsupervised pre-training towards shared LSTM layer. With the LM pre-training, the performance is improved by an extra 0.5% on average. Besides, the further fine-tuning can significantly improve the performance by an another 0.9%.

To recap, all our proposed models outperform the baseline of single-task learning. The shared-layer architecture gives the best performances. Moreover, compared with vanilla LSTM, our proposed three models don't cause much extra computational cost while converge faster. In our experiment, the most complicated model-III, costs 2.5 times as long as vanilla LSTM.

5.4 Comparisons with State-of-the-art Neural Models

We compare our model with the following models:

• ÷ NBOW The NBOW sums the word vectors and applies a non-linearity followed by a softmax classification layer.
• ÷ MV-RNN Matrix-Vector Recursive Neural Network with parse trees [Socher et al., 2012].
• ÷ RNTN Recursive Neural Tensor Network with tensorbased feature function and parse trees [Socher et al., 2013].
• ÷ DCNN Dynamic Convolutional Neural Network with dynamic k-max pooling [Kalchbrenner et al., 2014].
• ÷ PV Logistic regression on top of paragraph vectors [Le and Mikolov, 2014]. Here, we use the popular open source implementation of PV in Gensim 3 .
• ÷ Tree-LSTM A generalization of LSTMs to treestructured network topologies. [Tai et al., 2015]

Table 5 shows the performance of the shared-layer architecture compared with the competitor models, which shows our model is competitive for the neural-based state-of-the-art models.

Although Tree-LSTM outperforms our model on SST-1, it needs an external parser to get the sentence topological structure. It is worth noticing that our models are compatible with the other RNN based models. For example, we can easily extend our models to incorporate the Tree-LSTM model.

5.5 Case Study

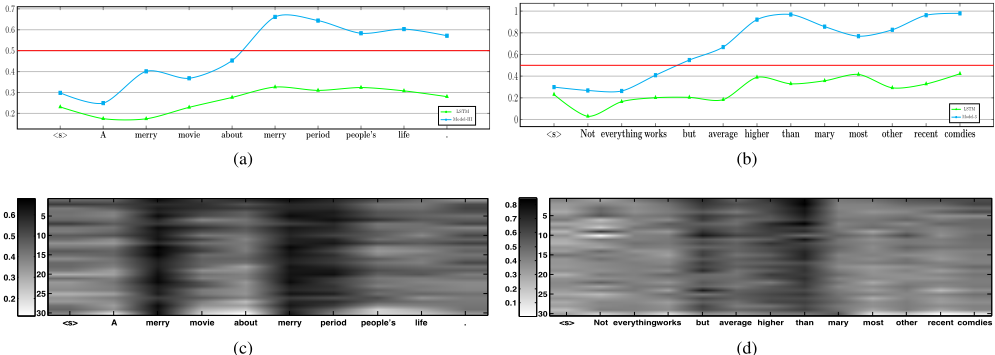

To get an intuitive understanding of what is happening when we use the single LSTM or the shared-layer LSTM to predict the class of text, we design an experiment to analyze the output of the single LSTM and the shared-layer LSTM at each time step. We sample two sentences from the SST-2 test dataset, and the changes of the predicted sentiment score at different time steps are shown in Figure 3. To get more insights into how the shared structures influences the specific task. We observe the activation of global gates g(s) , which controls signals flowing from one shared LSTM layer to taskspcific layer, to understand the behaviour of neurons. We plot evolving activation of global gates g(s) through time and sort the neurons according to their activations at the last time step.

For the sentence "A merry movie about merry period people's life.", which has a positive sentiment, while the standard LSTM gives a wrong prediction. The reason can be inferred from the activation of global gates g(s) . As shown in Figure 3-(c), we can see clearly the neurons are activated much when they take input as "merry", which indicates the task-specific layer takes much information from shared layer towards the word "merry", and this ultimately makes the model give a correct prediction.

3 https://github.com/piskvorky/gensim/

Another case "Not everything works, but the average is higher than in Mary and most other recent comedies." is positive and has a little complicated semantic composition. As shown in Figure 3-(b,d), simple LSTM cannot capture the structure of "but ... higher than " while our model is sensitive to it, which indicates the shared layer can not only enrich the meaning of certain words, but can teach some information of structure to specific task.

5.6 Error Analysis

We analyze the bad cases induced by our proposed sharedlayer model on SST-2 dataset. Most of the bad cases can be generalized into two categories

Complicated Sentence Structure Some sentences involved complicated structure can not be handled properly, such as double negation "it never fails to engage us." and subjunctive sentences "Still, I thought it could have been more.". To solve these cases, some architectural improvements are necessary, such as tree-based LSTM [Tai et al., 2015].

Sentences Required Reasoning The sentiments of some sentences can be mislead if only considering the literal meaning. For example, the sentence "I tried to read the time on my watch." expresses negative attitude towards a movie, which can be understood correctly by reasoning based on common sense.

6 RelatedWork

Neural networks based multi-task learning has proven effective in many NLP problems [Collobert and Weston, 2008; Liu et al., 2015b].

Collobert and Weston [2008] used a shared representation for input words and solve different traditional NLP tasks such as part-of-Speech tagging and semantic role labeling within one framework. However, only one lookup table is shared, and the other lookup-tables and layers are task specific. To deal with the variable-length text sequence, they used window-based method to fix the input size.

Liu et al. [2015b] developed a multi-task DNN for learning representations across multiple tasks. Their multi-task DNN approach combines tasks of query classification and ranking for web search. But the input of the model is bag-of-word representation, which lose the information of word order.

Different with the two above methods, our models are based on recurrent neural network, which is better to model the variable-length text sequence.

More recently, several multi-task encoder-decoder networks were also proposed for neural machine translation [Dong et al., 2015; Firat et al., 2016], which can make use of cross-lingual information. Unlike these works, in this paper we design three architectures, which can control the information flow between shared layer and task-specific layer flexibly, thus obtaining better sentence representations.

7 Conclusion and FutureWork

In this paper, we introduce three RNN based architectures to model text sequence with multi-task learning. The differences among them are the mechanisms of sharing information among the several tasks. Experimental results show that our models can improve the performances of a group of related tasks by exploring common features.

In future work, we would like to investigate the other sharing mechanisms of the different tasks.

Acknowledgments

We would like to thank the anonymous reviewers for their valuable comments. This work was partially funded by National Natural Science Foundation of China (No. 61532011,

61473092, and 61472088), the National High Technology Research and Development Program of China (No. 2015AA015408).
