Reconstruction-based Unsupervised Feature Selection: An Embedded Approach

1 Introduction

High-dimensional data arises naturally in many areas, such as machine learning, data mining and computer vision [Jain and Zongker, 1997; Guyon and Elisseeff, 2003]. It poses challenges to many learning tasks due to the curse of dimensionality [Duda et al., 2012], i.e., algorithms applicable to lowdimensional data become intractable in high-dimensional space. Besides, data with high dimensionality significantly increases the memory storage requirements and computational costs for data analytics. Moreover, the existence of irrelevant, redundant and noisy features tends to overfit the learning algorithms and results in low efficiency and poor performance. Feature selection [Liu and Motoda, 2007; Li et al., 2016a; Li and Liu, 2017] has been proven to be effective and efficient in handling high-dimensional data.

Data matrix

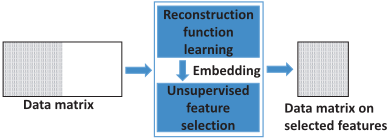

(b) The proposed REFS framework.

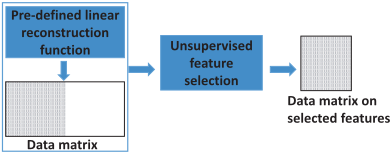

Figure 1: Differences between the existing data reconstruction unsupervised feature selection method and the proposed unsupervised feature selection framework.

According to the availability of labels, feature selection methods consist of supervised methods and unsupervised methods. Supervised methods take advantage of the discriminative information encoded in class labels to select the subset of features that are able to distinguish instances from different classes [Tibshirani, 1996; Ding and Peng, 2005; Nie et al., 2008; 2010; Cover and Thomas, 2012; Jian et al., 2016; Li et al., 2017]. Since real-world data is usually unlabeled and collecting labeled data is particular expensive requiring both time and effort, unsupervised feature selection has received increasingly attention in the past few years [He et al., 2005; Cai et al., 2010; Yang et al., 2011; Li et al., 2012; Qian and Zhai, 2013; Li et al., 2015; 2016b; Wei and Philip, 2016]. Due to the lack of label information, unsupervised feature selection algorithms exploit different criteria to define the relevance of features such as data similarity and local discriminative information.

Recently, data reconstruction error [Boutsidis et al., 2008; Masaeli et al., 2010; Farahat et al., 2011] has emerged as another criterion for unsupervised feature selection. It assumes that the original data can be approximated by performing a reconstruction function on some selected features. The vast majority of existing algorithms in this family assume a predefined and linear reconstruction function, based on which they select features to minimize the reconstruction error as shown in Figure 1(a). However, the reconstruction function should be data dependent and may not always be linear, especially when the original data is high-dimensional. Therefore, we investigate whether we can embed the reconstruction function learning process into feature selection. In essence, we study (1) how can we learn a reconstruction function from the data automatically; and (2) how can we use it for unsupervised feature selection. Our solutions to these two challenges lead to a novel reconstruction-based unsupervised feature selection framework REFS, which embeds the reconstruction function learning into unsupervised feature selection as shown in Figure 1(b). The main contributions of this work are as follows:

• Proposing to learn the reconstruction function from the data for unsupervised feature selection;
• Proposing a novel reconstruction-based unsupervised feature selection framework REFS, which integrates the reconstruction function learning and feature selection into a coherent model; and
• Evaluating the effectiveness of the proposed framework REFS on various types of real-world datasets.

The rest of this paper is organized as follows. In Section 2, we will formulate the proposed framework REFS and introduce an efficient greedy method to solve the optimization problem. Empirical evaluation is presented in Section 3 with discussions. In Section 4, we briefly review related work. The conclusion and future work are presented in Section 5.

2 Reconstruction-based Unsupervised Feature Selection - REFS

We first summarize some notations used in this paper. We use bold uppercase characters to denote matrices (e.g., A), bold lowercase characters to denote vectors (e.g., b). For an arbitrary matrix A ∈ Rn×d , Aij denotes its (i, j)-th entry, and ai denotes its i-th column. The Frobenius norm of the matrix A ∈ Rn×d is ||A||F = √∑ni=1 ∑dj=1 A2ij . Tr(A) is the trace of matrix A if it is square. I is an identity matrix of size n.

2.1 The Objective Function of REFS

Let F = {f1, f2, ..., fd} denote a d-dimensional feature space and f1, f2,...,fd are the corresponding d feature vectors. Assume that each feature has been normalized, i.e., for each feature vector fi, ||fi||2 = 1. Let X = [f1, f2, ..., fd] ∈ Rn×d denotes the original d feature vectors, where each feature vector fi ∈ Rn×1 contains feature values for all the n data instances. Suppose that the new feature space S contains k selected features (k < d), then XS = [fS1, fS2, ..., fSk] are the k feature vectors on the new feature space S. Our target is to select k features such that they can well represent the original d feature vectors. Specifically, let ˜X = [˜f1, ˜f2, ..., ˜fd] denote the reconstructed d feature vectors that can be represented from the selected k features, we would like to minimize the reconstruction error between X and ˜X as follows:

It indicates that if these k selected features are the most representative ones, the reconstructed d feature vectors ˜X = [˜f1, ˜f2, ..., ˜fd] should be able to well approximate the original d feature vectors. Therefore, we intend to find a reconstruction function ψ(.) : XS ↦→ ˜X that maps XS to ˜X such that the reconstruction error in Eq. (1) is minimized. Therefore the objective function of the proposed framework REFS is formally defined as:min

The objective function of the proposed framework REFS in Eq. (2) is an optimization problem with respect to both the selected feature set S and the reconstruction function ψ(.). In the following subsections, we will give details about how to learn the reconstruction function ψ(.) and how to select features based on ψ(.).

2.2 Learning the Reconstruction Function

In order to accurately measure the representativeness of selected feature space S, the reconstruction function ψ(.) should be able to: (1) make reconstructed features in S closely approximate their original corresponding features; (2) avoid overfitting such that features in S can also be generalized to represent features in F\S; and (3) make reconstructed features preserve the original feature structures.

Let ˜XS = [ ˜ fS1, ˜ fS2, ..., ˜ fSk] ∈ Rn×k denote the reconstruction of the k selected features. First, the reconstruction function ψ(.) ensures the reconstructed k feature vectors in ˜XS be close to the original k feature vectors in XS by minimizing the following term:

The minimization function in Eq. (3) ensures the reconstructed feature vectors in S well approximate the original corresponding feature vectors. However, the reconstruction function ψ(.) might make ˜XS overfit XS such that the selected features in S cannot well represent other features in F \ S. Therefore, we propose to minimize the approximation error between XF\S and ˜XF\S with a small weight on the basis of Eq. (3) to avoid overfitting:

where α is introduced to balance the contribution of selected features and unselected features for the feature reconstruction process. Normally, we set it in the range of 0 to 1, indicating that during the feature reconstruction process, the selected features in S plays a more important role than unselected features in F \ S.

In addition, the reconstruction function ψ(.) should also preserve feature structures in the original feature space since those structures play important roles in many real-world applications such as natural language processing and bioinformatics [Mitra et al., 2002; Tang et al., 2014]. Feature structures can be represented as a graph where nodes represent features and edges show pairwise feature similarities. Let G denotes a nearest neighbor graph with d nodes where the i-th node corresponds to the i-th feature vector fi. In this paper, we consider that there is an edge between feature vector fi and feature vector fj if fi is among the p nearest neighbors of fj (fi ∈ Np(fj)) or fj is among the p nearest neighbors of fi (fj ∈ Np(fi)). Then the adjacency matrix W for G is defined as:

To preserve feature structures, the reconstruction function ψ(.) should ensure that two features close to each other in the original data are also close after reconstruction by minimizing the following term:

where D is a diagonal matrix with Dii = ∑j Wij and L = D -W is the Laplacian matrix.

Integrating components from Eq. (4) and Eq. (6), the reconstruction function ψ(.) can be obtained by solving the following optimization problem:

where the first termmakes reconstructed features in S closely approximate their corresponding original features; the second term penalizes the reconstruction error of unselected features in F \ S with a small weight α to avoid overfitting; while the third term preserves feature structures after reconstruction, which is controlled by a parameter β. When the selected feature space S is fixed, the optimization problem in Eq. (7) is a convex optimization problem with respect to ˜X. Therefore, we can automatically learn a reconstruction function ψ(.) from data, which maps XS to ˜X.

We set the derivative in Eq. (8) to be zero, since γ(XT X)-1XT π(XS) + αI + βL is a positive semidefinite matrix, we obtain a closed form solution of ˜X and a mapping function ψ(.) fromXS to ˜X can be derived as follows:

where γ = 1-α, π(.) is an augment function which augments data matrix in low-dimensional feature space to the data matrix in the original feature space by adding zero column vectors, for example, π(XS) augments the n-by-k matrix to be a n-by-d matrix by adding d - k zero column vectors (k < d) to the columns of features in F \ S.

2.3 Selecting Features

Now we embed the learned reconstruction function ψ(.) to the unsupervised feature selection framework REFS. Integrating Eq. (9) into Eq. (2), we can select features by solving the following optimization problem:

The problem in Eq. (10) is an integer programming problem and it is difficult to solve. We propose to use a greedy approach to sequentially minimize the objective function to obtain a local optimal solution and this strategy have been widely used in other unsupervised learning tasks [He, 2010; Chen et al., 2010; Zhang et al., 2011]. Assume current S contains m selected features (m < k), we define:

At the very beginning, no features are selected, XS is set to be a zero matrix, so:

To select the (m + 1)-th feature, we need to find a feature C ∈ F \ S such that the following term:

is minimized. Here π(XC) augments the n-by-1 feature vector XC to a n-by-d matrix by adding zero vectors to features in F \ C. Now we can get:

The computation of the inverse of the matrix Qm+1 is very expensive, and we have to compute the inverse of Qm+1 (k - m) times to obtain the best (m + 1)-th feature. Using Sherman-Morrison formula [Golub and Van Loan, 2012], the inverse part can be computed very efficiently:

Therefore, we only need to do the matrix inverse operation once, which is the inverse of Q0, its time complexity is O(d3 ). In fact, this cost can be further reduced since Laplacian matrix L is usually a sparse matrix with O(d) nonzero elements. The proposed framework REFS is summarized in Algorithm 1, we update Eq. (15) sequentially until getting the desired number of selected features.

We briefly review Algorithm 1. In line 1, we build the feature adjacency matrix W on the original data X and calculate the Laplacian matrix L. We compute Q0 according to Eq. (12) (line 3) and then get its inverse in line 4. In line 8, for each candidate feature j, we update the inverse of Qj using Eq. (15). The best feature j is obtained in line 13 by Eq. (13). The procedure repeats (line 5-17) until the desired number of features is obtained, which is k.

Algorithm 1 Reconstruction-based Unsupervised Feature Selection (REFS)

Input: X ∈ Rn×d , parameters α and β, number of nearest neighbors p and the number of features to select k

Output: k most representative features

• 1: Construct feature adjacency matrixW and calculate the Laplacian matrix L
• 2: Initialize S ← ∅, i ← 0, j ← 1, γ ← 1-α
• 18: return S

3: Q0 ←αI +βL 4: Compute Q-1 0 5: while i < k do 6: while j ≤ d do 7: if j ∈ (F \ S) then 8: Q-1 j ←Q-1 i - γQ-1 i Id×d(:,j)Id×d(j,:)Q-1 i 1+γId×d(j,:)Q-1 i Id×d(:,j) 9: vj ← ||βXLQ-1 j ||2F 10: end if 11: j ← j +1 12: end while 13: j ← arg minj vj 14: S ←S ∪ fj 15: i ← i + 1 16: Q-1 i ←Q-1 j 17: end while

3 Experiments

In this section, we conduct experiments to evaluate the performance of the proposed framework REFS. After introducing the experimental settings, we compare the proposed framework REFS with the state-of-the-art unsupervised feature selection methods. Further experiments are designed to investigate the effects of parameters α and β on REFS.

3.1 Experimental Settings

We choose 8 benchmark datasets of various types for evaluation, including three image datasets, i.e., object image dataset COIL20 1 [Nene et al., 1996], face image dataset ORL 2 , handwritten digit datasets USPS [Hull, 1994]; two text datasets, i.e., RELATHE and BASEHOCK 3 ; two microarray datasets, i.e., Lung [Bhattacharjee et al., 2001] and GLIOMA [Nutt et al., 2003] and one spoken letter recognition dataset Isolet 4 . Detailed datasets description are summarized in Table 1.

1 http://www.cad.zju.edu.cn/home/dengcai/Data/MLData.html

2 http://www.cl.cam.ac.uk/research/dtg/attarchive/facedatabase.html

Following a common way to assess unsupervised feature selection [Cai et al., 2010; Yang et al., 2011; Li et al., 2012], we use the clustering performance to evaluate the quality of selected features. Two commonly used clustering performance evaluation metrics, i.e., Accuracy (ACC) and Normalized Mutual Information (NMI) [Cai et al., 2010] are used in this paper. With a specific clustering algorithm, the clustering performance can reflect the quality of selected features. The higher the ACC and NMI values are, the better feature selection performance is.

3.2 Performance Comparison

We compare REFS with the following state-of-the-art unsupervised feature selection algorithms.

• All Features: All original features are adopted.
• LapScore: Laplacian score [He et al., 2005] which selects features that best preserve the local manifold structure of data.
• SPEC: Features are selected by spectral analysis [Zhao and Liu, 2007] and it is an extension of Laplacian score.
• MCFS: Multi-Cluster unsupervised feature selection [Cai et al., 2010] which selects features by two steps - first performing spectral regression and then applying Lasso.
• UDFS: Unsupervised discriminative feature selection [Yang et al., 2011] which selects features by exploiting local discriminative information and feature correlation simultaneously.
• GreedyFS: GreedyFS is an unsupervised feature selection algorithm based on data reconstruction which predefines a reconstruction function [Farahat et al., 2011].
• FSASL: FSASL is an unsupervised method which performs data manifold learning and feature selection simultaneously [Du and Shen, 2015].

3 http://featureselection.asu.edu/datasets.php

4 http://archive.ics.uci.edu/ml/datasets/ISOLET

For LapScore, MCFS, UDFS and FSASL, we specify the number of neighborhood size to be 5 to construct the Laplacian matrix on the data instances following previous work. In REFS, we also set the number nearest neighborhood size p to be 5, but the Laplacian matrix is built on the feature vectors instead of on the data instances. MCFS, UDFS, FSASL and REFS all have different regularization parameters. For a fair comparison, we tune these regularization parameters for all methods by grid search and report the best performance. How to determine the optimal number of selected features is still a challenging problem, thus we vary the number of selected features as {50, 75, 100, ..., 275, 300} for all datasets except USPS. Since USPS has 256 features, we set the number of selected features as {50, 65, 80, ..., 185, 200}. In the evaluation phase, we use K-means to cluster samples based on the selected features.

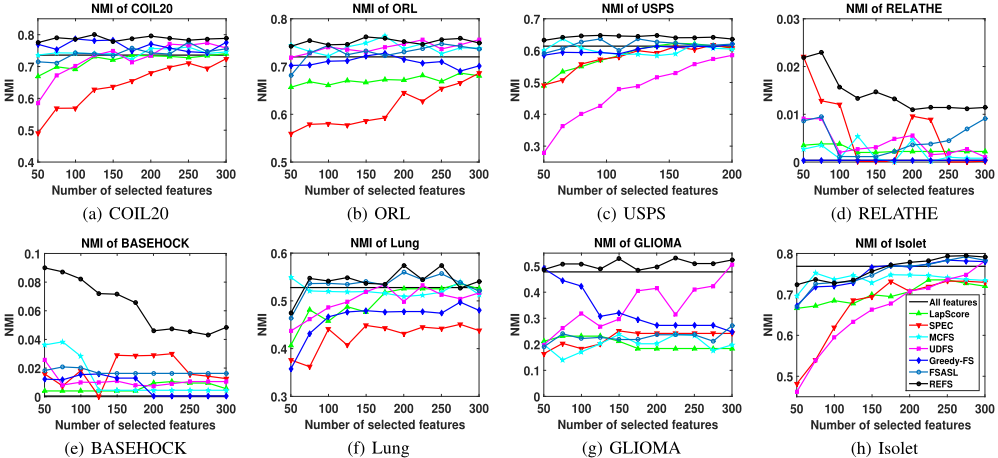

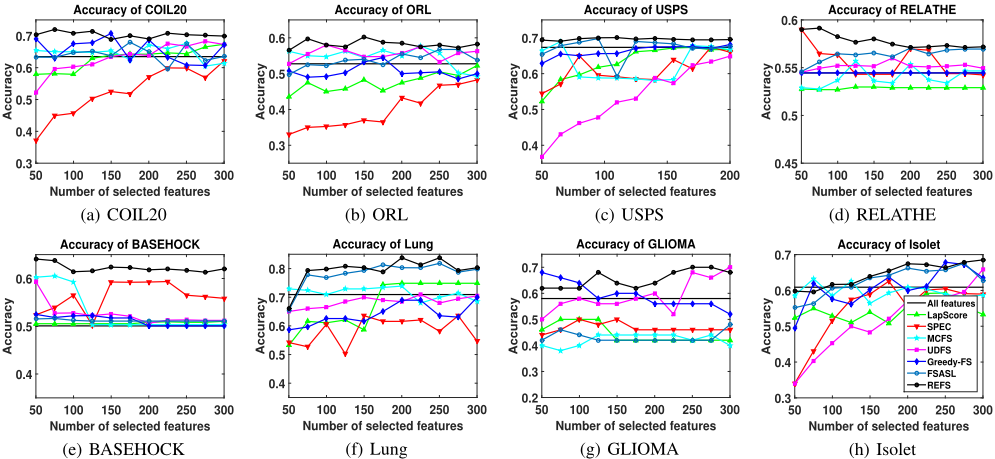

Figure 2 and Figure 3 show the clustering performance in terms of NMI and ACC by different unsupervised feature selection algorithms. We make the following observations:

• In most situations, feature selection algorithms are nec-

• essary and effective, which can improve the clustering performance.
• The proposed framework REFS can achieve better clustering performance even with a very small number of features, such as 50 features. These results suggest that REFS can select very representative features.
• In text data, i.e., RELATHE and BASEHOCK, and gene data, i.e., Lung and GLIOMA, REFS greatly improves the clustering performance in terms of both NMI and ACC. It may be because of the strong feature dependencies in these datasets, such as synonyms or antonyms words in text data and genes with similar functions.
• REFS outperforms the representative data reconstruction algorithm GreedyFS. We perform pairwise Wilcoxon signed-rank test between them and the test results show that REFS is significantly better. There are two reasons for the improvement - (1) REFS learns the reconstruction function from the data automatically while GreedyFS predefines a reconstruction function; and (2) REFS considers both the feature reconstruction ability and feature structures preserving ability; while GreedyFS only considers the reconstruction ability.

3.3 Effects of Parameters α and β

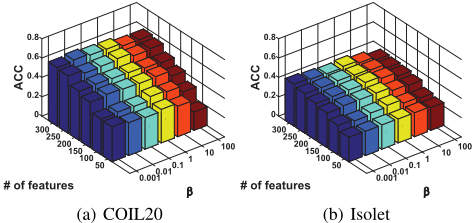

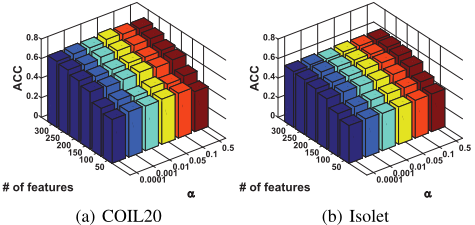

REFS has two important parameters α and β. The parameter α prevents the overfiting of the reconstruction function. We first investigate how it affects the performance of REFS by varying its value as {10-4 , 10-3 , 0.01, 0.05, 0.1, 0.2, 0.5} when β is 0.1. The other parameter β controls how strongly the reconstruction function preserves the original feature structures. We vary its value as {10-5 , 10-4 , 10-3 , 0.01, 0.05, 0.1, 0.2, 0.5, 1, 5, 10, 100} when α is 0.1. Performance variance results are presented in Figure 4 and Figure 5. Due to space limit, we only report the results in terms of ACC on COIL20 and Isolet datasets. We can observe that the performance is not sensitive to both α and β, the clustering performance does not vary much when α and β are in a wide range. However, the clustering results are relatively more sensitive to the number of selected features, which is still an open problem in feature selection.

4 RelatedWork

We briefly review some related work on reconstruction-based and preserving-based feature selection, which is most related to our framework REFS. Convex Principle Feature Selection (CPFS) [Masaeli et al., 2010] reformulates the feature selection problem as a convex continuous optimization problem that minimizes a mean-squared-reconstruction error with linear and sparsity constraint. GreedyFS [Farahat et al., 2011] uses a projection matrix to project the original data onto the span of some representative feature vectors. Preserving-based feature selection methods select features that best preserve similarities between data instances. Laplacian Score (LapScore) [He et al., 2005] evaluates the importance of a feature through its power of locality preservation, i.e., preserving neighborhood structures of data. Spectral Feature Selection (SPEC) [Zhao and Liu, 2007] extends the idea of LapScore and proposes a unified framework to rank features based on general similarity matrix. These works are substantially different from our proposed framework REFS - (1) REFS does not rely on any predefined reconstruction function while directly learns the reconstruction function from data; and (2) REFS is from the feature preserving perspective which measures feature correlation instead of data similarity.

5 Conclusion

We propose a novel reconstruction-based unsupervised feature selection framework REFS, which embeds the reconstruction function learning process to feature selection. During the reconstruction function learning phase, we take into account both the reconstruction ability and preserving ability of reconstructed features. The optimization problem of REFS is an integer programming problem and it is difficult to solve; hence we propose to use an efficient method to select features sequentially to obtain a local optimal solution. Experimental results on various types of datasets show that REFS outperforms the state-of-the-art unsupervised feature selection algorithms in clustering performance. Further directions can be focused on finding a global optimal solution to optimize the reconstruction problem in this paper.

Acknowledgements

This material is, in part, supported by National Science Foundation (NSF) under grant number 1614576.
