Forecast the Plausible Paths in Crowd Scenes

1 Introduction

Tracking pedestrians in crowd draws significant attentions recently because of its vital and wide applications, e.g., profiling group behaviors [Zhou et al., 2015], and detecting abnormal crowd behaviors [Li et al., 2014]. Besides, it is valuable to consider the problem beyond the current scope of activity analysis by inferring crowd dynamics about the future. It is extremely attractive to forecast the plausible paths in a crowd scene in numerous applications, e.g., navigation of autonomous vehicles, recognition of potential risks in video surveillance, etc.

∗The work was supported by the National Basic Research Program (973 Program) of China (No. 2013CB329403), National NSF of China Projects (Nos. 61571261, 61620106010, U1611461), the Youth Top-notch Talent Support Program, China Postdoctoral Science Foundation (No. 2015M580099) and Tiangong Institute for Intelligent Computing.

Previously, crowd motion prediction is studied in the areas of crowd simulation [Long et al., 2016; Godoy et al., 2016], but few attempts have been made in predicting the future paths of crowd in real world scenarios from the vision view. In this paper, we investigate the problem of crowd motion prediction by taking advantages of the inherent crowd dynamics and history observations. Compared with the tasks of understanding or recognizing the present crowd activities, prediction is more challenging since we do not have complete observations. Therefore, it requires a deeper understanding in determining not only what the activity is but how the activity should be unfolded.

Despite of its importance, motion prediction is a new topic and not well-studied in the vision discipline. Ever since the seminal works [Kitani et al., 2012], it has witnessed some recent efforts in predicting the unobserved future action by exploring the spatio-temporal contextual information [Li and Fu, 2014; Robicquet et al., 2016]. Despite this, motion prediction of a crowd is still not well addressed due to the complex and non-linear patterns in spatio-temporal varying structures [Yi et al., 2016; Alahi et al., 2016]. Human motions in a crowd are of unavoidable uncertainties which are produced by the physical and social environments [Helbing and Johansson, 2011], e.g., the scene structures, the presence of other people and the time of day. Researchers have proposed to cope with the motion uncertainties in a probabilistic manner including reinforcement learning [Ziebart et al., 2008] and Gaussian Processes (GP) [Ellis et al., 2009a]. However, most of the existing approaches operate under scenarios where motion prediction is contrived to a few individuals in simple scenes.

1.1 Our Proposal

To address the aforementioned challenges, we formulate the crowd motion anticipation as a spatio-temporal sequence forecasting problem based on a proposed social-aware recurrent Gaussian processes model. The model fully encapsulates the social-aware long short-term memory (LSTM) networks while retains the non-parametric probabilistic advantages of Gaussian processes (GP) to address the complex nonlinear transitions and uncertainties of crowd dynamics, respectively.

It is believed that a human's amazing ability to visualize the future is primarily driven by the rich prior knowledge about the visual world. The idea is also feasible for computer-aided motion prediction with visual data because of the self-organizing phenomena for a moving crowd [Helbing and Johansson, 2011]. Individuals in crowd usually do not take complicated decisions between various possible alternative behaviors, but learn from the neighbors "automatically" and try the strategies. In this case, the prior knowledge learnt from other pedestrians is informative in predicting the invisible motion for a stranger.

Recently, the LSTM model [Lipton, 2015] is proved successful in sequence prediction [Srivastava et al., 2015; Su et al., 2016] partly due to its powerful capabilities in capturing the information of massive data. It inspires us to explore the inherent crowd dynamics with LSTM and implement motion prediction by interpreting the descriptor. To particularly address the social effects in crowd motion [Helbing and Johansson, 2011], we introduce an additional social-aware gate to LSTM, endowing the history motions into a hidden feature.

Despite its success, the standard LSTM state transition structure is entirely deterministic, thus lacks the capabilities in modeling uncertainties. However, crowd motion is always with varying degrees of uncertainties due to various factors. In this case, we propose a novel representation of crowd trajectories built on recent developments in deep Gaussian processes (DGP) [Dai et al., 2016], which quantifies uncertainty and extracts full predictive distributions from latent variables. In this paper, we propose to drive the deep Gaussian processes with the latent features learnt form the social-aware LSTM. The predicted path is obtained by a underlying stochastic process with its own probability of being the "real" path. The problem is solved by joint optimizing a functional composition of Gaussian processes along with the recurrent model (i.e., social-aware LSTM) via a variational inference procedure. In summary, our model can therefore be interpreted as a deep Gaussian process driven by dynamical inputs, or as a deep recurrent network with probabilistic outputs, which naturally fits into the standard computational framework of deep learning models.

To the best of our knowledge, this is the first attempt to address the crowd motion prediction by exploring the dynamic uncertainties in big data scenarios. Therefore, our main contribution is to emphasize the connection of the social-aware LSTM and Gaussian processes. Compared with motion prediction with LSTM model [Su et al., 2016; Alahi et al., 2016], we address the implicit data uncertainties by associating the predicted trajectories with a distribution of the Gaussian processes. Motion prediction can also be implemented when missing values occur, therefore, the partially observed instances are also correctly accounted, such that all available information is exploited to increase the strength of the inference model. Besides, motion prediction based on stand-alone Gaussian processes [Ellis et al., 2009a] learns only pairwise correlations, and is unable to account for longterm dependencies. Our method provides a direction to address the issue in a recurrent fashion, and explores rich prior knowledge embedded in massive data with the social-aware LSTM. Extensive experiments demonstrate that the algorithm supports effective anticipation of the motion tendencies in both structured and unstructured scenes.

2 Methodology

Considering the smoothness and continuity of motions in crowds, we propose to generate the future trajectories with social-aware recurrent Gaussian processes. In this section, we first overview the framework, and then elaborate the socialaware LSTM to explore the crowd dynamics, resulting a hidden feature vector; moreover, we present the deep Gaussian processes to conduct motion forecasting, which is of good capability in modeling the uncertainty.

2.1 Overview

In this paper, we aim to generate the future paths based on a set of history trajectories by training a deep architecture. Different from the previous works based on crowd tracklets [Su et al., 2016; Alahi et al., 2016], we advocate to anticipate the future paths in the velocity field {vt} since the velocity remains stable unless obstacles occur or significant interaction force exists [Helbing and Johansson, 2011], yielding an easier estimation compared with the trajectories.

For generating the future sequence, we compute the Bayesian predictive distribution as p(ˆv|v), where v and ˆv indicate the present (i.e., observed) and future crowd velocity, respectively. Rather than generating the future path directly [Ellis et al., 2009a], we introduce a latent variable zt to address the varying degrees of uncertainty for crowd motions. Motion anticipation can be implemented as an integral of conditional probabilities over the latent variable as

where {vt}Tt=1 is the observed velocity; Z = {z(j) t } is the hidden variable; and ˆvt+1 is the forecasted invisible velocity for the next timestep. To obtain a long term prediction, the above integral can be evaluated recursively. The plausible paths can be obtained by integrating the velocity over time.

In Fig. 1, we outline the general framework of the proposed social-aware recurrent Gaussian processes to anticipate the invisible paths in crowd scenes. At the core of the model is the use of deep Gaussian processes to anticipate future velocities of pedestrians given the current velocity. We then anticipate the crowd velocity by employing the Gaussian Processes (GPs) as nonparametric prior distributions over the latent variable zt. The model defines a forward (or generative) mapping from the latent space to observation space that is governed by Gaussian processes.

To further improve the capability in capturing the temporal structures of Gaussian processes, we propose to constrain the latent space of DGP via a dynamical prior with

Social-aware Recurrent Gaussian Processes an LSMT network, based on which the rich prior knowledge in massive data is also well-explored. Specifically, we construct a recurrent structure by transforming the original input velocities to latent feature space with LSTM. Therefore, the inherent crowd dynamics is explored by the social-aware LSTM, yielding hidden features to drive the subsequential deep Gaussian processes as fZ ∼ GP (m, K(h, h′ )).

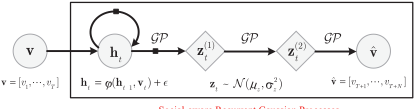

Figure 1: Outline of the social-aware recurrent Gaussian processes for forecasting the plausible paths in crowd scenes.

2.2 Social-Aware LSTM

In this section, we propose to learn a representation of the crowd dynamics with a recurrent LSTM by incorporating the nearby trajectories. Although human behaviors often seem to be "chaotic", irregular and unpredictable, crowd behaviors always exhibit systematic motions, which are more significant compared with the unknown fluctuations. The main reason is that pedestrians tend to learn from others, and obey the physical constraints and social rules [Helbing and Johansson, 2011]. In this case, we propose to learn a hidden feature that effects a pedestrian's decision making in a data-driven manner with LSTM [Lipton, 2015].

To this end, we train an LSTM architecture similar to the encoder-decoder framework [Sutskever et al., 2014], which consists of two networks, an encoding network and a forecasting network. Specifically, the encoder LSTM recursively processes the sequence of the past velocity to come up with an inherent hidden feature; and the forecasting LSTM then computes the output sequence to extrapolate the motions beyond what has been observed (ˆvt with t > T). In particular, the hidden feature vector ht from the LSTM unit is computed by multiplying the updated cell state that passed through a tanh non-linearity with an output gate's activation as

where ot is the output gate, and the cell state ct is a memory unit as

where ft and it are the forget and input gates, respectively; vt is the current velocity; Wvc andWhc are the weight parameters with proper size; and bc is the bias.

Different from the individual behaviors, pedestrians in crowds always adjust their paths by implicitly reasoning about the motions of their surrounding neighbors [Helbing and Johansson, 2011]. Therefore, we introduce a socialaware gate to address the interaction among neighboring pedestrians. The hidden features of neighboring agents are shared across the memory unit by controlling the activation of a social-aware gate. The memory state is updated as

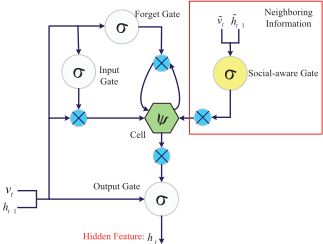

where st is the social-aware gate that controls the information flow from the surrounding neighbors; and ˜vt and ˜ht-1 are, respectively, the velocity and hidden states by pooling the corresponding parameters of neighboring pedestrians that are detected using the coherent filter [Zhou et al., 2012].

The social-aware LSTM unit implicitly reflects hidden factors that effect a pedestrian's motion of a social force model [Helbing and Johansson, 2011], which is proved particularly successful in describing the social behaviors. The first and second terms are corresponding to a pedestrian's inner factor; the third term is corresponding to the group factor in a pedestrian's vicinity, e.g., the attractive and repulsive forces in a crowd. In this case, we propose to share information between neighboring pedestrians by integrating the states across each LSTM, as is illustrated in Fig. 2. Furthermore, we form both the encoding and forecasting networks by stacking several social-aware LSTM units.

2.3 CrowdMotionModeling with DGPs

Although the social-aware LSTM is successful in modeling the crowd dynamics, the transition is entirely deterministic and thus fail to model motion uncertainties. To address this issue, we propose to incorporate deep Gaussian processes with the LSTM model for motion representation in a probabilistic manner, as shown in Fig. 1. In this case, the prediction is operated on a distribution rather than a single point, which facilitates the uncertain quantification or data imputation. In this paper, we use the latent features learnt from the socialaware LSTM to drive the deep Gaussian processes.

For generating the future sequence, we compute the Bayesian predictive distribution as p(ˆv|v), where v and ˆv indicate the present (i.e., observed) and predicted crowd velocities, respectively. Specifically, our algorithm conducts motion prediction with a Gaussian process to explicitly model motion uncertainties. In order to define a generative mapping from the latent space to the observation space, we extend the Gaussian process regression to a deep architecture [Damianou and Lawrence, 2013]. It consists of a cascade of L hidden layers of latent variables, an intermediate layer contributes the output of that layer and acts as an input for the generative procedure of the subsequent layer.

Therefore, the mapping between layers is governed by a Gaussian process, which corresponds to a separate GP with mean and covariance functions. Moreover, we employ the hidden features derived from the social-aware LSTM to drive the Gaussian processes as

where z is the latent variable corresponding to the deep Gaussian processes; h is the hidden variable derived from the social-aware LSTM, which is the unobserved input for the generative procedure of the subsequent layer; and we use RBF kernels for the Gaussian processes.

2.4 Optimization

In this section, we introduce a variational inference framework for training the social-aware recurrent Gaussian processes model which allows joint training of the model from scratch. A Bayesian training procedure requires optimization of the predictive density as

where H = [ht] is the latent variables derived from the social-aware LSTM to drive the deep Gaussian processes; and Z = [z] are the latent variables involved in a Gaussian process as f ∼ GP(m, k(z, z′ )) with m and k(·) being the mean and covariance matrix, respectively. However, the integral is intractable as Z and H appear nonlinearly inside the inverse of the covariance matrix.

To address this issue, we invoke the variational Bayesian methodology to derive a variational lower bound. Similarly as the variational inference method in [Titsias and Lawrence, 2010], we introduce underlying latent function values Fˆv = [f(z)] (noisy-free version of ˆv in Eq. (5)) and Fz = [f(h)] (noisy-free version of z in Eq. (5)), and a variational distribution q(Θ) (Θ is a set of random variables upon which the models depend). We then derive a variational lower bound via Jensen's inequality as

where the joint distribution can be expanded as

where p(ˆv|Fˆv) and p(Z|Fz) are Gaussian distribution with zero means. Note that the lower bound is still intractable since Z and ˆv still appears nonlinearly inside p(Fz|H) and p(Fˆv|Z), respectively.

To address this issue, we propose to apply variational inference after expanding the GP prior with data augmentation. More formally, we introduce a separate set of M inducing variables Uˆv and Uz evaluated at a set of inducing input locations, which are drawn from the GP prior. Using these inducing variables, the augmented joint probability density takes the form as

We drop the auxiliary inducing inputs for simplicity since they are not random variables but variational parameters [Titsias, 2009]. Note that Fˆv and Uˆv are draws from the same Gaussian Processes, so that p(Uˆv) and p(Fˆv|Uˆv,Z) are also Gaussian distributions, which is similarly for p(Uz) and p(Fz|Uz, H).

In the following, we derive the lower bound of the observed and hidden layers based on variational inference [Dai et al., 2016], respectively. First, we derive the variational bound of the observed layer p(ˆv). Assuming a particular form of the variational distribution of Fˆv and Uˆv, we have q(Fˆv,Uˆv|Z) = p(Fˆv|Uˆv,Z)q(Uˆv). Using this factorization, the free energy of the observed layer in Eq. (9) can be lower bounded by

where the first term represents the entropy with respect to a distribution, and the KL denotes the Kullback-Leibler divergence [Titsias and Lawrence, 2010].

Next, we derive the variational posterior distributions of the hidden layers, which is different from the variational bound of the observed layer since it also depends on the output variables. For the hidden layers, the variational posterior distribution is defined as q(Fz,Uz|Z,H) = p(Fz|Uz,H)q(Uz|Z). Similar to the observed layer, a lower bound of the free energy for the hidden layer can be derived as

where Q(Z, H) = p(Fz|Uz, Z)q(Uz|Z)q(Z)q(H).

In summary, the lower bound in Eq. (7) is as

where Hq(Z) denotes the entropy of the variational distribution. Note that the corresponding terms in Eq. (12) involve only known Gaussian distribution and are therefore tractable [Titsias and Lawrence, 2010].

The cost of generating that hidden feature of social-aware LSTM is then defined as the negative logarithm of the likelihood derived from the variational distribution of H. We use Backpropagation Through Time (BPTT) [Lipton, 2015] to compute the gradients of the parameters and Stochastic Gradient Descent (SGD) to optimize the model parameters of social-aware LSTM. Additionally, by transforming the original velocity space to latent variables with an recurrent LSTM, the parameter size does not increase along with the sample size, which alleviates optimization burden significantly.

3 Experiments

In this section, we demonstrate the effectiveness of our proposed algorithm in crowd motion prediction in both structured and unstructured scenes. In a structured crowd scene, crowds move coherently in common directions by obeying social rules or scene constraints, and the motion direction does not vary frequently, e.g., crowd motions in marathon races or along aisles. Whereas, the unstructured crowd scenes represent the scenarios with chaotic or random crowd motions where the participants move freely, e.g., crowd motions in railway stations or open squares. In this case, the uncertainty of crowd motions in unstructured scenes is more significant than in structured scenes.

3.1 Dataset and Experiment Setting

Datasets. Experiments are conducted on two public datasets: the CUHK Crowd Dataset [Shao et al., 2014] that includes hundreds of crowd videos with different densities and perspective scales in many environments with each containing thousands of key point trajectories; and the subway station dataset [Zhou et al., 2011], which is a 30-minute sequence collected in the New York Grand Central Station, resulting in more than 40,000 keypoint trajectories in total. The ground truth keypoint trajectories are available for both datasets. In our experiments, we randomly select a half of the trajectories to train the model, and keep the rest for testing.

Setting. Note that evaluating the true accuracy of future trajectories is difficult since we do not have access to the "ground truth" of the future. As a proxy, we evaluate the performance on the well-described trajectories, i.e., we take a fragment of tracklets as the input (e.g., 1/2 of each trajectory in this paper), and generate the rest of them for prediction (e.g., 1/2 of each trajectory). In our experiments, we use a social-aware LSTM with 128 hidden units, i.e., the input trajectories are mapped to a 128-dimensional hidden feature vector (ht); moreover, we set the latent variational variable in deep Gaussian processes as 8-dimensional vectors (zt). Moreover, we use one LSTM layer, and a two-layer Gaussian process model in the social-aware LSTM and deep Gaussian processes modules, respectively.

Comparison methods. We conduct the crowd velocity anticipation based on our proposed Social-aware Recurrent Gaussian Processes (SRGP), and then obtain the future trajectories by integrating the velocities. In order to demonstrate the contribution of each part of the proposed architecture, we compare variants of the proposed algorithms by removing the social gate of SRGP (SRGP without social gate), removing the module of Gaussian processes (SRGP without Gaussian processes), and predicting the future paths with SRGP over trajectories, respectively. The results for SRGP without GP came from predicting velocities from social-aware LSTM hidden features directly by adding an output layer.

Apart from these methods, we also conduct the trajectories prediction based on the alternative methods including Long Short-term Memory predictor (LSTM) [Srivastava et al., 2015], Coherent LSTM (cLSTM) predictor [Su et al., 2016], Gaussian Processes (GP) [Ellis et al., 2009b], Deep Gaussian Processes (DGP) [Damianou and Lawrence, 2013]. The results for LSTM and cLSTM are obtained by incorporating an output layer.

Metrics. In each experiment, we evaluate the performance with two metrics including the Average Displacement Error (ADE) and the Final Displacement Error (FDE) in terms of the pixel displacement between the estimated trajectories and the ground truth [Alahi et al., 2016].

3.2 Motion Prediction in Structured Scenes

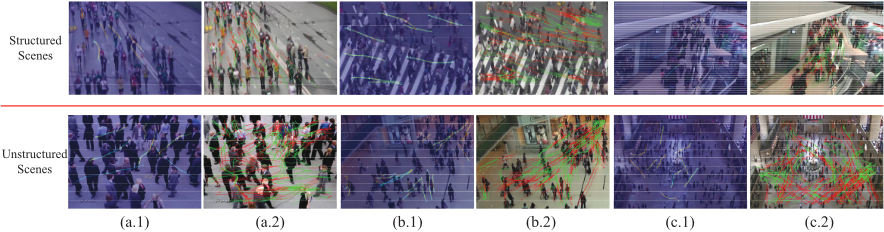

In this section, we demonstrate the performance of our algorithm in structured scenes, which are collected from the CUHK Crowd Dataset. Qualitative results of motion forecasting are depicted in the top row of Fig. 3, in which the sub-figures (a), (b), (c) are corresponding to crowd motions in a marathon race, people cross the road via zebra crossings, and crowd motions in a plaza aisle. In the first figures of each pair, we demonstrate the probability distribution of the predicted paths; and we show more samples of trajectory prediction in the second figures, in which the red fragments are corresponding to the observed trajectories, and the green fragments are generated via our proposed algorithm. The results demonstrate that our algorithm is capable of capturing the evolution characteristics of crowd motions as well as the uncertainties in motions. Note that the environment or social constraints are restricted in a structured scene, and humans are willing to follow the rules when making their decisions, e.g., participants have a common destination in marathon, follow the zebra crossings, or move along the aisle. In this case, the tendency of pedestrians in structured scenes are well explored via the rich knowledge embedded in the massive training data, such as the physical scene characteristics and neighboring information.

The quantitative evaluation is reported in Table. 1 in terms of the average displacement error (ADE) and final displacement error (FDE). Obviously, our proposed algorithm outperforms the alternative methods since the prior knowledge is explored in a data-driven manner and the unavoidable uncertainties are also well addressed. The performance for LSTM [Srivastava et al., 2015] and coherent LSMT (cLSTM) [Su et al., 2016], although inferior to our proposed algorithm, excels the methods based on Gaussian processes. The main reason is because human motion in a structured scene is confined by the physical restriction, thus with a self-organizing characteristics. In this case, the prior knowledge learnt from the training procedure, e.g., semantic of the scenes or social rules, is essential in exploring the crowd tendency. The coherent motion is also critical in structured scene, since pedestrians learn from neighbors easily in such scenario, which results in an improved performance of cLSTM compared with LSTM. The performance degrades significantly when removing the social gate of SRGP due to the same reason.

Additionally, it is observed that motion prediction based on Gaussian processes (GP) [Ellis et al., 2009b] and deep Gaussian processes (DGP) [Damianou and Lawrence, 2013] is not desirable since they fail to explore the prior knowledge whereas the motion uncertainty is not significant. Nevertheless, the Gaussian Processes module also contributes to the final performance because of the implicit motion uncertainties. The performance of SRGP without GP is obviously inferior to the approach when considering of the GP module. Finally, we implement motion prediction using the SRGP with trajectory, which is not comparable to our proposed algorithm. The main reason is that the velocity remains smooth when no significant force acts on a pedestrian.

3.3 Motion Prediction in Unstructured Scenes

In this section, we demonstrate the performance of our algorithm in unstructured scenes, which are collected from the CUHK Crowd Dataset and the subway station dataset. We demonstrate sample results of motion prediction in the bottom row of Fig. 3, in which the figure pairs (a), (b), (c) are corresponding to crowd motions in a square, crowd motions in a shopping mall, and crowd motions in New York Grand Central Station. Similar as the setting in structured scenes, we show the probability distribution maps and the predicted trajectories in the first and second sub-figures, respectively. The results demonstrate that the crowd motion patterns are well explored via our proposed algorithm. Crowd motions are of more significant uncertainties compared with the structured scenes. Even so, we can still discover scene semantic or social rules, e.g., pedestrians in crowd engage with coherent group while keep a certain distance from others. In this case, the prior knowledge leant in the training procedure still facilitates to explore the systematic or deterministic component in crowd motions. Moreover, the performance is still benefit from sharing information across neighboring pedestrians via the social-aware gate.

We report the quantitative evaluation in Table. 2 for the unstructured scenes. Similar as the results in the structured scenes, our proposed algorithm outperforms alternative methods. The main reason is because the prior knowledge in the massive data is well explored via the social-aware LSTM, and the motion uncertainty is modeled via the Gaussian processes. In general, the LSTM-based algorithms degenerates significantly compared with the structured scenes, since the motion uncertainty in crowd motions is more significant and there also exist missing data points in the observed trajectories due to the occlusions. The neighboring information is helpful, therefore, the performance of coherent LSMT (cLSTM) [Su et al., 2016] and SRGP without GP outperform that based on LSTM [Srivastava et al., 2015].

Moreover, the results demonstrate that the performance based on Gaussian processes (GP) [Ellis et al., 2009b] is also inferior to our proposed algorithm, since the information embedded in massive data is not well exploited. Note that the deep Gaussian processes (DGP) [Damianou and Lawrence, 2013] is superior to the LSTM-based algorithms, since uncertainty in the unstructured scenes is much more significant, e.g., the occlusions or missing points of trajectories.

4 Conclusions

In this paper, we propose an effective framework for forecasting the invisible paths in crowd scenes via a social-aware recurrent Gaussian process. Crowd motion prediction is implemented by taking advantages of the interplay between the deterministic component embedded in the rich prior and uncertainties due to occlusions or neighboring interactions. Our approach is able to model the rich navigation patterns by encoding the prior knowledge embedded in massive data via a social-aware LSTM. The algorithm is also benefit from the use of Gaussian processes to explicitly model uncertainties in predictions such that the characteristic unpredictability can be accurately represented. By anticipating the near future paths, it provides a good probability to prevent the potential risks in video surveillance and autonomous vehicles before they would emerge.
