Curly: An AI-based Curling Robot Successfully Competing in the Olympic Discipline of Curling

1 Introduction

Numerous attempts have been made to apply AI technologies to real-world outside confined laboratory environments [Archibald et al., 2009; Yee et al., 2016; Ahmad et al., 2016]. This is a hard problem since the real-world has numerous variables that vary over time, which can have a profound effect on the performance of AI. Moreover, the real-world has high uncertainties, which are too complex and too ill-defined to be modeled with the necessary accuracy. Thus it becomes necessary to encompass uncertainty into the modeling and furthermore to measure and approximate changes in real-world environments.

This work has chosen to use the complex game of curling as a test bed for demonstrating the interaction of an AI system and the real(slippery) world.

Curling (an Olympic discipline) is a turn-based game in which two teams play alternately on the ice sheet, requiring a high level of strategic thinking and performance. When we look at curling from an AI perspective, comparing with board games such as chess or go [Silver et al., 2016; 2017], the following two parts are significantly different. Firstly, curling has a considerable amount of legal moves because the game progresses in continuous space [Yee et al., 2016; Ahmad et al., 2016]. Secondly, because of stones' collisions, curling requires a sophisticated and time-consuming physics-based simulation process to accurately describe and simulate possible legal moves for the next step [Ito and Kitasei, 2015; Ohto and Tanaka, 2017]. In recent years, studies on strategy-AI in curling area have been actively conducted in a virtual simulator environment [Yee et al., 2016; Ahmad et al., 2016]. In reality, however, ice has strongly varying conditions etc. so the uncertainties are higher than they may be expected from a simulation in the virtual world.

Note that the real curling game is played on the ice sheet covered with pebbles. The pebbles change their condition from time to time depending on the temperature, humidity, ice makers, elapsed time since the maintenance ended, amount of sweeping done during the game, etc [Denny, 2002; Nyberg et al., 2013]. That is, when delivering curling stones using the same direction, force and curl, the trajectory of the stones will vary strongly over time. In addition, most of the strategic plays take place within the 1.83 meter radius of house region about 40 meters away. Compared with rather controlled (virtual) board games application (i.e., chess, go, etc.), the real-world application of curling AI is somewhat challenging.

2 Methods

2.1 Curling Artificial Intelligence System

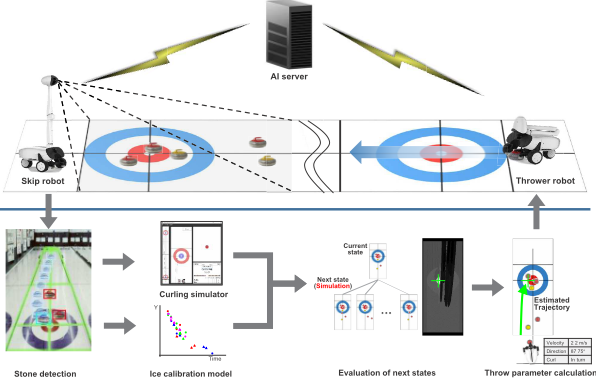

The main server part of AI curling robot system has the strategy-AI and curling simulator (Figure 2). StrategyAI finds the optimal target position based on the stone's coordinates, the estimated uncertainty and the current game status. We developed a physics-based curling simulator which is designed to adjust the parameters (i.e., throw angle, velocity, and curl direction, etc.). This simulator can help our AI to establish an optimal strategy in the real ice sheet environment. Intelligent compensation for uncertainty allows the robot to throw stones precisely into the desired target points on the real ice sheet environment (Figure 2) although all individual sub-components of our AI system are limited by errors of uncertainty.

Ice Calibration

The most striking difference between curling and other games is that it is almost impossible for a human or robot thrower to send the stone to the desired location (note that human players may in addition be hampered in their precision by being nervous). Calibration is to match the difference of the trajectory between the real ice sheet environment and the virtual physics simulator environment. It should be noted that the established strategies are quite different according to how precisely the inevitable uncertainty is approximated even in the same game situation.

Strategy-AI

We developed a strategy-AI based on reinforcement learning and tree search algorithm using physics-based simulations and evaluation values. To increase the success rate of the strategy regardless of uncertainty, we consider the uncertainty area that represents possible reaching target points of thrown stone. In this manner, it becomes possible to perform not only stable but also competitive strategies.

2.2 Curling Robots

We constructed two identical robots (operated as skip and thrower modes respectively), each equipped with video analysis, data communication and throwing control modules including traction control. The thrower robot performs strategy on the ice sheet while holding and rotating a curling stone and releasing the stone by unfolding the gripper (Figure 1). The skip robot can recognize the coordinates of the stones or the trajectories of the moving stones (Figure 1).

3 Discussion and Conclusion

In the present study, an AI-based curling robot system that clearly shows the feasibility of applying AI technologies to highly uncertain real-world environments. Integrated planning, simulation, and uncertainty estimation were key to the successful and competitive throwing strategy in this icy environment.

Future studies will aim to use explainable AI techniques [Bach et al., 2015] to gain a better understanding of critical shot impacts, thus allowing Curly and its makers to learn better from their mistakes.

Acknowledgments

This work was supported by Institute for Information & Communications Technology Promotion (IITP) grant funded by the Korea government (MSIT) (No. 2017-000521, 2017-0-01779).
