On Retrospecting Human Dynamics with Attention

1 Introduction

Human dynamics modelling has received increasing attention in recent years, considering its wide application in different scenarios, such as autonomous driving systems and humanrobot interactions. The target of human motion prediction is to generate future continuous and realistic human poses given a seed sequence, which can further assist human motion analysis. For example, forecasting the motion of pedestrian is essential for self-driving cars to avoid collision, and anticipating human motion could boost the understanding of user intent for a seamless human-machine collaborations.

Human motions in practice can be rather complicated, and often of high uncertainty, which makes the human motion prediction task difficult and challenging. Thanks to the development of human motion capture systems and pose estimation algorithms [Nie et al., 2018; Tekin et al., 2016], large-scale human motion datasets are available for investigating machine learning approaches in human dynamics analysis. Traditional approaches focus on hidden Markov models [Lehrmann et al., 2014], linear dynamical systems [Pavlovic et al., 2000], Gaussian process latent variable models [Urtasun et al., 2008; Xu et al., 2013] and bilinear spatio-temporal basis models [Akhter et al., 2012]. However, there exists trade-offs between model capacity and inference complexity for these approaches, which make them difficult to be trained on large datasets. Motivated by the success of Recurrent Neural Networks (RNN), a wide variety of RNN-based methods have emerged to tackle the human motion analysis problem. For example, Encoder-Recurrent-Decoder network [Fragkiadaki et al., 2015] has been proposed to learn temporal dependencies, with spatial encoder and decoder wrapped upon recurrent cell and last hidden state encoding human poses. Besides directly encoding human poses by hidden variables, Residual RNN models velocity representations, which boosts the short-term prediction performance by applying seq2seq model with residual connections [Martinez et al., 2017].

Though these methods have achieved impressive performance in analyzing human motion, there are still some drawbacks. Firstly from the temporal aspect, these RNN-based methods are devoted to predict future sequence and keep moving forward without looking back to handle error accumulation, which increases the difficulties in maintaining faraway information. On the other hand, considering physical limitations (e.g. gravity) and structural constraints between body parts, it is essential to highlight different importance of body joints in motion. Given an action across different frames, each joint would have distinct levels of movements and those with more movements deserve more attention. Given these drawbacks, it is difficult for existing approaches to accomplish plausible motion predictions for aperiodic actions, especially over long time horizon [Gehring et al., 2017], due to the mean pose problem. To deal with such a limitation, GAN networks are also proposed, [Barsoum et al., 2017] is the first to do probabilistic motion prediction with WGAN-GP. Although different losses have been added, it's still hard to tell if the training has converged. Fidelity and continuity discriminators with geodesic loss introduced by [Gui et al., 2018] to boost the performance, however, it uses action labels as input, which makes it supervised method.

In this paper, we propose to retrospect human dynamics with attention. It is necessary to look back in order to move forward. Accounting for past mistakes not only enables a timely self-correction, but also strengthens the confidence in making the subsequent prediction. We develop a retrospection module to constantly examine past motion sequence, which is beneficial for keeping track of longer-term motion information. A spatial attention module is designed to distinguish importance of different joints in each frame, so that more attention can be paid on joints that involve more movements or movement tendency. The proposed algorithm outperforms RRNN in both quantitative and qualitative evaluations on the Human 3.6M dataset. We can produces more realistic and coherent human motion predictions.

2 Methodology

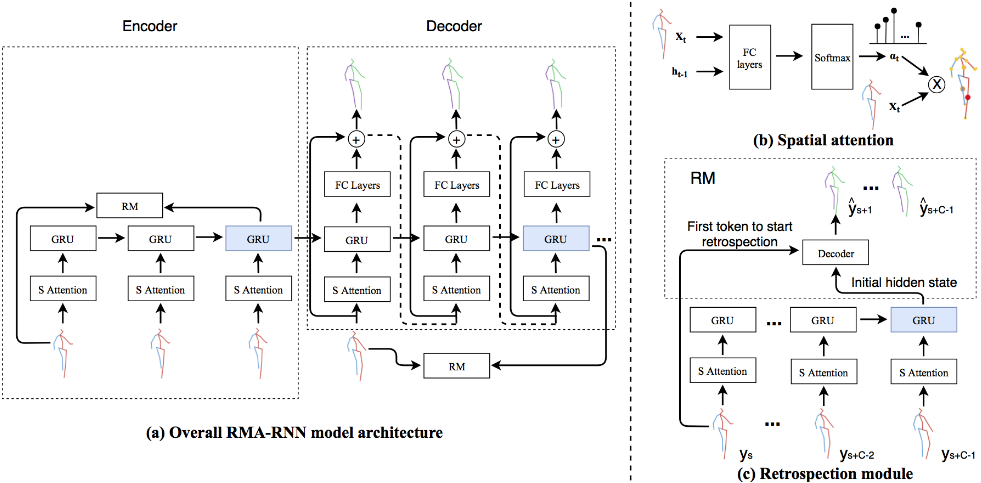

We adapt sequence-to-sequence (seq2seq) architecture [Sutskever et al., 2014], which is widely used in recent RNN based methods for motion generation, as shown in Figure 1(a). It consists of two networks, an encoder which takes as input a sequence of observed human poses and a decoder. The encoder takes as input a sequence of observed human poses and generates latent representations. The decoder produces the predicted poses according to the latent representations.

Formally consider an observed seed sequence of human poses X1:t = [x1, x2, ..., xt], where xi ∈ RK is the representation of skeletons corresponding to a particular human pose and K is the number of joint angles. The objective of human motion prediction is to produce the continuous human poses after X1:t, noted as ˆX(t+1):(t+T), which are close to ground truth X(t+1):(t+T), where T is the length of prediction sequence. The historical information can be maintained by Gated recurrent unit (GRU) [Cho et al., 2014] by keep updating its hidden state at each time step. Thus, we have a sequence of hidden states h1:t+T-1. The traditional objective in this task is to minimize the mean squared error (MSE) between the ground truth and prediction sequence as

It is difficult for RNN based methods to keep track of long-term information and capture spatial correlations, which would cause larger error and generate static or even unrealistic poses [Li et al., 2018]. To handle long-term dependencies and capture spatial dynamics accurately, we propose a retrospection module with attention upon GRU. Residual connection [Martinez et al., 2017] is deployed to enable the decoder to learn velocity representation instead of human poses directly, which improves short-term predictions and motion continuity. For the spatial decoder network wrapper upon GRU cell, we use two fully-connected layers with dropout to prevent overfitting and further explore the spatial correlations. An overview of the proposed algorithm for human motion prediction is shown in Figure 1.

2.1 RetrospectionModule

We construct a retrospection module (RM), which can be regarded as a temporary memory to retrospect previous information. Equipped with attention techniques, RM can assist GRU to memorize long-term information as well as capture temporal correlations. Since human motions are continuous, complicated, and always of high uncertainty, the performance of motion predictions can highly depend on many frames in the sequence. As a result, the retrospection module shall be executed for several times over the whole sequence to retrospect sufficient information. To accomplish this, we set anchor points every C frames on GRU's hidden states as

where n is the number of anchor points, and nC is less than t+T . Figure 1(c) illustrates the architecture of our retrospection module.

We set a retrospection module at each anchor point. In particular, we select a subsequence before the anchor point, and feed RM the first token of this subsequence and the hidden state of this anchor point to initialize the retrospection. The decoder network in RM is expected to predict the rest of this subsequence. The decoder in RM shares the same weights with that in seq2seq, as shown in Figure 1(a). For expression simplicity, we adopt a new variable y to represent elements in the sequence {x1, · · · , xt, ˆxt+1, · · · , ˆxt+T}. Given the k-th anchor point, we select the subsequence Y = {y(k-1)C+1, · · · , ykC}, where the length of the subsequence has been fixed as C. The hidden state is calculated as,

where s = (k-1)C +1, function GRU denotes one step update of GRU cell and Pk is the hidden state corresponding to the k-th anchor point, which is the initial hidden state. Then the first human pose generated through RM is computed as

where function f represents two fully-connected layers forward operation. According to [Martinez et al., 2017], residual connection is also adopted in Eq. (4), so that f(ˆhs+1) can represent the velocity and f(ˆhs+1) + ys represents the output human pose. Taking ˆ ys+1 as the new ys and ˆhs+1 as the new Pk in Eq. (3), the hidden state in GRU cell can be updated, and we can easily predict the next frame ˆ ys+2 in Eq. (4) accordingly. The rest subsequence can thus be predicted recursively by repeating the aforementioned calculations.

Note that ys is the first token of subsequence to initialize the prediction, which is not part of the predicted subsequence, the length of predicted one is C - 1. Given this predicted subsequence {ˆ ys+1, · · · , ˆ ys+C-1}, the predicted loss for the k-th retrospect module can be computed as

Note that for each anchor point, we need to predict C - 1 frames before it. The overall loss for the whole sequence {x1, · · · , xt, ˆxt+1, · · · , ˆxt+T} can then be written as

Finally, we combine this retrospection loss with the original seq2seq loss to achieve the resulting objective function:

where α is a hyper parameter to balance the influence of these two terms. The proposed retrospection module can significantly enhance the ordinary RRNN method by fully investigating previous information. By retrospecting subsequence before the anchor point, short-term dependencies in frames can be captured. On the other hand, multiple anchor points have been set over the entire sequence to prevent the encoded information from vanishing and improve long-term memory.

2.2 Spatial Attention

Attention mechanism is helpful in various tasks [Chen et al., 2018]. In this paper, we propose to explore different importance of joints by assigning spatial attention weights on all the joint angles, so that more attention could be paid on the joint angles that are more informative in describing the motion. For example, "walking" involves more movement on leg joints, however, "smoking" involves more rotation of arms.

Figure 1(b) illustrates the framework of the proposed spatial attention module. We suppose that the importance of joints mainly depends on the current input pose and the last hidden state that represents the motion velocity. At each time step t, given the input pose xt = [xt,1, xt,2, ..., xt,K], the attention scores are computed as

where ht-1 is the last hidden state, Wa, Wx and Wh are weight matrices and bxh and ba are bias vectors. This score stands for the importance of each joint angle and is normalized by a Softmax layer as

where n ∈ [1,K]. Instead of taking original input xt, the modified input at · xt using spatial attention would be more beneficial for the subsequent processing, as the informative joint angles can be highlighted while those minor ones are weaken in the computation. GRU cells are adopted after the spatial attention module to further process the pose vectors. Thus, the inputs fed to GRU cell in Eq. (3), ys and ˆ ys+i (i ∈ [1, C - 1]), will be replaced with as · ys and as+i · ˆ ys+i , as well as the inputs fed to GRU cell in seq2seq model.

3 Experiments

In this section, we evaluate the performance of the proposed RMA-RNN algorithm for human motion prediction as well as the roles of its different modules.

3.1 Experimental Settings

In experiments, we followed previous works [Fragkiadaki et al., 2015; Martinez et al., 2017], and focusd on the Human 3.6M dataset [Ionescu et al., 2014], which is currently the largest human motion dataset for 3D mocap data analysis. Human 3.6M dataset provides 15 activities performed by seven actors, including both periodic and aperiodic activities. Each activity trial consists of 3,000 to 5,000 frames. For each frame, 32 joints with a global translation and rotation are provided to represent the 3D human pose and each rotation is represented with its exponential map. We followed the standard data pre-processing for mocap data [Fragkiadaki et al., 2015; Jain et al., 2015; Li et al., 2018; Martinez et al., 2017]. Each pose would be normalized and global translation and rotation are set to zero. Joint angles dimensions that have constant standard deviation have been discarded to decrease computations, as they do not contribute to human dynamics. The final dimension of our input data is thus 54. We also down-sampled the original data by 2, making its sampling rate 25fps. The hyper parameter α in Eq. 7 is set to 0.5. Different from previous works that take activity labels as supervision information in the format of one-hot encoding [Martinez et al., 2017], the proposed algorithm is an unsupervised method to model human dynamics.

Similar to previous works, we tested on subject 5 while the rest six subjects were used for training. During the training, we fed the network 50 frames (2 seconds in total), and predicted the subsequent 25 frames (1 second in total). We also trained a general model, where the input seed sequences are randomly selected from all the activities. Although error is minimized over 1 second, we let the network predict 2 seconds for qualitative comparison since RMA is able to capture long-term dependencies. Our RNN architecture was designed according to the suggestions in RRNN [Martinez et al., 2017]. We adopted a single gated recurrent unit with 1024 units. Momentum method was used to optimize the proposed algorithm and the learning rate is set to 0.005. The batch size is set to 16, and gradient clipping to maximum L2-norm of 5. Our network was implemented using TensorFlow, and it takes 92ms per step on an NVIDIA Titan GPU.

3.2 Evaluation on Human3.6MDataset

For a fair comparison, we evaluated the performance using the mean angle error for the 15 actions on subject 5 in Human 3.6M dataset and reported the error at 80ms, 160ms, 320ms and 400ms for short-term prediction as in [Martinez et al., 2017], as well as 1000ms for long-term prediction as in [Li et al., 2018]. Following [Martinez et al., 2017], we also visualized the generated poses for qualitative analysis. State-of-theart deep RNNs based approaches are included in comparison experiments, including ERD and LSTM-3LR [Fragkiadaki et al., 2015], SRNN [Jain et al., 2015], DAE-LSTM [Ghosh et al., 2017] and RRNN and zero-velocity [Martinez et al., 2017]. We used the official implementation to re-produce results of RRNN, and slightly better results were achieved than those reported in [Li et al., 2018].

Quantitative Comparison

Table 1 shows our quantitative comparison with a set of baselines of human pose generation on 15 actions from Human 3.6m Dataset. Compared with ERD, LSTM-3LR, SRNN and DAE-LSTM, our model outperforms them in all the scenarios. To evaluate the effect of our retrospection module and spatial attention module, we mainly focused on comparisons with RRNN method and a strong zero-velocity baseline.

Compared with RRNN, our model outperforms it in almost all the scenarios. We can see that our retrospection module assists to produce more precise human poses in most cases, especially for long-term prediction (1000ms), comparing the second and third rows from the bottom (RRNN and RM), which highlights of difficulties for RNN to maintain complicated correlations on longer horizon. Thus, our retrospection module enables it to keep track of information from distant past by keeping recalling previous subsequences. Meanwhile, our spatial attention module assists to further explore these complicated spatial dynamics and correlations by paying different attention on joints, comparing the last two rows (RM and RMA). With the combination of them, our model can produce more precise predictions (see the "Average" section).

Compared with zero-velocity baseline, our model still outperforms it in most scenarios. Although zero-velocity baseline generate static predictions, it outperforms most existing RNN-based methods especially in short-term prediction and aperiodic actions. For periodic actions(e.g. walking), our model consistently outperform it. For aperiodic actions which involve small movements in upper-body(e.g. smoking, purchases), our model still outperform it. For these highly aperiodic actions with high acceleration(e.g. posing, sitting down), it's difficult for existing deep learning methods to capture its dynamics, however, our model still gain better quantitative results than other baselines.

Qualitative Comparison

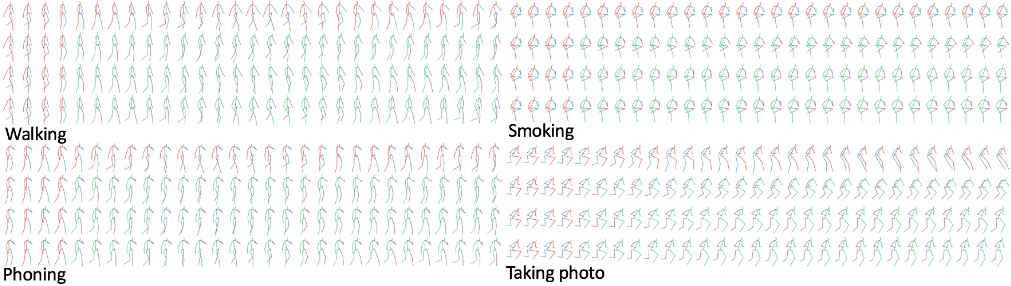

Figure 2 shows our qualitative comparison with RRNN and ground truth on 4 actions. The sequences from top to bottom correspond to ground truth, RRNN, RM and RMA. Since our model can learn long-term dependencies during training, we expect the model to make predictions over longer horizons. Thus, though the model is trained to minimize the error over 1 second, we visualize 2 seconds prediction for 4 different types of actions to evaluate the performance of our model.

For periodic action(e.g. walking), both RRNN and our model generate predictions close to ground truth for the first second because the correlations of joints can be easily captured due to its periodic, mild dynamics. However, our RMA model can further explore the key joints which have more dynamics. With more attention to legs, our model produces continuous, dynamic predictions, whereas the others coverage to mean pose during the last several frames, which suggests that spatial attention module assists to further explore spatial correlations and generates human poses close to ground truth.

For aperiodic action with small movements(e.g. smoking), RRNN generates implausible human poses where both arms and legs move in the wrong directions after several frames, however, our models RM and RMA can both generate realistic poses which maintain the smoking gesture as the ground truth. Furthermore, for a combined action phoning where upper body involves small movements while lower body involve periodic movements, RRNN converges to mean pose and cannot maintain phoning gesture after 1 second, whereas RM and RMA continue generating realistic human poses.

For highly aperiodic action with complicated dynamics(e.g. taking photo), we visualize a challenging subsequence where the actor rises while holding the camera. RRNN quickly converges to mean pose where it sticks to squat gesture. RM and RMA, on the other hand, maintain the similar velocity with ground truth. However, for the next second, where the ground truth is transferred to walking, all the models fail to predict it due to its high uncertainty.

Finally, we compare RM with RMA to evaluate the performance of spatial attention module. For all the actions we visualize, we can see that our RMA-RNN model produces more realistic human poses while maintaining the similar velocity with ground truth, especially for long-term prediction, which suggests the combination of retrospection module and spatial attention modules generates better predictions.

User Studies

Following [Gui et al., 2018], we generate 90 short term and long term motion sequences and ask judges to do pair-wise evaluation. Results are given in Table 2. We can outperform RRNN and be comparable with ground truth.

3.3 Ablation Study

The Role of Spatial Attention

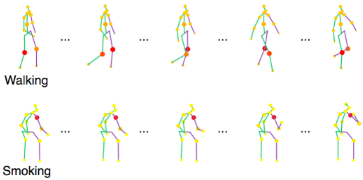

We propose a spatial attention module in order to assist our model to learn spatial dependencies by paying more attention to key joints. To evaluate the performance of it, we apply heat map to the input sequence and visualize the key joints it finds. Figure 4 visualizes the effectiveness of it. For periodic action walking, more attention is paid to legs which contribute most movement. In addition, both legs receive more attention alternately, which indicates the spatial attention captures the periodic propriety of walking. For aperiodic action smoking, although it's nearly a static sequence except for small movement on one arm, spatial attention captures it successfully. As a result, with learned spatial attention on key joints, the model can generate more precise human poses, and with variation of attention distributions over time, spatial attention captures the tendency of human motion so that the model can further explore spatio-temporal correlations for different actions.

Ablation Study for Retrospection Module

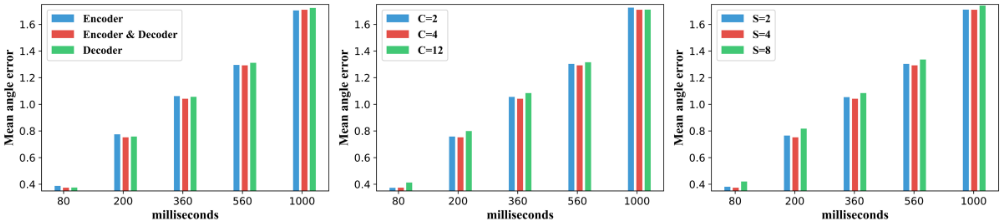

In our retrospection module, we set anchor points over the whole sequence including encoder and decoder to retrospect previous frames. To further explore the effectiveness of anchor points on different locations, we design 3 scenarios: (a) anchor points are set only on encoder (b) set only on decoder (c) set on both of them. The results are shown in the left chart in Figure 3. Results suggest that the anchor points on encoder network contribute more to minimize the errors in long-term prediction. Meanwhile, those on decoder network contribute more to short-term prediction. With anchor points set on both encoder and decoder, the model achieves complementary quantitative results and better performance.

In addition, we set anchor points on RNN every fixed number of frames C to show the influence of interval size of anchor points, shown in the middle chart in Figure 3. We further explore the influence of the size of subsequence S to retrospect for each anchor point, shown in the right chart of Figure 3. We find C = 4 is the best choice to minimize the errors over the whole horizon. Smaller size S indicates RMmodule retrospects only a part of the subsequence and may lose some key information. However, larger length to look back results in redundant information, which makes it difficult to learn spatio-temporal correlations. Thus, with retrospection size corresponding to interval size, retrospection module exactly covers the entire sequence and gains the best performance.

4 Conclusions

In this paper, we propose a retrospection module with attention to address the challenges in human motion prediction. We demonstrate that the current RNN-based approach cannot produce plausible human poses for aperiodic actions and converges to mean pose quickly, whereas our model eliminates these limitations and outperforms it by setting anchor points to retrospect previous frames and applying spatial attention upon joints. Based on quantitative and qualitative evaluations, we show the effectiveness of retrospection module and spatial attention module, which together capture complicated spatio-temporal correlations, invariant and dynamical information. Our proposed model RMA-RNN, focusing on learning long-term dependencies, can be trained on large mocap datasets in unsupervised manner with less parameter tuning and generates longer, more realistic and coherent predictions.

Acknowledgements

This work was supported in part by the Australian Research Council under Project DE180101438 and FEIT Early Career Researcher Development Grant.
