Face Photo-Sketch Synthesis via Knowledge Transfer

1 Introduction

Sketch is one of the most fundamental artistic drawing style which can intuitively and gracefully record scene with monochrome lines. Lots of people want to draw their face sketches for collection or sharing on social media platforms but are limited by insufficient time or their poor artistic skills. In law enforcement and criminal cases, face photos of suspects are sometimes not well recorded by surveillance cameras. In this condition, face sketches of suspects based on the descriptions of eyewitnesses are often drawn by experienced artists as alternatives. However, due to the great gap in texture appearance between face photos and sketches, it is hard to accurately retrieve the suspect in the police mug shot database based on his face sketch. Therefore, face photo-sketch synthesis, which aims at synthesizing a face sketch (photo) from a face photo (sketch) automatically, has attracted much attention and achieved wide applications in both digital entertainment and law enforcement.

∗Corresponding Author: Nannan Wang

Much effort has been devoted to this topic. Exemplar based methods [Wang et al., 2014], started by [Tang and Wang, 2003], had been mainstream in this field until 2015. These methods mining correspondences between input image (image patch) and images (image patches) in a reference set of photo-sketch pairs. The output image is directly reconstructed by the combination of sample images or image patches in reference set. Two main drawbacks often limit their performance: 1) blurry or over smooth, in other words, not photo/sketch-realistic; 2) time-consuming. In recent years, Deep Neural Networks (DNN), especially Generative Adversary Networks (GAN) [Goodfellow et al., 2014], have renewed the state-of-the-art performance in this field. The end-to-end property gives them the advantage of high computational efficiency. However, relatively shallow Convolutional Neural Networks (CNN) are unable to model the highly nonlinear mapping between face photos and face sketches well, resulting in poor visual quality of their generated images. GAN based methods [Wang et al., 2018; Yu et al., 2018] have capacity to generate images with realistic textures which benefit from the adversarial loss. However, undesirable artifacts and mode collapse are often their pain points. Besides, it is known that the desirable performance of deep neural networks depending on large-scale training data. Therefore, lacking of training data (photo-sketch pairs) extremely limit the performance of DNN based methods.

In this paper, we propose a knowledge transfer framework for face photo-sketch synthesis that performs well on a small amount of training data and can generate photo/sketchrealistic results. Our inspiration comes from a thriving research field knowledge transfer [Hinton et al., 2014] recently.

The basic idea of knowledge transfer is to accelerate and compress the deep neural networks by transferring knowledge from a large teacher model into a small one by learning the class distributions provided by the teacher via softened softmax. Our task differs from the original knowledge transfer in two aspects: 1) our objective is reconstruction rather than classification; 2) we have no enough training data to train a large teacher model. Therefore, we design a special network architecture to novelly combine with knowledge transfer for reconstruction task. Specifically, we utilize two VGG-19 [Simonyan and Zisserman, 2014] trained on ImageNet [Deng et al., 2009] for object recognition task as teacher models to extract knowledge of face photos and knowledge of face sketches separately and transfer them to two student networks simultaneously. The two student networks, one for photo → sketch task and the other for sketch → photo task, can mimic and transform two kind of knowledge and transfer their knowledge mutually.

To summarize, the contributions of this work are as follows:

• To the best of our knowledge, our method is the first work that introduce knowledge transfer for face photosketch synthesis task to tackle the problem of insufficient training data.

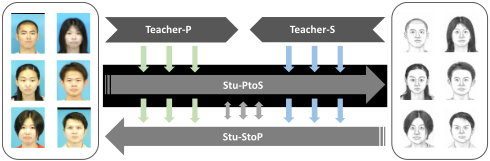

• We design a novel network architecture which allow us to transfer knowledge from two teacher models to two student models and transfer knowledge between two student models mutually.
• We conduct extensive experiments to verify the effectiveness of our method. Both qualitative and quantitative results demonstrate the superiority of our method compared with other state-of-the-art methods.

2 RelatedWork

2.1 Face Photo-Sketch Synthesis

Exemplar based methods can be categorized into three classes: 1) subspace learning-based approaches [Tang and Wang, 2003; Liu et al., 2005]; 2) sparse representation-based approaches [Liang Chang et al., 2010]; and 3) Bayesian inference-based approaches [Tang and Wang, 2009; Zhou et al., 2012; Zhu et al., 2017b]. Due to paper space limitation, we would not review exemplar based methods in this work. A detailed overview of existing exemplar based methods can be found in [Zhu et al., 2017b]. Blurring effect and time consuming are two drawbacks that perplex exemplar based methods.

Deep neural networks has brought great vitality to this field in recent years. Zhang et al. [2015] proposed an end-toend Fully Convolutional Networks (FCN) to directly model the nonlinear mapping between face photos and sketches. However, limited by shallow layers and intensity based Mean Square Error (MSE) loss, it failed to capture texture details and produced undesirable results. Generative adversarial networks [Goodfellow et al., 2014] has provided a power tool to image generation task. It is known to be adept in generating realistic images with crisp textures. Isola et al. [2017] proposed a general purpose model named "pix2pix" which uses conditional GAN for several image to image translation tasks such as labels to street scenes, edges to photos, day to night, etc. Zhu et al. [2017a] extended this model by introducing a novel cycle consistency loss. Their "CycleGAN" model can train in the absence of paired training data and translate image between two domains. Wang et al. [2018] drew on this model to face photo-sketch synthesis task and proposed to use discriminator on multiple scales. Yu et al. [2018] proposed a Composition-Aided Generative Adversarial Network (CAGAN) for face photo-sketch synthesis by introducing additional facial composition information to conditional GAN. These methods have capacity to generate images with realistic textures. However, undesirable artifacts and mode collapse are often their pain points. Besides, it is known that the desirable performance of deep neural networks depending on large-scale training data. Therefore, lacking of training data (photo-sketch pairs) extremely limit the performance of these methods. To tackle this problem, Chen et al. [2018] proposed a semi-supervised learning framework which can augment paired training samples by synthesizing pseudo sketch features of additional training photos with the help of a small reference set of photo-sketch pairs. This strategy successfully enhances the generalization ability of the model for face photos in the wild and enables the model to generate visual pleasing results. However, sketches generated by this model look over smooth and somewhat different from ground truth sketches which result in the loss of identity information.

2.2 Knowledge Transfer

Knowledge Distillation (KD) [Hinton et al., 2014] is the pioneering work to apply knowledge transfer to deep neural networks. A softened version of the final output of a teacher network is used to transfer information to a small student network. With this strategy, a small network can learn how a large network studied given tasks in a compressed form. Attention Transfer [Zagoruyko and Komodakis, 2017] and Neuron Selectivity Transfer [Huang and Wang, 2017] explored different forms of knowledge based on intermediate feature maps of CNNs to improve the performance. Xu et al. [2018] proposed a GAN-based approach to learn the loss function to transfer knowledge from teacher to student. A more detailed overview of KD can be found in [Xu et al., 2018]. We borrow ideas from this field and design a novel knowledge transfer framework for face photo-sketch synthesis task.

3 Method

In this section, details of the proposed knowledge transfer framework are presented. We first explain our inspirations for the knowledge transfer framework. Then, detailed description of the network architecture is presented. Finally, objective functions of the proposed model are provided.

3.1 Knowledge Transfer Framework

Given paired training face photo-sketch samples {(xi, yi)|xi ∈ X, yi ∈ Y }Ni=1 , our task is to learn a mapping function from X to Y and a mapping function from Y to X. Because paired training face photo-sketch samples are lacking in the task, we are not able to train a large and accurate network. How to train desirable networks with insufficient training data? Our insight is to learn knowledge from large and accurate teacher networks trained for related tasks. Figure 1 illustrate the concept of the proposed knowledge transfer framework. We utilize two teacher models (Teacher-P and Teacher-S) to distill knowledge of face photos and knowledge of face sketches separately and transfer them to two student networks (Stu-PtoS and StuStoP) simultaneously. Stu-PtoS learns the mapping function from photo to sketch under the guidance of Teacher-P and Teacher-S. Similarly, Stu-StoP learns the mapping function from sketch to photo under the guidance of Teacher-S and Teacher-P. In addition, Stu-PtoS and Stu-StoP can transfer and consolidate their knowledge mutually.

3.2 Network Architecture

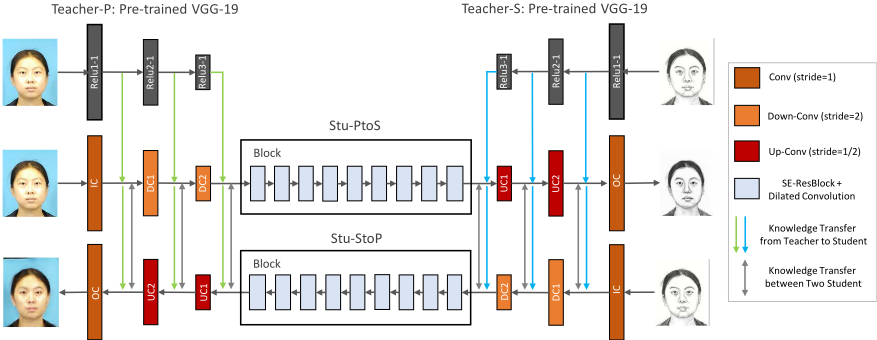

The architecture of the proposed knowledge transfer framework is presented in Figure 2. In this work, we utilize VGG19 [Simonyan and Zisserman, 2014] trained on ImageNet [Deng et al., 2009] for object recognition task as teacher model. Intermediate feature maps distilled from Relu1-1, Relu2-1 and Relu3-1 layers of Teacher-P are used as knowledge of face photo domain. Intermediate feature maps distilled from Relu3-1, Relu2-1 and Relu1-1 layers of TeacherS are used as knowledge of face sketch domain. Stu-PtoS and Stu-StoP have the same structure but the opposite direction. For each student network, we use the downsampling and upsampling structures with nine modified residual blocks between them. The original residual block proposed in [He et al., 2016] has proved good performance for imageto-image translation task in [Zhu et al., 2017a]. Hu et al. [2018] proposed a Squeeze-and-Excitation (SE) block and further combined it with residual block to form SE-ResBlock. This block can adaptively recalibrates channel-wise feature responses by explicitly modelling interdependencies between channels. We use dilated convolution with dilatation rate 2 in SE-ResBlock to expand its reception field. Eventually, the modified residual block has better performance than the original residual block. The configuration of each student network is specified as follows: IC-k7s1n64, DC1-k3s2n128, DC2-k3s2n256, Block, UC1 - k3s 1 2 n128, UC2 - k3s 12 n64, OC - k7s1n3, where k denotes kernel size, s denotes stride, n denotes kernel numbers and Block denotes nine modified residual blocks. Therefore, knowledge distilled from Teacher-P: Relu1-1, Teacher-P: Relu2-1, Teacher-P: Relu3-1, Teacher-S: Relu3-1, Teacher-S: Relu2-1, Teacher-S: Relu1-1 is transferred to Stu-PtoS: IC, Stu-PtoS: DC1, Stu-PtoS: DC2, Stu-PtoS: Block, Stu-PtoS: UC1, Stu-PtoS: UC2 in sequence and transferred to Stu-StoP: UC2, Stu-StoP: UC1, Stu-StoP: Block, Stu-StoP: DC2, Stu-StoP: DC1, Stu-StoP: IC in sequence. Moreover, knowledge distilled from corresponding layers of two student models is transferred mutually.

3.3 Objective

For each paired training face photo-sketch sample {(x, y)|x ∈ X, y ∈ Y }, we denote intermediate feature maps distilled from Teacher-P and Teacher-S as φj (x, y), j ∈ Ξ(Teacher - P : Relu1 - 1, Teacher - P : Relu2 - 1,Teacher - P : Relu3 - 1,Teacher - S : Relu3-1, Teacher-S : Relu2-1, Teacher-S : Relu1-1), denote intermediate feature maps distilled from Stu-PtoS as Gm(x),m ∈ Υ(Stu - PtoS : IC, Stu - PtoS : DC1, Stu - PtoS : DC2, Stu - PtoS : Block, Stu - PtoS : UC1, Stu - PtoS : UC2), denote intermediate feature maps distilled from Stu-StoP as F n (y), n ∈ Γ(Stu - StoP : UC2, Stu - StoP : UC1, Stu - StoP : Block, Stu - StoP : DC2, Stu - StoP : DC1, Stu - StoP : IC), denote the final output of Stu-PtoS as G(x), denote the final output of Stu-StoP as F(y). Our objective contains three terms: teacher-student knowledge transfer loss; student-student knowledge transfer loss; and image reconstruction Loss.

By introducing L2 distance to prevent the intermediate feature maps distilled from teacher model and student model contradicting each other, the teacher-student knowledge transfer loss can be expressed as follows:

where Cj, Hj and Wj indicate channel numbers, height and width of intermediate feature maps of layer j, respectively.

By introducing L2 distance to prevent the intermediate feature maps distilled from two student models contradicting each other, the student-student knowledge transfer loss can be expressed as follows:

where Cm, Hm and Wm indicate channel numbers, height and width of intermediate feature maps of layer m, respectively.

By introducing L2 distance to prevent the final output of each student model and its ground truth contradicting each other, the image reconstruction loss can be expressed as follows:

By combining above losses, we can achieve our full objective:

In the training stage, we alternately train Stu-PtoS and StuStoP for each iteration.

4 Experiments

In this section, we first introduce the experimental settings. To further validate the effectiveness of our method, We conduct ablation studies to verify the effectiveness of various components and compare our results with state-of-the-art methods. Both visual and quantitative comparisons demonstrate the superiority of our method.

4.1 Experimental Settings

We conducted experiments on two public datasets: the CUFS dataset [Tang and Wang, 2009] and the CUFSF dataset [Zhang et al., 2011b]. The CUFS dataset consists of 188 faces from the Chinese University of Hong Kong (CUHK) student database [Tang and Wang, 2003], 123 faces from the AR database [Martinez and Benavente, 1998], and 295 faces from the XM2VTS database [Messer et al., 1999]. There is a photo-sketch pair for each face under normal lighting condition, and with a neutral expression. The CUFSF dataset consists of 1,194 faces from the FERET database [Phillips et al., 2000]. For each face, there is a photo with lighting variation and a sketch with shape exaggeration drawn by an artist. Therefore, this dataset is more challenging than the CUFS dataset. All images are processed by aligning center of the eyes to the fixed position and cropping to the size of 200 × 250. For the CUHK student database, we randomly choose 88 face photo-sketch pairs for training and the rest are used for testing. For the AR database, 80 face photo-sketch pairs are randomly chosen for training and the rest 43 pairs are used for testing. For the XM2VTS database, we randomly choose 100 pairs for training and the rest 195 pairs are used for testing. For the CUFSF dataset, 250 face photo-sketch pairs are chosen for training and the rest are used for testing.

Our model was trained on a NVIDIA Titan X GPU. Adam [Kingma and Ba, 2015] with β1 = 0.5 was used for optimization. The learning rate was set to 0.0002 and the iteration times was set to 200. Weights were initialized from a Gaussian distribution with mean 0 and standard deviation 0.02. We scaled the size of the input images to 256 × 256 and normalized the pixel value to the interval [-1, 1] before putting them into the model. The number of input and output channels was set to 3. We updated Stu-PtoS and Stu-StoP alternatively at every iteration. The batch size was set to 1.

We utilized Feature SIMilarity index (FSIM) [Zhang et al., 2011a] to quantitatively evaluate our model. Structural Similarity Index Metric (SSIM) [Wang et al., 2004] was frequently used to evaluate the performance of exemplar based methods. However, we find that it is not suitable for evaluating deep learning models. One phenomena is that synthesized images which look more blurry tends to have higher SSIM score. This is contrary to human visual perception which biases to sharper images. FSIM captures similarity between low-level features of the synthesized image and the ground-truth image, which has much higher consistency with human visual perception. Therefore, we use FSIM instead of SSIM as criterion to evaluate the performance of deep learning models.

Null-space Linear Discriminant Analysis (NLDA) [Chen et al., 2000] was utilized to evaluate the face recognition accuracy of the synthesized sketches on the CUFSF dataset. We randomly choose 300 synthesized sketches and their corresponding sketches drawn by the artist for classifier training. The rest 644 synthesized sketches are used as the gallery set and their corresponding sketches drawn by the artist are used as query images. We repeated each face recognition experiment 50 times by randomly partition the data.

4.2 Ablation Study

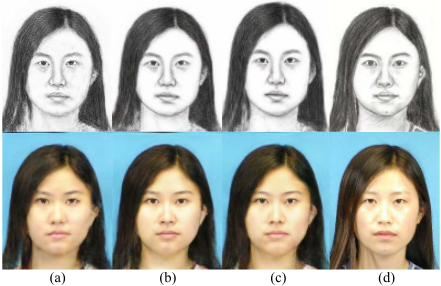

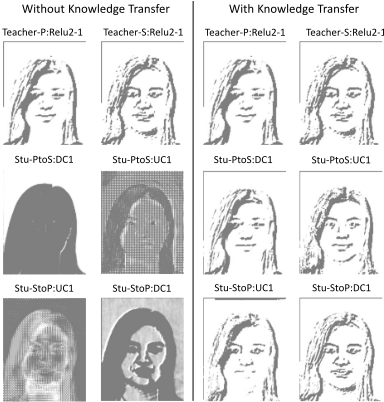

To demonstrate the advantage of knowledge transfer strategy, we compare the results based on the following configurations on the CUHK student database: (a) using only image reconstruction loss; (b) using image reconstruction loss and teacher-student knowledge transfer loss; and (c) using image reconstruction loss, teacher-student knowledge transfer loss and student-student knowledge transfer loss. Figure 3 shows some synthesized photos and sketches based on the above configurations on the CUHK student dataset. It can be observed that the visual quality of the results improves significantly with the help of teacher-student knowledge transfer loss. By adding student-student knowledge transfer loss, the visual quality further improves slightly. Table 1 shows the average FSIM score of the synthesized photos/sketches on the CUHK student database based on different configurations. The evaluation results are consistent with our visual observations. To further validate the effectiveness of the knowledge transfer strategy, we visualize the intermediate feature maps of corresponding layers of all teacher and student models with or without knowledge transfer. As shown in Figure 4, the intermediate feature maps of student models have great difference in appearance with teacher models without knowledge transfer. With the help of knowledge transfer, the intermediate feature maps of corresponding layers of all teacher and student models have consistent appearance. This indicate that the two student models have learnt the knowledge from teachers and from each other.

4.3 Comparison with State-of-the-art Methods

We compare our method with six state-of-the-art methods: DGFL [Zhu et al., 2017b], FCN [Zhang et al., 2015], pix2pix [Isola et al., 2017], CycleGAN [Zhu et al., 2017a], PS2MAN [Wang et al., 2018] and FaceSketchWild [Chen et al., 2018]. Owing to spatial confined, we only compare our method with one exemplar based method DGFL which has shown the best performace and focus on the comparison with deep learning models. All results are obtained from the source codes provided by the authors except the results of FCN. We implement FCN by ourselves and get the results which are consistent with the original work. Because DGFL, FCN and FaceSketchWild methods are designed for face photo → sketch synthesis task, we only use their synthesized face sketches. Other methods have both synthesized face photos and face sketches.

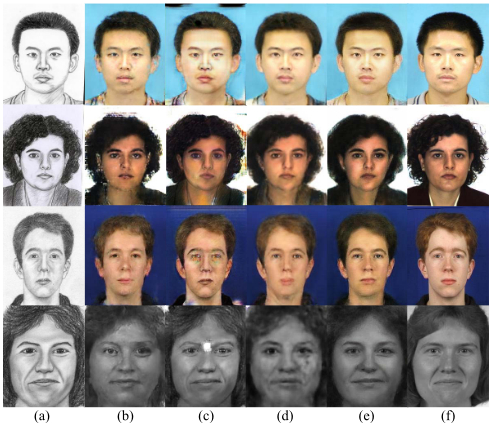

Figure 5 presents some synthesized face photos from different methods on the CUFS dataset and the CUFSF dataset.

The results of pix2pix and CycleGAN have sharp edges but possess obvious artifacts and noise. PS2MAN produces less artifacts but its results are blurry. By comparison, our method can synthesize clear face photos with reasonable texture.

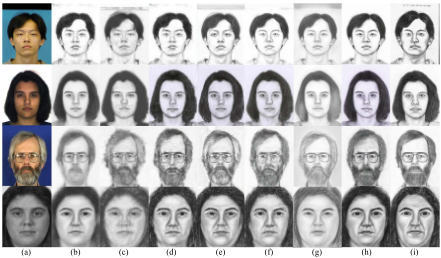

Some synthesized face sketches from different methods on the CUFS dataset and the CUFSF dataset are shown in Figure 6. The results of DGFL and FCN are blurry. GAN based methods (pix2pix, CycleGAN and PS2MAN) can generate sketch-like textures. However, some undesirable noises are produced in eye and nose areas. FaceSketchWild has stronger robustness to the environment noises but tends to generate over smooth results. By comparison, our method can generate the most sketch-like textures while generate the least noises.

Table 2 presents the average FSIM score of the synthesized face photos/sketches on the CUFS dataset and the CUFSF dataset based on different methods. Obviously, our method obtains the best FSIM values.

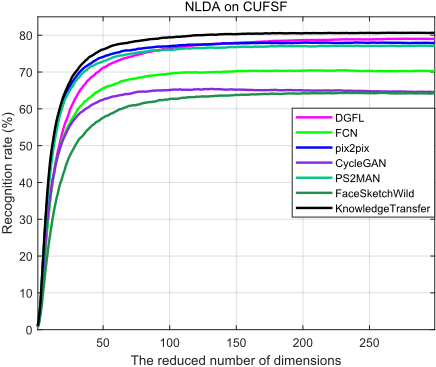

Due to space limitation, we only present the NLDA face recognition accuracies with the variation of the reduced number of dimensions of different methods on the more challenging CUFSF dataset. As shown in Figure 7, the proposed method achieve the best performance.

5 Conclusion

In this paper, we propose a knowledge transfer framework for face photo-sketch synthesis task. By transferring knowledge from a larger and accurate teacher model trained on enough training data for other tasks, we can train a relatively small but desirable student network on limited training data using the proposed framework. In addition, knowledge transfer between two student models can further improve the performance slightly. We compare the proposed model with recent state-of-the-art methods on two public datasets. Both qualitative and quantitative results demonstrate that the proposed method achieves significant improvements. In our future work, we plan to explore more meaningful and suitable knowledge form for the knowledge transfer framework.
