A Degeneracy Framework for Scalable Graph Autoencoders

1 Introduction

Graphs have become ubiquitous in the Machine Learning community, thanks to their ability to efficiently represent the relationships among items in various disciplines. Social networks, biological molecules and communication networks are some of the most famous real-world examples of data usually represented as graphs. Extracting meaningful information from such structure is a challenging task, which has initiated considerable research efforts, aiming at tackling several learning problems such as link prediction, influence maximization and node clustering.

In this paper, we focus on the graph extensions of autoencoders and variational autoencoders. Introduced in the 1980's [Rumelhart et al., 1986], autoencoders (AE) regained a significant popularity in the last decade through neural network frameworks [Baldi, 2012] as efficient tools to learn reduced encoding representations of input data in an unsupervised way. Furthermore, variational autoencoders (VAE) [Kingma and Welling, 2013], described as extensions of AE but actually based on quite different mathematical foundations, also recently emerged as a successful approach for unsupervised learning from complex distributions, assuming the input data is the observed part of a larger joint model involving lowdimensional latent variables, optimized via variational inference approximations. [Tschannen et al., 2018] review the wide recent advances in VAE-based representation learning. In this paper we show that, during the last three years, many efforts have been devoted to the generalization of such models to graphs. Graph AE and VAE appear as elegant node embedding tools i.e. ways to learn a low dimensional vector space representation of nodes, with promising applications to link prediction, node clustering, matrix completion and graph generation. However, most existing models suffer from scalability issues and all existing experiments are limited to graphs with at most a few thousand nodes. The question of how to scale graph AE and VAE to larger graphs remains widely open, and we propose to address it in this paper. More precisely, our contribution is threefold:

In particular, over the last decade there has been an increasing interest in extending and applying Deep Learning methods to graph structures. [Gori et al., 2005; Scarselli et al., 2009] firstly introduced graph neural network architectures, and were later joined by numerous contributions to generalize CNNs and the convolution operation to graphs, leveraging spectral graph theory [Bruna et al., 2014], its approximations [Defferrard et al., 2016; Kipf and Welling, 2016a] or spatial-based approaches [Hamilton et al., 2017]. Attempts at extending RNNs, GANs, attention mechanisms or word2veclike methods for node embeddings also recently emerged in the literature ; for complete references, we refer to [Wu et al., 2019]'s survey on Deep Learning for graphs.

• We introduce a general framework to scale graph AE and VAE models, by optimizing the reconstruction loss (for AE) or variational lower bound (for VAE) only from a dense subset of nodes, and then propagate representations in the entire graph. These nodes are selected using graph degeneracy concepts. Such approach considerably improves scalability while preserving performance.
• We apply this framework to large real-world data and discuss empirical results on ten variants of graph AE or VAE models for two learning tasks. To the best of our knowledge, this is the first application of these models to graphs with up to millions of nodes and edges.
• We show that these scaled models have competitive performances w.r.t. several popular scalable node embedding methods. It emphasizes the relevance of pursuing further research towards scalable graph autoencoders.

This paper is organized as follows. In Section 2, we provide an overview of graph AE/VAE and of their extensions, applications and limits. In Section 3, we present our degeneracy framework and how we reconstruct the latent space from an autoencoder only trained on a subset of nodes. We interpret our experimental analysis and discuss possible extensions of our approach in Section 4, and we conclude in Section 5.

2 Preliminaries

In this section, we recall some key concepts related to graph AE and VAE. Throughout this paper, we consider an undirected graph G = (V, E) with |V| = n nodes and |E| = m edges, without self-loops. We denote by A the adjacency matrix of G, weighted or not. Nodes can possibly have features vectors of size d, stacked up in an n×d matrix X. Otherwise, X is the identity matrix I.

2.1 Graph Autoencoders (GAE)

In the last three years, several attempts at transposing autoencoders to graph structures with [Kipf and Welling, 2016b] or without [Wang et al., 2016] node features have been presented. Their goal is to learn, in an unsupervised way, a low dimensional node embedding/latent vector space (encoding), from which reconstructing the graph topology (decoding) is possible. In its most general form, the n× f matrix Z of all latent space vectors zi, where f is the dimension of the latent space, is the output of a Graph Neural Network (GNN) applied on A and, potentially, X. To reconstruct A from Z, one could resort to another GNN. However, [Kipf and Welling, 2016b] and several extensions of their model implement a simpler inner product decoder between latent variables, along with a sigmoid activation σ(·) or, if A is weighted, some more complex thresholding. The drawback of this simple decoding is that it involves the multiplication of the two dense matrices Z and Z T , which has a quadratic complexity O(fn2 ) w.r.t. the number of nodes. To sum up, with ˆ A the reconstruction:

The model is trained by minimizing the reconstruction loss ‖A - ˆ A‖F of the graph structure where ‖ · ‖F denotes the Frobenius matrix norm, or alternatively a weighted cross entropy loss, by stochastic gradient descent.

2.2 Graph Convolutional Networks (GCN)

[Kipf and Welling, 2016b], and a majority of following works, assume that the GNN encoder is a Graph Convolutional Network (GCN). Introduced by [Kipf and Welling, 2016a], GCNs leverage both 1) the features information X, and 2) the graph structure summarized in A. In a GCN with L layers, with H(0) = X and H(L) = Z, each layer returns:

i.e. it averages the feature vectors fromH(l) of the neighbors of a given node (and itself, thus the I), with a ReLU activation ReLU(x) = max(x, 0). D denotes the diagonal degree matrix of A + I, so D-1/2 (A + I)D-1/2 is its symmetric normalization. ReLU is absent from output layer. Weights matrices W (l) , of potentially different dimensions, are trained by stochastic gradient descent. Implementing GCN encoders is mainly driven by complexity purposes. Indeed, the cost of computing each hidden layer is linear w.r.t. m [Kipf and Welling, 2016a], and its training efficiency can also be improved via importance sampling [Chen et al., 2018]. However recent works, e.g. [Xu et al., 2019], highlight some fundamental limits of the simple GCN heuristics. It incites to resort to more powerful albeit more complex GNN encoders, such as [Bruna et al., 2014] computing actual spectral graph convolutions, a model later extended by [Defferrard et al., 2016], approximating smooth filters in the spectral domain with Chebyshev polynomials (GCN being a faster first-order approximation of [Defferrard et al., 2016]). In this paper, we show that our scalable degeneracy framework adequately facilitates the training of such more complex encoders.

2.3 Variational Graph Autoencoders (VGAE)

[Kipf and Welling, 2016b] also introduced Variational Graph Autoencoders (VGAE). They assume a probabilistic model on the graph structure involving some latent variables zi of length f for each node i ∈ V, later interpreted as latent representations of nodes in an embedding space of dimension f. More precisely, with Z the n × f latent variables matrix, the inference model (encoder) is defined as q(Z|X,A) = ∏ni=1 q(zi|X,A) where q(zi|X,A) = N(zi|µi, diag(σ2 i )). Parameters of Gaussian distributions are learned using two two-layer GCN. Therefore, µ, the matrix of mean vectors µi, is defined as µ = GCNµ(X,A). Also, logσ = GCNσ(X, A), and both GCNs share the same weights in first layer. Then, as for GAE, a generative model (decoder) aiming at reconstructing A is defined as the inner product between latent variables: p(A|Z) = ∏ni=1 ∏nj=1 p(Aij|zi, zj) where p(Aij = 1|zi, zj) = σ(zT i zj) and σ(·) is the sigmoid function. As explained for GAE, such reconstruction has a limiting quadratic complexity w.r.t. n. [Kipf and Welling, 2016b] optimize weights of GCN by maximizing a tractable variational lower bound (ELBO) of the model's likelihood:

where DKL(·, ·) is the Kullback-Leibler divergence. They perform full-batch gradient descent, using the reparameterization trick [Kingma and Welling, 2013], and choosing a Gaussian prior p(Z) = ∏i p(zi) = ∏i N(zi|0, I).

2.4 Applications, Extensions and Limits

GAE and VGAE have been successfully applied for various graph learning tasks, such as link prediction [Kipf and Welling, 2016b], clustering [Wang et al., 2017] and matrix completion for recommendation [Berg et al., 2018]. Extensions of these models also recently tackled multi-task learning problems [Tran, 2018], added adversarial training schemes enforcing the latent representation to match the prior [Pan et al., 2018] or proposed RNN graph autoencoders to learn graph-level embeddings [Taheri et al., 2018].

We also note the existence of several applications of graph VAE to biochemical data and small molecular graphs [Ma et al., 2018]. Most of them put the emphasis on plausible graph generation using the decoder. Among these works, [Simonovsky and Komodakis, 2018] introduced a model able to reconstruct both 1) the topological graph information, 2) node-level features, and 3) edge-level features. However, it involves a graph matching step in O(n4 ) complexity that, while being acceptable for molecules with tens of nodes, prevents the model to scale.

Overall, all existing experiments are restricted to small or medium-size graphs with up to a few thousand nodes and edges. Most models suffer from scalability issues, either by training complex GNN models or by using dense inner product decoding in O(fn2 ) complexity as in [Kipf and Welling, 2016b]. This problem has already been raised and partially addressed but without applications to large graphs. For instance, [Grover et al., 2018] proposed Graphite that replaces the standard decoder by more scalable reverse message passing schemes, but only report results on [Kipf and Welling, 2016b]'s medium-size graphs (3K to 20K nodes). To sum up, graph AE and VAE showed very promising results on various tasks for small and medium-size datasets, but the question of their extension to very large graphs remains widely open.

3 Scaling up Graph AE/VAE with Degeneracy

In this section, we introduce a flexible framework, aiming at scaling existing graph autoencoders (variational or not) to large graphs. Here, we assume that nodes are featureless, i.e. that models only learn from the graph structure. Node features will be re-introduced in section 4.

3.1 Overview of the Framework

To deal with large graphs, the key idea of our framework is to optimize the reconstruction loss (for AE) or the variational lower bound (for VAE) only from a wisely selected subset of nodes, instead of using the entire graph G which would be intractable. More precisely, we proceed as follows:

1. Firstly, we identify the nodes on which the AE/VAE model should be trained, by computing a k-core decomposition of the graph. The selected subgraph is the socalled k-degenerate version of the original one. We justify this choice in section 3.2 and explain how we choose the value of k.
2. Then, we train a graph autoencoder (GAE, VGAE or any variant) on this k-degenerate subgraph. Hence, we only derive latent representation vectors (embeddings) for the nodes included in this subgraph.
3. Regarding the nodes of G that are not in this subgraph, we infer their latent representations using a simple and fast propagation heuristic, presented in section 3.3.

In a nutshell, training the autoencoder (step 2) still has a potentially high complexity, but now the input graph is much smaller, making the training tractable. Moreover, we will show that steps 1 and 3 have linear running times w.r.t. m. Therefore, our strategy significantly improves speed and scalability and, as we later experimentally verify, is able to effectively process large graphs with millions of nodes and edges.

Algorithm 1 k-core Decomposition

Input: Graph G = (V, E) Output: Set of k-cores C = {C0, C1, ..., Cδ∗ (G)} 1: Initialize C = {V} and k =minv∈V d(v) 2: for i = 1 to n do 3: v = node with smallest degree in G 4: if d(v) > k then 5: Append V to C 6: k = d(v) 7: end if 8: V = V \ {v} and remove edges linked to v 9: end for

3.2 Graph Degeneracy

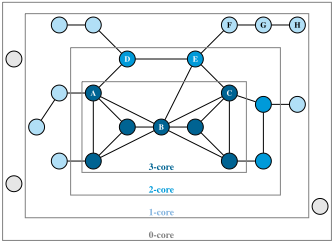

In this subsection, we detail the first step of our framework, i.e. the identification of a representative subgraph on which the autoencoder should be trained. Our method resorts to the k-core decomposition, a powerful tool to analyze the structure of a graph. Formally, the k-core, or k-degenerate version of graph G, is the largest subgraph of G for which every node has a degree of at least k within the sub-graph. Therefore, in a k-core, each node is connected to at least k nodes, that are themselves connected to at least k nodes. Moreover, the degeneracy δ∗ (G) of a graph is the maximum k for which the kcore is not empty. Nodes from each core k, denoted Ck ∈ V, form a nested chain i.e. Cδ∗ (G) ⊆ Cδ∗ (G)-1 ⊆ ... ⊆ C0 = V. Figure 1 illustrates an example of core decomposition.

In step 2, we therefore train an autoencoder, either only on the δ∗ (G)-degenerate version of G, or on a larger kdegenerate subgraph, i.e. for a k < δ∗ (G). Our justification for this strategy is twofold. The first reason is computational: the k-core decomposition can be computed in a linear running time for an undirected graph [Batagelj and Zaversnik, 2003]. More precisely, to construct a k-core, the strategy is to recursively remove all nodes with degree lower than k and their edges from G until no node can be removed, as described in Algorithm 1. It involves sorting nodes by degrees, in O(n) time using a variant of bin-sort, and going through all nodes and edges once (see [Batagelj and Zaversnik, 2003] for details). Time complexity is O(max(m, n)) with max(m, n) = m in most real-world graphs, and same space complexity with sparse matrices. Our second reason to rely on k-degenerate graphs is that, despite being simple, they have been proven to be very useful tools to extract representative subgraphs over the past years, including for node clustering [Giatsidis et al., 2014], keyword extraction in graph-ofwords [Tixier et al., 2016] and graph similarity via core-based kernels [Nikolentzos et al., 2018]. We refer to [Malliaros et al., 2019] for an exhaustive overview of the history, theory, extensions and applications of core decomposition.

On the Selection of k. To select k, one must face an inherent performance/speed trade-off, as illustrated in section 4. Besides, on large graphs, training AE/VAE is usually impossible on lowest cores due to overly large memory requirements. In our experiments, we adopt a simple strategy when dealing with large graphs, and train models on the lowest computationally tractable cores, i.e. on largest possible subgraphs. In practice, these subgraphs are significantly smaller than the original ones (at least 95% of nodes are removed). Moreover, when running experiments on medium-size graphs where all cores are tractable, we plainly avoid choosing k < 2 (since V = C0 = C1, or C0 ≈ C1, in all our graphs). Setting k = 2, i.e. removing leaves from the graph, empirically appears as a good option, preserving performances w.r.t. models trained on G while significantly reducing running times by pruning up to 50% of nodes in our graphs.

3.3 Propagation of Latent Representations

From steps 1 and 2, we computed latent representation vectors zi of dimension f for each node i of the k-core. Step 3 is the inference of such representation for the remaining nodes of G in a scalable way. Nodes are assumed featureless so the only information we leverage comes from the graph structure. Our strategy starts by assigning representations to nodes directly connected to the k-core. We average the values of their embedded neighbors and of the nodes being embedded at the same step of the process. For instance, in the graph of Figure 1, to compute zD and zE we would solve the system zD = 1 2 (zA+zE) and zE = 13 (zB +zC +zD) (or a weighted mean, if edges are weighted). Then, we repeat this process on the neighbors of these newly embedded nodes, and so on until no new node is reachable. Taking into account the fact that nodes D and E are themselves connected is important. Indeed, node A from the maximal core is also a second-order neighbor of E; exploiting such proximity when computing zE empirically improves performance, as it also strongly impacts all the following nodes whose latent vectors will then be derived from zE (in Figure 1, nodes F, G and H).

More generally, let V1 denote the set of nodes whose latent vectors are computed, V2 the set of nodes connected to V1 and without latent vectors, A1 the |V1| × |V2| adjacency matrix linking V1 and V2's nodes, and A2 the |V2| × |V2| adjacency matrix of V2's nodes. We normalize A1 and A2 by the total degree in V1 ∪ V2, i.e. we divide rows by row sums of the (AT1 |A2) matrix row-concatenating AT1 and A2. We denote by ˜ A1 and ˜ A2 these normalized versions. We already learned the |V1| × f latent representations matrix Z1 for nodes in V1. To implement our strategy, we want to derive a |V2| × f representation matrix Z2 for nodes in V2, verifying Z2 = ˜ A1Z1 + ˜ A2Z2. The solution of this system is Z ∗ = (I - ˜ A2)-1 ˜ A1Z1, which exists since (I - ˜ A2)

Algorithm 2 Propagation of Latent Representations

Input: Graph G, list of embedded nodes V1, |V1| × f latent matrix Z1 (already learned), number of iterations t Output: Latent representations of each node in G

• 1: V2 = set of not-embedded nodes reachable from V1
• 2: while |V2| > 0 do
• 3: A1 = |V1| × |V2| adj. matrix linking V1 and V2 nodes
• 4: A2 = |V2| × |V2| adj. matrix of V2 nodes
• 5: ˜ A1, ˜ A2 = normalized A1, A2 by row sum of (AT1 |A2)
• 6: Randomly initialize |V2| × f matrix Z2 (rows of Z2 will be latent representation vectors of V2's nodes)
• 7: for i = 1 to t do
• 8: Z2 = ˜ A1Z1 + ˜ A2Z2
• 9: end for
• 10: V1 = V2
• 11: V2 = set of not-embedded nodes reachable from V1
• 12: end while
• 13: Assign random vectors to remaining unreachable nodes

is strictly diagonally dominant are therefore invertible from Levy-Desplanques theorem. Unfortunately, the exact computation of Z ∗ has a cubic complexity. We approximate it by randomly initializing Z2 with values in [-1, 1] and iterating Z2 = ˜ A1Z1+ ˜ A2Z2 until convergence to a fixed point, which is guaranteed to happen exponentially fast as stated below.

Theorem 1. Let Z (t) the |V2| × f matrix obtained from iterating Z (t) = ˜ A1Z1 + ˜ A2Z (t-1) t times starting from Z (0) . Let ‖ · ‖F the Frobenius norm. Then, exponentially fast,

Proof. We have Z (t) -Z ∗ = [ ˜ A1Z1+ ˜ A2Z (t-1) ]-[ ˜ A2Z ∗ + (I - ˜ A2)Z ∗ ] = ˜ A1Z1 + ˜ A2Z (t-1) - ˜ A2Z ∗ - (I - ˜ A2)(I - ˜ A2)-1 ˜ A1Z1 = ˜ A2(Z (t-1)-Z ∗ ). So, Z (t)-Z ∗ = ˜ At2 (Z (0)- Z ∗ ). Then, as a consequence of Cauchy-Schwarz inequality: ‖Z (t) -Z ∗ ‖F = ‖ ˜ At2 (Z (0) -Z ∗ )‖F ≤ ‖ ˜ At2 ‖F ‖Z (0) -Z ∗ ‖F . Futhermore, ˜ At2 = PDtP -1 , with ˜ A2 = PDP -1 the eigendecomposition of symmetric matrix ˜ A2. For diagonal matrix Dt we have ‖Dt ‖F = √∑|V2| i=1 |λti |2 ≤ √|V2|(maxi |λi|)t with λi the i-th eigenvalue of ˜ A2. Since ˜ A2 has nonnegative entries, we derive from Perron-Frobenius theorem (see [Lov´asz, 2007]) that a) maximum absolute value among all eigenvalues of ˜ A2 is reached by a nonnegative real eigenvalue, and b) that maxi λi is bounded above by the maximum degree in ˜ A2's graph. By definition, each node in V2 has at least one connection to V1 ; moreover rows of ˜ A2 are normalized by row sums of (AT1 |A2), so the maximum degree in ˜ A2's graph is strictly lower than 1. We conclude with a) and b) that 0 ≤ |λi| < 1 for all i ∈ {1, ..., |V2|}, so 0 ≤ maxi |λi| < 1. This result implies that ‖Dt ‖F →t 0 exponentially fast, and so does ‖ ˜ At2 ‖F ≤ ‖P‖F‖Dt ‖F‖P -1 ‖F , then ‖Z (t) - Z ∗ ‖F .

Our propagation process is summarized in Algorithm 2. If some nodes are unreachable by such process because G is not connected, then we eventually assign them random latent vectors. Using sparse representations for ˜ A1 and ˜ A2, memory requirement is O(m+ nf), and the computational complexity of each evaluation of line 7 also increases linearly w.r.t. the number of edges m in the graph. Moreover, in practice t is small: we set t = 10 in our experiments (we illustrate the impact of t in Annex 2). The number of iterations in the while loop of line 2 corresponds to the size of the longest shortest-path connecting a node to the k-core, a number bounded above by the diameter of the graph which increases at a O(log(n)) speed in most real-world graphs [Chakrabarti and Faloutsos, 2006]. In next section, we empirically check our claim that both steps 1 and 3 run linearly and therefore scale to large graphs with millions of nodes.

4 Empirical Analysis

In this section, we empirically evaluate our framework. Although all main results are presented here, we report additional and more complete tables in supplementary material 1 .

4.1 Experimental Setting

Datasets. We provide experiments on the three mediumsize graphs used in [Kipf and Welling, 2016b]: Cora (n = 2, 708 and m = 5, 429), Citeseer (n = 3, 327 and m = 4, 732) and Pubmed (n = 19, 717 and m = 44, 338), and on two large graphs from Stanford's SNAP project: the Google web graph (n = 875, 713 and m = 4, 322, 051) and the US Patent citation networks (n = 2, 745, 762 and m = 13, 965, 410). Details, statistics and full k-core decompositions of these graphs are reported in Annex 1. Cora, Citeseer and Pubmed's nodes have bag-of-words features. Graphs are unweighted and we ignore edges' potential directions.

Tasks. We consider two learning tasks. The first one, as in [Kipf and Welling, 2016b], is a link prediction task. We train models on incomplete versions of graphs where some edges were randomly removed. We create validation and test sets from removed edges and from the same number of randomly sampled pairs of unconnected nodes, and check the model's ability to classify edges (i.e. the true Aij = 1) from nonedges (Aij = 0) via the reconstructed value ˆ Aij = σ(zT i zj). Validation and test sets gather 5% and 10% of edges (respectively 2% and 3%), for medium-size (resp. large-size) graphs. The incomplete train adjacency matrix is used when running Algorithm 2. Validation set is only used for model tuning. We compare performances using Area Under the Receiver Operating Characteristic (ROC) Curve (AUC) and Average Precision (AP) scores. The second task is node clustering from latent representations zi. More precisely, we run k-means in embedding spaces, compare clusters to ground-truth communities and report normalized Mutual Information (MI) scores.

1 Supplementary material in: https://arxiv.org/abs/1902.08813

Models. We apply our degeneracy framework to ten graph autoencoders: the seminal two-layer GAE and VGAE models [Kipf and Welling, 2016b], two deeper variants of GAE/VGAE with two GCN hidden layers, Graphite and Variational Graphite [Grover et al., 2018], [Pan et al., 2018]'s adversarially regularized models (denoted ARGA and ARVGA), ChebAE and ChebVAE i.e. two variants of GAE/VGAE with ChebNets [Defferrard et al., 2016] of order 3 instead of GCN. We omit models designed for small molecular data. All models are trained on 200 epochs to return 16-dim embeddings (32-dim for Patent) to reproduce [Kipf and Welling, 2016b]'s results. We also compare to DeepWalk [Perozzi et al., 2014], LINE [Tang et al., 2015] and node2vec [Grover and Leskovec, 2016] node embeddings. We focus on these methods because they directly claim scalability. For each model, hyperparameters were tuned on AUC scores using validation set (see Annex 2 for details). We also implemented a spectral decomposition baseline (embedding axis are first eigenvectors of G's Laplacian matrix) and, for node clustering, Louvain's method [Blondel et al., 2008]. We used Python and especially the Tensorflow library, training models on a NVIDIA GTX 1080 GPU and running other operations on a double Intel Xeon Gold 6134 CPU.

4.2 Results

Medium-SizeGraphs. For Cora, Citeseer and Pubmed, we apply our framework to all possible subgraphs from 2-core to δ∗ (G)-core and on entire graphs, which is still tractable. Table 1 reports mean AUC and AP and their standard errors on 100

runs (train incomplete graphs and masked edges are different for each run) along with mean running times, for link prediction task with VGAE on Pubmed. Sizes of k-cores vary over runs due to the edge masking process in link prediction; this phenomenon does not occur for node clustering task. Overall, our framework significantly improves running times w.r.t. training VGAE on G. Running time decreases when k increases (up to ×247.57 speed gain in Table 1), which was expected since the k-core is smaller. We observe this improvement on all other datasets, on both tasks, and for GAE and all GAE/VGAE variants (see Annex 2 and 3). Also, for low cores, especially for the 2-core subgraphs, performances are consistently competitive w.r.t. models trained on entire graphs, and sometimes better both for link prediction (e.g. +0.95 point in AUC for 2-core in Table 1) and node clustering. It highlights the relevance of our propagation process, and the fact that training models on smaller graphs is easier. Choosing higher cores leads to even faster training, at the price of decreasing performance scores.

Large Graphs. Table 2 details link prediction results on Google from 17-core and for all autoencoders variants. Also, in Table 3 we display node clustering results on Patent, whose ground-truth clusters are six roughly balanced patent categories, reporting performances from all autoencoders variants trained on 15-core. Core numbers were selected according to section 3's tractability criterion. Scores are averaged over 10 runs. Overall, we reach similar conclusions w.r.t. mediumsize graphs, both in terms of good performance and of scalability. However, comparison with full models on G, i.e. without using our framework, is impossible on these graphs due due to overly large memory requirements. We therefore compare performances on several computationally tractable cores (see Annex 2 and 3 for complete tables), illustrating once again the inherent performance/speed trade-off when choosing k and validating previous insights.

Graph AE/VAE Variants. For both tasks, we note that adversarial training from ARGA/ARGVA and Graphite's decoding tend to slightly improve predictions, as well as ChebNet-based models that often stand out in terms of AUC, AP and MI (e.g. a top 95.24 AUC for ChebGAE in Table 2). It indicates the relevance of replacing GCN by more complex encoders, which is facilitated by our framework.

Baselines. Our core variants are competitive w.r.t. baselines. They are significantly faster on large graphs while achieving comparable or outperforming performances in most experiments, which emphasizes the interest of scaling graph AE and VAE. Futhermore, we specify that 64 dimensions were needed to reach stable performing results on baselines, against 16 for autoencoders. This suggests that graph autoencoders are more suitable to encode information in low dimensional embeddings. On the other hand, baselines, notably Louvain and node2vec, are better to cluster nodes in Cora and Pubmed (+10 points in MI for Louvain on Cora) which questions the global ability of existing graph AE/VAE to identify clusters in a robust way.

Extensions and Openings. Based on this last finding, future works on graph VAE will investigate alternative prior distributions designed to detect communities in graphs. Moreover, while this paper mainly considered featureless nodes, we note that our method easily extends to attributed graphs, since we can add node features from the k-core subgraph as input of GAE/VGAE models. In this direction, we also report experiments on GAE and VGAE with node features (when available) for both tasks in supplementary materials, significantly improving scores (e.g. from 85.24 to 88.10 AUC for 2-core GAE on Cora). However, node features are not included in step 3's propagation : future works will study more efficient features integrations. Last, we also aim at obtaining theoretical guarantees on k-core approximations, and at extending existing approaches to directed graphs.

5 Conclusion

We introduced a degeneracy-based framework to easily scale graph (variational) autoencoders, and provided experimental evidences of its ability to effectively process large graphs. Our work confirms the representational power of these models, and identifies several directions that, in future research, should lead towards their improvement.
