Multi-scale Information Diffusion Prediction with Reinforced Recurrent Networks

1 Introduction

The prediction of information diffusion, also known as cascade prediction, has been studied over a wide range of applications, such as product adoption [Leskovec et al., 2007; Watts and Dodds, 2007; Aral and Walker, 2012], epidemiology [Wallinga and Teunis, 2004], social networks [Lappas et al., 2010; Dow et al., 2013] and the spread of news and opinions [Liben-Nowell and Kleinberg, 2008; Leskovec et al., 2009]. Recent works [Li et al., 2017; Cao et al., 2017; Islam et al., 2018; Wang et al., 2018b] on diffusion prediction took advantage of the success of deep learning techniques by modeling information diffusion as sequential data based on recurrent neural networks (RNNs) and achieved promising performances. Existing works [Wang et al., 2017a; Wang et al., 2018b] also explored the social graph information which is available when information diffusion spreads through a social network service for diffusion prediction.

∗This work was partially done during the first author's visit to MILA. Correspondence to: Cheng Yang <albertyang33@gmail.com>, Jian Tang <jian.tang@hec.ca>.

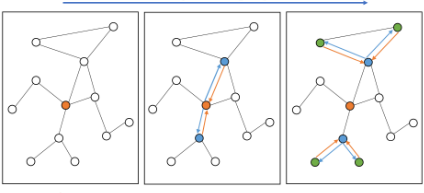

However, as shown in Fig. 1, previous works focused on either microscopic diffusion prediction which aims at guessing the next infected user or macroscopic diffusion prediction which estimates the total numbers of infected users during the diffusion process. To the best of our knowledge, no previous works have suggested a unified model for both microscopic and macroscopic scales. A unified model can utilize more information in the training data especially for macroscopic diffusion prediction, e.g. previous works [Li et al., 2017; Cao et al., 2017] considered cascade size prediction as a regression problem and discarded the information of detailed infected users and the ordering of their infections.

Also, the handling of social graph information in existing works [Wang et al., 2017a; Wang et al., 2018b] could be suboptimal. [Wang et al., 2017a] only explored user pairs connected by direct social links and [Wang et al., 2018b] computed the similarities of all users and suffered from high time and space complexity which is square to the number of users.

In this paper, we propose a novel multi-scale diffusion prediction model by endowing a microscopic cascade model the ability to predict macroscopic cascade properties, i.e. the final size of a cascade, by a reinforcement learning (RL) framework. We further employ an efficient and effective structure context extraction method which was initially proposed for semi-supervised graph classification [Hamilton et al., 2017] to utilize the social graph information. Experimental results show that our proposed model achieves 10% and 12% relatively improvement against state-of-the-art baseline methods on microscopic and macroscopic diffusion predictions, respectively.

To sum up, the contributions of this work are 3-fold:

1. We innovatively propose the problem of multi-scale diffusion prediction by jointly considering the microscopic and macroscopic diffusion prediction tasks.
2. We propose a novel reinforcement learning framework to enable a microscopic cascade model for macroscopic diffusion predictions. We also employ a novel structural context extraction algorithm to further take advantage of underlying social graph information.
3. Experimental results show that our proposed model outperforms state-of-the-art baseline methods on both microscopic and macroscopic diffusion predictions on three realworld datasets.

2 RelatedWorks

Our work is related to microscopic and macroscopic diffusion prediction algorithms based on deep learning techniques. We further group them into embedding-based and RNN-based methods according to their models. We summarize related work in Table ??. "History" and "Graph" indicate whether a method uses the ordering or social graph of infected users. "Micro" and "Macro" are short for microscopic and macroscopic tasks.

2.1 Embedding-basedMethods

Embedding-based methods target on microscopic level predictions by extending IC-model [Kempe et al., 2003] which assumed an independent diffusion probability for every user pair. [Bourigault et al., 2014; Gao et al., 2017] projected users into real-valued user embeddings and simplified the IC model by assuming that infected users are determined only by the source user. Embedded IC [Bourigault et al., 2016] modeled the diffusion probability between two users by a function of their user embeddings instead of assigning a real number to each user pair. Inf2vec [Feng et al., 2018] further considered global user similarity context as an extension. However, embedding-based methods failed to model the infection history, e.g. the ordering of infected users, for next infected user prediction and have been shown to be suboptimal choices in the experiments of recent RNNbased approaches [Wang et al., 2017a; Wang et al., 2018b; Yang et al., 2018].

2.2 RNN-basedMethods

For macroscopic cascade models, DeepCas [Li et al., 2017] sampled sequences from social graph and observed cascades, and then employed RNN to encode the sequences and predict the eventual size of a cascade. DeepHawkes [Cao et al., 2017] explored Hawkes self-exciting point process based on RNN architecture to utilize the infection timestamp information instead of social graph.

For microscopic cascade models, TopoLSTM [Wang et al., 2017a] extended the standard LSTM model by structuring the hidden states as a directed acyclic graph extracted from the social graph. CYAN-RNN [Wang et al., 2017b], DAN [Wang et al., 2018a] and DeepDiffuse [Islam et al., 2018] all employed RNN and attention model to utilize the infection timestamp information. NDM [Yang et al., 2018] built a microscopic cascade model based on self-attention and convolution neural networks motivated by two heuristic assumptions. SNIDSA [Wang et al., 2018b] computed pairwise similarities of all user pairs and incorporated the structural information into RNN by a gating mechanism. However, to the best of our knowledge, no previous works have suggested a unified model for both microscopic and macroscopic scales.

3 Method

In this section, we will first formalize the diffusion prediction problem on both microscopic and macroscopic scales. Then we will propose a novel structural context extraction algorithm which was originally introduced for semi-supervised graph classification [Hamilton et al., 2017] to build an RNNbased microscopic cascade model. We further incorporate the ability of macroscopic prediction, i.e. estimating the eventual size of a cascade, into the model by reinforcement learning. Finally, we will present the overall algorithm and implementation details.

3.1 ProblemFormalization

Given user set V , cascade set C, each cascade ci ∈ C is a sequence of users {vi1 , vi2 . . . , vi |ci| } ranked by their infection timestamps where |ci| is the size of cascade ci, i.e. the number of users infected by the corresponding item. In this paper, we only keep the ordering of users and ignore the exact timestamps as previous works did [Wang et al., 2017a; Wang et al., 2018b; Yang et al., 2018] and leave the modeling of timestamps as future works. Also, an underlying social graph G = (V,E) among users will be available when information diffusion occurs on a social network service. The social graph G will be considered as additional structural inputs for diffusion prediction.

In this work, we target on both microscopic and macroscopic diffusion predictions which focus on fine-grained short-term modeling and coarse-grained long-term estimation, respectively. We formalize the problems as below.

Microscopic Diffusion Prediction aims at predicting the next infected user vik+1 given previously infected users

Macroscopic Diffusion Prediction aims at predicting the eventual size |ci| of cascade ci, i.e. the total number of infected users, given the first K infected users {vi1 , vi2 . . . , viK }.

3.2 Microscopic Cascade Modeling

In this subsection, we will first present the Gated Recurrent Unit (GRU), a variant of RNNs, as the basis of microscopic cascade modeling. Then we introduce the structural context extraction algorithm to utilize the social graph information. Afterward, we show how to combine these features for microscopic diffusion prediction.

Recurrent Networks

RNNs have shown their effectiveness in sequential data modeling in many areas, such as natural language processing [Mikolov et al., 2010]. Previous works [Wang et al., 2017a; Wang et al., 2018b; Islam et al., 2018] also explored RNNs for cascade modeling and achieved promising results. Specifically, we employ Gated Recurrent Unit (GRU) as the basis of our model. Given the cascade sequence {v1, v2 . . . , vk}, GRU takes user vt as input and computes a hidden state ht at each step t = 1, 2 . . . , k. We use Eq. 1 to denote the computation process of t-th step hidden state ht.

where xvt ∈ Rd is the d-dimensional embedding of user vt.

The hidden state hk ∈ Rd encodes the history information of all previously infected users {v1, v2 . . . , vk} in the cascade. Now we go on to encode the structural information to take advantage of the underlying social graph.

Structural Context Extraction

For each user v, we assume f (0) v as its user features which can be obtained from user profiles or pretrained node embeddings. Our goal is to incorporate the structural information into the feature vector f (0) v . Inspired by the recent success in semi-supervised graph learning [Kipf and Welling, 2017; Hamilton et al., 2017], we employ an efficient structural context extraction algorithm based on neighborhood sampling for the purpose.

Formally, we first sample Z users {u1, u2 . . . , uZ} from v and its neighbors N(v). Then we update the feature vector f (0) v by aggregating the neighborhood features by Eq. 2.

where uk is uniformly sampled from user set {v} ∪N(v) for k = 1, 2 . . . Z, W, b are weight matrix and bias vector, and activation function relu(·) = max(·, 0).

The updated user feature vector f (1) v encodes structural information by aggregating features from v's first-order neighbors. As shown in Fig. 2, Eq. 2 can also be processed recursively to explore a larger neighborhood of user v. Empirically, a two-step neighborhood exploration is time-efficient and enough to give promising results. We will use fv to denote the final user features for simplification.

Though initially proposed for semi-supervised graph classification, we find the algorithm suitable for our problem.

Compared with previous works [Wang et al., 2018b] which takes O(|V |2 ) space and time complexity for structural context extraction, the neighborhood sampling and aggregation strategy only take O(|V |) time and constant space complexity. Also, the algorithm can explore the two-step neighborhood besides directly connected neighbors.

Microscopic Diffusion Prediction

Now we go back to the next infected user prediction problem by combining the GRU and structural context. Given previously infected users {vi1 , vi2 . . . , vik } in cascade ci, the k-step hidden state hik of GRU encodes the sequential history and user feature vectors fvi1 , fvi2 , . . . fvik encode the underlying social graph information.

Intuitively, the structural context of recent infected users should contribute to the next infected user prediction because the diffusion may spread through the social links. Since we ignore the exact timestamps, we define "recent infected users" as the last m users {vik-m+1 , vik-m+2 . . . , vik } where m is a hyper-parameter controlling this window size. We further employ mean pooling 1 to aggregate the feature vectors as sik = mean(fvik-m+1 , fvik-m+2 , . . . fvik ).

Finally, the probability of the next infected user is computed as

where pik ∈ R|V | is the multinomial probability distribution over all users, concat(·, ·) is the concatenation operation and Wp, bp are weight matrix and bias vector, respectively.

The training objective of microscopic diffusion prediction is to maximize the log-likelihood of all cascades

where p[j] indicates the j-th dimension of vector p and Θ denotes all parameters in the microscopic cascade model.

1 We also investigate other aggregation strategies such as attention mechanism or concatenation. We find that other options will lead to model overfitting and suboptimal performances.

3.3 Macroscopic Cascade Modeling

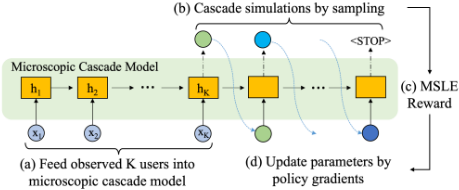

The key of this work lies in how to endow a microscopic cascade model the ability to predict macroscopic cascade properties, i.e. the size of a cascade. We divide our method into four steps: (a) encode observed K users by a microscopic cascade model; (b) enable the microscopic cascade model to predict the size of a cascade by cascade simulations; (c) use MeanSquare Log-Transformed Error (MSLE) as the supervision signal for macroscopic predictions; and (d) employ a reinforcement learning framework to update parameters through policy gradient algorithm. The overall workflow is illustrated in Fig. 3.

Encoding Observed Users

We feed observed K users of ci into the microscopic cascade model and get the last hidden state hiK as shown in step (a) of Fig. 3. Also, we explicitly encode the positional information which makes the model aware of how many users have been inputted into GRU at each step. In specific, we assign a positional embedding POSt ∈ Rdpos for each step t = 1, 2 . . .maxlen where maxlen is the maximum length of cascades. At the t-th step of GRU in Eq. 1, we concatenate the user embedding xvt and positional embedding POSt as the input vector instead.

Cascade Simulation for Macroscopic Prediction

To adopt the microscopic cascade model for cascade size prediction in step (b), we firstly append a virtual user <STOP> to the end of every cascade and ask the model to predict it as well. To estimate the size of a cascade given the first K infected users, we recursively sample a user according to the predicted probability distribution in Eq. 3, take it as the next input and make further predictions. Once the <STOP> signal is predicted, we can count the users have been predicted already as the final size of the cascade. Such cascade simulation will be processed for multiple times to reduce the variance of estimations.

Supervision Signals for Macroscopic Prediction

Though the modified microscopic cascade model can predict the size of cascades by simulations, the model still has no supervision signals to guide the way towards better performances. In this paper, we employ Mean Square Log-transformed Error (MSLE), which was used in previous works [Li et al., 2017; Cao et al., 2017] as the evaluation metric of cascade size prediction, for the supervision signal in step (c) of Fig. 3: MSLE= 1 |C| ∑|C| i=1 (log(|ci|)-log(predi))2 where predi is the predicted size of cascade ci.

However, the sampling operation used in cascade size estimation is non-differentiable and makes it impossible to update the parameters by backward propagation. To overcome this problem, we put the simulation process into the reinforcement learning (RL) framework and then employ policy gradient to update the parameters as shown in step (d) of Fig. 3.

Policy Gradient for Parameter Updating

We map the GRU and its hidden state (including structural context) to the agent and state concepts in RL. The action at each step is to choose the next infected user and the policy which decides the probability of actions given the current state is defined by Eq. 3. When the <STOP> action is chosen, a reward will be given as the opposite number of MSLE 2 .

Formally, for the size prediction of cascade ci, the first K users of ci are fed into the microscopic cascade model and the last hidden state hiK is used for the initial state of RL. For every action sequence seq = {a1, a2 . . . amaxlen} where aj is the selected user in the j-th action, we can compute the reward reward(seq, ci) by the opposite number of MSLE. Then we aim to maximize the expectation of reward for cascade ci as

where Pr(seq;Θ, hiK ) is the probability of choosing action sequence seq and can be decomposed into the product of the probability of each action aj. Note that seq is in the space of |V |maxlen and can not be enumerated to compute J iRL. Instead, the gradients of J iRL can be computed by REINFORCE algorithm [Williams, 1992]:

where seqm for m = 1, 2 . . .M are M samples from Pr(seq; Θ, hiK ) and the expectation over the whole action sequence is approximated by Monte Carlo simulations at the last step. Finally, parameters Θ will be updated by gradient ascent to maximize the expectation of reward, i.e. the supervision signal for macroscopic prediction.

3.4 Implementation Details

For the joint training of both microscopic and macroscopic objectives, we first train the microscopic cascade model for 10 epochs as warming up. The warming up phase will ensure the next infected user prediction pik generates high-quality

2 If the <STOP> action is not chosen when the maximum length maxlen is reached, we assume this action sequence predicts the size as 2 × maxlen.

Twitter

Douban

Memetracker

cascade simulations and help the RL training converge more quickly. Then we iteratively update the parameters to maximize the microscopic and macroscopic objectives until we reach the best performance on validation data. We employ Adam [Kingma and Ba, 2015] optimizer for gradient ascent.

For hyper-parameter settings, the dimension of hidden state and user feature vector d = 64, controlling window size m = 3, neighbors sampled in structural context extraction Z1 = 25, Z2 = 10 for first-order and second-order aggregation, the dimension of positional embedding dpos = 8 and training data are grouped into mini-batches with batch size 16.

We name our method as reinFOrced REcurrent networks with STructural context (FOREST). The source code of this paper can be found at https://github.com/albertyang33/ FOREST.

4 Experiments

We conduct experiments on both microscopic and macroscopic cascade predictions to demonstrate the effectiveness of our proposed model.

4.1 Datasets

Twitter [Hodas and Lerman, 2014] dataset records the tweets containing URLs during October 2010. Each URL is interpreted as an information item spreading among users.

Douban [Zhong et al., 2012] is a Chinese social website where users can update their book reading statuses and follow the statuses of other users. Each book is considered as an information item and a user is infected if she reads the book.

Memetracker [Leskovec et al., 2009] collects a million of news stories and blog posts from online websites and track the most frequent quotes and phrases, i.e. memes, to analyze the migration of memes among people. Each meme is regarded as an information item and each URL of websites is treated as a user. Note that this dataset has no underlying social graph.

We randomly sample 80% of cascades for training, 10% for validation and the rest 10% for test. The statistics of datasets are listed in Table 2.

4.2 Baselines

For a thorough comparison, we consider five very recent baseline methods on both microscopic and macroscopic cascade predictions. Microscopic cascade prediction models:

TopoLSTM [Wang et al., 2017a] extends the standard LSTM model by structuring the hidden states as a directed acyclic graph which is extracted from the social graph.

DeepDiffuse [Islam et al., 2018] employs embedding technique and attention model to utilize the infection timestamp information. We replace the timestamps by infection steps as we ignore the exact timestamps in the datasets.

NDM [Yang et al., 2018] builds a microscopic cascade model based on self-attention and convolution neural networks to alleviate the long-term dependency problem.

SNIDSA [Wang et al., 2018b] computes pairwise similarities of all user pairs and incorporates the structural information into RNN by a gating mechanism.

Twitter

Douban

Memetracker

0

Figure 5: Experimental results on macroscopic diffusion prediction. The scores are the lower the better. FOREST-RL is the variant of FOREST by removing the RL part. We omit the results of TopoLSTM because its scores are larger than 10 and cannot be fit into the figure.

Macroscopic cascade prediction models:

DeepCas [Li et al., 2017] is the state-of-the-art cascade size prediction algorithm which considers both cascade information and underlying social graph.

4.3 Experimental Settings

For microscopic prediction, we consider the next infected user prediction as a retrieval task by ranking the uninfected users by their infection probabilities in Eq. 3. We report the Mean Average Precision (MAP) and HITS scores. The same settings are used in [Wang et al., 2017a; Islam et al., 2018].

For macroscopic prediction, the first K = 5 users in a cascade are given to predict the size of a cascade. We use MSLE which is detailed in section 3.3 for evaluation. The same evaluation metric is used in [Li et al., 2017]. Also, all microscopic baselines are adopted for macroscopic cascade size prediction by appending an additional <STOP> signal to the training cascades.

For Twitter and Douban datasets, we use pretrained DeepWalk [Perozzi et al., 2014] embedding with dimension d = 64 as initial user feature vectors f (0) v . We excludes TopoLSTM and SNIDSA for Memetracker because of the absence of underlying social graph.

4.4 Experimental Results

Figure 4 and 5 present the experimental results on microscopic and macroscopic diffusion predictions, respectively. We have the following observations:

1. FOREST consistently outperforms all state-of-the-art baseline methods on microscopic diffusion prediction by a relative improvement of more than 10% in terms of HITS and MAP scores. Compared with TopoLSTM and SNIDSA, the improvements mostly come from the encoding of structural context. The structural context extraction algorithm of FOREST considers second-order neighborhoods while previous works only considered the first-order neighbors.
2. FOREST consistently outperforms other baselines including DeepCas, the state-of-the-art macroscopic diffusion prediction method, on cascade size prediction by a relative improvement of more than 12% in terms of MSLE. Compared with FOREST-RL where the reinforcement training of macroscopic size prediction is removed, FOREST achieves

more promising and robust performances by incorporating macroscopic supervision signals for parameter training.

1. Compared with DeepCas, microscopic cascade models are able to take advantage of more information in the training data, i.e. the detailed infected users and the ordering of their infections. Thus microscopic cascade models are able to give comparable and even better results on macroscopic diffusion prediction task. This finding would encourage microscopic cascade models to replace macroscopic ones in future works.
2. We omit the ablation study of FOREST-RL and FOREST in microscopic prediction because the benefit from RL for microscopic prediction is not as significant as that for macroscopic prediction (30%-80% relative improvement in Fig. 5). This is because reinforcement learning focuses on long-term modeling and microscopic prediction (next infected user prediction) is short-term. We will consider a longterm microscopic prediction setting for future work.

5 Conclusion

In this paper, we propose a novel multi-scale diffusion prediction model, FOREST, for both microscopic and macroscopic predictions. In specific, we adopt microscopic cascade models for macroscopic cascade size prediction by a reinforcement learning framework which incorporates macroscopic supervision and achieves promising performances. Also, we employ an effective structural context extraction method to utilize the underlying social graph information. Experimental results on next infected user and cascade size predictions demonstrate the effectiveness of our method.

For future works, an intriguing direction is to consider the exact timestamp information which is ignored in this work for modeling. We will also investigate the possibility of applying the RL module on other microscopic cascade models.

Acknowledgments

This research is jointly supported by the NSFC project under the grant no. 61661146007 and the NExT++ project, the National Research Foundation, Prime Minister's Office, Singapore under its IRC@Singapore Funding Initiative. Jian Tang is supported by the Natural Sciences and Engineering Research Council of Canada, as well as the Canada CIFAR AI Chair Program.
