Diffusion and Auction on Graphs

1 Introduction

Auction has been a common paradigm for allocating resources [Krishna, 2009], its applications vary from assigning the sponsored links to advertisers [Edelman et al., 2007] to allocating the wireless spectrum worldwide [Cramton, 2013]. Auctions ask and answer this question: who should get the goods and at what prices? Typically, there are two goals in auction design. One is to design auctions that maximize social welfare, i.e., allocating the goods in a way that maximizes the total utilities of all participants. Another line focuses on the seller's revenue. Traditionally, there are two ways to improve the revenue: use the classic optimal auction [Myerson, 1981] or gather more people to join the auction. The former method requires prior knowledge of buyers' valuations to compute a reserve price. The buyer set needs to be fixed in advance, and the mechanism will be invalid if a seller can hardly have a panorama (value distribution) of all the underlying bidders. As a comparison, the latter method seems to be more effective and adaptive comparing with optimal auctions. A classic result in [Bulow and Klemperer, 1996] shows that when the buyers' valuations draw i.i.d from a regular distribution, then the expected revenue of a second price auction with one additional bidder is no less than that given by the optimal auction. However, except using costly advertising, where these additional buyers could come from?

∗Dong Hao is the corresponding author.

Email address: libin@std.uestc.edu.cn, haodong@uestc.edu.cn, zhaodj@shanghaitech.edu.cn, yokoo@inf.kyushu-u.ac.jp

The natural way is to ask the current bidders to help to diffuse the sale information to the outsiders. However, the selfish bidders have no incentives to do so. From the point of view of the whole economic network, this information blocking not only decreases the seller's revenue, but also reduces the allocation efficiency of goods. Here are two examples. On online selling websites like eBay, the final price of an item depends on the population of interested buyers. Normally, the buyers have no incentives to invite other competitors and the information are limited to people who see this sale. One activity on online social networks that is frequently seen is people sharing clicking links (such as a new product) to their friends. This is actually an informal way to use information diffusion to recruit more people to a sale. Essentially, the above prevalent problems are about how to design a good market for the sale of products or services where the participants are encouraged to invite more people to the mechanism.

The problem can be seen as auctions constrained with (negative) externalities [Bhattacharya et al., 2011; Haghpanah et al., 2013; Belloni et al., 2017]. However, for our problem, the underlying social connections of all participants gives the externality constrains in a very complicate way, where previous common techniques on externalities can hardly help. The most related works are from [Li et al., 2017; 2018; Zhao et al., 2018]. [Li et al., 2017] initiates this problem and proposes one mechanism which incentivizes buyers to diffuse seller's sale information to their neighbors. [Zhao et al., 2018] extends this to a multi-unit setting where the seller has multiple homogeneous items for sale and each buyer wants at most one of them. [Li et al., 2018] further investigates this problem in constrained economic networks where both the allocation efficiency and revenue can be obtained.

We study the problem of auction on graphs from a more general point of view. In the first part of this paper, we propose a class of mechanisms named critical diffusion mechanism (CDM) on unweighted graphs. We shows that the method proposed in [Li et al., 2017] is a special case of this class and is the one with the lowest revenue. In the second part, we further study this problem on weighted graphs which has never been tackled in the literature. We propose the very first solution called weighted diffusion mechanism (WDM). In both CDM and WDM, each buyer's optimal choice is to report her valuation truthfully and diffuse the sale information to all her neighbors. Our theoretical results can be applied to the research and application fields such as crowdsourcing, sharing economics and viral marketing. By using our mechanisms, the buyers on eBay are happy to do the invitations, the diffusion of an innovation will be maximized as well.

2 Preliminaries

Consider a seller selling an item in a digraph G = (V,E) where V is the node set with |V | = n and E is the edge set. Besides the seller s, each node i ∈ V owns a private type ti = (vi, ri), where vi is her valuation on the item and ri is the set of her neighboring nodes. Node i can only communicate with j through existing link (i, j) ∈ E, and a node could participate in the auction only if someone of her neighbors has joined in the auction and further informs her of the sale. Initially, only the seller's neighbors are informed of the sale. Let w(i, j) be the weight on edge (i, j), for instance in a distribution network w(i, j) can be represented as the freight of transporting the item from i to j. We assume graph G contains no negative cycles and w(i, j) is known once i and j join in the auction. In Figure 1, node s owns one item for sale and only node A and B are informed of the sale at first. Node C cannot join in the auction if B does not inform her of the sale. The values in each circle are nodes' private valuations and the red numbers represent for the resided weights.

We model the selling problem as an auction. Formally, denote ti = (vi, ri) by node i's private type and t = (t1, · · · , tn) by the type profile of all nodes. Let t-i = {t1, t2, · · · , ti-1, ti+1, · · · , tn} be the type profile of all other nodes except i, i.e., t = (ti, t-i). Let Ti = R≥0 × P(V ) be the type space of i where P(V ) is the power set of V and T = ×Ti∈V \{s} be the type profile space of all nodes. As usual, let t′i = (v′i , r′i ) ∈ Ti be the reported type of node i where r′i ⊆ ri means that i diffuses the sale information to nodes in r′i . The set r′i is limited to P(ri) as node i is not aware of other nodes who are not her neighbors. Denote t′ = (t′1 , · · · , t′n ) by the reported type profile of all nodes where t′i = nil when i has never been informed of the sale or i has no interest in the auction.

Definition 1. Given a reported type profile t′ and a node i with t′i ̸= nil, define a trading path from seller s to i as an ordered sequence of nodes (a1, a2, · · · , al, al+1 = i) such that a1 ∈ rs and for 1 < j ≤ l + 1, aj ∈ r′aj-1 .

Among all trading paths from the seller to node i, denote L∗i (t′ ) by the shortest one, i.e., L∗i (t′ ) = arg minL∈Li(t′ ) ∑(i,j)∈L w(i, j) where Li(t′ ) is the set of all possible trading paths of node i. Since G contains no negative cycles, then L∗i (t′ ) is a simple path from s to i.

Definition 2. A diffusion auction M = (π, x) defined on G consists of two components: an allocation rule π : T → L

which determines a single trading path π(t), where L is the set of all possible trading paths in G and π(t) is a selected path whose terminal node will be allocated with the item; and a payment rule x = {xi}i∈V \{s} which is the amount that each node pays, where xi : T →R is the payment rule for i.

Given an allocation π(t), the social welfare in diffusion auctions is defined as v(π(t)) - ∑(i,j)∈π(t) w(i, j) where v(π(t)) is winner's true valuation. Here the total weights ∑(i,j)∈π′ (t) w(i, j) is perceived as the externalities incurred when passing an item from the seller to the winner. An allocation π∗ is efficient if it maximizes the social welfare for every t ∈ T , i.e., π∗ ∈ argmaxπ′∈Πv(π′ (t))- ∑(i,j)∈π′ (t) w(i, j) where Π is the feasible allocation set. Denote W ∗ (t) by the social welfare under efficient allocation π∗ .

In our model, each node has quasilinear utility function, meaning that given i's type ti and an allocation π(t′ ), i's utility is defined as: ui(ti, t′ , (π, x)) = vizi(t′ ) -xi(t′ ) where zi(t′ ) is an indicator variable which is 1 if i wins the item and 0 otherwise. A diffusion mechanism is individually rational if for each node, her utility is non-negative when she reports her valuation truthfully regardless of her diffusion strategies, i.e., ui(ti, ((vi, r′i ), t′-i ), (π, x)) ≥ 0. And it is incentivecompatible (IC) if reporting true types is a dominant strategy for every node in the auction, that is ui(ti, (ti, t′-i ), (π, x)) ≥ ui(ti, (t′i , t′′-i ), (π, x)) for all i ∈ V \ {s}. Note that on the right side of the inequality, we use t′′-i to replace t′-i because the set of nil type nodes may change when i's report becomes t′i . Given a reported type profile t′ and a mechanism M = (π, x), the seller's revenue generated by M is defined by RevM(t′ ) = ∑i∈V \{s} xi(t′ ) - ∑(i,j)∈π(t′ ) w(i, j).

The VCG mechanism [Vickrey, 1961; Clarke, 1971; Groves, 1973] is a generic truthful mechanism for achieving an efficient allocation. However, it has many serious practical problems [Rothkopf, 2007]. Under our framework, it can lead to a high deficit for the seller [Li et al., 2017]. Instead, we use the outcomes of the Vickrey auction [Vickrey, 1961], a special case of the VCG mechanism, as the benchmark and design good diffusion auctions that outperform them. In the Vickrey auction, the item is allocated to the highest bidder who is charged with the second highest bid. Since every node in the auction has no incentives to share the sale information, then the allocation efficiency and the seller's revenue equal the highest and second highest bid in {ti}i∈rs respectively.

3 AuctionMechanism on Unweighted Graph

This section investigates diffusion mechanisms in unweighted graphs where each edge's weight is zero. In an unweighted graph, for any determined node i ∈ V \ {s}, there would be multiple simple paths from s to i. Moreover, there are several cut nodes which are shared by all these paths. These nodes are called critical diffusion nodes of i since without any of them, node i cannot receive the sale information and cannot join in the auction.

Definition 3. Given a reported type profile t′ and a node i with non-nil reported type, define Ci(t′ ) = {⋂ L}L∈Li(t′ ) as the set of i's critical diffusion nodes where Li(t′ ) is the set of all feasible trading paths from the seller s to node i.

Notice that for any pair j, k ∈ Ci(t′ ), we have that either j ∈ Ck(t′ ) or k ∈ Cj(t′ ). Therefore there is an unique fully ordered set C ∗ i (t′ ) = {s1, s2, · · · , sk, sk+1, · · · , i} for all nodes in Ci(t′ ) such that sj is a critical diffusion node of sj+1. This unique sequence is named as the critical diffusion sequence of i. In addition, for any j ∈ C ∗ i (t′ ), it is clear that C ∗ j (t′ ) = {s1, s2, · · · , j}. For example, there are four simple paths from the seller to node G in Figure 1, any of which has to pass node B and F, and therefore node G's critical diffusion nodes are {B, F,G}. Then, we have C ∗G = {B, F,G} and C ∗F = {B, F}. Let di be the set of nodes whose critical diffusion nodes include i, e.g., dF = {F,G,H}. Clearly, if i is removed from the graph, the nodes in di cannot join in the sale. Denote t′x by the partially reported types from set x and t′-x = t′ \ t′x as the reported type profile when set x is removed from the graph, where x could be a set of edges, vertices or a mixture. For an edge (i, j), t′-{(i,j)} means that node j is removed from i's diffusion strategy r′i with respect to t′ . For example, we have t-{F} = {ti}i∈V \dF and t-{(B,D),(B,E)} = {ti}i∈{A,B,C}.

Definition 4. Given a reported type profile t′ , assume that the highest bidder is m and her critical diffusion sequence is C ∗m(t′ ) = {1, 2, · · · , k, k + 1, · · · ,m}. Define αm = ∅ and for an arbitrary i ∈ C ∗m(t′ ) \ m, predefine an edge set αi = {(j, l) ∈ E}j∈di which has the following properties:

1. Information blocking: node i + 1 /∈ t′-αi , meaning that the nodes in di+1 cannot join in the auction if αi is removed from the graph.
2. Node independence: for any two reported type profiles t′ 1 and t′ 2 which only differ in t′di+1 , α1 i = α2 i . This property ensures that αi is independent of the strategies of nodes in di+1.
3. Diffusion monotonicity: if r′i ⊆ r′′ i , then t′-α′i ⊆ t′-α′′ i . That is, the set of non-nil type in t′-αi is monotonically increasing with r′i .

The first property requires the set should be a cut. The second property says when the mechanism designer chooses αi, her choice should not be affected by what happened in di+1. The third property further requires the choice of αi should not ruin the monotonicity of information diffusion.

Based on αi, we now give a class of new mechanisms named critical diffusion mechanisms (CDM) in Alg. 1. In

Algorithm 1: Critical Diffusion Mechanism (CDM)

1 initialize π(t′ ) = ∅ and {xi(t′ ) = 0}i∈V \{s}; 2 locate the highest bidder m, break tie arbitrarily; 3 compute C ∗m(t′ ) and denote it by {1, 2, · · · ,m}; 4 for i ← 1 to mdo 5 compute αi; 6 if vi =W ∗ (t′-αi ) then 7 set π(t′ ) to be any trading path of i and xi(t′ ) = W ∗ (t′-i ); 8 break; 9 else 10 set xi(t′ ) = W ∗ (t′-i ) - W ∗ (t′-αi );

CDM, only nodes in C ∗m(t′ ) are considered as the candidates of the winner. In the allocation policy, nodes ordered higher in C ∗m(t′ ) are given priorities to win. The algorithm computes whether a node has the ability to win one after another and stops once the first qualified node is identified. In the following theorems, we prove that such a "sequential" allocation rule combined with the payments defined in Alg. 1 provides a class of auction mechanisms with remarkable performances.

Theorem 1. The critical diffusion mechanism proposed in Alg. 1 is individually rational and incentive-compatible.

Proof. Assume node g is the winner in Alg. 1. For any node i /∈ C ∗m(t′ ), her utility is zero. The only way for i to change her utility is to increase her bid and becomes the highest bidder. In this case, she will be the winner according to Alg. 1 and will pay the previous highest bid v′m which is greater than her true value vi. For any node i ∈ C ∗ g (t′ ) \ {g}, her utility is W ∗ (t′-αi )-W ∗ (t′-i ). The latter term is independent of node i, and according to diffusion monotonicity, the former term is maximized by choosing a diffusion strategy r′i = ri. In addition, becoming the winner is also a bad choice for i since vi-W ∗ (t′-i ) < W ∗ (t′-αi )-W ∗ (t′-i ). Regarding to the winner g, her utility is vg -W ∗ (t′-g ) = W ∗ (t′-αg ) -W ∗ (t′-g ). Because of diffusion monotonicity, it is no good for g to give up the chance of winning through lowering her bid. According to the first and second properties of αi, the winner is still node g no matter what strategies nodes in C ∗m(t′ ) \ C ∗ g (t′ ) choose. That is xi((t′i , t′-i )) = 0 for any i ∈ C ∗m(t′ ) \ C ∗ g (t′ ) and any i's strategy t′i . In a word, we conclude that reporting truthfully is a dominant strategy for every node.

Next, we show that a CDM dominates the Vickrey auction, meaning that both the allocation efficiency and the seller's revenue are no less than that given in the Vickrey auction.

Theorem 2. The critical diffusion mechanism dominates the Vickrey auction.

Proof. Since only nodes in C ∗ g (t) could have non-zero payments, then Rev(t) = ∑i∈C∗ g (t) xi(t) = W ∗ (t-1) + ∑i∈Cg(t)\{1,g} (W ∗ (t-i+1) -W ∗ (t-αi )) ≥ W ∗ (t-1). The inequity holds because of the first property of αi which means W ∗ (t-j) ≥W ∗ (t-αi ) for any j ∈ di+1.

Because there exists at most one node's type that belongs to {ti}i∈rs ∩{t1}, thenW ∗ (t-1) is at least the second highest bid in {ti}i∈rs . In addition, due to the fact that {ti}i∈rs ⊆ t-αg and vg = W ∗ (t-αg ), we conclude that any critical diffusion mechanism dominates the Vickrey auction.

Essentially, different choices of αi offer different tradeoffs between the allocation efficiency and the revenue. The information diffusion mechanism (IDM) proposed in [Li et al., 2017] is equivalent to a specific instantiation of the above CDM in which αi is set to be the edge set {(j, i + 1) ∈ E} for any i ∈ C ∗m(t) \ {m}. According to different preferences of the mechanism designer, one can conveniently generate many such mechanisms. For example, here is a another specific instantiation of CDM: let βm = ∅ and for any i ∈ C ∗m(t)\{m}, βi is the minimum subset of {(i, j)}j∈ri , by cutting which the sale information cannot reach node i + 1.

In Theorem 1, we proved that given any type profile t, the lower bound of the seller's revenue in any CDM is W ∗ (t-1). This is exactly what the seller obtains in the IDM. Therefore, we directly get the following corollary.

Corollary 1. In all critical diffusion mechanisms defined in Alg. 1, the information diffusion mechanism proposed in [Li et al., 2017] is the one with the lowest revenue.

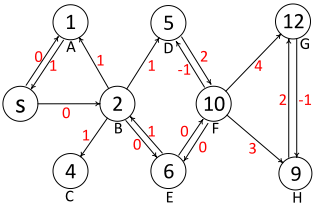

To give an intuitive description of CDM, we give a running example with respect to βi in Figure 1. Firstly, G is the highest bidder and C ∗G is {B, F,G} by Def. 3. Then, let i = B, if she does not inform of the sale to D nor E, then i + 1 = F cannot join in the auction. Note that in Figure 1, βB = {(B,D), (B,E)} is one, and the minimum one such edge cut set. B loses the item since C is the highest bidder after removing βB from the graph. If B is removed from the graph, the highest bidder becomes A. According to the last line in Alg. 1, B's payment is vA-vC = 1-4 = -3, i.e., the seller pays 3 to B. In a similar way, βF = {(F,G), (F,H)}. Since F is the highest bidder after deleting βF , then F wins the item and the algorithm stops here. Since E is the highest if F is removed, then according to lines 6-8 in Alg. 1, F pays vE = 6. Others pay zero. Finally the seller's revenue is -3 + 6 = 3 which is greater than 1-the revenue in the Vickrey auction.

4 AuctionMechanism onWeighted Graph

This section studies auction mechanisms on general weighted graphs. There are two key differences make the problem challenging. On the one hand, L∗m(t) (or π∗ (t)) could be any simple path from the seller s to m on an unweighted graph while C ∗m(t) is a set of some cut nodes which may or may not be adjacent. For a node i in L∗m(t) but not in C ∗m(t) (for instance, E in Figure 1), no matter what her strategy t′i is, she cannot be in C ∗m((t′i , t-i)) since m ∈ t-i. However, on a weighted graph, since the valuations (bids) are mingled with edge weights, such nodes could affect the efficient allocation by strategic diffusion. One the other hand, under the unweighted settings, only nodes in C ∗m(t) are considered as the candidates of the winner. Nonetheless, nodes in L∗m(t) \ C ∗m(t) cannot be omitted on weighted graphs. For example, in Figure 1, if the weight of edge (D, F) is 5, then if E does not diffuse to

Algorithm 2: The allocation policy of WDM

1 initialize π(t′ ) = ∅; 2 compute π∗ (t′ ), break tie arbitrarily; 3 denote π∗ (t′ ) by L∗m(t′ ) = {1∗ , 2∗ , · · · , q∗ =m}; 4 for i ← 1∗ to q∗ do 5 compute γi; 6 if i is allocated the item in π∗ (t′-γi ) then 7 set π(t′ ) = L∗i (t′ ); 8 break;

F, then she becomes the winner (also a critical diffusion node) in the auction. In this section, we propose the very first mechanism that satisfies all the desired properties on general weighted graphs.

Definition 5. For any node i and its neighbor j, if j has neighbor k ∈ rj(k ̸= i), then j is an intermediary of i.

For instance, in Figure 1, B's intermediaries include nodes A, D and E. Denote Ii by the set of i's intermediaries. Given a reported type profile t′ , let m be the winner in π∗ (t′ ) where π∗ (t′ ) = L∗m(t′ ) = {1∗ , 2∗ , · · · , q∗ = m}. Since the graph contains no negative cycles, then according to the optimal substructure property of the shortest path [Bondy et al., 1976], for any i∗ ∈ L∗m(t′ ) we have L∗i∗(t′ ) = {1∗ , 2∗ , · · · , i∗ }.

Definition 6. Given a reported type profile t′ and π∗ (t′ ), define γm = ∅ and for any i∗ ∈ L∗m(t′ ) \ {m}, let γi∗ be the edge set {(i∗ , j)|j ∈ Ii∗ ∪ {(i + 1)∗ }}.

Intuitively, γi∗ is an "edge cut set" following i∗ since once γi∗ is removed from the graph, nodes in L∗m(t′ ) \ L∗i∗(t′ ) can only be reached via other nodes but not i∗ . In Figure 1, π∗ (t′ ) = {B,E, F} and γB = {(B, i)|i ∈ {A,D,E}}. When the edge set γB is removed from Figure 1, all simple paths to node E or F , if any, do not pass B.

Now we propose the weighted diffusion mechanism (WDM) for general weighted graphs. The allocation policy is given in Alg. 2. In the WDM, we allocate the item to a node i along L∗m(t′ ). Node i should be the first node which satisfies v′i - ∑l∈L∗i (t′-γi )\{i} w(l, l + 1) = W ∗ (t′-γi ). That is, after removing γi, she is allocated with the item in the efficient allocation with respect to the remaining graph. Note that with such an allocation rule, the nodes who are not in C ∗m(t′ ) could also win the auction. We give a running example in Figure 1. Firstly, identify the efficient allocation path B → E → F. Since it is node C instead of B who wins in π∗ (t-γB ), we move to check node E, but E also loses the auction. Thus finally, node F wins the item.

Before precisely characterizing the payment policy of the WDM, we need another important concept below.

Definition 7. For node i ∈ L∗g (t′ )\{g} where g is the winner, we call her a secondary node if i wins the item in π∗ ({t′-γi \ t′g } ∪ (v′g = nil, r′g )) where g's reported type is replaced by (nil, r′g ) in t′-γi .

If node i is a secondary node, then i will be the winner in π∗ (t′-γi ) when g does not bid (v′g = nil). Furthermore,

Algorithm 3: The payment policy of WDM

1 initialize {xi(t′ ) = 0}i∈V \{s} and B∗ g (t′ ) = 0; 2 let L∗g (t′ ) be the allocation achieved in Alg. 2; 3 denote ˜w(i, j) = ∑L∗j (t′-γi )\{j} w(l, l + 1); 4 for i ∈ L∗g (t′ ) \ {g} do 5 compute γi; 6 set xi(t′ ) = W ∗ (t′-i ) - W ∗ (t′-γi ); 7 if i is a secondary node then 8 update B∗ g (t′ ) = max{B∗ g (t′ ), v′i - ˜w(i, i) + ˜w(i, g)}; 9 update B∗ g (t′ ) = max{B∗ g (t′ ), W ∗ (t′-g ) + ˜w(g, g)}; 10 set xg(t′ ) = B∗ g (t′ );

if winner g ̸= m beats node i in the efficient allocation π∗ (t′-γi ), so will node m and this violates the definition of secondary nodes. Therefore, the secondary nodes could exist only when the winner is m. Since we search for the winner from head to tail along L∗m(t′ ), it is important that these secondary nodes are winner's critical opponents. The full characterization of the payment policy is given in Alg. 3.

The value B∗ g (t′ ) computed in Alg. 3 can be explained as the "critical value" of the winner in our diffusion model. There are two criteria that the "critical value" should satisfy if g wants to win the item. Firstly, since g wins the item in π∗ (t′-γg ), for any i ∈ -γg(i ̸= g), the inequality v′g - ˜w(g, g) > v′i - ˜w(g, i) must hold, where ˜w(i, j) denotes the total weights of the shortest trading path to j with respect to t′-γi . To ensure that g wins, her bid v′g is at least

Note that ˜w(g, i) and ˜w(g, g) are independent of r′g and the node set with non-nil types in -γg is minimized when r′g = ∅, therefore maxi∈-γg(i̸=g){v′i - ˜w(g, i) + ˜w(g, g)} is minimized when g diffuses the sale information to no one, in which case maxi∈-γg(i̸=g){v′i - ˜w(g, i)} = W ∗ (t′-g ). That is, node g could win the item by reporting (v′ 1 g = W ∗ (t′-g ) + ˜w(g, g), r′g = ∅). On the other hand, due to the fact that all nodes in L∗g (t′ ) \ {g} have priorities to win the item, winner g has to beat all of them one after another. Specifically, given a node i ∈ L∗g (t′ ) \ {g} and a reported type profile t′-γi , if node i is not a secondary node, then it suffices for g to beat i by bidding v′ 1 g . If node i is a secondary node, then according to Alg. 2, line 6, the winner must beat node i in the efficient allocation π∗ (t′-γi ). That is to say, we must have v′g - ˜w(i, g) > v′i - ˜w(i, i) which leads to v′g > v′i - ˜w(i, i) + ˜w(i, g). Denote the set of all secondary nodes by SN ∗ , above argument means that v′g is at least

It is not hard to see that the cardinality of SN ∗ is minimized when g spreads the sale information to all her neighbors, and therefore node g could beat all secondary nodes by reporting a type with bid v′ 2 g =maxi∈SN ∗{v′i - ˜w(i, i)+ ˜w(i, g)} and diffusion r′g = rg. Therefore, according to the above analysis, winner g can win the item by bidding at least max{v′ 1 g , v′ 2 g }.

In Figure 1, regarding whether node E wins the item in the efficient allocation after cutting γE = {(E, B), (E, F)}, since node E would win the item in π∗ (t′-γE ) if the winner F does not bid, therefore, node E is a secondary node (actually the only one). According to Alg. 3, winner F will pay a price of at least vE - ˜w(E,E) + ˜w(E, F) = vE - w(B,E) + (w(B, D) + w(D, F )) = 6 - 0 + 3 = 9. Since W ∗ (t-F ) + ˜w(F, F) = 6, then the winner pays 9 to the seller. One could further check that node B and E pay -2 and 0 respectively. The seller's revenue is -2 + 0 + 9 - 0 = 7 which is greater than 1, the revenue obtained in the Vickrey auction.

The identification of secondary nodes and the characterization of B∗ g (t′ ) are the key techniques in proving the property of incentive compatibility. Combining with the following two lemmas, we prove that WDM is IR and IC.

Lemma 1. If there exist secondary nodes in Alg. 2, then the winner cannot increase her utilities by misreporting.

Proof. First of all, the winner must be m if there exist secondary nodes according to Def. 7. For any secondary node j, she is still a secondary node for any m's diffusion strategy r′m ⊂ rm as long as m remains to be the winner. Therefore m's payment is minimized by diffusing the sale information to all her neighbors. Since there exist secondary nodes, then for any secondary node j, the winner m is the only node that beats j in π∗ (t-γj ). This leads to the fact that when m is trying to become a node along the winning path by lowering her bid, the first secondary node in type profile t will become the winner in advance according to Alg. 2, line 6, whereby m's utility becomes zero. Therefore, no matter what strategies m commits, she cannot increase her utility.

Lemma 2. Given any type profile t and any node i ∈ L∗m(t)\ L∗g (t), i cannot increase her utility by misreporting.

Proof. Firstly, when i spreads the sale information to only a part of her neighbors, there are two possible results: she is still an node in L∗m(t) in which case g still wins according to Def. 5 and Alg. 2; or she is out of L∗m(t) which makes her out of L∗g (t) either. Therefore, her utility remains unchanged by misreporting ri. Secondly, note that unless node i beats g in π∗ (t-γg ), otherwise g must be the winner and i's utility remains zero according to Alg. 3. Since W ∗ (t-γg ) is greater than vj - ˜w(g, j) for any j ∈ L∗m(t) \ L∗g (t), she can beat g only by increasing her bid such that she wins in Alg. 2. Due to the fact that node g is the winner in π∗ (t-γg ), node g would be a secondary node if i becomes the winner. In this case, node i has to pay at least vg - ˜w(g, g) + ˜w(g, i) = W ∗ (t-γg ) + ˜w(g, i). Therefore, the utility of i by being a winner is at most vi-(W ∗ (t-γg )+ ˜w(g, i)) = (vi- ˜w(g, i))- W ∗ (t-γg ) < 0.

Theorem 3. The weighted diffusion mechanism is individually rational and incentive-compatible.

Proof. Firstly, we show that the weighted diffusion mechanism is individually rational. For any node i /∈ L∗g (t′ ), her payment is zero. For any node i ∈ L∗g (t′ ) \ {g}, her utility is W ∗ (t′-γi ) -W ∗ (t′-i ) ≥ 0 since t′-i ⊂ t′-γi . As for the winner g, her payment is B∗ g (t′ ) which is no more than vg. Next we show WDM is IC through following cases.

Case 1: For i /∈ L∗m(t), since {tj}j∈L∗m(t) ⊆ t-i, the only chance for i to have a non-zero utility is to bid high enough such that she becomes the winner in π∗ (t′ ). And in this case she has to pay a price of at least W ∗ (t) + ˜w(i, i) which is higher than her true value vi because W ∗ (t) > vi - ˜w(i, i).

Case 2: For i ∈ L∗g (t) \ {g}, her utility is W ∗ (t-γi ) - W ∗ (t-i). Since W ∗ (t-γi ) ≥ vi - ˜w(i, i), she cannot do better by winning, otherwise she pays at least W ∗ (t-i)+ ˜w(i, i). The latter term W ∗ (t-i) is independent of i's strategy and the former term W ∗ (t-γi ) is independent of vi (otherwise she becomes the winner according to Alg. 2, line 6). Due to Def. 5, for any r′i ⊂ ri I ∗ i ⊆ I ∗′ i ∪ ri \ r′i . This property induces that γi ⊆ γ ′ i ∪ ri \ r′i . That is, after removing γi and γ ′ i from the graph separately, the set of non-nil type nodes follows that -γ ′ i ⊆ -γi. Therefore the set of non-nil types in t-γi is the largest when i spreads the sale information to all her neighbors, this maximizes her utility.

Case 3: For winner g, her utility is vg -B∗ g (t). If there are no secondary nodes, then she pays exactly W ∗ (t-g)+ ˜w(g, g) and her utility is vg - ˜w(g, g) -W ∗ (t-g) = W ∗ (t-γg ) - W ∗ (t-g). When she misreports to be in Case 2, her utility becomes W ∗ (t-γ ′g ) -W ∗ (t-g). Since the set of non-nil types in -γg is maximized when g diffuses the sale to all her neighbors, misreporting is a bad choice for her since W ∗ (t-γg ) ≥ W ∗ (t-γ ′g ). On the other hand, the more nonnil nodes exist in the graph, the harder the secondary nodes could exist. Therefore, if g diffuses the sale only to a part of her neighbors, then secondary nodes would be created which in turn will increase her payment according to Alg. 3, lines 4-8. Hence, truthfully reporting is the best strategy for the winner. In addition, if there exist secondary nodes, then misreporting will harm g's profit according to Lemma 1.

Case 4: For any node i in L∗m(t) \ L∗g (t), according to Lemma 2, misreporting would decrease her utility.

For proving that WDM dominants the Vickrey auction, we firstly pick out the nodes with zero payments.

Lemma 3. For i ∈ L∗g (t)\{g}, if the intersection of π∗ (t-γi ) and L∗m(t) \ L∗i (t) is not empty, then i's payment is zero.

Proof. According to Def. 6, if we remove γi from the graph, then all nodes in L∗m(t)\L∗i (t) can only be reached by other nodes but not i. Therefore, if π∗ (t-γi ) and L∗m(t)\L∗i (t) have some common elements, according to the optimal substructure property of shortest path, node mmust be the winner in π∗ (t-γi ) and node i /∈ π∗ (t-γi ). Consequently, we have that W ∗ (t-γi ) must equal W ∗ (t-i) and therefore xi(t) = 0.

For convenience, denote L#g (t) by the nodes in L∗g (t′ ) who satisfy π∗ (t-γi )∩L∗m(t)\L∗i (t) = ∅, then according to Lemma 3 only L#g (t) can have non-zero payments.

Theorem 4. The weighted diffusion mechanism dominates the Vickrey auction.

Proof. According to the payment policy of WDM and Lemma 3, the seller's revenue can be denoted as

The first inequation holds because B∗ g (t) is at least W ∗ (t-g)+ ˜w(g, g) according to Alg. 3, line 9. Since for any j ∈ L#g (t), we have that π∗ (t-γj )∩L∗m(t)\L∗i (t) = ∅. Then we have W ∗ (t-j) ≥ W ∗ (t-γj-1 ) for any j ∈ L#g (t) \ {1#} which induces the second inequity.

Because {ti}i∈rs ⊆ t-1# ∪{t1#}, we have that W ∗ (t-1#) is at least the second highest bid in rs. In addition, since vg - ˜w(g, g) ≥ W ∗ (t-γ1∗ ) and {ti}i∈rs ⊆ t-γ1∗ , then the allocation efficiency of the weighted diffusion mechanism is no less than that given in the Vickrey auction.

It is worth noting that when the weights are zero, WDM degenerates to a CDM.

5 Conclusions

In this paper, we formulate the model of information diffusion and auction on both unweigted and weighted graphs and provide generic solutions which not only guarantee IC and IR but also can incentivize information sharing. The key techniques for realizing these mechanisms are graph cut analysis and the integration of bidder's private valuation and social links. Due to the introduction of information sharing incentive, all the instance mechanisms under our solution framework improve both the seller's revenue and the allocation efficiency comparing with the Vickrey auction. In practice, these mechanisms can be applied in a recursive way: any new comer will be treated as a bidder if she submits a two-dimensional type. This recursion is terminated if there is no new submission. Then the seller calculates the trading path, and determines the allocation and payments. One immediate future work is: although this work realizes seller's revenue optimization, the problem of its maximization is still unclear. Moreover, what is the underlying impact of αi on the seller's revenue and the allocation efficiency, and how to design fast algorithms determining the membership of these sets are also important.

Acknowledgments

This work was supported by the National Natural Science Foundation of China (NNSFC) Grant Number 71601029 and JSPS KAKENHI Grant Number JP17H00761.
