Coreference Aware Representation Learning for Neural Named Entity Recognition

1 Introduction

Named entity recognition (NER) is one of the fundamental tasks in natural language processing (NLP), which has a huge impact on many downstream applications including relation extraction [Li and Ji, 2014], knowledge base completion [Dong et al., 2014] and entity linking [Luo et al., 2015]. Given an input text, NER aims to locate and classify named entities from raw text into pre-defined semantic types such as persons (PER), organizations (ORG), locations (LOC), etc.

The traditional approach for the NER is to regard it as a sequence labeling task, in which each word is assigned with a tag (e.g., "B-PER", "I-PER", "O" in BIO tagging schema) indicating whether the word belongs to part of any named entity or not. To improve the performance of NER, recent NLP researchers usually applied the latest and sophisticated neural sequence labeling models, such as the BiLSTM-CRF [Huang et al., 2015] which first uses the bidirectional LSTMs to process input sentences and then employs the Conditional Random Field (CRF) to label each word jointly.

Although recent neural network models have advanced the state-of-the-art performance of NER [Lample et al., 2016; Ma and Hovy, 2016; Peters et al., 2017; Peters et al., 2018], they simply treat the input text as a linear sequence of words but disregard non-sequential structural information such as coreferential relations (i.e., two or more mentions refer to the same person or thing.) between entities whose position can be far away in the raw context. Such a limitation may cause these models to produce globally inconsistent semantic type predictions. Figure 1 shows a typical failure case when applying the well-known model of Ma and Hovy (2016) to two sentences from the CoNLL-2003 dataset [Sang and De Meulder, 2003]. Based on our error analysis, 20%-25% errors made by Ma and Hovy (2016) belong to this category, which can be mostly avoided by utilizing coreference relations. Conceptually, if two entities belong to the same coreference cluster, they should have the same semantic type as well.

Meanwhile, recent end-to-end neural network models for coreference resolution [Lee et al., 2018; Fei et al., 2019] have achieved increasing accuracy over the years which make it possible and practical for us to automatically extract coreferential relations from the raw text without relying on humanannotated coreference knowledge. Therefore, the next key research question is how to incorporate extracted coreference relations into the NER models for predicting consistent semantic type across coreferential entity mentions.

To address the above question, we propose a coreferenceaware representation learning framework based on the "CNNBiLSTM-CRF" NER model [Ma and Hovy, 2016]. Specifically, we design a coreference layer added on top of the BiLSTM layer to incorporate prior knowledge about coreferential relations among entity mentions, either from the ground truth or the external coreference resolvers [Lee et al., 2018]. Besides, we introduce a coreference regularization term to enforce the coreferential words/entities to have similar representations for the NER tag labeling. The combined objective function maximizes both the probability of decoded tag sequence given the input text and the consensus among the coreferential entities' hidden representations.

Our major contributions of this paper can be summarized as follows:

• We present a coreference-aware NER model at the document-level that can explicitly leverage the global structural information of coreferential relations. By introducing a coreference layer and coreference regularization into the base model, our full model enjoys both the strong generalization performance of deep neural network models and the enhancement from coreference guidance. To the best of our knowledge, this is the first neural NER model that effectively exploits the coreference relations.
• We evaluate our model on two benchmarks: OntoNotes v5.0 with gold coreference relations and CoNLL-2003 without gold coreference annotation. On both benchmarks, our full model outperforms all previous approaches with 0.4-1.0% absolute improvement, even when a third-party CoreNLP toolkit generates the coreferential relations.
• Although we focus on improving the NER by using the coreference knowledge in this paper, our model can shed light on other NLP tasks in which there is external knowledge base of structural information available. For example, the entity/event relations can also be incorporated into neural networks for boosting the performance of challenging NLP tasks, including discourse parsing, question answering and natural language understanding.

2 RelatedWork

2.1 Neural Named Entity Recognition (NER)

Recently, neural network based NER models [Ma and Hovy, 2016; Lample et al., 2016; Strubell et al., 2017] have achieved great improvement over the earlier features-based models. Those neural networks use different strategies (e.g., CNNs or RNNs) to encode characters and words into hidden representations and decode them to named entity tags with a CRF (or LSTM) layer. Another trend for better NER performance is to improve the word embedding with hidden representation depending on word's context by pretraining deep language model on characters or external unlabeled sentences [Liu et al., 2018; Peters et al., 2018; Devlin et al., 2019]. However, most previous works mainly consider NER as a traditional sequence labeling problem but ignore the rich structural information within contexts, such as the coreferential relations used in this paper.

Utilizing external knowledge to improve the NER has also received a lot of attention from the NLP researchers. Jie et al. (2017) and Li et al. (2017) used the dependency or constituency parse trees to guide NER, while Yang and Mitchell (2017) leveraged external knowledge base to facilitate entity extraction. Durrett and Klein (2014) and Singh et al. (2013) proposed features-based joint models to conduct the NER and coreference inference simultaneously. In contrast, our model is an end-to-end deep neural network model and we focus on using the coreferential relations as prior knowledge to learn coreference-aware representations for the NER instead of jointly modeling NER and coreference resolution.

More recently, Luan et al. (2018) proposed a deep multitask framework to jointly perform the NER, relation extraction and coreference resolution, wherein the three tasks shared common hidden layers. However, it suffers from high computational complexity O(L4 ), where L is the input sequence length. In addition, the implicit knowledge sharing at the hidden layers cannot explicitly transfer coreference information into the NER task, so it is not as effective as our approach which can explicitly utilize the coreference relations.

2.2 Incorporating Coreference Knowledge into the Neural Network Models

As one important type of linguistic structural information, the coreference knowledge has been explored to improve the performance of neural network models for many NLP applications, such as reading comprehension [Dhingra et al., 2018; Swayamdipta et al., 2018] and relation extraction [Peng et al., 2017]. Since we are the first to exploit coreference knowledge in the neural NER model, we aim to study a task-specific approach for encoding the coreferential relations.

One way to encode the coreferential relations within neural networks is to use external gate (or memory) in RNNs (or memory networks) as the bottom-level component [Dhingra et al., 2017; Dhingra et al., 2018]. However, in our point of view, this method can only implicitly utilize the coreference knowledge since the coreference information can be easily lost during the bottom-level forward propagation when processing a long sequence of inputs with increased size of the hidden units (e.g., the model used more hidden units to keep track of each coreference cluster). Another way to explicitly introduce the coreference knowledge is to build the coreference-aware word representations at the top-level of neural network models, which usually uses vector transformation functions, including the feedforward neural network, neural tensor network [Socher et al., 2013], soft-attention mechanism [Bahdanau et al., 2015] and others, on top of the word-level RNNs (or CNNs) to refine entity mention representations [Swayamdipta et al., 2018]. In this paper, we follow the top-level approach to design our coreference layer, so that the encoded coreference relations can directly and explicitly influence the final word representations.

3 Our Neural NetworkModel for NER

In this section, we first introduce the base model for neural named entity recognition, then present the coreference layer which extends the base model by incorporating coreference knowledge, and finally propose the coreference regularization which can be used to guide the coreference-aware word representation learning for consistent label prediction of NER.

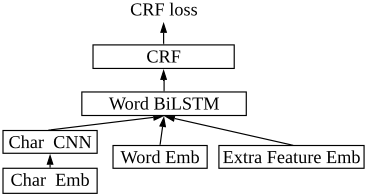

3.1 Base Model (CNN-BiLSTM-CRF)

In this paper, we choose the CNN-BiLSTM-CRF model [Ma and Hovy, 2016] as our base model since it is the most successful NER model as extensively studied in Yang and Zhang (2018) by comparing different variants of recent neural NER model architectures. As shown in Figure 2, the base model consists of three components, including the character-level CNN, the word-level bidirectional LSTMs and a CRF layer that jointly decodes semantic named entity tags.

Character-level CNN. The character-level features, such as the prefix or suffix of a word, are helpful for alleviating the out-of-vocabulary problem and improving the word representation in neural network models [Dos Santos and Zadrozny, 2014]. In our base model, we adopt one CNN layer with maxpooling operation to extract character-level features wchar i for the i-th word of the input word sequence.

Word-level BiLSTM. Given a word sequence X = (x1, x2, ..., xL) as the input, for each word xi, we construct an expanded word vector by concatenating its word embedding wword i with its character-level features and extra wordlevel features (POS tag) as wi = [wword i , wchar i , wf eatures i ]. The word-level BiLSTM layer will process the sequence of expanded word vectors (w1,w2, ...,wL) by using two separate LSTMs, with one processing the sequence from left to right and the other processing the sequence from right to left. Therefore, at each word index i, we compute two hidden states -→ hi, ←- hi and concatenate them to get the word xi's hidden representation hi = [-→ hi, ←- hi].

CRF for Sequence Tagging

For the NER task, it is crucial to model the label dependencies (e.g., "I-ORG" must follow "B-ORG" in BIOES [Ratinov and Roth, 2009] tagging schema.) and jointly decode the best label sequence. Therefore, the CRF layer [Collobert et al., 2011] is a better choice for the inference layer since it can dynamically decode a chain of labels and capture the interdependency between adjacent labels by maintaining a statetransition matrix as its parameters.

Given the hidden word representations from the BiLSTM H(j) = (h(j) 1 , h(j) 2 , ..., h(j) L ) and the target label sequence y(j) = (y(j) 1 , y(j) 2 , ..., y(j) L ) for the j-th training instance, we minimize the following CRF loss:

Here, the conditional probability p(y|H) has following form:

where Y denotes the set of all possible label sequences. ψi(yi-1, yi, hi) = exp(W T yi-1,yi hi + byi-1,yi ) is the potential function, in which W and b are trainable parameters. During testing, we use the Viterbi algorithm to search for the optimal label sequence y∗ that maximizes the conditional probability: y∗ = argmaxy∈Y p(y|H).

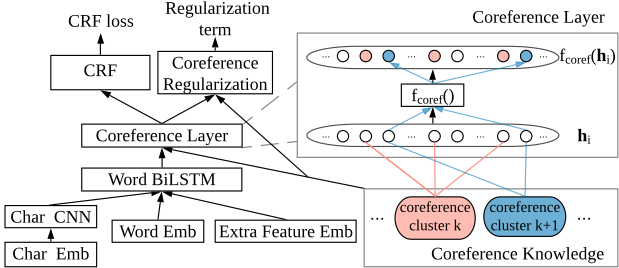

3.2 Coreference Layer

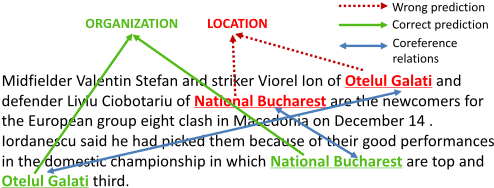

As illustrated and discussed in Figure 1, since the base model ignores the coreferential relations, it will likely predict inconsistent named entity tags for coreferential entities. To alleviate this problem, we add a coreference layer between the word-level BiLSTM and the CRF layer into the base model, as shown in Figure 3, to incorporate coreferential relations for learning the coreference-aware word representations.

In this paper, we assume document-level coreference relations are given in the form of coreference clusters, which are either ground truth or generated by a third-party coreference resolver. In practice, there is no overlap between any two coreference clusters, because they will be merged into one cluster if they share any entity mentions. As the input of the coreference layer, let C = (C1,C2, ...,CK) denotes the coreference clusters in one document, where Ck contains the word indices with the corresponding words in one document referring to the same entity or thing. 1 For each coreference cluster, we use a feedforward neural network fcoref (.) to refine the hidden word representation hi of coreferential words.

Specifically, given the coreference clusters and hidden word representations from the BiLSTM layer, the output vector of the coreference layer has the following form:

whereWcoref and bcoref are the weight and bias parameters, hCk is the coreference vector calculated by applying maxpooling to all word representations in one cluster:

The role of coreference vector is similar to the "context vector" utilized in the soft-attention mechanism [Bahdanau et al., 2015], but we use the simple max-pooling instead of computing weights for different word vectors. Clearly, the output word vector from our coreference layer is influenced by other hidden word representations within the same coreference cluster through the coreference vector.

There is one extreme variant of the coreference layer, which is to directly use the coreference vector as the output with the following form:

In this variant, all the words within one coreference cluster share the same representation for label tagging. We will compare and discuss these variants in the following Section 5.2.

3.3 Coreference Regularization

Conceptually, the hidden word representations within one coreference cluster should be similar, so that the CRF layer can make consistent predictions across different coreferential mentions. To guide the word representation learning of the coreference layer, we propose two types of regularization and apply them to the output word vectors of above coreference layer. The resulting regularization term is also minimized as a part of the final objective function during model training.

The first one is "Euclidean Coreference Regularization", which calculates the Euclidean distance to penalize the difference between two coreferential word vectors. The coreference regularization term has the following form:

1 If one entity mention has multiple words (e.g., Los Angeles), we only keep the first word's index because it is much easier to decode the rest words' tags for the CRF layer if the first tag is correct.

The second one is "Cosine Coreference Regularization", which uses the cosine similarity to measure two word vectors' similarity. The coreference regularization term is as follows:

Hence the overall objective function for our full model is:

In Section 5.2, we will compare two types of coreference regularization we proposed and discuss the reasonable strategy to set the coreference regularization parameter λ.

4 Experiments

4.1 Datasets

We evaluated our model on two standard NER datasets including CoNLL-2003 [Sang and De Meulder, 2003] and OntoNotes v5.0 [Pradhan et al., 2011]. Table 1 gives an overview and statistics of the two datasets. The CoNLL2003 was annotated with four coarse-grained entity types, including Person (PER), Location (LOC), Organization (ORG) and Miscellaneous (MISC), while the OntoNotes was annotated with 18 fine-grained named entity types. Compared with CoNLL-2003, the OntoNotes corpus was much larger and covered a wider variety of text genres including broadcast news, new testaments, magazine and Web text. Following previous work [Chiu and Nichols, 2016; Ghaddar and Langlais, 2018], we excluded the new testaments portion of OntoNotes from both train and test sets since this portion did not provide gold annotation of entity tags. Since coreference relations were not annotated on the CoNLL-2003 dataset, we utilized the latest version of Stanford CoreNLP toolkit [Manning et al., 2014] to extract coreference clusters in each document, although this toolkit can only achieve around 60% F1score for coreference resolution on the CoNLL-2011/2012 dataset. To be directly comparable with previous work, we used the official train/dev/test set splits on both datasets.

4.2 Experiment Setting

Preprocess. Following previous work [Ma and Hovy, 2016], we replaced all digit characters with '0' and converted the tagging schema from BIO to BIOES which additionally used "E-" and "S-" to represent the end of entity and singleword entity respectively. Following suggestions of Yang and Zhang (2018), we used part-of-speech (POS) tag and capitalization (Cap) flag of each word as extra features, which will be concatenated with word embedding. For all coreference clusters, we masked the word index of personal pronouns (e.g., him, she, it) because these words are not named entities and won't help identify named entities within same coreference cluster. 2

Fixed vs. Dynamic Word Embedding. Pre-trained word embedding such as GloVe had a limitation that each word's representation is fixed without considering its context, which conflicts with the fact one word can have different meanings in different contexts. Recent work, including AllenAI's ELMo [Peters et al., 2018] and Google's BERT [Devlin et al., 2019], showed that context-dependent (dynamic) word representations learned from deep language model can benefit neural networks for challenging NLP tasks, which outperformed the traditional fixed word embedding. In this work, we tried both GloVe word embedding (100D) and dynamic ELMo 3 embedding (1024D) to initialize our word embedding.

Hyperparameters. Table 2 summarizes the hyperparameters used in our experiments, which mostly followed Yang et al. (2018), including using the SGD optimizer with a decayed learning rate to update parameters. Since the OntoNotes corpus was much larger than the CoNLL-2003 dataset, we used a larger batch size to speed up the model training. For the coreference regularization parameter λ, we tuned it based on the best performance on the dev set. To prevent gradient exploding, we clipped the gradient L2-norm with a threshold of 5.0 and used the L2 regularization with coefficient 10-8 .

Evaluation. We adopt the standard entity-level microaveraged F1-score as the main evaluation metrics. To diminish the effects of randomness in training neural network models and report stable experimental results, we ran all our proposed model, its variants as well as the base model 10 times and reported the averaged F1-score and standard deviation over multiple trials. For a fair comparison, all our models were implemented with Pytorch and evaluated on a Nvidia Titan X GPU using the same random seed.

4.3 Experiment Results

Table 3 shows the performance of our proposed models compared to the recent published models on the CoNLL-2003 test set. The first section of the table lists the models which did not use any external data other than train set and pre-trained fixed word embedding, while the models in the second section utilized external data for different purposes (e.g., training language model for word embedding [Peters et al., 2018] or doing transfer learning [Yang et al., 2017]). In the third section, our replicated CNN-BiLSTM-CRF model is slightly worse than the one initially reported in Ma and Hovy (2016). One possible reason is that we conduct document-level NER tagging rather than original sentence-level experiments (we obtain 91.24% F1-score for the sentence-level NER tagging).

2 We also tried not to mask personal pronouns, and the resulting F1 score slightly decreased by 0.08 on the CoNLL-2003 dataset.

3 From the AllenAI's website (https://allennlp.org/elmo), we downloaded the pre-trained ELMo embedding trained on 5.5B tokens and froze its parameters during our NER model training.

Built on top of the base model, the coreference layer improves the NER performance by 0.65 points on average (statistical significant t-test with p < 0.01). Using the coreference regularization to guide the coreference-aware word representation learning can improve the result (statistical significant t-test with p < 0.05 comparing to not using the coreference regularization), but by a small margin. As shown in the last column, introducing the context-dependent ELMo embedding boosts the performance of NER, which further validates our model's utility when combining with the latest word embedding techniques. Noticing that our full model significantly outperforms the ELMo baseline (the fifth row in the second section) by (93.37 - 92.22 = 1.15) points, we conclude that our approach with coreference layer and coreference regularization can effectively improve the NER performance and plays a key role in achieving the best performance.

Overall, our full model achieves the state-of-the-art performance of 93.19% F1-score when using the dynamic word embedding from language model (comparing to models marked with * in Table 3), and our approach simultaneously obtains the best F1-score of 91.65% when using the fixed word embedding only. This result proves our model can effectively work without relying on the gold coreferential relations.

Table 4 reports our experimental results as well as previous approaches that were evaluated on the OntoNotes v5.0 test set. Similar to the result on the CoNLL-2003, better NER performance can be achieved by using our coreference layer and coreference regularization. Therefore, our full NER model achieves the state-of-the-art F1-score of 89.83% on the OntoNotes as well, which outperforms the previous bestpublished result (88.81%) of Clark et al. (2018) by a large margin. Again, we demonstrate that the noisy coreference knowledge extracted from an external system is still usable in our framework for improving the NER performance.

It is worth mentioning that the latest multi-task joint NER and coreference resolution model [Luan et al., 2018] performs worse than our method, even worse than those traditional sequence labeling approaches. One possible reason is that the implicit knowledge transfer by sharing intermediate layers for the NER and coreference resolution tasks is not as effective as explicitly imposing the coreference regularization. Besides, brute force enumeration of all possible span candidates ignores the inner dependency among sub-chunks of entities, which can be better captured by sequence labeling.

4 Code was downloaded from https://bitbucket.org/luanyi/scierc/ src/master/. We set rel weight = 0 to disable the relation inference task and carefully tuned other network architecture hyperparameters over a wide range on the validation set.

5 Analysis and Discussion

5.1 Ablation Study

To understand how much contribution each major component of our full model makes, we did an ablation study as illustrated in Table 5. Clearly, removing the coreference regularization and coreference layer significantly deteriorates the model performance by 0.3 and 0.9 points respectively (statistical significant t-test with p < 0.01). Among three parts of expanded word vector including GloVe, characters and ELMo, the ELMo embedding makes the most contribution and improves the NER result by 1.5 points on average which is consistent with the observation of Peters et al. (2018).

5.2 Choice of Coreference Layer and Coreference Regularization

Similar vs. Same Coreferential Representations. On the CoNLL-2003, we evaluated two variants of the coreference layer introduced in Section 3.2. The comparative study under the same settings (base model + coreference layer w/o coref regularization and ELMo) showed that, as the input of the CRF layer, similar coreferential representations (91.53% F1-score) generated by Equation (1) are significantly better than the exact same coreferential representations (91.21% F1score) as the output of Equation (2). One potential explanation is that the important context information of individual entity is missing if we enforce all entities within one coreference cluster to share the same representation in vector space.

Cosine vs. Euclidean Coreference Regularization. We compared two types of coreference regularization introduced in Section 3.3 on the CoNLL-2003. The experiment result showed that the "Cosine Coreference Regularization" clearly outperformed the "Euclidean Coreference Regularization" with 91.65% vs. 91.23% F1-score (we set λ = 0.1 for a fair comparison) which meets our expectation that the cosine similarity can better parameterize the similarity between two vectors than the euclidean distance in vector space.

Impact of Coreference Regularization λ. From Table 6, we can see that the coreference regularization parameter λ has a nontrivial effect on the performance of our model. We recommend to choose λ from the range [0.1, 1.0] and tune it based on the density of coreference relations in the data (e.g., smaller λ for higher coreference relations density).

5.3 Impact of Coreference Knowledge Quality

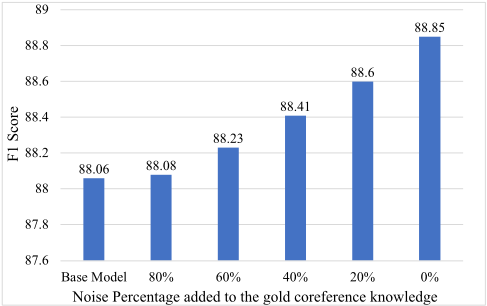

Since gold coreference knowledge is rare and valuable, it is important for our framework to tolerate the noisy coreferential relations as prior knowledge. In order to study the influence of the coreference quality on our model, we gradually add noise into the OntoNotes' gold coreference clusters by randomly deleting or fluctuating (±5) the coreferential entities' indices with a certain probability (i.e., noise percentage). As shown in Figure 4, the F1 score increases quickly with less noise and our coreference layer can still improve the NER performance with 60% noise in the coreference knowledge which demonstrates the robustness of our model.

5.4 Case Study

To study the behavior of our proposed model and better understand what types of errors made by Ma and Hovy (2016) were corrected by our coreference-aware approach, we did an error analysis on the CoNLL-2003 dataset and listed a few representative examples in Table 7. To make our contribution clear, we did not use the ELMo embedding for both models.

As shown in the Table 7, our approach not only helps correctly predict the semantic type of coreferential entities within a coreference cluster (the second, third and fifth example), but also locates the accurate boundary of coreferential named entities (the first, fourth and fifth example).

6 Conclusion

We present a novel neural network model for the NER task which builds the coreference-aware word representations by explicitly utilizing the coreferential relations with our proposed coreference layer. Furthermore, we introduce the coreference regularization to ensure the coreferential entities to share similar representations and consistent predictions within the same coreference cluster. Experiments on two benchmarks demonstrate that our full model with the coreference layer and coreference regularization significantly outperforms all previous NER systems, even given the noisy coreference information as prior knowledge.
