Dual Visual Attention Network for Visual Dialog

1 Introduction

In recent years, the cross-modal semantic understanding between vision and language has gained more and more interest and attention in the computer vision and natural language processing fields. Great progresses have been achieved in a variety of multi-modal applications including image captioning [Karpathy and Fei-Fei, 2015; Xu et al., 2015; Lu et al., 2017b], referring expressions [Hu et al., 2016; Zhang et al., 2018], visual question answering (VQA) [Antol et al., 2015; Patro and Namboodiri, 2018; Anderson et al., 2018], and visual dialog [Das et al., 2017]. In this paper, we focus on the visual dialog, which can be regarded as originating from VQA. Based on a single question, VQA requires the agent to identify the interest area in the image and infer an answer. As an extension of VQA, visual dialog [Das et al., 2017] is in the style of multi-round question-answer (QA) pairs in a GuessWhat game. Semantic co-reference among question, history and visual cues is a crucial problem in the visual dialog task. Based on textual and visual features, early studies focused on semantic fusion [Das et al., 2017]. In addition, to acquire the multi-modal semantic correlation, state-of-the-art visual dialog approaches [Lu et al., 2017a; Wu et al., 2018] applied various attention mechanisms on feature representations of vision and language, which yield a lot of promising results. However, these approaches only refer to one type of visual feature, i.e., global image-based feature [Lu et al., 2017a; Kottur et al., 2018; Wu et al., 2018] or local object-based feature [Niu et al., 2018].

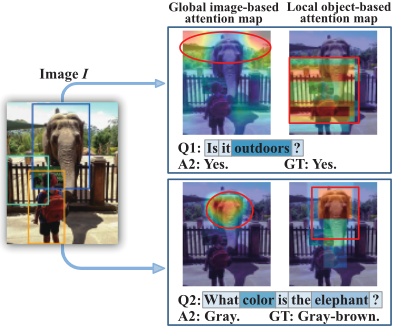

As illustrated in Figure 1, visual dialog requires the agent to understand the image content comprehensively. Given an image I, question 1 (Q1: "Is it outdoors?") requires the agent to understand the global visual context, while question 2 (Q2: "What color is the elephant?") focuses on specific objects in the image to infer the answer. Accurate visual grounding regions perform crucial impacts on semantic reasoning. For different questions, local and global attention maps reflect different visual responses related to the rich textual semantics (question and history). Therefore, effectively utilizing the visual complementarity is beneficial to address the cross-modal semantic correlation for visual dialog.

In this paper, we propose a novel Dual Visual Attention Network (DVAN), which explores visual cues from different views related to the current question. It utilizes the merits of both global image-based and local object-based visual features. As shown in Figure 2, DVAN first imposes the current question on history to acquire the attended history feature. Here it is sentence-level textual attention. Next, the attended history and question features are used to refer the related image regions and detected bounding boxes. This process consists of two visual reasoning steps. In the first visual reasoning step, the proposed DVAN model imposes textual semantic features on global and local visual features respectively. Essentially, this step is a intra-visual reasoning. For the second step, the model explores mutual correlation through a dual crossing attention between global and local visions, i.e., inter-visual reasoning. Up to now, the sentence-level textual semantics have already instructed the respective independent and mutual crossing correlation learning between local and global visions. We further consider a fine-grained representation of question Q at word-level, which enhances the keywords' semantics. Finally, an answer is inferred by a multimodel semantic fusion scheme.

The main contributions are summarized as follows:

• The paper proposes a Dual Visual Attention Network (DVAN) to enhance the question-related cues on history, global and local visions progressively. Experimental results on VisDial v0.9 and v1.0 show that the proposed approach achieves state-of-the-art performances.
• It tackles visual co-reference using both independent and mutual visual attention mechanisms. Image-based global feaure and object-based local visual feature are introduced to the DVAN model.
• DVAN is a question-adaptive attention model, which considers both sentence-level and word-level textual attentions. Both of them perform well for visual dialog.

2 RelatedWork

2.1 Visual Dialog

As an extension of the vision-language task, visual dialog was introduced by [de Vries et al., 2017; Das et al., 2017]. Specifically, De Vries et al. [de Vries et al., 2017] collected a GuessWhat dataset by a two-player guessing game, where one agent asks questions guessing which object has been selected in the image, and the second agent answers in yes/no/NA. Das et al. [Das et al., 2017] proposed a large visual dialog dataset VisDial, which pairs two annotators on Amazon Mechanical Turk to collect free-form questions and answers about an image. The questioner asked questions to help himself better imagine the unseen image.

Das et al. [Das et al., 2017] introduced three baseline models, i.e., late fusion (LF), hierarchical recurrent network (HRE), and memory network (MN). LF encoded the question, dialog history, and image separately and then concatenated them to a joint representation for answer inferring. HRE used a hierarchical recurrent encoder for history encoding. MN stored each question-answer pair as a 'fact' and answered the current question based on the facts. In addition, to improve performance, attention mechanisms have been widely used in VisDial task. In [Lu et al., 2017a], a history-conditioned image attention model (HCIAE) was proposed, which discriminatively attended on image features spatially according to the dialogue context. In order to capture more accurate visual regions, Wu et al. [Wu et al., 2018] introduced a sequential co-attention model (CoAtt), which applied multistep co-attentions over question, history, and VGG visual feature maps. Seo et al. [Seo et al., 2017] proposed an attention memory network (AMEM), which addressed the co-reference of the question and history. Niu et al. [Niu et al., 2018] proposed a recursive visual attention model which selectively reviewed the dialog history and recursively refined the visual attention for visual grounding. Kottur et al. [Kottur et al., 2018] applied neural module network [Andreas et al., 2016] to solve this visual reference problem at word-level.

2.2 Dual Visual Representation

For visual correlation learning, the point of dual visual representation has been explored in VQA [Lu et al., 2018; Farazi and Khan, 2018]. Lu et al. [Lu et al., 2018] employed a multiplicative embedding scheme to realize co-attention among question, global and local visions. Similarly, in [Farazi and Khan, 2018], a hierarchical co-attention scheme using global and local visions was proposed, which focused on multi-modal semantic fusion. The method most related to this paper is [Lu et al., 2018]. Lu et al. applied a crossing visual attention performing on original global and local visual features at once time for VQA. In contrast, we adopt a progressive attention mechanism. Based on global and local visual features, the proposed DVAN model first explores respective independent visual attention to learn intra-visual correlation and then implements mutual crossing visual attention to model the inter-visual correlation. Moreover, in the fusion stage, Lu et al. directly fused the question and visual representations, while we use a self-attended question at word-level to further enhance related visual semantics, and then jointly fuse the multi-modal features to infer the answer.

3 ProposedMethod

A visual dialog is defined as that at current round t, given an image I and previous history H including the image caption c and t-1 question-answer pairs (i.e., H = (c, (q1, a1) , ..., (qt-1, at-1))), the dialog agent has to answer the follow-up question Q. The agent is divided into two types, i.e., discriminative and generative models. Discriminative models select the answer with the maximum score from a list of 100 candidate answers At = {a(1) t , ..., a(100) t }, while generative models decode an answer by sequential learning models. Generative models are optimized by maximizing the loglikelihood of the ground truth answer agt t ∈ At.

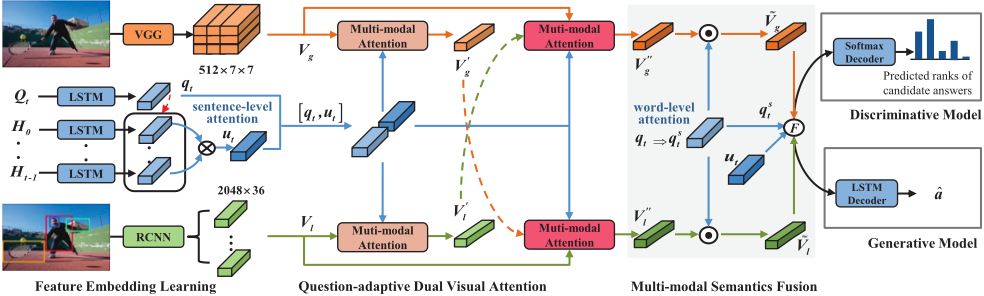

As illustrated in Figure 2, our model consists of three modules. (1) Feature Embedding Learning (Section 3.1). To better learn the correlation among multi-modal features, we embed each feature to the same feature dimension. (2) Questionadaptive Dual Visual Attention (Section 3.2). A multi-stage attention mechanism is proposed to progressively enhance the question-adaptive cues on history, global and local visions. The whole process is question-driven. It first tackles the textual inferring, and then attends the textual cues on global and local visual features individually. Finally, this part implements co-reference by mutual global and local visual correlation. (3) Multi-modal Semantics Fusion (Section 3.3). In this module, the attended textual and visual features are fused together to infer the answer. In the following, we discuss each module in detail.

3.1 Feature Embedding Learning

For visual embedding learning, we first adopt a pre-trained VGG19 [Simonyan and Zisserman, 2014] as feature extractor. The output of the last pooling layer of VGG19 is taken as global visual feature V (0) g ∈ Rdg×M , where M = 7×7 is spatial size and dg = 512 is the channel number of the feature maps. Then, we use the Faster R-CNN [Ren et al., 2015] pretrained on Visual Genome dataset [Krishna et al., 2017] to obtain local visual feature V (0) l ∈ Rdl×K , where K = 36 is the number of detected objects for per image and dl = 2048 is the feature dimension. In order to better calculate the correlation between these two types of visual features, we employ the fully connected (FC) layer to map original V (0) g and V (0) l into the same dimension d respectively:

where Wg ∈ Rd×dg and Wl ∈ Rd×dl are learnable parameters of respective FC layer. All bias terms of FC layers in this paper are omitted for simplicity.

For textual embedding learning, at the t-th dialogue round, we first assign each word xi (in the current question Q) into a one-hot vector. Next, word xi is embedded into a vector wi through a learnable word embedding matrix We. We obtain the textual features of question Q as follows:

where N is the word number of question Q.

To learn the temporal correlation of words in question Q, LSTM [Hochreiter and Schmidhuber, 1997], a basic RNN unit, is used to get the embedding representation of Q. We implement Q′ = LSTM (Q), where Q′ ∈ Rd×N , and d is the same dimension as the embedded visual features. We take the last hidden state LSTM(wN) as the embedding feature of Q and denote it as qt. Similarly, we adopt another LSTM to obtain the history embedding features H. Each previous round of history is encoded. Here is H = [h0, h1, ..., ht-1] ∈ Rd×t , where h0 denotes the textual embedding feature of image caption c (i.e., h0 = LSTM(c)).

3.2 Question-adaptive Dual Visual Attention

In order to achieve effective cross-modality semantic understanding on Vg (global vision), Vl (local vision), Q and H for inferring answer A, a novel Dual Visual Attention Network (DVAN) is proposed. It is a three-stage query-adaptive attention model. The details are presented as follows.

The 1st-stage Attention: Question Attending to History

Visual dialog has a multi-round conversation about an image. The questions in the dialog usually contain at least one pronoun (e.g., "he", "she", "it", "this"). This textual coreference in dialog context has a great impact on the final answer inference. In other words, the agent has to find the targeted subjects in the previous history snippets. In the proposed DVAN framework, we propose a question-conditioned attention mechanism, which focuses on identifying the related history snippet semantics. It realizes a sentence-level textual feature representation by imposing question qt on history H. The first stage attention is formulated as follows:

where Wq ∈ Rd×d ,Wh ∈ Rd×d , and P ∈ Rd×1 are tobe-learned attention parameters, 1 ∈ Rt is a vector with all elements set to 1, αh t ∈ Rt is the attention weight vector for history H, and ut ∈ Rd is the outputted attended history representation. Then, qt and ut are jointly used to attend different visual features in the following sections.

The 2nd-stage Attention: Independent Visual Attention

Here we focus on addressing the visual reference problem. The question and attended history are jointly used to localize the related visual regions in the image. In order to capture the correlation between different data modalities (vision and language), a multi-modal attention mechanism is designed to acquire attended visual features including both global imagebased and local object-based representations. To effectively capture the context-aware visual semantics, here we explore the intra-visual relation under the guidance of Q and H, while the inter-visual relation is discussed in next subsection.

In this second-stage attention step, the proposed model implements the inference Q+H+V→V ′ . It jointly combines question qt, attended history ut, and original visual features V to rethink V itself and obtain more discriminative representation V ′ . Global and local visual features are independently updated by formulae 4 and 5.

where αg1 t ∈ RM and αl1 t ∈ RK are respective attention weights over global and local visual features. V ′ g and V ′ l just consider respective intra-visual relation in each own feature space.

The 3rd-stage Attention: Dual Crossing Visual Attention

Through the second-stage attention, the proposed model has obtained attended intra-visual embeddings V ′ g and V ′ l under the guidance of textual features. However, the visual complementarity between global and local visions are not considered. As shown in Figure 1, if both global and local visual attention maps focus on the same regions in image I, the model has confidence in both sides of visual reasoning. Otherwise, with different visual response regions, V ′ g and V ′ l can complement each other. This can help repair neglected or uncorrected visual cues. Therefore, we design the third-stage attention to capture the correlation between global and local visions (i.e., inter-visual reasoning).

As shown in Figure 2, this attention step implements the dual visual crossing attention for visual reference, which also belongs to the multi-modal attention under the guidance of the question and the attended history. We implement a mutual visual correlation calculation to obtain a new global visual semantic, i.e., Q+H+Vg+V ′ l →V ′′ g . Similarly, Q+H+Vl+V ′ g →V ′′ l is conducted. The visual semantics V ′′ l and V ′′ g are mutually updated by the formulae 6 and 7.

where αg2 t ∈ RM and αl2 t ∈ RK are respective attention weights over global and local visual features.

3.3 Multi-modal Semantics Fusion

Up to now, the sentence-level textual semantics (qt and ut) have already instructed the respective independent and mutual crossing correlation learning between local and global visions. Here, we consider a fine-grained representation of question Q at word-level. As illustrated in Figure 1, words "outdoors", "color", and "elephant" are most related to the answer. Enhancing these keywords' semantics in Q can help infer the final answer. To this end, we apply a self-attention mechanism on question Q to focus on the keywords:

where αq t ∈ RN , qs t ∈ Rdm , dm is the dimension of word embedding, and qs t is the self-attended question representation.

Then, we use the self-attended qs t to further impose its impact on both local and global visual contents. The refined visual features are obtained by Hadamard (element-wise) product (denoted as symbol '⊙'), which is similar to the gate operation within LSTM and GRU. This process is expressed as follows:

where Ws ∈ Rd×dm is a to-be-learned attention parameter. ˜ Vg and ˜ Vl are the final visual embedding representations.

Finally, with self-attended question feature qs t , questionconditioned history feature ut, and refined visual features ( ˜ Vg, ˜ Vl), we fuse them to obtain the final embedding et.

where [, ] is the concatenation operation. In the generative model, the feature et is fed into a single LSTM decoder to infer the answer ˆa. For the discriminative model, et is fed into a softmax decoder to sort the candidate answers in At. The details of the training setting of generative and discriminative models are explained in Section 4.2.

4 Experiments

4.1 Datasets and EvaluationMetrics

We evaluate the proposed model on the VisDial v0.9 and v1.0 [Das et al., 2017] datasets. VisDial v0.9 contains 83k dialogs on COCO-train images and 40k dialogs on COCOval images (totally 1.2M QA pairs). The dialog of each image has 10-round question-answer pairs, which were collected by a two-player image guessing chat game. Specifically, the "questioner" attempted to imagine the unseen image better by sequentially asking questions, while the "answerer" answered questions based on the observed picture. VisDial v1.0 is an updated version of the VisDial v0.9, in which VisDial v0.9 is set to be the train split. And the new val and test splits of VisDial v1.0 contains 2k and 8k dialogs collected on COCO-like Flickr images, respectively. It is worth noting that in the new test split, each dialog has flexible n rounds of QA pairs, where n is in the range of 1 to 10.

Following the evaluation protocol in [Das et al., 2017], the experimental performance is evaluated by retrieving the ground-truth answer from a list of 100 optional answers. The retrieval metrics include (1) Mean: mean rank of the ground truth answer option, (2) Recall@K: existence of the ground truth answer option in top-k ranked responses, and (3) MRR: mean reciprocal rank of the ground truth answer option. For VisDial v1.0, NDCG (normalized discounted cumulative gain) was introduced, which penalizes the lower rank of answers with high relevance.

4.2 Implementation Details

We tokenize all text inputs by Python NLTK toolkit and construct a vocabulary of words that appear at least 4 times in the training split. The captions, questions, and answers are truncated to 24/16/8 words for generative models, and 40/20/20 words for discriminative models, respectively. Next, each word is embedded into a 300-dim vector initialized by the GloVe embedding [Pennington et al., 2014]. All the LSTMs in our model are 1-layered with 512 hidden states. The Adam optimizer [Kingma and Ba, 2014] is adopted with initialized learning rate 4×10-4 , multiplied by 0.5 after each 20 epochs. We also apply Dropout [Srivastava et al., 2014] with radio 0.5 for LSTM, attention modules, and the output of encoder. Finally, generative models are trained with a MLE loss (maximum likelihood estimation), while discriminative models are trained with a multi-class N-pair loss [Lu et al., 2017a].

4.3 Experiment Results

The compared baseline models (LF, HRE, and MN) are proposed by [Das et al., 2017]. Specifically, LF directly extracted multi-modal features and fused them in the later stage. HRE used a hierarchical recurrent encoder [Serban et al., 2017] to encode the dialog history, and HREA applied an attention mechanism to attend the relevant history. MN designed a memory bank to store previous dialog history. In recent works, HCIAE [Lu et al., 2017a] applied a historyconditioned attention mechanism to attend on image and dialog features, and CoAtt [Wu et al., 2018] proposed a sequential co-attention mechanism over multi-modal inputs.

Ablation Study

In order to verify each attention component, we test and verify the following ablative models:

• DVAN w/o OF: DVAN with only global image-based visual feature V (0) g .
• DVAN w/o GF: DVAN with only local object-based visual feature V (0) l .
• DVAN w/o Att3: DVAN without the visual cross attention scheme (the third-stage attention). It demonstrates that there is no crossing visual attention between global and local visual features.
• DVAN w/o SQ: DVAN without self-attention on question Q. It means that DVAN adopts only sentence-level attention (qt) without word-level attention (qs t ) in the final multi-modal fusion scheme.

As shown in Table 1, compared to DVAN w/o OF, the full model DVAN improves R@1 from 44.58 to 46.58. It shows that introducing local visual feature can capture richer visual cues for the agent to infer the answer. As for DVAN w/o GF which considers only local visual feature, R@1 drops to 46.01. It indicates that the global and local visions are complementary. The combination usage of them performs much better than only one vision type. After removing the crossing attention module (the three-stage attention), DVAN w/o Att3 drops R@1 from 46.58 to 46.32. This shows the crossing attention correlation between global and local visions can effectively enhance the visual semantics. A self-attended question is further proposed to consider the word-level textual semantics. DVAN can get better performance than DVAN w/o SQ by average 0.2% improvement.

Evaluation on Generative Models

For a fair comparison, all models in Table 1 use the MLE loss for generative training. DVAN w/o OF already outperforms other compared methods. This is interpretable, as other methods only consider the question at sentence-level representation. In contrast, we explore a word-level representation. In addition, by integrating global and local visions, the DVAN model obtains significant performances on all evaluation metrics. Comparing to the state-of-the-art model CoAtt, the DVAN model achieves nearly 2 points improvement on R@K and 2.1% on MRR.

Table 2 shows another experimental comparison with other approaches. HCIAE-DIS [Lu et al., 2017a] trained a generative model with the MLE loss, and then used the knowledge from a pre-trained discriminative model to fine-tune the generative model. This strategy requires additional candidate answers. Compared to HCIAE-DIS, the DVAN model performs better on MRR, R@1 and R@5. Notably, no additional candidate answers are needed in the end-to-end DVAN training. CoAtt-RL [Wu et al., 2018], which was pre-trained with the MLE loss, adopted both reinforcement learning and adversarial learning for further offline training. Compared to CoAtt-RL, the DAVN model performs better on MRR and R@1, lifting MRR from 0.5578 to 0.5594 and R@1 from 46.10 to 46.58. With richer textual and visual semantics, the DVAN model achieves promising results even in a simple end-to-end training mode.

Evaluation on Discriminative Models

In discriminative task, the compared methods are AMEM [Seo et al., 2017] and CorefNMN [Kottur et al., 2018]. These two works also focused on the visual co-reference, which involves word referring (typically noun phrases and pronouns) to the same entities in an image. In contrast, the DAVN model emphasizes the semantic enhancement by the sentence-level and the word-level textual attentions, and the respective independent and mutual crossing visual attentions. Table 3 shows that using the VisDial v0.9 dataset, the proposed model outperforms the state-of-the-art models on all metrics by average 2%. We also evaluate on VisDial v1.0. As shown in Table 4, the DAVNmodel still achieves the best performance.

4.4 Qualitative Results

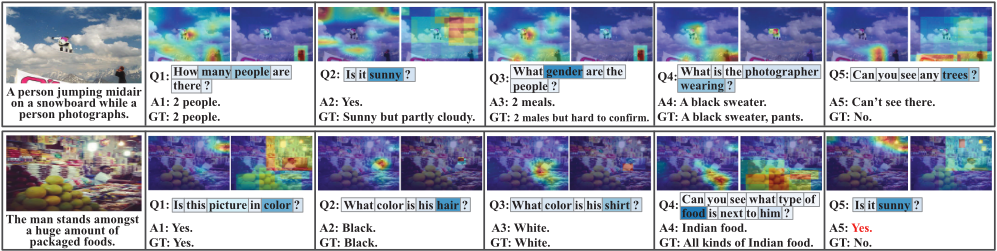

As shown in Figure 3, we give two examples from VisDial v0.9. There are some conclusions. On one side, the textual attention distribution at word-level relative to each round answering is interpretable, which captures the keywords of each question. On the other side, we discuss the two types of visual attention maps, i.e., global and local visual attention maps. We denote the first row as Example 1, and the second row as Example 2. (1) For questions Q1 and Q3 in Example 1, and Q2 and Q3 in Example 2, the proposed model attends the consistent visual regions on both global and local visions. (2) However, for questions Q2 and Q5 in Example 1, and Q1 and Q4 in Example 2, global and local visions form the visual complementarily to infer the correct answer. (3) For Q4 in Example 1, the global map can effectively focus on the target object-"photographer", while the local map attends on the "skier" incorrectly. In this case, global map focuses on a part of the targets, while local map attends irrelevant regions. Only one visual attention map attending the related regions can also infer the correct answer. (4) There are also some challenging cases, e.g., Q5 in Example 2. Both of the two attention maps focus on the same regions where the light is bright as "sunny", but the answer is wrong.

5 Conclusion

In this paper, we propose a Dual Visual Attention Network (DVAN) for visual dialog. DAVN aims at learning effective visual correlation under textual cues. DVAN first applies a textual attention mechanism on question and history to get related textual semantics, then imposes them on global and local visual features to acquire accurate visual semantics. The visual attention mechanism in DVAN tackles both respective independent and mutual crossing visual reasoning. Experiments conducted on the VisDial 0.9 and 1.0 datasets validate the effectiveness of the proposed model.

Acknowledgments

This work is supported by the National Natural Science Foundation of China (NSFC) under grants 61725203, 61732008, and 61876058.
