KUNet: Imaging Knowledge-Inspired Single HDR Image Reconstruction

1 Introduction

Due to the limitation of existing (imperfect) hardware devices, people can only get photos with a certain range of brightness, i.e., common LDR images, which leads to the capture of LDR pictures with overexposed and underexposed areas as well as indifferent colors [Wang and Yoon, 2021]. The HDR image itself has a rich dynamic range, so it can express rich scene brightness and vivid colors. Restoring HDR image from LDR image has a very important practical significance [Eilertsen et al., 2017b], and this is an ill-posed problem since multiple mappings exist between the LDR and HDR images.

∗Mao Ye and Xiatian Zhu are corresponding authors. This work was supported by the National Key R&D Program of China (2018YFE0203900) and Sichuan Science and Technology Program (2020YFG0476).

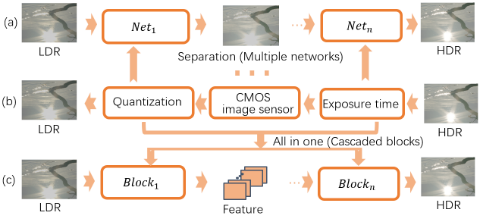

There are three ways to construct HDR image [Kim et al., 2020a]: direct reconstruction, multi-exposure stack-based synthesis and reconstruction by reversing the camera imaging pipeline. Direct reconstruction simply uses the modules in other research fields to generate HDR images in an end-toend manner [Kim et al., 2020b; Chen et al., 2021a]. A pair of LDR-HDR image set is needed to train the model. These models are simple but do not in-depth consider HDR imaging mechanism; the noise reduction and recovery of the lost details are not enough.

The second line of methods use multi-exposure LDR image stack to reconstruct HDR image [Kim et al., 2020a]. It uses a LDR image to generate multi-exposure LDR images to synthesize HDR image. In this way, different exposure information are used. The key to success for this line is how to generate accurate multi-exposure images and how to combine these multi-exposure images. For the last kind of methods, they reverse the HDR-to-LDR image formation pipeline, and then the HDR image generation task is decomposed into multiple subtasks [Liu et al., 2020; Chen et al., 2021b]. Multiple neural networks are used to approximate these subtasks to generate HDR images. However, the dependence between subtasks need to be carefully considered and how to train these cascaded networks becomes a new problem.

In this work, we propose a new approach which integrates the HDR imaging knowledge to an UNet architecture, named as Knowledge-inspired UNet(KUNet). Our approach not only absorbs the advantages of the simple structure of UNet, but also considers the imaging principle, which greatly reduces the solution space. The LDR-to-HDR mathematical formula is modeled by Knowledge-Inspired Block (KIBs) composed of three parts in charge of recovering missing details in overexposed area, adjusting imaging parameters and reducing LDR imaging noise, respectively. Then, similarly as UNet, in order to gather the features needed in HDR reconstruction, the features from multiple KIBs are converged to reconstruct HDR image. Furthermore, the direct jump connection in the traditional UNet is adjusted to fit the dynamic range gap with a Knowledge-Inspired jump Connection (KIC), which transfers the LDR features to the HDR features. And the directly connection transported features are scored to assist final HDR reconstruction.

Our contributions are three-fold: (1) We proposed a new knowledge-inspired UNet for HDR reconstruction approach. By analyzing the camera imaging pipeline, the HDR image restoration formula is derived. Based on this knowledge, the KIB is constructed to obtain the HDR image needed features. (2) A new jump connection structure is further designed to address the dynamic range gap between LDR and HDR. More useful features can be combined in the final reconstruction layer. To the best of our knowledge, we are the first to propose a specific jump-connect structure for HDR image reconstruction. (3) Despite its simple design, extensive experiments on HDR image and video reconstruction datasets prove that our KUNet outperforms a wide variety of the state-of-the-art methods.

2 RelatedWork

Multi-exposure stack HDR synthesis. The most common way of HDR reconstruction is to capture a series of LDR images with different exposures and then fuse these images. Wang et al., [Wang and Yoon, 2021] divided these methods into five types, namely, flow-based alignment, direction feature concatenation, correlation-guided alignment, image translation-based alignment, and deep static image fusion. Although the technical route based on multi-exposure LDR image synthesis is significant, it is difficult to find similar multi-exposure images for most LDR images in the real world.

Single-exposure HDR image reconstruction. Previous works built models to fit the nonlinear HDR imaging process. Although high efficiency can be achieved, the performance is not satisfied because of the approximation ability of traditional models. With the development of deep learning in last decades, there emerged many methods to learn LDR-to-HDR mapping. They can be roughly divided into three categories as mentioned before.

For the first approach of direct reconstruction method, HDRCNN [Eilertsen et al., 2017a] was first proposed to restore the overexposed areas in LDR image to construct HDR image which only considers the recovery of overexposed areas. After that, a lot of works proposed different neural networks to fit the LDR-to-HDR mapping [Kim et al., 2020b; Chen et al., 2021a]. Although these methods have achieved good results, these methods either directly use modules in other research fields, or use some of HDR imaging knowledge as conditions. There still exists a lot of room for improvement. For the line of multi-exposure stack-based synthesis, they pass an image through CNN to generate LDR images with different exposures, and then merge these images together to generate HDR images [Kim et al., 2020a]. The key to success of this approach is the quality of the generated multi-exposure images which is affected by many factors and how to train these models is also not easy. The last approach [Liu et al., 2020] reverses camera imaging pipeline, multiple networks are employed to learn the stages of inverse camera imaging pipeline to generate HDR images. After that, the method HDRTV [Chen et al., 2021b] extends it for HDR TV task. This kind of methods have shown very good results. However, this type of method uses multiple network splicing which has a strong dependence between these networks. Except a large number of parameters, this architecture will bring troubles to model generalization and training.

Instead of this approach, we absorb the advantages of UNet which can easily integrate different scale features and use a basic building block to approximate the LDR-to-HDR formula. This knowledge-inspired UNet will merge different scale features which are needed for HDR image reconstruction. So the performance is further improved.

Jump-connect structure. Since the use of the jumpconnect structure in the UNet network [Ronneberger et al., 2015], the jump-connect structure has received widespread attention. MultiResUNet [Ibtehaz and Rahman, 2020] uses several convolutional blocks to construct Res path to improve the jump-connect structure. NBNet [Cheng et al., 2021] also uses some convolutional blocks, but after convolution, the attention mechanism combined with the information on the decoding side is used. [Wang et al., 2021] summarizes the information that needs to be jumped on the decoding end, and Transformer is employed.

These structures are designed for their respective tasks, which cannot be directly used for HDR generation since LDR-to-HDR image reconstruction has the problems of dynamic range gap and overexposed areas. So we propose a new jump-connect structure which does mapping from LDR feature to HDR needed features, reduces the noise caused by HDR-to-LDR imaging process and decreases ghosting during LDR-to-HDR generation.

3 Analysis of HDR Image Reconstruction

LDR image formation formula is proposed in [Hasinoff et al., 2010] as follows,

where t is the exposure time, g is the sensor gain, and I0 is the constant offset current. ϕ represents the scene brightness, as mentioned in [P´erez-Pellitero et al., 2021], which can be assumed as HDR pixel value. IL represents a LDR image pixel value and n is the sensor noise. Unsaturation represents the pixels that can be represented by the LDR image after camera imaging pipeline processing; while saturation represents sensor saturation occurs which is due to the limited capabilities of the current camera, so this pixel value will equal to a saturation point value Imax [P´erez-Pellitero et al., 2021].

This formula is widely used in LDR image formation which inspires us to generate the HDR images in a similar theoretically guided way. Suppose we have a camera with unlimited capture capabilities, the corresponding saturated pixel value in Eq. (1) of the LDR images can be represented as follows,

where Ioverexposed and Ioverflow represent the pixel values captured by this infinitely capable camera, and the overflow values between the ideal and real cameras, respectively. Of course, if the pixel value is unsaturated, Ioverflow = 0 since no difference exists between the ideal and real cameras. By combining Eq.(2) and Eq.(1), the LDR formation process as can be unified as

By reversing Eq.(3), the true HDR pixel value can be obtained as follows,

Since the noise n also includes the impacts from g and t, without generality, we still can consider gt n as the LDR image generation noise. From Eq.(4), we can conclude the restoration process from LDR-to-HDR by three parts: 1) inferring the pixel values in the overexposed area if Ioverflow ̸= 0; 2) adjusting sensor gain and exposure time; 3) reducing the noise caused by LDR image generation.

The above Eq.(4) formulates the restoration of HDR images from the perspective of image pixel intensities. However, in the image domain, the direct estimation of Ioverflow, g and t is very difficult. Considering the power of deep learning in feature representation and learning, in this paper, we formulate and estimate formula (4) of the HDR image restoration process in the feature domain using neural networks. Each function is formulated by a sub-network and together restores the HDR features, then generates HDR images. The detail of this knowledge-inspired model will be introduced in Section 4.

4 The ProposedMethod

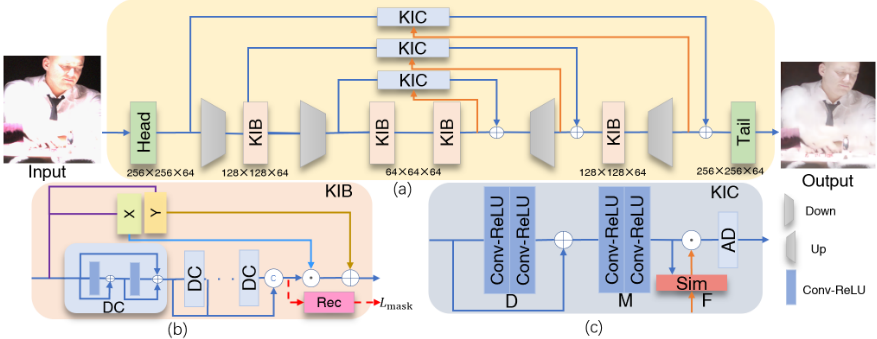

The framework of the proposed method is shown in Fig.2(a), which is based on an UNet-like architecture. To obtain more HDR needed features, the receptive field of a larger area by down sampling makes the convolution operation capture more information. So we choose the Unet-like architecture as the backbone of our base network.

The Knowledge-inspired UNet (KUNet) consists of five stages. Head stage extracts features from the input LDR image IL; while Tail stage reconstructs a HDR image based on the merged features. Between the Head and Tail stages, there is a jump-connection (KIC). After transforming the LDR image into the feature space, four KIBs are used to transfer the LDR features to HDR features according to formula (4). To fully explore the global information with a large receptive field, two KIBs are used in a smaller scale in a UNet structure. Finally, the features from the fourth KIB are integrated with the features from LDR image, transferred through KIC to formulate the HDR features, and a final Tail module is used to generate the HDR image from the features, to reconstruct HDR image ˆ IH. In the following, we will introduce the main parts separately.

4.1 Head and Tail

The main function of Head stage is to transfer the LDR image to a rich feature space for the following LDR-to-HDR feature conversion. It does not require overly complex operations. A simple subnetwork of three layer convolutions and ReLU activation functions are employed to complete this task, which is denoted byFout = (ReLU ◦ Conv3×3)3 (IL) (5)

where (·)n represents the serial cascade of n modules. Fout represents the output of Head. Correspondingly, the Tail stage reconstructs the image from the features. So a symmetrical structure is adopted at the Tail stage as follows,

where ˆ IH is the reconstructed HDR image as mentioned before; F p out = f(Fout) represents the output features of the intermediate process of KUNet.

4.2 Knowledge-Inspired Block

As stated in Section 3, formula (4) can be used to reconstruct the HDR image from the image intensity perspective. However, it is hard to direct formulate the functions in the image intensity domain. Therefore, we turn to the feature space and take advantage of the representation ability of deep learning. Consequently, the formula can be characterized in feature space as below,

where ⊙ denotes the element-wise multiplication. LF and HF represent the input LDR feature from previous module and the feature to reconstruct the output HDR image, respectively. R(·) corresponds to the part of formula (4) for compensating the missing overexposed features to reconstruct HDR; X(·) is in charge of modulating the compensated features R(LF ) to HDR feature domain; Y (·) corresponds to the LDR imaging noise reduction part of formula (4). With the help of this form of expression in feature space, our knowledge-inspired block is developed as shown in Fig.2(b), consisting of three parts of networks which fit the functions R(·), X(·) and Y (·), respectively.

For the network fitting the R(·) function, as shown in Fig.2(b), k Densely Connected (DC) blocks are cascaded and concatenated to obtain the compensated features. It is denoted by:

where Cat(·) means the concatenation operation. The DC block consists of two layers of convolution and ReLU activation function (ReLu ◦ Conv3×3), which are also densely connected to guarantee the information from upper layer will not be lost. In this way, the information from LF is retained as much as possible. For recovering the overexposed area, a mask loss is proposed for the R neural network of the ith KIB block as the following,

where IH represents the real HDR image. γ controls the recovery of overexposed area under a stage-wise consistency regularization between a reconstructed image and the true HDR image. Often, reconstructed images are not highly accurate and we set small γ to avoid over-penalty. So the parameter γ = 0.1 is fixed in our implementation. Ki is a reconstructed image through a reconstruction branch. When i = 1 or 4, it is composed of an upsampling and a convolution layers (Up ◦ Conv3×3); while for other cases, it is composed of two upsampling and a convolution layers (Up2 ◦ Conv3×3). M represents an overexposed area mask. As mentioned in [Yu et al., 2021], the overexposure mask is calculated as the following,

where c is the color channel index and τ is 0.83 [Yu et al., 2021]. Through this loss function, our R networks pays more attention to recover the information of overexposed area, which much better fits formula (4). It should be noted that the mask branch is only used in training phase, which does not bring any additional overhead at inference phase.

For the X and Y networks, it is denoted in [Liu et al., 2020] that the LF feature contains information to approximate the camera imaging parameter and noise. Inspired by [He et al., 2020], we use two 1 × 1 convolution layers to simulate these functions. The process can be described as follows:

Remark. Compared with the previous methods, our KIB fits the HDR imaging formula. The solution space is constrained and the many-to-many LDR-to-HDR mapping problem is reduced. In addition, under the adjustments of X and Y modules, the function of generating HDR features is adaptive to the different LDR images.

4.3 Knowledge-Inspired Jump Connection

The information at the front end of the network are also useful for HDR image reconstruction. As UNet does, we also use direct jump connection to transport this information. Assume the front end feature is F and the feature at the transport destination is P, tradition direct jump connection formula is

where ˆ F represents the fused feature. This type of connection does not fit our LDR-to-HDR problem. There exist two defects. (1) As denoted in Eq.(1), for LDR image formation pipeline, a lot of noise will be produced which should be eliminated when transported to the destination. (2) The dynamic range gap exists between the LDR and HDR images which will cause the feature space not consistent between the front and back ends. Based on this knowledge, we design a new KIC jump-connect structure which pays attention to the noise reduction and feature mapping.

For reducing LDR imaging noise, we use a residual structure as shown in Fig.2(c). The correct pixels in the unsaturated regions are directly connected to the output; while the high frequency or the information in the over-exposure area are processed by two convolutional layers. Here, since most of the HDR processing has already been conducted in the KIB branch, for simplicity, all the features are bypassed through the direction connection and the convolution processing for the over-exposure area learns the difference between the original features and the over-exposed features. It is the D network in Fig.2(c) which is denoted by

For the feature mapping from LDR-close feature space to HDR-close feature space which is shown as the M part in Fig.2(c), two simple two convolutional layers are employed as

It has also been noted that a small number of convolution blocks are effective for HDR image reconstruction [Chen et al., 2021b].

Furthermore, in order to suppress useless information and reduce the visual ghosting, we further filter the features processed by the above networks. Scoring mechanism is employed. The final filtered feature is

where AD represents a 1×1 convolution which is used to adjust the scored feature. We adopt Cosine similarity in [Zhang et al., 2020] as follows,

where ε represent a very small parameter which is used to prevent division by zero.

Remark. Ideally, the jump-connect structure should solve the problems of noise reduction, feature mapping, and overexposure pixel value discovering. The over-exposure area recovery is not implemented in here due to two reasons: (1) The cascaded KIBs already try to find features to recover the over-exposure area; (2) A simple jump-connect structure cannot handle this situation very well.

4.4 Loss Function

Our total loss function is divided into a main loss function and a mask loss function, which is denoted by

where Lmain = ∥IH - ˆ IH∥1 and Lmask = ∑4i=1 Limask . Similar as KIB's R network, the mask loss with the weight controlled by β is also designed to recover the overexposed area, playing an auxiliary role. Given that, β is also set small. So the parameter β = 0.01 is fixed in our implementation. Compared with the approaches based on reversing the camera imaging pipeline, our loss function is rather simple and no hyper-parameter exists. The training of our method is also simple and end-to-end.

5 Experiments

5.1 Experiment Setup

Datasets. We use two data sets to evaluate our method, i.e., for image and video tasks. Both of these two data sets contain information about moving light sources, rich colors, highlights and bright. For the image task, following the works in [Chen et al., 2021a; Liu et al., 2021], the NITRE 2021 dataset is used which was proposed in NITRE 2021 HDR Challenge [P´erez-Pellitero et al., 2021] selected fromHDM HDR dataset [Froehlich et al., 2014]. This data set only contains HDR images. Since the ground truth of test and validation images are not available, by similar operation in [Chen et al., 2021a], the original training set is decomposed into two parts for training and test. They are 1416 paired training images and 78 test images. For the video task, we conduct experiment on HDRTV [Chen et al., 2021b]. This dataset is obtained from 22 HDR10 standard videos and these videos comply with the Rec.2020 standard. It contains 1235 paired training pictures and 117 test pictures. It is mentioned in [Chen et al., 2021b] that the LDR-to-HDR image task is different from the SDRTV-to-HDRTV task. However, for our method, the restoration task is limited to a certain brightness interval, which is consistent with the restoration goal of the SDRTV-to-HDRTV task. So the HDRTV is also selected as our comparison data set.

Evaluation metrics. Since the video and image tasks have different recovery goals, they have different measurement methods. For the image data set, we follow the evaluation methods in [Chen et al., 2021a; Liu et al., 2021; P´erezPellitero et al., 2021] to use PSNR and PSNR-µ [Demetris et al., 2018]. For the video data set, we follow the comparison method in [Chen et al., 2021b], using PSNR, SSIM, SR-SSIM [Zhang and Li, 2012], HDRVDP3 [Mantiuk et al., 2011] and δEITP .

In order to be consistent with other video measurement methods, we use the same HDRVDP3 parameters in [Chen et al., 2021b].

Implementation details. All models are built on the PyTorch framework. Due to space limitations, more details can be obtained from the Appendix.

5.2 Comparison with State-of-the-art

Comparedmethods. For theHDR image data set, we compare our method KUnet with 7 State-Of-The-Art (SOTA) methods. They are LandisEO [Landis, 2002], HuoEo [Huo et al., 2014], HDRCNN [Eilertsen et al., 2017a], SingleHDR [Liu et al., 2020], DEEP SR-ITM [Kim et al., 2019]

and ResNet [He et al., 2016], and HDRUnet [Chen et al., 2021a].

For the HDR video data set. we combine our methods with four types of methods including SDRTV-to-HDRTV, image-to-image translation, photo retouching and LDR-toHDR [Chen et al., 2021b].

Quantitative comparison. It can be seen from Table 1 and Table 2 that our model shows excellent performance in the data sets for both of image and video tasks. For the NTIRE dataset, SingleHDR and traditional algorithms [Huo et al., 2014; Landis, 2002] are not very suitable for this problem. This is because their goals are to restore the relative brightness instead of restoring the absolute brightness. So the performance is not satisfied. While DEEP SR-ITM and HDRCNN do not consider the denoising issue, the performance is slightly worse. Although HDRUNET does considering the problem of reducing noise, it does not consider the difference between the traditional image and HDR generation problems. In general, our performance is SOTA.

For HDRTV dataset, the ∆ITP of KUnet far exceeds other SOTA algorithms. It shows that our model is satisfactory on color gamut recovery in this video data set. The reason is that the original intention of our model considers that the generated images contain different color gamuts, but the color gamut in the HDRTV set is consistent, i.e., it has a smaller solution space compared to different color gamuts, so we can achieve excellent performance. From Table 2, it is worth noting that KUNet achieves SOTA performance except the HDRVDP3 index. The reason is that KUNet is trying to reconstruct a HDR image that is close to the original HDR image in terms of color, bit depth, etc., however, HDRVDP3 is used to evaluate human visual perception in a specific range. Therefore, KUNet does not achieve the SOTA performance on this index, while it is still competitive compared with other methods. As shown in Appendix, with an additional perception loss, the HDRVDP3 index will be improved.

Due to space limitations, the visual analysis are shown in Appendix. There are three basic observations. (1) Compared with the existing methods, KUNet model can show satisfactory visual effects for both image and video datasets. (2) KUNet can effectively remove imaging noise. (3) The KIC module can accelerate model training compared with only direct jump connection.

5.3 Ablation Studies

In this part, we will do ablation analysis on KIB and KIC modules. The experiments are performed on the NTIRE2021 dataset. As mentioned before, KIB has three parts. One part is the core module D, which is also our base block, and other parts are the adaptive X and Y branches for fine-tuning the generated HDR features from R module. From the first row in Table 3, it can be seen that only using the D module can also achieve an acceptable result where 'Skip' means using directly jump connection. Then, with the X and Y branches, the module has stronger expressive ability and the performance is increased. As shown in formula (4) that the X and Y branches must be used at the same time. Through experiments, we have also proved that our analysis is correct. KIC consists of two parts: the noise reduction (D) and feature mapping and filter (F). From the fifth and sixth rows in Table 3, we can find that these two parts work very well. The last row shows that the model with the loss Lmask can achieve the best results.

6 Conclusion

In this paper, we analyzed the HDR-to-LDR imaging process and obtained the HDR image formulation formula, which inspired us to propose a new model KUnet. The KIB block is combined with the UNet network to reconstruct the HDR image. In addition, we made a preliminary improvement on the incompatibility of the UNet jump-connect structure to the problem of HDR image restoration, and proposed the KIC branch. It is used to assist HDR image restoration, and achieved very good results. Experiments demonstrated that our method KUnet has achieved the SOTA results on HDR image and video datasets.
