Multi-Tier Platform for Cognizing Massive Electroencephalogram

1 Introduction

Studying neurophysiological processes is an important step toward understanding the brain. As a staple brain imaging tool, electroencephalography (EEG) reveals neuronal dynamics non-invasively with millisecond precision from the scalp surface [Sabbagh et al., 2019; Varatharajah et al., 2017; Hosseini et al., 2021], rendering it important not only in fundamental research such as pathophysiology [Qu et al., 2020]

† indicates joint first authors.

∗ corresponding author.

and psychiatry [Li et al., 2017], but also in a variety of applications such as and Brain-Machine Interfaces (BCIs) [Collins and Frank, 2018]. The cognition of EEGs is a typical multitier task essentially, which is conducted by the capture, feature representation, coding, and pattern recognition etc. From the signal processing point of view, the EEG data is usually massive, redundant, and noisy [Hosseini et al., 2021]. Moreover, the principle characteristics of any specific EEG is carried in the time domain. Above traits lead to the demands of proper methodologies in each phase (or say tier) for processing EEGs.

Yielding EEG signals cognizable by models [Sabbagh et al., 2019], pre-processing the specific waveforms or graphoelements in both of time- or other domain (power of rhythms for instance, seen as the space-domain in the following context) is needed. Namely, the main aspiration of feature representation tier lies on projecting the massive and noisy signals onto a lower dimensional subspace with the hope to predominantly contain original neuronal signals, and then extracting the features related to different rhythms and discrete neurophysiological events in EEG [Varatharajah et al., 2017]. Then, various applications are achieved by using the well pre-processed features through pattern recognition models [Phan et al., 2019]. Although improving the spatiotemporal (ST) feature-representation technologies helps to increase the general quality of service (QoS) [Kayser et al., 2009], the coordination and synthesis between pre-processing and pattern recognition tiers appear great impact on overall performances [Mijatovic et al., 2021]. Glancing several image-processing like efforts of EEG cognitions, where the deep convolutional neural networks (CNNs) were implemented for recognizing ST patterns from EEGs, the classification of some brain activities is performed [Eldele et al., 2021]. Unfortunately, the poor QoS indicates that EEGs cannot be treated as images since the temporal features dissipate in the plain artificial neural networks (ANNs). A reasonable substitution is employing inherently temporal based models such as recurrent neural networks (RNNs) to perform ST pattern recognitions [Pathak et al., 2021]. However, the globalterm perspective of RNN conflicts against the instantaneoussensitivity of brain activities, which leads to the loss of cognition quality [Qu et al., 2020]. Escaping from the RNNs and CNNs, high-end platforms are demanded.

In this work, all tiers of the EEG cognition are re-developed and coordinated as a general purpose EEG cognizing platform. A state-of-the-art (SOTA) EEG feature extractor is employed for translating specific EEG samples into ST feature matrices as tier-1. The proposed spiking neural network (SNN) based stage (seen as tier-2) codes ST features in the term of spike series. Through the transposing in tier-3, spike patterns are fed to a special analog neural network (ANN) for various recognition tasks, where the entire network is spanned to a set of sub-networks by the attention mechanism. The case study of sleep stage scoring problem is demonstrated by our platform for proof-of-concept. Introducing a variety of datasets with the largest comprising 42,560 hours recorded from 5,793 subjects, the proposed platform achieves the overall scoring precision of 87%, which is 2% superior to SOTA. In addition, various mutations of tier-variations are quantitatively and visibly evaluated to optimize the platform.

2 ProposedMethod

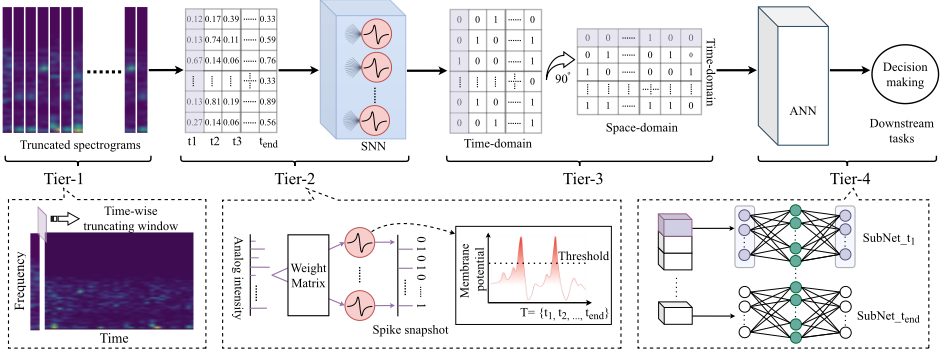

The entire platform consists of four tiers as illustrated in Figure 1. The frontend tier-1 is a plain SOTA layer to extract the features of EEGs. A specific EEG is converted to a twodimensional map (or say matrix), where the vertical and horizontal indicate the frequency band (read as "spatial" as above) and the episodes in time-sequence, respectively. The tier2 is a pseudo-SNN for pre-coding the analog features into spike patterns. An episode from a specific EEG sample drives one single snapshot (known as time-step in SNN theory) of a spike pattern thru this pseudo-SNN. This mechanism totally differs from the conventional SNN, where one entire sample fans out multiple snapshots for recognition. Thus, the spiking-analog hybrid of federated learning is proposed over tier-2, tier-3, and tier-4 as following. In tier-3, the spike patterns are transposed and snapshot-wisely spanned into multiple sub-networks in tier-4. Finally, the analog attention model is employed for backend recognitions.

2.1 Tier-1: Time-Frequency Representation

To reveal information in both time- and space-domains, tier-1 of the proposed platform generates a conventional log-power spectrogram for each input EEG sample [Phan et al., 2021]. The procedure of the spectrogram transformation first applies the Discrete Fourier Transform with a moving window to the input signal, which is given by:

where N is the length of Hamming window function ω(n). k is the frequency. A log-power representation is then defined by:

Elements of the spectrogram represent the intensities at different frequency resolutions of corresponding time duration. Each spectrogram viewed as a time-frequency matrix is then normalised into a grey-scale intensity image scaled between [0, 1]:

S(k) is cut sequentially for every second to yield episodes named as truncated spectrograms S(k, t), where t denotes the truncation for t-th second. The truncated spectrograms with analog intensity are then fed into the SNN tier-2 for further pre-coding the ST information.

2.2 Tier-2: Pseudo-Spiking Neural Network

To tackle the non-differentiable issue of SNN activation units, we follow the well-known iterative leaky integrate-and-fire (LIF) model [Wu et al., 2019]. LIF can be succinctly described by the following relation by focusing on one timestep t + 1 and the n + 1-th layer of the network:

where the subscript t denotes t-th timestep and n denotes nth layer within the architecture. Hence ut+1,n+1 is the membrane potential of neurons at the n + 1-th layer and timestep t+1. τ is the decay rate of membrane potential. ojt+1 denotes the j-th firing spike with weight wj,n from the previous layer at time step t + 1 Given the above information, ∑j wjojt+1,n is the pre-synaptic input and its information carrier is accumulated from the n-th layer. Hence, the neuron will output a fire spike and ut+1 is the reset to u0 (u0 = 0) ,when ut+1 reaches the firing threshold uth:

The spike fired by ot+1,n+1 will propagate forward and activate next layer's neurons.

Conventionally, SNN iterates t times over each sample s to produce a time-indexed sequence of samples and errors (s1, . . . , st), (ϵ1, . . . , ϵt). The output sequence (s1, . . . , st) is unsaved and typically only the average ¯ s is computed. The errors (ϵ1, . . . , ϵt) are averaged to yield the timestep-average ϵ for backpropagating ϵ of sample s. However, one cannot backtrack individual contribution of each timestep from the average of all timesteps. Moreover, EEG data are inherently time-indexed, which renders such iterates ambiguous to apply. We propose a pseudo-SNN to handle the episode-wise truncated spectrograms S(k, t) = (˜ s1, . . . , ˜ st) that contain spatial information for every second, i.e. ˜ st contains information from the t-th second. Every ˜ si, 1 ≤ i ≤ t is then fed into the SNN layer for 1 rather than t times forward pass. The resultant snapshot zi and error ˜ ϵi are appended to the sequence (z1, . . . , zi) and (˜ ϵ1, . . . , ˜ ϵi), respectively. Here, ˜ ϵi denotes error associated with ˜ si rather than with i-th iteration of whole spectrogram s. The sequence of errors are averaged to yield sample-average error ˜ ϵ for backpropagation.

We argue that leveraging the truncated spectrograms has at least three advantages over the conventional method:

1. since EEG data are inherently time-indexed, timestepaverage can be regarded as a special case of sampleaverage of truncated spectrograms by not performing truncation and increasing the number of forward passes.
2. spike snapshots allow for more efficient and finer-grind feature extraction, significantly boosting performance of downstream tasks.
3. pre-coding phase based on the inherent EEG time naturally models the cumulate/fire process of SNN neurons. We conjecture such similarity might be essential for improved feature distillation and performance.

The second and last advantages are demonstrated by our experimental results in Sections 4.1 and 4.2, respectively .

2.3 Tier-3: Preserving Spanning Topology

At tier-2 of the proposed architecture, we independently precode the analog features into a spike snapshot for each truncated spectrogram. The sequence of spike snapshots can be viewed as a matrix Z = [z1, . . . , zt] to be fed into the latter ANN layer for refining SNN spike features. Matrix Z preserves the spanning topology obtained from the SNN layer tier-2 and might benefit significantly the latter construction of feature subspaces, which stands as a sharp contrast to the conventional method that outputs an average vector ¯ s. From an EEG perspective, maintaining Z helps dynamically capture and accumulate the ST characteristics. To better excavate information associated with snapshots, a transpose operation is required for latter processing in tier-4.

2.4 Tier-4: Attention For Truncated Spectrograms

Feature outputs from conventional SNN are fed into an ANN layer (or a subsequent softmax layer) for downstream tasks such as classification. However, to do so the feature output should be compressed, e.g., reshaping to a vector for input to a fully connected layer. Such compression would destroy the independence between snapshots. Hence, a network that can individually process and summarize snapshots is called for. Specifically, the recently popular attention-based mechanism excavates relevant relationship from input matrices [Dosovitskiy et al., 2021]. As such, an attention layer naturally suits our platform for processing and tracking individual contribution from the sequence of truncated spectrograms, while each truncated spectrogram is accepted by a sub-network to maintain the feature space.

The input of tier-4 is the linear projection of transposed input Z T onto higher dimensional feature spaces. The attention layer calculates the relevance of rows of Z T and maps the relevance to the ground truth by three matrices: query Q, key K, and value V . Specifically, the relevance is computed as:

where σ(·) denotes row-wise softmax function. √d denotes a normalization-like scale that is applied to each Q-K computation. The result matrix A records the relevance score calculated as the weighted average of the rows of V , with the weights corresponding to the softmax probabilities. Motivated by the recent success in visual tasks, tier-4 comprises an addition task-based indicator, such as class-token referring to [Dosovitskiy et al., 2021] for details, for further decisionmaking such as classification.

3 Experimental Setting

3.1 Datasets

As a proof-of-concept, we examine the efficacy of the proposed platform on the sleep stage scoring problem. Specifically, we compare the proposed platform against stateof-the-art algorithms on several authoritative datasets: (i) Sleep Heart Health Study (SHHS) Database; (ii) Sleep-EDF Database. The SHHS dataset is the largest public sleep dataset comprising 42,560 hours recorded from 5,793 subjects [Chen et al., 2021].

3.2 Comparison

We compare comprehensively against state-of-the-art algorithms which were based on various architectures. We especially pay attention to the very recent work [Phan et al., 2021] whose sleep stage classification results based on multisource signals are considered as very close to human experts. It is also helpful to compare with [Eldele et al., 2021; Fiorillo et al., 2021; Qu et al., 2020] who only exploited the EEG signal.

[Phan et al., 2021]

EEG, EOG, EMG

+ GRU, LSTM

Pre

-

-

-

-

-

Re

-

-

-

-

-

F1 0.92 0.50 0.88 0.85 0.88

0.89

Table 1: Performance obtained by proposed platform and existing works using same SHHS database.

3.3 Ablation Study

Representation Ablation. Extensive ablation studies are conducted to demonstrate how the proposed platform performs when removing specific components. Since we advocate for truncating spectrogram in the time-domain, we compare the proposed method against:

1. space-domain truncated spectrograms;
2. proposed platformwith truncated spectrograms replaced to spike train [Kayser et al., 2009], with tier-2;
3. conventional SNN iterates and averaging without truncation as introduced in Section 2.2;
4. conventional SNN iterates with averaging time-domain truncated spectrograms.

In Section 4, we refer to the above ablation choices as spacedomain truncated spectrograms (SDTS); platform with spike train input (SpikeTrain); conventional SNN iterates and averaging (NoTS); average time-domain truncated spectrograms (ATDTS). The proposed method is named Proposal.

Architecture Ablation. Tier-2 plays the central role of extracting spiking features from EEG. It is enlightening to study how the performance varies by removing/replacing the SNN layer. We compare with:

1. proposed platformwithout tier-2;
2. same with SpikeTrain. but without tier-2;
3. an LSTM layer replacing the attention layer;
4. SG/NEO spike detection [Xu et al., 2021] + attention.

To ease reading, we refer to the above ablation choices as NoTier2, SpikeTrainNoTier2, LSTM and SG, NEO. The proposed method is named Proposal. The comparison results against SOTA algorithms are available in Section 4.1, and we present the ablation study results in Section 4.2. Details of the experiments are available in our online Appendix*.

* https://doi.org/10.6084/m9.figshare.19682961.v1

[Korkalainen et al., 2020]

EEG, EOG + CNN

Pre 0.93 0.45 0.87 0.78 0.85

Re 0.90 0.32 0.86 0.76 0.83

F1 0.92 0.38 0.86 0.77 0.84

0.84

Table 2: Performance obtained by proposed platform and existing works using same Sleep-EDF database.

4 Results

Section 4.1 presents the comparison between the proposal against existing methods, followed by ablation studies on both the data representation as well as architecture in Section 4.2. Visualization for interpretability is shown in Section 4.3. For statistical significance, all results are averaged over 10 random seeds.

4.1 Comparison

In this section we show the results for the largest SHHS and Sleep-EDF datasets and present complete results in Appendix due to the page limit.

SHHS Dataset. We first compare the proposed platform against existing work that also solely leverages EEG data [Eldele et al., 2021; Karimzadeh et al., 2018]. From Table 1 it is visible that the proposed platform significantly outperformed those existing methods in terms of classification accuracy for all stage. Compared to [Eldele et al., 2021] that leveraged CNN to extract spatio-temporal features, the precision, recall, F1 (Pre, Re, F1 in short) of the proposed platform for the stage wake has been greatly improved to 0.95, 0.94, 0.94, respectively. Similar trend holds also for stage N2 or N3 as well. The superior performance is consistent with our conjecture that the platform and truncated spectrograms enabled better capturing the relative phase of spatio-temporal rhythms. Such rhythms were proved by experiments to be not only complementary to time- and space-domain features but also essential in that they constitute a complete description for the underlying neuronal activity. The improvement is significant even compared with other methods exploiting multisource signals such as [Pathak et al., 2021; Phan et al., 2021; Biswal et al., 2018]. Compared with [Pathak et al., 2021], the proposed platform attained lower Pre, Re, F1 scores for the rapid eye movement (REM) stage. This was due to the electrooculogram (EOG) signal used in their study: it is generally received that EOG signal directly reflects the characteristics of REM. Classification for the N1 stage is difficult even for human experts. On this problem, [Biswal et al., 2018] achieved higher scores than all other methods. We conjecture this was due to the large training set they used: their training set contained 16,000 subjects.

Sleep-EDF Dataset. Similar conclusion holds also for the Sleep-EDF dataset: the proposed platform attained highest overall accuracy. For existing works exploiting sole EEG data [Fiorillo et al., 2021; Qu et al., 2020], significantly higher scores for all stages except N1 were achieved.

The slightly better performance of [Korkalainen et al., 2020; Phan et al., 2019] for stage REMwas due to their additional EOG signal as introduced above. As a summary, it might be safe to put that the proposed method established a new EEG-based SOTA on the SHHS dataset. For the Sleep-EDF dataset, the proposed platform achieved better results than existing methods and hence established an overall SOTA.

4.2 Ablation Study

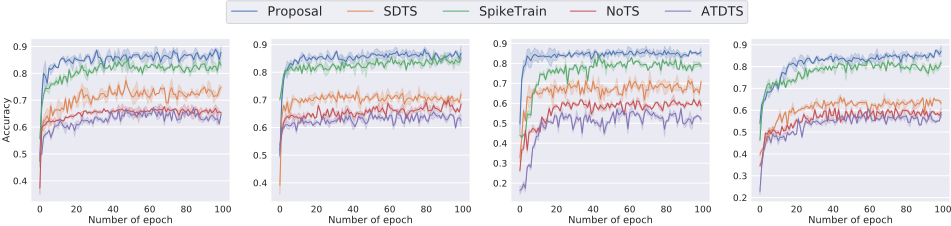

RepresentationAblationResults. Recall that the ablation study choices and their abbreviations were defined in Section 3.3, and the results are plotted in Figure 2. By comparing the proposed method (Proposal) with space-domain truncated spectrograms (SDTS), we see Proposal consistently outperformed SDTS by a large margin, demonstrating the timedomain truncated spectrograms successfully matched the firing process of SNN neurons. Result of replacing the input data representation from truncated spectrograms to spike train is shown as SpikeTrain, which outperformed other methods except Proposal, demonstrating our representation can better extract underlying characteristics. This result is consolidated by NoTS which fed the entire EEG spectrogram instead of truncated spectrograms, incurring around 30% accuracy drop. The averaging of SNN output turned out to not destructive for the temporal information as can be seen from the curves of ATDTS, which performed the worst in all cases.

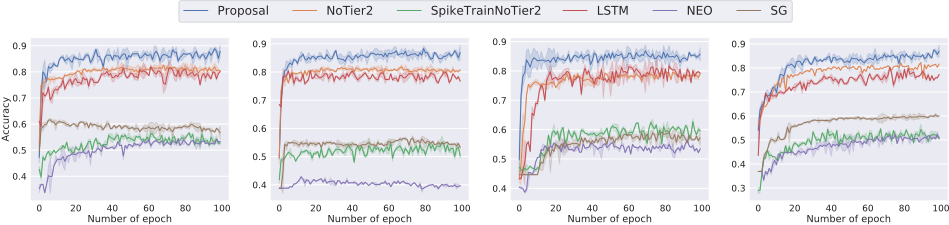

ArchitectureAblationResults. The ablation study choices and their abbreviations were defined in Architecture Ablation. The results are plotted in Figure 3. Proposal again consistently outperformed other methods. However, it is interesting to see the classic and simple method NoTier2 achieved accuracy only 10% worse than Proposal and slightly outperformed LSTM. This suggests that combining the binary spike sequence with our proposed platform might be a promising future direction. On the other hand, choices without the SNN layer SpikeTrainNoTier2, SG, NEO performed significantly poorer, even at the presence of spike detection mechanism.

4.3 Visualization

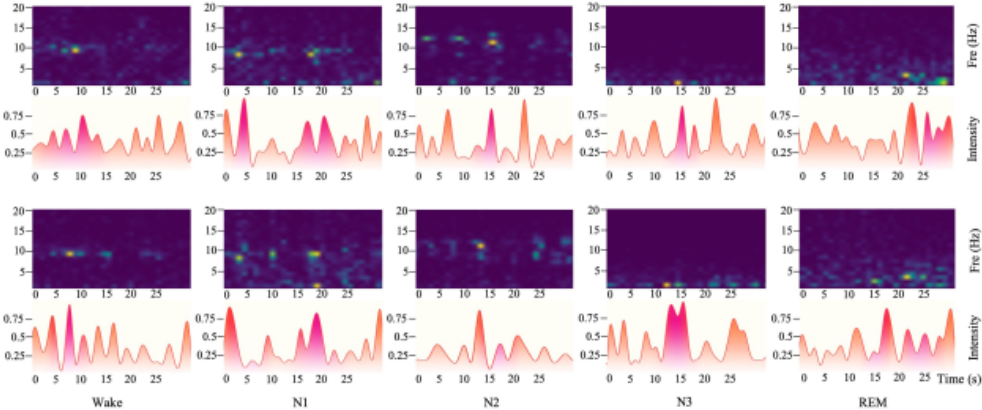

Illustrating the correspondence between input and output is enlightening for further understanding the mechanism by which the proposed method cognizes brain activities. We feed EEG spectrograms into the proposed platform and plot the resulting intensity output in Figure 4, motivated by [Chefer et al., 2021]. It is visible from the figure that the proposed method successfully captured the highlights in EEG and represented them as shaded peaks, in which the peaks were the relevance to the result perceived by the model, and colors from deep to shallow represented the extent of match to the ground truth. The correspondence shown in Figure 4 partly illustrated the superior performance of the proposed method.

5 Conclusion and FutureWork

This paper presented a four-tiers-based platform for cognizing massive EEG. We proposed a pseudo-SNN for pre-coding spatio-temporal information, which is preserved in the latter attention layer for further spike pattern recognition. The spiking-analog hybrid of federated learning between tiers has not been considered in any published literature to the best of our knowledge. Extensive experiments on a variety of datasets confirmed that our proposal established a new SOTA for EEG-based methods. The superior results shed a light on how one should encode, extract and process EEG features.

Interesting future directions include investigating how performance of the platform could be further improved by more advanced encoding of EEG data. Another direction might be to verify the effectiveness of the proposed platform in more fundamental neurobiological problems such as seizures or Alzheimer's disease.
