Diffusion Mask-Driven Visual-language Tracking

1 Introduction

In recent years, the integration of computer vision and natural language processing has received extensive attention from researchers[Alec et al., 2021], providing an opportunity for innovative research in visual and textual information. Describing the state features and future trends of the targets in language allows the trackers to be more robust in complex scenarios[Zheng et al., 2023]. However, the existing visuallanguage tasks annotate language descriptions based on the state and trend of the target in the first frame. This annotation method leads to inaccuracies and even side effects in language descriptions as the target moves, resulting in a decrease in the quality of multi-modal features. Current visuallanguage trackers, by directly utilizing multi-modal features for target localization, face tracking failures due to the low quality of these multi-modal features. Therefore, capturing higher-quality semantic information from the existing multimodal information becomes a challenge.

∗Bineng Zhong is the corresponding author.

It is well-known that the diffusion models excelled in image generation tasks[Ho et al., 2020] have recently demonstrated outstanding capabilities in dense prediction tasks. Jordan et al.[Tomer et al., 2021] first introduce diffusion models in the field of image segmentation and Dmitry et al.[Dmitry et al., 2022] prove that diffusion models can effectively capture semantic information from input images, providing more efficient pixel-level representations for segmentation models. In camouflage object detection tasks, Chen et al.[Chen et al., 2024] surpass the best performance in existing camouflage object detection tasks by introducing diffusion models. Inspired by the success of the diffusion models, we integrate a diffusion model into the visual-language tracking task. However, the current application of the diffusion model is mainly focused on dense prediction tasks. Applying the diffusion model to visual-language tracking tasks still faces numerous challenges. In dense prediction tasks, models often need to identify different categories of targets without the necessity of distinguishing among objects of the same class. In visuallanguage tracking, however, the models need to distinguish among objects of the same class to accurately locate a target in a scene with similar object interference. To address these challenges, we propose a feature filtering module, double sample training method, and candidate elimination module for diffusion ground truth to adapt diffusion models to the visual-language tracking task.

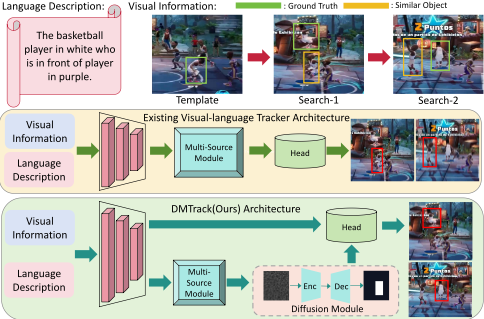

By successfully integrating a diffusion model, DMTrack addresses the issue of inaccurate initial language descriptions caused by highly time-varying target motion and appearance variations in a video sequence. DMTrack leverages the diffusion model to capture high-quality semantic information from multi-modal features and transforms it into target mask features. During the training phase, DMTrack further enhances the diffusion model's perception of pixel-level features by calculating the loss between the target mask features and the ground truth masks. In the testing phase, the generated target mask features by the diffusion model undergo multiple diffusion samplings to generate more accurate target mask features. Finally, joint localization of the target is performed using both target mask features and visual features, rather than relying solely on multi-modal features for localization. The differences in architecture between DMTrack and existing visual-language trackers are illustrated in Fig.1. After the object moves, in Search-1, two targets match the language description, while in Search-2, no target matches the language description. Compared to existing structure trackers, DMTrack demonstrates greater robustness in scenarios where language descriptions are inaccurate. In summary, our contributions are as follows:

• We propose a visual-language tracker based on diffusion models. This tracker utilizes diffusion models to capture semantic information in visual-language features and provide pixel-level target information to the model.
• To our knowledge, we are the first to apply diffusion models to visual-language tracking tasks and propose a feature filtering module, double sample training method, and candidate elimination module for diffusion ground truth to adapt diffusion models to the visual-language tracking task.
• We achieve excellent algorithm performance on multiple visual-language tracking datasets to demonstrate the superiority of our proposed tracker.

2 RelatedWork

2.1 Visual-language Tracking

With the rapid development of visual trackers[Chen et al., 2022; Cui et al., 2022], visual-language tracking[Qi et al., 2021] is also receiving increasing attention. Li et al.[Zhenyang et al., 2017a] spearhead the amalgamation of language and vision for concurrent tracking endeavors, introducing a language-specific feature extraction network that acted as a catalyst for subsequent advancements in visual-language tracking. Yang et al.[Yang et al., 2020] taxonomic visual-language tracking into three distinct subtasks-namely, grounding, tracking, and integration-proposing three distinct modules to address each subtask in isolation. Feng et al.[Qi et al., 2021] propose a detection-tracking paradigm that employs language descriptions to furnish comprehensive tracking recommendations for the target in each frame. Wang et al.[Xiao et al., 2021] aiming to standardize natural language tracking methodologies, introduced a novel benchmark for visual-language tracking denominated TNL2k. They also propounded two foundational approaches, initialized respectively by natural language and bounding boxes. Li et al.[Yihao et al., 2022] introduce a target retrieval module for tracking, seamlessly incorporating it into a localized tracking apparatus. Guo et al.[Guo et al., 2022] devise an asymmetric model structure leveraging language for the selection of visual information. Zhou et al.[Li et al., 2023] devise a unified visual-language grounding and tracking framework grounded in language descriptions for the localization of reference objects. Meanwhile, Zheng et al.[Zheng et al., 2023] serialize language descriptions and bounding box sequences into a sequence of discrete tokens, directly forecasting the spatial coordinates of the target in an auto-regressive fashion. Despite the achievements of these tracking methods, inaccurate language descriptions due to target motion affect the quality of multi-modal features. Existing visual-language trackers, relying on direct usage of low-quality multi-modal features, face tracking failures. In response to this challenge, DMTrack utilizes the diffusion model to capture high-quality semantic information frommulti-modal features, addressing the issue of inaccurate language descriptions.

2.2 DiffusionModel

The diffusion model has garnered considerable attention in recent years as a technology with promising applications. Leveraging a parameterized Markov chain, these model[Ho et al., 2020; Song et al., 2020] undertake the denoising of data samples originating from random noise. Initially employed in the field of image without explicit ground truth, recent investigations[Zhang and Agrawala, 2023; Dhariwal and Nichol, 2021] have showcased its effectiveness in tackling practical challenges such as super-resolution[Li et al., 2022; Wang et al., 2021], deblurring[Whang et al., 2022; Lee et al., 2022], and image segmentation[Baranchuk et al., 2021; Amit et al., 2021]. Notably, the diffusion model exhibits distinctive potential in various segmentation tasks, with notable applications in remote sensing change detection[Bandara et al., 2022] and medical image segmentation[Wolleb et al., 2022]. For example, Wolleb et al.[Wolleb et al., 2022] introduce a diffusion model for lesion segmentation employing images as prior information, while Rahman et al.[Rahman et al., 2023] explore the diffusion model's capabilities in segmenting blurred images. However, the diffusion model is primarily applied in dense prediction tasks. Due to significant differences between dense prediction tasks and visuallanguage tracking tasks, there is a need for further exploration on how to integrate the diffusion model into visual-language tracking. To address this challenge, DMTrack has designed a training approach involving double sampling, a feature filtering module, and a ground truth candidate elimination module. These components aim to facilitate the adaptation of the diffusion model to visual-language tracking tasks.

3 Method

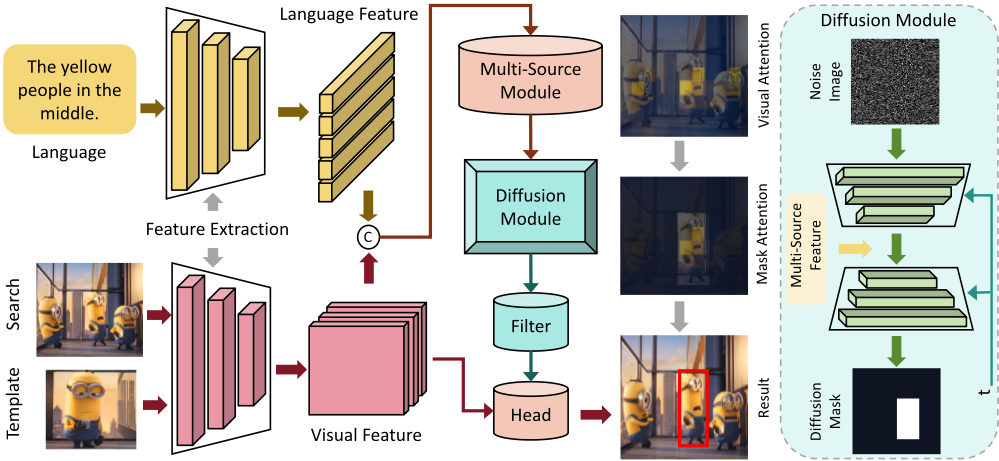

The overall framework of DMTrack proposed by us is illustrated in Fig.2. DMTrack is composed of a Visual and Language Feature Extraction Module, a Multi-modal Interaction Module, a Diffusion Module, and Head and Loss.

3.1 Visual and Language Feature Extraction.

Visual Feature Extraction. We chose the simple and efficient ViT model as the visual encoder of our DMTrack and pre-train it using OSTrack. The input to the visual encoder includes a pair of images, namely the template frame z ∈ R3×Hz×Wz , the search frame x ∈ R3×Hx×Wx . The template frame and search frame are first split and flattened into sequences of patches zp ∈ RNz×(3·P 2 ) and xp ∈ RNx×(3·P 2 ) , where P × P is the resolution of each patch and Nz = HzWz/P 2 ,Nx = HxWx/P 2 is the number of patches in the template frame and search frame, respectively. Subsequently, using a trainable linear projection layer, the patches zp and xp are mapped to a D-dimensional latent space, referred to as patch embeddings. The learnable position embedding is then incorporated into the patch embedding of the template frame Bz and the search frame Bx, generating the final template token embedding H0z ∈ RNz×D and search frame token embedding H0x ∈ RNx×D . This process can be represented as follows:

Language Feature Extraction. We choose the classic language feature extraction model BERT[Jacob et al., 2019] as the language encoder for our tracker. Given a natural language description as the query Ql, we first tokenize the language description and inject CLS and SEP tokens, resulting in a token sequence L = {CLS, l1, l2, · · · , lN, SEP}, where N is the maximum length of the language query. Then, we input the token sequence into our language encoder to obtain language token features T q ∈ RCq×N , where Cq = 768 represents the output embedding dimension.

Multi-modal Interaction Module. Past visual-language trackers typically design a complex visual-language interaction module for the interaction between visual features and language information. However, this interaction method increases the model's complexity. Given that transformers are capable of effectively modeling relationships between language and visual features, we employ a Gated CrossAttention mechanism to achieve fine-grained cross-modal relationship modeling between visual features and language information. This process can be represented as follows:

where, Hx and Tq represent the outputs of the visual feature extraction module and the language feature extraction module, respectively.

3.2 DiffusionModule

Background. The diffusion mask-driven visual-language tracker proposed by us is based on a diffusion model, where the diffusion model transforms the noise xT ∼ (0, I) into smaller noise samples xt, converting the noise xT into the sample x0. We refer to this process as the forward diffusion process, which can be represented as:

where variance is controlled by noise schedule βt ∈ (0, 1). The marginal distribution of xt can be directly obtained from the data x0. This process can be described as:

where ¯αt = ∏Ti=1 αt, αt = 1 - βt. Starting from p (xT ) = N (xT ; 0, I), the reverse diffusion process utilizes a Ushaped network fθ to implement a series of incremental denoising steps, obtaining clean mask features. This network's reverse diffusion process can be described as:

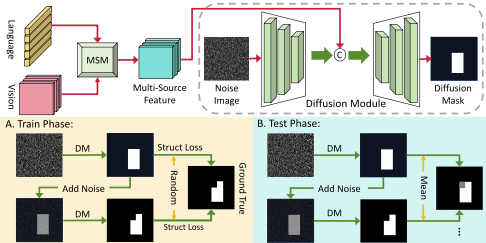

The entire process of the diffusion model is illustrated in Fig.3. The multi-source features obtained from the multisource module serve as the diffusion conditions, allowing the restoration of the noisy image to the target's position mask. During the training phase, the diffusion model adopts a double-sampling approach. When calculating gradients, it randomly selects either the first diffusion-sampled image, the second sampled image, or the average of both, and calculates the loss against the ground truth. In the testing phase, the results of multiple diffusion samplings are averaged.

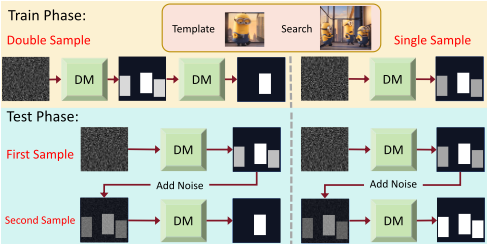

Double Sample Train. The current diffusion models employ a training approach where ground truth is added with noise as the initial noisy image for the diffusion model during the training phase. Single-sampling is then used to calculate the loss, and during the testing phase, a gradual noise reduction diffusion method is applied. However, this traditional diffusion model is not suitable for the visual-language tracking task. On one hand, the diffusion model lacks the capability to handle complex scenes, especially interference from similar objects. On the other hand, it tends to overly rely on the results of the previous sampling. The process of our proposed Double-Sampling method during the training phase is illustrated in Fig.4. On one hand, during the initial sampling in the training phase, the noisy image is generated as completely random noise and is not combined with the ground truth. This approach effectively suppresses the diffusion model's excessive reliance on the previous sampling, thereby improving tracking performance. On the other hand, we employ the double-sampling method to train the diffusion model during the training phase. The key to this method is that the noisy image for the second diffusion sampling is the result of the first diffusion sampling. This training approach provides the diffusion model with more complex scenarios, enhancing its robustness in handling complex scenes.

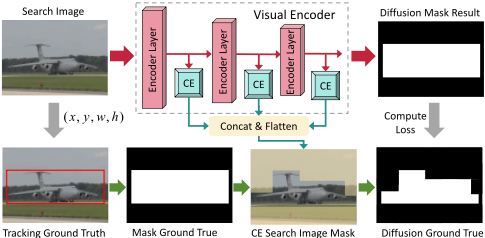

Ground Truth Candidate Elimination Module. The ground truth bounding box for object tracking not only contains the target but also includes a substantial amount of background information. This background information significantly impacts the diffusion effectiveness of the diffusion model and the precision of the pixel-level information provided to the model. Therefore, we propose a Ground Truth Candidate Elimination module to reduce the background information within the target box, as shown in Fig.5. In the early stages of the training phase, the ground truth values for the diffusion model are the ground truth bounding boxes in the tracking task. In the later stages of training, the introduced Ground Truth Candidate Elimination module is utilized to reduce background information within the ground truth. We have adopted the early elimination module from OSTrack[Ye et al., 2022], and specific details can be referenced in the discussions on this module within OSTrack. However, unlike its original purpose of reducing computational load during the attention stage of the training phase, we use annotated background information from the network to eliminate background information within the ground truth. With the assistance of more accurate ground truth masks, the diffusion model can generate more precise mask features for noisy images, providing the model with more pixel-level information. Feature Filtering Module. To enhance the quality of pixellevel mask features provided by the diffusion model for the tracker, we propose a Feature Filtering Module. The main idea of this module is to select and redistribute attention to features with the highest responses while suppressing other response features. The structure of the Feature Filtering Module is illustrated in Fig.6. This module filters the target position mask features obtained by the diffusion model to provide the tracker with higher-quality pixel-level mask features.

3.3 Head and Loss

Head. In the prediction head, we linearly combine the visual features with the diffused position mask. We employ a convolutional network composed of Conv-BN-ReLU layers for target classification and regression. The output of the convolutional network is considered as the score map M ∈ [0, 1] Hx M × Wx M for object classification and the local offsets D ∈ [0, 1]2× Hx M × Wx M to address the discretization errors caused by reduced resolution and normalized bounding box size (width and height) S ∈ [0, 1)2× Hx M × Wx M . In the object classification score map, the object position is determined as the location with the highest classification score, i.e., (xd, yd) = arg max(x,y) Mxy.

Loss. During the training process, we employed not only classification loss and regression loss but also utilized weighted focal loss for classification. Using the predicted bounding boxes, we performed bounding box regression using both ℓ1 loss and IoU loss. In addition to these, we introduced structural loss for loss computation on the target location mask outputted by the diffusion model. Finally, the overall loss function is formulated as follows: The overall loss function can be formulated as:

where λiou = 2, λL1 = 5 and λM = 5 are the regularization parameters in our experiments.

4 Experiments

4.1 Experimental Setup

We utilize the ViT[Dosovitskiy et al., 2021] model pretrained with OSTrack[Ye et al., 2022] as our vision encoder and use the base uncased version of BERT[Jacob et al., 2019] as our language encoder. The visual input to the DMTrack256 network is an image pair consisting of a template patch of size 128 × 128, and a search patch of size 256 × 256. For the language input, the max length of the language is set to 36, including a CLS and a SEP token. We use the training splits of TNL2k[Xiao et al., 2021], LaSOT[Fan et al., 2018], OTB-Lang[Zhenyang et al., 2017b], and RefCOCOgoogle[Junhua et al., 2016] multiple training sets for joint training. Our model was implemented in the Pytorch framework on a server with 1 NVIDIA V100 GPU. Our model is trained with 100 epochs, each epoch with 60,000 image pairs and each mini-batch with 64 sample pairs. We also train the model using the AdamW optimizer, set the weight decay to 10-4 , the initial learning rate of the backbone to 2 × 10-5 , and other parameters to 2×10-4 . After 80 epochs, the learning rate is decreased by a factor of 10. We tested the proposed tracker on an NVIDIA 3080 GPU, and the single sample tracking speed is about 40 FPS.

4.2 Datasets andMetrics

In this section, we systematically assess the performance of the proposed model across four Visual-language (VL) tracking benchmarks, specifically TNL2k[Xiao et al., 2021], LaSOT[Fan et al., 2018], LaSOText[Fan et al., 2018] and OTB-Lang[Zhenyang et al., 2017b], and conduct a comparative analysis against existing state-of-the-art trackers. The comparative outcomes are elucidated in Tab.1. It is worth noting that we only compared the results of single sampling during the testing phase. The effectiveness of multiple samplings has been demonstrated in our ablation study.

TNL2k. TNL2k is an extensive benchmark for large-scale natural language task tracking. Our proposed DMTrack achieves promising results on the TNL2k dataset, with scores of 57.7% on AUC and 59.9% on PRE.

LaSOT. The LaSOT dataset encompasses over 1,400 video sequences gathered from the internet, comprising a total of more than 3 million frames of visual images. Our proposed DMTrack performance on the LaSOT dataset is presented in Tab.1, achieving scores of 65.5% on AUC and 70.9% on PRE. OTB-Lang. The OTB-Lang dataset comprises 99 video sequences, encompassing a diverse array of scenes and complexities. Our proposed DMTrack performance on the OTBLang dataset is presented in Tab.1, achieving scores of 68.5% on AUC and 89.7% on PRE.

LaSOText. As the publicly released extension dataset of LaSOT, LaSOText comprises 150 challenging long-term videos from 15 object classes. The test results of our proposed DMTrack on the LaSOText dataset are presented in Tab.1, achieving a score of 45.3% on AUC and 51.1% on PRE.

4.3 Ablation Study

The effectiveness of the diffusion model. The diffusion model has been proven to efficiently capture semantic information from features in dense prediction tasks, providing pixel-level information for models. To validate the effectiveness of introducing the diffusion model, we compare it with a tracker that does not use the diffusion model. The comparison results, as shown in Tab.2, reveal that the tracker without the diffusion model exhibits a 2.1% decrease in AUC score, a 2.9% decrease in PRE score, and a 2% decrease in P score compared to the tracker with a single sampling of the diffusion model during the testing phase. In comparison, the tracker without the diffusion model shows a difference of 3.3% in AUC score, 4.6% in PRE score, and a 3.5% decrease in Pnorm score compared to the tracker with five samplings of the diffusion model during the testing phase. Our experimental results demonstrate the effectiveness of the proposed diffusion model.

The effectiveness of mask-driven. We attempted to remove the masking approach and solely use diffusion masking features for target localization, with the comparative results shown in Tab.2. We found that when using only diffusion masking features for target localization, as opposed to the mask-driven approach, the tracker experiences a 3.6% decrease in AUC score, a 4.2% decrease in PRE score, and a 3.5% decrease in Pnorm score. We analyze that the current data uses language descriptions generated based on the state or trend of the target in the first frame. However, over prolonged object motion, the language descriptions may become inaccurate, providing incorrect information. Therefore, our proposed tracker, utilizing a mask-driven approach, can more effectively utilize language descriptions for target tracking.

The effectiveness of language information. The key to visual-language tracking lies in the effective utilization of language features to enhance the tracking capability of traditional visual trackers in complex scenarios. To demonstrate that our tracker can effectively leverage language features, we trained a visual tracker without language features, and the results are presented in Tab.2. A pure visual tracker without language descriptions exhibits a 1.6% decrease in AUC score, a 1.1% decrease in PRE score, and a 1% decrease in Pnorm score compared to the visual-language tracker that utilizes language information. Through the comparison of experimental results, we validate that our proposed visual-language tracker can effectively leverage language features.

The effectiveness of candidate elimination module. To validate the effective elimination of ground truth background information by our proposed candidate elimination module and to enhance the sampling effectiveness of the diffusion model in the tracking task, we conducted experiments on a tracker without the candidate elimination module, and the experimental results are shown in Tab.2. The tracker without the candidate elimination module shows similar experimental performance in the initial sampling compared to using the candidate elimination module. However, after five samplings, the tracker without the candidate elimination module experienced a 1.2% decrease in the AUC score, a 2.1% decrease in the PRE score, and a 1.7% decrease in Pnorm score compared to our tracker. The experiments demonstrate that our proposed candidate elimination module effectively improves the diffusion model's performance in the object-tracking task. The impact of double-sample during the training phase. Traditional diffusion models employ a single-sampling method during the training phase, while we propose, for the first time, a double-sampling method during the training phase. The advantage of the double-sampling method lies in mitigating the over-reliance on the previous sampling results during multiple samplings in the testing phase, providing the diffusion model with more complex initial noisy images during the training phase, thus enhancing the robustness of the diffusion model in facing complex scenes. We compare a tracker trained using a single-sampling method with our tracker, as shown in Tab.2. During a five-sampling test phase, the tracker trained using a single-sampling method exhibits a 2.7% decrease in AUC score, a 3% decrease in PRE score, and a 2.8% decrease in Pnorm score compared to our tracker. It is worth noting that the tracker trained using a single-sampling method experiences a 1.2% decrease in AUC score, a 0.7% decrease in PRE score, and a 1% decrease in Pnorm score when conducting five samplings in the testing phase compared to a single-sampling. Through the comparison of experimental results, we validate the effectiveness of our proposed double-sampling training method during the training phase and the efficacy of our diffusion model.

5 Visualization and Limitations

5.1 Visualization

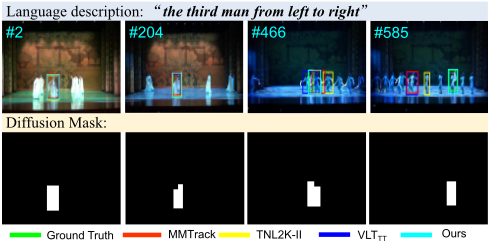

To validate the effectiveness of our proposed method, we visually present partial test results of DMTrack on the TNL2k dataset and compare them with existing advanced trackers, namely MMTrack, TNL2k-II, and VLTTT . As illustrated in Fig.7, when confronted with complex scenes, our proposed diffusion mask-driven enables more accurate target localization compared to existing visual-language trackers. We also showcase the mask images obtained by integrating language information with visual cues for global target localization. Leveraging these mask images, our tracker demonstrates enhanced robustness in handling complex scenarios.

5.2 Limitations

Upon closer examination of experimental results, it becomes evident that the incorporation of language information results in a deterioration of performance in LaSOT compared to the visual-only model. The primary reason behind this lies in the nature of language descriptions in visual-language datasets, which are based on the state and trend of the target in the first frame. This description becomes inaccurate as the target moves, providing erroneous information that impacts the localization performance of visual-language trackers. We encourage scholars to delve further into methods for offering accurate language descriptions and more effective strategies for utilizing them in visual-language trackers.

6 Conclusion

In this work, we have observed that the initial language descriptions are often inaccurate in a highly time-varying video sequence and thus greatly deteriorate their tracking performance due to the low quality of extracted multi-modal features. In response to this challenge, we propose a visuallanguage tracker based on the diffusion model, which we refer to as the Diffusion Mask Visual-language Tracker. The core idea is to leverage the diffusion model to capture highquality semantic information from low-quality multi-modal features and provide pixel-level target masks for visual features. Given the differences between dense prediction tasks and visual-language tracking tasks, we design a training approach involving double sampling, a feature filtering module, and the use of a ground truth candidate elimination module to adapt the diffusion model to visual-language tracking. Extensive experiments on multiple visual-language tracking benchmarks demonstrate the effectiveness of our approach.
