Intention Progression with Temporally Extended Goals

1 Introduction

The Belief-Desire-Intention (BDI) approach to agent development [Rao and Georgeff, 1992] has formed the basis for much of the research on architectures for autonomous agents [de Silva et al., 2020]. In BDI-based agent programming languages, e.g., [Bordini et al., 2007; Dastani, 2008], the behaviour of an agent is specified in terms of beliefs, goals, and plans. Beliefs represent the agent's information about the environment. Goals represent states of the environment the agent is trying to bring about. Plans are the means by which the agent can modify the environment in order to achieve its goals. Plans are composed of steps which are either basic actions that directly change the agent's environment or subgoals which are in turn achieved by other plans. For each top-level goal, the agent selects a plan which forms the root of an intention, and commences executing the steps in the plan. If the next step in an intention is a subgoal, a (sub)plan is selected to achieve the subgoal and added to the intention, and the steps in the (sub)plan are then executed and so on. This process of repeatedly choosing and executing plans is referred to as the agent's deliberation cycle.

While the BDI approach has been very successful, it has the disadvantage that all the agent's plans must be written by a human developer. 1 For nondeterministic environments, e.g., control of cyber-physical systems, this can be challenging. In addition, in many BDI languages, e.g., [Bordini et al., 2007], the developer must anticipate any possible interactions between plans to achieve the agent's goals. This typically involves writing special purpose scheduling code which specifies the order in which goals should be achieved and which plans can execute concurrently. For example, consider a Mars Rover which has a goal to perform a soil experiment at location A and another goal to recharge its battery at location B. Suppose its current battery level only allows the Mars Rover to move from the current position to A or B, and it cannot move from A to B (or B to A) without recharging its battery. In this situation, the only way to achieve both goals is to pursue the goal of recharging the battery first.

There has been work on allowing the agent to autonomously manage possible interactions between concurrently executing plans for multiple goals at run-time. This is termed intention progression in [Logan et al., 2017]. Several approaches have been proposed including: Summary Information-based e.g., [Thangarajah and Padgham, 2011], Coverage-based approaches e.g., [Waters et al., 2015] and most recently, MCTS-based approaches e.g., [Yao and Logan, 2016]. These approaches typically involve reasoning over a representation of the agent's programme called a goalplan tree. A goal-plan tree (GPT) represents the relationships between an agent's goals, plans, the subgoals in those plans and their associated subplans as an and-or tree structure [Thangarajah et al., 2003a]. However, these approaches are limited to handling interactions between simple achievement goals, e.g., "move to A′ ', and, in some cases, maintenance goals, e.g., "maintain a battery level of at least 10%" e.g., [Duff et al., 2006; Wu et al., 2023].

In this paper we present a new approach to intention progression for agents with temporally extended goals. Temporally extended goals allow mixing reachability and invariant properties; for example, "travel to location A while not exceeding a gradient of 5%". Temporally extended goals have been proposed before in the BDI literature; for example, PRS supported reachability and invariant goals [Georgeff and Lansky, 1987]. However, the agent developer was responsible for writing code (meta-plans) to ensure that the execution of the agent maintains the invariant. To the best of our knowledge, our approach is the first to allow an agent to autonomously progress its intentions to achieve multiple temporally extended goals concurrently. Temporally extended goals may be specified at run-time (top-level goals), and as subgoals in plans. Our approach does not rely on goal-plan trees [Thangarajah et al., 2003a], and supports a more general notion of plan than that typically used in the BDI literature. In particular, it allows human-authored plans and plans implemented as reinforcement learning (RL) policies to be freely mixed in an agent program, allowing the development of agents with 'neuro-symbolic' architectures which combine behaviours produced by machine learning and programmed behaviours [Bordini et al., 2020]. For example, the overall sequencing of tasks may be specified by a human developer, with low-level control implemented using RL policies.

1 There has been some work on generating new plans at run-time using AI planning techniques, e.g., [de Silva et al., 2009], however, this is not supported in widely-used BDI languages and platforms.

2 BDI Agents with Temporally Extended Goals

In this section, we introduce the basic components of a BDI agent with temporally extended goals, including beliefs, goals, actions and plans, and define the intention progression problem.

Beliefs. We assume a finite set of propositions P. Q ⊆ ℘(P) is a non-empty finite set of environment states (truth assignments to propositions in P). We denote the set of all literals over P by ¯ P. The agent's beliefs B = {b1, . . . , bn} are a finite set of ground literals defined over ¯ P representing its information about the environment.

Goals. The agent's state goals S = {f1, . . . , fm} are a finite set of propositional formulas built from P that can be evaluated to true or false in the states. State goals are sometimes termed achievement goals in the BDI literature [de Silva et al., 2020]. The agent's temporally extended goals T are temporal formulas built from S and ¯ P . More precisely a temporally extended goal is a formula ϕ of the form:

where p, q ∈ P and f ∈ S. 2 Observe that we have a set of propositional formulas ψ that is not the same as the set of state goals; state goals are a strict subset of the set of propositional formulas, as there are only finitely many state goals. We also only allow propositional formulas as invariants. As explained below, invariants do not have a corresponding plan; rather they restrict the choice and execution of other plans.

The temporally extended goal Fϕ indicates that ϕ should be achieved in some future state, ψU ϕ that ϕ should be achieved in some future state while maintaining the invariant ψ in all intervening states, and Gψ that ψ should be true in all future states. Temporally extended goals thus constrain the future execution of the agent so as to bring about state goals in ϕ and/or maintain literals in ψ. For example, Fbatt full ∧G¬batt empty states that the agent should recharge at some point and never allow the battery to become fully discharged.

2 We do not include a "next" temporal operator in the syntax as we do not want to make any assumptions about when the next time instant occurs.

Temporally extended goals are interpreted on finite traces. A trace τ is a sequence of states q ∈ ℘(P). We denote the length of a trace τ as length(τ). We denote the positions on the trace as τ(i) with 0 ≤ i ≤ last, where last = length(τ) - 1 is the last state of the trace. Given an interpretation τ we inductively define when a temporally extended goal ϕ is true at position i (for 0 ≤ i ≤ last), τ, i |= ϕ as follows:

• τ, i |= p for p ∈ P iff p ∈ τ(i)
• τ, i |= ¬ϕ iff τ, i ̸|= ϕ
• τ, i |= ϕ1 ∧ ϕ2 iff τ, i |= ϕ1 and τ, i |= ϕ2
• τ, i |= ϕ1 ∨ ϕ2 iff τ, i |= ϕ1 or τ, i |= ϕ2
• τ, i |= Fϕ iff for some j, i ≤ j ≤ last, τ, j |= ϕ
• τ, i |= ψU ϕ iff for some j, i ≤ j ≤ last, τ, j |= ϕ, and for all k, i ≤ k < j, τ, k |= ψ
• τ, i |= Gϕ iff for all j, i ≤ j ≤ last, τ, j |= ϕ

A goal ϕ is true in τ , denoted τ |= ϕ, if τ, 0 |= ϕ.

Each temporally extended goal ϕ is associated with a utility rϕ representing the utility obtained by the agent if its future execution is such that ϕ holds, i.e., if the trace of the agent's execution τ is such that τ |= ϕ. The agent receives rϕ when ϕ becomes true on τ, i.e., for reachability goals at the state i, 0 ≤ i ≤ last such that τ, i |= ϕ, and for all j, 0 ≤ j < i, τ, j ̸|= ϕ, and for invariants Gϕ in the last state on the trace.

Actions. The agent can perform a set Act = {α1, . . . , αk} of primitive actions in the environment. The preconditions of an action αi, ϕ = pre(αi), are a set of literals that must be true for the action to be executable, and the postconditions of αi, ψ = post(αi), are a set of literals that are true after the execution of the action. For simplicity, we assume that actions are deterministic: if the preconditions of an action hold, then the postconditions of the action hold after executing the action. 3 An action is executable if B |= ϕ.

Plans. Each of the agent's state goals f ∈ S is associated with a set of plans π1, . . . , πn that achieve f. Each plan πi is a three tuple of the form (f, χi, nexti), where f is the state goal achieved by π, χ = pre(πi) is a set of literals specifying the context condition which must be true for πi to begin execution, and nexti → Act is a function of zero arguments which returns the next step in the plan, which may be either an action, a temporally extended subgoal, or nil (indicating that the plan is complete). 4 Note that this approach to defining plans is more general than that typically used in the BDI

3 Our approach can be extended in a straightforward way to handle non-deterministic actions as in [Yao et al., 2016]

4 Test goals which are evaluated against the agent's beliefs can be easily accommodated, e.g., by having the nexti function return a "test" action whose preconditions are the test.

literature, where plans are defined as sequences of actions and (state) subgoals [de Silva et al., 2020]. In particular, it allows human-authored plans and plans implemented as RL policies to be freely mixed in an agent program, allowing the development of agents with 'neuro-symbolic' architectures which combine behaviours produced by machine learning and programmed behaviours [Bordini et al., 2020]. For example, if a plan is implemented as an RL policy, nexti may be implemented as a lexical closure with a reference to the current state of the agent's environment, which simply returns the action specified by the policy in the current environment state; for "traditional" BDI plans, nexti may, e.g., be implemented as a closure with a reference to the plan which maintains the index to the next step to be executed, which is updated on each call.

Intention Progression The intention progression problem [Logan et al., 2017] for an agent with temporally extended goals is the problem of selecting and executing plans so as to maximise the agent's utility. More precisely, as the agent chooses and executes plans to achieve its goals, the execution of actions in these plans gives rise to a path, i.e., a sequence of environment states and actions ρ = q0, α1, q1, α2, . . . , αn, qn, where qi+1 results from updating the state qi with the postconditions of αi (and any exogenous changes to the environment). The trace corresponding to a path ρ is the sequence of states τ = q0, q1, . . . , qn generated by omitting the actions in ρ. The intention progression problem for an agent with temporally extended goals is to generate a trace that maximises the agent's utility.

In [Logan et al., 2017], the intention progression problem is defined in terms of goal-plan trees. However, goal-plan trees are not an appropriate representation for the intentions of a BDI agent with temporally extended goals. For example, the temporally extended goal Fϕ1 ∧ Fϕ2 does not specify the order in which ϕ1 and ϕ2 should be achieved - the agent is free to achieve them in either order, depending on which is more convenient given its other goals, its location, etc. In general, representing all possible orders in which a temporally extended goal (and the temporally extended subgoals in the associated plans) can be achieved would require an exponentially-sized goal-plan tree. 5 Nor is it clear how to represent invariants such as Gψ in a GPT-based approach, as GPTs have no way to talk about properties of executions of the GPT, only what needs to hold for a plan to be selected or an action executed. We therefore adopt a different representation of intentions for agents with temporally extended goals as explained in the next section.

3 Representing Intentions

In this section, we explain how the progression of an agent's temporally extended intentions can be represented using re-

5 Note that we can't simply consider each conjunct in a temporally extended goal as a top-level goal in a GPT-based approach. The utility is associated with the conjunction and there is no way to express that it's not worth achieving one top-level goal if it is not possible to achieve the other. In addition, "lifting" the conjuncts to top-level goals isn't possible for temporally extended subgoals in plans.

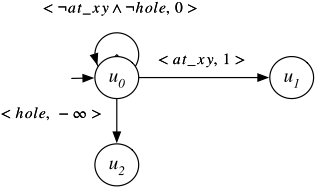

< ¬at_xy ∧ ¬hole, 0 > < ¬at_xy ∧ ¬hole, 0 >

ward machines.

3.1 RewardMachines

A reward machine (RM) [Toro Icarte et al., 2018] is a Mealy machine where states represent abstract 'steps' or 'phases' in a task, and transitions correspond to observations of highlevel events in the environment indicating that an abstract step/phase in the task has (or has not) been completed. We assume that events are sets of literals over ¯ P. Formally, we require that events are generated by a labelling function L : S × Act × S → ℘( ¯ P); for example, a labelling could consist of postconditions of actions.

Definition 1. A reward machine is a tuple R = (U, uI , Σ, δR, rR) where:

• U is a finite non-empty set of states;
• uI is the initial state;
• Σ is a finite set of environment events;
• δR : U ×Σ→ U is a transition function that, for every state u ∈ U and environment event σ ∈ Σ, gives the state resulting from observing event σ in state u; and
• rR : U × Σ → R ∪ {-∞} is a reward function that for every state u ∈ U and event σ ∈ Σ gives the reward resulting from observing event σ in state u.

We restrict our attention to task completion reward machines [Illanes et al., 2020] which, on producing a positive reward, go into a final state from where it is not possible to make a transition to any other state. We denote by FR the set of 'positive reward' states of R, that is, states u′ such that for some u, σ, δR(u, σ) = u′ and rR(u, σ) > 0. Similarly, we define the set of 'infinite negative reward states' NR = {u′ | ∃u∃σ.δR(u, σ) = u′ ∧ rR(u, σ) = -∞}. NR states represent violations of invariant properties.

Reward machines can be automatically synthesised from task specifications expressed in a range of goal and property specification languages, including temporally extended goals defined in Section 2, using reactive synthesis techniques. For example, a Mars rover may have a goal to move to location (x, y) without falling into a hole, which can be expressed as the formula ¬holeU at xy. The corresponding reward machine is shown in Figure 1. The agent receives a positive reward when the event atxy is observed and the reward machine transitions to state u1, and a negative reward if it falls into a hole (state u2). Depending on the magnitude of the negative reward and whether it is possible to return from the negative reward state, invariants can be specified as preferences (avoid ψ states) or hard constraints which terminate the corresponding goal (as in Figure 1). In the interests of brevity, we refer the reader to [Camacho et al., 2019] for details of reward machine generation.

Reward machines were originally proposed as a way of increasing sample efficiency in reinforcement learning. However, in our approach, they are used to formalise the progression of the agent's intentions.

3.2 Progressing Intentions

We represent an intention by a stack of intents. An intent is a five tuple of the form (ϕ, R, u, σ, nextπ), where ϕ is a temporally extended goal, R is the reward machine corresponding to ϕ, u is the current state in R, σ is an environment event in Σ and nextπ is the next step function of a plan to achieve σ. The root of an intention γi is an intent (ϕ0i ,R0 i , u0i , σ0 i , next0πi ) in which ϕ0i corresponds to a top-level temporally extended goal in T. Initially u0i is uI in R0 i , and σ0 i , next0πi are ϵ.

Progressing an intention proceeds by first choosing a transition from u0i with event (state goal) σ and updating σ0 i , σ0 i = σ, and then choosing a plan π which makes σ true. That is, σ0 i represents a choice regarding which state goal in ϕ0i the agent is currently pursuing, and next0πi = nextπ represents the plan chosen to achieve σ0 i . The agent then begins executing steps in π. If the next step in π is a temporally extended subgoal ϕ1i , a new intent (ϕ1i ,R1 i , u1i , σ1 i , next1πi ) is pushed onto the stack, and a choice is made regarding which event (state goal) in ϕ1i to pursue and which plan should be used to achieve it. When the agent observes an event in σ ∈ Σlk , for each intent in each intention γi where δjRi (uji , σ) = u′ , the current state in the reward machine Rj i is updated with uji = δjRi (uji , σ), and σj i and nextjπi are reset to ϵ. Updating all intents in all intentions on each observation allows the agent to exploit synergies between intentions [Yao et al., 2016]. For example, when intentions share a common subgoal, e.g., being at a particular location, the states in all the relevant RMs are updated when the agent reaches the location, essentially marking the subgoal as achieved. Note, however, that if the intentions sharing the common sub-goal must be executed sequentially, e.g., due to resource constraints, the RMs of the deferred intentions will be updated when the agent leaves the location, essentially re-posting the subgoal for those intentions. When an event σ causes a reward machine Rj i to transition to a state in F jRi ∪N jRi (i.e., the temporally extended goal ϕji is true on the trace or an invariant in ϕji has been violated), the intent is popped from the intention and the agent receives reward rϕji . Note that the current RM state, selected event and plan in the intent for the parent goal ϕj-1 i are also reset by σ, indicating completion of the subgoal. An intention containing no intents (i.e., all intents have been popped) is dropped.

3.3 Operational Semantics

In this section, we give the operational semantics of an agent with temporally extended goals in terms of a transition system on agent configurations defined by a set of derivation rules [Plotkin, 1981]. Each derivation transforms one agent configuration into another and corresponds to a single computation/execution step. An agent configuration is a tuple ⟨Λ,Π,B, Γ, ρ, p⟩, where Λ are the actions the agent can perform, Π is the agent's plan library, B is the agent's beliefs, Γ is the agent's intentions, ρ is a path consisting of alternating states and actions, and p ∈ {b, g, a} is a phase indicator. (As Λ and Π do not change during execution, we omit them from the derivation rules.) Agent configurations represent the execution state of an agent. The agent begins execution in an initial agent configuration ⟨Λ,Π,B0, Γ0, ϵ, b⟩, where B0 are the agent's initial beliefs, Γ0 = {[(ϕ01 ,R0 1 , u0I1 , ϵ, ϵ)], . . . , [(ϕ0n , R0n , u0In , ϵ, ϵ)]} for each ϕi ∈ T are the agent's initial intentions, the path is empty, and the phase is b.

The execution of an agent modifies its initial configuration by means of transitions that are derivable from the rules below. Execution proceeds in phases. In the belief (b) phase, the agent updates its beliefs and the current state of each reward machine in each intention where the belief update event triggers a transition. In the goal (g) phase, any goals which have been achieved by the execution of a plan or by changes to the environment are dropped, together with their associated plans. In the action (a) phase, the agent executes a step in one of its intentions.

In what follows, we denote by γ[i] the ith intent in the intention γ, and by γ[0, . . . , i] the intents from the root of γ to γ[i]. The functions head and tail return the head and tail of an intention respectively, and ◦ denotes concatenation. The head of an intention is termed an active intent, and an active plan is a plan in an active intent. The intents forming the tail of an intention are said to be suspended.

Belief Update In the belief phase, the agent's beliefs are updated. The function sense takes information about the current environment state env and the agent's current beliefs B, and returns a new set of beliefs, B′ . The state of each intent in the agent's intentions is also updated with the new beliefs and execution enters the goal phase. Note that all intents are updated, not just active intents, as events perceived by the agent may result in transitions in suspended intents, e.g., if an environment change results in the achievement of a suspended goal.

where B′ |= σ means that the propositional valuation specified by B′ satisfies σ, and Γ[x/y] is the result of replacing every intent of the form x in Γ by an intent of the form y.

Goal Update Any temporally extended goals ϕwhich have become true on the trace or where an invariant in ϕ has been violated are dropped, together with their associated plans and any intents for subgoals and subplans to achieve ϕ. Execution enters the action phase.

Goal Selection Step If an active intent of an intention γ for a temporally extended goal ϕ has no event and plan selected, an event (state goal) σ in the reward machine Rϕ for ϕ and a plan π to achieve σ are selected. ι and π become the active intent and plan of γ, and execution enters the belief phase.

The function st(R, u) = {σ | δR(u, σ) = u′ , u ̸= u′ , rR(u, σ) > 0} returns the labels on transitions from u in R which are state goals.

Primitive Action Step If the next step in an active plan π is a primitive action α whose preconditions hold in the current environment, the action is executed, and execution enters the belief phase.

Subgoal Step If the next step in an active plan π is a temporally extended subgoal ϕ′ a new intent ι = (ϕ′ , Rϕ′ , uI , ϵ, ϵ) for ϕ′ is pushed onto the top of the intention γ containing π. Execution of π is suspended, and ι becomes the active intent of γ. Execution enters the belief phase.

⟨B, Γ, ρ, a⟩ -→ ⟨B, (Γ\{γ}) ∪ {(ϕ′, Rϕ′, uI , ϵ, ϵ) ◦ γ}, ρ, b⟩

4 Intention Progression withMCTS

In this section, we present our approach to intention progression with temporally extended goals. Our approach is based on Single-Player Monte-Carlo Tree Search (SP-MCTS) [Schadd et al., 2012], a well-known best-first search in which pseudorandom simulations are used to guide the expansion of the search tree. It was originally developed to solve singleplayer puzzles (games against the environment). However, it has also been used to solve single- and multi-agent intention progression problems, and represents the state of the art in GPT-based approaches to intention progression [Yao and Logan, 2016; Dann et al., 2020].

MCTS is an anytime algorithm which iteratively builds a search tree until a computation budget is reached. Each node in the search tree represents an interleaving of steps from the agent's intentions, together with the environment state resulting from the execution of this interleaving. In addition, each node records the current state of each tuple in each intention, the number of times the node has been visited, the total simulation value, the total squared simulation value and the best simulation performed from the node (described below).

Algorithm 1 Return the step to be executed at this cycle

1: C ← ⟨B, Γ, ρ, a⟩ 2: procedure PROGRESS-INTENTION(α, β) 3: n0 ← node0(C) 4: for i ← 1, α do 5: ne ← MAX-UCT-LEAF-NODE(n0) 6: children(ne) ← EXPAND(ne) 7: ns ← RANDOM-CHILD(children(ne)) 8: S ← ∅ 9: for j ← 1, β do 10: S ← S ∪ {SIMULATE(ns)} 11: v(ns) ← max(S) 12: BACKUP(ns) 13: nb ←maxchildren(n0) 14: return nb

Edges represent the choice of an environment event to advance the state of a reward machine, i.e., which state goal in a temporally extended goal ϕ the agent is trying to achieve or the selection of a plan to achieve a state goal, or the execution of primitive action in a plan. 6

Each iteration of the main loop consists of 4 phases: selection, expansion, simulation and back-propagation. In the selection phase, a leaf node, ne is selected for expansion (line 5). ne is selected using a modified version of Upper Confidence bounds applied to Trees (UCT) [Schadd et al., 2012], which models the choice of node as a k-armed bandit problem. Starting from the root node, we recursively follow child nodes with the highest UCT value until a leaf node ne is reached.

In the expansion phase, ne is expanded by adding child nodes representing the agent configuration (the environment state and the current state of each intention in Γ) resulting from progressing each intention γi ∈ Γ where a transition in the operational semantics is possible (line 6). Each child node therefore represents a different choice of which intention to progress at this cycle and how it should be progressed (which environment event to consider in an RM, or which plan to choose to achieve a state goal). One of the newly created child nodes, ns, is then selected at random for simulation (line 7).

In the simulation phase, the value of ns is estimated (lines 8-11). Starting in the agent configuration represented by ns, a next step of an intention that is progressable in node ns is randomly selected and executed, and the environment, current state of the selected intention and path are updated in the current agent configuration. This process is repeated until a state is reached in which no intention can be progressed or all top-level goals are achieved. Each temporally extended goal ϕ in each intent in Γ is evaluated on the trace τ (obtained by projecting on the state components of ρ) generated by the simulation. The value of the simulation, v, is the sum of the utilities rϕ for each temporally extended goal ϕ where τ |= ϕ (including the negative utilities associated with any invariants violated on τ). The simulation with the highest value is then returned as the value of ns. Finally, the simulation value is back-propagated from ns to all nodes on the path to the root node n0 (line 12).

6 Our approach is capable of interleaving intentions at either the plan level, where the choice of which intention to progress next is made only when a subgoal is reached, or the action level, where the choice is made at each plan step. [Yao and Logan, 2016].

After α iterations, the step that leads to the best child nb of the root node n0 is returned, and the current agent configuration C is updated based on the selected step. Algorithm 1 essentially resolves the nondeterministic choice in the action phase rules in the operational semantics.

5 Evaluation

In this section, we evaluate our approach using a version of the Mars Rover domain [Duff et al., 2006], in which the tasks assigned to the Rover are specified using temporally extended goals.

5.1 Mars Rover Domain

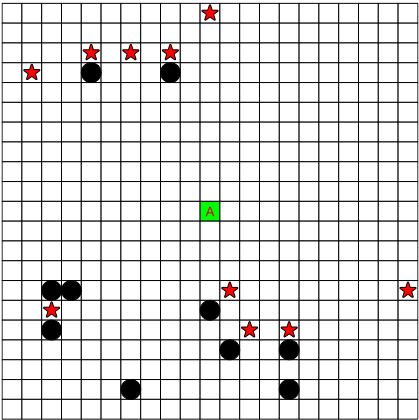

The Mars Rover domain is a two-dimensional grid environment where the agent (the rover) can move around and conduct soil experiments at different locations (see Figure 5). Moving and performing experiments consumes battery power, and there is a base station at which the agent can recharge. Some cells in the environment contain holes, which may cause the agent to get stuck and should be avoided. The primitive actions the agent can perform are: moveUp, moveDown, moveLeft and moveRight, which change its current location, performExp which performs a soil experiment, and recharge. For simplicity, we assume all actions except recharge consume 1 unit of battery.

The agent has the following temporally extended goals;

which states its battery should never be fully discharged; a set of goals of the form

which states the agent should conduct a soil experiment at cell (xi, yi) and then return to the base; and

which states that at some point the agent should recharge. The invariant G ¬batt empty prevents the agent from reaching a state in which its battery is empty. The F batt full goal ensures that the agent will recharge at some point. The only way to satisfy both goals is to ensure that the recharge happens before the battery is empty (i.e., while the agent can still reach the charging station).

The plan πexp xiyi to achieve the state goal exp xiyi consists of the temporally extended subgoal ¬holeU at xiyi stating that the rover should move to cell (xi, yi) while avoiding holes, followed by the action performExp. The plan to achieve the state goal batt full consists of the subgoal ¬holeU at base followed by the action recharge. The plans to achieve the state goals at xiyi and at base contain no subgoals. Note that a set of goals of the form {F(exp x1y1 ∧ F at base), F(exp x2y2 ∧ F at base), . . .} allows the agent to perform experiments in any order, and it will return to base after the last experiment, even if it visits the base to recharge before completing all the experiments. Note also that the agent does not have to return to the base after each experiment-each goal simply specifies that the agent should return to the base at some future point; if the agent can perform all experiments without recharging, then returning to the base once satisfies all goals.

The reward machine for the goal G¬batt empty is shown in Figure 2: so long as the event batt empty is not observed, the RM remains in state u0 and the agent receives no reward; the agent receives a negative reward if batt empty is observed and the RM transitions to state u1. The reward machine for the goal F(exp xiyi ∧ F at base) is shown in Figure 3: the RM loops in state u0 until an event indicating the experiment has been performed is observed, and then loops in u1 until the agent returns to the base. The reward machine for the goal ¬holeU at xiyi is shown in Figure 1 in Section 3 (the RM for ¬holeU at base is similar). The RM for the goal F batt full is shown in Figure 4: the agent receives a reward if the events at base and batt full are observed, in that order; if the agent leaves the base before recharging, the RM transitions back to u0.

5.2 Experiment Setup

For all the experiments reported below, the Mars Rover environment is a 21 × 21 grid containing 10 holes. 7 The base and the initial position of the agent are the centre of the grid. The locations for conducting soil experiments and the holes are randomly generated. However, the base and the experiment locations are not located in a hole. The battery capacity for the rover is 50 units. The performance of the agent is based on the total reward specified by the reward machines. That is, the agent will receive a reward of negative infinity if it enters a grid cell with a hole or runs out of battery, otherwise, its performance is equivalent to the number of experiments carried out. For simplicity, we assume that the agent recharges once, i.e., the agent is given a single recharge goal.

7 The software used in the experiments is freely available at https: //github.com/yvy714/TEG-MCTS.

We provided both human-authored plans and plans based on RL policies for state goals at xiyi and at base. The human-authored plans are sequences of actions forming the shortest path between each xiyi, and the base. The RL policy is trained to find a shortest path to the goal. None of the plans take the location of holes into account. As plans require moving to a particular location in the environment, the MCTS scheduler was configured to interleave intentions at the plan level. In each deliberation cycle, the scheduler performs 100 iterations (α = 100) and 10 simulations per iteration (β = 10).

5.3 Results

In each run, the agent has a goal to avoid the battery becoming discharged, a goal to recharge the battery (at some point), and a variable number of soil experiment goals. We varied the number of soil experiment goals (# Goals) from 8 to 15 and report the average performance over 50 runs. The results are shown in Table 1. As can be seen, with fewer than 11 goals the agent is able to achieve all goals without violating the invariant. When the number of top-level goals increases, there may be no solution which achieves all top-level goals in some of the randomly generated environments, e.g., the location of a soil experiment is more likely to be affected by the holes, and thus one recharge is not enough to achieve all goals. However, our approach can still achieve more than 96% of the goals.

The computational overhead of our approach depends on the search configuration, i.e., how many iterations should be performed at each deliberation cycle, and how many simulations are performed at each iteration. With the search configuration used for the experiments above, i.e., α = 100, β = 10, our prototype implementation requires about 50 milliseconds to return the best next plan for 15 concurrent intentions on a 1.4 GHz Quad-Core Intel Core i5, which suggests that the computational overhead compared to GPT-based approaches, e.g., SA [Yao and Logan, 2016] is small.

6 RelatedWork

Temporally extended goals were introduced in the Procedural Reasoning System (PRS) [Georgeff and Lansky, 1987], and in much of the early work on BDI logics [Rao and Georgeff, 1993] goals are viewed as temporal formulas. PRS used a graph-based representation for plans, and goals were defined on an interval of time: (!p) specifies that p should be true at some future state; (?p) that p should be true in the next state; and (#p) specifies that p should hold in all states. Later versions of PRS [Ingrand, 1991] supported achievement goals, and two forms of maintenance goal: 'passive preserve' PRp(!e, ϕ) which specifies that e should be achieved while monitoring ϕ and aborted if e fails or ϕ does not hold; and 'active preserve' PRa(!e, ϕ), which is similar, except that if ϕ does not hold, the plan for e is suspended while the agent attempts to re-establish ϕ, and only if this fails, e is aborted. However PRS is a rich and complex language which is difficult to reason about, and it is only recently that an operational semantics was proposed [de Silva et al., 2018]. Compared to [Georgeff and Lansky, 1987], our approach supports (!p) and (#p) goals, but not (?p) goals. Compared to [Ingrand, 1991], our approach supports achievement and passive preserve goals, the nesting of temporal operators in goal specifications (which neither [Georgeff and Lansky, 1987] or [Ingrand, 1991] support), and the semantics we present in Section 3.3 is considerably simpler than that given in [de Silva et al., 2018]. Moreover, the developer of a PRS program is responsible for anticipating and writing code (meta-plans) to manage interactions between the agent's intentions, and the language does not support plans implemented using RL policies.

Much of the later work in the BDI paradigm focused on simpler languages, e.g., [Rao, 1996]. There has been considerable work on intention progression for such languages, mostly for agents with achievement goals. Thangarajah et al. [2003a; 2003b; 2002; 2011] proposed a summaryinformation-based (SI) approach which avoids conflicts and exploits synergies between intentions by reasoning about the conditions that will definitely or possibly be brought about by each top-level goal. Waters et al. [2014; 2015] proposed a coverage-based (CB) approach that prioritises the progression of intentions that are most likely to be affected by the changes in the environment. Yao et al. [2014; 2016; 2016; 2020; 2021] proposed an MCTS-based approach which returns the "best" action to perform at each deliberation cycle. They showed that SA [Yao and Logan, 2016] out-performed roundrobin (RR), first-in-first-out (FIFO), SI, and CB intention progression in both static and dynamic environments. There has also been some work on intention progression for agents with active preserve maintenance goals [Duff et al., 2006; Wu et al., 2023]. However, in this work maintenance goals are restricted to top-level goals, i.e., they do not support temporally extended subgoals in plans.

In most of the work on autonomous intention progression, the agent's program is represented using goal-plan trees (see Section 2). In [Dann et al., 2022] reward machines are used to represent the high-level structure of other agents' achievement goals in 'intention-aware' intention scheduling, i.e., where an agent progresses its intentions taking into account the implications of action scheduling for both its own goals and the goals of other agents. However, in [Dann et al., 2022] the other agents' goals are simple achievement goals and GPTs are used to represent the program of the 'intentionaware' agent.

There has also been some work on integrating learned behaviours and learning into BDI agents. For example, Tan et al. [2011], propose the BDI-FALCON architecture which extends a low-level TD-FALCON reinforcement learning agent with desire and intention modules. A BDI-FALCON agent uses explicit goals instead of an external reward signal, and is able to reason about a course of action using the intention module and a plan library. In the absence of a plan, the agent learns a new plan using the FALCON module. In [Singh and Hindriks, 2013], reinforcement learning was integrated into the GOAL agent programming language to improve action selection. Bosello and Ricci [2020] address the problem of how to exploit reinforcement learning in the process of developing an agent and how to integrate plans written by the agent programmer with plans designed to be learnt. They propose a proof of concept programming language, Jason(RL), where learning is integrated into the deliberation cycle. Finally, Al Shukairi and Cardoso [2023] present a hybrid BDINN architecture for controlling a vehicle in the CARLA simulation environment where interactions between the agent's collision avoidance plans are pre-specified by the developer. However, in all this work, the agent's goals are limited to simple achievement goals.

Dastani et al. [2011] present a rich taxonomy of goal types, where the goals are represented by LTL formulas which are translated into combinations of more basic declarative and maintenance goals, and sketch how such temporal goals can be realised in standard agent programming languages. Hindriks et al. [Hindriks et al., 2009] discuss how temporally extended goals expressed in LTL can be integrated into the language Goal, and sketch a decision procedure based on bounded lookahead for choosing between programmerspecified enabled actions.

7 Discussion

In this paper, we presented a new approach to intention progression for agents with temporally extended goals. Temporally extended goals allow mixing reachability and invariant properties, e.g., "move to location A without falling into a hole", and may be specified at run-time (top-level goals) and as subgoals in plans. The introduction of invariants significantly increases the expressiveness of BDI agent programming by allowing constraints to be placed on a particular execution of the agent's plans. For example, a standard movement plan may be used in an environment with holes, rather than writing a new plan that avoids holes. In contrast, with GPTs, the agent's plans would have to consider all possible constraints on execution, e.g., "move to location A while avoiding holes / maintaining line of sight to the base / etc.". To the best of our knowledge, our approach is the first to allow an agent to autonomously progress its intentions to achieve multiple temporally extended goals concurrently.

In addition, our approach allows human-authored plans and plans implemented as reinforcement learning policies to be freely mixed in an agent program, allowing the development of agents with 'neuro-symbolic' architectures which combine behaviours produced by machine learning and programmed behaviours [Bordini et al., 2020]. One of the main motivations for introducing support for plans implemented as RL policies is to allow temporally extended goals and the BDI approach in general to be applied to cyber-physical systems (CPS). We believe BDI has seen limited application in CPS due to the difficulty of writing BDI plans for nondeterministic environments, as the sequential ordering of actions typically assumes that action preconditions have been established by previous actions in the plan. RL policies have been shown to be highly effective in such environments, and we envisage "hybrid" systems, where low-level control is handled by plans implemented as policies, while higher-level decision making is handled by human-authored plans.

Acknowledgements

This work was supported in part by the Yongjiang Talent Introduction Program Young Talent (2022A-234-G).
