FedGCS: A Generative Framework for Efficient Client Selection in Federated Learning via Gradient-based Optimization

1 Introduction

Federated Learning (FL), as introduced in [McMahan et al., 2017], enables multiple client devices to collaboratively train a shared model without exposing users' raw data, preserving privacy. Despite its advantages, the practical deployment of FL still faces various challenges: (1) statistical heterogeneity, i.e., data owned by different clients may come from different distributions, resulting in non-independent, identically distributed (Non-IID) training data, which can seriously affect the convergence and overall performance of the global model [Hsieh et al., 2020]; (2) system heterogeneity, i.e., clients participating in FL have different degrees of computational resources, communication capabilities and fault tolerance, which may result in stragglers that hinder the FL training process inflicting intolerable latency [Bonawitz et al., 2019]; (3) the devices perform many compute-intensive data processing and model training, and the devices and the central server frequently exchange model parameters and gradients, which will lead to substantial energy consumption. Thus, the inclusion of too many clients may lead to suboptimal performance, latency, and wasted energy. The selection of a "good" subset of clients as FL participants for each training round is critical to mitigating all three of these issues [Lai et al., 2021].

∗Corresponding author.

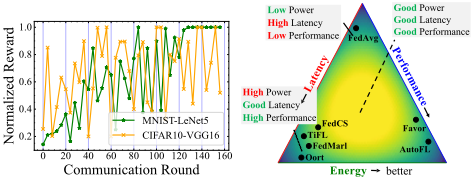

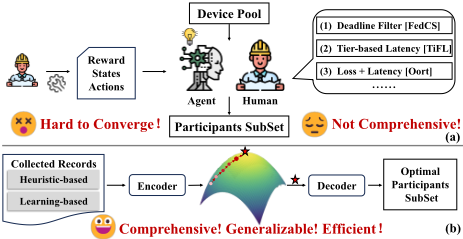

Existing client selection methods only partially address the above three challenges and can be categorized into two types: (1) heuristic-based selection, as shown in Figure 1(a) right, in which manually-engineered heuristic rules are used to choose participating devices to improve the model performance and training efficiency [Chai et al., 2020; Lai et al., 2021]. However, such methods are subjectively designed by human experts and are not comprehensive enough that consider only a limited number of optimization objectives and deployment scenarios. As a result, when confronted with unfamiliar and complex scenarios, a great deal of domain expertise and manual tuning is often required, and the final performance may be suboptimal; (2) learning-based selection, as shown in Figure 1(a) left, which explores the use of reinforcement learning (RL) [Sutton and Barto, 2018] to train continuously selfoptimizing agents for optimal client selection [Wang et al., 2020; Zhang et al., 2022]. However, the objectives designated by human experts for RL training still do not handle the evolving and complex real-world deployment scenarios well [Kim and Wu, 2021]. Moreover, RL is developed based on making decisions in massive discrete spaces and therefore has difficulty converging compared to solving continuous optimization problems [Dulac-Arnold et al., 2021].

Recently, large language models (LLMs) trained on large volumes of text data have shown impressive abilities to encode world knowledge into model parameters and solve a wide variety of natural language processing tasks via text generation [Brown et al., 2020; Touvron et al., 2023]. Such great success has driven various domains to migrate to generative models [Ramesh et al., 2022; Gruver et al., 2023], where all the information and knowledge required for a task is encoded into the model parameters and the task is ultimately solved in a generative manner. This is a general, flexible, comprehensive, and efficient modeling style that prompts us to consider: can client selection in FL also be effectively addressed in a similar generative way? To this end, we propose FedGCS, a novel Generative Client Selection framework for Federated learning, that formulates the discrete client device selection task as a generative task. Like LLMs, FedGCS tries to encode the wide knowledge of discrete decisions (i.e., selection or deselection of clients) into a continuous representation space, where gradient-based optimization can be efficiently applied to find the optimal representation that will eventually be output as the discrete selection format via generation (as shown in Figure 1(b)). Specifically, FedGCS includes four steps: (1) utilizing classical client selection approaches, i.e., heuristic-based and learning-based selection, to automatically collect sufficient, diverse and high-quality "selection-score" pair data as training data for subsequent models; (2) training an encoder-evaluator-decoder framework by simultaneously optimizing the sequence-to-sequence loss [Sutskever et al., 2014] and score estimation loss based on the collected pair data, and thereby obtaining a continuous representation space on which selection optimization will be performed; (3) adopting gradient-based optimization in the continuous representation space to find the optimal client selection representation; (4) applying the beam search strategy [Freitag and Al-Onaizan, 2017] to the well-trained decoder to generate the optimal client selection based on the optimal representation.

FedGCS has the following advantages over previous methods: (1) FedGCS encodes abundant experience of various different classical algorithms into the same continuous space to determine the final decision, and simultaneously considers the three metrics of model performance, latency and energy, making it more comprehensive than the traditional methods; (2) through data-driven learning, FedGCS only needs the automatically collected "selection-score" pair data as input and avoids the overly complex and cumbersome manual interventions and tuning of previous methods, therefore FedGCS is more flexible and generalizable; (3) modeling the process of determining the optimal client selection as executing gradient-based optimization in a continuous space is more efficient than performing a heuristic rule-based search in a large discrete space or training hard-to-converge RL agents. Finally, we conduct extensive experiments and analyses to demonstrate the effectiveness and superiority of FedGCS.

2 RelatedWorks

2.1 Client Selection in Federated Learning

Client selection in FL is critical to optimizing communication costs, computational resources, and overall performance [Lai et al., 2021], which falls into two main categories: (1) heuristic-based selection that predominantly relies on heuristics rooted in isolated considerations such as data heterogeneity and energy efficiency [Li et al., 2019; Cho et al., 2020]. Specifically, Oort [Lai et al., 2021] employs analytical strategies that comprehensively address the multifaceted nature of device selection. However, adapting these heuristics to unseen scenarios often demands lots of domain-specific expertise and extensive tuning. (2) learning-based selection that devises policies for device selection through RL [Sutton and Barto, 2018] to formulate decisions as Markov decision processes. Specifically, AutoFL [Kim and Wu, 2021] leverages a Q-table, Favor [Wang et al., 2020] adopts Q-learning, and FedMarl [Zhang et al., 2022] utilizes multi-agent RL to achieve their objectives. However, training RL agents is difficult to converge [Dulac-Arnold et al., 2021], especially in the face of noisy and complex real-world environments (as shown in Figure 2 left). Finally, as shown in Figure 2 right, all these methods mentioned above usually focus on only one or two optimization metrics and lack a comprehensive global consideration of performance, latency, and energy.

2.2 Generative Models

Recent advancements in LLMs and generative models mark a shift in the machine learning paradigm, attesting to the evolution from task-specific architectures to highly generalized generic models. These models, exemplified by the likes of GPT-3 [Brown et al., 2020] in the language domain, along with DALL·E [Ramesh et al., 2022] in the multi-modal domain, have driven the migration to generative models across various domains [Gruver et al., 2023; Xiao et al., 2023; Wang et al., 2024]. Generative models have showcased an unparalleled ability to encode multifaceted knowledge representations from expansive data into their parameters [Brown et al., 2020]. This encoded knowledge can be adeptly maneuvered to generate contextually coherent and semantically rich outputs, addressing a wide spectrum of downstream tasks. Despite the wide range of applications in language and vision, we have not seen generative models applied extensively in decision-making tasks like the client selection task in FL.

3 ProblemFormulation

In this section, we formulate the discrete client selection task in FL as a generative task and conduct gradient-based optimization in a continuous representation space to get the optimal selection. Firstly, at the beginning of a training round, given a candidate client device pool set C = {c1, c2, . . . cJ} of J client devices, we use classic client selection algorithms to collect n "selection-score" pair as training data for subsequent model training. We denote the collected records as R = {(si, pi)}n1 , where si = {s1, s2, . . . sT} is the client selection record made by a classic algorithm (si ⊂ C, s1≤i≤T ∈ C is the selected device IDs, and T is not a fixed number that is determined by the classical algorithm used for this selection), and pi is the corresponding comprehensive score of the FL performance for making the client selection si. To characterize pi of a given si, unlike previous FL approaches [Li et al., 2019; Zhan et al., 2020; Wang et al., 2020] that focus on different metrics and typically consider only one or two metrics to guide the selection, in this paper, we simultaneously focus on: (1) good performance of the global model; (2) low processing latency; (3) low energy consumption to perform comprehensive and multi-dimensional optimization. Here, the comprehensive metric function M of a client selection si is defined as:

where pperf. denotes the downstream task performance. L and E are developer-specified latency and energy budgets for the devices. pL and pE represent the actual total latency and energy consumption, encompassing communication and computation processes, for a given client selection si. 1(x) is an indicator function that takes the value 1 if x is true and 0 otherwise. Therefore, client selections exceeding the desired latency L and energy E will be penalized by developerspecified factors a and b [Lai et al., 2021], both set to 2 in our implementation. Then, we aim to learn a continuous representation space S for "selection-score" pair data. Specifically, we learn three modules: (1) an encoder ϕ which can map a selection si to its corresponding continuous representation Esi ; (2) an evaluator ω which can evaluate the comprehensive score pi of a selection si based on its representation Esi ; (3) a decoder ψ which can map a continuous representation Esi back to its corresponding discrete client selection si. We optimize all these modules simultaneously based on the collected records R. After getting the space S and the well-learned three modules, we can adopt gradient-based optimization in S to find the optimal client selection s∗ , given by:

4 Methodology

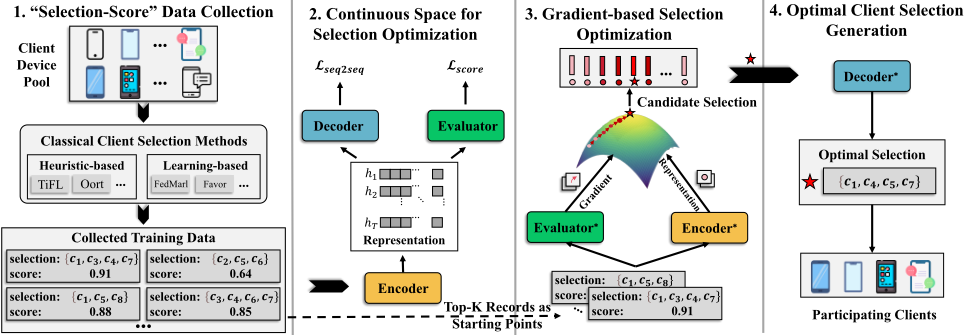

Figure 3 shows the overview of our framework, which will be described in detail in this section.

4.1 "Selection-Score" Data Collection

To ensure that subsequent models and algorithms perform well, we need to collect sufficient, diverse, comprehensive and high-quality "selection-score" pair data R = {(si, pi)}n1

as training data: training data is large enough to represent the entire distribution; training data includes high-performance selection cases as well as certain random exploration samples. Intuitively, we can use random selections and compute their corresponding comprehensive scores as training data. However, this strategy is inefficient because the number of random selections is exceptionally large and most of them are lowperformance samples. Therefore, we also must consider the efficiency of our data collection process.

With the help of classical client selection algorithms, we can automatically and efficiently collect training data that fulfills our requirements in two ways: (1) heuristic-base collection: using heuristic-base selection methods (e.g., Oort [Lai et al., 2021]) to generate records. This category of algorithms consists of expert manually-engineered heuristic rules, and different algorithms reflect different experts' considerations, based on which we can produce comprehensive and highquality "selection-score" records reflecting various expert intelligence. (2) learning-based collection: treating learningbased selection methods (e.g., FedMarl [Zhang et al., 2022]) as exploration-based training data collectors. This stochastic and self-optimizing learning process can be viewed as an exploratory and automated data collection tool that leverages machine intelligence to help collect diverse yet quality records. For the collected selection samples, the comprehensive metric function M allows us to obtain their corresponding scores easily, thus finally finishing the pair data collection.

4.2 Continuous Space for Selection Optimization

After collecting "selection-score" pair data R that reflects the broad and abundant experience of classical client device selection algorithms, we train an encoder-evaluator-decoder framework based on R to embed these records into a continuous representation space S for follow-up gradient-based selection optimization. Each point in S is associated with a client selection and its corresponding comprehensive score, denoted below by s and p, respectively.

Data Augmentation. Sequence-to-sequence (seq2seq) architecture [Sutskever et al., 2014] is an important machine learning method: it uses an encoder to capture the context of the input sequence and sends it to a decoder, which then produces the final output sequence. Its flexibility and powerful capabilities have led to a wide range of applications where the data can be naturally organized as a sequence [Raffel et al., 2020]. The encoder and decoder together in our framework essentially belong to the seq2seq paradigm as well, with the particularity that the inputs and outputs (i.e., client selections) are a special kind of sequences-the sets. Each client selection is a subset of the device pool that contains an unordered sequence of device IDs. To model the order-independent properties of sets in the seq2seq component, we propose to use data augmentation to increase the diversity of sequences corresponding to the same set. Specifically, given a selection and its corresponding score fromR, we randomly shuffle the device IDs contained in the selection to obtain a new order, then we pair the new shuffled device IDs sequence with the original score and add them to the training data.

Encoder ϕ. The encoder aims to map any given selection s = {s1, s2, . . . sT } to continuous representation Es = ϕ(s) that is considered as the input context. Here, we adopt a single layer long short-term memory (LSTM) [Hochreiter and Schmidhuber, 1997] as encoder ϕ. Specifically, we input the device IDs from s sequentially into the encoder and collect their corresponding output embeddings to form Es = [h1, h2, . . . , hT ] ∈ RT×d (T is the length of the selection s, and d is the embedding dimension).

Decoder ψ. The decoder aims to generate the device IDs of a client selection s based on Es, denoted by s = ψ(Es). Similar to the encoder, we employ a single-layer LSTM to implement the decoder and train it in an autoregressive way [Sutskever et al., 2014; Brown et al., 2020]. Firstly, the initial input of the decoder is the last device ID embedding in Es (i.e., hT ). Then, at step i of the decoding process, we can get the current decoder hidden state ˆhi from the LSTM, and utilize dot product attention [Luong et al., 2015] to aggregate the input context Es from encoder, and finally obtain an enhanced input embedding ˜hi for this step, defined as:

where aij is the attention weight between ˆhi and hj. Later, we concatenate ˆhi and ˜hi together and fed them into a fully connected layer followed by a softmax layer to produce the predictive distribution of step i, formulated as:

where si ∈ s is the i-th ID in s, s<i represents the prediction of the previous or initial step, C is the candidate client device pool set (i.e., the token set in seq2seq models), and W stand for the parameter of the fully connected layer. By multiplying the probability in each step, we can derive the distribution of the whole client selection s as follows:

In order to make the generated sequence similar to the true sequence, we minimize the negative log-likelihood of the distribution, which is defined as:

Evaluator ω. The evaluator aims to evaluate the corresponding comprehensive score p of a selection s based on its representation Es. Specifically, we first conduct mean value operation on device ID embeddings h(.) in Es to aggregate the information and obtain the integrated selection embedding ¯Es ∈ Rd . We then fed ¯Es into the evaluator ω (a feedforward neural network) to estimate the score, given as ˆ p = ω( ¯Es). To minimize the difference between the estimated score ˆ p and the collected real one p, we leverage the Mean Squared Error (MSE), defined by:

Joint Training Loss L. We optimize the encoder ϕ, decoder ψ and evaluator ω simultaneously by integrating Equation 6 (i.e., the seq2seq loss) and Equation 7 (i.e., the score estimation loss) to construct the joint training loss L:

where α is the trade-off hyperparameter to control the contribution of Lseq2seq and Lscore during the training process.

4.3 Gradient-based Selection Optimization

After obtaining the trained encoder, evaluator, and decoder, we can adapt the gradient-based optimization method in S to find the optimal client selection. Good initialization is crucial for the gradient-based optimization approaches [Glorot and Bengio, 2010], so we first select top-K client selections ranked by their comprehensive score p and use the encoder to embed these selections into a continuous representation which will later be used as starting points for subsequent optimization. Assuming that one starting point representation is Es, in order to obtain a selection that possesses a better comprehensive score, we optimize from Es towards the gradient direction induced by the evaluator ω:

where E+ s is the optimized selection representation, η is the step size. The comprehensive score of E+ s is supposed to be better than Es due to ω(E+ s ) ≥ ω(Es). For all the K starting points, we perform the above optimization several times to get the set of candidate selection representation { ˜Esi }K1 . Finally, we choose the optimal selection representation Es∗ in { ˜Esi }K1 through the estimated candidates' comprehensive score, i.e., Es∗ = argmax ˜Esi {ω( ˜Esi )}K1 .

4.4 Optimal Client Selection Generation

To identify the optimal client selection s∗ , we fed Es∗ into the well-trained decoder ψ, this process can be denoted by: s∗ = ψ(Es∗ ). Specifically, we adopt the beam search [Freitag and Al-Onaizan, 2017] to generate the client selection, just like text generation in natural language processing [Sutskever et al., 2014]. Instead of setting the length of the selection in advance, we use the decoder to iteratively generate device IDs until it encounters the stop token <EOS>, which makes our selection process more adaptive.

5 Experiments

5.1 Experimental Setup

Infrastructure. To evaluate the performance and effectiveness of FedGCS, we first build a simulator with the server/client architecture based on PyTorch [Paszke et al., 2019], where distinct processes emulate the central server and participating devices. To emulate data heterogeneity, we allocate training data with different distributions across devices. To mimic system heterogeneity, we establish a FL system comprising six device types with diverse hardware configurations, including Google Pixel 6, OnePlus 10 pro, Redmi Note 10, Realme Q3s, NVIDIA Jetson Nano, and NVIDIA Jetson TX2. We utilize Monsoon Power Monitor [mon, 2023] to track latency and energy consumption during training. Furthermore, we integrate end-user interaction traces from LiveLab [Shepard et al., 2011] to emulate concurrent applications that impact the training capability at runtime.

Baselines. FedGCS is compared with three types of client selection methods, including random-based (FedAvg [McMahan et al., 2017] and FedProx [Li et al., 2021]), heuristic-based (AFL [Goetz et al., 2019], TiFL [Chai et al., 2020] and Oort [Lai et al., 2021]), and learning-based (Favor [Wang et al., 2020] and FedMarl [Zhang et al., 2022]).

Datasets and Models. We use typical models and datasets in Computer Vision (CV) and Natural Language Processing (NLP) domains for evaluation, including LeNet5 [LeCun et al., 1998a] on MNIST [Lecun et al., 1998b], ResNet18 [He et al., 2016] on CIFAR10 [Krizhevsky et al., 2009], VGG16 [Simonyan., 2014] on CINIC10 [Darlow et al., 2018], ShuffleNet [Zhang et al., 2018] on TinyImageNet [Deng et al., 2009] for image classification, LSTM [Hochreiter and Schmidhuber, 1997] on Shakespeare [Shakespeare, 2017], GPT-2 [Radford et al., 2019] on Wikitext [Merity et al., 2016] for text generation. For four CV datasets, Dirichlet distribution pk ∼ DirN(β) is utilized to simulate the Non-IID data distribution on different devices.

Hyperparameter Settings and Reproducibility. We run two heuristic-based methods-Oort and Favor, and one heuristic-based method-FedMarl 100 times each, totaling 300 runs, to collect "selection-score" pair data for subsequent model training. For data augmentation, each selection is randomly shuffled 25 times to model set order-independence. We adopt a single-layer LSTM as the Encoder and Decoder backbones, and two-layer feed-forward networks for the Evaluator. The hidden state sizes are 64 (Encoder), 64 (Decoder), and 200 (Evaluator), with a 32-dimensional embedding for each device ID token. For FedGCS training, we set batch size= 1024, learning rate= 0.001, α = 0.8, and utilize the top-25 device selections as starting points for gradient optimization. In the FL setting, J = 100 devices are available, with T = 10 (T = 20 for FedMarl) selected per round over r = 10 rounds for GPT-2 (r = 50 for others). Clients perform local ep = 5 epoch training each round. The code is available at https://github.com/zhiyuan-ning/GenerativeFL.

5.2 Overall Performance

Model Performance. Table 1 shows the final test performance of all client selection methods. We can observe that FedGCS significantly outperforms other baselines across all domains and tasks. Specifically, for IID setting, FedGCS improves the test accuracy 5.56% over FedAvg and 2.20% over SOTA value on average. Further, FedGCS is particularly more effective in the more challenging Non-IID setting, outperforming the baselines by considerable margins: improving the test accuracy 20.35% over FedAvg and 3.16% over SOTA on average, and reducing 18.55 perplexity (PPL, lower values correspond to stronger text generation capability) over FedAvg and 6.54 over SOTA on the GPT-2 model. Overall, this experiment demonstrates the practical and robust ability of FedGCS to scale to complex workloads and application

• 1 We use perplexity (PPL) to evaluate GPT-2, which reflects the text generation capability of model.
• 2 Set β = 0.01 for MNIST, β = 0.1 for others to emulate Non-IID. Shakespeare and Wikitext are naturally Non-IID.

3 Early exit when target accuracy (99%) is achieved. Numbers in parentheses indicate the exited round.

scenarios. This may be because FedGCS converts extensive discrete decision knowledge into a continuous representation space in a data-driven manner and identifies a superior client selection in that space based on gradient-based optimization.

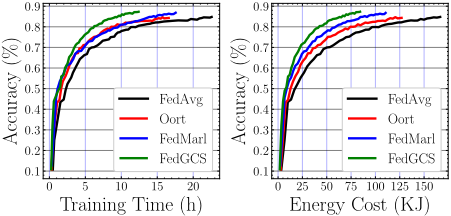

Latency andEnergyConsumption. Then, we evaluate the system efficiency of FedGCS from two perspectives: Time to Accuracy (ToA) and Energy to Accuracy (EoA). Figure 4 left shows FedGCS effectively speeds up the training process with faster convergence and achieves superior accuracy. In addition, FedGCS also achieves significant energy savings shown in Figure 4 right. This can be attributed to FedGCS thoughtfully integrating considerations of both latency and energy consumption during training. In contrast, Oort emphasizes solely training duration as the system effectiveness metric, and FedMarl takes into account the energy costs associated with communication, but it overlooks the intrinsic energy overheads of the training process itself, a critical oversight, especially for devices operating on battery power.

5.3 Framework Analysis

Impact of DataCollection andAugmentation. To explore the impact of the different modules of FedGCS, we develop two model variants: (1) FedGCS-c , we randomly collect pair data without relying on classical client selection methods. (2) FedGCS-a , we disable the data augmentation process of FedGCS. Table 2 shows the comparison results, we can find that the performance of FedGCS is much better than FedGCS-c . This suggests that the quality of the collected data is critical to constructing a continuous representation space, and that a better space will in turn help to identify better client selection. Moreover, we observe that FedGCS is superior to FedGCS-a . The key driver is that data augmentation can enhance data diversity and model the order-independent properties of client selection, thereby enabling more robust and effective learning for FedGCS. Consequently, these results confirm that data collection and augmentation are essential for sustaining the performance of FedGCS.

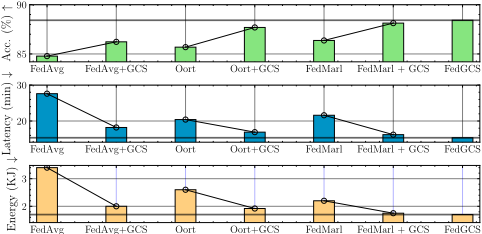

Study ofGeneralizationAbility of GCS. Figure 5 outlines when training the ResNet18 model on CIFAR10 (IID), the generalization ability of FedGCS in combination with different client selection methods, and the effectiveness of using multiple selection methods for data collection. The adoption of a single selection method as data collector can significantly improve results over the corresponding selection method, highlighting the merits of continuous space paradigms in enhancing generalization ability. Furthermore, the use of diverse, multiple selection methods as data collectors (i.e., the FedGCS in Figure 5 which uses Oort, Favor and FedMarl as data collectors simultaneously) outperforms other single collector strategies, emphasizing the value of diversity in data collectors for comprehensive space construction.

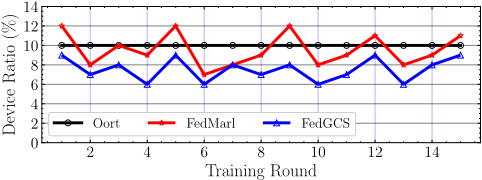

Study of the Selection Strategy Made by FedGCS. We analyze the selection strategy of FedGCS by comparing its selected device ratio with the best fixed client selection method Oort and the dynamic selection approach FedMarl. Figure 6 shows the results, where we can observe that the ratio of the client selection made by FedGCS is dynamically changing each training round, indicating that decision making via generative is more adaptive when compared to the fixed client selection methods. In addition, the ratio of FedGCS is the smallest, suggesting that FedGCS can select the most reasonable number of devices even when compared to the dynamic selection approaches. Overall, such results demonstrate that FedGCS can achieve the best performance with the smallest device selection ratio, indicating that the selection strategy of FedGCS is superior compared to other methods.

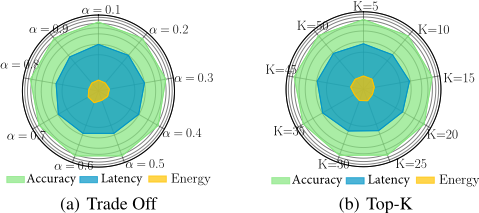

Study of the Hyperparameter Sensitivity of FedGCS. There are two major hyperparameters, training trade-off α and the top-K records as the starting points of gradient-based optimization. A higher α will make the model more concentrated on the loss Lseq2seq, and a higher K makes the model search more milder. We set α from 0.1 to 0.9, and K from 5 to 50, then train the FedGCS on ResNet18 over CIFAR10 (IID). The model performance is reported in Figure 7. Overall, we observe that model performance and system efficiency vary slightly for different K, but for better results K needs to be greater than 20. Further, setting α as 0.8 will slightly bring a higher model performance. These findings provide insight into how α and K impact the model performance and system efficiency and how to choose the optimal hyperparameters.

5.4 Overhead Analysis

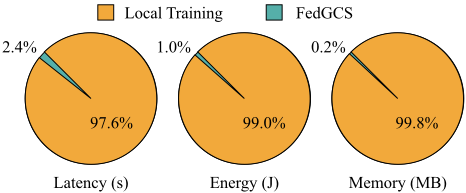

As shown in Figure 8, we delineate the overhead analysis of the FedGCS framework and employ the Monsoon Power Monitor for the empirical measurement of the local training runtime overhead, specifically focusing on the ResNet18CIFAR10 model augmented with 500 samples on an NVIDIA Jetson Nano platform. The empirical data reveals an average local training duration per round of 28.24 minutes, accompanied by an average energy expenditure of 370.5 Joules. Conversely, the deployment of the FedGCS framework on a server manifests markedly different metrics: a mere 0.68 minutes of processing time and an average energy consumption of 3.9 Joules. This stark contrast underscores the negligible runtime overhead of the FedGCS when operating in a server environment. Further, the memory requirements of FedGCS are remarkably low, with a total memory footprint under 0.1 MB. This is negligible when compared to the substantial memory size of the ResNet18 model, which is approximately 42.70MB, and the expansive 40GB DRAM capacity available on cloud servers equipped with NVIDIA A40 GPUs. Consequently, we assert that the runtime overhead of the FedGCS framework is not a significant factor in affecting the overall efficiency and progress of the training process.

6 Conclusion

FedGCS marks a significant advancement in FL by introducing a generative framework for client selection, effectively addressing statistical and system heterogeneity and high energy consumption challenges. This framework transcends traditional methods by encapsulating decision-making processes within a continuous representation space, enabling precise and efficient identification of optimal client subsets. Our novel approach, which includes data collection, model training, gradient-based optimization, and generation of client selection, not only outperforms existing methods in terms of model performance, latency, and energy efficiency but also simplifies the process, reducing reliance on domain expertise and manual intervention. The empirical validation of FedGCS underscores its superiority and potential to revolutionize client selection strategies in FL.

Acknowledgments

This research is supported by the the Strategic Priority Research Program of the Chinese Academy of Sciences XDB38030300, the Natural Science Foundation of China under Grant No. 61836013, the Postdoctoral Fellowship Program of CPSF (No.GZC20232736), the China Postdoctoral Science Foundation Funded Project (No.2023M743565), the Science and Technology Development Fund (FDCT), Macau SAR (file no. 0123/2023/RIA2, 001/2024/SKL), and the Start-up Research Grant of University of Macau (File no. SRG2021-00017-IOTSC).

Contribution Statement

Zhiyuan Ning and Chunlin Tian contributed equally.
