IGraSS: Learning to Identify Infrastructure Networks from Satellite Imagery by Iterative Graph-constrained Semantic Segmentation

1 Introduction

Given the growing challenges of water conservation, modern irrigation patterns are shifting towards more cost-effective and water-efficient systems [P´erez-Blanco et al., 2020; Fan et al., 2023]. Furthermore, increasing pressures from drought, rising operational costs of canal infrastructure, and the decreasing cost of canal technology are driving many irrigation districts toward modernization [Belt and Smith, 2009; Creaco et al., 2023; Fan et al., 2023; Creaco et al., 2023]. Modernizing irrigation infrastructure requires accurate knowledge of existing canal networks, but manual mapping is slow and outdated maps lack completeness [Hosseinzade et al., 2017].We tackle this challenge by using high-resolution remote sensing to automatically extract canal networks, which will inform efforts on water management and infrastructure planning. This contributes to sustainable development and aligns with United Nations Sustainable Development Goals 12 (SDG 12) by promoting responsible resource use in agriculture and related sectors [United Nations, 2015].

Irrigation canal mapping by agencies typically relies on a labor-intensive GIS process, where experts manually annotate lines and polygons [Belt and Smith, 2009; Archuleta and Terziotti, 2023]. This approach often results in noisy, incomplete labels (See Fig 1) and requires updates over time as infrastructure evolves-for example, open canals being converted to closed pipe systems or covered with solar panels for efficiency [Loureiro et al., 2024]. An automated remotesensing approach can streamline updates and help assess water and energy efficiency improvements. While road network extraction is well-studied [Abdollahi et al., 2020] with high-quality benchmarks [SpaceNet on Amazon Web Services (AWS), 2018; Demir et al., 2018], datasets for other infrastructure networks, such as irrigation canals, remain limited, often containing insufficient data and noisy, incomplete annotations.

Our approach leverages graph-theoretic properties (e.g., reachability, connectivity, planarity) to address noisy or incomplete infrastructure annotations. In irrigation networks, for instance, every canal segment should be reachable from a water source. Similar constraints apply to road and power networks. Unlike prior work using topological representations for road extraction, our method integrates graph constraints by aggregating segmentation outputs across multiple images. To effectively apply graph constraints such as reachability and connectivity, segmentation outputs must be aggregated across multiple images. Beyond segmentation, we propose a method to refine ground truth, which is often fragmented or disconnected. Using graph-theoretic properties, we correct these inconsistencies and show that improved annotations further boost model performance (See Figure 1).

Contributions. Our contributions in this work are: (i) a framework that allows the combination of learning with optimization/constraint satisfaction methods through the use of pseudo-labels, (ii) a refined set of metrics, called rneighborhood metrics, which are more suitable for evaluating the performance of semantic segmentation problems like the ones studied here, (iii) a demonstration of improved performance in canal network identification (using reachability constraints), (iv) demonstration of generalizability using road network completion as an example, optimizing pairwise distances under a graph-theoretic constraint. (v) we provide the code and framework used to refine the canal network for the state of Washington, making it more connected and less noisy. The implementation is available for research purposes at: https://github.com/oishee-hoque/IGraSS.

Team. This work is the result of an interdisciplinary collaboration between computer scientists, an agro-ecosystems modeler with expertise in water and agricultural resource management, and an earth science and remote sensing expert.

2 RelatedWork

Liu et al. [2022] provide a comprehensive review of infrastructure network extraction using deep learning, particularly in the context of roads.) We use popular models from this literature as backbone networks for our semantic segmentation module. Similar approaches have also been applied to related problems such as crack detection, blood vessel segmentation, abnormality in anatomical structures, and extracting power systems [Ganaye et al., 2018; Cheng et al., 2021; Ren et al., 2022].

Graph-based segmentation methods have been explored for road network inference and related tasks. Our work is most closely related to RoadTracer [Bastani et al., 2018], which iteratively constructs road graphs using dynamic labels. However, unlike our approach, which refines labels based on global constraints (e.g., reachability), their method relies on a CNN-based decision function constrained to local patches.

Other relevant works include Sat2Graph [He et al., 2020], which encodes road graphs as tensors for deep aggregation networks, and GA-Net [Chen et al., 2022], which integrates segmentation with geometric road structures to enhance connectivity. Additionally, road boundaries detected via traditional filtering serve as inputs to a deep learner with DLinkNet architecture [Zhou et al., 2018]. Cira et al. [2022] use an inpainting approach as a postprocessing technique to link unconnected road segments. Zhang and Long [2023] utilize hypergraphs to capture high-order and long-range relationships among roads, incorporating various pretext tasks for optimization and demonstrating significant improvements across multiple datasets, tasks, and settings. None of these approaches use global graph constraints/optimization.

Mapping water bodies from remote-sensed data is an active area in remote sensing. Various unsupervised and supervised methods have been used. A prominent approach is the use of water indices such as normalized difference water index (NDWI). The use of deep learning methods in this context is an emerging area of research, with several papers using standard segmentation techniques. (See Nagaraj and Kumar [2024] for an extensive review.) Gharbia [2023] highlights challenges such as lack of quality data and variations in water body types. Li et al. [2022] consider the extraction of natural water bodies from binarized NDWI images. They apply a connected-component method followed by an analysis of shape and spectral characteristics to assign a confidence value to each water body. This is subsequently used to train peer networks. Yu et al. [2023] address the problem of finegrained extraction of water bodies, where the challenge is to accurately detect the boundaries of water bodies. They propose a novel boundary-guided semantic context network in this regard. In our work, the emphasis is more on the accuracy of the network structure of the canal network.

3 Proposed Framework

3.1 Preliminaries

We use the problem of identifying irrigation canals from satellite images as the main running example in this paper. However, the framework can also be applied to other problems, such as identifying road networks.

We assume that the study region is overlaid with a grid where each grid cell corresponds to a pixel of a satellite image. Let G denote the graph induced by this grid where V (G) denotes the set of grid cells. Two nodes u, v ∈ V (G) are adjacent if and only if they share a side or a corner. This corresponds to the Moore neighborhood. The set of edges is denoted by E(G). The ground-truth canal network Ggt is a subgraph of G induced by V (Ggt), the set of grid cells identified as canal pixels. Further, each v ∈ V (G) is assigned a label ℓ(v) ∈ {0, 1}, where 0 denotes a non-canal node and 1 denotes a canal node. For all canal nodes (ℓ(v) = 1), the label γ(v) = 1 implies that it is reachable from a water source, while 0 means otherwise. Henceforth, for brevity, we use the phrase "v is reachable" to denote that the node is reachable from a water source.

3.2 Problems

Inference goal. Under the assumption that the ground-truth canal network is incomplete (but not erroneous), the goal is to infer the canal network Gc, an induced subgraph of G such that all nodes in V (Gc) ⊇ V (Ggt) are reachable; i.e., ∀v ∈ V (Gc), γ(v) = 1.

Prediction goal. Given the satellite imagery of a new region and the trained model, the objective is to identify all the edges of the canal network Gc.

3.3 Approach

Training data for neural network-based semantic segmentation approaches divide large satellite images into patches, where a patch is a small rectangular part of the large image. Typical patch sizes are 256×256 pixels or 512×512 pixels, whereas the image as a whole can be, say, ≈ 20,000×30,000 pixels in size. (See the Experimental Evaluation section for details regarding the data). While the classifier can be trained using each patch as a training input and the intersection of V (Ggt) with that patch as the corresponding expected output for training, it is important to note that the overall graph constraints (reachability, connectedness) are global constraints. These cannot be directly incorporated into the learning process by augmenting the objective function, as is customary in constrained learning problems.

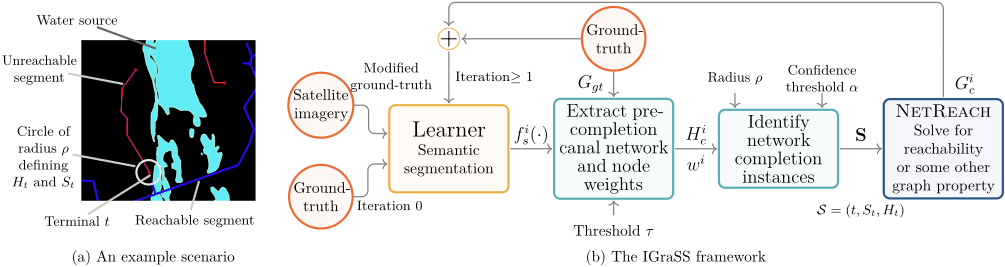

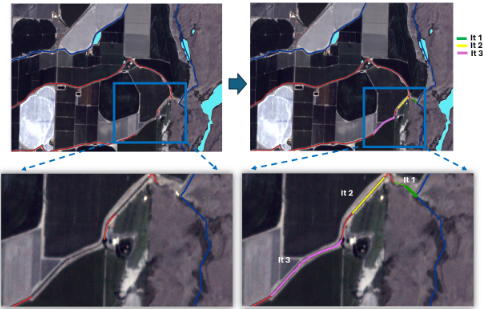

Figure 2(a) shows a toy example where red-marked canals are not reachable from any water sources. The dark blue canals are reachable from the water source. Our goal is to identify these disconnected canal segments and connect them to nearby water sources or to reachable (blue) canals. We therefore develop a new, iterative approach composed of (i) a learner that infers a canal network given ground-truth data and satellite imagery after training for a number of intermediate epochs, and (ii) a constraint solver algorithm that modifies the training data after each iteration by adding positive pseudo-labels to chosen pixels. A positive pseudo-label refers to changing the label of a pixel from ℓ(v) = 0 to ℓ(v) = 1 to satisfy the constraint. In the canal network identification problem, the constraint solver is a network completion algorithm to satisfy the reachability constraint. See the outline in Figure 2. In each iteration, step (ii) modifies the expected outputs in the training data for the next round of training. The canal network is initially set to the ground-truth network, i.e., G0c = Ggt, and is then modified in step (ii) of each iteration. The following are the steps in each iteration i ≥ 1.

Learner. The learner's objective is to provide the likelihood that a node in the grid graph belongs to a canal. It is trained using modified ground-truth obtained from Gi-1 c for λi epochs. For the purpose of training in this iteration, for any node v, ℓ(v, i -1) = 1 (i.e., v is a canal pixel in iteration i-1) if and only if v ∈ V (Gi-1 c ). Let f i s (v) denote the output of the learner. Note that the output depends on the learning methodology.

Pre-completion network. Given the learner's output, ground-truth network Ggt, and a user-specified threshold τ, a canal network graph Hi c is computed. Firstly, a likelihood wi (v) ∈ [0, 1] is computed from f i s (v). We construct a pre-completion canal network Hi c as a graph induced by the nodes that satisfy the following condition: (i) v ∈ V (Ggt) (ground-truth) or (ii) wi (v) ≥ τ .

Network-completion instances. Given the pre-completion network Hi c , its node set is partitioned into reachable and unreachable nodes. A set of candidate instances to apply network completion, called network completion instances, are identified. Each such instance S consists of a tuple (t, St, Ht) where t is an unreachable terminal, St = {s1, s2, . . .} is a collection of reachable nodes called sources, and Ht, referred to as the t-local graph, is a subgraph of the grid graph G containing {t}∪St, where each node v ∈ V (Ht) has weight 1/wi (v) if 1/wi (v) > α (a confidence threshold), 0 otherwise (See Algorithm 2). Only the nodes of V will be used for extending t to a reachable node. More implementation details are given in the Appendix. Let S = {S1, S2, . . .} be the collection of such instances.

Algorithm 1: Directly Connected Canal Nodes

Input: M: A binary matrix of size m × n F : A set of water index pairs (i, j) Output: C: Set of directly connected 1s Create boolean mask B of size m × n with B[i, j] = 1 if and only if (i, j) ∈ F . Define kernel K: K = [1 1 1 1 0 1 1 1 1 ] V ← Convolve B with K; Initialize empty set C; foreach (i, j) ∈ M do if V [i, j] > 0 and M[i, j] = 1 then Add (i, j) to C; return C;

Identifying a network-completion instance. Given Hi c , using morphological thinning [Fisher et al., 2003] end points of canal segments are identified. An end point t is a terminal if it is not reachable. All pixels at distance ρ (user-specified) from t form the node set of its local graph Hv. The source set of v is the set of all end points in the local graph that are reachable.

Network reachability computation. For each instance S = (t, St,Ht) ∈ S, the objective is to find a minimum weighted shortest path from t to St in Ht. This involves converting the node-weighted Ht to an edge-weighted graph (See Algorithm 3), followed by the application of Dijkstra's [Dijkstra, 1959] shortest path algorithm. More implementation details are given in the Appendix B included in the Online Supplementary Material.

3.4 FrameworkModules

Reachable and Unreachable Nodes. Given water source indices as F , Algorithm 1 identifies canal pixels directly connected to these sources. Given a binary matrix M representing the canal network (pre-completion Hi c ), the algorithmcreates a boolean mask B, marking the locations of F. It then applies a convolution with an 8-connectivity kernel to determine the set of directly connected canal pixels, C, which are classified as reachable. A breadth-first search (BFS) expands from C to find all connected canal pixels, forming the set R of reachable pixels. The remaining canal pixels in M that are not in R are considered non-reachable U.

Terminals. Given the set of unreachable nodes U, we identify the terminal nodes. For each point p ∈ U, the algorithm examines its 8-connected neighborhood defined by the directions ∆ = {(0, ±1), (±1, 0), (±1, ±1)}. A point is classified as a terminal if it has one or fewer neighbors within the set U. The algorithmmaintains a set V of visited points to avoid redundant computations and it returns the set of terminals E.

Source-Terminal Pairs. For each terminal t ∈ E, we identify source points St within a radius ρ. The sources include

Algorithm 2: Edge Point Processing

Input: E: Set of terminal points wi (v): Likelihood matrix Hi c : Pre-completion network ρ: Sampling radius α: Confidence threshold Output: Xr: Resultant matrix Xr ← Hi c // Initialize with pre-completion network (n, m) ← size of Hi dimensions foreach p ∈ E do Np ← GetNeighbors(p, ρ, (n, m)); foreach n ∈ Np do if wi [n] > α and Xr[n] = 0 then Xr [n] ← ⌊1/wi [n]⌋;

c // Extract matrix return Xr ; Function GetNeighbors(p, ρ, (n, m)):

(x, y) ← p; N ← ∅; for dx ∈ [-ρ, ρ] do for dy ∈ [-ρ, ρ] do if dx ̸= 0 or dy ̸= 0 then (nx, ny) ← (x + dx, y + dy); if 0 ≤ nx < n and 0 ≤ ny < m then N ← N ∪ {(nx, ny)}; return N ;

water source edge points (those with fewer than eight neighbors) and reachable canal nodes. Using an approach similar to Algorithm 5, we first detect water source edges and then determine source-terminal pairs by selecting all source points p ∈ S that satisfy ∥p - t∥2 ≤ ρ.

3.5 Metrics

Alongside conventional metrics-Precision (P), Recall (R), F1 Score (F1), and Intersection over Union (IoU)-we introduce parameterized metrics to address width inconsistencies in thin-structure segmentation. These metrics account for minor spatial misalignments in single-pixel annotations, such as canal networks represented by shapefile line segments, which may not perfectly align with the ground truth. Conventional metrics may underestimate performance in such cases, even when the model captures the overall structure. To address this, we define an r-neighborhood (Nr(i, j)) around each pixel (i, j), allowing for small spatial deviations. Let pi,j ∈ {0, 1} be the predicted value at (i, j) and yk,l ∈ {0, 1} the ground truth at (k, l).

r-Neighborhood True Positives (rTP) is the number of predicted positive pixels that lie within the rneighborhood of the actual positive pixels: rTP = ∑Ni=1 ∑Mj=1 maxk,l∈Nr(i,j) (yk,l) · pi,j .

Algorithm 3: Directed Subgraph Around Terminal

Input: Mm×n: Matrix representing the canal network t = (tx, ty): Terminal coordinates r: Radius Output: G = (V, E): Directed graph R ← {(i, j) | |i - tx| ≤ r, |j - ty| ≤ r, 0 ≤ i < m, 0 ≤ j < n}; ∆ ← {(0, ±1), (±1, 0), (±1, ±1)}; V, E ← ∅; foreach (i, j) ∈ R where M[i, j] > 0 do V ← V ∪ {(i, j, 1), (i, j, 2)}; E ← E ∪ {((i, j, 1), (i, j, 2), M[i, j])}; foreach (dx, dy) ∈ ∆ do if (i + dx, j + dy) ∈ R and M[i + dx, j + dy] > 0 then E ← E ∪ {((i, j, 2), (i + dx, j + dy , 1), 0), ((i + dx, j + dy, 2), (i, j, 1), 0)}; return G = (V, E);

r-Neighborhood False Positives (rFP) are the number of predicted positive pixels that do not lie within the r-neighborhood of any actual positive pixels: rFP = ∑Ni=1 ∑Mj=1 pi,j · (1 -maxk,l∈Nr(i,j) yk,l ) .

r-Neighborhood False Negatives (rFN) are the number of actual positive pixels for which there are no predicted positive pixels within the r-neighborhood: rFN = ∑Ni=1 ∑Mj=1 yi,j ·

The r-IoU (rI), r-precision (rP), r-recall (rR), and r-F1 score (rF1) are similar to their conventional counterparts with TP, FP, and FN replaced by rTP, rFP, and rFN respectively. The usefulness of these metrics is demonstrated in Figure 3.

4 Experimental Setup

Canal Network Dataset. We used PlanetScope (2020-2023) [NASA, 2023] 3m-resolution RGB imagery to map irrigation canals in central Washington. NDWI was computed from Green and NIR channels, while USGS 3DEP Digital Elevation Map (DEM) (1m) [USGS, 2024] was resampled to 3m and used alongside NDWI and RGB. Canal waterway data came from the National Hydrography Dataset (NHD) [2020]. To prepare the dataset, we merged imagery tiles into a ≈ 20,000×30,000 tile per year and divided them into non-overlapping 512×512 patches. We filtered patches with over 30% black pixels and excluded mask patches with fewer than 0.5% canal pixels. We have total of 30,000 512x512x5 (RGB, NDWI, DEM) patches in our dataset.

For experiments, we created two distinct sets (Set 1 and Set 2) of spatially separated training, validation, and test data. The test set was 20% of the data, while 80% was used for training and validation. We employed 5-fold cross-validation and ran IGraSS to track average performance metrics. After tuning hyperparameters (iterations, epochs, ρ, etc.), we re-ran IGraSS on training data and evaluated on the test sets.

RoadNetworkData Following RoadTracer [Bastani et al., 2018], we obtained 60 cm/pixel satellite imagery of New York City (24 sq km) from Google Maps and merged the tiles. We extracted the road network from OpenStreetMap, converted coordinates to match the imagery, and generated road masks. To create partial road maps, we iteratively removed α road segments of random length β from a predefined list (e.g., β ∈ {20, 30, 50, 100}). Further details, including train-test split, are in Appendix A.

5 Results

5.1 Irrigation canals

Our evaluation focuses on two main aspects: (1) comparing IGraSS's performance against the state-of-the-art models used as learners in our framework, and (2) assessing its ability to complete canal networks given reachability constraints. We also perform extensive experiments under various parameter settings to provide a comprehensive evaluation.

Segmentation Baseline Networks. For our experiments, we select three popular state-of-the-art models to serve as the Learner in our framework: DeepLabV3+ [Chen et al., 2018], ResNet50 [He et al., 2015], ResUNet [Diakogiannis et al., 2019], and Swin Transformer [He et al., 2022]. To the best of our knowledge, no work has been done on irrigation canal identification using deep learning and remote sensing images. Therefore, we use state-of-the-art models' performances as our baselines.

To assess the impact of iterative ground truth refinement on the model's overall performance, we conduct a systematic analysis. Intuitively, breaks or inconsistencies in the ground truth should negatively affect the model's performance. Conversely, as the quality of the ground truth improves through our iterative process, we expect to see a positive impact on the model's performance. This analysis aims to verify this hypothesis and quantify the relationship between ground truth refinement and model's performance.

To establish a fair comparison, we train each baseline model independently for same number of epochs without implementing our framework. The training setup for these baselines is identical to the one used within our framework, ensuring consistency in our evaluation. The key distinction lies in the treatment of ground truth data. In our proposed method, the ground truth is updated after each iteration using the output from our framework. In contrast, the baseline models are trained using the original, unmodified ground truth throughout the entire process. We ran IGraSS framework for 5 iterations with a radius of 100 and an initial confidence threshold α of 0.2, which was later reduced to 0.01 for optimal result.

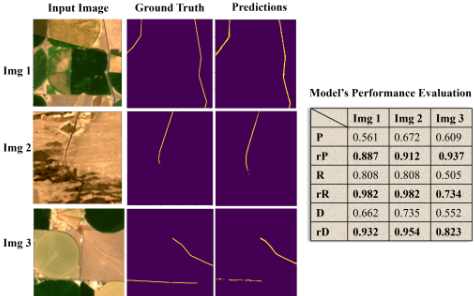

Performance evaluation by refining Ground Truth. Table 1 presents the performance evaluation on the two different test sets of the Canal Network Dataset across the 3 models used for training. The reported results in Table 1, demonstrate that training the model using refined ground truth from IGraSS significantly enhances the performance of all models across all metrics. Swin Transformer outperformed other models, as it breaks the image into small patches, computing self-attention locally while enabling cross-window connections. This helps capture the overall canal structure relationships within patches. For Swin Transformer, model trained with the IGraSS's refined ground truth improves precision from 0.775 to 0.820 (5.8% increase), recall from 0.765 to 0.810 (5.2% increase), F1-score from 0.770 to 0.815 (5.8% increase), and IoU from 0.720 to 0.760 (5.6% increase) on Test Set 1. Similar trends are observed in Test Set 2, with improvements of 5.8% in precision, 5.3% in recall, 5.9% in F1-score, and 5.6% in IoU. The refined ground truth also improves Deeplabv3+ performance by 5% and enhances ResUnet performance 10% across all metrics. These improvements are evident not only in our proposed metrics but also in conventional scores showing better ground truth refined by IGraSS, boost model's performance.

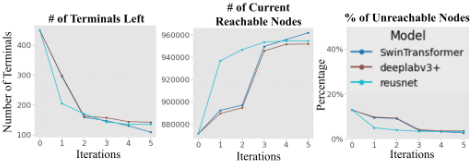

Network completion assessment. Figure 4 presents a quantitative analysis of the number of canal pixels that get connected in each iteration. All three models achieved similar results in connecting the terminals after 5 iterations. As we refine the main ground truth by connecting only the terminals to the nearest water sources, the number of reachable canals increases with each iteration, while the number of unreachable canal pixels and terminals decreases. In both cases IGraSS was able to reduce down the unreachable canals from (18 - 15)% to (5 - 3)%. Upon manual analysis of the terminals that remained unreachable, we found that in most cases, there were either no water sources within the selected radius or the corresponding images did not contain any visible canals at all. This lack of visible canals might have led the neural network to fail in predicting any canal pixels.

5.2 Ablation Study

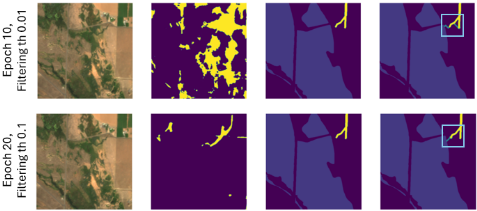

Effect of Framework Parameters. The IGraSS framework's performance is influenced by parameters such as intermediate epochs, radius ρ, threshold τ, and confidence threshold α. We experimented with ρ ∈ {20, 50, 100, 150}, α ∈ {0.3, 0.2, 0.1, 0.01}, and epochs ∈ {10, 20, 30} using SwinTransformer, DeepLabv3+, and ResUnet, evaluated over 5 iterations with K-Fold cross-validation. Lower α (0.01) with fewer epochs (10) reduces unreachable canals but introduces noise, while moderate α (0.1) with more epochs (20) yields cleaner results. Thresholds between 0.2 and 0.1 were generally effective. The number of epochs is crucial-too few with low α cause noise, while extended training risks learning noisy ground truth. An adaptive approach, lowering α after sufficient training, may be beneficial. Due to space limit, extensive parameter sensitivity analysis is presented in Appendix included in Online Supplementary Material (Tables S3 and S1; further details are in Section C).

Error Analysis As discussed in our parameter analysis, selecting appropriate parameters is crucial to avoid erroneous connections. IGraSS's focus on connecting points via the shortest path helps minimize errors when adding new data to the ground truth. Directly using the neural network output would have introduced significant noise to the ground truth, which our adaptive thresholding process helps mitigate. However, as illustrated in Figure 5, unwanted connections may still occur if the right parameters are not chosen.

5.3 Road Networks

To further demonstrate our framework's effectiveness and generalizability, we use it to complete road networks under a different graph-theoretic constraint; the objective in this case is to minimize the distance (on the network) between any pair of a user-specified set of points on the road network. We would like to emphasize here that our objective is to demonstrate the effectiveness of our IGraSS framework in satisfying graph-based constraints and not to show improved performance on these road networks which are already of high quality.

Problem Statement: Given a complete road network G = (V,E), we introduce random gaps by removing a subset of edges Er ⊂ E, resulting in an incomplete network G′ = (V,E \ Er). For a set of N randomly sampled points S = {s1, s2, ..., sN} ⊂ V , we compute the all-pairs shortest paths DGT in the original network G and Dpred in the reconstructed network G∗ produced by our model. The objective is to optimize G∗ such that ∑ Dpred ≤ ∑ DGT , ensuring the total shortest path length in G∗ is minimized while restoring connectivity. The process continues iteratively until convergence.

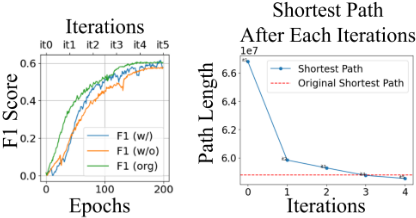

Results. Our results show that IGraSS effectively reduces shortest path lengths to match the ground truth by the third iteration (see Fig. S6). Since the network remains wellconnected despite small gaps, reachability is not a suitable constraint; instead, shortest path minimization yields better results. Performance metrics exhibit similar trends with and without the framework, as observed in the canal network. Comparing final outputs with the ground truth confirms that our approach achieves comparable results across all metrics

Table 2: Performance Analysis on Road Datasets.

(see Table 2). Due to space constraints, extensive results are provided in the Appendix (Online Supplementary Materials).

6 Discussion

In summary, we developed a framework called IGraSS to address the challenges posed by weak and incomplete annotations by leveraging global constraints inherent in networklike infrastructures. We assessed IGraSS on canal networks with reachability constraints, successfully filling gaps in the ground truth and achieving improved results. IGraSS can be generalized to other network infrastructures with different constraints, as demonstrated with road networks. While we use DEM alongside RGB to enhance canal segmentation by providing elevation context, the refinement module currently relies solely on reachability. We acknowledge that performance may degrade in areas where canals are obscured by vegetation or terrain, and future work will explore integrating flow direction and additional multi-modal data to improve robustness. By enabling accurate and automated mapping of infrastructure networks, IGraSS supports sustainable water and land resource management-advancing SDG 12 by promoting more responsible and efficient agricultural planning and infrastructure development.

Ethical Statement

There are no ethical issues.

Acknowledgments

This material is based upon work supported by the AI Research Institutes program supported by NSF and USDANIFA under the AI Institute: Agricultural AI for Transforming Workforce and Decision Support (AgAID) award No. 2021-67021-35344. This work was partially supported by University of Virginia Strategic Investment Fund award number SIF160.
