Beyond Homogeneous Adversaries: Stackelberg Security Games with Mixed Quantal Response

1 Introduction

Stackelberg security games provide a powerful and widely adopted framework for modeling strategic interactions between a defender with limited resources and an adversary who observes and responds to the defender's strategy [Tambe, 2011; Sinha et al., 2018]. SSGs have been successfully applied in a range of high-impact real-world domains, including airport and transportation security, wildlife protection, cybersecurity, and counterterrorism, where defenders must allocate scarce resources to protect multiple potential targets against intelligent attackers [Pita et al., 2008; Fang et al., 2017; An et al., 2012; Sinha et al., 2018]. The effectiveness of these deployments critically depends on accurately modeling attacker behavior and efficiently computing optimal Stackelberg strategies.

A key modeling challenge in SSGs is capturing the bounded rationality of human adversaries. While early work often assumed fully rational attackers who best respond to the defender's strategy, empirical evidence has repeatedly shown that such assumptions are unrealistic in practice. To address this, the QR model has been widely adopted as a more realistic alternative [Yang et al., 2011; Yang et al., 2012; Haghtalab et al., 2016; Mai and Sinha, 2023]. Under QR, attackers select actions probabilistically, with higher-utility actions chosen more frequently, thereby capturing noise, bounded rationality, and decision-making errors. QR-based models have been extensively studied in SSGs and have also played a central role in related domains such as revenue management and discrete choice modeling, where they correspond to logit-based choice behavior.

Despite this progress, most existing work on SSGs under QR assumes a homogeneous attacker population governed by a single set of preference and rationality parameters. In many real-world settings, however, adversaries are heterogeneous, exhibiting substantial variation in objectives, sensitivities, and levels of rationality. Ignoring such heterogeneity can lead to systematically suboptimal defensive strategies. Attempts to extend QR models to accommodate multiple attacker types inherently introduce significant computational challenges; the resulting equilibrium computation problems are typically highly nonconvex, and current solution approaches either rely on local optimization heuristics or lack formal performance guarantees.

In this paper, we address this important gap by studying SSGs with a heterogeneous attacker population modeled via a mixed QR framework. Specifically, we consider a setting in which the attacker is drawn from a finite set of types, each following a type-specific QR model, yielding a defender objective that is a weighted sum of multiple logit-based fractional terms. We show that this heterogeneity fundamentally alters the computational structure of the problem, leading to nonunimodal objectives and rendering standard gradient-based and fractional programming methods ineffective. Our main contributions are threefold: (i) we develop a novel bilinear exponential-cone reformulation that isolates all sources of nonconvexity into a small number of bilinear terms; and (ii) leveraging this structure, we design a Branch-and-Bound (B&B) algorithm that yields a polynomial-time approximation scheme (PTAS) when the number of attacker types is bounded; and (iii) through extensive experiments, we demonstrate that explicitly modeling attacker heterogeneity leads to significant performance improvements over traditional homogeneous QR models and that our method reliably outperforms gradient-based baselines. Our key innovation is a problem-specific reformulation of the original nonconvex optimization problem that isolates all sources of nonconvexity into exactly T dimensions, corresponding to the number of attacker types. This structural reduction enables a B&B algorithm whose complexity scales polynomially with the population size (i.e., the number of targets, which may be very large) and exponentially only in T .

To the best of our knowledge, this is the first work to establish a PTAS for a class of SSG under a mixed QR attacker model.

2 Literature Review

Our work most closely relates to SSGs with QR adversaries and to the broader literature on discrete choice modeling and optimization under heterogeneous agents.

SSG and QR. SSGs [Tambe, 2011] are a prominent class of security models with numerous real-world deployments, including airport security, wildlife protection, and counterterrorism [Pita et al., 2008; Fang et al., 2017; An et al., 2012; Sinha et al., 2018]. A central line of research in SSGs focuses on behavioral models of attackers, among which the QRmodel is the most extensively studied [Yang et al., 2011; Yang et al., 2012; Haghtalab et al., 2016; Mai and Sinha, 2023]. The QR model captures bounded rationality by allowing attackers to choose actions probabilistically, with higher utility actions selected more frequently. Several variants of the QR model have also been explored to improve descriptive accuracy, including subjective utility QR [Nguyen et al., 2013], prospect-theoretic models [Kar et al., 2015], and nested logit-based QR models [Mai and Sinha, 2022].

Most prior work on QR-based SSGs, however, assumes a homogeneous attacker population governed by a single set of QR parameters. This assumption significantly simplifies equilibrium computation and often leads to objectives with favorable unimodality or quasi-concavity properties, enabling the use of gradient-based or fractional programming techniques [Tambe, 2011; Mai and Sinha, 2023; Mai et al., 2024]. In contrast, relatively little is known about SSGs with heterogeneous attackers following different QR behaviors. While some works consider multiple attacker types [Sinha et al., 2018], existing solution approaches typically rely on local optimization methods and do not provide global optimality or approximation guarantees.

From an algorithmic perspective, a closely related line of work studies gradient-based methods for learning and solving games with QR responses [Mertikopoulos and Sandholm, 2016; Li et al., 2020; Sinha et al., 2018]. In particular, [Perrault et al., 2020] applies differentiating-throughoptimization techniques to SSGs with QR adversaries. As with other gradient-based approaches, these methods guarantee only convergence to stationary points and may fail in the presence of highly nonconvex objectives. Our work differs fundamentally by focusing on global optimization and polynomial-time approximation guarantees for SSG with heterogeneous QR attackers.

Beyond QR, several studies analyze alternative behavioral models in Stackelberg settings, including complexity and learnability aspects [Jiang et al., 2013; Cerny et al., 2020; Milec et al., 2021]. These works primarily address singletype or structurally restricted models and do not consider the computational challenges induced by attacker heterogeneity under mixed QR responses.

Discrete Choice Modeling and Heterogeneity. Our study of SSGs under a mixed QR model is closely related to the literature on discrete choice modeling and mixed logit models [Train, 2009; McFadden and Train, 2000]. Discrete choice models have a long history in modeling human decisionmaking under uncertainty and bounded rationality. While the multinomial logit (MNL) and QR models are widely used due to their analytical tractability, they implicitly assume homogeneous agents, which can lead to suboptimal solutions in practice. To capture heterogeneity, mixture models and mixed logit formulations have been extensively studied in economics, transportation, and revenue management [McFadden and Train, 2000; Hess and Polak, 2005]. In these models, agents are drawn from a finite or continuous distribution over preference parameters, resulting in choice probabilities that are mixtures of logit responses.

From an optimization standpoint, incorporating heterogeneity via mixed MNL or mixed QR models substantially complicates decision-making problems. In particular, optimization under mixed logit or mixture-of-logit models is known to be highly nonconvex and computationally challenging, and existing work often focuses on heuristics or restricted settings with limited constraints [Li et al., 2019; Marandi and Lurkin, 2023; van de Geer and den Boer, 2022]. These challenges are closely mirrored in SSGs under mixed QR attackers, where the defender's objective becomes a weighted sum of multiple fractional logit terms with distinct normalizations.

Our work bridges these two literatures by studying SSGs under a mixed QR model that explicitly captures attacker heterogeneity while retaining a finite and interpretable set of attacker types. Unlike prior approaches, we exploit the specific algebraic structure of the mixed QR objective to develop a bilinear exponential-cone reformulation and a B&B algorithm with provable approximation guarantees. To the best of our knowledge, this is the first work to establish a PTAS for a class of Stackelberg security games under a mixed QR attacker model, and correspondingly the first such result for constrained pricing problems under mixed logit demand.

3 SSGs withMixed QR Followers

In this section, we introduce an SSG model in which the follower (attacker) population exhibits heterogeneous, boundedly rational behavior. This heterogeneity is captured via a discrete mixed QR model, which is closely related to the mixed logit model in discrete choice theory [McFadden and Train, 2000].

GameModel and Defender Strategy. We consider a standard SSG with a single defender and a single attacker. The defender aims to protect a finite set of targetsM= {1, . . . ,m} by allocating limited security resources. The defender commits to a mixed strategy represented by marginal protection probabilities xj ∈ [0, 1], ∀j ∈ M, subject to a global resource constraint ∑mj=1 xj ≤ C. Here, C > 0 denotes the total defensive resource capacity available to the defender. More generally, xj can be interpreted as the amount of defensive resources allocated to target j, with xj ≥ 0. The constraint ∑mj=1 xj ≤ C captures the defender's overall resource budget. Note that, for simplicity, we assume a single capacity constraint; however, our approach readily extends to more general settings with multiple constraints of the form ∑j∈Mk xj ≤ Ck for k = 1, . . . ,K. If a target j is attacked, the defender receives a reward rd j if the target is protected and a penalty ld j otherwise, with rd j > ld j . The defender's expected utility for the target j is therefore udj (xj) = xj rd j + (1 - xj )ld j = δd j xj + ld j , where δd j = rd j - ld j ≥ 0.

Mixed QR Attacker Model. We now consider an attacker model under mixed QR, in which the attacker population consists of multiple heterogeneous types. Specifically, the attacker population is represented by a finite set of types Θ = {1, . . . , T}, where type t ∈ Θ occurs with probability πt > 0, and ∑Tt=1 πt = 1. Each attacker type t is characterized by a QR model with type-specific parameters. Given a defender strategy x, the utility of attacking a target j for a type-t attacker is uajt (xj) = -δa j xj + ra jt , where δa j ≥ 0 represents the attacker's sensitivity to the defender's protection effort and ra jt captures other target-specific factors that affect the utility of attacker type t. Here, to ensure the existence of a PTAS, we assume that the sensitivity parameters δa j are identical across all attacker types, while all other utility components may remain attacker-type dependent.

Conditional on type t, the attacker follows a QR (logit) choice model. The probability that a type-t attacker chooses to attack a target j is given by

where U0t ≥ 0 represents the utility of the outside option corresponding to not attacking any target. The defender does not observe the realized attacker type. Consequently, the marginal probability that target j is attacked is given by the mixture ¯ qj (x) = ∑Tt=1 πt qjt(x). This mixed QR model generalizes the standard QR model by allowing heterogeneity in attacker preferences and sensitivities and corresponds to a discrete mixed logit model in the discrete choice literature.

EquilibriumProblemFormulation. Under the mixed QR attacker model with an outside option, the defender's expected utility is given by

where qjt(x) denotes the probability that a type-t attacker attacks target j. Substituting the logit choice probabilities with an outside option yields

where U0t ≥ 0 represents the utility of the outside option corresponding to not attacking any target for a type-t attacker.

The defender seeks to compute a Stackelberg strategy that maximizes expected utility against the mixed QR attacker population. This leads to the following optimization problem:

where X denotes the feasible set of defender strategies, incorporating both the bound constraints xj ∈ [0, 1] and the total resource constraint ∑mj=1 xj ≤ C. Problem (1) is generally non-convex and non-separable due to the ratio-of-sums structure induced by the mixed QR model and the presence of the outside option. As a result, exact equilibrium computation is intractable in general, motivating the development of efficient approximation algorithms, which we study in subsequent sections.

We note that, when T = 1 (typical setting in prior SSG under QR works), the defender's objective reduces to a single fractional function, and existing work typically applies Dinkelbach-type transformations [Tambe, 2011; Yang et al., 2011; Mai and Sinha, 2023; Mai et al., 2024] to convert the problem into a sequence of convex programs with guaranteed global convergence. This approach crucially relies on the presence of a single denominator. In contrast, when T > 1, the objective becomes a weighted sum of multiple fractional terms with distinct denominators, for which no single Dinkelbach parameter can simultaneously linearize all ratios. As a result, standard fractional programming techniques no longer apply, and the objective is generally non-concave with multiple local optima, motivating the need for the global optimization framework developed in this work.

Non-unimodality. In the following, we show that when T > 1, the objective function is generally non-unimodal, implying that gradient-based methods can easily become trapped in suboptimal local optima. We state the result in the following proposition.

Proposition 1 (Unimodality vs. Multimodality of the Objective). If the number of attacker types is T = 1, then the defender's objective function f(x) is unimodal over the feasible region, and hence any local maximizer is globally optimal. In contrast, when T > 1, the objective function is generally non-concave and may admit multiple local optima.

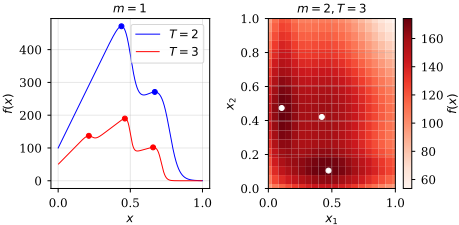

While the proof of unimodality is deferred to the appendix, the lack of unimodality can be demonstrated by the example in Fig. 1, which shows that multiple local optima may arise when T = 2 or T = 3.

The above proposition (see also the proof in the appendix) shows that when T = 1, the problem admits a concave reformulation and can therefore be solved efficiently in polynomial time. In contrast, when T > 1, the defender's objective becomes a weighted sum of T fractional logit terms with distinct denominators. Such sum-of-ratios structures are known to be computationally challenging to solve to global optimality in general [Gilbert et al., 2013; Li et al., 2019]. In the following, we present a positive result showing that, when T > 1 but bounded, the problem admits an efficient PTAS for computing an ε-optimal solution.

4 Bilinear Exponential-Cone Reformulation

We present the first step toward deriving a PTAS for the challenging SSG problem described above. The key idea is to introduce an innovative change of variables that reformulates the problem as an exponential-cone program, in which all sources of nonconvexity are consolidated into a small set of bilinear terms. This structural property enables the design of a polynomial-time B&B algorithm and facilitates a rigorous analysis of the overall computational complexity using tools from interior-point methods [Nesterov and Nemirovskii, 1994; MOSEK ApS, 2024].

We begin by recalling the definition of the exponential cone Kexp ⊂ R3 [Chares, 2009], which is given by

The exponential cone provides a convex representation of exponential and logarithmic relations, such as w ≥ eu or equivalently u ≤ ln w, and is supported by modern conic optimization solvers, including MOSEK.

We summarize our key structural result below. It shows that the equilibrium optimization problem maxx f(x) can be reformulated as a bilinear exponential-cone program, in which all sources of nonconvexity are confined to a small number of bilinear constraints-exactly T, corresponding to the number of attacker types.

Theorem1 (Bilinear Exponential-Cone Reformulation). The Stackelberg equilibrium optimization problem maxx∈X f(x) under the mixed QR attacker model is equivalent to the following bilinear exponential-cone program:

Moreover, all constraints in (SSG-BiConv) are convex and admit exact exponential-cone representations, except for the T bilinear equalities yt = θtzt, which constitute the only source of nonconvexity.

While the detailed proof of Theorem 1 is provided in the appendix, we summarize the main reformulation steps here. The key idea is to apply the exponential change of variables wj := e-δa j xj , xj = - 1 δa j lnwj, which transforms the exponentiated attacker utilities in the QR model as exp(uajt (xj)) = era jt wj. This change converts each attacker type's expected utility into a fractional form

which is captured by introducing auxiliary variables (yt, zt) satisfying yt = θtzt. Substituting the affine defender utility udj (xj) = δd j xj + ld j yields terms of the form -(δd j /δa j )wj lnwj + ld j wj. The nonlinear expressions wj lnwj and lnwj are convex for wj > 0 and admit exact exponential-cone representations via auxiliary variables sj and vj: (-sj,wj, 1) ∈ Kexp, (vj, 1,wj) ∈ Kexp. After these transformations, all constraints in the reformulated problem are convex and conic-representable, except for the bilinear equalities yt = θtzt, ∀t ∈ [T], which constitute the only remaining source of nonconvexity. Importantly, the number of such bilinear constraints is exactly T, the number of attacker types, which is the structural property exploited by the approximation algorithm developed later.

The formulation (SSG-BiConv) isolates all sources of nonconvexity into a small number of bilinear constraints of the form yt = θtzt, one for each attacker type t ∈ [T], while all remaining constraints are convex and admit exact exponential-cone representations. This structural property is critical from an algorithmic standpoint. In particular, when the bilinear equalities are relaxed using standard convex envelopes, such as McCormick relaxations over bounded domains, the resulting problem reduces to a purely convex exponential-cone program. Such programs can be solved to arbitrary ε-accuracy in time polynomial in the problem size and log(1/ε) using modern conic solvers. This observation can be leveraged to design a provably efficient B&B algorithm: the exponential-cone relaxation yields tight and efficiently computable upper bounds at each node, while branching is required only on the T bilinear terms. Consequently, when the number of attacker types T is treated as a constant or bounded from above, this approach yields a PTAS for solving (SSG-BiConv).

5 B&B with Provable Polynomial-Time Performance Guarantees

We now describe a B&B approach for solving the bilinear exponential-cone formulation (SSG-BiConv). In the following, we outline the key components of the proposed algorithm; the full algorithmic details are deferred to the appendix. We then provide a rigorous analysis of its computational complexity.

Convex Relaxation via McCormick Envelopes. At each node of the B&B tree, we construct a convex relaxation of (SSG-BiConv) by replacing each bilinear equality yt = θtzt with its McCormick relaxation over bounded domains. Specifically, given bounds θt ∈ [θt , θt] and zt ∈ [zt , zt], the bilinear term is relaxed by the standard McCormick inequalities [McCormick, 1976]:

After this replacement, the resulting problem is a purely convex exponential-cone program.

Node Evaluation. The convex relaxation at each node is solved using a standard exponential-cone solver (e.g., MOSEK) [MOSEK ApS, 2024], yielding an upper bound on the optimal objective value of the original nonconvex problem over the corresponding subregion. Since exponential-cone programs can be solved to ε-accuracy in polynomial time, node evaluation is computationally efficient.

Branching Strategy. Branching is performed exclusively on the bilinear variables by partitioning the domain of either θt or zt for some attacker type t ∈ [T]. For example, a common strategy is to bisect the interval of θt with the largest McCormick relaxation gap. This generates two child nodes with tightened bounds, leading to progressively tighter convex relaxations.

Termination and Approximation Guarantee. Under the Best-First Search policy, the algorithm terminates immediately upon retrieving a node that satisfies the bilinear feasibility tolerance ε, as this node is guaranteed to be globally optimal. Since the number of bilinear terms T is fixed, the spatial branching tree size scales polynomially in 1/ε, as discussed below.

5.1 Complexity Analysis

In the following, we analyze the computational complexity of the B&B above. The next proposition provides an explicit upper bound on the number of nodes explored by the algorithm.

Proposition 2 (Explicit Node Bound). Fix ε > 0, define U d := minj ld j , Ud := maxj(ld j + δd j ), and Z := maxt∈[T] (U0t + ∑mj=1 era jt ) . Then the total number of nodes explored by the B&B algorithm is bounded by

In particular, for fixed T, the number of nodes is polynomial in 1/ε and the problem size.

While the detailed proof is provided in the appendix, we briefly explain the main ideas underlying the bound. The analysis exploits the fact that all nonconvexity in (SSG-BiConv) is confined to the T bilinear equalities yt = θtzt. At each node of the B&B tree, these bilinear terms are relaxed using McCormick envelopes over a bounded rectangular domain for (θt, zt). The relaxation gap of each bilinear term decreases quadratically with the diameter of its domain. The algorithm recursively partitions the feasible domain of each bilinear pair (θt, zt) until the maximum possible McCormick relaxation error is at most ε/T, ensuring that the overall optimality gap is bounded by ε. Since the initial ranges of θt and zt are explicitly bounded by problemdependent constants (Ud-U d ) and Z, respectively, the number of subdivisions required along each dimension scales on the order of √(Ud -U d )Z/ε. Taking the product over the T independent bilinear terms yields the stated node bound.

This bound on the number of B&B nodes can be combined with the computational complexity of solving the exponential-cone program at each node-using interior-point methods [Nesterov and Nemirovskii, 1994]-to obtain the overall complexity of the algorithm, as stated in the following theorem.

Theorem 2 (Overall Complexity). For any ε > 0, the proposed B&B algorithm computes an ε-optimal solution to (SSG-BiConv) in time

In particular, for fixed T, the algorithm runs in time polynomial in m and 1/ε and thus constitutes a PTAS.

The complexity bound in Theorem 2 immediately implies the existence of a PTAS for (SSG-BiConv) when the number of attacker types T is bounded. Specifically, the overall runtime grows exponentially only in T , while remaining polynomial in the number of targets m and in 1/ε, the desired approximation accuracy. Since T captures the degree of attacker heterogeneity and is typically small in practical security applications, this result establishes the tractability of the mixed QR Stackelberg security game in realistic regimes. From a complexity-theoretic perspective, the result shows that the intrinsic difficulty of the problem is driven entirely by the dimensionality of heterogeneity: once T is fixed, the combination of exponential-cone relaxations and B&B yields globally optimal solutions up to arbitrary precision in polynomial time. This sharply contrasts with general nonconvex optimization, where approximation guarantees of this form are rarely available, and highlights the importance of exploiting the problem's conic and low-rank bilinear structure.

6 Experimental Results

We evaluate our approach on synthetic and benchmark security game instances. The experiments focus on comparing our B&B method with state-of-the-art gradient-based algorithms. We also compare the mixed QR model with the standard single-type QR model to demonstrate the benefits of explicitly modeling heterogeneous attackers. Additional experimental results are reported in the appendix.

Data Generation and Experimental Setting. We compare our B&B method against a gradient-based baseline on synthetic datasets with the number of targets m ∈ {20, 50, 100, 200} and the number of attackers T ∈ {1, 2, 3, 4}. For each target j ∈ M, the defender's penalty ld j and reward rd j are independently sampled from the intervals [1, 400] and [600, 1000], respectively. The term ra jt of the attacker t for attacking the target j is sampled uniformly from [-5, 5]. We enforce five capacity constraints. For each k ∈ {1, . . . , 5}, we set the capacity Ck ∈ [0.2m, 0.5m] and define the constraint over a random selection of half the total targets. For each pair (m, T), we generate 10 independent instances and report aggregated results after running each instance for at most 1 hour with an optimal tolerance of ϵ = 0.001. Our main experiments consider instances with a small number of attacker types (T ≤ 4), for which the proposed method reliably computes globally optimal solutions. Additional experiments with larger T are reported in the appendix, demonstrating that our approach remains competitive and consistently outperforms gradient-based methods even when exact optimality can no longer be guaranteed.

Both the B&B and gradient-based algorithms are implemented in Python. All experiments are conducted on a personal computer running Windows 10, equipped with an Intel(R) Core(TM) i7-1255U CPU @ 1.70GHz and 16 GB of RAM. We use MOSEK Optimization Tools version 11 to solve the exponential-cone subproblems and the SciPy library (version 1.17.0) for the gradient-based method.

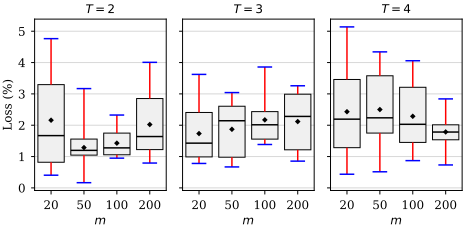

Single-type QR vs. Mixed QR. As previously noted, for T = 1, the objective function constitutes a single fractional function that is unimodal, thereby ensuring efficient convergence to the global optimum using established methods. For scenarios with T > 1, we examine the efficacy of approximating the multi-attacker SSG as a single-attacker problem to leverage these existing techniques. Specifically, we construct a surrogate single-attacker instance by aggregating the parameters of multiple attackers via their mean values to evaluate the resulting objective function. Figure 2 demonstrates the inadequacy of the typical setting in prior SSG under QR works (T = 1) in capturing the complex dynamics of the mixed QR attacker model (T ≥ 2). The results reveal a persistent objective loss incurred by this approximation across all target sizes (m) and attacker configurations. Rather than converging to the true optimal values, the simplified MNL formulation consistently yields suboptimal solutions, with approximation errors reaching up to 5% in the worst-case scenarios (indicated by the upper whiskers). Even on average, the method suffers from a systematic loss typically ranging between 1% and 2.5%, underscoring that the structural intricacies of the multi-attacker setting cannot be fully represented by the single-attacker surrogate.

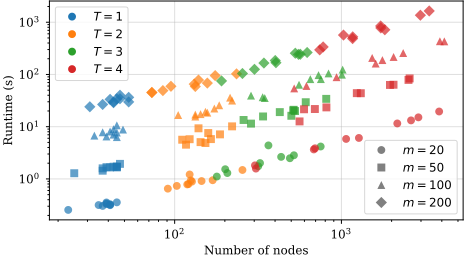

Node exploration inB&B. Figure 3 illustrates the relationship between the runtime and the number of nodes explored in the B&B tree for varying T and m. A strong positive linear correlation is observed between the number of nodes and runtime when plotted on a log-log scale, indicating a consistent computational cost per node across different problem configurations. As the number of attackers T increases from 1 to 4, both the number of nodes and the total runtime increase exponentially, evidenced by the distinct clusters of data points shifting upwards and to the right. Specifically, problems with T = 4 require exploring significantly more nodes (often exceeding 103 ) and result in runtimes several orders of magnitude higher compared to T = {1, 2, 3}. While the number of targets m also contributes to increased runtime (indicated by different markers within each cluster), its impact is less dominant than the exponential growth driven by the number of attackers T. This behavior underscores that the primary driver of complexity in this SSG setting is the number of attackers, which expands the search space exponentially.

B&B vs. Gradient-based Method. Figure 4 compares the runtime scalability of the B&B and gradient-based algorithms. The red dashed line with square markers denotes the gradient-based method, and the blue solid line with circular markers represents our B&B algorithm. The shaded regions indicate the variance in solving time across instances. The first plot highlights the effectiveness of the proposed B&B algorithm in standard SSG-QR scenarios (T = 1). It achieves global optimality in less than 40 seconds, even when handling the maximum instance size of m = 200. Figure 4 indicates that the B&B method consistently outperforms the gradient-based baseline across all tested parameter settings, successfully solving all instances optimally with drastically lower runtime. In contrast, the gradient-based method faces major scalability issues, hitting the 3600-second ceiling as m approaches 100 or 200, whereas the B&B algorithm remains computationally efficient. Even as problem complexity increases to the largest datasets (m = 200, T = 4), the average runtime of B&B is approximately 5 times lower than that of the gradient-based method, which consistently saturates the time limit in high-complexity regimes. Figure 4 also proves that gradient-based methods are highly sensitive to increases in both T and m. This is because gradient-based approaches operate on the continuous relaxation of the problem, where the computational cost per iteration is governed by the dimensionality of the constraints and variables. Since the number of collision avoidance constraints scales with the product of attackers and targets (T × m), an increase in m directly inflates the size of the Jacobian and Hessian matrices, significantly slowing down convergence, whereas for B&B, the combinatorial explosion caused by T overshadows the linear complexity added by m.

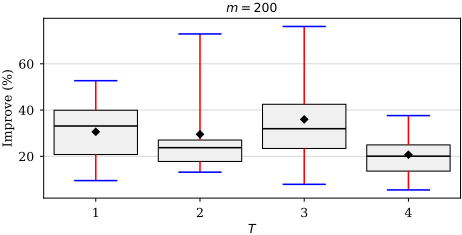

Although the gradient-based method can solve instances to near-optimal solutions (gap < 0.01%) when m ≤ 100, the objective gap compared to B&B becomes significant when m = 200, as detailed in Figure 5. The figure highlights the substantial improvement in solution quality achieved by the B&B algorithm compared to the gradient-based baseline for datasets with the largest number of targets. The results demonstrate a significant performance gap, as B&B consistently yields higher objective values across all attacker configurations. In this visualization, the diamond markers denote the mean percentage improvement, while the dashed horizontal lines within the boxes indicate the median values. The advantage is particularly pronounced for T = 2 and T = 3, where the maximum improvement exceeds 76%, and mean improvements hover near 30% and 35%, respectively. Even at T = 4, the method maintains a median improvement of approximately 20%, underscoring the inability of the gradient-based approach to escape local optima in complex, high-dimensional target spaces.

7 Conclusion

We studied SSGs with heterogeneous attackers modeled via a mixed QR framework. By developing a bilinear exponentialcone reformulation that confines all nonconvexity to the number of attacker types, we designed a B&B algorithm that yields a PTAS when the number of attacker types is bounded. Experimental results demonstrate that explicitly modeling attacker heterogeneity significantly improves solution quality and that our approach consistently outperforms gradientbased methods in nonconvex settings.

Our PTAS guarantee relies on treating the number of attacker types as a constant, and the algorithm's complexity grows exponentially with this dimension, reflecting an inherent trade-off between modeling expressiveness and computational tractability. Important directions for future work include extending the framework to richer or continuous heterogeneity models, relaxing structural assumptions such as homogeneous sensitivity parameters, and more tightly integrating learning and optimization in data-driven security games.
