Modeling Physicians' Utterances to Explore Diagnostic Decision-making

1 Introduction

Studies in the field of psychology and health sciences show evidence that overconfidence may cause diagnostic error when a physician overlooks key clues and prematurely reaches a diagnosis [Berner and Graber, 2008]. This can be explained by a case in the dual-process theory where the physician's intuitive system dominates her decision-making process over analytical system [Croskerry, 2009]. To disentangle the underlying factors that may relate to diagnostic correctness and diagnostic confidence, we collect physicians' verbal narratives during image-based diagnoses and model the uttered medical concepts for their reasoning processes.

We first design two experiments to elicit physicians' diagnostic verbal narratives which contain their verbal descriptions of image content when inspecting each photographic dermatological image toward a diagnosis (Section 3.1). Experiment I contains additional labels for a diagnostic correctness study, and Experiment II for a diagnostic confidence study (Section 3.3). To extract meaningful behavioral patterns, we then model physicians' use of domain concepts and their reasoning order of these concepts during diagnoses. In particular, we remove non-medical tokens in both studies using the unified medical language system (UMLS) [Fung and Bodenreider, 2012], so as to only consider physicians' utterances of medical concepts in each verbal narrative (Section 3.2). The remaining medical concept sequences in the two studies are separately modeled using a hierarchical probabilistic framework we develop (Section 4). In this manner we discover the stereotypical and idiosyncratic patterns that commonly exist in both studies, and these patterns represent the verbal narratives at a higher level. In this automatically discovered high-level representation, the diagnostic decisionmaking processes are quantified and visualized (Section 5).

To evaluate and interpret the patterns in the application domain, we compare them with the diagnostic thought units defined and identified by medical doctors [McCoy et al., 2012] (Section 5.1). These thought units are standardized semantic labels to abstract the medical terms per their positions and functions in diagnostic reasoning processes. Table 1 lists some examples. We also use the additional labels collected from physicians during or after experiments to identify groups of diagnostic narratives in terms of the diagnostic correctness and confidence (Section 3.3). An evaluation study shows the importance of the discovered patterns to classify narratives into different correctness levels (Sections 5.2). This paper contributes to research in the field as follows:

• We naturally elicit expert spoken narratives through inscenario experiments.
• We extract domain-specific concepts from narratives to allowmodeling at the semantic level.
• We model expert' utterances of medical concepts during image-based diagnoses to gain insights into cognitive reasoning strategies.

Thought Unit Labels (Abbr.)

Instances

Type I

Type II

2 RelatedWork

Current research on diagnostic accuracy relies on the analysis of either research interviews or clinical chart records [Galanter and Patel, 2005]. For example, Bowen studied reports of clinicians and medical students to explore educational strategies to transfer classroom knowledge to clinical decision-making [Bowen, 2006]. We propose an objective data collection paradigm and an automated approach to analyzing diagnostic decision-making.

Natural language processing models, such as bag-of-word and N-gram, have been used to analyze clinical texts. Since different practitioners express similar meanings in a variety of ways both syntactically and lexically, the medical datasets tend to be sparse. To tackle this, topic modeling approaches, such as latent semantic analysis (LSA) [Deerwester et al., 1990] and latent Dirichlet allocation (LDA) [Blei et al., 2003], transform original vocabulary to latent variables (a.k.a., topics) whose mixtures summarize the documents more abstractly. Despite the advantage to produce high-level representations, topic modeling approaches do not consider the word order within each document.

To recognize temporal patterns in the documents and speech data, hidden Markov model (HMM) can be used [Rabiner, 1989]. It learns a sequential structure of hidden states (i.e., patterns), each being a probability distribution over the vocabulary. We propose to use HMMs to model physicians' spoken narratives, because the order of thoughts (i.e., cognitive states) is crucial to diagnostic decision-making [Croskerry, 2009; Berner and Graber, 2008]. To automatically determine the optimal number of hidden states, Teh et al. developed a Bayesian non-parametric HMM using hierarchical Dirichlet processes [Teh et al., 2006] and Van Gael et al. developed the beam sampler for it to limit the computational costs [Van Gael et al., 2008]. This paper extends Teh et al.'s model and the beam sampler to a multi-sequence variant to allow learning from a group of medical concept sequences (see Section 4). This results in a desired sequential representation, based on which we train classifiers to differentiate narrative groups.

3 Datasets

3.1 Data Elicitation Experiments

To obtain expert data, we conduct two data elicitation experiments where dermatology images are presented as visual stimuli for physicians to inspect. During the experiments, each physician is instructed to describe the image content to a student seated nearby as if teaching.

• Experiment I contains 48 dermatology images covering a wide range of diagnoses, and it is used to explore diagnostic decision-making that relate to diagnostic correctness. We record 16 physicians' verbal image descriptions in this experiment, and hence we have 48 × 16 = 768 verbal description trials.
• Experiment II focuses on only a few disease categories by 30 images, and it is used to study the decision making related to diagnostic confidence. There are 29 physicians, and after removing 3 trials due to data collection failures we have 867 verbal description trials.

PRI ; SEC ; ✿✿✿

LOC ; DEM ; . . . .

DIF

DX or . . . .

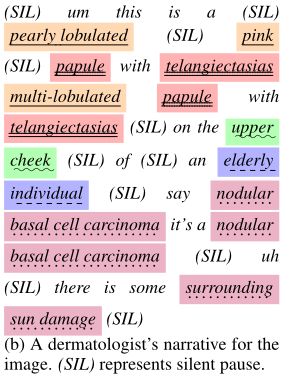

Figure 1: A sample image (a) and a corresponding diagnostic narrative (b) annotated by thought unit labels.

3.2 Linguistic Data Preprocessing

All verbal description trials are transcribed as diagnostic verbal narratives with tokens and time-stamps included using the speech analysis tool Praat [Boersma and Weenink, 2009]. We use a medical knowledge source (i.e., the UMLS) and a Metathesaurus mapping tool (i.e., the MetaMap [Aronson, 2001]) to remove non-medical words and join adjacent words (e.g., basal, cell, and carcinoma) into multiwords (e.g., basal cell carcinoma) when necessary (see Figure 1-b). This turns each narrative to a sequence of medical concepts.

3.3 Gold Standard

Thought units: McCoy et al. collected medical doctors' annotations that partition and label diagnostic reasoning records into meaningful units of thought [McCoy et al., 2012]. These thought units cover the terminology to standardize the description of skin lesions, including lesion arrangement, distribution, texture, color, primary lesion type, and diagnosis [Lyons and Ousley, 2014]. We use this thought unit labeling as a gold standard in our study to evaluate and interpret the patterns discovered by the model. Since our image set contains a wider range of diagnoses, their thought unit labels do not cover our whole vocabulary.

Diagnostic correctness levels: We recruit three dermatologists to evaluate the narratives from the 16 participating physicians in Experiment I in terms of their diagnostic correctness. A correctness score is assigned to each narrative, which balances the correctness of described Type II thoughts (i.e., primary lesion type, differential diagnosis, and final diagnosis). This score ranges from 0 to 3 and its distribution across narratives is in Figure 2. We define the correctness score below 1 (inclusive) as low-correctness and that above 2 (inclusive) high-correctness. These two levels of narratives in Experiment I are classified using the patterns discovered by the model, and the differences in narration patterns between two classes are visualized in Section 5.

Diagnostic confidence levels: During Experiment II, each participating physician is required to report her diagnostic confidence at the end of narration. Figure 3 shows how the diagnostic confidence scores are distributed across all narratives. We define the bottom quartile (0%-50% confidence, inclusive) as low confidence and the top quartile (85%-100% confidence, inclusive) high confidence.

4 Hierarchical Dynamical Model

4.1 Hierarchical Dirichlet Process

LDA can be used to discover latent topics for document modeling, where each topic is a distribution of terms in vocabulary. For each document, a mixture of topics is drawn from a Dirichlet distribution, and then each term in the document is drawn independently from that mixture. The hierarchical Dirichlet processes (HDP) mixture model is a nonparametric generalization of LDA to automatically determine the number of mixture components (topics), which is not known a priori [Teh et al., 2006]. This enables the number of topics to be unbounded. HDP uses a Dirichlet process to capture the uncertainty in the number of topics.

In particular, the Dirichlet process DP(α,G), specified by a base distribution G and a concentration parameter α, characterizes how the random variables are distributed according to G. The base distribution G is the expected value of the process, and it is selected to represent the countably-infinite set of possible topics for the corpus, and then the finite distribution of topics for each document is sampled from this base distribution. The Dirichlet process models data that tend to repeat previous values in a rich get richer manner. More specifically, each expected value is generated in proportion to ni α+∑i ni (n denotes the number of previous occurrences and i indexes each expected value). The concentration parameter α is a positive real number that indicates the probability proportion to generate a new value, α α+∑i ni , which enables the Dirichlet process to model variables of unknown cardinality.

The DP models a group of data by variables of unknown cardinality, and the HDP is useful to address the problems that have multiple groups of data by tying the variables across groups [Teh et al., 2006]. Each group of data is modeled using a mixture model, with mixture components shared across all groups but mixing proportions being group-specific. The basic building block of hierarchical Dirichlet processes is recursion in which the base measure G for a Dirichlet process Gj ∼ DP(α,G) is itself a draw from a Dirichlet process G ∼ DP(γ,G0). This recursive construction enforces the random measure Gj to place its atoms at the discrete locations determined by G.

4.2 HDP-HMM

To address the sequential property of the data, a canonical HMM specifies a set of finite mixture distributions, one for each value of the current state zt. Given zt, the observation xt+1 is chosen by first generating the state zt+1 and then generating xt+1 conditional on zt+1. A Dirichlet process can be used to replace the generating process of the finite mixture model. However, in order to tie up all the potential states to be able to access one from another, the hierarchical Dirichlet processes has to be used [Teh et al., 2006]. This forms the HDP-HMM, or infinite HMM (iHMM).

4.3 M-seq HDP-HMM

We develop a HDP-HMM variant that incorporates observations of multiple sequences, and we call it M-seq HDP-HMM, or M-seq iHMM.

Particularly, since the preprocessing does not affect the sequential order of the remaining medical concepts in the narratives, we use HMMs as the likelihood to characterize the temporal dynamic nature of the medical concept sequences. In Figure 4, each learned hidden state sequence {z(i) t }t=1,2,...,Ti presents a subset of all the hidden states that particularly corresponds to the observed medical concept sequence {x(i) t }t=1,2,...,Ti . We use the hierarchical Dirichlet processes proposed by Teh et al. as a prior distribution of the model to flexibly discover more hidden states as additional narratives are observed [Teh et al., 2006]. All narratives in each experiment are used to learn such a hierarchicallystructured dynamical model.

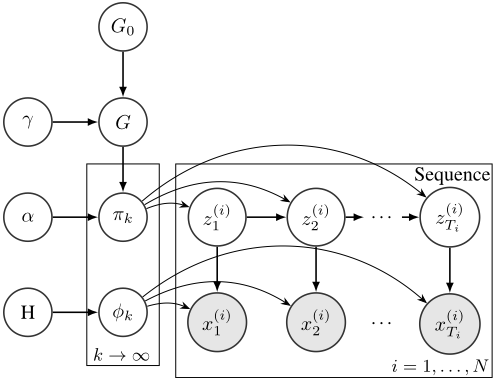

We utilize the hierarchical prior in the following specification based on our problem scenario. Let G denote the global measure of an experiment (I or II), and it is distributed as DP(γ,G0) with G0 the base measure and γ the concentration parameter. Each πk is conditionally independent given G. This hierarchical construction can be formulated as,

In the ith narrative, each transition probability distribution {πzt-1,zt=k}k=1,2,...,∞ of the hidden Markov model at the lower level governs the transitions toward hidden states φk's.

4.4 Inference Algorithm

We use Markov chain Monte Carlo sampler to do the posterior inference over this model. In one iteration of the sampler, each latent variable is visited and assigned a value by drawing from the distribution of that variable conditional on the assignments to all other latent variables as well as the observation. In particular, based on the sampling algorithm proposed in [Van Gael et al., 2008], we develop a sampling solution that uses multiple concept sequences with arbitrary lengths as observations. Specifically for each concept sequence {x(i) t }t=1,2,...,Ti , auxiliary variables {u(i) t } are sampled with probability density,

where each u(i) t serves as a dynamic threshold at t(i) to partition the probability distribution {πzt-1,k}k=1,2,...,∞ into a finite set of entries larger than u(i) t and an infinite set smaller than u(i) t . Only the states k's within the finite set are considered when sampling z(i) t that transits out of state z(i) t-1 during dynamic programming. This reduces the number of potential states to consider and hence makes the inference efficient.

Beside resampling the auxiliary variables {u(i) t } and the state sequences {z(i) t } in each iteration, the algorithm also resamples the shared DP base measure G, the hyper-parameters

α and γ, the emission probabilities φ, and the transition probabilities π. Specifically G is sampled proportional to an additional set of auxiliary variables {m·k}k=1,2,...,K, where each mκk is independent of others given z, G, and α.

p(mκk = m|z, G, α) ∝ S(nκk, m)(αGk)m where S(·, ·) denotes Stirling numbers of the first kind. Summing over the infinite many states that never occur in any hidden state sequences {z(i) t }, the conditional distribution πk· given its Markov blanket z, G, and α is

where n(i) kκ denotes the transition counts in the i-th state sequence from state k to κ. Each φk· depends on the state sequences {z(i) t }, the observed concept sequences {x(i) t }, and the prior distribution H, and the φk·'s are independent given z, x, andH.

where l(i) kv denotes the emission counts in the i-th state sequence from state k to medical concept v. The whole vocabulary set is V . We further sample the hyper-parameters α and γ according to [Teh et al., 2006].

In each experiment we run the sampler 20 times with random initialization of the state sequences. Each state randomly chooses between 1 and the maximum length of all sequences. We use 2000 iterations as burn-in and empirically choose various hyperpriors for α and γ according to the convergence behaviors in previous runs. The hidden states inferred from the model are the diagnostic narration patterns mentioned in earlier sections, and states and patterns will be used interchangeably in the rest of this paper.

5 Results and Discussion

We summarize the state transitions within each narrative group and visualize the salient differences between groups. The involved states (patterns) appear frequently and they match the thought units. Classification results show that the diagnostic narration patterns contain key information in narratives to differentiate levels of diagnostic correctness.

5.1 The Discovered Verbal Narration Patterns

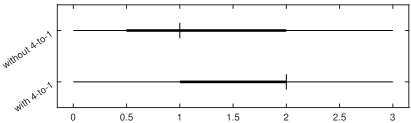

The state transition summaries for the two correctness levels in Figure 5 presents a salient difference-the state transition

• (a) High-correctness group
• (b) Low-correctness group
• (a) High-confidence group
• (b) Low-confidence group

Figure 7: Normalized state transitions in narrative groups regarding diagnostic confidence. Group (a) possesses slightly more selftransitions of 1, 5, 10 and 11 than (b).

from pattern 4 to 1. These two patterns are interpretablePattern 1 can be interpreted as primary lesion type (PRI), and pattern 4 includes informative findings regarding color, size, shape and texture of the lesion to assist determining the primary lesion type. Given the meanings of these patterns, we find that the high-correctness narratives possess more transitions from describing supportive findings to mentioning primary lesion type than the low-correctness narratives. We also consider all the narratives in Experiment I, and separately visualize the ones with and without state transition 4 → 1 in Figure 6. We notice two different distributions of correctness scores, and we find that the narratives with this key state transition generally shift towards the higher correctness end. This implies the importance of locating key clues before determining a primary lesion type in order to make a correct diagnosis. Similar patterns are discovered in parallel from the diagnostic confidence study in Experiment II. Since these patterns appear in both experiments and match the thought units, we recognize them as Signature Patterns. Diagnostic confidence study also presents different state transitions between low and high confidence levels, which involve interpretable patterns (see Figure 7)-Patterns 1 and 5 presents primary lesion type and informative findings. Pattern 10 can be interpreted as confidence marker, and pattern 11 as diagnosis or differential diagnoses.

5.2 Narrative Correctness Classification

We classify the narratives at low and high correctness levels based on various feature combinations with two classifiers, and Table 2 summarizes the classification performances. We use cross-validation to tune the trade-off parameter of the lasso-regularized logistic regression. Cross-validation is also used to determine the optimal number of hidden states for the canonical HMM. We find that the infinite HMM works better than the canonical HMM to capture the important temporal patterns for classification. Concatenating all features boosts the classification performance, as the LDA and M-seq iHMM capture high-level information complementary to the fine details in Bag-of-Word (TF-IDF). Both classifiers suggest high importance of the patterns learned from M-seq iHMM, and Table 3 lists highest-ranked features and their interpretations.

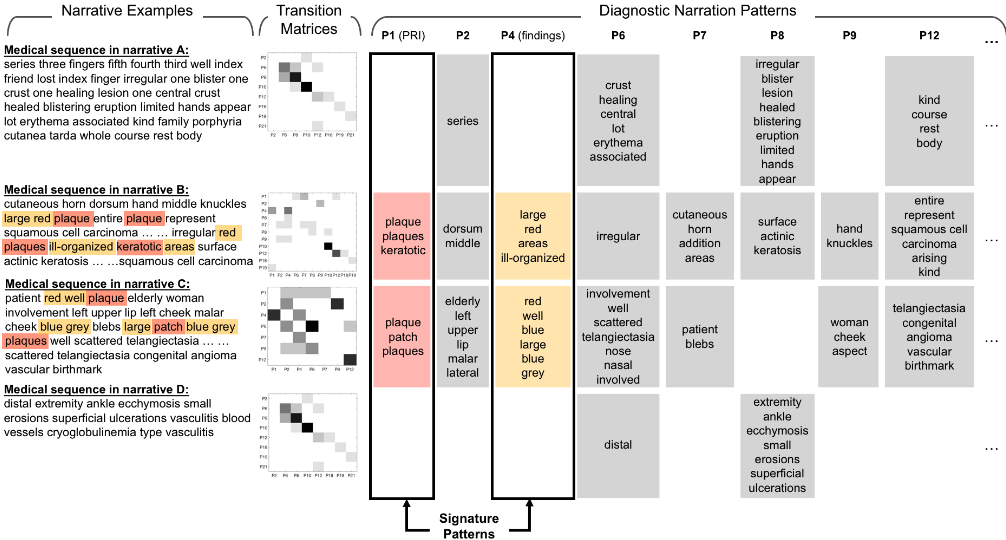

In Figure 8, we analyze both high-correctness narratives (B and D) and low ones (A and C). The narratives (A) and (B) are successfully classified. (C) is misclassified as highcorrectness, because it mentions the correct primary lesion type but fails to give a correct diagnosis nor differential diagnoses. (D) is misclassified as low-correctness, because it only makes a correct diagnosis without mentioning the primary lesion type. These examples show that the signature patterns dominate the classifier, and hereby fail to capture the correctness related to diagnoses. This is because Experiment I covers 46 diagnoses by 48 images, which makes each disease name appear infrequently. We omit the diagnostic confidence classification due to space limits.

6 Conclusions

This paper explores diagnostic decision-making by modeling physicians' utterances of medical concepts during imagebased diagnoses. We develop automated approaches to discover diagnostic narration patterns from expert data. Our model discovers patterns that exist in both datasets and match the expert-defined diagnostic thought units. These patterns are also important features for diagnostic correctness classification. The approaches proposed in this paper can facilitate education in the medical fields, research in cognition and decision-making, and medical image classification based on physicians' thoughts.

Since the concepts in the same narrative are essentially correlated, we plan to relax the strong Markovian assumption in the model by considering semantic relatedness of medical concepts [Liu et al., 2012; Bollegala et al., 2015] and developing an additional variant in the future. We will further explore medical image difficulty levels [Guo et al., 2014] and physicians' expertise levels [Wu et al., 2015] as they are relevant factors in diagnostic decision making and error prevention.

Metamap program. In Proceedings of the AMIA Symposium, page 17. American Medical Informatics Association, 2001.

[Berner and Graber, 2008] Eta S Berner and Mark L Graber. Overconfidence as a cause of diagnostic error in medicine. The American Journal of Medicine, 121(5):S2-S23, 2008.

[Blei et al., 2003] David M Blei, Andrew Y Ng, and Michael I Jordan. Latent Dirichlet allocation. Journal of Machine Learning Research, 3(Jan):993-1022, 2003.

Acknowledgments

This work was partially supported by NIH Grant 1R21 LM010039-01A1 and NSF grant IIS-0941452. We would like to thank the participating physicians, the reviewers, and Logical Images, Inc. for images. Any opinions, findings, and conclusions or recommendations expressed in this paper are those of the authors and do not necessarily reflect the official views of the NIH or the NSF.
