Neurogenesis-Inspired Dictionary Learning: Online Model Adaption in a Changing World

1 Introduction

1 Adaptation to a changing environment is essential for successful functioning of both natural and artificial intelligent systems. In human brains, adaptation is achieved via neuroplasticity, which includes synaptic plasticity, i.e. change in strength of neuronal connections, and (adult) neurogenesis [Kempermann, 2006], i.e. the birth and maturation of new neurons, accompanied by some neuronal death; hippocampal neurogenesis, in particular, is a "candidate mechanism for the specific dynamic and flexible aspects of learning" [Stuchlik, 2014].

In representation learning, which always involves a hiddenvariable model such as dictionaries, autoencoders or feedforward neural nets, probabilistic hidden-factor models, etc., synaptic plasticity is analogous to parameter learning (e.g., neural net weight training), while neurogenesis can be modeled as an online architecture adapation via adding/deleting hidden units (neurons).

∗The author contributed to this work as a research intern, who is currently a PhD student at the University of Southern California.

1 The extended version of this paper is available at arxiv.org/abs/1701.06106 .

However, optimal model selection in large-scale hiddenvariable models, e.g., choosing the number of layers, hidden units, and their connectivity, can be intractable due to enormous search space size. An online approach to dynamically expanding and contracting model's architecture can serve as a potentially more effective alternative to the standard offline model selection (e.g., MDL-based off-line sparse coding [Ramirez and Sapiro, 2012]), as well as to the currently popular network compression (distillation) approaches [Hinton et al., 2015; Mariet and Sra, 2015; Srivastava et al., 2014; Ba and Caruana, 2014; Bucilu et al., 2006], which involve learning a large-scale model first, and compressing it to a smaller one later.

In this paper, we focus on dictionary learning, a.k.a. sparse coding [Olshausen and Field, 1997; Kreutz-Delgado et al., 2003; Aharon et al., 2006; Lee et al., 2006] - a representation learning approach which finds a set of basis vectors (atoms, or dictionary elements) and representations (encodings) of the input samples as sparse linear combinations of those elements 2 . More specifically, our approach builds upon the computationally efficient online dictionary-learning method of [Mairal et al., 2009], where the data samples are processed sequentially, one at a time (or in small batches). Online approaches are particularly important in large-scale applications with millions of potential training samples, where off-line learning can be infeasible; furthermore, online approaches are a natural choice for building systems capable of continual, lifelong learning.

We propose a novel online model-selection approach for dictionary learning, inspired by the neurogenesis process, involving addition and deletion of the elements, in response to the dynamically changing properties of input data. Namely, at each iteration corresponding to a new batch of data, a number of random dictionary elements is added (neuronal birth); higher representation error, indicating mismatch between the current dictionary and the new samples, triggers more neurogenesis. The neuronal death involves removing "useless" dictionary elements, and is implemented by l1/l2 group-sparsity regularization; this step is essential in neurogenesis-inspired learning, since it reduces a potentially uncontrolled growth of the dictionary, and helps to avoid overfitting. Note that in natural adult neurogenesis, neuronal death is also an important factor balancing neuronal birth [Kempermann, 2006]).

2 This corresponds to a sparse, singe-hidden-layer linear autoencoder, where the hidden units correspond to dictionary elements, each element represented by a weight vector associated with the unit's outgoing links in the output layer, and the sparse vector of hidden unit activations correspond to the encoding of an input.

Moreover, besides selecting the model complexity (i.e. the number of hidden units) in online sparse coding, our framework allows for online connectivity adaptation by imposing sparsity on dictionary elements, rather than just on codes; this is a more biologically plausible assumption than the full connectivity, i.e. dense dictionary elements, which also results into superior empirical performance.

Note that, although the group-sparsity constraint enforcing deletion of some dictionary elements was introduced earlier in the group-sparse coding method of [Bengio et al., 2009], it was only implemented and tested in the off-line rather than online setting, and, most importantly, it was not accompanied by neurogenesis. On the other hand, while some prior works considered online node addition in hidden-variable models, and specifically, in neural networks, from cascade correlations [Fahlman and Lebiere, 1989] to the recent work by [Draelos et al., 2016; Rusu et al., 2016], no model pruning was incorporated in those approaches to balance the model expansion.

We demonstrate on simulated data and on two real-life datasets, i.e. natural images and language processing task, that our approach significantly outperform non-adaptive, fixed-dictionary-size online method of [Mairal et al., 2009] when the input is non-stationary. Moreover, we identify certain data properties and parameter settings associated with such improvements. In summary, our work appears to be the first one to propose and evaluate, both empirically and theoretically, online model selection in dictionary learning under non-stationary inputs.

2 Background on Dictionary Learning

Traditional off-line dictionary learning [Olshausen and Field, 1997; Aharon et al., 2006; Lee et al., 2006], also known as sparse coding, aims at finding a dictionary D ∈ Rm×k , which allows for an accurate encoding of each sample in the training data set X = {x1, · · · , xn ∈ Rm} by a linear combinations of a relatively small (thus, sparse encoding) subset of dictionary elements {d1, · · · , dk ∈ Rm}. This is achieved by minimizing

where the first term is the representation error, and the second term is the l1-regularization which enforces the codes αi to be sparse. The joint minimization of fn(D) with respect to the dictionary and codes is non-convex, and commonly used approach is to use an alternating minimization over the codes and the dictionary.

However, the classical dictionary learning does not scale to very large datasets; moreover, it is not immediately applicable to online learning from a continuous stream of data. The online dictionary learning (ODL) method proposed by

[Mairal et al., 2009] overcomes both of these limitations, and serves as a basis for our proposed approach, presented in Alg. 1 in the next section. While the highlighted lines in Alg. 1 represent our extension of ODL , the non-highlighted ones are common to both approaches, and are discussed first. The algorithms start with some dictionary D0 , e.g. a randomly initialized one (other approaches include using some of the inputs as dictionary elements [Mairal et al., 2009; Bengio et al., 2009]). At each iteration t, both online approaches consider the next input sample xt (or a batch of samples), in step 3 and compute its sparse code αt by solving the LASSO [Tibshirani, 1996] problem (step 4), with respect to the current dictionary. Next, ODL computes the dictionary update, D(t) (denoted simply as D in the algorithm), by optimizing the surrogate objective function ˆ ft(D), similar to the original one in eq. (1), for n = t, except for an important change: in eq. (1), each code αi is computed using the same dictionary D, while the surrogate function keeps the codes αi from the previous iterations, computed using the corresponding previous dictionaries D(i) , i.e. does not recompute the codes of previously seen samples after each dictionary update. This speeds up the learning without worsening the (asymptotic) performance, since the surrogate objective converges to the original one in (1), under certain assumptions, including data stationarity [Mairal et al., 2009]. Note that, in order to prevent the dictionary entries from growing arbitrarily large, [Mairal et al., 2009] impose the norm constraint, i.e. keep the columns of D within the convex set C = {D ∈ Rm×k s.t. ∀j dTj uj ≤ 1}. Then the dictionary update step computes D(t) = argminD∈C ˆ ft(D), ignoring l1-regularizer over the code which is fixed at this step, i.e. it finds minD∈C 1t ∑ti=1 12 ||xi -Dαi||22 , which is equivalent to finding

where A = ∑ti=1 αiαTi and B = ∑ti=1 xiαTi are the "bookkeeping" matrices (we also call them "memories" of the model), compactly representing the input samples and encoding history. At each iteration, once the new input sample xi is encoded, the matrices are updated as A←A+αtαTt and B ←B +xtαTt (see the step 11 of Alg. 1). In [Mairal et al., 2009], a block coordinate descent is used to optimize the convex objective in eq. 2; it iterates over the dictionary elements in a fixed sequence, until convergence, optimizing each while keeping the others fixed as shown in eq. (3) (steps 14 and 17 in Alg. 1, except that, in our approach, uj is transformed into wj to impose an additional regularizer before computing step 17) 3 .

3 Note that when the off-diagonal entries ajk in A are as large as the diagonal ajj , the dictionary elements get "tied" to each other, playing complementary roles in the dictionary, thereby constraining the updates of each other - an insight used later to explain empirical performance of the proposed approach.

It this work, we will also impose sparsity on dictionary elements (step 15 in Alg. 1), i.e. replace the objective in eq. (2) with

From now on, ODL will refer to the above extended version of the fixed-size method of [Mairal et al., 2009] wherever we have sparsity in dictionary elements.

3 Neurogenic Online Dictionary Learning

Our objective is to extend the state-of-art online dictionary learning, designed for stationary input distributions, to a more adaptive framework capable of handling nonstationary data effectively, and learning to represent new types of data without forgetting how to represent the old ones. Towards this end, we propose a novel algorithm, called Neurogenetic Online Dictionary Learning (see Alg. 1), which can flexibly extend and reduce a dictionary in response to the changes in an input distribution, and possibly to the inherent representation complexity of the data. The main changes, as compared to the non-adaptive, fixed-dictionary-size algorithm of [Mairal et al., 2009], are highlighted in Alg. 1; the two parts involve (1) neurogenesis, i.e. the addition of dictionary elements (hidden units, or "neurons") and (2) the death of old and/or new elements which are "less useful" than other elements for the task of data reconstruction.

At each iteration in Alg. 1, the next batch of samples is received and the corresponding codes, in the dictionary, are computed; next, we add kn new dictionary elements sampled at random from Rm (i.e., kn random linear projections of the input sample). The choice of the parameter kn is important; one approach is to tune it (e.g., by cross-validation), while another is to adjust it dynamically, based on the dictionary performance: e.g., if the environment is changing, the old dictionary may not be able to represent the new input well, leading to decline in the representation accuracy, which triggers neurogenesis. Herein, we use as the performance measure the Pearson correlation between a new sample and its representation in the current dictionary r(xt,D(t-1)αt), i.e. denoted as pc(xt, D(t-1) , αt) (for a batch of data, the average over pc(.) is taken). If it drops below a certain pre-specified threshold γ (where 0 ≪ γ ≤ 1), the neurogenesis is triggered (the step 5). The number kn of new dictionary elements is proportional to the error 1 - pc(·), so that worse performance will trigger more neurogenesis, and vice versa; the maximum number of new elements is bounded by ck (the step 6). We refer to this approach as conditional neurogenesis as it involves the conditional birth of new elements. Next, kn random elements are generated and added to the current dictionary (the step 7), and the memory matrices A,B are updated, respectively, to account for larger dictionary (the step 8). Finally, the sparse code is recomputed for xt (or, all the samples in the current batch) with respect to the extended dictionary (the step 9).

The next step is the dictionary update, which uses blockcoordinate descent, with the following objective function:

Algorithm 1 Neurogenetic Online Dictionary Learning (NODL)

• Require: Data stream x1, x2, · · · , xn ∈ Rm; initial dictionary D ∈ Rm×k ; conditional neurogenesis threshold, γ; max number of new elements added per data batch, ck; group sparsity regularization parameter, λg; number of non-zeros in a dictionary element, βd; number of nonzeros in a code, βc. 1: Initialize: A← 0, B← 0 % reset the ''memory'' % single data in a batch, for simpler exposition 2: for t = 1 to n do 3: Input xt % representing the tth batch of data % Sparse coding of data: 4: αt = argα∈Rk min 12 ||xt -Dα||22 +λc||α||1 % λc tuned to have βc non-zeros in αt % Conditional neurogenesis: if accuracy below threshold, add more elements 5: if pc(xt,D, αt) ≤ γ then 6: kn = (1-pc(xt,D,αt))ck % the count of the births 7: Dn ← initializeRand(kn), D← [D Dn] 8: A← [A 0 0 0], B← [B 0], k ← k +kn % Repeat sparse coding, with the new elements 9: αt = argα∈Rk min 1 2 ||xt - Dα||22 + λc||α||1 10: end if % End of neurogenesis % ''Memory'' update: 11: A←A+αtαTt , B←B+xtαTt % Dictionary update by block-coordinate descent 12: repeat 13: for j = 1 to k do 14: uj ← bj-∑k̸=j dkajk ajj % Sparsifying elements (optional): 15: vj ← Proxλj||.||1 (uj) = sgn(uj)(|uj| - λj)+, % λj tuned to get βd non-zeros in vj % Killing useless elements with l1/l2 group sparsity 16: wj ← vj (1- λg ||vj ||2 )+ 17: dj ← wj max(1,||wj ||2) 18: end for 19: until convergence 20: end for 21: return D

The first term is the standard reconstruction error, as before. The second term, l1/l2-regularization, promotes group sparsity over the dictionary entries, where each group corresponds to a column, i.e. a dictionary element. The group-sparsity [Yuan and Lin, 2006] regularizer causes some columns in D to be set to zero (i.e. the columns less useful for accurate data representation), thus effectively eliminating the corresponding dictionary elements from the dictionary ("killing" the corresponding hidden units). As mentioned previously, [Bengio et al., 2009] used the l1/l2-regularizer in dictionary learning, though not in online setting, and without neurogenesis.

Finally, the third term imposes l1-regularization on dictionary elements thus promoting sparse dictionary, besides the sparse coding. Introducing sparsity in dictionary elements, corresponding to the sparse connectivity of hidden units in the neural net representation of a dictionary, is motivated by both their biological plausibility (neuronal connectivity tends to be rather sparse in multiple brain networks), and by the computational advantages this extra regularization can provide, as we observe later in experiments section (Sec. 4).

As in the original algorithm of [Mairal et al., 2009], the above objective is optimized by the block-coordinate descent, where each block of variables corresponds to a dictionary element, i.e., a column in D; the loop in steps 12-19 of the Alg. 1 iterates until convergence, defined by the magnitude of change between the two successive versions of the dictionary falling below some threshold. For each column update, the first and the last steps (the steps 14 and 17) are the same as in the original method of [Mairal et al., 2009], while the two intermediate steps (the steps 15 and 16) are implementing additional regularization. Both steps 15 and 16 (sparsity and group sparsity regularization) are implemented using the standard proximal operators as described in [Jenatton et al., 2011]. Note that we actually use as input the desired number of non-zeros, and determine the corresponding sparsity parameter λc and λj using a binary search procedure. Overall, the key features of our algorithm is the interplay of both the (conditional) birth and (group-sparsity) death of dictionary elements in an online setting. 4

4 Experiments

Our empirical evaluation compares the proposed NODL approach with the standard ODL. We also investigate separately the effects of adding or deleting dictionary elements, by evaluating the following restricted versions of our method: NODL+ involves only addition but no deletion (equivalent to NODL with no group-sparsity, i.e. λg = 0), and NODLwhich, vice versa, involves deletion only but no addition (equivalent to NODL with the number of new elements ck = 0). We use a simple non-stationary setting, where a sequence of training samples from one environment is followed by another sequence from a different environment.

4.1 Real-life Images

Our first domain includes the images of Oxford buildings, i.e. urban environment 5 , while the second uses a combination of images from Flowers 6 and Animals 7 image databases (natural environment). We converted the original color images into black&white format and compressed them to smaller sizes, 32x32 and 100x100; also, here we use as the input samples full images rather than image patches.

Parameter settings. We selected 5700 images for training and another 5700 for testing; each subset contained 1900 images of each type (i.e., Oxford, Flowers, Animals). In the training phase, the algorithms receive a sequence of 1900 samples from the first domain (Oxford), and then a sequence of 3800 samples from the second domain (1900 Flowers and 1900 Animals, permuted randomly); the batch size is 200 images ([Mairal et al., 2009] used a batch of size 256, though image patches rather than full images). We use Pearson correlation threshold γ = 0.9, group sparsity parameter λg = 0.03 and λg = 0.07, for 32x32 and 100x100 images, respectively; ck = 50 is the upper bound on the number of new dictionary elements at each iteration. We observed that, overall, the results were quite robust to the changes in parameter values.

4 Note that the computational cost analysis, as well as the convergence analysis for our proposed algorithm can be more complicated than in the standard dictionary learning setting, since the size of the dictionary continues to change, in a non-stationary environment.

5 www.robots.ox.ac.uk/ vgg/data/oxbuildings/

6 www.robots.ox.ac.uk/ vgg/data/flowers/102/

7 www.robots.ox.ac.uk/ vgg/data/pets/

Evaluation. Once the training phase is completed, the resulting dictionary is evaluated on test images from both the first (urban) and the second (natural) domains; for the second domain, separate evaluation is performed for flowers and animals. First, we evaluate the reconstruction ability of the resulting dictionary D, comparing the actual inputs x versus approximations x∗ = Dα, using the mean square error (MSE), Spearman correlation, and Pearson correlation; we only plot the latter since all metrics showed consistent results. Next, we used the codes as new features and evaluated the corresponding image classification accuracy for flowers vs animals. The evaluation results differed dramatically for sparse vs dense dictionaries, as discussed below.

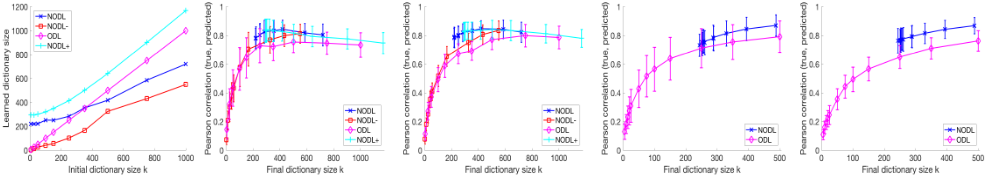

In Fig. 1(a), 1(b) and 1(c), we present the results for sparse dictionaries, where each column (an element in the dictionary) has 5 nonzeros out of the 1024 dimensions; the codes are relatively dense, with at most 200 nonzeros out of k (the number of dictionary elements), and k ranging from 5 to 1000 (i.e. the codes are not sparse for k ≤ 200). In Fig. 1(a), we compare the dictionary size for different methods: the final dictionary size after completing the training phase (y-axis) is plotted against the initial dictionary size (x-axis). Obviously, the baseline (fixed-size) ODL method (magenta plot) keeps the size constant, deletion-only NODL- approach reduces the initial size (red plot), and addition-only NODL+ increases the size (light-blue plot). However, the interplay between the addition and deletion in our NODL method (dark-blue) produces a more interesting behavior: it tends to adjust the representation complexity towards certain balanced range, i.e. very small initial dictionaries are expanded, while very large ones are, vice versa, reduced.

NODL advantages. Our main results demonstrating the advantages of the proposed NODL method are shown next in Fig. 1(b) and Fig. 1(c), for the "old" (Oxford) and "new" (Flowers) environment (domain), respectively. (Very similar result are obtained for the Animals dataset). The x-axis shows the final dictionary size, and the y-axis is the reconstruction accuracy achieved by the trained dictionary on the test samples, measured by Pearson correlation between the actual and reconstructed data. NODL clearly outperforms the fixed-size ODL, especially on smaller dictionary sizes; remarkably, this happens on both domains, i.e. besides improved adaptation to the new data, NODL is also better at preserving the "memories" of the old data, without increasing the representation complexity, i.e. for the same dictionary size.

Furthermore, the addition/deletion trade-off is indeed important, since the performance of deletion-only NODL- is inferior to NODL, while the addition-only, or NODL+, method matches NODL accuracy but at the cost of unnecessarily large dictionary. NODL achieves the best trade-off here, attaining superior performance while keeping the dictionary size under control, in a narrower range (400 to 650 elements).

Larger-scale setting. We now focus on comparing the two main methods, the baseline ODL and the proposed NODL. The advantages of our approach become even more pronounced on larger input sizes, 100x100 images, in similar sparse-dictionary, dense-code settings (keeping the dictionary elements at the same sparsity rate, 50 nonzeros out of 10k dimensions, and just use completely non-sparse codes). In Fig. 1(d) and Fig. 1(e), we see that NODL considerably outperforms ODL on both the first (Oxford) and the part of the second domain (Flowers); the results for Animals are similar.

We also performed a variety of experiments, not included due to the space restrictions, which demonstrated robustness of our results to the parameter perturbations across a wide range of γ, λg, ck, βc, βd, and batch-size parameters, as well as to various orders of the input datasets. Moreover, we explored a version of ODL mentioned in [Mairal et al., 2009] where occasional zero-column ("dead" elements) are reinitialized, but did not observe significant differences in ODL performance, since without the explicit group-sparse regularization of NODL, the number of "dead" elements in ODL was very small.

Dense vs. sparse dictionary elements. When experimenting with more traditional dense dictionaries, commonly used in sparse coding literature, we observed that both adaptive NODL and non-adaptive ODL approaches behaved very similarly; being adaptive never hurt the performance, but also did not result into significant improvements observed in case of sparse dictionaries. Furthermore, we also evaluated both types of dictionaries, sparse vs dense, in both adaptive and non-adaptive approaches, for the purpose of classification rather than just reconstruction of the inputs. Namely, we use the codes (i.e., feature vectors) computed on the test data from the second domain (Animals and Flowers) and evaluate multiple classifiers learned on those features in order to discriminate between the two classes. We find that the overall classification errors, for both ODL and NODL, are much higher in dense dictionary setting (0.30, 0.40 error with dense and sparse codes respectively) than in the sparse-dictionary setting (0.24 error with dense codes). This again demonstrates the advantages of sparse dictionaries over the dense ones.

In summary, (1) our adaptive NODL approach significantly outperforms nonadaptive ODL, on both the new data (adaptation) and the old ones (memory), when using sparse dictionaries; (2) the results are robust to parameter and data set order variations; (3) for dense dictionaries, adaptive approach performs as good as the nonadaptive baseline.

4.2 Sparse Orthogonal Inputs: Natural Language Processing and Synthetic Data

Our next question was: which specific data properties (rather than method properties) make neurogenetic adaptation most beneficial ? We noticed that the standard ODL approach has difficulties adapting to a new domain when: (1) the data in both domains are sparse and (2) across the domains, the supports (subsets of non-zero coordinates) are almost nonoverlapping, which makes the old and new datasets nearly orthogonal. This phenomenon was observed in a Natural Language Processing (NLP) task presented below, further investigated on simulated data, and formalized later in Lemma 1.

Sparse Natural Language Processing Problem. We consider a very sparse word co-occurrence matrix (avg. 14 nnz per column) using the text from two different domains, biology and mathematics, with the total vocabulary size of approximately 12,883 words. The full matrix was split in two with math terms correspond to the first block of columns (see Fig. 2(a)) and the biology terms correspond to the second one (see Fig. 2(b)). We use the sparse columns (or rows) in the matrix, indexed by the vocabulary words, as our input data to learn the dictionary of sparse elements (25 nonzeros) with sparse codes (or word embeddings with 38 nonzeros) [Yogatama et al., 2015]. Herein, we evaluate our NODL method (i.e. NODL (sparse) in the plots) versus baseline ODL dictionary learning approach (i.e. ODL (sparse)) in the settings where the biology domain is processed first and then the mathematics domain (2750 samples for training and test from each domain). The evaluation results are shown in Fig. 2(c) and 2(d). For the first domain (biology), both methods perform very similarly (i.e., remember the old data equally well), while for the second, more recent domain, our NODL algorithm is clearly outperforming its competitor. Also, note that dense dictionaries do not work well on these sparse data - see inferior performance of both random dense dictionaries (random-D) and the dense dictionaries learned with ODL (i.e. ODL (dense)).

Synthetic Sparse Data. The word co-occurrence matrix from different domains such as mathematics and biology tends to have approximately block-diagonal structure. So, herein, we studied the simulated sparse dataset wherein the data matrix is purely block-diagonal with each column of 1024 dimension with 50 nonzeros (100 samples from each of the two domains, for training and testing). In Fig. 2(e) and 2(f), we see reconstruction accuracy, for the first and second domain data. For the first domain, the baseline ODL method (i.e. ODL (sparse) in the plots) and our NODL (i.e. NODL (sparse)) perform equally well. However, for the second domain, the nonadaptive ODL performs much worse than adaptive NODL, being unable to adapt to the new data coming from a subspace orthogonal (due to nonoverlapping support) to the first dataset.

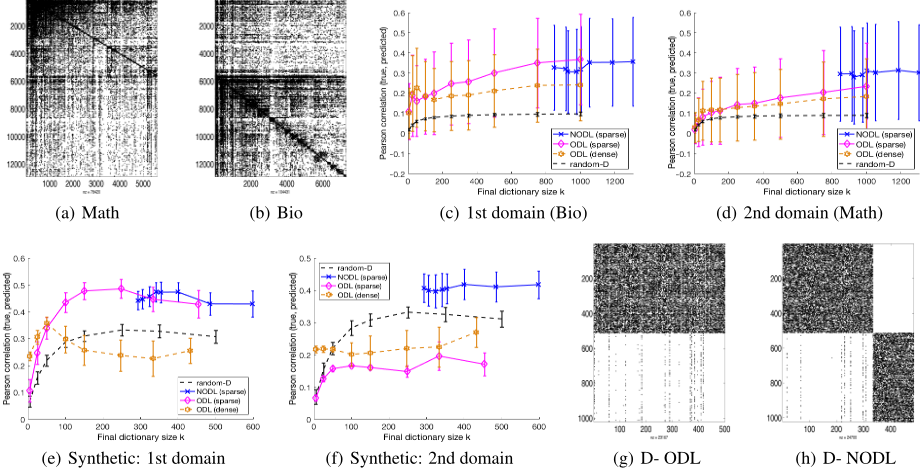

The dictionaries learned by each method are shown in Fig. 2(g) and Fig. 2(h): nonadaptive ODL maintains the sparsity structure learned from the first domain, and cannot adapt when domains change, while NODL learns elements representing the sparsity structure of the second domain, due to its ability to add new randomly initialized dense dictionary elements, which adapt to the new sparsity pattern.

5 Theoretical Analysis and Discussion

Sparse data modeling with sparse dictionaries. Our empirical observations for the sparse data are formally supported by the Lemma 1 below which proves that the baseline ODL method cannot adapt to a new domain if there is no overlap with the old domain's support 8 .

Lemma 1. Let x1, x2, · · · , xt-1 ∈ Rm be a set of samples from the first domain, with non-zeros (support) in the set of dimensions P ⊂M= {1, · · · ,m}, and let xt, xt+1, · · · , xn ∈ Rm be a set of samples from the second domain, with nonzeros (support) in dimensions Q ⊂ M, such that P ∩ Q = ø, |P| = |Q| = l. Let us denote as d1, d2, · · · , dk ∈ Rm dictionary elements learned by ODL algorithm, with the sparsity constraint of at most l nonzeros in each element (l corresponds to βd in Alg. 1), on the data from the first domain, x1, · · · , xt-1. Then (1) those elements have non-zero support in P only, and (2) after learning from the second domain data, the support (nonzero dimensions) of the corresponding updated dictionary elements will remain in P .

Proof Sketch. When processing the data from the first domain, at the first iteration, a sample x1 is received, its code

8 The minor adaptation, i.e., a few nonzeros, observed in our results in Fig. 2(g) occurs only due to implementation details involving normalization of sparse dictionary elements when computing codes in the dictionary - the normalization introduces non-zeros of small magnitude in all dimensions.

α1 is computed, and the matrices A and B are updated, as shown in Alg. 1 (non-highlighted part); next, the dictionary update step is performed, which optimizes

Since the support of x1 is limited to P , we can show that optimal dictionary D∗ must also have all columns/elements with support in P. Indeed, assuming the contrary, let dj(i) ̸= 0 for some dictionary element/column j, where i /∈ P. But then it is easy to see that setting dj(i) to zero reduces the sum-squared error and the l1-norm in (1), yielding another dictionary that achieves a lower overall objective; this contradicts our assumption that D∗ was optimal. Thus, a dictionary obtained after the dictionary update step must produce a dictionary where all columns have their support in P. By induction, this statement will also be true for the dictionary obtained after processing all samples from the first domain. Next, we start receiving the samples from the second domain which belongs to a different subspace, spanning the dimensions within the support set Q not intersecting with P . Thus, using the current dictionary, the encoding αt of first sample xt from the second domain (i.e. the solution of the LASSO problem in step 4 of the Alg. 1 ) will be a zero vector. Therefore, the matrices A and B remains unchanged during the update in step 11, and thus the support of each bj, and, consequently, uj and the updated dictionary elements dj will remain in P . By induction, every dictionary update in response to a new sample from the second domain will preserve the support of the dictionary elements, and thus the final dictionary elements will also have their support only in P .

Non-sparse data modeling with sparse dictionaries. When learning sparse dictionaries on non-sparse data such as natural images, we observed that many dictionary elements have non-overlapping supports with respect to each other.

The non-overlapping support of dictionary elements results into a specific structure of the matrix A. For ODL approach, the resulting matrix A includes many off-diagonal nonzero elements of large absolute values (along with high values on the diagonal). Note that in the dictionary update expression uj ← bj-∑k̸=j dkajk ajj in (3), when the values ajk/ajj are large for multiple k, the jth dictionary element becomes tightly coupled with other dictionary elements, which reduces its adaptability to new, non-stationary data. In our algorithm, the values ajk/ajj remain high if both elements j and k have similar "age"; however, those values are much lower if one of the elements is introduced much more recently than the other one. This allows for an adaptation to a new domain without forgetting the old one.

6 Conclusions

We proposed a novel algorithm, Neurogenetic Online Dictionary Learning (NODL), for learning representations in nonstationary environments. Our online algorithm builds a dictionary while also adapting the dictionary structure (the number of elements/hidden units and their connectivity; connectivity adaptation is possibly due to dictionary sparsity) via continuous birth (addition) and death (deletion) of dictionary elements, inspired by the adult neurogenesis phenomenon.

Our extensive empirical evaluation on both real world and synthetic data demonstrated that the interplay between the birth and death of dictionary elements learns a more adaptive, better-performing dictionary, in non-stationary environments as compared to both of its counterparts, such as the fixedsize online method of [Mairal et al., 2009] (no addition and no deletion), and the online version of the group-sparse coding method by [Bengio et al., 2009] (deletion only). Furthermore, we evaluated, both empirically and theoretically, some conditions on the method's parameters and on the data which yield superior performance of the proposed method over the baseline. Overall, neurogenetic dictionary learning performs at least as good as, and often much better than its competitors. Future work includes extending our approach to deep and nonlinear autoencoders, as well as to supervised setting.

Acknowledgements

It is our pleasure to acknowledge discussions with Djallel Bouneffouf, Amit Dhurandhar, Changhoan Kim, Tim Klinger, Matthew Riemer, Mattia Rigotti, Vidyashankar Sivakumar, Gerald Tesauro, and other colleaugues at the IBM Thomas J. Watson Research Center. We are also grateful to the anonymous reviewers for their valuable feedback.
