Parametric Manifold Learning of Gaussian Mixture Models

1 Introduction

Probabilistic models are effective tools for representing realworld data in the presence of noise. For example, Gaussian mixture models (GMMs) are regarded as a universal visual vocabulary in computer vision [S´anchez et al., 2013; Winn et al., 2005; Perronnin et al., 2006] due to its capacity to model the mean and correlation in image patches; hidden Markov models (HMMs) are often used to model the speech sequence in natural language processing [Rabiner, 1989] because it can model the dynamics of both hidden (underlying) processes and the observed speech sequences; linear dynamical systems (dynamic textures, DTs) are used to describe a video since it can abstract complex patterns of motion and appearance [Doretto et al., 2003]. Clustering probabilistic models can produce hierarchical representations of data, which can be used for retrieval, annotation, indexing and codebook generation. Previous works have developed clustering algorithms for Gaussian distributions [Yu et al., 2018; Vasconcelos and Lippman, 1999], DTs [Chan et al., 2010], and HMMs [Coviello et al., 2012].

∗Contact Author

While clustering probabilistic models can give hierarchical representations, it cannot learn a continuous and interpretable manifold on which we can see the continuous change between probabilistic models. In various application domains, e.g., medical diagnosis [Carter et al., 2009], behavior analysis [Chan et al., 2018] and visual recognition [Perronnin et al., 2006], such an interpretable manifold provides better insight into the subject differences and the underlying mechanisms. For example, suppose we collect data from several subjects and learn a subject-level GMM for each subject's data. The GMMs could be clustered to obtain common patterns among the subjects, but this provides a limited discrete representation (one of K clusters). Alternatively, if the GMMs are embedded into a manifold, then the subject's coordinates on the manifold are continuous and their relationship with other subject properties (e.g., subject age, performance) could be revealed using correlation analysis. Furthermore, directions on the manifold would correspond to changes in the structure of the GMMs, providing insight on the underlying mechanisms of the revealed correlations. Despite its importance, manifold learning for probabilistic models has not been well-explored.

In this paper, we propose to learn a smooth and interpretable manifold for GMMs, where the inverse mapping between the low-dimensional latent space and the high-dimensional statistical manifold can be obtained easily. Inspired by PCA, we propose a parametric approach for learning manifolds of distributions. The GMM parameters for the component priors, means, and covariances {πk, µk, Σk}Kb k=1 are each represented by their own principal axes. The latent space (w, z, y) is the coefficients on the principal axes, and projecting them onto the principal axes yields the GMM parameters. Figure 1a illustrates the mappings between the statistical manifold and latent space. By minimizing the KL divergence between the original GMMs and their reconstructions through the latent space, we obtain the parameters in f -1 , and also a continuous and interpretable latent space for the statistical manifold. In addition, the latent space (w, z, y) is mapped to a hierarchical latent space v to further reduce the dimension (see Figure 1b), which models dependencies among the latent space coefficients (and hence among the component priors, means, and covariances).

Our contributions are three-fold: 1) we propose a parametric manifold of GMMs that can be explicitly generated from latent variables; 2) we propose an optimization method based on variational approximation to learn the parametric mapping, and derive a fast solver by alternating optimization and Metroplis-Hastings sampling; 3) we empirically show that our method can reconstruct GMMs well and learn a smooth and interpretable latent space in several application domains.

2 RelatedWork

Given a set of probabilistic models (PMs), with each PM representing one example in the dataset, the relationship among the PMs can be uncovered through clustering, to obtain discrete groups of common models, or through dimensionality reduction, to obtain a latent space where directions in the latent space correspond to changes in the PM.

The hierarchical EM (HEM) algorithm is a seminal work in clustering PMs [Vasconcelos and Lippman, 1999], and was first proposed to cluster Gaussian distributions. The Gaussians are collected into a "base" GMM, from which a "reduced" GMM is estimated with fewer number of components. The components in the reduced GMM serve as the representative Gaussians for the clusters, and the cluster memberships map between the Gaussians of the base GMM and the reduced GMM. To avoid high computation cost, virtual samples are generated from the base GMM and a closed-form solution is derived that expresses the reduced GMM in terms of the parameters of the base GMM. Later, HEM was extended to cluster time-series PMs: DTs [Chan et al., 2010] and HMMs [Coviello et al., 2012]. As the original HEM algorithm was derived for clustering, [Yu et al., 2018] recently propose a density-preserving HEM algorithm for simplifying a GMM

into an equivalent GMM with fewer components, while minimizing the distortion as measured by KLD.

These clustering methods only obtain a discrete representation of the set of PMs, i.e., a finite set of representative models and cluster assignments. In contrast, we propose to learn a manifold of PMs, which is a continuum of representative models specified by the latent space coefficients. Hence, our model can better visualize changes in the structure of the PMs.

In our learning algorithm, we adopt a variational approximation to the expected log-likelihood, which is similar to that of DPHEM [Yu et al., 2018]. The main difference is that DPHEM takes a single input GMM and reduces the number of components to obtain a single output GMM. In contrast, our formulation takes a set of GMMs and embeds them into a parametric manifold by minimizing the reconstruction loss of the GMMs. DPHEM is a special case of our framework when there is one input GMM and Km < Kb, where Km and Kb are the number of components in the reconstruction GMM and the input GMM, respectively. Also, the EM algorithm in our paper has no closed-form solution in the M-step, whereas the simpler M-step of DPHEM has a closed-form solution.

There are two general approaches for dimensionality reduction for PMs: kernel embedding and latent variable models. Kernel embedding explicitly models the mapping from input space to latent variables using a kernel function (or distance function). Hence, PMs can be embedded into a low-dimensional space by using a suitably-defined kernel function over probability distributions. For example, kernel PCA [Sch¨olkopf et al., 1998] can be used with the KL kernel [Moreno et al., 2004] or probability product kernel [Jebara et al., 2004] to perform dimensionality reduction on a set of GMMs. Based on information geometry [Amari and Nagaoka, 2007], [Carter et al., 2009] propose Fisher Information Nonparametric Embedding (FINE), which computes geodesics on the Riemannian manifold of distributions, and then uses multi-dimensional scaling (MDS) to obtain embeddings. The advantage of these kernel methods is that the forward mapping from distributions to embedding coordinates can be obtained explicitly. However, the disadvantage is that the inverse mapping from embedding coordinates to distribution is difficult and requires solving the pre-image problem, which hinders interpretation of the embedding space and its relationship with the input space. In contrast to kernel methods, our method explicitly constructs the inverse mapping from latent space to probability space.

Latent variable models solve the problem in the opposite way: they model the generative process, i.e. inverse mapping from low-dimensional latent variables to high-dimensional variables. For example, Gaussian Process Latent Variable Models (GPLVM) [Lawrence, 2004] obtains non-linear inverse mappings using a kernel matrix on the latent variables. However, the high-dimensional variables are still treated as vectors, and thus GPLVM cannot naturally represent structured non-vector data, such as probability distributions. While it is possible to also kernelize the high-dimensional variable, this leads to the same pre-image problem as KPCA above. Similar to GPLVM, our method is also a generative model, but in contrast to GPLVM, we construct an explicit parametric mapping from the latent space to the probability distribution.

AutoEncoders (AEs) are another type of nonlinear embedding method with latent variables. AEs first map input vectors to a latent space (encoder) and then reconstruct input vectors from the latent variables (decoder). Using neural network encoder/decoders, AEs can model complex mapping functions for high-dim input vectors. However, previous AE works have not considered how to handle multi-modal distribution input such as GMMs - using vectorized GMMs as inputs to the AE does not address the identifiability problem caused by component permutations. Our method is invariant to component permutation due to the KLD loss and the variational parameters as assignment indicators.

3 Parametric Manifold Learning of GMMs

Let {πk,µk,Σk}Kb k=1 be the parameters of a GMM with K components, where πk is the prior probability of the kth component, and µk ∈ RD and Σk ∈ SD×D + are the mean and covariance matrix of the kth component. The probability distribution for a GMM is p(x) = ∑Kb k=1 πkN(x|µk, Σk). Our goal is to learn a mapping between the space of GMMs and a lower-dimensional latent space, i.e., to learn the forward mapping f : p(x) → (w, z, y) where w ∈ Rdw , z ∈ Rdz , y ∈ Rdy are the latent variables for component prior, mean and covariance, respectively, as well as an inverse mapping f -1 : (w, z, y) → p(x).

3.1 Parametric Manifold for GMMs

In contrast to kernel methods, here we focus on explicitly constructing the inverse mapping from latent space to probability space. Following PCA reconstruction, we define a set of principal axes and corresponding coefficients (w, z, y) for each GMM parameter (prior, mean, covariance), from which the parameters can be reconstructed. The latent space variables are used to reconstruct a GMM with Km components (possibly different from Kb), with parameters {ˆπr, ˆµr, ˆΣr}Km r=1 . The rth component of the reconstructed GMM is defined by a set of principal axes {ar, {mrl}dz l=1 , {Crl}dy l=1 } and offsets {br, βr}, where ar ∈ Rdw , mrl, br ∈ RD , Crl ∈ RD×D and βr ∈ R, according to

where σ(x) = 1/(1 + exp(x)) is the sigmoid function, and yl, zl are the l-th coefficients of y and z.

Similar to PCA, the mean ˆµr is a linear combination of principal axes mrl, weighted by zl, and an offset vector br. The reconstructed precision matrix ˆΣ-1 r is a linear combination of CrlCT rl and an offset β2 r I. The reason for reconstructing the precision matrix in this way is three-fold. First, the positive definite constraint of ˆΣr is naturally fulfilled since the weights log(1 + exp(yl)) are always non-negative. Second, when the latent variable y ≪ 0, then the precision matrix will be a "default" value (i.e., a fixed level of uncertainty). For increasing values of the latent variable y, the precision will increase, i.e., the covariance (uncertainty) decreases. Thus the latent variable naturally interpolates between different shapes of covariance matrices and a default covariance. Third, the gradients are easier to compute when defining the reconstruction through the precision matrix. For priors ˆπr, the sigmoid function has more stable gradients, c.f., the gradients of the softmax function that change rapidly due to the exponential function. Also note that the probability constraints (non-negative and sum to 1) on the prior are naturally fulfilled by the formulation.

Note that the latent variables (w, z, y) are shared among all the components of the reconstructed GMM, although each reconstructed component has its own set of principal axes. Furthermore, there is no need to define an explicit correspondence between the rth component of the reconstructed GMM and kth component of the input GMM, since the learning algorithm uses the reconstruction loss between the whole input GMM and the whole reconstruction GMM - the ordering of the components in the input GMMs will not affect the embedding. Finally, PCA is a special case of our formulation in (1) when there is only one component Kb = Km = 1, and the latent variable y ≪ 0 and βr is a constant (see supplemental [Liu et al., 2019]). From this perspective, our method is more universal than vanilla PCA.

3.2 Learning with EMOptimization

We next propose a learning algorithm for estimating the reconstruction parameters and latent variables from training data. Given a training set of N GMMs, let pi(x) be the distribution for the ith GMM with parameters {πik,µik,Σik}Kb k=1 . Denote the corresponding latent variables as (wi, zi, yi), the reconstructed GMM as {ˆπir, ˆµir, ˆΣir}Km r=1 , and its distribution as ˆ pi(x). The reconstruction parameters Θ = {ar , {mrl}dz l=1 , {Crl}dy l=1 , br , βr}Km r=1 and latent variables for the training data Ω = {wi, zi, yi}Ni=1 are obtained by minimizing the reconstruction loss between pi(x) and ˆ pi(x), measured by KLD [Kullback, 1997],

where DKL(p‖q) = ∫ p(x) log p(x) q(x) dx is the KLD between p and q. Decomposing the KLD and removing the first term, which is a constant w.r.t. {Θ,Ω} yields an equivalent optimization problem to minimize the cross-entropy loss,

where Nik(x) = N(x|µik, Σik) is the original Gaussian and ˆNir(x) =N(x| ˆµir, ˆΣir) is its reconstruction.

Variational Approximation

As the cross-entropy between two GMMs in (3) is intractable, we derive an approximation based on a variational upperbound inspired by [Yu et al., 2018]. Introducing the variational parameters q = {q(i) kr }, (3) is approximated (see supplemental

The variational parameter q(i) kr can be interpreted as a soft assignment value for assigning the kth component of the ith GMM to the rth component of its reconstruction.

Variational Optimization Algorithm

We adopt an alternating (variational EM) algorithm to solve the optimization problem:

• (i) Variational M-step: Given ˆ q, optimize the manifold and latent variables: { ˆΘ, ˆΩ} = argminΘ,Ω ˜ JCE(Θ,Ω, ˆ q).
• (ii) Variational E-step: Given { ˆΘ, ˆΩ}, calculate the optimal variational parameters: ˆ q = argminq ˜ JCE( ˆΘ, ˆΩ, q).

For (ii), the optimal values of the variational parameters ˆ q(i) kr is derived analytically,

The M-step is solved efficiently by alternating optimization of the parameters, i.e., using fast solvers for sub-problems of optimizing one set of parameters while keeping others fixed. For example, mrl and br can be obtain in closed-form, CrlCT rl can be solved by semidefinite programming, ar and βr can be solved by the Newton-Raphson method. Finally, the optimizer may converge to a local minimum due to ˆ q. To help escape from local minima, after each iteration, we use a Metropolis-Hasting sampler for ˆ q [Metropolis et al., 1953; Hastings, 1970], which randomly swaps assignments for a random Gaussian component (see supplemental [Liu et al., 2019]).

Regularization

In (1), the latent variables and principal axes are unconstrained, and thus multiple equivalent solutions exist by scaling the latent variables and principal axes in opposite directions. To remove this ambiguity, we apply regularization on the latent variables, which effectively constrains the principal axes, using a regularized objective function,

To better condition the assignment variables q(j) kr and prevent degeneration to uniform assignments, following previous work [Vasconcelos and Lippman, 1999; Yu et al., 2016], we introduce virtual samples where the variables x are replicated with i.i.d. distributions. Using Nv virtual samples, the optimal variational parameters are,

This expression is similar to the deterministic annealing [Rose, 1998], derived from the maximum entropy principle to avoid poor local optima (see supplemental [Liu et al., 2019]).

3.3 Inference

After learning the manifold ˆΘ, a novel GMM is embedded in the manifold by minimizing the cross-entropy between the novel GMM {πk, µk, Σk}Kk=1 and its reconstruction,

The optimization problem is solved using the same algorithm in Section 3.2, but keeping the manifold parameters ˆΘ fixed.

3.4 Hierarchical Latent Space

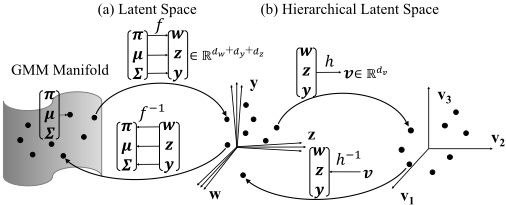

In (1), we use different latent variables to embed the prior, means and covariances to allow flexibility in representation. However, this treats the generation of each set of parameters independently. The dependencies among the prior, mean, and covariances is further modeled using a hierarchical latent space (HLS), which reduces the dimension of the latent space (LS). The HLS can also be used to visualize the GMM manifold in a 2D or 3D space. We assume a linear relationship between HLS and LS, [wT i yT i zT i ]T = Hvi, where vi ∈ Rdv are the HLS variables, and the matrix H ∈ R(dw+dy+dz)×dv consists of orthonormal basis vectors. Now the Variational M-step optimizes w.r.t. {Θ,H, v} (see supplemental [Liu et al., 2019]).

4 Experiments

To demonstrate the effectiveness of our method, we conduct experiments on GMMs on four different domains: 1) synthetic data, 2) flow cytometry data [Aghaeepour et al., 2013], 3) eyefixation data [Chan et al., 2018] and 4) social check-in data [Cho et al., 2011]. For comparisons, we also learn the latent space using GPLVM and KPCA, both using the Gaussian kernel for vector inputs. To convert a GMM into a vector, we first transform its parameters so that valid GMMs can be obtained in the reconstruction stage - we map the prior to an unconstrained space using the inverse softmax function, and use a Cholesky decomposition for the covariance matrix. The transformed parameters of the GMM are then concatenated into a long vector. As the GMM vector is determined by the order of components during the concatenation, the component orders will affect the result of embedding. We normalize the order as follows. For all GMMs in the dataset, the parameters for each Gaussian component are converted into vectors. and then mapped to a 1-D line using PCA. The PCA coefficient for each Gaussian component then determines the order during concatenation. Finally, we compare with FINE [Carter et al., 2009], which originally embeds Gaussians into a low-dimensional space, by extending it to embed GMMs. The KLD between GMMs is computed by variational approximation [Hershey and Olsen, 2007].

We evaluate the methods in 4 ways: 1) the KLD reconstruction loss on a held-out test-set of GMMs; 2) the correlation of the latent space with respect to other dependent variables (metadata); 3) classification accuracy using latent discriminant analysis (LDA) in the latent space; 4) visualization of the GMMmanifold. Specifically, for (3), we use LDA to learn a 1D discriminant space from the trained latent variables, then map test latent variables to the same space and use k Nearest Neighbors to do classification. The accuracy measures the correlation between latent space and data labels, as well as the effectiveness of latent variables in downstream tasks. The class labels for the eye fixation, flow cytometry, and social check-in datasets are older/young, healthy/unhealthy, and living city, respectively. Note that we put the experiment result of social checkin data in Supplemental [Liu et al., 2019].

4.1 Summary of Quantitative Results

We first present a quantitative evaluation of the methods based on the reconstruction loss of the held-out test data, and test accuracy of using LDA in the latent space. Table 1 shows the result. In terms of reconstruction loss, PML-GMM outperforms other methods, which demonstrates that it generalizes well to novel GMMs. For the accuracy metric, PMLGMM outperforms KPCA and FINE. PML-GMM obtains the same performance as GPLVM when the component number is small, Kb={1, 2} on Flow Cytometry. However, when Kb increases (Synthetic and Social Checkin), GPLVM performs worse due to the component ordering problem when vectorizing the GMM parameters. These results show that the latent space obtained by PML-GMM is more effective at revealing the underlying structure in the data.

4.2 Synthetic Data

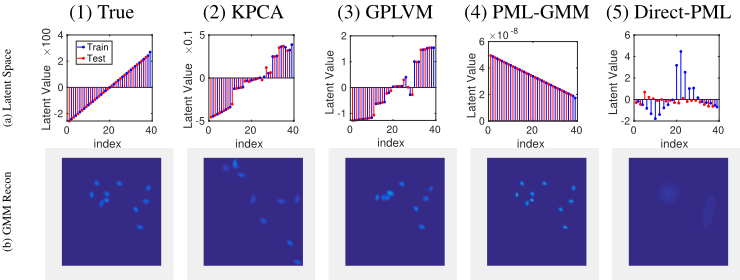

The synthetic dataset consists of 39 synthetic GMMs with 10 components, whose mean and covariances are generated from a 1D latent space (Fig. 2(a1)), according to some latent functions (see supplemental [Liu et al., 2019]), and the priors are uniform. 20 GMMs are used for training (blue points) and the other 19 (red points) are reserved for testing. For a fair comparison, the latent space dimension is set as 1 for all methods. PML-GMM learns both a smooth latent space and achieve the best reconstruction error (Table 1), compared with other methods. KPCA neither reconstructs GMMs nor learns a smooth latent space. GPLVM reconstructs some of the GMMs but fails on others, and the latent space is not consistent with ground truth. See more visualizations in [Liu et al., 2019].

Our framework uses a two-stage estimation procedure: 1) subsets of data (e.g., corresponding to subjects) are summarized using GMMs; 2) the GMM manifold is estimated from the individual GMMs. One reasonable alternative to our framework is to directly learn the GMM manifold from the data samples, denoted as Direct-PML (see supplemental [Liu et al., 2019]). Fig. 2(5) shows an example using Direct-PML to learn a manifold of synthetic GMMs. Direct-PML can neither learn a good GMM manifold (Average KLD loss of 2.749) compared to PML-GMM, nor learn a right latent space.

4.3 Eye-Fixation Data

The eye-fixation data [Chan et al., 2018] consists of eyefixation coordinates of 34 young adults and 67 older adults (34 for training, 33 for testing) when recognizing faces. We model each person's eye-fixation pattern with a GMM, where each Gaussian component corresponds to a region-of-interest (ROI) on the face. As suggested by [Chan et al., 2018], we use K=3 components corresponding to 3 ROIs. For PML-GMM, the latent space is set to 6 dimensions (dw = dz = dy = 2) and the HLS is set to dv = 3.

The latent space is shown in Fig. 3. Only in the latent space of PML-GMM (Fig. 3a) do we observe that there are different regions for older (AD quadrant) and young (CD quadrant) adults, and the test data consisting of older adults (black plus points) are all embedded into the older region (AD quadrant). In contrast, the other three methods embed testing GMMs into their latent spaces in an undesirable way (see LDA accuracy in Table 1). We examine the correlation between the HLS and the subject's age using multivariate linear regression analysis (see 2). The HLS of PML is correlated with ages at a statistically

B

0.4

Old

0.4

Centroid

0.35

Centroid

Test Old

0.25

v 2

Test Old

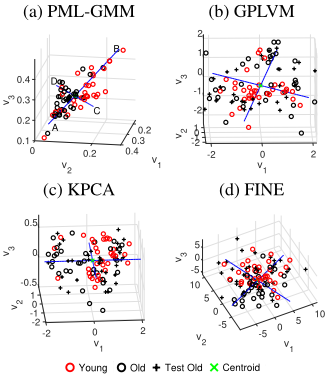

0.25 0.3 v 3 D 0.3 0.35 v 3 D 0.3 0.35 D 0.3 0.35 D Test Old Figure 3: Latent spaces of Eye-Fixation Data. PML-GMM can learn meaningful regions corresponding to older (AD quadrant) and young (BC quadrant) adults, and embeds test data to the correct region.

v 3

v 3

0.25

significant level and has the largest R2 statistic.

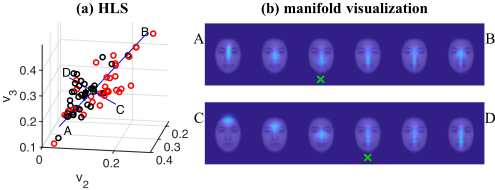

For PML we visualize the manifold along the two principal axes in Fig. 4b. Along AB, from the centroid towards A shows a vertically shaped ROI going up towards the upper center of the face, and towards B shows a vertically shaped ROI at the nose and a more horizontally shaped ROI around the eyes. Along CD, from the centroid to C shows a horizontally shaped ROI going upwards, whereas towards D shows a vertically shaped ROI going downwards. As older adults' ROIs focus on the face midline, their ROIs are vertically shaped, and thus they are embedded into the AD quadrant. In contrast, young adults look around the eye regions and have horizontal ROIs around the eyes, and thus they are embedded into the BC quadrant. This finding is consistent with the previous paper

0.2

B

[Chan et al., 2018] but we visualize the continuous change of eye gaze strategy, instead of only discrete clusters as in [Chan et al., 2018].

4.4 FlowCytometry Data

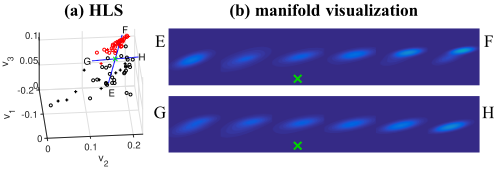

0.3 Flow cytometry data is used in medical diagnosis to test for unhealthy disorders by measuring cell properties in patients. The dimensionality of flow cytometry data samples ranges from 5-8, and the number of points for one patient is often thousands, which makes direct analyses cumbersome. Here we use an open AML dataset [Aghaeepour et al., 2013] with 7-dim features. 30 healthy and 30 unhealthy patients are used for training, and another 10 healthy and 10 unhealthy are used for testing. We use the same LS/HLS dimensions as Sec. 4.3. We run EM on each patient's data using K ∈ {2, 3, 4, 5} and find that when K > 2 there are many subjects (> 80%) with low-weight components. Hence, we use either Kb=2 or Kb=1 GMMs to model each patient. Although PML-GMM and GPLVM performs the same in classification accuracy, PMLGMM achieves 43% lower reconstruction loss than GPLVM (see Table 1). Furthermore, PML-GMM can easily visualize GMMs from the latent space (see Fig. 5), while GPLVM cannot give a good visualization due to the poor reconstruction loss. In Fig. 5b, EF shows that unhealthy cells change to healthy cells by gradually separating two components. GH shows the region between the unhealthy and healthy, and includes both 1 component (unhealthy) and 2 components GMMs (healthy). See [Liu et al., 2019] for latent spaces learnt by KPCA, GPLVM and FINE.

5 Conclusion

In this paper, we propose a parametric method to learn the manifold of GMMs, which both learns a parametric mapping from latent space to GMM parameters, and obtains a continuous and interpretable latent space. Future work will increase the representation power of the HLS by nonlinear mapping and extend PML to other important probabilistic models like HMMs.
