Explicitly Coordinated Policy Iteration

1 Introduction

As the extension of reinforcement learning (RL) to the multiagent domain, multi-agent reinforcement learning (MARL) has been widely studied over the last twenty years [Bus¸oniu et al., 2008; Shoham et al., 2003]. Different from singleagent RL where an agent maximizes its expected accumulative rewards, MARL is more complicated which involves different types of agent relationship (competition, cooperation, or mixture of the both), various learning goals (e.g., convergence and rationality [Bowling and Veloso, 2002]), and many domain-specific problems (such as equilibrium selection).

Stochastic game (a.k.a. Markov game) [Littman, 1994; Hu and Wellman, 2003] is commonly used to formulate a multi-agent system due to its simplicity and generality. In this paper, we focus on learning in fully cooperative stochastic games where all agents receive the same reward signal from the environment. As distinguished by Claus and Boutilier, joint action learner (JAL) and independent learner (IL) are two major learning paradigms of multi-agent reinforcement learning [Claus and Boutilier, 1998]. In cooperative settings, the main difference between the two paradigms is that a JAL agent can observe the other agents' actions whereas an IL agent cannot. Although JAL agents can utilize more information, combinatorial explosion of joint action space and strong observability assumption [Matignon et al., 2012] make them less scalable than IL agents in practice.

In this paper, we study the independent-learner form of MARL for fully cooperative stochastic games. Early work in this domain can be dated back to the average-based methods such as decentralized Q-learning [Tan, 1993] and the optimistic (or maximum-based) methods such as distributed Qlearning [Lauer and Riedmiller, 2000]. However, both the two categories of methods have limited success due to problems such as relative overgeneralization [Wiegand, 2003], miscoordination [Claus and Boutilier, 1998] and stochasticity. For better handling these problems, later works choose to combine the two categories of methods in different ways, such as using different learning rates [Matignon et al., 2007] and applying decreasing leniency [Panait et al., 2006; Wei and Luke, 2016]. Recently, the combination of deep reinforcement learning (DRL) [Mnih et al., 2015] and existing algorithms have also been investigated [Omidshafiei et al., 2017; Palmer et al., 2018].

To summarize, the key to the success of the state-of-the-art algorithms is the implicit coordination facilitated by different fusion heuristics of optimistic and average rewards. However, achieving excellent performance in practice by such implicit coordination mechanisms is a non-trivial task which requires deep understanding, careful implementation and tedious parameter-tuning of these algorithms. Without an explicit coordination mechanism which actively guides agents, the likelihood of coordination may still be low in problems with multiple optimal policies. In this paper, we propose an algorithm called explicitly coordinated policy iteration (EXCEL) which constantly forces agents to coordinate during the learning process. The idea is to always let agents try potentially optimal actions indicated by their separated optimistic and average value functions. Our contributions are as follows.

• Based on an agent's optimistic and average functions, we identify the necessary conditions of an optimal pol-

icy, according to which we give the action selection strategy and propose our cooperative IL algorithm.

• We propose three solutions for fitting optimistic value functions by deep neural networks and make extensions of our algorithm to the DRL domain.
• Results from extensive experiments in tabular and function approximation settings show that our algorithm outperforms current state-of-the-art algorithms in many aspects (e.g., higher probability of coordination, faster convergence and better asymptotic performance).

The rest of this paper is organized as follows. Section 2 gives background and reviews related work of this paper. Section 3 provides the details of our algorithm. Section 4 shows experimental results and Section 5 finally makes conclusions.

2 Background

In this section, we review key concepts of multi-agent reinforcement learning and briefly introduce related work.

2.1 Multi-Agent Reinforcement Learning

Stochastic games are widely adopted as the model of multi-agent reinforcement learning (MARL) [Littman, 1994; Greenwald and Hall, 2003; Hu and Wellman, 2003]. It can be treated as an extension of MDP to the multi-agent domain.

Definition 1. An n-agent (n ≥ 2) stochastic game is a tuple 〈N, S, {Ai}ni=1 , {Ri}ni=1 ,P〉, where N is the set of agents, S is the state space, Ai is the action space of agent i (i = 1, . . . , n). Let A = A1 × · · · ×An be the joint action space. Ri : S × A → R is the reward function of agent i and P : S ×A×S → [0, 1] is the transition function.

In a stochastic game, the accumulative discounted reward of each agent is determined by the joint policy of all agents. We denote the policy of an agent i (i ∈ N) by πi : S × Ai → [0, 1] and the joint policy of all agents by π = (π1, ..., πn). From agent i's perspective, π can be also written as (πi, π-i), where π-i is the joint policy of all other agents. Specially, a fully cooperative stochastic game is a tuple 〈N, S, {Ai}ni=1 ,R,P〉 where all agents share the same reward function R.

The majority of MARL algorithms for stochastic games can be organized as joint action learner (JAL) and independent learner (IL). As indicated by the names, JAL agents can perceive other agents' actions (and sometimes rewards as well) and IL agents only make decisions from their local viewpoints. As a consequence, the former can directly attribute each reward signal to the corresponding joint action of all agents while the latter cannot distinguish between different reward signals with the same own action taken. Formally, cooperative JAL agents try to maximize the joint action value function Qπ (s, a) = Eπ { ∑∞k=0 γ k rt+k|st = s, at = a}, where (s, a) is a state-joint-action pair, γ is the discount rate, t is any time step, and rt+k is the reward at time step (t + k). As IL agents only have local action observation, their value functions are often defined as a projection from the joint value function space to the local value function space qi(s, ai) = ΨiQ(s, a), where qi is the local value function of agent i, (s, ai) is a state-local-action pair, Ψi denotes any projection for agent i, and a is a joint action containing ai.

2.2 RelatedWork

The earliest attempt of IL algorithm in multi-agent systems is decentralized Q-learning [Tan, 1993] which uses an average projection to construct each agent's local value function: qi(s, ai) = ∑a-i π-i(a-i)Qπ (s, ai, a-i). The relative overgeneralization problem caused by the average projection and the lack of coordination limit the availability of decentralized Q-learning. Distributed Q-learning [Lauer and Riedmiller, 2000] uses an optimistic projection qi(s, ai) = maxa-i Q∗ (s, ai, a-i) to address the relative overgeneralization problem and explicitly coordinates agents by a policy locking mechanism. Despite of the theoretical guarantee in deterministic environments, being highly optimistic makes distributed Q-learning vulnerable to stochasticity. For better handling problems such as relative overgeneralization, miscoordination, and stochasticity, later works apply optimism in a more cautious way. Representative methods include hysteretic Q-learning (HYQ) which uses two different learning rates to perform Q-value update with positive and negative TD-errors respectively[Matignon et al., 2007], the FMQ algorithm which adopts Boltzmann action selection based on the combination of average and optimistic rewards [Kapetanakis and Kudenko, 2002], and lenient learner which shifts gradually from an optimistic learner to an average learner by applying decreasing leniency [Panait et al., 2006; Wei and Luke, 2016]. With the development of deep MARL [Lowe et al., 2017; Foerster et al., 2018], there have been attempts which extend existing algorithms with deep learning models [Omidshafiei et al., 2017; Palmer et al., 2018].

3 Methodology

This section introduces the methodology of this work. We begin with our motivation and then provide algorithm details.

3.1 Motivation

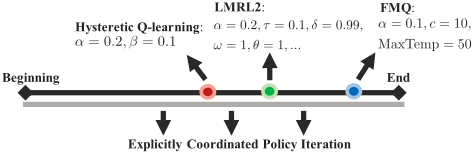

Generally, most of the state-of-the-art algorithms [Kapetanakis and Kudenko, 2002; Matignon et al., 2007; Matignon et al., 2008; Wei and Luke, 2016] can be treated as the combination of optimistic methods and average-based methods. On one hand, learning optimistic values (or utility) can filter penalty resulted from other agents' exploratory behaviors and distinguish between optimal and suboptimal actions. On the other hand, learning average values can deal with stochastic rewards and transitions. By applying simple or complex combination heuristics (e.g., decreasing leniency), coordination is achieved implicitly. However, achieving such implicit coordination in practice seems complicated and difficult. As shown in Figure 1, one can imagine that the learning process is a line segment where the implicit coordination between agents is achieved at some point. But where exactly the point is highly depends on algorithm hyperparameters and cannot be ensured before coordination really occurs. As a result, coordinating agents within predefined learning rounds often requires deep understanding, careful implementation and tedious parameter-tuning of the algorithms. Moreover, without an explicit coordination mechanism which tells agents the way of improving policies, the likelihood of coordination may still be low if there are multiple optimal policies in a problem.

3.2 Algorithm

Instead of combining each agent's optimistic and average value functions into one to achieve implicit coordination, we propose to maintain the two value functions separately and explicitly coordinate agents by comparing the two value functions. For a given cooperative stochastic game 〈N, S, {Ai}ni=1 ,R, P〉, we define the optimistic value function of any agent i (i ∈ N) as

and the average value function of agent i as

where s ∈ S is a state, ai ∈ Ai is a local action of agent i, Q∗ and Qπ are the underlying joint action value functions of an optimal joint policy and a given joint policy π = (π1, ..., πn), a-i and π-i are the joint action and joint policy of the other agents. For any policy πi of agent i and any state s, we define Aπi(s) i = {ai|π(s, ai) > 0} to be the support of πi(s). Formally, an optimal joint policy can be defined as follows.

Definition 2. A joint policy π of a cooperative stochastic game 〈N, S, {Ai}ni=1 ,R,P〉 is optimal if and only if for any agent i ∈ N and any state s ∈ S, it holds that

The first equation indicates that π is a Nash equilibrium and the second one indicates that this Nash equilibrium is optimal. Therefore, from each agent i's individual point of view, the two equations can be used as a necessary condition for determining whether the joint policy π is optimal.

Action Selection

For any policy πi of agent i, define πs:ai i to be a policy identical to πi except that agent i always takes action ai in state s. We utilize a corollary of Definition 2 to guide the action selection of each agent.

Corollary 1. For any optimal joint policy π of a fully cooperative stochastic game 〈N, S, {Ai}ni=1 , R, P〉, any agent i ∈ N, any state s ∈ S, and any action ai ∈ Aπi(s) i , the joint policy (πs:ai i , π-i) is also optimal.

This corollary provides a way of policy improvement according to each agent's optimistic and average value functions: choosing the actions with maximal optimistic and average values since they could be a part of an optimal policy. Also, Corollary 1 indicates that there is no need for each agent i to reconstruct the underlying policy πi from its value functions and sample actions accordingly, because at least one pure-strategy optimal policy can be derived from any mixedstrategy optimal policy.

For an agent i, we define the set of actions with maximal optimistic values in state s as

Denote our algorithm by A and the average value function maintained by A for agent i by qA i . Similarly, we define the set of actions with maximal average values in state s as

According to our discussion, agent i can firstly choose one action from the intersection Mopt i,s ⋂ MAi,s . However, Mopt i,s ⋂ MAi,s may be empty during the learning process, which indicates that it is impossible to derive an optimal policy from the current value functions. In this case, we suggest choosing the action with maximal average value from the set Mopt i,s sinceMopt i,s must contain all optimal actions in state s if qopt i is well learnt. In summary, the principle is to increase the likelihood of finding an optimal policy by always choosing the action with the highest potential to be optimal.

Learning Value Functions

The average value function qA i of agent i can be updated directly by a Q-learning rule [Watkins and Dayan, 1992]. Upon receiving an experience (s, ai, r, s′ ), qA i is updated by

where α is a learning rate. The way of updating the optimistic value function qopt i is similar to that of distribute Qlearning, which changes the value qopt i (s, ai) for state-action pair (s, ai) only when an increase occurs:

Taking stochastic rewards and state transitions into account, a learning rate α is also introduced here. In contrast, distributed Q-learning has no learning rate and is only applicable in deterministic environments. However, Equation (6) cannot deal with stochasticity alone since qopt i (s, ai) always increases when a maximal target (i.e., r + γ maxa′i qopt i (s′ , a′i ))

is sampled and will finally converge to its upper bound rather than the maximal expected value. To address this issue, note that for an optimal joint policy π, it must hold that

This motivates the idea that using the average value qA i (s, ai) to complement the optimistic value qopt i (s, ai). If the intersection Mopt i,s ⋂ MAi,s is empty, which indicates that suboptimal actions might be overestimated due to their higher upper bounds of optimistic values, then the optimistic values of the actions inMopt i,s will be reduced by

where c is a complementary factor that is very small in the beginning and increases every time Mopt i,s ⋂ MAi,s = ∅ occurs. The reason that c should increase from a small value is that Mopt i,s ⋂ MAi,s = ∅ may also happen before the value functions are sufficiently evaluated. Thus, c can be also treated as a measure of environment stochasticity. IfMopt i,s ⋂ MAi,s ̸= ∅, the value complement will be conducted on all actions. On one hand, this would not change the agent's behaviors if the actions in the intersection really belong to an optimal policy. On the other hand, the overestimation problem can be alleviated if the environment is stochastic.

Explicitly Coordinated Policy Iteration

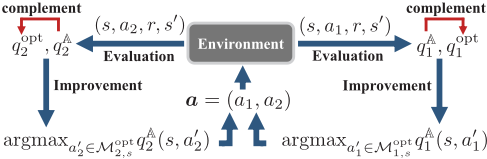

The rules for action selection and updating value functions together form a typical policy iteration loop. We name our method explicitly coordinated policy iteration (EXCEL) since it explicitly forces agents to coordinate in every state. Figure 2 intuitively depicts the main flow of EXCEL in a 2agent problem. The details of EXCEL are shown in Algorithm 1 from agent i's point of view. To compute the greedy action a∗i (at line 7), there is no need to compute the set MAi,s since a∗i must be in MAi,s if Mopt i,s ⋂ MAi,s ̸= ∅. The value complement mechanism (lines 15 to 23) is similar to the recursive frequency maximum Q-value (RFMQ) heuristic [Matignon et al., 2012] since they both have the form of linear interpolation and both their learning steps are a measure of stochasticity. However, the two mechanisms are essentially different because the former is a way of overcoming the overestimation of optimistic values based on the property of an optimal policy (i.e., Eq. (7)) while the latter is a way of biasing the evaluation of actions with optimistic rewards.

3.3 DRL Extensions

For applications in high-dimensional state space problems, we also extend our algorithm to the deep reinforcement learn-

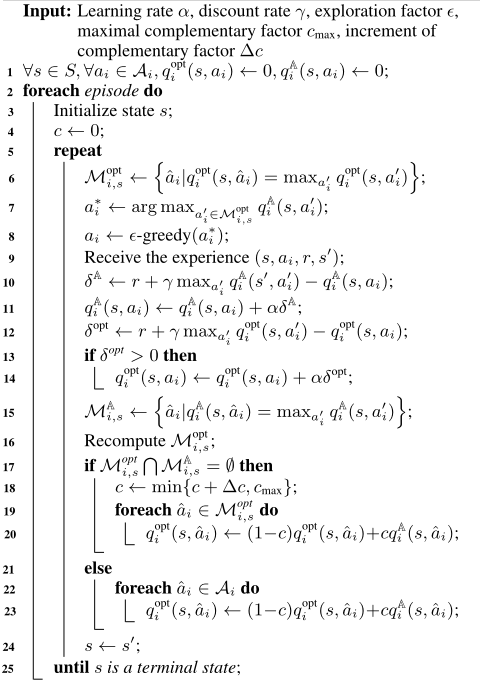

Algorithm 1: Explicitly Coordinated Policy Iteration

ing domain. We adopt the same framework of deep Qlearning network (DQN) [Mnih et al., 2015] for learning the agents' optimistic and average value functions. The learning tricks such as experience replay and target networks are also utilized. However, we found that using only samples with positive TD-errors to update the optimistic value functions may cause the overestimation problem even in deterministic environments. With neural networks as the value function representation, samples with positive TD-errors may result from the output values of the network rather than the true rewards. Before the network is well fitted, such unreliable samples may be generated frequently. Therefore, for learning accurate optimistic values, the samples with negative TD-errors may be also useful. Given agent i's optimistic value function qopt i and a sample (s, ai, r, s′ ), let δ = r + γqopt i (s, ai) -maxa′i qopt i (s′ , a′i ) be the original TDerror. Let 1p be the function which is 1 when p is true and 0 when p is false. For utilizing (s, ai, r, s′ ) in gradient computation when δ < 0, we propose three methods which compute a corrected TD-error δopt based on δ:

1. negative threshold method which makes the TD-error 0 if δ is less than a negative threshold: δopt = 1δ≥δmin δ, where δmin < 0 and |δmin| will decay to a small value,

1. weighted negative TD-error method which multiplies negative TD-errors by a weight: δopt = max{1δ>0, β}δ, where β decays from 1 to a small value,
2. negative sampling method which samples negative TDerrors by a ratio: δopt = max{1u>ηδ, δ}, where u is a random variable uniformly distributed in [0, 1] and η is a sampling ratio decaying from 1 to a small value.

As learning progresses, the three methods gradually reduce the use of negative samples. This is different from previous algorithms which make use of negative samples by a constant negative learning rate [Matignon et al., 2007; Omidshafiei et al., 2017] and an increasing sampling ratio [Wei and Luke, 2016; Palmer et al., 2018]. Besides, the three methods indirectly implements value complement as the utilization of negative samples also means the injection of average rewards into the optimistic value functions. Thus, the linear interpolation of Algorithm 1 don't have to be included in the extension. The other components of Algorithm 1 can be extended straightforwardly so we omit the details.

4 Experiments

We conduct two groups of experiments in this paper. The first one is a test in matrix games and the second one is grid world games in both tabular and function approximation settings.

4.1 Matrix Games

Denote the matrix game with n agents and m actions for each agent by n ⊗ m. In our experiment, n ranges from 2 to 5 and m ranges from 2 to 20. Let ai be an action of an agent i and I(ai) be the index of ai (0 ∼ m - 1). The utility r(a) of a joint action a = (a1, ..., an) is n × (m - 1) if the indices of all agents' actions are the same. Otherwise, r(a) = max { ∑ni=1 I(ai), n(m - 1) - ∑ni=1 I(ai)}.

We implement hysteretic Q-learning (HYQ) [Matignon et al., 2007], lenient multi-agent reinforcement learning 2 (LMRL2) [Wei and Luke, 2016], and recursive frequency maximum Q-value (RFMQ) [Matignon et al., 2012] to compare with our algorithm EXCEL. Each test of an algorithm in a specific game contains 20, 000 training periods and each training period contains 10, 000 game plays. We test the performance of each algorithm in both deterministic and stochastic reward settings. Let r denote the original utility of a joint action. In the stochastic reward problem, the utility of a nonoptimal joint action is sampled from a Gaussian distribution with mean value r and 0.95 confidence interval [0.8r, 1.2r] while the utility of an optimal joint action is from a Gaussian distribution with mean value r and 0.9 confidence interval [0.7r, 1.3r]. Therefore, optimal joint actions have higher utility variances than non-optimal joint actions. All the algorithms except HYQ use a learning rate of 0.2. The positive and negative learning rates of HYQ are 0.05 and 0.02, respectively. The learning rate of frequency of RFMQ is 0.01. The complementary factor of EXCEL increases from 0 to 1 with an increment 0.001. The algorithms EXCEL, HYQ, and RFMQ adopt ϵ-greedy exploration with ϵ decaying from 1.0 to 0.1 exponentially by a factor 0.99977. LMRL2 uses Boltzmann exploration with the temperature of each action decaying from 50 to 0.1 by a factor 0.9. The moderation factors of action selection and lenience for LMRL2 are both 1.0.

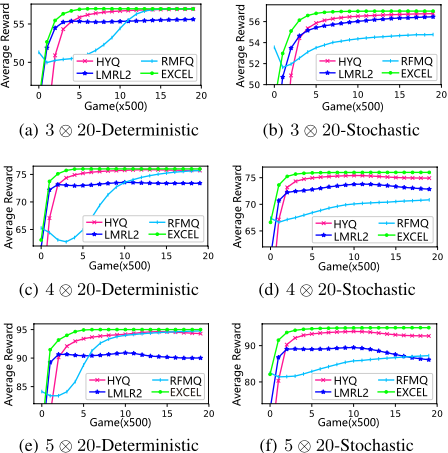

Each game play in a training period is followed by a test game play with deterministic rewards and no exploration. Along a training period, we record the reward of each algorithm in each test game play. We also record how many times that an optimal policy is learnt among the 20, 000 rounds of training, namely the coordination ratio. Due to space limitation, we only show the results of the most difficult games 3 ⊗ 20, 4 ⊗ 20, and 5 ⊗ 20 in Figure 3 and Table 1. Figure 3 shows that EXCEL converges faster and finally achieves higher reward values than the other algorithms. The performance gap between the algorithms is more obvious with respect to the coordination ratio. As shown in Table 1, EXCEL always succeeds to coordinate agents (with at least 0.97 coordination ratio) while the coordination ratios of the other algorithms decay rapidly as the number of agents increases.

4.2 GridWorld Games

We use the grid world games shown in Figure 4 to test the performance of our algorithm in stochastic games. The left one in Figure 4 is a grid map for testing tabular algorithms and the right one is a modified predator-prey (PP) game [Lowe et al., 2017] for testing DRL algorithms. The agents (the red circles) are initially located in the central area and are required to reach the same goal among the 4 goals (the green areas).

6WRFKDVWLF *DPH

(b) Predator-Prey Game

Figure 4: The grid world games adopted in the second experiment

In each step, the agents can choose to move in one of the four directions left, right, up, and down or stay. Once an agent reaches any of the four goals, the team reward will be added by 10. If all agents reach the same goal, the team reward will be directly set to 15n, where n is the number of agents.

In the tabular grid world games, we implement the EXCEL, HYQ, LMRL2 algorithms and the swing between optimistic or neutral algorithm (SOoN) [Matignon et al., 2009]. The number of agents ranges from 2 to 4 and the corresponding map sizes are 10 × 10, 6 × 6, and 5 × 5, respectively. One episode of each game contains 25 steps of state transitions. We make stochastic state transitions by assigning a 0.2 failure probability to the execution of actions. The team reward is also made stochastic by sampling from a Gaussian distribution with mean value r and 0.8 confidence interval [0.5r, 1.5r], where r is the original reward. The learning rates of all algorithms are 0.2. The negative learning rate of HYQ is 0.08. The learning rate of the farsighted frequency of SOoN is 0.3. The EXCEL, HYQ, and SOoN algorithms use ϵ-greedy exploration strategy. In the 2-agent and 3-agent games, ϵ decays from 1 to 0.05 while in the 4-agent game it decays to 0.25 for ensuring sufficient exploration. The decay factor of ϵ is 0.9999 and the discount rate is 0.9. The other hyperparameters are the same as those in the matrix game experiment. We record the total rewards of the agent team in each episode.

In the modified predator-prey (PP) game, we implement our deep EXCEL algorithm (DEXCEL) with negative threshold (NT), weighted negative TD-error (WNTD), and negative sampling (NS), respectively. We also implement the hysteretic deep Q-network (HDQN) [Omidshafiei et al., 2017] and the lenient deep Q-network (LDQN) [Palmer et al., 2018] for comparison. All these algorithms adopt the same Qnetwork structure of two fully connected hidden layers with 64 units and relu activation functions. The network parameters are optimized by Adam with a learning rate of 10-3 and a batch size of 1024. The threshold δmin of the NT method increases from -20 to 0 in 10, 000 episodes. The weight coefficient β of the WNTD method and the sampling ratio η of the NS method both decay from 1.0 to 10-4 in 100, 000 episodes. The coefficient for negative update of HDQN is 0.4. LDQN uses retroactive temperature decay schedule and the corresponding hyperparameters are ρ = -0.01, d = 0.95, µ = 0.9995, v = 1. For exploration, all the algorithms uses ϵ-greedy strategy with ϵ decaying from 1 to 0.2 in 60, 000 episodes. We range the number of agents from 3 to 5 and test the total rewards of each algorithm in each episode.

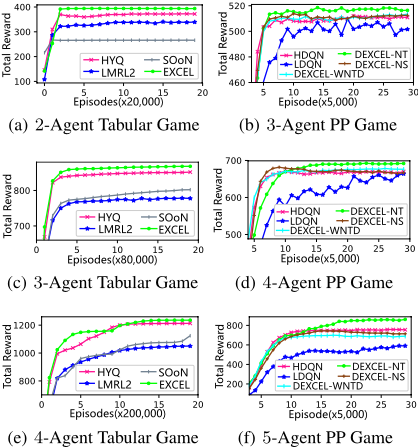

Figure 5 contains the results of the tabular grid world and the modified PP game. From the left column, it can be found that our algorithm EXCEL again performs the best among all the tested algorithms. The reward value that EXCEL converges to in each of the three tabular games is very close to the corresponding optimal value. The right column of Figure 5 shows that the negative threshold is the most effective method for utilizing negative samples because DEXCEL-NT significantly outperforms the other algorithms. DEXCELWNTD and DEXCEL-NS also perform better than (or similar to) HDQN and LDQN in the 3-agent and 4-agent PP games. However, the two algorithms fail to outperformHDQN in the 5-agent PP game. But generally, the results demonstrate that EXCEL has the ability to coordinate agents well.

5 Conclusion

In this paper, we propose an independent learner algorithm called explicitly coordinated policy iteration (EXCEL) for fully cooperative stochastic games. Instead of using an implicit coordination mechanism, the EXCEL algorithm explicitly forces agents to coordinate by utilizing the necessary conditions derived from the optimistic and average value functions of an optimal policy. For applications in large-scale problems, we propose three versions of deep EXCEL algorithms which utilize negative samples differently. We conduct extensive experiments in matrix games and stochastic games. The empirical results show that EXCEL converges faster, achieves higher coordination ratio and better asymptotic performance than the state-of-the-art algorithms.

Acknowledgements

We thank the reviewers for the valuable comments. Jianye Hao is supported by the National Natural Science Foundation of China (Grant Nos.: 61702362, U1836214).
