Modeling Source Syntax and Semantics for Neural AMR Parsing

1 Introduction

Recent studies in Abstract Meaning Representation (AMR) parsing regard it as a sequence-to-sequence (seq2seq) mapping problem, where AMR graphs are properly linearized into sequences [Peng et al., 2017; Konstas et al., 2017; van Noord and Bos, 2017]. Nevertheless, most previous works in this direction simply recast source sentences as word sequences, without considering the inherent syntactic and semantic information deemed to be useful for the construction of AMR graphs. In fact, recent progress in seq2seq modeling, such as neural machine translation [Shi et al., 2016; Li et al., 2017], shows that vanilla seq2seq models still fail to learn deep structural details from million-scale parallel corpora, let alone AMR corpora which are of much smaller sizes. As a result, in the absence of linguistic knowledge, seq2seq models for AMR parsing tend to produce results that do not well respect syntax and semantics of the input sentence.

∗Corresponding Author

1 In this paper, we view the output of PropBank semantic role labeling (SRL) as source semantics.

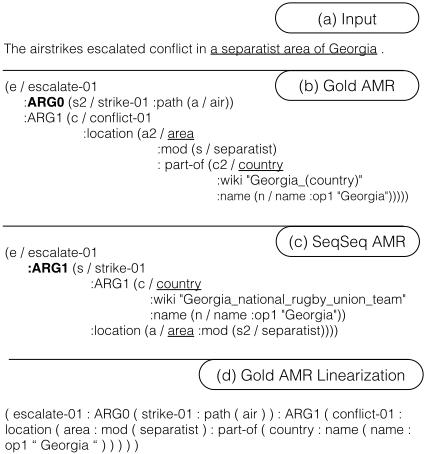

As an example, Figure 1(c) shows the output of a state-ofthe-art seq2seq baseline system, which indicates at least the following issues. First, the seq2seq model mistakenly recognizes the segment a separatist area of Georgia as two parallel concepts: country and area. Secondly, it deems both the concepts to be modifiers of the concept strike, which offenses the syntactic structure of the source sentence. Finally, it mistakenly views the concept strike as ARG1 (i.e., patient) of the concept escalate, which is inconsistent with semantic role labeling (SRL) output in which the segment The airstrikes acts as ARG0 of predicate escalated. By manually examining the AMR parsing outputs of 50 sentences from the development set, we find that 52% of automatic AMRs offense their corresponding source syntactic structures.

In principle, syntactic information provides a useful and promising avenue for AMR parsing, considering the fact that an AMR graph explicitly contains syntactic modifier-head relations between AMR concepts. The idea of incorporating syntactic and semantic information has already been shown effective in non-seq2seq AMR parsing [Wang et al., 2015a; Wang et al., 2015b; Damonte et al., 2017; Peng et al., 2018]. However, to the best of our knowledge, this idea has not been well explored for neural seq2seq AMR parsing.

In this paper, we focus on improving AMR parsing by modeling source syntax and semantics via a neural seq2seq modeling. Specifically, we exploit syntactic and semantic information for AMR parsing by explicitly taking advantage of linguistic knowledge derived from the outputs of syntactic parsing and SRL on source sentences. In our first approach, we linearize source syntax and/or semantics to obtain a mixed input sequence which consists of words, syntactic labels, and/or semantic labels. This approach is simple yet effective, even not requiring any modifications to existent seq2seq models. In our second approach, we propose syntactic (and/or semantic) structure-aware encoder to explicitly model syntactic (or semantic) structure between word pairs. Hereafter, we call the first approach as a sequence-aware linearization approach and the second approach as a structureaware encoding approach. Experimental results on an English benchmark dataset show that both the two approaches significantly improve the performance over a strong baseline.

2 AMR Parsing as Neural Seq2Seq Learning

Our baseline system is built on Transformer, a state-of-theart seq2seq model that is originally proposed for neural machine translation and syntactic parsing [Vaswani et al., 2017]. To make the model applicable to AMR parsing, we linearize AMR graphs into sequences in pre-processing and recover AMR graphs from sequences in post-processing.

Sequence-to-Sequence Modeling. Specifically, the encoder in the Transformer consists of a stack of multiple identical layers, each of which has two sub-layers, one for multihead self-attention mechanism, and the other is a positionwise fully connected feed-forward network. The decoder is also composed of a stack of multiple identical layers. Each layer in the decoder consists of sub-layers as in the encoder layers as well as an additional sub-layer that performs multihead attention to the output of the encoder stack. Experiments on the tasks of machine translation and syntactic parsing show that Transformer outperforms RNN-based seq2seq models. See [Vaswani et al., 2017] for more details.

Pre-Processing: AMR Graph to Target Sequence. As in [van Noord and Bos, 2017], we obtain simplified AMRs by removing variables and wiki links. Variables in AMR graphs are only necessary to indicate co-referring nodes and they do not carry any semantic information by themselves. Therefore, AMR graphs are first converted into AMR trees by removing variables and duplicating the co-referring nodes. Then newlines present in an AMR tree are replaced by spaces to get a sequence. For example, Figure 1(d) presents the linearization of the AMR graph in Figure 1(b). Based on the data of sentences paired with linearized AMR graphs, we train a seq2seq model whose outputs are also linearized AMRs.

Post-Processing: Target Sequence to AMR Graph. There is no surprise that the obtained translation from Transformer is an AMR sequence without variables, wiki-links, and co-occurrent variables. Moreover, the output may contain brackets that do not match, resulting incomplete concepts. To recover its full graph, the post-processing should restore information removed in pre-processing by assigning a unique variable to each concept, pruning duplicated and redundant material, performing Wikification, and restoring co-referring nodes. Meanwhile, it should fix incomplete concepts.

We use the pre-processing and post-processing scripts provided by [van Noord and Bos, 2017]. 2 Note that there exist some other linearization methods proposed in related studies [Konstas et al., 2017; Peng et al., 2017], and our approach can also be applied to them.

3 Modeling Source Syntax and Semantics via Sequence-Aware Linearization

Seq2seq models treat a sentence as a sequence of words and ignore external knowledge, failing to effectively capture various kinds of inherent structure of the sentence. To leverage external knowledge of input sentence, specifically the syntax and semantics, we focus on the syntactic parse tree and semantic roles of a sentence and propose three different parsing models that explicitly consider the syntactic and semantic structures into encoding. Figure 2 shows an example of a source sentence with syntactic parse tree and semantic roles. Though these syntactic and semantic information is tree structured, we follow recent studies [Vinyals et al., 2015; Choe and Charniak, 2016; Li et al., 2017] to linearize the tree structure into a sequence, which can be viewed as an alternative to tree structure.

3.1 Linearizing Source Syntax

Syntactic parsing is a process of mapping a sentence into a syntactic parse tree. Our approach of incorporating syntactic structure information is straightforward. The basic idea here is to convert a source sentence into a syntactic sequence from its parse tree, as exemplified in the Figure 2. Note that there exist many variants in linearization of a syntactic parse tree (e.g., including symbols indicating syntactic ending boundaries or not [Vinyals et al., 2015; Choe and Charniak, 2016; Li et al., 2017]). However, our preliminary experiments showed that the performance gap between these methods is very small. Therefore, we follow [Li et al., 2017] and simply use pre-order traversal to obtain the syntactic sequence, mixed with grammar labels, POS tags as well as words.

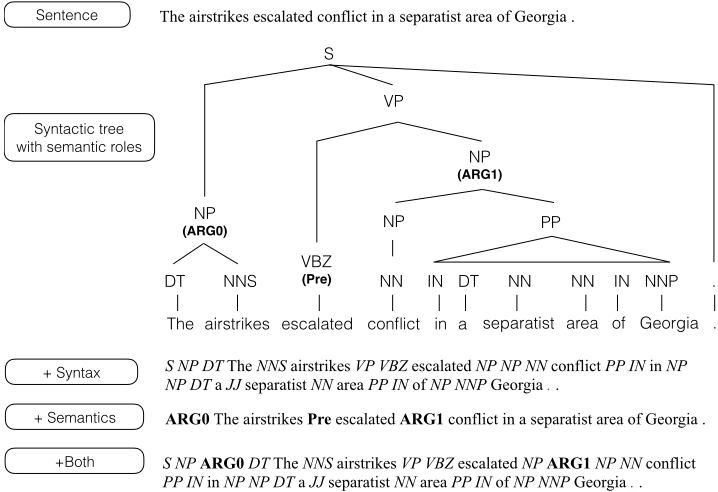

+Syntax in Figure 2 shows the syntactic sequence of the example sentence. The new sequence will directly be used as input of our AMR seq2seq system.

3.2 Linearizing Source Semantics

Semantic role labeling [Gildea and Jurafsky, 2002], sometimes also called shallow semantic parsing, is a process that assigns labels to phrases in a sentence that indicate their semantic roles in the sentence, such as that of agent, patient, time, or location, and so on. Given a source sentence, a predicate in it may have multiple semantic roles which usually map to syntactic nodes. There also exist many variants in linearization of semantic role labels. To be consistent with the method of linearizing syntactic structure, we insert semantic role labels at the corresponding segment's beginning position. For example, segment The airstrikes with ARG0 semantic role label will be linearized as ARG0 The airstrikes. Note that a sentence may have multiple predicates, thus it is frequent that a segment plays same or different semantic roles to two or more predicates. In this case, we linearize the segment with multiple semantic labels. For example, if segment The airstrikes plays roles of ARG0, ARG0 and ARG1 for three left-to-right predicates in one sentence, it will be linearzed as ARG0 ARG0 ARG1 The airstrikes.

2 https://github.com/RikVN/AMR

+Semantics in Figure 2 shows the semantic sequence of the example sentence. We also include symbol Pre to indicate the position of predicates. Again the new sequence will directly be used as input of our AMR seq2seq system.

3.3 Linearizing Both Source Syntax and Semantics

In order to obtain a sequence with both syntactic and semantic information, we also run the pre-order traversal on the syntactic tree with semantic roles to obtain the linearized version: if a syntactic node is augmented with semantic roles, then it is sequenced as its syntactic label, followed by the semantic role labels. For example, as the syntactic node NP in Figure 2 is associated with ARG0 semantic role, it is linearized as NP ARG0. Note that we discard predicate label Pre in the linearization due to its redundancy with verbal POS tags.

+Both in Figure 2 shows the sequence with syntax and semantics for the example sentence.

4 Modeling Source Syntax and Semantics via Structure-Aware Encoding

Transformer uses multi-head self-attention which enables the encoder to learn sentence-wide context for every source word. Therefore, to make the encoder be aware of sentence structure, we extend the relation-aware self-attention proposed in [Shaw et al., 2018] to encode structural information.

4.1 Structure-Aware Self-Attention

The conventional self-attention in Transformer uses Scaled Dot-Product Attention which operates on an input sequence, x = (x1, · · · , xn) of n elements where xi ∈ Rdx and computes a new sequence z = (z1, · · · , zn) with the same length:

where z ∈ Rn×dz . Each output element zi is calculated as a weighted sum of a linearly transformed input elements:

where W V ∈ Rdx×dz is a parameter matrix, and

where the weight vector αi = (αi1, · · · , αin) over input vectors is obtained by self-attention model, which captures the correspondences between element xi and others, and eij is an alignment model which scores how well the input elements xi and xj match. Here W Q,W K ∈ Rdx×dz are parameter matrices. Motivated by [Shaw et al., 2018], our main innovation over the conventional self-attention architecture is that we encode the structure relationships between two element pair (xi, xj) in the alignment model as shown in Eq. 4. We generalize this to an arbitrary number of features that represent the structure relationships between (xi, xj):

where |F| is the number of features, and fijl ∈ Rdf is the l-th feature embedding for (xi, xj) pair, W Kl ∈ Rdf×dz is a parameter matrix. Then, we update Eq. 2 accordingly to propagate structure information to the sublayer output by:

where W Vl ∈ Rdf×dz is a parameter matrix. For simplicity, we set feature embedding size df as dz.

Note that to enable an efficient implementation, we follow [Shaw et al., 2018] and use simple addition to incorporate structure representations in Eq. 5 and Eq. 6.

4.2 Syntactic and Semantic Features

Our generalized self-attention model supports an arbitrary number of input features to represent the structure relationships between word pairs. Next, we will focus on a few of well known syntactic and semantic features extracted from parse tree augmented with semantic information.

Syntactic Path (SynP). We use syntactic path, the combination of syntactic labels along the path from xi to xj to indicate the syntactic structure of xi and xj. 3 For example, the syntactic path from airstrikes to conflict is →NP↑S↓VP↓NP. Note that we use a positional tag → or ← to indicate if xi is on the left or right side of xj.

Syntactic Distance (SynD). We use syntactic distance, the numbers of nodes up-along and down-along the syntactic path, to indicate how far the two words xi and xj are from syntax perspective. For example, the syntactic distance from airstrikes to conflict is →1↑2↓. Similarly, positional tag → indicates that airstrikes is on the left side of conflict. Note that this feature is a coarse version of syntactic path.

Semantic Relation (SemR). Deriving semantic relation for a word pair is not straight forward since semantic structure is not strictly of tree style. Given a sentence, every predicate has its own semantic structure which connects the predicate and its arguments. For example, the semantic structure for predicate escalated in Figure 2 is ARG0 (The airstrikes) + Pre (escalated) + ARG1 (conflict .... Georgia). We use BIO tags to assign each word in a sentence with a semantic label per predicate. For predicate escalated, the semantic label for The is B-ARG0, similarly I-ARG0 for airstrikes, B-ARG1 for conflict, O for ., the sentence period. As a result, each word will have n semantic labels, where n is the number of predicates in this sentence. For word pair xi and xj, we first choose an appropriate predicate and then combine the two words' semantic labels w.r.t the chosen predicate. Here an appropriate predicate is the one (if exists) when the two words are covered by the semantic structure of the predicate. Otherwise, we use NONE to represent their semantic relation. Finally, we add the positional tag → or ← to indicate if xi is on the left or the right side of xj. For example, the semantic relation for airstrikes and conflict is →I-ARG0*B-ARG1.

3 If there exist two or more identical labels along the path, we use one as to alleviate path sparsity.

5 Experimentation

5.1 Experimental Settings

For evaluation of our approach, we use the sentences annotated with AMRs from the LDC release LDC2017T10. The dataset consists of 36,521 training AMRs, 1,368 development AMRs and 1,371 testing AMRs. To assign syntactic parses and semantic roles to the sentences in the whole dataset, we utilize the toolkit AllenNLP [Gardner et al., 2017] which achieves an F1 of 94.1% on Penn Treebank for syntactic parsing and 84.9% on English Ontonotes 5.0 for PropBank SRL. The results are currently state of the art of the tasks. For evaluation purpose, we use the AMR-evaluation tools to evaluate parsing performance in Smatch and other fine-grained metrics [Cai and Knight, 2013; Damonte et al., 2017].

We use tensor2tensor as the implementation of Transformer seq2seq model. 4 In parameter setting, we set the number of layers in both the encoder and decoder to 6. For optimization we use Adam with β1 = 0.1 [Kingma and Ba, 2015]. The number of heads is set to 8. In addition, we set the hidden size to 512 and the batch token-size to 4096. In beam searching, we increase the extra length as 100 from default 50. We also set Google NMT length penalty parameter α = 1.0 to encourage longer generation. In all experiments, we train the models for 250K steps on a single K40 GPU.

Moreover, we share vocabulary for the input and the output. For better translating rare words, we segment words into word pieces by byte pair encoding (BPE) [Sennrich et al., 2016]) with 20K operations. Our preliminary experiment showed that sharing vocabulary and using BPE substantially improve the performance on the development set from 64.8 in F1 to 71.4, revealing that they are two effective ways to address the issue of data sparsity [Peng et al., 2017].

In the sequence-aware linearization approach, it will unavoidably increase the length of an input sentence. Statistics on training data shows that the averaged length for input sequence increases from 17, to 48 with syntactic labels, 27 with semantic labels, and 52 with both types of labels. Fortunately, it does not bring extra parameters since though the input becomes longer, we set the same number of BPE coding operation as baseline, resulting negligible changes in vocabulary.

In the structure-aware encoding approach, we choose the 40K most frequent SynP features, and map all other features into either →UNK or ←UNK. For SynD and SemR features, we do not do feature selection since the two sets of features are limited in size.

4 https://github.com/tensorflow/tensor2tensor

5.2 Experimental Results

Table 1 shows the performance of our two approaches on the test set. Overall, modeling source syntax or semantics in our two approaches benefits AMR parsing in Smatch and all other fine-grained metrics.

Comparing the systems of linearizing approach against the baseline, we see that modeling source syntax (+Syntax) outperforms the baseline by 2.3 in F1 scores while modeling semantics (+Semantics) outperforms the baseline by 1.5 in F1 scores. Besides, in the presence of source syntax, integrating semantics results in further improvement of 0.9 in F1 scores (e.g., 73.2 vs. 74.1). This observation suggests that there exist both complementarity and overlapping between syntactic and semantic information. The gain achieved by modeling semantics is limited in the presence of syntax. Interestingly, this performance trend is similar to that of modeling source syntax and semantics for machine translation [Li et al., 2014].

Similar conclusion could be drawn when comparing the systems of structure-aware approach against the baseline. With all the three types of syntactic and semantic features, it achieves 3.4 F1 score improvement over the baseline.

Comparing the two proposed approaches, we see that the sequence-aware linearization approach achieves slightly lower performance than the structure-aware encoding approach. This suggests that even without manually designed features, the linearization approach is capable of implicitly learning useful structure information from linearized syntactic and semantic sequence. This is very encouraging since this approach does not require extra parameters and modification to the seq2seq model itself. The structure-aware encoding approach, on the other hand, is extensible to incorporate more word pair-related features.

Interestingly, modeling semantic structure from SRL output helps for SRL subtask in AMR parsing (see the last line in Table 1). This is probably due to the fact that the standalone SRL labeler (i.e., the AllenNLP toolkit) achieves more accurate semantic analysis than the AMR parsers.

5.3 Comparison with Other Systems

We also compare our performance with related studies on LDC2017T10, as presented in Table 2. From the results we can see that by modeling source syntax and semantics, our parsers outperform all other seq2seq models, even with more silver data [van Noord and Bos, 2017]. This indicates the effectiveness of our approaches in modeling source syntax and semantics. Moreover, our parsers achieve better performance than non-seq2seq models, except the graph prediction parser in [Lyu and Titov, 2018].

Table 3 compares the detailed performance. We obtain relatively high results for Reentrancies, Negations, and SRL, most likely due to their close relevance to syntactic and semantic structure. Compare to the state-of-the-art performance in [Lyu and Titov, 2018], we achieve lower performance for concepts, NER, and Wikification. This is probably due to that seq2seq models tend to stop early for translating long sentences, resulting in some source concept words not translated.

6 RelatedWork

We first group recent studies in AMR parsing into seq2seq and non-seq2seq parsing. Then we discuss related studies that employ either syntactic or semantic knowledge.

Seq2seq parsing. Seq2seq models generally require less features and build the AMR graph in an end-to-end way. However, previous models usually suffer from data sparsity issue [Peng et al., 2017]. In order to address this issue, [Barzdins and Gosko, 2016] and [van Noord and Bos, 2017] translate char-based plain English sentences into char-based AMR linearization while [Konstas et al., 2017] and [van Noord and Bos, 2017] utilize external training data. In this paper, our baseline achieves comparable results to non-seq2seq models, suggesting that segmenting words into word pieces and sharing vocabulary on two sides are two effective ways to handle data sparsity issue. Based on the strong baseline, this paper presents two different approaches to explore syntactic and semantic knowledge for seq2seq AMR parsing.

Non-seq2seq parsing. Most other AMR models can further categorized into tree-based, graph-based, and transitionbased. Tree-based AMR models incrementally convert a dependency tree into its corresponding AMR graph [Wang et al., 2015a]. Graph-based models calculate scores of edges and then use a maximum spanning connected subgraph algorithm to select edges that will constitute the graph [Werling et al., 2015; Flanigan et al., 2014]. Besides, [Foland and Martin, 2017] adopt a pipeline approach, in which the concept identification requires 5 different LSTMs based on carefully designed features. Then they connect these components into a single graph. [Lyu and Titov, 2018] treat the alignments as latent variables in a joint probabilistic model. Transitionbased models converts the plain text sentence into its corresponding graph via steps of transition [Damonte et al., 2017; Ballesteros and Al-Onaizan, 2017; Peng et al., 2018; Vilares and G´omez-Rodr´ıguez, 2018; Guo and Lu, 2018]. Besides the above categories, there exits other AMR models that uses combinatory categorical grammar (CCG), or translation grammar [Artzi et al., 2015; Pust et al., 2015].

Syntax and Semantics for AMR parsing. Most AMR models incorporate additional features such as POS tags, dependency trees, named entities, non-lexical role labels, etc. Specifically, tree-based AMR models directly adopt dependency tree as inputs. In translation-based models, different features are exploited for better transition predicting, include POS and syntactic features [Damonte et al., 2017; Ballesteros and Al-Onaizan, 2017; Vilares and G´omez-Rodr´ıguez, 2018; Peng et al., 2018] and semantic features [Wang et al., 2015a; Damonte et al., 2017]. In graph-based models, syntactic information, including POS, NER and dependency structures, are widely used for concept identification [Flanigan et al., 2014; Werling et al., 2015; Foland and Martin, 2017; Lyu and Titov, 2018]. In seq2seq-based models, [van Noord and Bos, 2017] and [Buys and Blunsom, 2017] incorporate POS tags for encoding source sentences. To the best of our knowledge, this paper is the first to explore syntactic and semantic structures for seq2seq AMR parsing.

7 Conclusion

We propose two approaches to incorporate syntactic and semantic information into seq2seq-based AMR parsing. The first approach linearizes source syntax and semantic structure into a mixed sequence which stitchingly consists of words, syntactic labels, and semantic labels while the second approach uses structure-aware encoder to explicitly model syntactic and semantic relations for word pairs. Experimental results show that the two approaches are capable of modeling source syntax and semantics and achieve improvement of 3.1% and 3.4% F1 scores on the benchmark dataset over a strong seq2seq baseline.

Acknowledgments

This work is supported by the National Natural Science Foundation of China (Grant No. 61751206, 61876120), and the Priority Academic Program Development of Jiangsu Higher Education Institutions.
