Personalized Federated Learning with Contextualized Generalization

1 Introduction

Recently, personalized federated learning (PFL) has emerged as an alternative to conventional federated learning (FL) to cope with the statistical heterogeneity of local datasets (a.k.a., Non-I.I.D. data). Different from conventional FL that focuses on training a shared global model to explore the global optima of the whole system, i.e., minimizing the averaged loss of clients, the PFL aims at developing a personalized model (distinct from the individually trained local model which usually fail to work due to the insufficient local data and the limited diversity of local dataset) for each client to properly cover diverse data distributions. To develop the personalized model, each user needs to incorporate some context information into the local data, since the insufficient local data cannot present the complete context which the personalized model will be applied to [Kairouz et al., 2019]. However, the context is generally latent and can be hardly featurized in practice, especially when the exchange of raw data is forbidden. In the exsiting PFLs, the latent context knowledge can be considered to be transfered to the local users via the global model update. During the PFL training, the personalization usually requires personalized models to fit local data distributions as well as possible, while the generalization needs to exploit the common context knowledge among clients by collaborative training. Thus, the PFL is indeed pursuing a trade-off between them to achieve better model accuracy than the traditional FL. More specifically, the server-side model is trained by aggregating local model updates from each client and hence can obtain the common context knowledge covering diverse data distributions. Such knowledge can then be offloaded to each client and contributes to the generalization of personalized models.

* Corresponding Authors

Despite the recent PFL approaches have reported better performance against conventional FL methods, they may still be constrained in personalization by using sole global model as the guidance during the training process. Concretely, our intuition is that: If there exists multiple latent contexts across local data distributions, then contextualized generalization can provide fine-grained context knowledge and further facilitate the personalized models toward better recognition accuracy and faster model convergence. We thus argue one potential bottleneck of current PFL methods is the loss of generalization diversity with only one global model. Worse still, the global model may also easily degrade the overall performance of PFL models due to negative knowledge transfers between the disjoint contexts.

In this paper, we design a novel PFL training framework, dubbed CGPFL, by involving the proposed concept, i.e., contextualized generalization (CG), to handle the challenge of the context-level heterogeneity. More specifically, we suppose the participating clients can be covered by several latent contexts based on their statistical characteristics and each latent context can be corresponded to a generalized model maintained in the server. The personalized models are dynamically associated with the most pertinent generalized model and guided by it with fine-grained contextualized generalization in an iterative manner. We formulate the process as a bi-level optimization problem considering both the global models with contextualized generalization maintained in the server and the personalized models trained locally in clients.

The main contributions of this work are summarized as follows:

• To the best of our knowledge, we are the first to propose the concept of contextualized generalization (CG) to provide fine-grained generalization and seek a better trade-off between personalization and generalization in PFL, and further formulate the training as a bi-level optimization problem that can be solved effectively by our designed CGPFL algorithm.
• We conduct detailed theoretical analysis to provide the convergence guarantee and prove that CGPFL can obtain a O(√K) times acceleration over the convergence rate of most existing algorithms for non-convex and smooth case. We further derive the generalization error bound of CGPFL and demonstrate that the proposed contextualized generalization can constantly help reach a better trade-off between personaliztion and generalization in terms of generalization error against the state-ofthe-arts works.
• We provide a heuristic improvement of CGPFL, dubbed CGPFL-Heur, by minimizing the generalization bound in the theoretical analysis, to find a near-optimal trade-off between personalization and generalization. CGPFL-Heur can achieve a near-optimal accuracy with negligible additional computation in the server, while retaining the same convergence rate as that of CGPFL.
• Experimental results on multiple real-world datasets demonstrate that our proposed methods, i.e., CGPFL and CGPFL-Heur, can achieve higher model accuracy than the state-of-the-art PFL methods in both convex and non-convex cases.

2 RelatedWork

Considering that one shared global model can hardly fit the heterogeneous data distributions, some recent FL works [Ghosh et al., 2020; Sattler et al., 2020; Briggs et al., 2020; Mansour et al., 2020] try to cluster the participating clients into multiple groups and develop corresponding number of shared global models by aggregating the local updates. After the training process, the obtained global models are offloaded to the corresponding clients for inference. Since these methods only reduce the FL training into several sub-groups, of which each global model is still shared by their in-group clients, the personalization is scarce and the offloaded models can still hardly cover the heterogeneous data distributions across the in-group clients. Specifically, IFCA [Ghosh et al., 2020] requires each client to calculate the losses on all global models to estimate its cluster identity during each iteration, and result in significantly higher computation cost. CFL [Sattler et al., 2020] demonstrates that the conventional FL even cannot converge in some Non-I.I.D. settings and provides intriguing perspective for clustered FL with bi-partitioning clustering. However, it can only work for some special Non-I.I.D. case described as 'same feature & different labels' [Hsieh et al., 2020]. FL+HC [Briggs et al., 2020] divides the clients clustering and the model training processes separately, and only conducts the clustering once at a manually defined step, while the training remains the same as conventional FL. Last, three effective PFL approaches are proposed in [Mansour et al., 2020], of which the user clustering method is very similar to IFCA [Ghosh et al., 2020].

Most recently, the PFL approaches have attracted increasing attention [Kairouz et al., 2019]. Among them, a branch of works [Hanzely and Richt´arik, 2020; Hanzely et al., 2020; Deng et al., 2020] propose to mix the global model on the server with local models to acquire the personalized models. More concretely, Hanzely et al. [Hanzely et al., 2020; Hanzely and Richt´arik, 2020] formulate the mixture problem as a combined optimization of the local and global models, while APFL [Deng et al., 2020] straightforwardly mixes them with an adaptive weight. KT-pFL [Zhang et al., 2021] exploits the knowledge distillation (KD) to transfer the generalization information to local models and allows the training of heterogeneous models in FL setting. Differently, FedPer [Arivazhagan et al., 2019] splits the personalized models into two separate parts, of which the base layers are shared by all the clients and trained on the server, and the personalization layers are trained to adapt to individual data and maintain the privacy properties on local devices. MOCHA [Smith et al., 2017] considers the model training on the clients as relevant tasks and formulate this problem as a distributed multi-task learning objective. Fallah et al. [Fallah et al., 2020] make use of the model agnostic meta learning (MAML) to implement the PFL, of which the obtained meta-model contains the generalization information and can be utilized as a good initialization point of training.

3 ProblemFormulation

We start by formalizing the FL task and then introduce our proposed method. Given N clients and the their Non-I.I.D. datasets ˜D1, ..., ˜Di, ..., ˜DN that subject to the underlying distributions as D1, ...,Di, ...,DN (Di ∈ Rd×ni and i ∈ [N]). Every client i has mi instances zi,j = (xi,j , yi,j ), j ∈ [mi], where x is the data features and y denotes the label. Hence, the objective function of the conventional FL can be described as [Li et al., 2021]:

where ω is the global model and fi : Rd → R, i ∈ [N] denotes the expected loss function over the data distribution of client i: fi(ω; ˜Di) = Ezi,j ∈ ˜Di [ ˜ fi(ω; zi,j )]. The function G(·) denotes the aggregation method to obtain the global model ω. For example, FedAvg [McMahan et al., 2017] applies G(ω) = ∑Ni=1 mi m fi(ω) to do the aggregation, where m is the total number of instances on local devices.

To handle the challenge of rich statistical diversities in PFL, especially in the cases where the local datasets belong to several latent contexts, our CGPFL propose to maintain K context-level generalized models in the server to guide the training of personalized models on the clients. During training, the local training process based on its local dataset can push the personalized model to fit its local data distribution as well as possible. Meanwhile, the regularizer will dynamically pull the personalized model as close as possible to the most pertinent generalized model during the iterative algorithm, from which the fine-grained context knowledge can be transferred to each personalized model to better balance the generalization and personalization. Hence, the overall objective function of CGPFL can be described as a bi-level optimization problem as:

where θi (i ∈ [N]) denotes the personalized model on client i and Θ = [θ1, ..., θN ]. The context-level generalized models are denoted by Ω = [ω1, ..., ωK]. λ is a hyper-parameter and Ck denotes the corresponding context that client i belongs to. Considering the latent contexts are represented in disjoint subspaces respectively, the function G(·) can be decomposed as G(ω1, ..., ωK; CK) = 1K ∑Kk=1 Gk(ωk ; Ck).

In general, there exists two alternative strategies to generate the context-level generalized models. The intuitive one is to solve the inner-level objective minΩ∈Rd×K G(ω1, ..., ωK) based on local datasets, which is similar to IFCA [Ghosh et al., 2020]. However, the computation overhead is high in the local devices while their available computation resources are usually limited. Comparing the local objective that trains a generalized model ωk based on local dataset, i.e.,

the locally obtained θ∗ i can be regarded as the distributed estimation of ω∗ k . In this way, the regularizer r(θ∗ i , ω∗ k ) can be used to evaluate the estimation error, and we can further derive the context-level generalized models by minimizing the average estimation error. In this paper, we use L2-norm i.e., r(θi, ωk) = 12 ‖θi -ωk‖2 as the regularizer, which is also adopted in various prevalent PFL methods [Hanzely and Richt´arik, 2020; Hanzely et al., 2020; T Dinh et al., 2020; Li et al., 2021] and has been empirically demonstrated to be superior over other regularizers, e.g., the symmetrized KL divergence in [Li et al., 2021]. Hence, we formulate our overall objective as:

We adopt pk,j = 1 |Ck| and qk = |Ck| N in this paper, where Ck(k ∈ [K]) denotes the latent context k, and |Ck| is the number of clients that belong to the context k. Intriguingly, the inner-level objective is exactly the classic objective of k-means clustering [Lloyd, 1982]. We notice that when K = 1, the above objective is equivalent to the overall objective in [T Dinh et al., 2020], which means that the objective in [T Dinh et al., 2020] can be regarded as a special case (K = 1) of ours.

4 Design of CGPFL

In this section, we introduce our proposed CGPFL in detail. The key idea is to dynamically relate the clients to K latent contexts based on their uploaded local model updates, and then develop a generalized model for each context by aggregating the updates from each user group. These generalized models are utilized to guide the training directions of personalized models and transfer contextualized generalization to them. Both the personalized models and the generalized models are trained in parallel, so we can denote the model parameters in matrix form. The generalized models can be written as ΩK := [ω1, . . . , ωk, . . . , ωK] ∈ Rd×K , and the corresponding local approximations are ΩI,R := [˜ω1,R, . . . , ˜ωi,R, . . . , ˜ωN,R], where R is the number of local iterations and ˜ωi,R, ωk ∈ Rd , ∀i ∈ [N], k ∈ [K]. In this paper, we use capital characters to represent matrices unless stated otherwise.

4.1 CGPFL: Algorithm

We design an effective alternating optimization framework to minimize the overall objective in (2). Specifically, the upper-level problem can be decomposed into N separate subproblems with fixed generalized models and to be solved on local devices in parallel. Next, we can further settle the inner-level problem to derive the generalized models with fixed personalized models. Since the solution to the subproblems of the upper-level objective has been well-explored in recent PFL methods [T Dinh et al., 2020; Li et al., 2021; Hanzely et al., 2020], we hereby mainly focus on the innerlevel problem. We alternately update the context-level generalized models ΩK and the context indicator CK to obtain the optimal generalized models. We view the personalized models, i.e., ΘI = [θi, ..., θN], as private data, and distributionally update the context-level generalized models ΩK on clients with fixed context indicator CK. During each server round, the server conducts k-means clustering on uploaded local parameters ΩtI,R to cluster the clients into K latent contexts, and the clustering results CK are re-arranged to the matrix form as P t ∈ RN×K . For example, if client i, i ∈ [N] is clustered into the context Cj , j ∈ [K] (where Cj , j ∈ [K] are sets, the union ⋃j∈[K] Cj and intersection ⋂j∈[K] Cj are the set [N] and empty set, respectively), the element (P t )i,j is defined as 1 |Cj| , or set 0 otherwise. In this way, the elements of

every column in P t amount to 1, i.e. ∑Ni=1 (P t )i,j = 1, ∀j, t. When considering the relationship between the consecutive P t , we can formulate the iterate as P t+1 = P tQt , where Qt ∈ RK×K is a square matrix. We can find that to maintain the above property of P t (∀t), the matrix Qt must satisfies

It is noticed that the clustering is based on the latest model parameters Ωt+1 I that depends on ΩtI , and the latest gradient updates given by clients. Hence, P t+1 is determined by and only by P t and Qt . Then we can consider this global iteration as a discrete-time Markov chain and Qt corresponds the transition probability matrix.

Algorithm 1 CGPFL: Personalized Federated Learning with

Contextualized Generalization

• Input: Θ0I , Ω0K , P 0 , T, R, S, K, λ, η, α, β. Output: ΘTI . 1: for t = 0 to T -1 do 2: Server sends ΩtK to clients according to P t . 3: for local device i = 1 to N in parallel do 4: Initialization: ΩtI,0 = ΩtKJ t . 5: Local update for the sub-problem of G(ΘI , ΩK): 6: for r = 0 to R - 1 do 7: for s = 0 to S - 1 do 8: Update personalized model: θs+1 i = θs i -η∇Fi(θs i ). 9: end for 10: Local update: ˜ωt i,r+1 = ˜ωt i,r -β∇ωi G( ˜ θi(˜ωt i,r), ˜ωt i,r ). 11: end for 12: end for 13: Clients send back ˜ωt i,R and server conducts clustering (e.g., k-means++) on models ΩtI,R to obtain P t+1 . 14: Global aggregation: Ωt+1 K = ΩtK -α(ΩtK -ΩtI,RP t+1 ). 15: end for 16: return The personalized models ΘTI .

During each local round, the clients need to first utilize local datasets to solve the regularized optimization objective, i.e., the upper-level objective in (2) with fixed ˜ωt i,r to obtain a δ-approximate solution ˜ θi(˜ωt i,r ). Then, each client is required to calculate the gradients ∇ωi G(˜ θi(˜ωt i,r ), ˜ωt i,r ) with fixed ˜ θi(˜ωt i,r ) and update the model using ˜ωt i,r+1 = ˜ωt i,r - β∇ωi G(˜ θi(˜ωt i,r ), ˜ωt i,r ) , where β is the learning rate and ∇ωi G( ˜ θi(˜ωt i,r ), ˜ωt i,r ) = 2N ∇r( ˜ θi(˜ωt i,r ), ˜ωt i,r ). To reduce the communication overhead, our CGPFL allows the clients to process several local iterations before uploading the latest model parameters to the server. The details of CGPFL is given in algorithm 1, from which we can summarize the parameters update process as:

where P t+1 = P tQt and J tP t = IK (J t ∈ RK×N and IK is an identity matrix), ∀t.

4.2 Convergence Analysis

Since the inner-level objective in (2) is non-convex, we focus on analyzing the convergence rate under the smooth case. Firstly, we can write the local updates as:

˜ΘI(ΩtI,r )). Based on (5) and the update process in (4), we can obtain the global updates as:

Definition 1 (L-smooth) (i.e., L-Lipschitz gradient) If a function f satisfies ‖∇f(ω) -∇f(ω′ )‖ ≤ L‖ω - (ω)′ ‖, ∀ω, ω′ , we say f is L-smooth.

Assumption 1 (Smoothness) The loss functions fi is Lsmooth and G(ωk) is LG-smooth, ∀i, k.

Assumption 2 (Bounded intra-context diversity) The variance of local gradients to the corresponding context-level generalized models is upper bounded by:

where Gk,i(ωk) := r(θi, ωk).

Assumption 3 (Bounded parameters and gradients) The generalized model parameters ΩtK and the gradients ∇GK(ΩtK ) are upper bounded by ρΩ and ρg, respectively.

where ρΩ and ρg are finite non-negative constants, and ∇GK(ΩtK ) := [∇G1(ωt1 ), ...,∇Gk(ωtk ), ...,∇GK(ωtK )].

Proposition 1 [T Dinh et al., 2020] The deviation between the δ-approximate and the optimal solution is upper bounded by δ. That is:

where ˜ΘI is the δ-approximate solution and ̂ΘI is the matching optimal solution.

Assumption 1 provides typical conditions for convergence analysis, and assumption 2 is common in analyzing algorithms that are built on SGD. As for assumption 3, the model parameters are easily bounded by using projection during the model training process, while the gradients can be bounded with the smooth condition and bounded model parameters. To evaluate the convergence of the proposed CGPFL, we adopt the technique used in [T Dinh et al., 2020] to define that:

where t∗ is uniformly sampled from the set {0, 1, . . . , T -1}. Theorem 4.1 (Convergence of CGPFL) Suppose Assumption 1, 2 and 3 hold. If β ≤ 1 2√R(R+1)L2G , ∀R ≥ 1, α ≤ 1, and ˆα0 :=min { 8α2 ρ2Ω K∆G , √ 43 αρΩ ρg , √ 1 416LG2 α}, where ∆G is defined as ∆G := E[ 1K ∑Kk=1 Gk(ω0 k )- 1K ∑Kk=1 Gk(ωT k )], we have:

• The convergence of the generalized models:

• The convergence of the personalized models:

Remark 4.1 Theorem 4.1 shows that the proposed CGPFL can achieve a convergence rate of O(1/√KNRT ), which is O(√K) times faster than what most of the state-of-the-art works [Karimireddy et al., 2020; Deng et al., 2020; Reddi et al., 2020] achieved (i.e., O(1/√NRT )) in non-convex FL setting. The detailed proof of convergence can be found in the full version of this paper [Tang et al., 2021].

4.3 Generalization Error

We analyse the generalization error of CGPFL in this section. Before starting the analysis, we first introduce two important definitions as follows.

Definition 2 (Complexity) Let H be a hypothesis class (correspanding to ω ∈ Rd in neural network), and |D| be the size of dataset D, the complexity of H can be expressed by the maximum disagreement between two hypotheses on the dataset D:

Definition 3 (Label-discrepancy) Consider a hypothesis class H, the label-discrepancy between two data distributions D1 and D2 is given by:

Theorem 4.2 (Generalization error bound of CGPFL) When Assumption 1 is satisfied, with probability at least 1 - δ, the following holds:

where B is a positive constant with ∣∣LD(h1) - LD(h2)∣∣ ≤ BλH(D), ∀h1, h2 ∈ H. Besides, ˆh∗i is given by ˆh∗i = arg min θi {L ˜Di (h(θi))+‖θi - ω∗ k ‖2} and cost(Θ∗ , Ω∗ ; K) = mi

Remark 4.2 Theorem 4.2 gives the generalization error bound of CGPFL. When K = 1, it yields the error bound of PFL with single global model [Li et al., 2021; T Dinh et al., 2020; Hanzely and Richt´arik, 2020; Hanzely et al., 2020]. As the number of contexts increases, the second terms become larger, while the last term get smaller. Hence, our CGPFL can alwalys reach better personalization-generalization trade-off by adjusting the number of contexts K, and further achieve higher accuracy than the existing PFL methods. The detailed proof of generalization error can be found in the full version of this paper [Tang et al., 2021].

4.4 CGPFL-Heur: The Heuristic Improvement

As discussed, Theorem 4.2 indicates that there exists a optimal K∗ (K∗ ∈ [K]) to achieve the minimal generalization error bound that corresponds to the highest model accuracy. Theoretically, the optimal K∗ can be obtained by minimizing the generalization bound in Theorem 4.2. We can find that the first and the third term have no relationship with the number of latent contexts, that is, they are irrelevant to K. Therefore, we can obtain an optimal K∗ by minimizing the following expression:

where µ is a hyper-parameter which is induced by the unknown constant L. The above objective can be solved in the server along with the clustering. In the down-to-earth experiments, we notice that the latent context structure can be learned efficiently in the first few rounds. Based on this observation, we believe that CGPFL-Heur can efficiently figure out a near-optimal solution ˆK by operating the solver of (11) only in the first few rounds (in the experimental part, we only operate the solver at the first global round), and after that, the obtained ˆK will no longer be updated. In this way, CGPFLHeur can reach a near-optimal trade-off between generalization and personalization with negligible additional computation in the server. Moreover, in view of the fact that we only need to operate the solver in the first few rounds, CGPFLHeur can retain the same convergence rate as CGPFL.

5 Experiments

5.1 Experimental Setup

Dataset Setup: Three datasets including MNIST [LeCun et al., 1998], CIFAR10 [Krizhevsky, 2009], and FashionMNIST (FMNIST) [Xiao et al., 2017] are used in our experiments. To generate Non-I.I.D. datasets for the clients, we split the whole dataset as follows. 1) MNIST: we distribute the train-set containing 60, 000 digital instances into 40 clients, and each of them is only provided with 3 classes out of total 10. The number of instances obtained by each client is randomly chosen from the range of [400, 5000], of which 75% are used for training and the remaining 25% for testing. 2) CIFAR10: We distribute the whole dataset containing 60, 000 instances into 40 clients, and each of them is also provided with 3 classes out of total 10. The number of instances obtained by each client is randomly chosen from the range of [400, 5000]. The train/test split remains 75%/25%. 3) Fashion-MNIST: It's a more challenging replacement of MNIST, and the Non-I.I.D. splitting is the same as MNIST.

Competitors: We compare our CGPFL and CGPFL-Heur with seven state-of-the-art works: one traditional FL method, FedAvg [McMahan et al., 2017]; one typical cluster-based FL method, IFCA [Ghosh et al., 2020]; and five most recent PFL models, APFL [Deng et al., 2020], Per-FedAvg [Fallah et al., 2020], L2SGD [Hanzely and Richt´arik, 2020], pFedMe [T Dinh et al., 2020], and Ditto [Li et al., 2021].

Model Architectures: 1) For strongly convex case, we use a l2-regularized multinomial logistic regression model (MLR) with the softmax and cross-entropy loss, in line with [T Dinh et al., 2020]; 2) For the non-convex case, we apply a neural network (DNN) with one hidden layer of size 128 and a softmax layer at the end for evaluation. In addition, we apply a CNN that has two convolutional layers and two fully connected layers for the CIFAR10. All competitors and our algorithms are based on the same configurations and fine-tuned to their best performances.

5.2 Overall Performance

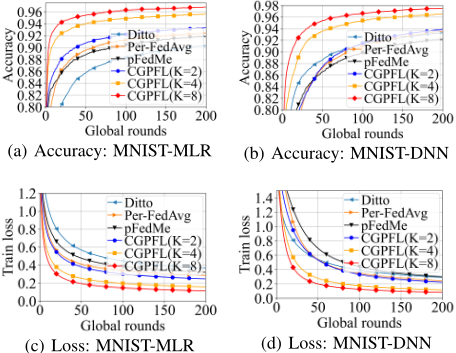

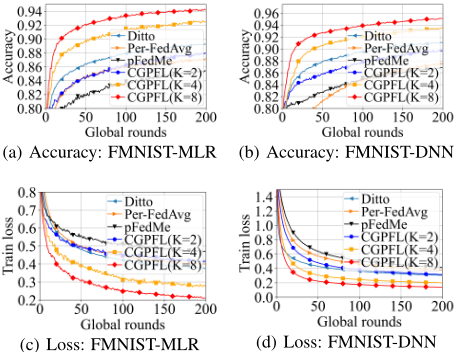

The comprehensive comparison results of our CGPFL and CGPFL-Heur are shown in Table 1. It can be observed that our methods outperform the competitors with large margins for both non-convex and convex cases on all datasets, even if IFCA works with a good initialization. Besides, although we only provide the proof of convergence rate under nonconvex case, as shown in Figure 1 and Figure 2, the extensive experiments further demonstrate that our methods constantly obtain better performance against multiple state-ofthe-art PFL metohds (pFedMe, Ditto, and Per-FedAvg) with faster convergence rate under both strongly-convex and nonconvex cases. Specifically, the figures in Figure 1 show the results for MNIST dataset on MLR and DNN model, while the figures in Figure 2 give the results for Fashion-MNIST dataset on MLR and DNN model.

5.3 Further Evaluations on CGPFL-Heur

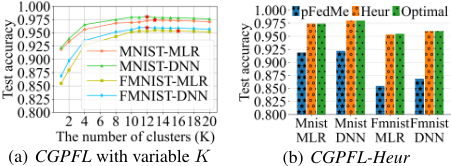

To further evaluate the performance of CGPFL-Heur, on the one hand, we conduct the CGPFL training with different number of contexts (i.e., K) varying form 1 to N/2 on MINST and FMNIST, respectively. In particular, we set the maximal value of K no more than N/2 to avoid overfitting. By collating the model accuracy with different K, we can find out the optimal K which corresponds to the optimal personalization-generalization trade-off in CGPFL. The results are demonstrated in Figure 3(a). On the other hand, we conduct the CGPFL-Heur training with an appropriate µ and keep other parameters same as that of the above evaluation. As shown in Figure 3(a), we distinguish the results of CGPFL-Heur using red-star points. Besides, we make comparisons between the performance of a state-of-the-art PFL algorithm, pFedMe [T Dinh et al., 2020] with our proposed CGPFL with optimal K and CGPFL-Heur in Figure 3(b). The results in Figure 3(a) and Figure 3(b) demonstrate that our designed heuristic algorithm CGPFL-Heur can effectively reach a near-optimal trade-off and consequently achieve the near-optimal model accuracy.

6 Conclusion

In this paper, we propose a novel personalized federated learning framework to handle the challenge of statistical heterogeneit (Non-I.I.D), especially contextual heterogeneity in the federated setting. To the best of our knowledge, we are the first to propose the concept of contextualized generalization (CG) for personalized federated learning and further formulate it to a bi-level optimization problem that is solved effectively. Our method provides fine-grained generalization knowledge for personalized models which can prompt higher test accuracy and facilitate faster model convergence. Experimental results on real-world datasets demonstrate the effectiveness of our method over the state-of-the-art works.

Acknowledgments

This research was supported by fundings from the KeyArea Research and Development Program of Guangdong Province (No. 2021B0101400003), Hong Kong RGC Research Impact Fund (No. R5060-19), General Research Fund (No. 152221/19E, 152203/20E, and 152244/21E), the National Natural Science Foundation of China (61872310 and 62102327), and Shenzhen Science and Technology Innovation Commission (JCYJ20200109142008673).
