LangXAI: Integrating Large Vision Models for Generating Textual Explanations to Enhance Explainability in Visual Perception Tasks

1. [Abdelfattah et al., 2020] Rabab Abdelfattah, Xiaofeng Wang, and Song Wang. Ttpla: An aerial-image dataset for detection and segmentation of transmission towers and power lines. In Proceedings of the Asian Conference on Computer Vision, 2020.
2. [Alayrac et al., 2022] Jean-Baptiste Alayrac, Jeff Donahue, Pauline Luc, Antoine Miech, Iain Barr, Yana Hasson, Karel Lenc, Arthur Mensch, Katie Millican, Malcolm Reynolds, Roman Ring, Eliza Rutherford, Serkan Cabi, Tengda Han, Zhitao Gong, Sina Samangooei, Marianne Monteiro, Jacob Menick, Sebastian Borgeaud, Andrew Brock, Aida Nematzadeh, Sahand Sharifzadeh, Mikolaj Binkowski, Ricardo Barreira, Oriol Vinyals, Andrew Zis- serman, and Karen Simonyan. Flamingo: a visual lan- guage model for few-shot learning, 2022.
3. [Banerjee and Lavie, 2005] Satanjeev Banerjee and Alon Lavie. Meteor: An automatic metric for mt evaluation with improved correlation with human judgments. In Proceed- ings of the acl workshop on intrinsic and extrinsic evalua- tion measures for machine translation and/or summariza- tion, pages 65-72, 2005.
4. [Chang et al., 2023] Yupeng Chang, Xu Wang, Jindong Wang, Yuan Wu, Linyi Yang, Kaijie Zhu, Hao Chen, Xi- aoyuan Yi, Cunxiang Wang, Yidong Wang, Wei Ye, Yue Zhang, Yi Chang, Philip S. Yu, Qiang Yang, and Xing Xie. A survey on evaluation of large language models, 2023. [Chattopadhay et al., 2018]
5. Aditya Chattopadhay, Anirban Sarkar, Prantik Howlader, and Vineeth N Balasubrama- nian. Grad-cam++: Generalized gradient-based visual ex- planations for deep convolutional networks. In 2018 IEEE Winter Conference on Applications of Computer Vision (WACV). IEEE, March 2018.
6. [Chen et al., 2017] Liang-Chieh Chen, George Papandreou, Florian Schroff, and Hartwig Adam. Rethinking atrous convolution for semantic image segmentation. arXiv preprint arXiv:1706.05587, 2017.
7. [Clement et al., 2024] Tobias Clement, Truong Thanh Hung Nguyen, Mohamed Abdelaal, and Hung Cao. Xai- enhanced semantic segmentation models for visual qual- ity inspection. In 2024 IEEE International Conference on Consumer Electronics (ICCE), pages 1-4. IEEE, 2024.
8. [Draelos and Carin, 2020] Rachel Lea Draelos and Lawrence Carin. Use hirescam instead of grad-cam for faithful explanations of convolutional neural networks. arXiv preprint arXiv:2011.08891, 2020.
9. [Driess et al., 2023] Danny Driess, Fei Xia, Mehdi S. M. Sajjadi, Corey Lynch, Aakanksha Chowdhery, Brian Ichter, Ayzaan Wahid, Jonathan Tompson, Quan Vuong, Tianhe Yu, Wenlong Huang, Yevgen Chebotar, Pierre Ser- manet, Daniel Duckworth, Sergey Levine, Vincent Van- houcke, Karol Hausman, Marc Toussaint, Klaus Greff, Andy Zeng, Igor Mordatch, and Pete Florence. Palm-e: An embodied multimodal language model, 2023.
10. [Ge et al., 2021] Zheng Ge, Songtao Liu, Feng Wang, Zem- ing Li, and Jian Sun. Yolox: Exceeding yolo series in 2021. arXiv preprint arXiv:2107.08430, 2021.
11. [Hu et al., 2023] Yushi Hu, Hang Hua, Zhengyuan Yang, Weijia Shi, Noah A Smith, and Jiebo Luo. Promptcap: Prompt-guided task-aware image captioning, 2023.
12. [Jin et al., 2019] Weina Jin, Sheelagh Carpendale, Ghassan Hamarneh, and Diane Gromala. Bridging ai developers and end users: An end-user-centred explainable ai taxon- omy and visual vocabularies. Proceedings of the IEEE Vi- sualization, Vancouver, BC, Canada, pages 20-25, 2019.
13. [Jin et al., 2021] Weina Jin, Jianyu Fan, Diane Gromala, Philippe Pasquier, and Ghassan Hamarneh. Euca: The end-user-centered explainable ai framework. arXiv preprint arXiv:2102.02437, 2021.
14. [Lin et al., 2014] Tsung-Yi Lin, Michael Maire, Serge J. Be- longie, Lubomir D. Bourdev, Ross B. Girshick, James Hays, Pietro Perona, Deva Ramanan, Piotr Doll'a r, and C. Lawrence Zitnick. Microsoft COCO: common objects in context. CoRR, abs/1405.0312, 2014.
15. [Lin, 2004] Chin-Yew Lin. Rouge: A package for automatic evaluation of summaries. In Text summarization branches out, pages 74-81, 2004.
16. [Liu et al., 2022] Ze Liu, Han Hu, Yutong Lin, Zhuliang Yao, Zhenda Xie, Yixuan Wei, Jia Ning, Yue Cao, Zheng Zhang, Li Dong, et al. Swin transformer v2: Scaling up capacity and resolution. In Proceedings of the IEEE/CVF conference on computer vision and pattern recognition, pages 12009-12019, 2022.
17. [Muhammad and Yeasin, 2020] Mohammed Bany Muham- mad and Mohammed Yeasin. Eigen-cam: Class activation map using principal components. In 2020 international joint conference on neural networks (IJCNN), pages 1-7. IEEE, 2020.
18. [Nguyen et al., 2022] Phong X Nguyen, Hung Q Cao, Khang VT Nguyen, Hung Nguyen, and Takehisa Yairi. Se- cam: Tightly accelerate the image explanation via region- based segmentation. IEICE TRANSACTIONS on Informa- tion and Systems, 105(8):1401-1417, 2022.
19. [Nguyen et al., 2023] Truong Thanh Hung Nguyen, Van Binh Truong, Vo Thanh Khang Nguyen, Quoc Hung Cao, and Quoc Khanh Nguyen. Towards trust of ex- plainable ai in thyroid nodule diagnosis. In International Workshop on Health Intelligence, pages 11-26. Springer, 2023.
20. [Nguyen et al., 2024] Quoc Khanh Nguyen, Truong Thanh Hung Nguyen, Vo Thanh Khang Nguyen, Van Binh Truong, Tuong Phan, and Hung Cao. Efficient and concise explanations for object detection with gaussian- class activation mapping explainer. arXiv preprint arXiv:2404.13417, 2024.
21. [OpenAI, 2023] OpenAI. Gpt-4v(ision) system card. https: //cdn.openai.com/papers/GPTV System Card.pdf, 2023. Accessed: 2024-02-14. Link
22. [Papineni et al., 2002] Kishore Papineni, Salim Roukos, Todd Ward, and Wei-Jing Zhu. Bleu: a method for au- tomatic evaluation of machine translation. In Proceedings of the 40th annual meeting of the Association for Compu- tational Linguistics, pages 311-318, 2002.
23. [Paralič et al., 2023] Ján Paralič, Michal Kolárik, Zuzana Paraličová, Oliver Lohaj, and Adam Jozefík. Perturbation- based explainable ai for ecg sensor data. Applied Sciences, 13(3), 2023.
24. [Peng et al., 2023] Zhiliang Peng, Wenhui Wang, Li Dong, Yaru Hao, Shaohan Huang, Shuming Ma, and Furu Wei. Kosmos-2: Grounding multimodal large language models to the world, 2023.
25. [Petsiuk et al., 2018] Vitali Petsiuk, Abir Das, and Kate Saenko. Rise: Randomized input sampling for explana- tion of black-box models, 2018.
26. [Petsiuk et al., 2021] Vitali Petsiuk, Rajiv Jain, Varun Man- junatha, Vlad I. Morariu, Ashutosh Mehra, Vicente Or- donez, and Kate Saenko. Black-box explanation of object detectors via saliency maps, 2021.
27. [Recht et al., 2019] Benjamin Recht, Rebecca Roelofs, Lud- wig Schmidt, and Vaishaal Shankar. Do imagenet classi- fiers generalize to imagenet? In International Conference on Machine Learning, pages 5389-5400, 2019.
28. [Ren et al., 2015] Shaoqing Ren, Kaiming He, Ross Gir- shick, and Jian Sun. Faster r-cnn: Towards real-time ob- ject detection with region proposal networks. Advances in neural information processing systems, 28, 2015.
29. [Rodrigues et al., 2024] Caroline Mazini Rodrigues, Nico- las Boutry, and Laurent Najman. Transforming gradient- based techniques into interpretable methods, 2024.
30. [Schoonderwoerd et al., 2021] Tjeerd AJ Schoonderwoerd, Wiard Jorritsma, Mark A Neerincx, and Karel Van Den Bosch. Human-centered xai: Developing design pat- terns for explanations of clinical decision support sys- tems. International Journal of Human-Computer Studies, 154:102684, 2021.
31. [Selvaraju et al., 2017] Ramprasaath R. Selvaraju, Michael Cogswell, Abhishek Das, Ramakrishna Vedantam, Devi Parikh, and Dhruv Batra. Grad-cam: Visual explanations from deep networks via gradient-based localization. In 2017 IEEE International Conference on Computer Vision (ICCV), pages 618-626, 2017.
32. [Shao et al., 2023] Zhenwei Shao, Zhou Yu, Meng Wang, and Jun Yu. Prompting large language models with answer heuristics for knowledge-based visual question answering. In 2023 IEEE/CVF Conference on Computer Vision and Pattern Recognition (CVPR), pages 14974-14983, 2023.
33. [Sudhakar et al., 2021] Mahesh Sudhakar, Sam Sattarzadeh, Konstantinos N. Plataniotis, Jongseong Jang, Yeonjeong Jeong, and Hyunwoo Kim. Ada-sise: Adaptive semantic input sampling for efficient explanation of convolutional neural networks, 2021.
34. [Truong et al., 2024] Van Binh Truong, Truong Thanh Hung Nguyen, Vo Thanh Khang Nguyen, Quoc Khanh Nguyen, and Quoc Hung Cao. Towards better explanations for ob- ject detection. In Berrin Yanıkoglu and Wray Buntine, ed- itors, Proceedings of the 15th Asian Conference on Ma- chine Learning, volume 222 of Proceedings of Machine Learning Research, pages 1385-1400. PMLR, 11-14 Nov 2024.
35. [Wu et al., 2024] Tong Wu, Guandao Yang, Zhibing Li, Kai Zhang, Ziwei Liu, Leonidas Guibas, Dahua Lin, and Gor- don Wetzstein. Gpt-4v(ision) is a human-aligned evaluator for text-to-3d generation, 2024.
36. [Yang et al., 2023] Zhengyuan Yang, Linjie Li, Kevin Lin, Jianfeng Wang, Chung-Ching Lin, Zicheng Liu, and Li- juan Wang. The dawn of lmms: Preliminary explorations with gpt-4v(ision), 2023.
37. [Zhang et al., 2019] Tianyi Zhang, Varsha Kishore, Felix Wu, Kilian Q Weinberger, and Yoav Artzi. Bertscore: Evaluating text generation with bert. arXiv preprint arXiv:1904.09675, 2019.
38. [Zhang et al., 2023] Xinlu Zhang, Yujie Lu, Weizhi Wang, An Yan, Jun Yan, Lianke Qin, Heng Wang, Xifeng Yan, William Yang Wang, and Linda Ruth Petzold. Gpt- 4v(ision) as a generalist evaluator for vision-language tasks, 2023.

References were extracted automatically from the PDF and may contain errors.

Full text extracted automatically from the PDF; figures, tables and equations may differ. The PDF is the version of record.

1 Introduction

In artificial intelligence (AI), making complex AI decisions comprehensible is essential, especially in the context of application, which requires a large demand for explainability. Explainable AI (XAI) is vital for achieving this, yet image-based XAI methods currently demand substantial AI and computer vision (CV) knowledge, often necessitating a domain expert to describe explanations to end-users [Jin et al., 2019; Nguyen et al., 2023]. Large Vision Models (LVMs), evolving from Large Language Models (LLMs) for visual tasks, present a promising approach to address this issue. LVMs adeptly interpret visual data in human-like ways, improving AI system transparency. Recognizing the potential of XAI and LVM synergy, we aim to develop an innovative XAI framework incorporating advanced LVMs to comprehensively explain a broad spectrum of CV tasks.

More specifically, we introduce LangXAI, a framework that employs LVMs to deliver clear text-based explanations for AI visual decision processes. LangXAI aims to increase the transparency of black-box models, making it easier for users without extensive specialized knowledge to understand AI decisions. Furthermore, we employ a diverse set of metrics during the validation stage to thoroughly evaluate the model. Our initiative is dedicated to enhancing AI transparency and trustworthiness through accessible explanations.

2 RelatedWork

We review two key aspects of our study. First, we investigate the current development of XAI in the fields of CV, with a specific focus on classification, semantic segmentation, and object detection. Additionally, we explore the emerging landscape of LVMs and their rapid development.

2.1 Explainable AI in Computer Vision

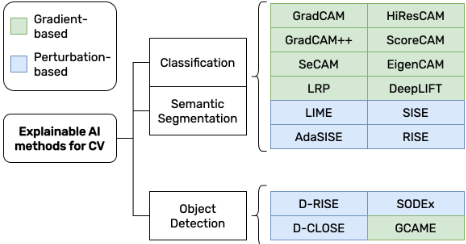

XAI methods for CV tasks can be categorized into two distinct groups based on their purposes, as illustrated in Figure 2. While classification and semantic segmentation share common XAI techniques due to their inherent similarities, object detection necessitates different approaches owing to its dual focus on classification and localization. In contrast to classification tasks that take into account the entire image, object detectors primarily employ convolutional layers instead of fully connected ones. This design choice confines the receptive field of the desired output to just a segment of the input image [Truong et al., 2024].

Regarding the working mechanisms, all XAI methods utilized in this study fall into two classes: Gradient-based and Perturbation-based. Gradient-based methods assess feature significance by computing gradients of the output concerning the extracted features using backpropagation. These methods then assign estimated attribution scores, identify the path that maximizes a specific output, and highlight critical input features, such as pixels in this study [Rodrigues et al., 2024]. We consider several gradient-based algorithms, such as GradCAM [Selvaraju et al., 2017], GradCAM++ [Chattopadhay et al., 2018], SeCAM [Nguyen et al., 2022], HiResCAM [Draelos and Carin, 2020], EigenCAM [Muhammad and Yeasin, 2020], and G-CAME [Nguyen et al., 2024]. In contrast, perturbation-based methods modify input images to track changes in the output. Significant output alternations indicate input relevance, especially when the target class is modified.

These methods support iterative testing and offer visualizations of crucial input segments [Paraliˇc et al., 2023]. In this research, several perturbation-based methods have been utilized, namely AdaSISE [Sudhakar et al., 2021], RISE [Petsiuk et al., 2018], D-RISE [Petsiuk et al., 2021], and DCLOSE [Truong et al., 2024].

2.2 Large VisionModels (LVMs)

The advancements in LLMs have given rise to LVMs, which blend language understanding and reasoning with visual perception [Peng et al., 2023]. Initial LVM strategies involve refining visual encoders based on language embeddings or visual-to-text conversion [Wu et al., 2024]. Models such as Flamingo [Alayrac et al., 2022] and PaLM-E [Driess et al., 2023] exemplify the former approach, while techniques for the latter method have been proposed in [Hu et al., 2023] and [Shao et al., 2023]. In this research, we employed a new member of the LVMs family, which is GPT-4 Vision [OpenAI, 2023]. This LVM exhibits robust performance across diverse tasks [Yang et al., 2023] and demonstrates a strong alignment with human evaluators [Zhang et al., 2023].

Despite the presence of several end-user-centered XAI frameworks and patterns [Jin et al., 2019; Jin et al., 2021; Schoonderwoerd et al., 2021], contemporary research lacks an attempt to develop a unified framework for providing comprehensive and trustworthy end-to-end explanations to endusers for the saliency-map explanations [Chang et al., 2023;

Clement et al., 2024]. To address this gap, this paper aims to introduce a novel XAI framework that leverages the capabilities of LVMs to simplify user-system interaction and offer highly reliable interpretations.

3 Framework

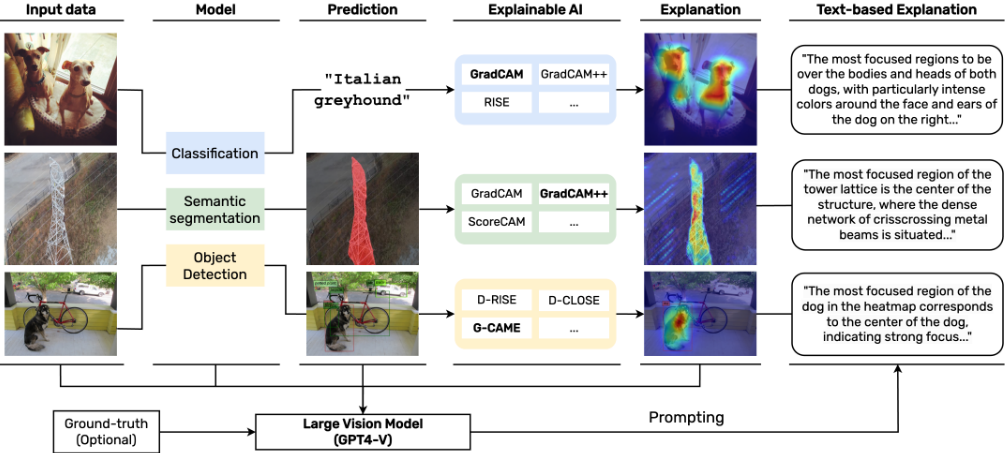

Our framework is divided into two main parts, aiming to provide end users with a straightforward approach to comprehending complex image decision explanations. The procedural details of the framework are depicted in Figure 3.

3.1 Block 1: SaliencyMap Extraction with XAI

The first part of our framework focuses on generating saliency maps using XAI methods from various CV models tailored for different tasks. The process involves uploading an image and selecting the desired task, with specific models assigned accordingly: Swin Transformer v2 [Liu et al., 2022] for classification, DeepLabv3-ResNet50 and ResNet101 [Chen et al., 2017] for semantic segmentation, and Faster R-CNN [Ren et al., 2015] and YOLOX [Ge et al., 2021] for object detection. Following the image analysis, users can specify the predicted class and choose the XAI method to generate saliency maps, which highlights the areas of interest for the model's decision-making process.

3.2 Block 2: Text-based Explanation with LVM

In the second part, we integrate various data to aid the LVM in generating text-based explanations for end-users unfamiliar with AI and CV. The GPT-4 Vision [OpenAI, 2023] serves as the core LVM in our framework, leveraging information such as the input image, ground truth, model's top-1 prediction, and saliency map. We employ a structured prompt for each task, starting with presenting the image and saliency map to help the LVM identify focal areas. We then combine the saliency map with the model's prediction to verify the accuracy. In the end, we compare the model's prediction with the ground truth to determine the reliability and assess potential confusion by background or other objects. This comprehensive process ensures explanations are both coherent and, indeed, based on the model's visual analysis of the image.

Table 1: The performance of LVM across tasks is measured using BLEU, METEOR, ROUGE-L, and BERTScore metrics. These metrics evaluate how closely the model's text-based explanations align with expert interpretations in the context of XAI. Higher scores indicate better performance.

Task	BLEU	METEOR	ROUGE-L	BERTScore
Classification	0.2971	0.5122	0.5196	0.9341
Segmentation	0.2552	0.4741	0.4714	0.8594
Detection	0.2754	0.4904	0.4911	0.9093

4 Evaluation

In this section, we evaluate how well LangXAI's text-based explanations align with expert interpretations in the field of XAI. We ensure a comprehensive assessment by having a domain expert who has knowledge in AI and XAI context to review and label 5 samples for each task. The datasets chosen for analysis are tailored to each task: ImageNetv2 [Recht et al., 2019] for image classification, TTPLA [Abdelfattah et al., 2020] for semantic segmentation, and MS-COCO 2017 [Lin et al., 2014] for object detection. During the evaluation stage, we employ various metrics, including BLEU [Papineni et al., 2002], METEOR [Banerjee and Lavie, 2005], ROUGE-L [Lin, 2004], and BERTScore [Zhang et al., 2019], to comprehensively measure the performance of the LVM. Among these metrics, we prioritize BERTScore as it evaluates semantic similarity at a deeper level compared to surface lexical matches, providing a more nuanced reflection of expert interpretations. On the other hand, when assessing ROUGE-L and BERTScore, we particularly focus on their precision results.

The evaluation results from Table 1 demonstrate varying performance levels of the LVM across different tasks: image classification, semantic segmentation, and object detection. It is worth noting that BERTScore metrics consistently yield high scores across all tasks, which indicates a robust semantic alignment between the model's explanations and expert interpretations. These results also demonstrate a deep comprehension of the model for the tasks at hand. Specifically, the image classification task receives the highest evaluation scores, likely owing to its straightforward nature of identifying depicted subjects in images. On the other hand, semantic segmentation and object detection demand more intricate explanations. They delve into object positions, the background, surrounding contextual information, and interactions within images, posing challenges in conveying them clearly to nonexpert users.

5 Conclusion

This paper presents LangXAI, a novel framework combining XAI with advanced vision models to create textual explanations for visual tasks. Our framework can enhance purely visual explanations with natural language and, therefore, could help narrow the knowledge gap for users with limited AI expertise, highlighted by an average BERTScore of 0.9, indicating its potential to improve AI system transparency and reliability.
