Layered and Staged Monte Carlo Tree Search for SMT Strategy Synthesis

1 Introduction

Satisfiability Modulo Theories (SMT) solvers [De Moura and Bjørner, 2011] are key tools in diverse fields such as software engineering [Cadar et al., 2008], verification [Gurfinkel et al., 2015], security [Song et al., 2008], and artificial intelligence [Pulina and Tacchella, 2012]. It has long been observed that no single solver excels across all instances from an SMT logic or a problem class. As a result, modern SMT solvers, such as Z3 [De Moura and Bjørner, 2008], offer user-controllable strategies [De Moura and Passmore, 2013], enabling users to customize a decision procedure for their problem class. A strategy can be considered an algorithmic recipe for selecting, sequencing, and parameterizing tactics. Each tactic is a well-defined algorithmic proof rule or symbolic reasoning step, provided by the solver. For example, propagate-values is a Z3 tactic that propagates equalities, while sat and smt are the tactic wrappers of the main SAT and SMT solver in Z3. A strategy builds a decision procedure by combining tactics, as shown in an exemplar strategy (if is-pb (then propagate-values sat) smt). This strategy specifies a solving algorithm that, given an input instance, applies propagate-values followed by sat if the instance is a pseudo-boolean problem (as checked using is-pb), or applies smt otherwise.

Default solver strategies are typically optimized for wellestablished benchmarks, such as those in the SMT-LIB library [Barrett et al., 2016]. However, as the scope of SMT applications continues to grow rapidly, users frequently encounter specialized, evolving, and unprecedented classes of instances. In these scenarios, the default or the existing customized strategies might not be as effective. Consequently, there arises a need for novel customized strategies, specifically designed to efficiently address the unique challenges posed by users' specific problems. Traditionally, this task of strategy customization has been undertaken by human experts through extensive experimentation and benchmark analysis. However, even with their expertise and efforts, the task remains challenging due to the intricate interactions among tactics and the vast search space for potential strategies.

Early attempts have been made to synthesize SMT strategies automatically. For instance, StratEVO [Ram´ırez et al., 2016] searches for an optimal strategy using evolutionary algorithms, while FastSMT [Balunovic et al., 2018] synthesizes a tailored strategy using imitation learning and decision tree learning techniques. While these methods show promise in automated strategy customization, they suffer from issues such as a lack of robustness, limited interpretability, and extensive training times.

To address these issues, we introduce a novel SMT strategy synthesis method that employs Monte Carlo Tree Search (MCTS). MCTS is a heuristic search algorithm, widely applied in computer board game players as a lookahead planning algorithm [Browne et al., 2012]. Its prominence further escalated following its successful integration into the groundbreaking deep reinforcement learning systems AlphaGo [Silver et al., 2016] and AlphaZero [Silver et al., 2017], where MCTS was employed as a policy improvement operator. Recently, MCTS has shown remarkable success as a standalone framework in addressing complex symbolic, combinatorial, or optimization problems [Zhang et al., 2018; Khalil et al., 2022; Sun et al., 2023]. Its key strengths, including its ability to effectively balance exploration and exploitation and its adaptiveness to the nuances of varied search problems, make it an excellent method for such challenging tasks. Our work is the first to apply MCTS to the SMT strategy synthesis problem.

An extended version of this paper is available at: https: //arxiv.org/abs/2401.17159. Our code and data are available at: https://github.com/JohnLyu2/z3alpha.

1.1 The Strategy Synthesis Problem

The SMT strategy synthesis problem is defined as automatically identifying an optimal strategy that yields the best performance for a given benchmark set P. This performance is typically measured in terms of metrics such as the number of P-instances successfully solved within a specified wallclock timeout t. P is intended to be a representative subset of a broader benchmark set Q, which is of interest to the user, with the expectation that a strategy performing well on P generalizes effectively to Q. It is important to note that due to the infinite nature of the strategy search space and the empirical approach to strategy evaluation, finding a rigorously optimal solution is impractical. Consequently, our objective is to discover a near-optimal solution within a reasonable search time, based on empirical measurements. This research focuses on strategy synthesis for Z3, a solver that is widely regarded as one of the most prevalent SMT solvers in use today.

1.2 Our Contributions

1. Z3alpha: An MCTS-based Strategy Synthesizing Solver: We present a novel MCTS-based framework, dubbed Z3alpha, for the SMT strategy synthesis problem, which automatically constructs tailored solver strategies for a given class of problem instances. To the best of our knowledge, Z3alpha is the first MCTSbased method developed for the SMT strategy synthesis problem.
2. Layered and Staged MCTS: To address the unique challenges inherent to strategy synthesis, that cannot be solved by the conventional MCTS alone, we develop two innovative heuristics, namely, layered search and staged search on top of the MCTS framework. The layered search method effectively narrows the search space
3. by treating certain auxiliary tasks as independent search problems. On the other hand, the staged search technique segments the entire search problem into sequential sub-problems, enabling the use of results from early stages to expedite the search in later stages. Together, these two techniques work symbiotically to enhance the search efficiency in finding the optimal strategy, an essential improvement given the time-consuming nature of strategy evaluations.
4. Extensive Experimental Evaluation: We implemented our proposed method, dubbed Z3alpha, on top of the leading SMT solver Z3. To assess its performance, we conducted comprehensive experiments, comparing Z3alpha with the state-of-the-art (SOTA) synthesis tool FastSMT, as well as Z3's own handcrafted default strategy and the CVC5 solver. These experiments spanned a broad spectrum, including instances from six different SMT logics (namely, QF {BV, LIA, LRA, NIA, NRA, S}), representing a wide range of problem sizes and solver runtimes. Across all experiments, Z3alpha consistently demonstrated superior and robust performance. This impressive performance strongly highlights the benefits of automated strategy customization, promoting broader adoption of user-controllable strategies within the SMT community.

2 RelatedWork

2.1 MCTS for Symbolic/Combinatorial Problems

MCTS has long been viewed as a powerful planning algorithm for board games [Browne et al., 2012]. Recently, there has been a noticeable trend towards its application in solving symbolic and combinatorial problems. For instance, BaMCTS [Khalil et al., 2022] and the Symbolic Physics Learner [Sun et al., 2023] uses the standalone MCTS method to identify backdoors in Mixed Integer Linear Programming (MIP) problems and to discover nonlinear mathematical formulas for symbolic regression problems, respectively. Cameron et al. [2022] proposed an extension to MCTS, Monte Carlo Forest Search (MCFS), which steers the SAT branching policy. AlphaMapleSAT [Jha et al., 2024] is an MCTS-based cubeand-conquer SAT solver. AlphaDev [Mankowitz et al., 2023] is an MCTS-guided deep reinforcement learning agent that synthesizes assembly programs. Remarkably, it has successfully discovered sorting algorithms that surpass the best previously known human-designed algorithms.

Our work is, to the best of our knowledge, the first application of MCTS to address the SMT strategy synthesis problem. Different from AlphaDev, which considers the synthesis of assembly programs as sequencing individual instructions, we present the strategy program as an expression tree. The increased complexity in program structure and the extended program evaluation time present unique challenges to the strategy synthesis problem.

2.2 MCTS Variants

It is a well-known problem that the basic MCTS method does not generalize well between related states and actions. It results in a notably inefficient search in scenarios where the search space is extensive. To counter this issue, various techniques have been proposed.

One prevalent technique is the rapid action value estimation (RAVE) algorithm [Gelly and Silver, 2011], which incorporates an action-specific term QRAVE into the MCTS tree policy. Its basic assumption is that there is an intrinsic value associated with each action regardless of its position. Game abstraction [Johanson, 2013] is another common technique, especially used in Poker, to expedite the search. It abstracts similar actions or states into a single category to reduce the search space. Option Monte Carlo Tree Search (O-MCTS) [De Waard et al., 2016] uses options [Sutton et al., 1999] in the MCTS framework, to mimic the human behaviors of defining subgoals and subtasks in game playings. An option is a predefined method for reaching a specific subgoal, with its own policy and termination function. In O-MCTS, the agent selects among options instead of actions.

Our layered and staged search methods share similarities with these MCTS variants. The layered search method reduces action and state spaces, but, instead of abstracting, it separates certain auxiliary actions aside and optimizes them in parallel. This separation generalizes values among subtrees, but, unlike RAVE which shares values between actions in different positions, it merges subtrees. The staged search, which chooses among previously found rewarding sub-solutions, is similar to choosing among options, but without a separate predefined policy for each choice.

2.3 SMT Strategy Synthesis

StratEVO [Ram´ırez et al., 2016] presents a pioneering effort in automated strategy generation, utilizing a genetic programming algorithm [Koza, 1994] to evolve strategies from a predefined strategy population. Unfortunately, the StratEVO tool is not publicly available, which precludes us from conducting an empirical comparison.

FastSMT [Balunovic et al., 2018], recognized as the SOTA tool in SMT strategy synthesis, applies a dual-phase learning approach. First, it applies the DAgger [Ross et al., 2011] algorithm to train a deep neural network (DNN), in order to discover a collection of branch-free strategies, each tailored for specific instances. These strategies are then synthesized into one single, unified strategy through an entropy-based decision-tree learning algorithm [Poole and Mackworth, 2010]. Chen et al. [2021] proposed a strategy synthesis method specifically for symbolic execution, where, similar to FastSMT, strategies are synthesized with decision tree techniques from a list of branch-free strategies found by an offline trained DNN. Our method also involves two steps. Different from the previous work, we utilize MCTS for both steps. Compared to FastSMT, our method shows superior and more robust empirical results across six SMT logics, as detailed in Section 5. Further, the strategies synthesized by FastSMT tend to be less interpretable, sometimes involving more than a thousand branches.

Our earlier exploratory work, AlphaSMT [Lu, 2023], employs the AlphaZero framework to adaptively select perinstance tactic sequences, achieving promising results on certain challenging benchmark sets. However, further development is needed for broader applicability.

⟨Strategy⟩ → ⟨Tactic⟩ | (using-params ⟨Strategy⟩ ⟨ParamSets⟩) | (then ⟨Tactic⟩ ⟨Strategy⟩) | (or-else ⟨Strategy⟩ ⟨Strategy⟩) | (try-for ⟨Strategy⟩ ⟨Constant⟩) | (if ⟨Predicate⟩ ⟨Strategy⟩ ⟨Strategy⟩) ⟨Tactic⟩ →simplify | smt | sat | solve-eqs | aig | ... ⟨ParamSets⟩ → ⟨ParamSet⟩ | ⟨ParamSet⟩ ⟨ParamSets⟩ ⟨ParamSet⟩ → : ⟨Parameter⟩ ⟨Constant⟩ ⟨Parameter⟩ → som | flat | seed | elim and | ... ⟨Predicate⟩ → ⟨BProbe⟩ | (⟨Operator⟩ ⟨NProbe⟩ ⟨Constant⟩) ⟨BProbe⟩ → is-unbounded | is-pb | is-qflia | ... ⟨Operator⟩ → > | < | ≥ | ≤ | = | ̸= ⟨NProbe⟩ →num-consts | num-exprs | size | ... ⟨Constant⟩ → true | false | 0 | -1 | 1 | ...

3 Preliminaries

SMT Solvers, SMT Logics, and SMT-LIB Satisfiability Modulo Theories (SMT) solvers determine the satisfiability of first-order logic formulas, with the interpretation of symbols constrained by specific theories [Kroening and Strichman, 2016]. SMT-LIB refers to an international initiative aimed at facilitating research and development in SMT solvers [Barrett et al., 2016]. The SMT-LIB initiative maintains a large library of SMT benchmarks, grouped by various SMT logics. A logic consists of one or more theories with certain restrictions, and is named after such theories and restrictions. "QF" refers to the restriction to quantifier-free formulas, "BV" refers to the theory of fixed-size bit-vectors, "S" refers to the theory of strings and regular expressions, "IA" and "RA" refer to integer and real arithmetic. "N" before "IA" or "RA" means the non-linear fragment of these arithmetics. SMT-COMP [Bobot et al., 2023] is an annually held competition that arose from the SMT-LIB initiative for SMT solvers.

The Z3 Strategy Language The Z3 SMT solver offers a user-controllable strategy language, allowing users to craft their customized decision procedure algorithm. A strategy selects, sequences, and parameterizes tactics, where each tactic is a built-in reasoning step in Z3. The context-free grammar (CFG) G for the strategy language we consider in this research is shown in Figure 1, where variables are enclosed in angle brackets and terminals are highlighted in bold.

The start symbol ⟨Strategy⟩ represents a strategy and is defined recursively. A strategy may consist of either a single tactic or a series of tactics linked in sequence by the tactic combinator then. Each tactic can be configured with a variety of parameters. The combinator or-else applies the second strategy if the first strategy fails, while the combinator try-for makes the strategy fail if it does not return within the specified timeout (millisecond). Z3 also provides built-in probes, which evaluate formula measures, e.g., the number of constants in the formula. Predicates over them can be built using relational operators. The if combinator constructs branching strategies based on these predicates. We refer readers to the official Z3 guide [Microsoft, 2023] for more information on the strategy language.

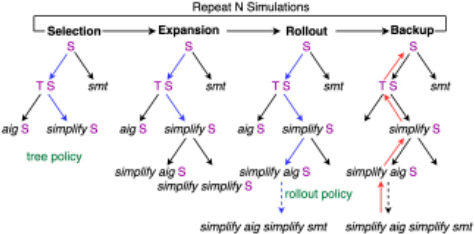

Monte Carlo Tree Search Monte Carlo Tree Search (MCTS) is a best-first search technique. It searches for the optimal decisions by estimating action values from numerous simulated trajectories. To search more efficiently, the method biases simulations towards previously rewarding trajectories, yet it maintains a balance by exploring less-visited paths as well. Alongside the simulations, an MCTS tree is progressively constructed to store the action value estimations. Each MCTS simulation consists of 4 steps:

1. Selection: Starting from the root node, a tree-search policy traverses the MCTS tree until a leaf node is selected. The Upper Confidence Bounds applied for Trees (UCT) [Kocsis and Szepesv´ari, 2006] is the most commonly used tree-search policy in MCTS. UCT balances exploiting the child node with the highest value estimation and exploring the less-visited children.
2. Expansion: The MCTS tree is expanded from the selected leaf node by adding child(ren) node(s) representing unexplored actions.
3. Rollout: If the selected leaf node is non-terminal, the simulation continues by subsequently choosing actions according to a rollout policy (usually a random policy) until reaching a terminal state.
4. Backup: After evaluation, the episode reward is backed up to update the action values alongside the traversed tree path.

4 Z3alpha: MCTS for Strategy Synthesisis

4.1 Modeling Strategy Synthesis as anMDP

If we view strategy synthesis as constructing a strategy string from G by sequentially applying production rules to the leftmost variable, this process can be modeled as a deterministic Markov Decision Process (MDP). An MDP is a mathematical framework in which an agent makes action decisions in a series of states, with each action leading to a state transition. The agent seeks to maximize rewards over time through choices of actions. In a deterministic MDP, each action results in a deterministic state transition.

In our formulation of the strategy synthesis problem, the states are the sentential strings derived from G, while the actions are the production-rule applications. The entire process of constructing a strategy is one single episode of the MDP. In an episode, the reward RT is only received at the terminal step T. RT is the performance measure of the synthesized strategy over a given benchmark set P .

Our reward system is designed to align with the evaluation criteria of SMT-COMP, prioritizing strategies that solve the highest number of instances. Simultaneously, when two strategies solve a similar number of P-instances, we want to steer the search towards the faster strategy. To embody these goals, we base our reward on the PAR-10 score over P . PAR10 computes the average runtime for successfully solved instances and imposes a penalty for unsolved instances. The penalty is equal to the timeout value multiplied by a factor of 10.

With this modeling, the MDP search tree represents the strategy space, and the objective becomes identifying the path with the highest reward Rt in the search tree, which corresponds to the optimal strategy for P.

4.2 The MCTS Framework for Strategy Synthesis

We instantiate MCTS for this optimal strategy search problem. We use UCT as the tree policy in the selection phase and rollout randomly in the rollout phase. Notably, in the backup phase, we apply the max-backup rule [Sabharwal et al., 2012; Sun et al., 2023]. This approach updates the action values with the best observed return, rather than the average. It encourages more aggressive exploitation towards the previously best-performing strategy, aligning with our goal.

Therefore, the MCTS method continuously runs simulations, and in each simulation, the agent explores and assesses a single strategy, updating and retaining the best strategy seen so far. The MCTS stops when a simulation budget is reached. At the end of this process, the strategy with the highest reward RT is selected and presented as the synthesized SMT strategy for the specified instance set P. Figure 2 illustrates our basic MCTS framework, using a simplified CFG G′ for illustrative purposes. G′ is defined as S → T S | smt and T → simplify | aig, where S and T symbolize variables for strategy and tactic, respectively.

The primary challenge in strategy synthesis through this conventional MCTS method is the extensive time required to evaluate each strategy, which involves calling an SMT solver on all instances in P. This leads to a very limited exploration of potential paths, particularly given the immense search space created by the rich strategy language. To address this issue, we first add domain-knowledge rules restricting valid actions. For example, no tactic could be applied sequentially following a solver tactic such as smt. More importantly, we have introduced two heuristic methods, namely the layered search and the staged search, on top of the conventional MCTS, facilitating a deeper and more effective exploration of the strategy space.

4.3 Layered Search

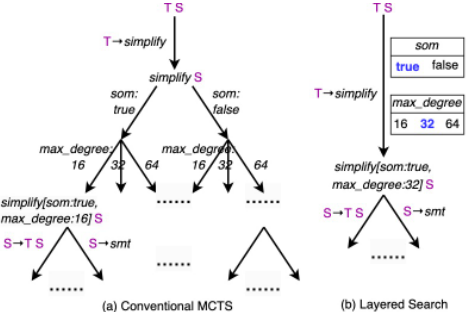

To solve the above-mentioned challenge, we propose a layered search method to optimize the tactic parameters within strategy synthesis. As shown in our CFG G, each tactic can be paired with multiple parameters. Using the conventional MCTS with the grammar G, the selection of each candidate value for a parameter is represented by one production rule, and the agent needs to make sequential production-rule decisions to configure all parameters for a given tactic, leading to exponential growth in the problem search tree, as shown in Figure 3(a).

To address this issue, our layered search method approaches the tuning of each tactic parameter as a separate Multi-Armed Bandit (MAB) problem [Robbins, 1952]. As shown in Figure 3(b), the two parameters som and max degree for one application of the tactic simplify are modeled as two MABs respectively. Each arm in the MAB represents one candidate value. For example in Figure 3(b), arm 16, 32, and 64 in the MAB max degree are three preselected candidate values for this parameter. Note that the parameter MABs are associated with a tree edge, corresponding to one specific application of a tactic, not to this tactic in general. For instance, simplify may be applied serval times in the strategy building. For each application, there will be two MABs representing the tuning of som and max degree associated with it.

One key point is that these parameter-tuning MABs are not part of the main MCTS tree. They are engaged to select parameter values when their associated tree edge is traversed, and they are updated based on the episode reward during the Backup phase. However, such MABs do not expand the MCTS search tree after the parameter configuration, since they are separate components from the main search tree. This is in contrast to conventional MCTS, which also employs MAB principles to select among children nodes to explore, where these nodes constitute part of the search tree. For example, in Figure 3(a), the search tree is expanded sixfold to accommodate all possible combinations of these two parameters in the conventional MCTS framework. In contrast, in the layered search framework (Figure 3(b)), MABs for the two parameters are isolated from the search tree, creating no additional branches in the tree.

The rationale behind the layer search is twofold. Firstly, tactics such as simplify may have dozens of parameters, and it is common for a tactic to be used multiple times within a strategy. Thus, navigating a search space that is fully expanded by all possible parameter combinations becomes impractical, especially given the time-intensive nature of strategy evaluation. Secondly, we argue that parameter tuning, although important, serves more as an auxiliary task in comparison to the tasks of tactic selection and sequencing. By employing the layered search method, we maintain the primary focus on the more important task. At the same time, the isolated MABs efficiently optimize the parameters without overwhelming the main search process.

4.4 Staged Search

While the layered search narrows down the search space, it does not alleviate the issue of significant time consumption required for each simulation evaluation. To discover a complex strategy, especially one involving nested branching, MCTS must expand over an enormous space and delve deeply, often resulting in an impractically lengthy search time. This is where the staged search comes into play.

The staged search method divides the entire search process into two stages. In the first stage, the MCTS focuses on finding high-performing linear strategies (actions introducing branches are not considered in the first stage). Here, a linear strategy is defined as a sequence of tactics without branching, where tactics are only connected with the combinator then. In the second stage, the MCTS looks for a single best strategy that combines these selected linear strategies. In other words, the second-stage MCTS works with the full grammar G but restricts the actions so that every explored strategy is a combination of the selected linear strategies through branching. By doing so, the key advantage is that the evaluation of the combined strategies can be done speedily based on the cached linear-strategy performances in the first stage, without costly SMT solver calls.

This is possible because, when executing any branched strategy Sc on a given instance f, there is always an equivalent sequence of branch-free strategy applications, [S0, S1, ..., SN]. For example, if we apply ((if is-pb (or-else (try-for (then simplify sat) 4000) smt) smt)) to a pseudoboolean instance, the execution path is first to try (then simplify sat), a linear strategy, for 4 seconds and then to execute smt, another linear strategy. Thus, when evaluating Sc for each input instance f, we first convert Sc to its equivalent linear strategy sequence [S0, S1, ..., SN], where the performance of each linear strategy S0, S1, ..., SN on f is known and cached in the first stage. Then, the performance of Sc can be derived directly from these cached results without further calls to the SMT solver. This approach enables MCTS to traverse a significantly larger search space in the second stage, facilitating the discovery of effective complex strategies.

Another advantage of our staged search method is its adaptiveness to long timeouts. Strategy synthesis typically operates under short solver-instance timeouts, for example, 10 seconds in the FastSMT study. Increasing the timeout linearly raises the total synthesis time, making it prohibitively costly to synthesize strategies with extended timeouts, like 5 minutes or more, through direct evaluation. Our staged search method provides a practical approach to synthesizing strategies under such extended timeouts. In the first stage, the linear strategy candidates are still selected based on their performance with a short timeout period (e.g., 10 seconds), ensuring broad exploration. Then, only the selected strategies are re-evaluated under the specified long timeout (e.g., 5 minutes). The second-stage MCTS leverages these re-evaluation caches, enabling the synthesis of customized strategies for these extended timeout scenarios.

5 Experiment Design, Results, and Analysis

5.1 Experimental Design

We evaluated Z3alpha across six logics, namely QF {BV, NIA, NRA, LIA, LRA, S}. We benchmarked our performance against the SOTA strategy synthesis tool, FastSMT, as well as the default handcrafted strategy in Z3. CVC5 was also included as a baseline for comparison. To assess the robustness of Z3alpha, we designed a series of experiments tailored to different scenarios.

Experimental Design for Specific Classes of Benchmarks Section 5.3 describes the evaluation of the solvers on five important SMT-LIB benchmark sets, namely, Sage2 (QF BV), core (QF BV), AProVE (QF NIA), leipzig (QF NIA), and hycomp (QF NRA), covering three different logics. These specific benchmark sets were chosen as they were also utilized in the FastSMT study, following the same trainingtesting split. The size of these benchmark sets varies from 167 to 7436 instances. A 10-second timeout was chosen for evaluation, a common practice in the SMT strategy synthesis research [Ram´ırez et al., 2016; Balunovic et al., 2018]. This timeout period was also justified as Z3alpha solved over 90% of the testing instances in four out of the five benchmark sets within this time frame. Additionally, in this section, we included a version of our tool, Z3alpha0, that did not employ staged search, for ablation study purposes.

Experimental Design for Benchmarks from Diverse Applications In Section 5.4, we extended our experiments to the entire SMT-LIB QF LIA and QF LRA benchmarks, which are obtained from diverse applications. These experiments were intended to evaluate the versatility and adaptability of Z3alpha in handling diverse problem sets. For both QF LIA and QF LRA, we randomly selected 750 SMT-LIB instances for our training set, and utilized all remaining instances in the logic (12,476 instances and 1,003 instances for QF LIA and QF LRA, respectively) as our testing set.

Experimental Design for Long Timeout In Section 5.5, we expanded our experiments to include long timeouts, specifically 1-minute and 5-minute durations. These evaluations were conducted on the most challenging benchmark set, Sage2, from Section 5.3. Z3alpha synthesized new strategies for these scenarios, using the method described in Section 4.4. FastSMT used the identical strategy as in Section 5.3 for these extended timeout cases, adhering to the approach described in its original paper.

Experimental Design for User-defined Tactics Z3 allows users to implement new tactics. Section 5.6 evaluated the capability of Z3alpha in synthesizing strategies that integrate both user-defined and built-in tactics. This experiment targeted the QF S logic. In recent years, our team implemented new string tactics, such as the arrangement-based solver Z3str3 [Berzish et al., 2017], the Length Abstraction Solver (LAS) [Mora et al., 2021], and specialized rewrite rules for regular expressions [Berzish et al., 2021] for string constraint problems. These tactics are in addition to the default built-in sequence solver in Z3. Z3str4 [Mora et al., 2021] combines the aforementioned tactics using a meticulously handcrafted strategy. In this experiment, we leveraged Z3alpha to construct a strategy using the same set of tactics as in Z3str4 and then compared their performances. Z3alpha was trained on 750 randomly chosen QF S instances from SMT-LIB. The testing was conducted on all the remaining 18,173 instances in the logic.

5.2 Experimental Setup

For every experiment, there were a training instance set and a testing instance set. Z3alpha, as well as FastSMT, synthesized strategies based on the training set while reporting experiment results on the testing set. The approach aligns with our problem statement, which aims to synthesize a strategy based on a representative set P , that is expected to generalize effectively on a larger scale.

In each experiment, Z3alpha first selected 20 linear strategies from 800 first-stage MCTS simulations. During the second stage with 300,000 simulations, Z3alpha searched for the most effective strategy that combined these linear strategy candidates. The final synthesized strategy was the one with the lowest PAR-10 score during the second-stage search. To keep a similar time budget, the non-staged-search version Z3alpha0 ran MCTS for 1,000 simulations with the full CFGG, in search of the best strategy.

Competing Solvers Z3alphawas implemented in Python 3.10 and was integrated with Z3-4.12.2. FastSMT was also integrated with the same version of Z3. Both tools constructed their strategies using the identical tactic and parameter set offered by Z3, and executed these strategies with Z3. Baseline solvers used in the experiment were Z3-4.12.2 and CVC5-1.0.5. We compared our performance with FastSMT in all experiments other than the experiment described in Section 5.6, since Z3str4 did not provide Python APIs for the user-defined tactics that were required by FastSMT.

Computational Environments Both our synthesis and testing were conducted on a high-performance CentOS 7 cluster equipped with Intel E5-2683 v4 (Broadwell) processors running at 2.10 GHz, accompanied by 75 gigabytes of memory.

Variability Both the Z3alpha and FastSMT algorithms make use of randomness, leading to the possibility of synthesizing different strategies in separate runs. To account for this variability, the results in Section 5.3 were average from five runs with different random seeds. Since little variability was found in Section 5.3 and the much more intense computational nature of the later experiments, we only report results from one run in later sections.

Metrics Consistent with the evaluation criteria used in the SMT-COMP, our performance metric was based on the number of correctly solved instances. For clearer comprehension, we present these results as a percentage, reflecting the proportion of solved instances out of the total tested.

5.3 Analysis of QF BV, QF NIA, QF NRAResults

The first part of Table 1 summarizes the results on the five selected benchmark sets, namely Sage2, core, AProVE, leipzig, and hycomp, across the QF BV, QF NIA, and QF NRA logics. Notably, Z3alpha surpassed the default Z3 strategy, as well as CVC5 in all of these benchmark sets, achieving the leading position in four of the five sets among all tested tools. In the particularly challenging QF BV benchmark set Sage2, Z3alpha excelled by solving an impressive 42.7%more instances than the default strategy did. Furthermore, Z3alpha outperformed Z3alpha0 across all benchmarks, underscoring the effectiveness of the staged search. The synthesis time for Z3alpha was on par with, and in most experiments, less than, the synthesis time for FastSMT. For instance, while the strategy synthesis for AProVE took 759.6 minutes for FastSMT, Z3alpha completed the task in 293.1 minutes, in which the stage1 and stage-2 took 213.7 and 79.4 minutes respectively. One key distinction between the synthesized strategies from Z3alpha and FastSMT was that Z3alpha strategies are more interpretable. For example, the FastSMT strategies for AProVE can have more than a thousand branches, while Z3alpha strategies usually have less than five branches.

5.4 Analysis of QF LIA and QF LRAResults

Z3alpha demonstrated consistent performance on the entire logics of QF LIA and QF LRA, as shown in Table 1. Z3alpha solved 2.2% and 3.7% more instances than Z3 in QF LIA and QF LRA, respectively. While FastSMT solved four more instances than Z3alpha in QF LRA, its performance suffered significantly in QF LIA, solving 58.2% fewer instances than the default Z3 strategy.

5.5 Analysis of QF BVResults with Long Timeout

The results for experiments of 1-minute-timeout and 5minute-timeout are shown in Table 1 as well. In every scenario, Z3alpha continued to maintain superior performance compared to both FastSMT and Z3. The performance advantage over FastSMT slightly increased when the timeouts were extended. However, an important shift was the significantly better performance of CVC5 over the Z3-based methods for Sage2 under long timeouts. This suggests a promising future research direction of extending the strategy synthesis method across different solvers.

5.6 Results with User-Defined Tactics for QF S

The test results for Z3alpha with user-defined QF S tactics are shown in the QF S row of Table 1. Z3alpha demonstrated superior performance over all baseline solvers. Interestingly, the handcrafted Z3str4 strategy, despite employing the same tactic portfolio as Z3alpha, performed worse than the default Z3 strategy. The under-performance could be attributed to two factors: (1) the Z3str4 strategy was optimized for logics including both QF S and QF SLIA, which could be sub-optimal for QF S alone; (2) the tuning of the Z3str4 strategy was carried out on an earlier version of Z3. These observations underscore the value of automated strategy customization, in terms of tailoring for specific problem contexts and adapting to solver versions.

6 Conclusions

In this work, we present Z3alpha, a novel MCTS-based method for SMT strategy synthesis. Z3alpha introduces layered and staged search heuristics upon the conventional MCTS framework, enabling a low-cost and effective search within the expansive strategy space. The superiority of Z3alpha was demonstrated by extensive experiments across six SMT logics. In all the experiments, Z3alpha consistently surpassed the default Z3 solver and outperformed both FastSMT and CVC5 in most testing cases.

Our method is currently implemented only on Z3, because other prominent solvers, like CVC5, to the best of our knowledge, do not offer an interface to group preprocessing and solving steps flexibly. We hope our strong empirical results will encourage a universal user-controllable strategy language in the SMT community. There is substantial potential to further enhance solver performance by applying our method across tactics from different solvers, thereby leveraging their complementary strengths.

Acknowledgements

We thank Kate Larson, Arie Gurfinkel, and Mark Crowley for their valuable feedback; Kaihang Jiang for his contribution to code testing and data collection; and the Digital Research Alliance of Canada for providing the computational resources and technical support. The work of Zhengyang Lu is supported by the Engineering Excellence Doctoral Fellowship (EEDF) at the University of Waterloo; the work of Florin Manea was supported by the DFG-Heisenberg grant no. 466789228.
