Adaptive Order Q-learning

1 Introduction

Q-learning [Watkins, 1989] is one of the most fundamental algorithms in reinforcement learning [Chu et al., 2022; Zhao et al., 2023; Zhang et al., 2023], and it has been successfully applied to various real-world problems [Yang et al., 2020; Upadhyay, 2021; Mock and Muknahallipatna, 2023]. However, Q-learning has an overestimation bias problem [Thrun and Schwartz, 1993; Van Hasselt, 2013], and it can be exacerbated in deep reinforcement learning with nonlinear neural network approximation [Wu et al., 2022; Kondrup et al., 2023; Cetin and Celiktutan, 2023]. This overestimation bias originates from that in the updating rule of Q-learning, the maximum Q-value is an essential term and is obtained by maximizing the stochastic estimation of Q-value. Note that these stochastic estimations are caused by stochastic and unknown rewards and state transitions.

∗Corresponding Author

A number of algorithms were proposed to mitigate this overestimation bias, but may lead to an underestimation bias [Hasselt, 2010; Peer et al., 2021; Chen et al., 2021]. The reason is that they are controlling estimation bias in a coarsegrained manner. It is shown in [Lan et al., 2020] and illustrated in Section 3.3 that different environments may have personalized bias needs for underestimation or overestimation. Unfortunately, the coarse-grained property has a fundamental limitation in satisfying such personalized bias needs.

To address the above coarse-grained limitation, we propose a fine-grained bias control algorithm called Order Q-learning. It uses the order statistic of multiple independent Q-tables to control bias and flexibly adapt to different environments. More specifically, the number of Q-tables controls the boundary of bias, i.e., the larger the number of Q-tables, the larger the upper bound, and the smaller the lower bound; the index of order statistic function controls the specific size of bias in the above bounds, i.e., the bias varies from the lower bound to the upper bound as one selects a larger index. Two control parameters of Order Q-learning can provide a fine-grained bias to meet the personalized bias needs of different environments. To address the challenge in Order Q-learning, i.e., the suitable control parameters are unknown in advance, we propose an adaptive parameter adjustment algorithm called AdaOrder Q-learning. Figure 2 shows the power of Order Q-learning and AdaOrder Q-learning. In summary, our contributions are as follows:

1. We propose Order Q-learning, which uses the order statistic of multiple independent Q-tables to attain finegrained bias control, and aims to meet the personalized bias needs of different environments

1. We design an adaptive parameter adjustment strategy to Order Q-learning, leading to AdaOrder Q-learning. We extend Order Q-learning and AdaOrder Q-learning to Order DQN and AdaOrder DQN, respectively.
2. We evaluate the efficiency of our method in two experiment settings, i.e., tabular MDP and deep reinforcement learning. Extensive experiment results show that our method outperforms SOTA baselines drastically in different settings. More specifically, AdaOrder DQN improves the average score per episode over SOTA baselines by at least 19.49% in the Pixelcopte environments.

2 RelatedWork

Remove overestimation bias. Double Q-learning [Hasselt, 2010] estimates the maximum Q-value via cross-validation [Van Hasselt, 2013], but it has a risk of an underestimation bias. EBQL [Peer et al., 2021] is a natural extension of Double Q-learning to ensembles. It splits the sample data into at least two disjoint sets: one set estimates the optimal action that attains maximum Q-value; the other sets estimate the mean of Q-values with previously estimated optimal action. However, with a finite number of disjoint sets, the estimation bias of maximum Q-value is always negative. Different from Maxmin Q-learning [Lan et al., 2020], REDQ [Chen et al., 2021] minimizes over random Q-tables, i.e., the default choice for the number of randomly Q-tables is two. The Qvalue of REDQ has a lower variance, but it still maintains a negative bias throughout most rounds of learning.

Control estimation bias. Weighted Double Q-learning [Zhang et al., 2017] is a weighted combination of Q-learning and Double Q-learning, which controls the estimation bias through the weight parameter. Like Weighted Double Qlearning, Balanced Q-learning [Karimpanal et al., 2023] weights the optimistic bias and pessimistic bias via the balancing factor. SCQ [Zhu and Rigotti, 2021] uses the current step Q-value and the last step Q-value to build a new selfcorrecting estimator. This estimator balances the overestimation bias and the underestimation bias via the dependence hyperparameter. Softmax Q-learning [Song et al., 2019] finds that the estimation bias is proportional to the hyperparameter of softmax operation. Ensemble Q-learning [Anschel et al., 2017] averages multiple independent Q-tables to reduce the variance of Q-value. The larger the number of Q-tables, the smaller the variance, and the smaller the estimation bias. This estimation bias is inversely proportional to the number of Q-tables. However, with a finite number of Q-tables, the estimation bias is always positive. Maxmin Q-learning [Lan et al., 2020] controls the estimation bias through minimum operation on multiple independent Q-tables, and this estimation bias is inversely proportional to the number of Q-tables. To adaptively select the number of Q-tables for Maxmin Qlearning [Lan et al., 2020] in practice, AdaEQ [Wang et al., 2021] adjusts the ensemble size based on the approximation Q-value error, and this adjustment method relies on the discounted MC return [Jones and Qin, 2022]. AEQ [Gong et al., 2023] uses the uncertainty of Q-values and the familiarity of sampling trajectories to control the estimation bias naturally, and can adaptively change for specific state-action pairs.

The above bias control methods are coarse-grained, and can not meet the personalized needs of different environments. Different from coarse-grained bias control, this paper proposes a fine-grained bias control algorithm to adapt to different environments.

3 Background &Model 3.1 Basics of anMDP

We consider an infinite-horizon MDP [Chen et al., 2022], where each decision step is indexed by t ∈ N. Let S and A denote the state space and the action space, respectively. Let P : S × A × S -→ [0, 1] denote the state transition probability function. Let R : S × A -→ R denote the reward function. Let s ↦→ π(s) denote the policy, where s ∈ S and π(s) ∈ A. Let Qπ(s, a) denote the expected cumulative discounted reward with discounting factor γ ∈ (0, 1) as: Qπ(s,a)=E[R(St,At)+γR(St+1,At+1)+· · · |St=s,At=a] , where Sκ is generated from P(Sκ|Sκ-1,Aκ-1) and Aκ = π(Sκ), ∀κ ≥ t + 1. The learning objective is to find the optimal Q-value and the optimal policy.

3.2 Overestimation Bias &Underestimation Bias

Q-learning [Watkins, 1989] maintains one Q-table denoted by Qt(s, a), and uses it to estimate the optimal Q-value. It starts with the initialization of Q-table and gets Q0(s, a). Then in each step t, from state s, the agent takes action a with εgreedy policy [Ghasemipour et al., 2021], i.e., ε ∈ (0, 1), gets reward R(s, a) and next state s′ . Q-learning uses the interaction data {s, a, R(s, a), s′ } to update the Q-table as:

where α is the learning rate, Y (s, a) is the target Q-value of Qt+1(s, a). Following Bellman expectation equation [Bouten et al., 2005], the expectation of target Q-value should be as E [R(s, a)] + γ maxa′∈A E [Qt(s′ , a′ )] . However, according to Jensen's inequality [Williams et al., 2017], we have:

It illustrates the overestimation bias of Q-learning.

Double Q-learning [Hasselt, 2010] maintains two independent Q-tables denoted by QAt (s, a) and QBt (s, a). The updating rule, such as QAt (s, a), is as:

Note that QAt (s, a) and QBt (s, a) are updated with the same probability. Following previous work [Van Hasselt, 2013], we have:

It shows the underestimation bias of Double Q-learning.

ሻଵߪ ǡଵߤሺܰ

ሻଶߪ ǡଶߤሺܰ Ͳ 澳澳

澳澳

澳澳

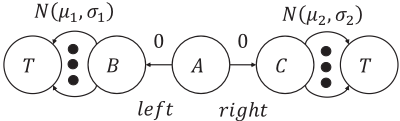

Figure 1: Diagram of a simple MDP.

ݐ݂݈݁

ݐ݄݃݅ݎ

3.3 Effect of Estimation Bias

Following Maxmin Q-learning [Lan et al., 2020], the effect of estimation bias is not always evil and depends on the environment, i.e., some environments benefit from overestimation bias or underestimation bias, while others suffer from these biases. Further, we use an example to discuss it from a more intuitive and comprehensive perspective.

Example 1. Consider a simple MDP depicted in Figure 1, which is adapted from Figure 6.5 in [Sutton and Barto, 2018]. This simple episodic MDP task has three non-terminal states, i.e., state A, state B, and state C, and always starts with state A. State A has two actions, i.e., left and right: the right action transitions to the state C with a reward of zero; the left action transitions to the state B with a reward of zero. State B and state C include ten identical actions, and each action transitions to the terminal state with a reward of the distribution N(µ1, σ1) and N(µ2, σ2), respectively. We set µ1 < µ2, σ1 ≥ 0, and σ2 ≥ 0. Thus, the optimal action at state A is right. We discuss the effect of estimation bias as follows:

1. When σ1 = 0 and σ2 > 0, the estimation bias occurs in the high reward area. Overestimation bias can attract the agent to choose the right action at state A. Underestimation bias may make the agent choose the left action at state A. Thus, the overestimation bias is helpful, and the underestimation bias is hurtful.
2. When σ1 > 0 and σ2 = 0, the estimation bias occurs in the low reward area. Overestimation bias may induce the agent to choose the left action at state A. Underestimation bias can guide the agent to choose the right action at state A. Thus, the overestimation bias is hurtful, and the underestimation bias is helpful.
3. When σ1 > 0 and σ2 > 0, the estimation bias occurs both in the high reward area and the low reward area. Both overestimation bias and underestimation bias have a risk of making the agent choose the left action at state A. Thus, both overestimation bias and underestimation bias may be hurtful.

4 Order Q-learning &Order DQN

4.1 Order Q-learning

Example 1 illustrates that the correct approach should be to control the estimation bias according to the environment, such as increasing the estimation bias in case one, reducing the estimation bias in case two, and removing the estimation

澳

Algorithm 1 Order Q-learning

• 1: Parameter: M, m
• 2: Initialize: Q10 (s, a),Q20 (s, a), · · · ,QM0 (s, a)
• 3: Get the starting state s
• 4: for t = 0, 1, 2, · · · do:
• 5: Choose action a at state s by ε-greedy policy
• 6: Take action a, get reward R(s, a) and next state s′
• 7: Compute Qm:M t (s′ , a′ ) as Equation (3), ∀a′ ∈ A
• 8: Randomly select one Q-table i ≤M
• 9: Update Qit (s, a) as Equation (4)
• 10: s ←- s′

bias in case three. To meet the personalized bias needs of different environments, we propose a fine-grained bias control algorithm called Order Q-learning.

We first maintain M ∈ N+ independent Q-tables denoted byQ1t (s, a), Q2t (s, a), · · · , QMt (s, a), ∀(s, a) ∈ S×A. Then we reorder them from smallest to largest, and define order Q-value as:

where order m:M is the order statistic function and m ∈ [1,M]. Note that this order statistic function is used to extract the mth largest Q-value. We can write it more explicitly as:

· · ·

Based on the above order Q-value, Order Q-learning uses εgreedy policy with order Q-value to interact with the environment and gets {s, a,R(s, a), s′ }. Following previous works [Hasselt, 2010; Lan et al., 2020; Peer et al., 2021], we update each Q-table with the same probability, such as Qit (s, a), as:

where i ∈ [1,M] is the index of Q-table. Algorithm 1 outlines our Order Q-learning. Note that Order Q-learning turns to Q-learning [Watkins, 1989] when M = 1, and turns to Maxmin Q-learning [Lan et al., 2020] when m = 1.

To analyze the estimation bias of Order Q-learning, following previous works [Thrun and Schwartz, 1993; Lan et al., 2020], we first make a common assumption as follows:

Assumption 1. Each independent Q-table Qit (s, a) has a uniform random error eit (s, a), we have:

where eit (s, a) obeys the uniform distribution U(-τ, τ) for some τ > 0. Due to all Q-tables being independent and updated with the same probability, we have:

Equation (4) illustrates the updated rule of our Order Qlearning, where Y i (s, a) is the target Q-value of Qit+1 (s, a). Thus, we define the estimation bias of Order Q-learning as:

Theorem1. Based on Assumption 1, the expected estimation bias of Order Q-learning is as:

where CiM [ 1 2 + x 2τ ]i[ 12 - x 2τ ]M-i is the ith term probability of binomial distribution B(M, p), p = 1 2 + x 2τ and x ∈ [-τ, τ]. For compactness, we write pi instead of CiM [ 12 + x 2τ ]i[ 1 2 - x 2τ ]M-i , and rewrite E [Z] as:

According to the binomial distribution B(M, p), we have ∑Mi=1 pi = 1 and pi ≥ 0. Thus, the larger the m, the smaller the ∑Mi=m pi, the larger the E [Z]. Similarly, the larger the M, the larger the ∑Mi=m pi, the smaller the E [Z]. According to the above analysis, we find that the expected estimation bias of Order Q-learning is inversely proportional to M and proportional to m.

Theorem 2. Based on Assumption 1, the boundary of expected estimation bias for Order Q-learning is as:

Equation (7) illustrates that the boundary depends onM, i.e., the larger the M, the larger the upper bound, the smaller the lower bound. When M = 1, the lower bound equals the upper bound, and the expected estimation bias is γτ |A|-1 |A|+1 . When M → +∞, the lower bound and the upper bound are -γτ and γτ, respectively.

Combinate Theorem 1 and Theorem 2, Order Q-learning can provide a fine-grained bias via (M,m) to adapt to different environments, where M controls the boundary of bias and m controls the specific size of bias in the above bounds. More specifically, when overestimation bias is helpful, Order Q-learning can increase the estimation bias by increasing m and decreasing M; when underestimation bias is helpful, Order Q-learning can decrease the estimation bias by decreasing m and increasing M; when both overestimation bias and underestimation bias are hurtful, Order Q-learning can remove the estimation bias by adjusting (m,M). We prove Theorem 1 and Theorem 2 in our supplementary file.

Algorithm 2 Order DQN

• 1: Parameter: M, m
• 2: Initialize: θ0 = {θ1 0 , θ2 0 , · · · , θM 0 }, θ0 = θ0
• 3: Get the starting state s
• 4: for t = 0, 1, 2, · · · do:
• 5: Choose action a at state s by ε-greedy policy
• 6: Take action a, get reward r and next state s′
• 7: Store (s, a, r, s′ ) in D
• 8: Randomly sample a set of (sB, aB, rB, s′B ) fromD
• 9: for (sj , aj , rj , s′j ) ∈ (sB, aB, rB, s′B ) do:
• 10: Yj = rj + γmax a′j ∈AQm:M (s′j , a′j ; θt )
• 11: Randomly select one Q-function i ≤M
• 12: θi t+1 ≈ arg minθi t Ej∈[1,2,...,|B|] [Yj - Q(sj , aj ; θi t )]2
• 13: Every V steps reset θt+1 ←- θt+1
• 14: s ←- s′

4.2 Order DQN

Following previous deep reinforcement learning algorithms, such as DQN [Mnih et al., 2015], DDQN [Van Hasselt et al., 2016], Averaged DQN [Anschel et al., 2017], and Maxmin DQN [Lan et al., 2020], we represent the Q-function by a neural network for the high-dimensional environment. Based on experience replay and target network techniques [Mnih et al., 2015], we extend Order Q-learning to Order DQN as Algorithm 2, where θ is the network weight, θ- is the target network weight, |D| is the buffer size, |B| is the batch size, and V ∈ N+ is the updated steps for target network weight.

5 AdaOrder Q-learning &AdaOrder DQN

To address the challenge in Order Q-learning, i.e., the suitable parameters (M,m) are unknown in advance, we propose AdaOrder Q-learning and extend it to AdaOrder DQN. In particular, AdaOrder Q-learning is just one of the adaptive adjustment algorithms for Order Q-learning, used to finegrained control bias close to zero.

5.1 AdaOrder Q-learning

When both overestimation bias and underestimation bias are hurtful, such as the case three in Example 1, Order Q-learning requires multiple experiments to find the suitable parameters (m,M) for removing the estimation bias, and it is timeconsuming. Thus, we need to design an adaptive parameter adjustment strategy.

Theorem 2 illustrates that the range of bias is proportional to M. According to temporal difference [Tesauro and others, 1995], the larger the number of visits to each state-action pair, the more accurate the estimated Q-value. Thus, the range of bias should decrease as the number of visits to each state-action pair increases. According to the above analysis, the number of Q-tables for Order Q-learning should decrease with the increase of the number of visits to (s, a) as:

Algorithm 3 AdaOrder Q-learning

• 1: Parameter: C, β
• 2: Initialize: Q10 (s, a),Q20 (s, a), · · · ,QC0 (s, a)
• 3: Set n(s, a) as zero, ∀(s, a) ∈ (S,A)
• 4: Get the starting state s
• 5: for t = 0, 1, 2, · · · do:
• 6: Choose action a at state s by ε-greedy policy
• 7: Take action a, get reward R(s, a) and next state s′
• 8: n(s, a) = n(s, a) +1
• 9: Compute M(s′ , a′ ) as Equation (8), ∀a′ ∈ A
• 10: Compute m(s′ , a′ ) as Equation (9), ∀a′ ∈ A
• 11: Compute Qm(s′ ,a′ ):M(s′ ,a′ ) t (s′ ,a′ ) as Equation (3)
• 12: Randomly select one Q-table i ≤ C
• 13: Y i (s, a)=R(s, a)+γmax a′∈AQm(s′ ,a′ ):M(s′ ,a′ ) t (s′ , a′ )
• 14: Qit+1 (s, a) = Qit (s, a) +α[Y i (s, a) -Qit (s, a)]
• 15: s ←- s′

where C ∈ N+ is the initial number of independent Q-tables, n(s, a) ∈ N is the number of visits to (s, a), and β ∈ (0, 1) controls the decreasing speed of the number of Q-tables.

Theorem 1 shows that the specific bias of Order Q-learning is proportional to m, i.e., the bias varies from the lower bound to the upper bound as one selects a larger m. According to Ensemble Q-learning [Anschel et al., 2017], it uses the average operation to estimate the maximum expected Q-value. As a result, the estimation bias of Ensemble Q-learning is inversely proportional to the number of Q-tables, and it is always positive. We take Ensemble Q-learning as the baseline and select the mth largest Q-value, which is closest and smaller than the average Q-value. This way can help the estimation bias of Order Q-learning to be close to zero. The index of order statistic function for each state-action pair is as:

Note that for Qm:M(s,a) t (s, a), we randomly select M(s, a) Q-tables from C Q-tables as the input to Equation (3).

Incorporating the above adaptive parameter adjustment strategy into Order Q-learning, we obtain Adaptive Order Qlearning as Algorithm 3, and call it AdaOrder Q-learning.

5.2 AdaOrder DQN

During Equation (8), n(s, a) can not be calculated in the highdimensional or continuous state environment. Due to M(s, a) is inversely proportional to n(s, a) and n(s, a) is proportional to the training step t, we have that the number of Q-functions should be inversely proportional to t. Thus, we adjust the number of Q-functions as:

Algorithm 4 AdaOrder DQN

• 1: Parameter: C
• 2: Initialize: θ0 = {θ1 0 , θ2 0 , · · · , θC 0 }, θ0 = θ0
• 3: Get the starting state s
• 4: for t = 0, 1, 2, · · · do:
• 5: Compute M(t) as Equation (10)
• 6: Choose action a at state s by ε-greedy policy
• 7: Take action a, get reward r and next state s′
• 8: Store (s, a, r, s′ ) in D
• 9: Randomly sample a set of (sB, aB, rB, s′B ) fromD
• 10: for (sj , aj , rj , s′j ) ∈ (sB, aB, rB, s′B ) do
• 11:
• Compute m(s′j , a′j ) as Equation (9)

• 13: Randomly select one Q-function i ≤ C
• 14: θi t+1 ≈ arg minθi t Ej∈[1,2,...,|B|] [Yj - Q(sj , aj ; θi t )]2
• 15: Every V steps reset θt+1 ←- θt+1
• 16: s ←- s′

where T ∈ N+ is the total training steps. Like Order DQN in Section 4.2, we extend AdaOrder Q-learning to AdaOrder DQN as Algorithm 4.

6 Experiments

We start with tabular MDP experiments, to reveal fundamental insights into why Order Q-learning and AdaOrder Qlearning can achieve superior performance. We then evaluate the impact of Order DQN and AdaOrder DQN in deep reinforcement learning settings. The code of all experiments can be found in link 1 .

6.1 Tabular MDP Experiments

We introduce three tabular MDP environments: (1) Multiarmed bandit is adapted from [Mannor et al., 2007], which considers the single-state with ten action and the reward of each action obeys the distribution N (0, 1); (2) A simple MDP environment is depicted in Figure 1, where µ1 = -0.1, σ1 = 1.0, µ2 = 0.1, σ2 = 1.0; (3) Gridworld [Zhang et al., 2017] has four actions, i.e., up, down, left, and right for each state. The start and goal states are in the southwest and northeast positions of grid, respectively. The agent will return to the start state after it does any action at the goal state. If the agent selects an action and makes it out of grid, i.e., the grid size is 3 × 3, it will not move and stay in the previous state. The agent gets a stochastic reward of r1 = -12 or r2 = 10 with the same probability for any action at the non-goal state, and gets a stochastic reward of r3 = -40 or r4 = 50 with the same probability for any action at the goal state. Following [Hasselt, 2010; Zhu and Rigotti, 2021; Pentaliotis and Wiering, 2021], we set γ = 0.95, α = 1 n(s,a)0.8 , and ε = 1 n(s)0.5 for the Multiarmed bandit and Gridworld environments; and set γ = 1.0, α = 0.1, and ε = 0.1 for the MDP environment.

1 https://1drv.ms/u/s!Atddp1iaDmL2ghdcHyYXNO785moD

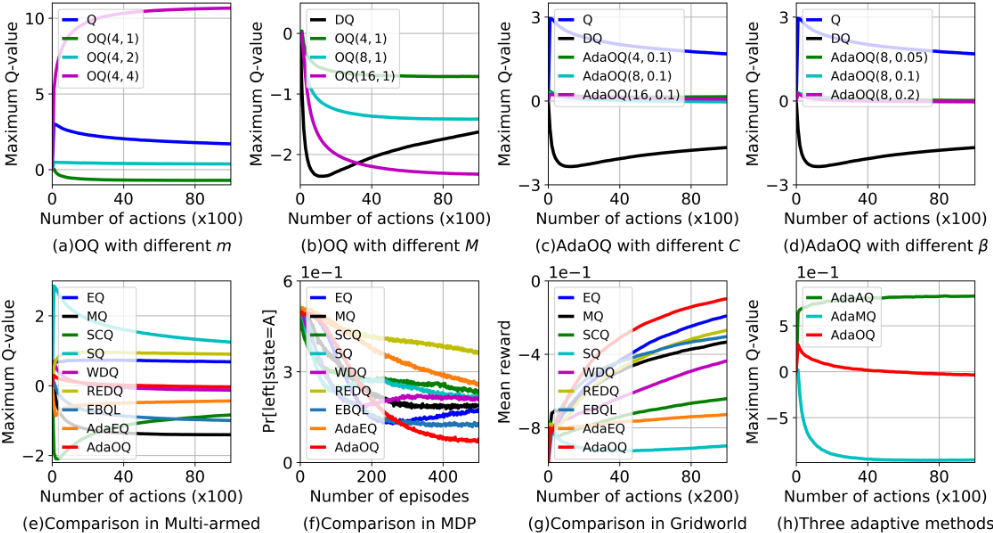

Figure 2 shows the maximum Q-value, the probability of taking action left at state A denoted by Pr[left|state = A], and the mean reward of Order Q-learning and AdaOrder Qlearning in three tabular MDP environments. We discuss the performance of Order & AdaOrder Q-learning under different bias preference environments, in our supplementary file.

Order Q-learning. Figure 2(a) and Figure 2(b) show the maximum Q-value of Order Q-learning with different (M,m) in the Multi-armed bandit environment. One can observe that the estimation bias of Order Q-learning is proportional to m and inversely proportional to M, and it can be higher than that of Q-learning and lower than that of Double Q-learning. This implies that Order Q-learning can provide a more fine-grained bias for meeting the personalized needs of different environments than Q-learning and Double Q-learning.

AdaOrder Q-learning. Figure 2(c) and Figure 2(d) show the maximum Q-value of AdaOrder Q-learning with different (C, β) in the Multi-armed bandit environment. One can observe that the estimation bias curves of AdaOrder Q-learning with different (C, β) overlap, and they are close to zero. This implies that AdaOrder Q-learning is not sensitive to (C, β), and can fine-grained control bias close to zero.

Comparisonwith SOTA. Figure 2(e), Figure 2(f), and Figure 2(g) show the comparison results in the Multi-armed bandit, MDP, and Gridworld environments, respectively. We consider eight SOTA as Ensemble Q-learning [Anschel et al., 2017], Maxmin Q-learning [Lan et al., 2020], SCQ [Zhu and Rigotti, 2021], Softmax Q-learning [Song et al., 2019], Weighted Double Q-learning [Zhang et al., 2017], REDQ [Chen et al., 2021], EBQL [Peer et al., 2021], and AdaEQ [Wang et al., 2021]. One can observe that the maximum Qvalue curve of AdaOrder Q-learning closes to zero, the probability curve of AdaOrder Q-learning lies at the bottom, and the mean reward curve of AdaOrder Q-learning lies at the top. They imply that AdaOrder Q-learning can learn more accurate estimation bias than SOTA through fine-grained bias control, resulting in better policy and higher reward.

Different adaptive methods. Figure 2(h) shows the maximum Q-value of different adaptive methods in the Multiarmed bandit environment, where AdaAQ (Adaptive Average Q-learning) and AdaMQ (Adaptive Minimum Q-learning) are obtained by replacing the order operation of AdaOQ with the average and minimum operations, respectively. Note that we keep the same (C, β) in above three methods. One can observe that the maximum Q-value curve of AdaOrder Qlearning lies between that of AdaAQ and AdaMQ, and is close to zero. This implies that the fine-grained bias control, i.e., order operation, is more suitable for adaptively removing the estimation bias than the coarse-grained bias control, i.e., the average and minimum operations.

6.2 Deep Reinforcement Learning Experiments

To evaluate the impact of Order DQN and AdaOrder DQN, we choose three common deep reinforcement learning games from PyGame Learning Environment [Urtans and Nikitenko, 2018] and MinAtar [Young and Tian, 2019]: Pixelcopter, Breakout, and Asterix. Following [Young and Tian, 2019; Lan et al., 2020], we reuse the settings of neural networks in [Lan et al., 2020], and set γ = 0.99, |B| = 32 for all environments. For the Pixelcopter environment, we set |D| = 10, 000, V = 200, and α = 0.001. ε decreases linearly from 1.0 to 0.01 in 1, 000 steps, and fixes to 0.01 after 1, 000 steps. For the Breakout and Asterix environments, we set |D| = 100, 000, V = 1, 000, and α = 0.01. ε decreases linearly from 1.0 to 0.1 in 100, 000 steps, and fixes to 0.1 after 100, 000 steps.

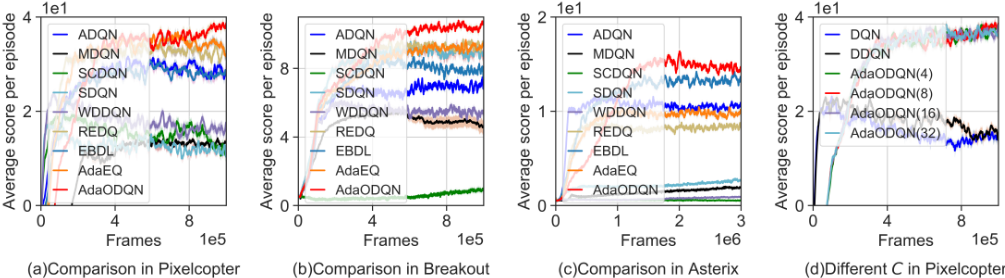

Figure 3 shows the average score per episode of AdaOrder DQN in deep reinforcement learning settings, where the score is averaged over the last 100 episodes and the shaded area represents one standard error. From Figure 3(a), Figure 3(b), and Figure 3(c), one can observe that the score curves of AdaOrder DQN lie at the top. They imply that AdaOrder DQN can get a higher score than SOTA baselines. From Figure 3(d), one can observe that the score curves of AdaOrder DQN with different C overlap, and lie much higher than that of DQN and DDQN. This implies that AdaOrder DQN is not sensitive to C, and outperforms DQN and DDQN drastically. We provide the experiment results of Order DQN with different (M,m), and discuss the performance of different adaptive methods, in our supplementary file.

Table 1 shows the average score per episode of different algorithms, where the values are evaluated in the final round. We consider ten SOTA baselines as DQN [Mnih et al., 2015], DDQN [Van Hasselt et al., 2016], Averaged DQN [Anschel et al., 2017], Maxmin DQN [Lan et al., 2020], SCDQN [Zhu and Rigotti, 2021], Softmax DQN [Song et al., 2019], WDDQN [Zhang et al., 2017], REDQ [Chen et al., 2021], EBQL [Peer et al., 2021], and AdaEQ [Wang et al., 2021]. Our AdaOrder DQN improves the average score per episode over SOTA baselines by at least 38.57-32.28 32.28 = 19.49%,

10.68-9.44 9.44 = 13.14%, and 14.57-13.33 13.33 = 9.30%, in the Pixelcopter, Breakout, and Asterix environments, respectively.

7 Conclusion

Different from previous coarse-grained bias control manner, this paper proposes Order Q-learning, which controls the estimation bias via the order statistic of multiple independent Q-tables and can provide a fine-grained bias to flexibly meet the personalized bias needs of different environments. Based on Order Q-learning, we design an adaptive parameter adjustment strategy, leading to AdaOrder Q-learning. We extend Order Q-learning and AdaOrder Q-learning to Order DQN and AdaOrder DQN, respectively. Extensive experiment results show that our proposed method outperforms SOTA baselines drastically in different settings.

We think future work should focus on the adaptive adjustment strategies, finding more flexible adaptive adjustment strategies to adapt to highly complex or changing environments, such as non-stationary environments and reward sparse environments.

Acknowledgments

The work of Hong Xie was supported in part by National Nature Science Foundation of China (61902042), Chongqing Natural Science Foundation(cstc2020jcyi-msxmX0652).
