Integrating View Conditions for Image Synthesis

1 Introduction

Applying intricate semantic modifications to existing images is a longstanding and fascinating endeavor in image processing. The primary objective of image manipulation is to synthesize an image that retains most of the original semantic content while altering specific elements. In recent years, the landscape of image-to-image models has witnessed a proliferation of methodologies, spanning the spectrum of Generative Adversarial Network (GAN)-based and diffusion-based approaches, encompassing both zero-shot and fine-tuned strategies, all dedicated to addressing this complex task. Faced with this multitude of approaches, a natural inquiry arises: does a given method genuinely fulfill the requirements of precise object modification, and by which criteria is a commendable solution for entity manipulation characterized?

To answer the question, we investigate various image editing applications and make some observations. First, an excellent framework for object modification needs to satisfy the consistency in both the shape and color of the object. Approaches such as Paint-by-Example [Yang et al., 2023] and Paint-by-Sketch [Kim et al., 2023], where a reference image is utilized as input for the CLIP model, unfortunately falter in maintaining this object consistency. Conversely, DreamBooth [Ruiz et al., 2023] and its successors [Kumari et al., 2023], exhibit competence in synthesizing objects while preserving their shape and color. Nevertheless, these approaches struggle with precise synthesis of the object's spatial position and orientation, making them difficult to apply in entity replacement.

∗Corresponding Author

Second, in the pursuit of image editing tasks, despite the presence of textual or visual guidance, numerous intricacies often evade direct control and depend on random seed values. For instance, variables like the precise position and orientation of the synthesis object tend to be stochastic. The issue of object position during synthesis can be effectively mitigated through the application of bounding box constraints, as exemplified by GLIGEN [Li et al., 2023], but with bounding box constraints alone, the object's synthesis remains locationspecific without specifying its orientation. Recently, ControlCom [Zhang et al., 2023a], AnyDoor [Chen et al., 2023b], and DreamPaint [Seyfioglu et al., 2023] have also made significant advancements in consistency and controllability. However, without prior reference to the object's corresponding camera viewpoint, synthesizing specific object directions remains a persistent challenge even given a bounding box.

Third, the resulting synthesis must meet certain quality standards, characterized by harmony in terms of illumination, shading, and logical consistency. Concerning illumination and shading, it is vital that the shadow cast by the synthesized object conforms to the prevailing directional cues within the image. And the reflections displayed by the synthesized object should harmonize with its intrinsic attributes. Furthermore, logical consistency encompasses aspects such as the object's angle, position, and quantity. In summary, the synthesized object must be harmoniously integrated with its surroundings, thereby establishing an optimal state of coordination.

This paper presents a novel framework that enhances existing models with awareness of viewpoint information, thereby enabling improved control over text-to-image diffusion models, such as Stable Diffusion. This advancement leads to a more controllable approach for image editing tasks. Our proposed pipeline aptly meets all the previously mentioned requirements, with a particular focus on the aspect of controlled pose adjustment, as detailed in Table 1.

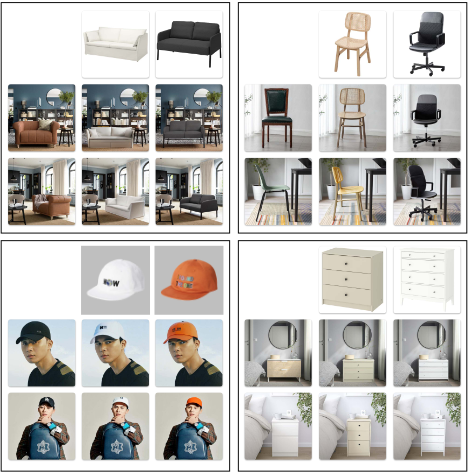

To comprehensively evaluate our framework, we assess its performance across various applications, including entity replacement and angle adjustments. This comprehensive evaluation encompasses a wide range of scenarios, such as virtual try-on and interior design. Notably, we demonstrate that our method yields favorable results across multiple dimensions, even in cases where extensive training is not a prerequisite.

2 RelatedWork

In this section, we first introduce the work related to consistency, controllability, and harmony, and then introduce the work related to novel pose synthesis.

2.1 Few Shot Personalization and Customization

In the context of utilizing just a few reference images, several methods have been proposed to grasp the underlying concept, whether it's a particular theme, style, object, or character. These methods include LoRA [Hu et al., 2021], DreamBooth [Ruiz et al., 2023], Textual Inversion [Gal et al., 2022], HyperNetworks [Ha et al., 2016], and their successors. While these methods and their combinations have opened up avenues for personalized or customized applications with minimal training data, they still rely on having multiple images at their disposal, making it challenging for them to envision different perspectives of an object using just a single image. Furthermore, achieving fine-grained, angle-controllable generation remains a formidable task for them.

Few-shot personalization and customization technologies will be popular in e-commerce, as every product in ecommerce catalogs typically has multiple images taken from different angles, which is naturally a good fit for these approaches.

2.2 Conditional and Controllable Image Editing and Generation

In addition to text-to-image translation [Radford et al., 2021; Bai et al., 2022; Rombach et al., 2022a; Udandarao, 2022], image-to-image translation [Isola et al., 2017; Zhang et al., 2023b; Ye et al., 2023; Chen et al., 2023a; Jiang et al., 2023a; Jiang et al., 2023b; Feng et al., 2024] is a kind of imageconditioned image synthesis, which has been instrumental in image editing and generation, allowing for the preservation of most of the existing semantic content while making specific alterations to particular elements within the source image. These elements can be categorized as style, object, background, and more.

In terms of style, style transfer techniques have played a significant role in advancing controllable image editing and generation. Initially rooted in artistic style transfer, neural style transfer methods, as demonstrated by [Gatys et al., 2015], have evolved to grant users greater control over the degree of stylization and the independent manipulation of content and style [Johnson et al., 2016]. These developments have facilitated more controlled artistic transformations.

More recently, diffusion models [Ho et al., 2020; Ho and Salimans, 2022; Zhao et al., 2023] have emerged as the new state-of-the-art family of deep generative models. Representative models such as Stable Diffusion [Rombach et al., 2022a], yield impressive performance on conditional image generation, enabling control over various aspects of the generated content, surpassing those GAN-based [Goodfellow et al., 2020] methods which dominated the field for the past few years. Diffusion models are equipped to accommodate various conditions, whether in the form of textual [Radford et al., 2021] or visual [Zhang et al., 2023b] inputs, making the process of image editing and generation more controllable. However, none of these approaches offer fine-grained control over certain image details, such as lighting, shadows, and object poses.

2.3 Image Harmonization

Image harmonization, as explored in previous work [Tsai et al., 2017], focuses on adjusting the illumination and shading between the foreground and background. While several approaches have succeeded in appearance adjustments, they still struggle to address the geometric inconsistencies that may arise between the foreground and background. To handle issues related to inconsistent camera viewpoints, various methods [Chen and Kae, 2019; Lin et al., 2018] have been proposed to estimate warping parameters for the foreground, aiming for geometric correction. However, these methods typically predict affine or perspective transformations, which may not effectively address more complex scenarios, such as synthesizing foreground objects with novel views or generalizing them to non-rigid objects like humans or animals.

2.4 Single Image to 3D

Before the emergence of CLIP [Radford et al., 2021] and large-scale 2D diffusion models [Rombach et al., 2022a], the conventional approach involved learning 3D priors using either synthetic 3D data or real scans [Yi et al., 2023; Yi et al., 2022]. Unlike 2D images, 3D data can be represented in various formats and numerous representations.

DTC123 [Yi et al., 2024] collaborates the teacher diffusion model and 3D student model with the time-step curriculum to significantly improve the photo-realism and multiview consistency of Image-to-3D generation. Zero123 [Liu et al., 2023c] is a view-conditioned 2D diffusion model used to synthesize multiple views for object classes lacking 3D assets. It demonstrates that rich geometric information can be extracted directly from a pre-trained Stable Diffusion model, eliminating the need for additional depth information. Building on this, One-2345 [Liu et al., 2023b] utilizes Zero123 to achieve single-image-to-3D mesh conversion.

3 Method

Given an input image of dimensions H by W, a reference image xr ∈ RHr×Wr×3 containing the reference object, and a prompt description c (e.g., "Adjust the hat up 10 degrees" or "Replace the laptop on the desk with an apple" as shown in Fig. 1), our objective is to synthesize an output image y using the information from {xs, xr, c}. The goal is to maintain the visual consistency between the output image y and the source image xs, while only modifying the object mentioned in c by the specified pose. Furthermore, when introducing a new object, it is crucial to harmoniously integrate it with the overall composition of the entire image.

This task is particularly intricate due to several inherent challenges. Firstly, the model needs to comprehend the object in the reference image, capturing both its shape and texture while disregarding background noise. Secondly, it is essential to generate a transformed version of the object (varied pose, size, illumination, etc.) that seamlessly integrates into the source image. Furthermore, the synthesized object must align with the original object's angle as specified in c. Lastly, the model must inpaint the surrounding region of the object to produce a realistic image, ensuring a smooth transition at the merging boundary.

Therefore, we adopt the Divide and Conquer principle 1 , and break down this intricate problem into easier subproblems and solve them one by one. To be specific, we address this challenge by combining various generative models, with our combination model is conditioned on the source image xs, text prompt c, and reference image xr.

We mathematically formulate our approach as follows:

In this equation, we use Os to represent the object within the source image xs, As to denote the angle of this object in xs, Or to signify the reference object in the reference image xr, and Ac to indicate the specific angle extracted from the text prompt c.

The four probabilistic models on the right side of the equation encompass various essential processes within our framework. These processes include object and angle extraction from the source image, angle extraction from the text prompt (as elaborated in Sec. 3.1), synthesis of the reference object (as elaborated in Sec. 3.2), and the ultimate image synthesis procedure (as elaborated in Sec. 3.3). We will now delve into each of these parts and explain how they are integrated.

3.1 LLMPlanner

With in-context-learning and chain-of-thoughts reasoning capabilities, large language models (LLMs) have demonstrated remarkable proficiency in following natural language instructions and completing real-world tasks [Xie et al., 2023; Peng et al., 2023; Liu et al., 2023a]. Given a text prompt, our LLM Planner is capable of generating a sequence of commands and prompts related to our task.

3.2 Pose Estimation and Synthesis

In this stage, we present pose representation, pose estimation from a single object image, and the synthesis of an object image given a specific pose.

Pose Representation

To effectively represent the pose of an object within an image, we employ two fundamental components: the relative camera rotation matrix (R ∈ R3×3 ) and the relative camera translation vector (T ∈ R3 ). These elements collectively encapsulate essential information regarding the object's viewpoint and orientation relative to the camera's perspective.

1 https://lllyasviel.github.io/Style2PaintsResearch/

Relative Camera Rotation (R). The matrix R characterizes the rotation transformation that aligns the object's coordinate system with that of the camera. It encompasses the angular changes required to transition from the object's intrinsic orientation to the camera's frame of reference.

Relative Camera Translation (T). The vector T denotes the translation in three-dimensional space necessary to position the camera viewpoint with respect to the object. It signifies the displacement along the x, y, and z axes, allowing the object's placement within the scene to be determined.

Together, the relative camera rotation (R) and translation (T) form a comprehensive pose representation, providing a detailed description of the object's spatial orientation and location within the image.

Pose Estimation

We train a pose estimation model, building upon the foundation of the current image understanding model. The training supervision is

Here, x represents the image, R and T denote the relative camera rotation and translation, respectively. Θ corresponds to the network parameters of our pose estimation model.

Given an object image, our pose estimation model predicts the corresponding relative camera rotation and translation based on the default camera view.

Pose Synthesis

We use a view-conditioned diffusion model, Zero123 [Liu et al., 2023c], to generate multi-view images and corresponding pose images. The input to Zero123 consists of a single RGB image x ∈ RH×W×3 that encompasses the object requiring alignment, and a relative camera transformation rotation R ∈ R3×3 and translation T ∈ R3 , which is the viewpoint condition control. The output of Zero123 is a synthesized image ˆxR,T capturing the same object from the perspective defined by the transformed camera view:

where f denotes the freezing model Zero123.

Constrained by its limited generalization capacity, Zero123 excels primarily in a select few categories. Therefore, when a reference 3D object is available, we can directly specify view conditions for the reference object to obtain the desired image perspective. All images presented in this paper are synthesized by Zero123.

3.3 Image Synthesis

Although pose alignment has been achieved, it's possible that the object in the synthesized reference image may have a different size and position compared to the mask in the source image. Therefore, our initial step is to apply padding, either on the left and right or on the top, to the bounding box region of the object in the synthesized reference image. This ensures that the aspect ratio of the object mask in the synthesized reference image matches that of the mask in the source image. Following this, we resize the region that we just padded, ensuring the resized region aligns precisely with the bounding box part in the source image. As a result, we obtain the reference object image Or.

With a source image Is containing a bounding box mask of the object to be edited and the reference object image Or with the corresponding camera view, we employ the personalized Stable Diffusion Inpaint Model, controlled by edge and color information, to synthesize the target image.

Why not simply overlay the synthesized object onto the original image? The reason lies in the fact that synthesized objects are typically not perfect, they may exhibit some degree of artifacts or distortion. Consequently, during the image synthesis process, we can only refer to the synthesized object rather than relying on it entirely.

3.4 All in One

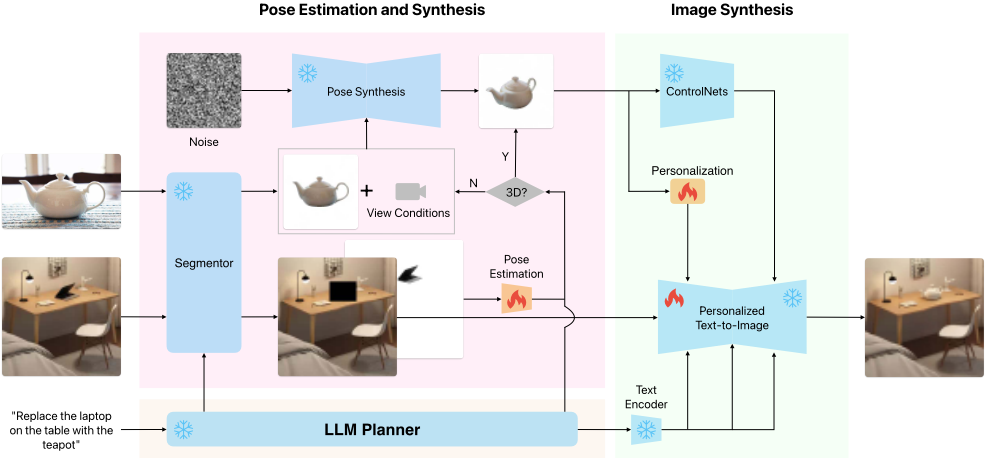

We integrate all previously mentioned modules to establish an image synthesis framework that allows for view control, as illustrated in Fig. 2. First, we obtain essential object details via the LLM Planner, including angle and object name. Second, we synthesize an appropriate target object image through pose estimation and synthesis. Finally, off-the-shelf diffusion models and associated plugins are employed to achieve posecontrollable image editing.

4 Experiment

4.1 Implementation Details

The following components are utilized in our implementation: GPT-4 [Achiam et al., 2023] as our LLM Planner, Segment-Anything [Kirillov et al., 2023] as our segmentation model, Zero-123 [Liu et al., 2023c] as our pose alignment model, and Stable Diffusion v1.5 [Rombach et al., 2022b]

2 and ControlNet 1.1 [Zhang et al., 2023b] as our synthesis models. Additionally, we have developed a pose estimation model, which is trained on DINO-v2 [Oquab et al., 2023].

In terms of training data, we initially curated product images spanning various categories from publicly available sources on the internet, all captured from a consistent viewpoint, which we have designated as the default camera perspective. Subsequently, employing existing zero-shot novel view synthesis models, we synthesized batches of images, each image batch corresponding to different relative camera viewpoints of each object. In total, our dataset comprises approximately 48.6k images, along with their corresponding relative camera view labels, and we've split them into training and test sets, following an 8:2 ratio. Furthermore, it's important to note that the test set is reserved only for testing.

4.2 Comparisons

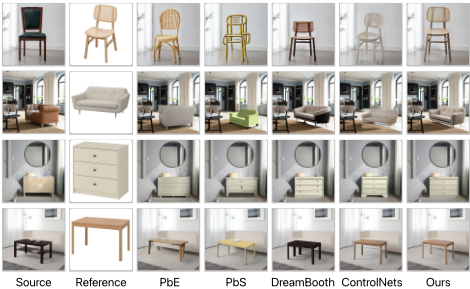

In our comparisons, we have selected recently published open-source state-of-the-art image-driven image editing methods, namely Paint-by-Example [Yang et al., 2023], Paint-by-Sketch [Kim et al., 2023], as our baselines. Figure 3 provides qualitative comparisons and Table 2 provides quantitative comparisons of these methods. We can see that our method consistently achieves superior evaluation results in consistency and harmony.

Why don't we employ methods like CLIP Score for quantitative analysis of consistency? Our rationale is rooted in the belief that feature extractors like CLIP often result in the loss of fine-grained image details, which also explains why PbE struggles to achieve consistency. Consequently, evaluating fine-grained generation with a coarse-grained feature extractor may not yield meaningful results. Furthermore, numerous studies have indicated that quantitative evaluation metrics may not consistently align with human perceptual judgments. Given these considerations, we primarily rely on human evaluations to quantitatively assess the performance of our approach and only evaluate the aesthetics score with feature extractors 3 .

4.3 Ablation Study

In this section, we will begin by discussing the selection process for the pose estimation module backbone, and then demonstrate the essentiality of each component within our image synthesis module. Subsequently, we will show the necessity and robustness of our view conditions. Lastly, we will explain the reason behind our decision not to opt for a twostage synthesis approach.

Effects of Using Different Backbones for Pose Estimation

We report the prediction error (MAE, mean absolute error) of our pose estimation module with different backbones, including ResNet-50, CLIP Image Encoder, ViT, DINO-v2 [Oquab et al., 2023]. All the experiments are trained on one A100

2 It should be noted that while we believe SDXL [Podell et al., 2023] performs better in terms of harmony, its adoption has been temporarily withheld in the current version due to its limited community support and lack of widespread use. We will move to SDXL once related ControlNets are done.

3 https://github.com/kenjiqq/aesthetics-scorer

40GB GPU. As seen in Table 3, DINO-v2 achieves better performance with a prediction error of less than 1.

Effects of Image Synthesis Core Components

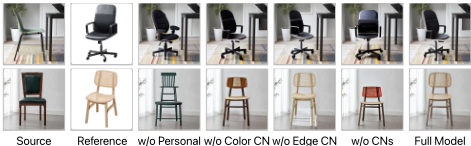

It's evident from Figure 4 that each component of image generation is indispensable. The personalization module plays a pivotal role in determining the overall object condition, while multiple ControlNets govern the precise object-specific details.

Effects of View Conditions

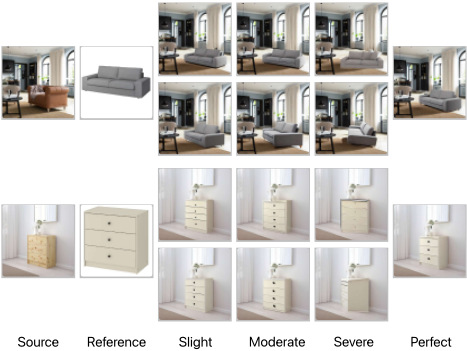

From Figure 5, we can make two key observations:

Necessity of View Conditions. If the provided view conditions display substantial error, or if no view conditions are provided, the object generation process tends to favor a semantic orientation within the source image (such as backing against a wall) or the direction most frequently observed during training (typically the front).

Robustness of ViewConditions. View conditions exhibit a certain degree of robustness. Specifically, predictions remain relatively stable within an error range of 20 degrees.

These observations further underscore the dual significance of view conditions, emphasizing both their necessity and robustness.

Effects of 2-Stage Synthesis

Although a two-stage synthesis approach, involving the initial removal of the original object and subsequent addition of the new object, may mitigate the impact on the original image in certain scenarios, as exemplified by the eyes under the hat in Figure 1. Our framework adheres to more general principles. These principles allow for the possibility of significant disparities in shape between the original object and the new object.

In our experiments, the act of removing the original object often results in the generation of redundant information at the inpaint position. Consequently, when incorporating a new object, if the mask area for it is not adequately large, this redundant information cannot be effectively eliminated.

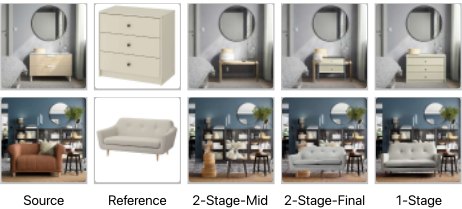

As a remedy, we employ a larger mask, the bounding box, and opt for a one-stage synthesis approach. Figure 6 visually illustrates such scenarios.

5 Discussion

5.1 Additional Visualization Results

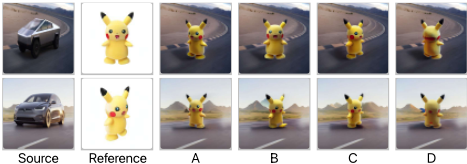

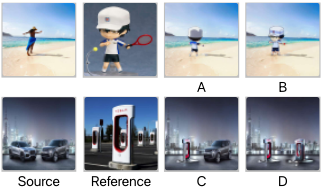

We present three groups of visualization results in Figures 7, 8, and 9, to show that our method is also applicable in other scenarios. The first group aims to validate the effectiveness of various views in reference images, and the effectiveness of synthesizing various views of target images. The second group aims to demonstrate the effectiveness of intricate object synthesis and multiple object editing. The final group provides another visualization result on Mona Lisa portrait.

5.2 Applications

Virtual Try-on. Customers can use our approach to try on different shoes, clothing items, accessories, hats, or even hairstyles virtually. By providing a reference image of themselves and a description like "replace shoes/hats with Object B," users can see how different fashion items would look on them with specific viewpoint, without physically wearing them. Additionally, our framework enables precise adjustments to customize the placement and orientation of fashion items.

InteriorDesign. The framework allows users to specify actions like "replace Object A with Object B" to switch out furniture items, enabling them to visualize how different pieces would fit into their rooms. Moreover, users can make detailed adjustments to fine-tune the placement of furniture and decor items to create harmonious and aesthetically pleasing interiors.

5.3 FutureWork

End-to-End Integration with Latent Space View Control.

While our current approach relies on explicit pose estimation and pose synthesis steps, a promising direction for future work is to further streamline our framework into an end-toend solution [Kumari et al., 2024] that seamlessly integrates view conditions control within a latent space. Such latent space view control approach has the potential to significantly enhance inference efficiency and elevate the user experience, making image editing even more accessible and efficient.

6 Conclusion

We present a novel framework that integrates view conditions for image synthesis, which enhances the controllability of image editing tasks. Our framework effectively addresses crucial aspects of image synthesis, including consistency, controllability, and harmony. Through both quantitative and qualitative comparisons with recently published open-source state-of-the-art methods, we have showcased the favorable performance of our approach across various dimensions.

Acknowledgements

This work is supported by Collov Inc. Kaicheng Zhou is the corresponding author.
