Selective Learning for Sample-Efficient Training in Multi-Agent Sparse Reward Tasks (Extended Abstract)

1 Introduction

Deep reinforcement learning (DRL) has shown its advantage in sequential decision-making control tasks, such as Atari games, game theory and robot control [Hosu and Rebedea, 2016; Li et al., 2020; Chu et al., 2020]. However, recent success depends heavily on a well-formed reward function that provides explicit feedback to each agent at each step.

∗This is an extended abstract of the paper [Chen et al., 2023] that won the Outstanding Paper Award at ECAI 2023.

†Corresponding Author.

For some complex tasks with sparse rewards, such as autonomous driving and robotic control, learning an optimal policy becomes extremely difficult for agents due to the lack of feedback signals. Sparse rewards are delayed, which provide feedback to agents only in a few states (e.g., when the agent reaches a goal), while in most cases, agents are not rewarded. Discovering high-value states in sparse reward tasks is a hard exploration problem for agents, which has not been well studied in the RL domain.

For single-agent environments, previous studies on sparse reward have improved exploration efficiency by using additional supervised signals, such as expert demonstrations [Stadie et al., 2017; Ziebart et al., 2008], intrinsic rewards [Bellemare et al., 2016; Pathak et al., ; Tang et al., 2017]. However, these methods may struggle to learn effective strategies when directly applied to multi-agent environments, since the large joint state space induced by the co-evolution of multiple agents poses a great challenge to policy learning. Moreover, the sparse reward challenge in multi-agent tasks is aggravated by the need for policy coupling and the nonstationarity of multi-agent environments.

To promote cooperation in large state space, existing multiagent reinforcement learning (MARL) algorithms take advantage of experience sharing. The centralized training with decentralized execution (CTDE) paradigm is widely used to enable agents to share their experience during centralized training [Foerster et al., 2018; Li et al., 2019; Lowe et al., 2017]. However, fully sharing experience among agents may lead to the curse of dimensionality as the joint stateaction space grows exponentially with the number of agents [Nguyen et al., 2020]. Recent works have tried to simplify the learning process by adopting techniques of inverse kinematic [Kubus et al., 2018; Perrusqu´ıa et al., 2021], attention mechanism [Iqbal and Sha, 2019; Jiang and Lu, 2018; Liu et al., 2020], mean field theory [Yang et al., 2018] and dropout [Kim et al., 2019]. However, useful information may be overlooked in the process of reducing interaction. How to maximize the valuable experiences while simplifying the interaction remains a question, which is particularly important in the tasks with sparse reward settings.

In this paper, we focus on sparse reward in cooperative multi-agent scenarios, where both the challenges brought by sparse reward and inherent non-stationarity greatly reduce learning efficiency. We propose a method called multi-agent selective learning (MASL) to achieve sample-efficient training. The key idea of MASL is to select only valuable experiences of other agents instead of the whole huge trajectory space to accelerate the learning process. First, inspired by the advanced idea of using a backtracking model to improve sample efficiency[Goyal et al., 2019], we introduce a centralized backtracking model for multiple agents, which generates recall traces from high-value samples. More importantly, each agent not only speeds up learning by imitating its own recall traces, but also shares the traces with other agents for aiding effective exploration. Second, we propose to selectively use information of the related agents but not all, which effectively mitigates the non-stationarity of the multi-agent environments and enhances the scalability of our approach in scenarios with more agents. Last but not least, considering that it is difficult to identify high-value experiences when all agents obtain a shared team reward, we specifically consider fully cooperative tasks with shared team reward and design a retrogression-based selection method to overcome the difficulty of recognizing contributors from the shared reward.

The contribution of this paper is summarized as fourfold:

1. We propose multi-agent selective learning (MASL), an effective method to boost learning efficiency in multi-agent cooperative tasks with sparse rewards.
2. We introduce a centralized backtracking model to guide cooperative exploration and exploit a retrogression-based selection method to extract high-value agent trajectories from the team's success.
3. We propose a selector to selectively use information from other agents based on their relevancy to improve the training speed of centralized learning.
4. Experiment results in several cooperative multi-agent tasks with sparse rewards show that MASL achieves higher sample efficiency than the baselines, especially in tasks with large-scale agents.

This paper is only an abbreviated version of the ECAI 2023 conference paper [Chen et al., 2023]. We refer the reader to the full paper for all the details omitted below.

2 Methodology

To address the challenge of sparse reward and nonstationarity, MASL utilizes two techniques: 1) it backtracks the trajectories of high-value states to help agents avoid the unguided exploration process to speed up training. 2) it selects the information of other K agents based on the relevancy, rather than all agents, balancing the stability and learning efficiency of policy learning.

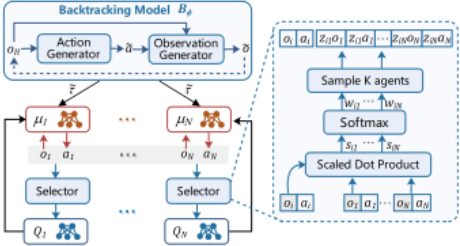

MASL is built on the framework of centralized training and decentralized execution. As shown in Fig.1, each agent i learns an independent deterministic policy µi(ai|oi; θi) parameterized by θi and a Q-network Qi(o1, · · · , oN, a1, ·, aN; ωi) parameterized by ωi, where oi and ai represent observation and action, respectively. More importantly, the selectors for agents and a centralized backtracking model Bφ are used for selective learning in the training phase. During the execution, the backtracking model, selectors and Q-value networks will be removed, allowing each agent to act based on its local policy.

2.1 Backtracking Based on Optimal Trajectory Selection

To improve sample efficiency in sparse reward tasks, we introduce the backtracking model in RL to multi-agent tasks. However, it is inefficient to directly apply the model to MARL because of the need to identify high-value states and the neglect of collaboration. Therefore, we mainly deal with two key problem: 1) How to improve multi-agent cooperation using the backtracking model? 2) How to identify high-value trajectory when all agents share a reward?

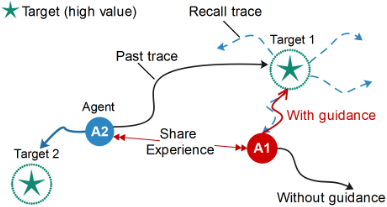

First, we design a global backtracking model that is shared among all agents to facilitate cooperative exploration. When an agent discovers a high-value state within the vast state space, we utilize the high-value states to generate recall traces, which are then shared among agents to expedite the exploration process. An example is shown in Fig.2, where two agents are exploring the environment to reach the targets. When agent A2 discovers a target (e.g., a landmark) and successfully identifies a high-value state (i.e., observation in partially observable environments), A2 shares the recall traces generated from this high-value state to guide the other agent to reach the known high-value states from a new path. In this way, agent A1 can quickly recognize the target and acquire the individual ability to reach a certain target in the early stage. Second, we propose a retrogression-based selection method to select the optimal trajectories.

Backtracking Model for Multi-agent Scenarios. In the training phase, we maintain a centralized backtracking model Bφ shared by all agents. The backtracking model Bφ utilizes agents' good private states to generates traces for N agents to train their policies. As shown in Fig.1, Bφ is composed of a observation generator and an action generator. Given a high-value observation oHi of agent i, the action generator q (˜ai|oHi ) generates an action ˜ai that may cause the highvalue state. The observation generator q (∆oi|oHi , ˜ai ) outputs the observation variation ∆oi = ˜ oi - oHi according to oHi and ˜ai, by which we get a previous observation ˜ oi indirectly and then further obtain a sequence of (˜ oi, ˜ai)-tuples as recall trace ˜ τi for policy training.

To achieve cooperation exploration, a natural idea is knowledge sharing. Therefore, each agent shares their recall traces with the other agents. We omit the the subscript of recall traces in the following content. Given observation ˜ o, the policy µi parameterized by θi is updated to guide agents to take action ˜a as:

The policy for each agent is updated by two terms, one over the trajectories collected by interaction and another over the recall traces generated by the backtracking model as Eq.1.

Since the backtracking model Bφ predicts previous actions and observations based on agents' high-value observations, the distribution of recall traces should match the distribution of the high-value trajectory as closely as possible. Given a high-value trajectory τ = (o1 , a1 , r1 , · · · , oT , aT , rT ), Bφ is trained by:

Note that agents only share the recall traces with other agents during training, and act independently during execution.

Retrogression-based Trajectory Selection. To build an effective backtracking model, an key problem is to identify high value trajectories, which could be difficult when all agents share a team reward. We propose a retrogressionbased selection method to recognize contributors from the shared reward, which infers all the contributors by letting all the agents to take a step backward in turn and observe how reward changes. The selected high-value trajectories are deposited to a high-value buffer ˜B.

2.2 Training Based on Key Information Selection

To balance stability and scalability, we allow agents to obtain information from the other agents for stable training, and we introduce a selector for each agent to select key information for efficient learning and scalability. Driven by the intuition that neighboring agents are more likely to interact, the selector computes the relevancy weight wij for each agent j by matching their observations. As shown in Fig.1, the weight wij compares oi with oj by using the computationally efficient scale dot score function to get sij (oj , oi) = oTj oi √d , where d is the dimensionality of the observation. The matching values are passed into a Softmax function to obtain relevancy weights:

Then, we get a normalized weight vector Wi ≜ (wi1, · · · ,wij, · · · ,wiN), j ̸= i, which satisfies ∑j̸=i wij ≡ 1. Then, we select K agents in a sample way and obtain an vector zi = {(zi1, · · · , zij, · · · , ziN) , zij ∈ [0, 1], }, where zij = 1 indicate the agent j is selected. The filtered information is replaced with a zero vector.

During off-line learning, the networks are updated using mini-batch samples. The selector chooses K agents based on the average weight of the mini-batch samples. Then, it can be seen as the information of the unselected agents is dropped out in current training round. This helps narrow down the critic networks and leads to faster training.

3 Experiments

In this section, we perform experiments to investigate the effectiveness of our method on two continuous control tasks of resource collection and rover exploration, which are modified from the widely used multiple-particle environment (MPE) benchmark [Lowe et al., 2017]. we compare MASL with several state-of-the-art solutions, includingMADDPG [Lowe et al., 2017], DDPG [Lillicrap et al., 2016], MADDPG-MD [Kim et al., 2019], MF [Yang et al., 2018], MAAC [Iqbal and Sha, 2019] and IGASIL [Hao et al., 2019].

3.1 Resource Collection Tasks

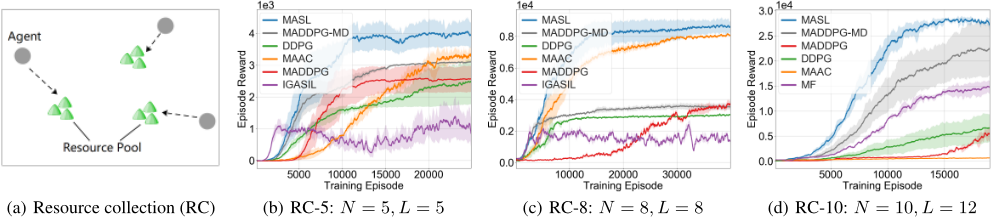

The resource collection task requires N agents to collect L resources in multiple resource pools while avoiding collision, as shown in Fig.3(a). In Fig. 3, we plot the episode reward of different algorithms as the training progresses. MASL outperforms the other methods in all the cases. It is clear that MASL learns more rapidly and reaches higher episode rewards earlier than the baselines. In contrast, the other methods converge to suboptimal performance due to their limited exploration. Moreover, it is noteworthy that as the number of agents increases, MASL maintains its superior performance in terms of learning speed and final reward attainment.

3.2 Rover Exploration Tasks

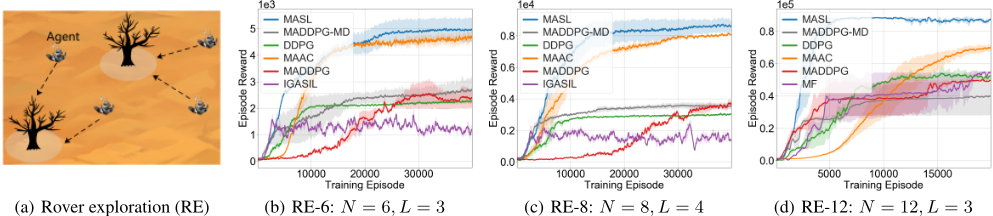

The rover exploration task involves N agents learning to cooperatively explore L distinct target areas separately, as in Fig. 4(a). The number of agents needed to explore a target area is referred to as the coupling requirement, which remains unknown to the agents. The rover exploration tasks bring more challenges to agents due to the requirement of deep cooperation.

As shown in Fig. 4(b), the reward curve for MASL demonstrates notably faster growth compared to the other methods. MASL agents learn quickly to form a team of two to explore an area in RE-6 scenarios. Similar results can be found in RE-8 scenario (N = 8,L = 4). As the number of agents increases, the joint state space expands quickly, which slows down the training process. However, MASL still maintains an advanced performance (see Fig. 4(c)). We observe that once an agent reaches a target occasionally, MASL quickly learns to form teams to explore different targets.

To evaluate the performance of MASL in long-horizon tasks, we conduct experiment on the 100-step rover exploration task with 12 agents and 3 areas (N = 12,L = 3), which requires agents to explore 3 areas with a high coupling requirement of 4. As shown in Fig.4(d), MASL still achieves higher sample efficiency in the long-term games compared to the baselines of MADDPG-MD and MADDPG.

3.3 Discussion

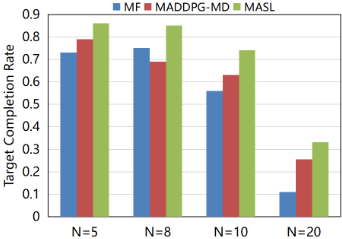

In this section, we study the scalability of MASL to show its advantage in sparse reward tasks. We train agents in the resource collection scenarios with N = [5, 8, 10, 20] agents respectively, and then report the final target completion rates of MASL compared with MADDPG-MD and mean field reinforcement learning (MF), which are designed to address large-scale agents. MF is added as a baseline method, which approximates the interaction within agents using an average effect to enable coordination between large-scale agents. As shown in the Fig. 5(a), MASL achieves higher target completion rates than the other baselines, even in the large-scale scenario with 20 agents. We observe that MASL only sacrifices 0.93% of the computation time to improve the sample efficiency by 8.8% compared with MADDPG-MD when N = 5. The sample efficiency of MASL is improved by 30.2% in the case of N = 20. We also study the scalability of the trained MASL agents by transferring the trained policies of 5 agents to 30 agents, and testing MASL in the environment of 30 agents (N = 30, L = 30). We observed that the trained decentralized policies of MASL in easy tasks can be directly scale to complex tasks with large-scale agents, while achieving a higher target completion rate of 36%, surpassing MADDPG-MD (24.7%). MASL enhances sample efficiency for sparse reward tasks, especially in large-scale scenarios. We also perform ablation studies, which show that learning from recall traces and focusing on relevant agents jointly accelerate training and aid in exploration. For more results, please refer to the full paper [Chen et al., 2023].

4 Conclusions

In this paper, we propose an efficient training method called multi-agent selective learning (MASL), to improve sample efficiency for multi-agent sparse-reward tasks. By using a centralized backtracking model, MASL learns not only from traces obtained by interacting with the environment but also from recall traces generated by the backtracking model. Moreover, we design a selector to improve learning efficiency while balancing stability. Experiments show that MASL significantly speeds up learning in several multi-agent sparsereward tasks, especially in tasks with large-scale agents.

Acknowledgments

This work was supported by the National Key Research and Development Program of China (2022YFC3400404), the National Science Foundation of China (62172154), the Hunan Provincial Natural Science Foundation of China under grant No. 2023JJ30702. Prof. Xuan Liu is the corresponding author of the paper.
