Transformer-based Convolutional Codes Decoder

1 Introduction

In the modern information age, ensuring strong and reliable digital transmission amidst channel interference is a top priority within the realm of communication systems. Since the birth of information theory [Shannon, 1948], much progress has been made in the design of near-optimal codes. Among these, convolutional codes [Elias, 1955] are a type of linear code capable of encoding information streams of indefinite length. As an important channel coding technology, convolutional codes have been widely used in communication systems such as GSM [ETSI Secretariat, 1996], WCDMA [3GPP, 2000], and Wi-Fi protocols [IEEE, 2021].

∗Corresponding author.

In recent years, deep learning methods have developed rapidly and have been applied to all layers of communication systems to improve performance greatly. Decoding of channel codes can be considered as a classification problem, where the aim is to infer the transmitted codeword from its noisy version. The recent success of deep learning methods for a wide range of classification problems and their ability to capture complex patterns has motivated exploring their applications to channel decoding. Machine learning-based decoding primarily employs two methodologies: model-based [Xu et al., 2017; Doan et al., 2019; Buchberger et al., 2021] and model-free. The first one involves using neural networks to update relevant weights within traditional decoding algorithms such as belief propagation (BP), while the other entails entirely novel decoding methods that don't rely on existing algorithms. Neural BP (NBP) introduces learnable weights to conventional BP graphs and has gained improvements in comparison to the baseline BP method for short codes [Nachmani et al., 2016; Nachmani et al., 2018; Lugosch and Gross, 2017]. Neural successive cancellation for polar codes [Doan et al., 2018] and Neural Viterbi (NViterbi) [Kim et al., 2018] for convolutional codes perform close to the optimal. While model-based decoders benefit from a strong theoretical background, the architecture is overly restrictive, and the improvement gain generally vanishes for more iterations [Hoydis et al., 2022]. Model-free decoders employ various types of neural network architectures. [Cammerer et al., 2017; Gruber et al., 2017] used fully connected (FC) networks; [Jiang et al., 2019] employed Convolutional Neural Network for turbo codes. [Bennatan et al., 2018] extended the classical syndrome decoding by adding the magnitude to the syndrome vector. [Choukroun and Wolf, 2022] implemented a Transformer-based [Vaswani et al., 2017] decoding scheme (ECCT) for error-correcting codes, employing the previously discussed syndrome decoding technique, and yielded favorable performance. [Choukroun andWolf, 2023] extended the denoising diffusion [Ho et al., 2020] paradigm to an error correction code. [Choukroun and Wolf, 2024a] proposed a foundation neural decoder, capable of decoding and generalizing to any code, length, and rate, enabling the potential deployment of a single universal neural decoder for every type of code. [Choukroun and Wolf, 2024b] introduced a unified encoder-decoder training framework for linear block, enabling end-to-end differentiable optimization over Galois fields for code design. [Kurmukova and Gunduz, 2024] presented a "friendly attack" approach that parallels traditional adversarial attacks. It enhances the performance of errorcorrecting channel code decoders by applying subtle perturbations to fixed-point modulated codewords before transmission. [Park et al., 2025a] used multiple masks to enhance the capability of transformer for error correction codes.[Park et al., 2025b] proposed CrossMPT which ingeniously refines the ECCT model to achieve superior bit error rate (BER) performance while maintaining lower computational and memory overhead. [Xiao et al., 2025] exploits a cyclic shift reuse property in Transformer-based decoders for cyclic codes, significantly reducing the number of model parameters.

Nonetheless, the aforementioned impactful studies were not explicitly developed for sequential codes (e.g., convolutional codes). Existing neural architectures specialized for this code type currently exhibit suboptimal performance, thereby limiting their efficacy in real-world scenarios. [Kim et al., 2018] proposed a bi-direction Gated Recurrent Units (bi-GRU)-based approach, designed to emulate the Viterbi [Viterbi, 1967] and BCJR [Bahl et al., 1974] algorithms, which is limited to specific codewords with a code rate of 1/2. Consequently, their model shows only mediocre performance on convolutional codes commonly used in the WiFi (IEEE 802.11) standard. [Teich et al., 2019] proposed an energy-efficient analog decoder implementation for the case of convolutional self-orthogonal codes (CSOCs) based on high-order recurrent neural networks (HORNNs). [Teich and Pan, 2023] extends the code type to nonsystematic convolutional codes by a network based on a Convolutional Neural Network. Unfortunately, their decoding performance and the upscaling property degrade severely for general convolution codes. [Yan and Dai, 2025] utilized a Long Short-TermMemory (LSTM)-based [Graves, 2012] model for decoding punctured convolutional codes of various rates, achieving promising results.

1.1 Our Contribution

In this work, we propose a convolutional codes decoder characterized by high accuracy, fast decoding speed, and applicability across various convolutional codes. Inspired by the excellent performance of a series of works like Error Correction Codes Transformer (ECCT) [Choukroun and Wolf, 2022] on linear block codes, we select the transformer architecture as our decoder. To enhance the model's adaptability and performance, we propose the following technical contributions specifically addressing the characteristics of convolutional codes: (i) we adapt the Transformer input sequence by Bidirectional Context Aggregation to more effectively leverage information from preceding and succeeding codeword blocks. (ii) We extract implicit inter-bit information to refine the attention matrix, which results in a much lower bit error rate. Applied to a variety of convolutional codes, our approach outperforms existing neural decoders across diverse convolutional codes, attaining near-maximum-likelihood error correction performance with substantially lower computational latency than the Viterbi algorithm.

2 Background

To furnish a comprehensive understanding of the proposed Transformer-based convolutional code Decoder, this section presents the necessary background on convolutional codes, the transmission scheme, and the Transformer architecture.

2.1 Convolutional Codes

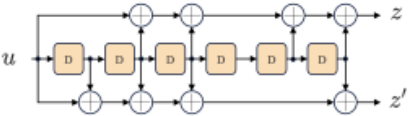

Convolutional codes are linear codes that assign code bits to an incoming information bit stream continuously in a streamoriented fashion. The convolutional code is characterized by its encoder structure, where the input bit stream passes through a series of shift registers, generating encoded bits as output. Each output bit is determined by the current input and several previous input bits, as defined by the constraint length of the code. The encoder structure can be represented as a polynomial matrix. For example, Fig. 1 shows the encoder structure of the convolutional code specified in the IEEE 802.11 standard, and its corresponding polynomial matrix is [91, 121], where the binary representation of each decimal digit's value indicates whether the corresponding register participates in the output of the result.

2.2 Transmission Scheme

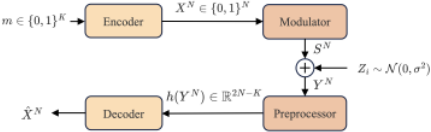

Fig. 2 shows the transmission model. For encoding and decoding, we assume a traditional transmission setting with a (n, k, l) convolutional code C over a finite field F2 = {0, 1}. The sender has a K-bit message m ∈ {0, 1}K , which is encoded into a codeword XN from the code space. The modulator then maps the sequence of codeword bits into a sequence of symbols SN . In this work, we focus on the binary phase shift keying (BPSK) modulation where SN = 1N - 2XN . The mapped symbols are sent over a discretetime additive white Gaussian noise (AWGN) channel, i.e., Y N = SN + Z N , where Z N is a sequence of independent and identically distributed Gaussian random variables Zi ∽ N(0, σ2 ). The sequence of received symbols Y N is the input to the decoder after preprocessing. The main goal of the decoder F : Rn → Rn is to provide a soft approximation ˆ XN = f(Y N ) of the codeword. In order to avoid overfitting, we extend classical syndrome decoding and employ a surrogate decoder [Bennatan et al., 2018; Choukroun and Wolf, 2022]. The surrogate decoder objective is defined by the prediction of the equivalent multiplicative noise ˜ ϵ such that Y N = XN ⊙ ˜ ϵ, where ⊙ is the Hadamard product. The decoder preprocesses the channel output Y N by concatenating the provably codeword-independent magnitude and syndrome vectors, such that h(Y N ) = [|Y N |, s(Y N )] ∈ R2N-K , where [·, ·] denotes vector concatenation and s(Y N ) denotes the syndrome defined by s(Y N ) = Hbin(Y N ) with bin(Y N ) the binary mapping of Y N . In this case, the soft codeword prediction is given by the denoising task defined as ˆ XN = f (h(Y N )) ⊙ Y N .

2.3 Transformer

The Transformer architecture [Vaswani et al., 2017], which was initially proposed for machine translation, introduced a novel attention-based approach. It processes the input sequence by incorporating positional embeddings for each element and embedding it into a high-dimensional space.

The embeddings are propagated through multiple normalized self-attention and feedforward layers. The selfattention mechanism is based on a trainable associative memory with (key, value) vector pairs, where a query vector q ∈ Rd is matched against a set of k key vectors using scaled inner products, such that Attention(Q,K, V ) = Softmax(d-1/2 (QKT ))V . Here Q ∈ RN×d ,K ∈ Rκ×d and V ∈ Rκ×d represent the stacked N queries, κ keys and values tensors, respectively. Keys, queries, and values are obtained using linear transformations of representations of the sequence's elements, and a multi-head self-attention scheme is deployed by extending the self-attention mechanism to multiple attention heads.

3 Convolutional Code Decoding Transformer

In this section, we introduce the crucial components of the proposed framework, the complete architecture, and the training procedure.

3.1 Bidirectional Context Aggregation

Different from linear block codes, convolutional codes handle infinite information bit streams and encode them into sequences, which means that the entire codeword cannot be fed into the decoder all at once. It is unreliable to group the continuous code sequences into different blocks directly; otherwise, the constrained information between blocks will be lost. In [Zhang et al., 2020], the authors provide a decoding method that can utilize the constraint information from the previous codeword block. They train multiple different networks according to the length of the constraint bits, i.e., the number of memory register states. Based on the decoding result of the previous codeword block, they select a different network to decode the next codeword block. However, the unique structure of this method limits the parallel processing capability of the decoder. Furthermore, if an error occurs in the last several bits of the previously decoded sequence, it will directly affect the decoding of the subsequent codeword block.

To avoid this problem, we choose to increase the length of the decoder's input sequence. For instance, when we attend to decode a (n, k, l) convolutional code with block length L, the input length should be n × (L + l - 1), where k/n is the code rate and l is the constraint length. This is because the last group of bits in the information sequence is directly involved in the encoding of the subsequent l - 1 codeword groups, as shown in the left half of Fig. 3.

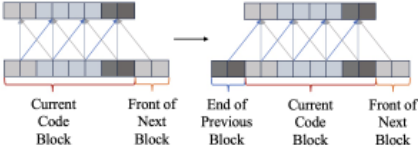

However, in the experiments, the results obtained by this Unidirectional Context Aggregation (UCA) method were not satisfactory. After further research and trials, we adopted the method of adding input information before and after the codeword blocks, as shown in the right half of Fig. 3. More specifically, if we want to decode a convolutional code with a block length of L, we need to take an additional n × (l - 1)-length bits before and after this code block, respectively, and input them together into the decoder. The effectiveness of this Bidirectional Context Aggregation (BCA) method is remarkable. The first n×(l-1) bits play an important role in the decoding procedure. Although the first n×(l-1) bits of the codeword sequence are not directly involved in the encoding process of the information sequence, they exhibit a strong correlation with the last l - 1 groups of the previous information block. These latter l - 1 groups are directly involved in the encoding of the current codeword block. Our Transformer-based model can effectively capture these implicit relationships and leverage them during the decoding process.

3.2 Implicit Inter-bit Information Extraction

We intend to use the algebraic structure of the code to modify the self-attention weights. Since not every position in the received codeword is related to all other positions, it is necessary to design a module similar to a mask matrix based on the codeword type to weight and adjust the self-attention.

We first considered adopting the mask strategy from ECCT [Choukroun and Wolf, 2022], which directly applies binary masking based on the parity-check matrix to filter selfattention connections. But as convolutional codes naturally have sparse parity-check matrices due to their recursive encoding structure with memory elements, applying a binary mask derived from such sparse matrices would overly restrict the attention scope and mask out too much potentially useful information. This over-constraint leads to suboptimal performance, especially when dealing with noisy channels where subtle relationships between distant bits can aid in error correction.

Intuitively, positions that are farther apart should have a weaker influence on each other. Thus, the distance between codewords is an important indicator to consider when constructing the weight matrix. As a graphical representation of the algebraic structure of codes, the Tanner graph establishes a connection between codeword bits and parity-check constraints, which is an effective tool for capturing the inherent relationships in convolutional codes. We propose to design our attention mechanism based on it to enhance the model's ability to model long-distance dependencies and improve decoding accuracy.

Inspired by the Foundation Error Correction Code Transformer (FECCT) framework [Choukroun and Wolf, 2024a], we construct a trainable single-input single-output multilayer perceptron (MLP) M to map the distance values to attention weights. The MLP M consists of a linear layer of 1-to-32 dimensions, a ReLU nonlinear activation layer, and a 32-to-1-dimensional linear layer. This mapping transforms the codeword distances into weights that reflect the strength of the structural relationship between different positions. We then apply these weights to the initially computed attention matrix, through which the mechanism focuses attention on positions with shorter codeword distances.

summarized as

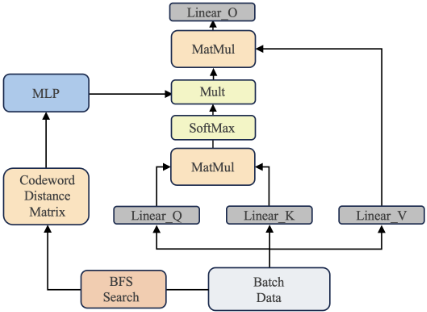

We detail the implementation of the inter-bit correlation self-attention mechanism in Fig. 4. This design offers greater flexibility in capturing structural correlations, as the learnable MLP can model non-linear relationships between distances and attention weights that extend beyond simple adjacency rules. While a standard Transformer treats all position pairs with equal potential relevance in its attention computation, the proposed distance-based weighting can be viewed as a dynamic adjacency matrix where edge strengths are determined by the algebraic distance in the Tanner graph.

3.3 Architecture

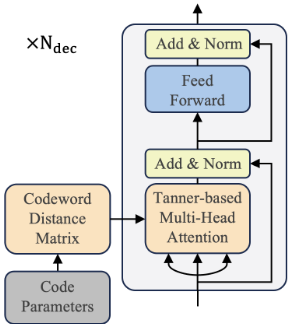

The input of the model is a (2l-2+L)n-dimensional vector. In the embedding stage, features are extracted through different methods and then concatenated into a (2l-2+L)(2n-k)- dimensional vector. Subsequently, each element of this vector is embedded into a dmodel-dimensional word vector via a trainable embedding matrix src emb. The decoder module is composed of Ndec stacked encoding layers, each with identical structure but independent parameters. Each encoding layer consists of an inter-bit correlation self-attention sublayer and a feed-forward sublayer, connected through residual connections and layer normalization. The output integration part is dual to the embedding stage: it intercepts the corresponding feature intervals, processes them separately through fully connected layers, and then integrates them to form the final output. An illustration of the model is presented in Fig. 5.

Thus, for a given code type with a constructible paritycheck matrix H, we propose to define a function ψ(H) with input H ∈ {0, 1}(2l-2+L)(n-k)×(2l-2+L)k and output weight matrix W ∈ R(2l-2+L)(2n-k)×(2l-2+L)(2n-k) , which will then be applied to the raw self-attention calculation. The function ψ consists of a Breadth First Search (BFS) algorithm for Tanner graph and MLP M as afore mentioned. Thus, our implicit inter-bit correlation self-attention mechanism can be The feed-forward sublayer consists of a dimension expansion layer, a gated activation layer, and a dimension compression layer. The dimension expansion layer maps the output of the self-attention sublayer to a higher dimension, which is set to 4dmodel in our implementation, and the gated activation layer applies the GELU activation function to introduce non-linearity.

Figure 5: The architecture of the proposed framework.

The output mapping module first splits the encoder output into magnitude and syndrome feature embeddings. It processes the latter with HT before concatenating them with the former, and finally feeds the result into a fully connected layer to obtain the predicted value zpred.

3.4 Training

The loss function is defined based on the cross-entropy between the model's prediction zpred and the target 0.5(1 - sign(zmul)), where zmul = y × ˆx. The prediction of the original codeword is derived as xpred = 0.5(1-sign(zpred × sign(y))).

We adopt the Adam optimizer [Kingma and Ba, 2014] along with a cosine annealing learning rate scheduling strategy during the training process. The learning rate is initialized to 10-4 and decays down to 1 · 10-6 by the end of training. By default, we set the batch size to 128, dmodel = 32 and Ndec = 6 for standard architectures, and the number of epochs to 1000. We typically set the number of blocks for single codeword data in the range of 80 - 120.

In the training phase, noise with random Signal-to-Noise Ratio (SNR) values is adopted. For data usage, the training process exclusively utilizes all-zero codewords, while the testing phase employs randomly generated codewords. This training strategy is widely adopted in [Choukroun and Wolf, 2022; Park et al., 2025b], as the all-zero codeword alone is sufficient for model training. The training and inference processes are performed on an NVIDIA RTX 5090 GPU with 32 GB of memory and an NVIDIA RTX 3090 Ti with 24 GB of memory. The underlying computing hardware includes multiple processors: an AMD EPYC 9754 128-Core Processor and an Intel(R) Xeon(R) Gold 5220R CPU. The system is equipped with 503 GiB of system memory. The software environment is built on Ubuntu 22.04.5 LTS with Python 3.13.2 as the main programming language. Training time ranges from 12 to 48 hours, depending on the code length.

4 Experiments

We train the proposed architecture for convolutional codes of various code rates to evaluate our method. The codes we consider include (2,1,3), (2,1,4), (2,1,7), (3,1,3), (3,2,3) and (4,3,3), covering self-orthogonal convolutional codes and non-self-orthogonal convolutional codes; systematic convolutional codes and non-systematic convolutional codes. We compare our proposed method with the Viterbi-like RNN decoder introduced by [Kim et al., 2018] as well as the conventional Viterbi algorithm. Additionally, we benchmark our approach against state-of-the-art Transformer-based decoders, including MMECCT [Park et al., 2025a] and CrossMPT [Park et al., 2025b]. The results are all obtained by reproducing the code and running it in the same environment. All the results are reported as bit error rates (BER) for different normalized SNR values. During the testing phase, our decoder processes at least 105 codewords to validate data reliability.

The results compared to the Viterbi algorithm are reported in Tab. 1, where we present the negative natural logarithm of the BER. We evaluated six distinct convolutional codes, each with two distinct codeword block lengths. The Viterbi decoder can be regarded as an optimal way to implement Maximum Likelihood (ML) decoding for convolutional codes at AWGN channels. From a comprehensive perspective, the BER performance of our method is competitive with the Viterbi algorithm for codewords at lower code rates. For higher rate codewords, the performance gap of our method is acceptable given the substantial computational overhead of the Viterbi algorithm.

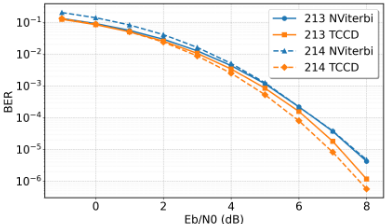

We then compare our method with NViterbi. The NViterbi architecture is designed for the rate-1/2 RSC code, and can be trained to decode other types of convolutional codes by adjusting network parameters. Reproducing experiments with the model parameters of the rate-1/2 convolutional code from their paper, we find that the model performed effectively for smaller constraint lengths (e.g., a constraint length of 3 or 4). However, its performance significantly deteriorated for longer constraint lengths (e.g., a constraint length of 7). Therefore, we conducted a comparative analysis of the (2,1,3) and (2,1,4) codes, evaluating both our proposed model and the NViterbi algorithm in Fig. 6. As can be seen, our method outperforms NViterbi at every normalized SNR value.

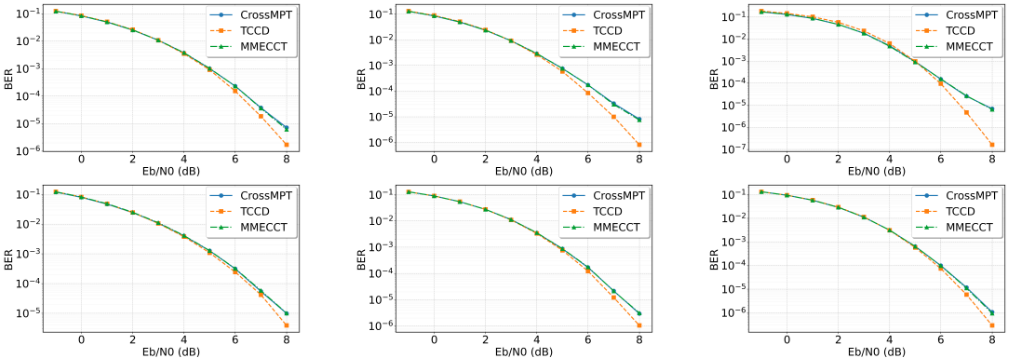

In addition, we benchmark our proposed method against the state-of-the-art error correction code decoders MMECCT and CrossMPT in Fig. 7. The evaluated codewords cover six different parameter configurations, all with a block length of 40. We observe that the BER curves of MMECCT and CrossMPT are highly similar. Overall, our decoder demonstrates comparable performance to these methods at low signal-to-noise ratios, while exhibiting a clear advantage at higher signal-to-noise ratios.

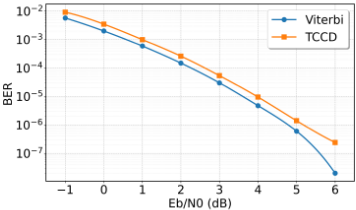

We further conduct simulation experiments under Rayleigh fading channel. The received signal over the channel is given as: Y = Hx+Z , where H ∈ RNr×Nt denotes the Rayleigh fading channel matrix, in which each element is an independent and identically distributed Rayleigh fading coefficient with the scale parameter α = 1; Nt represents the number of transmit antennas and Nr denotes the number of receive antennas. We adopt a standard 2 × 2 multiple input multiple output (MIMO) configuration for performance evaluation, experiments on (2, 1, 3) codewords are performed based on the above channel model and we compare it with Viterbi method. We evaluate the decoding accuracy of the proposed scheme under the above experimental setup, and the detailed experimental results are presented as in Fig. 8. Although there remains a gap between our BER and that of maximum likelihood decoding, the sufficiently strong performance demonstrates the applicability of our approach over Rayleigh fading channels.

5 Analysis

In this section, we study the impact of the proposed bidirectional context aggregation and implicit inter-bit information extraction. We also examine and compare the computational complexity and decoding latency with the conventional Viterbi algorithm.

5.1 Ablation Study

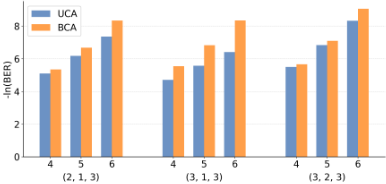

We first study the impact of our bidirectional context aggregation mechanism. As shown in Fig. 9, the benefit obtained by our bidirectional context aggregation mechanism is clear and understandable, which further corroborates the transformer's ability to extract such implicit relationships between adjacent code blocks.

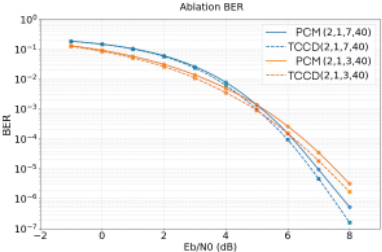

We then demonstrated the effectiveness of the implicit inter-bit information extraction method. We compare the parity check matrix masking method in ECCT [Choukroun and Wolf, 2022] with our attention weight fine-tuning, as shown in Fig. 10. It is evident that our method yields superior performance, indicating that leveraging the hidden internal information between bits is beneficial for improving decoding efficiency in convolutional codes.

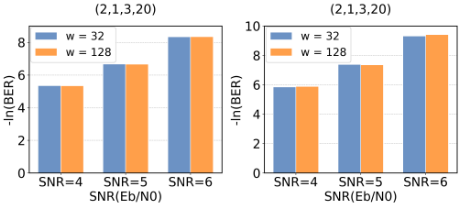

We investigate the impact of the single-input single-output multi-layer perceptron size, as proposed in the implicit interbit information extraction mechanism, on the performance of our model. Our tests across two different codewords revealed that network size had minimal impact on model performance, as shown in Fig. 11. This suggests that a perceptron with a hidden layer width of 32 is sufficient to capture the necessary information.

5.2 Computational Complexity

The complexity of the network is defined by O(Ndec((L + 2l - 2)2 (2n - k)2dmodel + (L + 2l - 2)(2n - k)d2model )), where k/n is the code rate, l is the constraint length, L is the block length and Ndec, dmodel are network hyperparameters. Given the same codeword parameters and an identical decoding length, the Viterbi algorithm exhibits a decoding complexity of (L + l - 1)n · 2k(l-1) , where k(l - 1) is the number of trellis states. Despite its high performance, our proposed method, much like the majority of neural network decoding algorithms, lacks sufficient efficiency when compared to traditional decoding algorithms, with the exception of cases where number of trellis states is the primary determinant of complexity. In Tab. 2, we evaluate the computational complexity (parameters and FLOPs) of TCCD, MMECCT, and CrossMPT across various (n, k, l) configurations with a fixed block length of 40.

5.3 Decoding Latency

Decoding latency is a crucial metric in real-time communication systems. We evaluate the proposed TCCD decoder against the conventional Viterbi decoder and Transformerbased decoders. The evaluation results were presented with a floating-point precision of float32, based on 105 trials with an information block length of 40. As shown in Tab. 3, Our proposed method achieves a latency between those of MMECCT and CrossMPT, and is substantially lower than that of the conventional Viterbi algorithm.

6 Conclusion

This paper proposes a convolutional code decoder based on the Transformer architecture, which is capable of efficiently processing various types of codewords. The proposed model achieves state-of-the-art BER accuracy compared to highperformance neural network decoders by leveraging the bidirectional context aggregation mechanism and implicit interbit information extraction. Our method achieves decoding accuracy close to that of maximum-likelihood decoding, while offering significantly higher decoding throughput. Future work can focus on optimizing the model's architecture to further reduce computational complexity and latency, as well as extending the proposed framework to other sequential codes like punctured convolutional codes or Turbo codes, collectively contributing to the development of next-generation AIpowered communication systems.
