Commit Message Generation for Source Code Changes

1 Introduction

In the practice of software development, a version control system is usually adopted which requires the developers to write a commit message to summarize each submitted code change. The commit message is in the form of natural language and thus can help software developers understand the high-level intuition behind the code change without the need to read the low-level implementation details. Consequently, commit messages become an indispensable part of software development, and play an essential role in software comprehension and maintenance.

Unfortunately, it is non-trivial for developers to write a meaningful summary to precisely capture the changes made to the source code written in certain programming languages. Furthermore, writing messages for each commit even becomes a burden to developers since the code base may evolve and grow incrementally with a number of fine, small commits rather than a huge change. Due to the lack of direct motivation, commit messages are sometimes overly neglected by developers. For example, it is reported that around 14% of the commit messages in more than 23,000 open source Java projects hosted in SourceForge 1 are completely empty [Dyer et al., 2013]. Therefore, automatically summarizing code changes becomes an important task. We refer to this task as commit message generation in this paper.

To date, several commit message generation approaches have been proposed in the literature. These approaches are developed in three stages (see Section 4 for more discussions). First, early work translates code changes into natural language descriptions based on pre-defined rules and templates [Buse and Weimer, 2010; Cortés-Coy et al., 2014; Shen et al., 2016]. Nevertheless, these descriptions sometimes fail to explain the reasons or purposes of code changes and thus become tedious and useless in practice. Later, some researchers utilize information retrieval techniques to generate commit messages. Their basic idea is to re-use the commit messages of similar code changes [Huang et al., 2017; Liu et al., 2018]. The main limitation of these approaches is that they cannot output accurate summaries if there are no similar code changes. In recent years, there is a tendency to adopt learning based techniques for the commit message generation problem [Jiang et al., 2017; Loyola et al., 2017; Loyola et al., 2018]. Typically, these approaches translate the source code changes into commit messages using neural machine translation (NMT) models.

Although learning based approaches have obtained promising results in comparison with earlier work, they still suffer from the following two limitations. First, NMT usually can only maintain a limited vocabulary of the most frequent words, making it difficult to generate the out-of-vocabulary (OOV) words such as the self-defined class names or variable names. Second, when learning the representations of the code changes, existing approaches tend to follow the "naturalness" hypothesis of software [Hindle et al., 2012], and directly feed the code changes into the model. However, such treatment only encodes the code semantics while ignores the code structure.

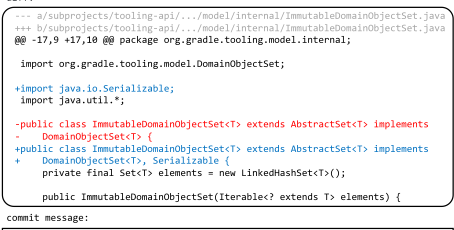

For better understanding the above two limitations, we present an illustrative example in Figure 1, which shows a made ImmutableDomainObjectSet serializable piece of code change (or diff) as well as its commit message. Typically, a code change contains various program tokens such as keywords, operators, and identifiers (i.e., names for classes, methods, and variables). In the example, the generated commit message contains the class name "ImmutableDomainObjectSet". However, this word is usually treated as an OOV word as it may appear only a few times or even once in all the diffs, making it difficult for existing NMT models to generate the word. Moreover, the meaning of a change is the same for any other class that makes the same change (e.g., adding "Serializable" into the class declaration), although such a class may have a different class name. Therefore, in addition to the semantics contained in the self-defined identifiers, the code skeleton/structure 2 should be jointly modeled to better learn the representations of the code changes.

1 https://sourceforge.net/

In this paper, we propose a novel approach CODISUM for the commit message generation problem, addressing the above two limitations. In particular, we first extract both the code structure and the code semantics from the code changes. For the code structure, we identify all the class/method/variable names and replace them with the corresponding placeholders. For the code semantics, we segment each class/method/variable name into several single words. Here, the word segmentation is based on the well-known naming conventions widely adopted by developers. For example, part of the extracted code structure and code semantics for Figure 1 are shown in Table 1, where we use the class name "ImmutableDomainObjectSet" as an example to illustrate our idea. First, we identify the class name and replace it with a placeholder "c0". Then, we segment it into a sequence of words, i.e., "immutable domain object set".

Next, we model both code structure and code semantics with a recurrent neural network (RNN), and further align the two RNNs at the position of each placeholder. With this step, we can combine the learned representations of "immutable domain object set" (semantic representation) and "c0" (structural representation) as the overall representation for the class name "ImmutableDomainObjectSet". Finally, to allow directly copying the OOV words from the input code changes to the output commit messages, we incorporate the copying mechanism [See et al., 2017] in our model. For example, the model may directly copy "c0" into the generated message, and we substitute "c0" with "ImmutableDomainObjectSet" as the final output.

2 In this work, we define the code structure as the code skeleton by substituting identifiers with placeholders.

In summary, the main contributions of this paper include:

• We propose a commit message generation approach CODISUM that jointly learns the representations of both code structure and code semantics. The model can also mitigate the OOV problem.
• We conduct experimental evaluations on real data, demonstrating that the proposed approach significantly outperforms the state-of-the-art in terms of the accuracy of generating commit messages.

The rest of the paper is organized as follows. Section 2 describes the proposed approach. Section 3 shows the experimental results. Section 4 reviews the related work, and Section 5 concludes.

2 The Proposed Approach

In this section, we present the proposed approach, which is named as CODISUM (Code Diff Summarization).

2.1 Overview

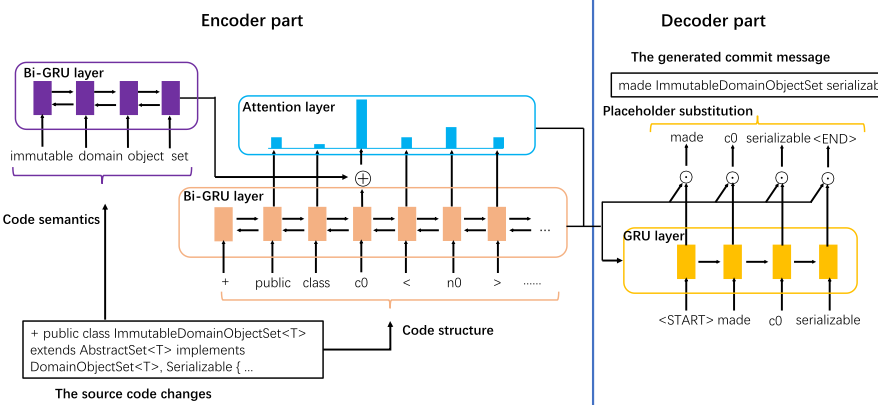

The overview of the proposed CODISUM is shown in Figure 2, which contains an encoder part and a decoder part.

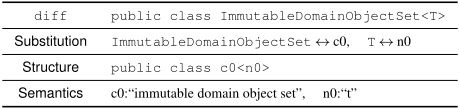

The input of the model is a piece of source code change. Then, in the encoder part, we first extract the code structure from the input by recognizing the identifiers (i.e., the names of classes, methods, and variables). We replace all the identifiers with the corresponding placeholders 3 and then learn the representations of the resulting code structure. For each identifier, we also learn its semantic representation, and combine the learned semantics with the corresponding placeholder as the overall representation of this identifier. The overall representation of each input word is then fed into an attention layer to obtain the final representation of the input code change.

For the decoder part, we use a multi-layer unidirectional GRU [Cho et al., 2014] to generate a sequence of words as the initial commit message. Meanwhile, we incorporate the copying mechanism [See et al., 2017] to allow directly copying the OOV words from the code changes. Note that such copying applies on the code structure, which directly copies the placeholders instead of the original input words. Finally, we substitute the placeholders with the corresponding input words as the final generated commit message.

3 We use different placeholders for the identifiers in each code change. For different code changes, we re-use the placeholders.

where hi,j ∈ Rdh in the hidden state of the j-th separate word. Here, for the separate words, we also maintain them in the same lookup table with the other words in code changes and commit messages (i.e., dx = dz).

Finally, since we use a multi-layer bi-directional structure of RNNs, we concatenate the hidden states of the two last neurons of the top-layer in both directions as the semantic representation of the input sequence. That is, we have the semantic representation of word xi as

where ⃗hi,N ′ and ⃗ hi,N ′ are the hidden states from the forward direction and the backward direction, respectively.

2.4 Combining Code Structure and Semantics

Next, we describe how we jointly model code structure and code semantics. Although we can simply learn the two representations and directly concatenate them as the encoder results, such a method would miss the correspondence between code structure and code semantics, and thus leading to inferior generation accuracy. This is also confirmed by our experiments as we will later show.

In CODISUM, we align code structure and code semantics. Specially, for each input diff, we maintain N sequences corresponding to the N input words. For example, if the i-th word xi is an identifier, we learn its semantic presentation zi via Eq. (3) and concatenate it with the hidden state hi (i.e., structural representation) from Eq. (1) as the overall representation of xi, i.e.,

Otherwise, if the i-th word is not an identifier, we do zeropadding after hi to generate the combined representation h′i for word xi, i.e., h′i = [hi; 0s].

Attention Layer. For the decoder part, we assume that decoder output at step t as st. The attention distribution is then

2.2 Modeling Code Structure

In the following, we describe some details of the CODISUM model. With code structure extracted from the input diff, we denote the embeddings of the words/placeholders in the code structure as [x1, x2, . . . , xN], where xi ∈ Rdx is the embedding of the i-th word and N is the maximum length of the structure sequence. Note that the embeddings of all the words including those in code changes and commit messages are maintained in the same lookup table.

To model the code structure, we use the multi-layer bidirectional GRUs 4 . Each neuron takes the word embedding xi and the output of the previous neuron hi-1 as input, and outputs hi for the current word,

where hi ∈ Rdh is the hidden state of the GRU neuron.

Note that the diff usually contains a sign (i.e., "+" or "-") that allows us to distinguish if the lines are added or removed. In practice, we also maintain a lookup table for these signs and add the corresponding embedding before each word, i.e., xi = [yi; xi], where yi is the embedding of "+" or "-".

2.3 Modeling Code Semantics

If the word xi in the code structure is a placeholder (i.e., the original word in the code changes is an identifier 5 ), we also use multi-layer bi-directional GRUs to encode the semantics of the identifier. By splitting the identifier into separate words based on the naming convention, and denoting the resulting word sequence as [zi,1, zi,2, . . . , zi,N ′ ] where zi,j ∈ Rdz is the embedding of the j-th separate word in xi and N ′ (N ′ ≪ N) is the maximum length of the separate word sequences, we have

4 We omit the multi-layer structure in Figure 2 for brevity.

5 Without ambiguity, we directly use xi to indicate the word with embedding xi in this paper.

calculated as follows,

where v, Wh, and Ws are learnable parameters. The normalized αt i determines how much attention should be given to h′i = [hi; zi] when generating the t-th word in the commit message. Then, we can produce a weighted sum of h′i , which is also known as the context vector, as the representation of the input code change,

Copying Mechanism. Finally, we incorporate the copying mechanism [See et al., 2017]. This mechanism directly copies some words (e.g., class names) from the input code changes to the generated commit messages.

Without copying mechanism, we can generate the t-th word based on the following distribution,

where W and b are learnable parameters. Here, P ′ contains the generation distribution over all the words in the vocabulary. To allow copying, we further compute a copying distribution over the words in the structure sequence [x1, x2, . . . , xN] as,

where αt = [αt1 ; αt2 ; . . . ; αtN ] is the attention vector, D ∈ RN×V is the one-hot coding of the structure sequence, and V is the vocabulary size. As indicated by the above equation, we tend to copy the words with higher attention.

Then, we only need to determine the probability of choosing a word from the generation distribution or the copying distribution. Specially, we use the following equation to compute this probability,

where vector w′ and scalar b′ are learnable parameters, and σ is the sigmoid function. We obtain the final probability distribution of generating a word w in the commit message as

3 Experimental Evaluations

3.1 Experimental Setup

(A) Dataset. We use the commonly-used dataset in this area, which was collected by Jiang and McMillan [2017] from the top 1,000 popular Java projects in Github and contains 509k diff files and corresponding commit messages. We make the following pre-processing steps on the dataset. First, we remove the diff files that contain file changes other than .java files. Next, we apply standard NLP processing on the data. That is, we keep only the source code in the diff files, remove the punctuations and special symbols in the commit messages, tokenize diffs and commit messages, and remove the data that contains less than three words. Finally, we delete the duplicated diffs as there are some successive commits in a short period fixing the same bug with the same commit message. After pre-processing, we obtain 90, 661 pairs of 〈diff, commit message〉 and randomly choose 75, 000 for training, 8, 000 for validation, and 7, 661 for testing.

(B) Evaluation Metrics. We first use two metrics that are widely used in natural language processing, i.e., BLEU score [Papineni et al., 2002] and METEOR [Denkowski and Lavie, 2014], to measure how close are the generated sentences compared to the real sentences. Moreover, since we aim to generate some OOV words, we also calculate the Recall metric of the correctly generated identifiers in the commit messages.

(C) Compared Approaches. We compare the following approaches in our experiments.

• NMT [Jiang et al., 2017; Loyola et al., 2017]. NMT uses attention-based RNNs to translate diffs into commit messages. It treats diffs and commit messages as two different languages.
• NNGen [Liu et al., 2018]. NNGen is an information retrieval approach. It represents diffs as "bags-ofwords" vectors, and re-uses the commit message from the most similar diff calculated with cosine similarity.
• CopyNet [See et al., 2017]. CopyNet is a text summarization method, which incorporates copying mechanism into the decoder to allow copying words from source to target.
• CODISUM. CODISUM is the proposed approach built upon the NMT model 6 .

(D) Parameters and Initializations. For the encoder part, we set the maximum length of the structure sequence and the semantics sequence to 200 (i.e., N = 200) and 5 (i.e., N ′ = 5), respectively. For the decoder part, the maximum length of commit message is set to 20. All the word embedding dimensionality is set to 150 (i.e., dx = dz = 150) with random initialization. For all multi-layer structure of RNNs, we set the layer number to 3. In the Bi-GRUs, the hidden state dimensionality of one direction is set to 128, and overall hidden state dimensionality is 256 (i.e., dh = 256). We also set the hidden state dimensionality of the decoder GRUs as 256. All the compared methods are set with the same parameters if applicable (e.g., the hidden state of NMT and CopyNet is set to 256). When training, we adopt the categorical crossentropy loss function and RMSProp optimizer with batch size 100 and dropout rate 0.1. We stop the training process when the loss is no longer decreasing.

3.2 Experimental Results

Effectiveness Comparisons

For effectiveness, we compare the proposed CODISUM with the existing competitors, and show the results in Table 2.

We can first observe from the table that the proposed CODISUM outperforms the compared methods on all the three metrics. In the competitors, CopyNet significantly outperforms NMT. Since CopyNet incorporates the copying mechanism into NMT, this result indicates the importance of applying copying mechanism in commit message generation. Compared to CopyNet, the relative improvements of CODISUM are 88.8%, 35.1%, and 134.5% w.r.t. BLEU, METEOR, and Recall, respectively. There are two major differences between CopyNet and CODISUM. First, we share all the word embeddings from code changes and commit messages. Second, we jointly model the code structure and the code semantics. The improvements indicate the importance of these two differences. Compared to NNGen, CODISUM improves it especially on the METEOR and Recall metrics. The improvement on the BLEU metric is relatively minor. One possible reason is that the BLEU metric favors much fluent sentences as those re-used by NNGen.

6 The code is publicly available at https://github.com/SoftWisergroup/CoDiSum.

Additionally, we can observe that the improvement of the Recall metric is especially larger. The reason is as follows. CODISUM can either generate the identifiers with the generation distribution (we can easily put all the placeholders in the vocabulary) or copy the placeholders with the copying distribution. In contrast, CopyNet can only generate such words with the copying distribution. Therefore, although the generated messages are of close length, the generated messages from CODISUM contain many more identifiers.

Performance Gain Analysis

Next, we analyze the performance gain of the proposed approach. The results are shown in Table 3. In the table, CODISUM1 is the variant that deletes the copying mechanism in CODISUM. Compared to NMT (whose results are in Table 2), CODISUM1 jointly models code structure and code semantics. As we can see, CODISUM1 significantly improves NMT indicating the usefulness of our joint modeling. Meanwhile, as indicated by the Recall metric, by allowing the generation of placeholders and the followed identifier substitution, CODISUM1 can already mitigate the OOV issue.

(a) The effect of the word embedding size dx

(b) The effect of the hidden state size dh

Figure 3: The parameter sensitivity study. The performance of CODISUM stays relatively stable w.r.t. the two parameters. We fix dx = 150 and dh = 256 in this work.

Also, CODISUM is still better than CODISUM1, indicating the usefulness of the copying mechanism.

The second variant CODISUM2 deletes the code semantics part in CODISUM. Compared to CopyNet (whose results are in Table 2), this variant replaces the identifiers with placeholders to reduce vocabulary size. The results show that CODISUM2 is much better than CopyNet, indicating the importance of identifier substitution.

The third variant CODISUM3 directly concatenates the semantic representation and the structural representation without alignment. As we can see, CODISUM improves CODISUM3 which, again, verifies the usefulness of the proposed joint modeling method.

Parameter Sensitivity

Next, we study the effects of two parameters in the proposed method, including word embedding size dx and Bi-GRU hidden state size dh. The results are shown in Figure 3, where we report the BLEU and METEOR scores. Figure 3(a) shows that the BLEU and METEOR scores are stable when the word embedding size varies from 50 to 300. We fix the embedding size as dx = 150 in this work. Figure 3(b) shows that the BLEU and METEOR scores increase when the hidden state size increases. However, when dh grows from 128 to 256, only slight performance gain is observed. Considering the time cost, we set the hidden state size dh as 256.

Case Studies

Finally, we present an example of the generated messages from the compared methods. The results are shown in Table 4 where the real commit message written by human is "Put ErrorReporter checkReportsOnApplicationStart back in the public api". Although the meaning of the generated messages by the compared methods is close to that of the real message, the generated message by CODISUM is more accurate. Moreover, CODISUM can successfully generate/copy the right method name checkReportsOnApplicationStart. In contrast, NMT and NNGen do not copy the method name, and CopyNet copies the class name ErrorReporter instead of the more proper method name.

4 RelatedWork

In this section, we briefly review the major related work and divide them into three parts: (1) commit message generation or source code change summarization, (2) code summarization, and (3) text summarization.

Commit Message Generation

Existing commit message generation methods in literature can be categorized into three classes. In the first class, researchers extract information from code changes and translate it into natural language based on pre-defined rules or templates [Buse and Weimer, 2010; Cortés-Coy et al., 2014; Linares-Vásquez et al., 2015; Shen et al., 2016]. For example, Buse et al. [2010] analyze the control flow the program and use the template "do Y Instead of Z" to generate the commit messages; Cortés-Coy et al. [2014] focus on several types of commit intents (e.g., creating and destroying objects, modifying the attribute getting and setting of an object, etc.), and accompany these intents with pre-defined rules. The limitations of these approaches lie in two aspects: 1) they can only deal with the pre-defined types of code changes, and 2) the generated commit messages do not explain the intuition behind the code changes, which requires human insight.

In the second class, in order to generate commit messages that are easily understandable by humans, Huang et al. [2017] and Liu et al. [2018] propose to search similar code changes and reuse their commit messages. However, these approaches heavily rely on whether similar code changes can be retrieved, and how similar the code changes are.

In the third class, deep learning models such as neural machine translation have been used to translate the code changes into commit messages [Loyola et al., 2017; Jiang et al., 2017; Loyola et al., 2018]. For example, Jiang et al. [2017] directly apply NMT models to make the translation; Loyola et al. [2018] further incorporate the context of the code changes into the model. Although the results of these approaches are promising, they still suffer from two challenges, i.e., how to incorporate code structure, and how to generate OOV words. In this work, we build our model upon the NMT model and aim to address the two challenges via jointly modeling the code structure and code semantics.

Code Summarization

Our work is also related to code summarization, which aims at generating descriptions of code snippets. In literature, Sridhara et al. [2010] propose to summarize Java methods by identifying important statements in the Java methods and then transforming these statements into natural language descriptions. Movshovitz-Attias and Cohen [2013] generate comments from code using n-gram models and topic models. Oda et al. [2015] translate Python code to pseudo-code (in natural language) using machine translation techniques, aiming at improving the code readability. Iyer et al. [2016] design a neural attention model that summarizes code as text. Hu et al. [2018a; 2018b] combine the neural machine translation model with the structural information (e.g., abstract syntax tree, AST) and the API knowledge to generate the summaries.

Different from the code summarization methods, we aim at summarizing code changes instead of code snippets. Existing code summarization methods mainly extract the AST structure of code. However, such methods cannot be directly applied to code changes as we usually cannot extract the AST structure from code changes, which are short and incomplete compared to code snippets.

Text Summarization

Finally, our work is related to the general text summarization methods [Reiter and Dale, 1997; Rush et al., 2015; Chopra et al., 2016; Nallapati et al., 2016; See et al., 2017]. As a building block of the proposed approach, we also use the copying mechanism inspired by the pointer-generator networks [See et al., 2017].

5 Conclusions

In this paper, we propose a learning based approach for the commit message generation problem. In particular, built upon the machine translation model, we jointly model the code structure and code semantics of the code changes to better learn their representations, and further augment the model with copying mechanism to mitigate the out-of-vocabulary issue. Experimental results demonstrate that the proposed approach significantly outperforms the state-of-the-art in terms of accurately generating the commit messages.

Future directions include incorporating additional context information and code structure information for the commit message generation problem.
