ANRL: Attributed Network Representation Learning via Deep Neural Networks

1 Introduction

Networks are general data structures to explore and model complex systems in the real world, including social networks, academic networks and the World Wide Web, etc. In the era of big data, networks have been an important medium to efficiently store and access relational knowledge of interacting entities. Mining knowledge in networks has drawn continuous attention in both academia and industry, e.g., online advertisement targeting and recommendation. Most of these tasks require carefully designed models with a lot of expert efforts for feature engineering, while RL is an alternative for relative automatic feature representation. Equipped with RL, knowledge discovery in networks, such as clustering [Narayanan et al., 2007], link prediction [L¨u and Zhou, 2011] and classification [Kazienko and Kajdanowicz, 2012], can be greatly facilitated by learning in low-dimensional vector spaces.

∗Corresponding Author

Related works in network RL can be traced back to graph based dimensional reduction methods, such as Locally Linear Embedding (LLE) [Roweis and Saul, 2000] and Laplacian Eigenmap (LE) [Belkin and Niyogi, 2003]. Both LLE and LE maintain the local structure in data space by constructing a nearest neighbor graph. To keep connected nodes closer to each other in the representation space, corresponding eigenvectors of the affinity graph are calculated as its representations. A major issue with these methods is that they are difficult to scale to large networks due to the high computational complexity in calculating eigenvectors. Inspired by the recent success of word2vec model [Mikolov et al., 2013a; 2013b], many network structure based RL methods have been proposed and shown promising performance in various applications [Perozzi et al., 2014; Cao et al., 2015; Tang et al., 2015b; Grover and Leskovec, 2016; Wang et al., 2016]. However, node attribute information, which may play important roles in many applications, has not been paid much attention. Nodes affiliated with various attributes are commonly observed in real-world networks, termed as attributed information networks (AINs). For example, in Facebook social network, a user node is often associated with personalized profile information including age, gender, education as well as posted contents. Some recent efforts have explored AINs by integrating both network topology and node attribute information to learn better representations [Tang et al., 2015a; Yang et al., 2015; Pan et al., 2016].

Representation learning in AINs is still at its early stage with rather limited capability due to the reasons that: (1) network topology and node attributes are two heterogeneous information sources, thus it is challenging to preserve their properties in a common vector space; (2) the observed network data is often incomplete and even noisy, which brings more difficulties for obtaining informative representations. To address the aforementioned challenges, we propose a unified framework, termed as ANRL, by jointly integrating network structure and node attribute information to learn robust representations in AINs. More specifically, we leverage the strong representation power of deep neural networks to capture the complex correlations of the two information sources, which is composed of a neighbor enhancement autoencoder and attribute-aware skip-gram model. To summarize, our main contributions are as follows:

• We propose a unified framework ANRL, which seamlessly integrates network structural proximity and node attributes affinity into low-dimensional representation spaces. To be more specific, we design a neighbor enhancement autoencoder, which can retain better similarity between data samples in the representation space. We also propose an attribute-aware skip-gram model to capture the structure correlations. These two components share connections to the encoder, which captures the node attributes as well as network structure information.
• We conduct extensively experiments on six datasets through two tasks: link prediction and node classification, and empirically demonstrate the effectiveness of the proposed model.

2 RelatedWork

Some earlier works [Roweis and Saul, 2000; Belkin and Niyogi, 2003] and other spectral methods target to preserve the local geometry structure of the data, and represent them with a lower dimension space. These approaches are parts of dimensionality reduction techniques and can be regarded as the pioneer of graph embedding. Recently, network representation learning has received increasing popularity in network analysis and they concentrate on embedding an existing network instead of constructing its affinity graph. Among them, DeepWalk [Perozzi et al., 2014] performs truncated random walks to generate node sequences, which are treated as sentences and fed into skip-grammodel to learn representations. Node2vec [Grover and Leskovec, 2016] extends DeepWalk by employing breadth-first (BFS) and depth-first (DFS) graph searches to explore diverse neighborhoods. Instead of performing random walks, LINE [Tang et al., 2015b] optimizes both first order and second order graph proximities. Later, GraRep [Cao et al., 2015] proposes to capture k-th order relational information for graph representation. SDNE [Wang et al., 2016] incorporates graph structure into deep autoencoder to preserve the highly non-linear first order and second order proximity.

Attributed information networks are ubiquitous in many domains. It is promising to achieve better representations by including both network structure and node attributes information. Some existing algorithms have investigated the possibility of jointly embedding these two information sources into a unified space. For example, TADW [Yang et al., 2015] incorporates DeepWalk and associated text features into the matrix factorization framework. PTE [Tang et al., 2015a] utilizes label information and different levels of word co-occurrence information to generate predictive text representations. TriDNR [Pan et al., 2016] uses information from three parties including node structure, node content, and node labels (if available) to jointly learn node representations. Although the above mentioned approaches indeed incorporate node attributes information into representations, they are specifically designed for text data and not suitable for many other types of features (e.g., continuous numerical features).

More recently, several feature type independent representation learning algorithms have been proposed to further enhance the performance via unsupervised or semi-supervised manner, which can handle all kinds of feature types and capture structural proximity as well as attribute affinity [Huang et al., 2017; Liao et al., 2017; Rossi et al., 2018]. AANE [Huang et al., 2017] is a distributed embedding approach that jointly learns node representations by decomposing attribute affinity matrix and penalizing the embedding difference between connected nodes with network lasso regularization. Planetoid [Yang et al., 2016] develops both transductive and inductive methods to jointly predict the class label and neighborhood context in the graph. SNE [Liao et al., 2017] generates embeddings by leveraging an end-to-end neural network model to capture the complex interrelations between network structure and node attribute information. Another semi-supervised learning framework SEANO [Liang et al., 2018] takes the input form the aggregation of input sample attributes and its average neighborhood attributes to mitigate the negative effect of outliers in the representation learning procedure.

There also has been some efforts exploring representation learning in the heterogeneous information networks. Metapath2vec [Dong et al., 2017] utilizes meta-path based random walks to generate heterogeneous node sequences and employs a heterogeneous skip-gram model to learn node representations. [Li et al., 2017] proposes a model that can handle the representation learning in a dynamic environment instead of static networks. [Wang et al., 2017] study the problem of representation learning in signed information networks. We leave these possible extensions as future work.

3 ProposedModel

3.1 Notations and ProblemFormulation

Let G = (V, E,X) be an attributed information network, where V denotes the set of n nodes and E represents the set of edges. X ∈ Rn×m is a matrix that encodes all node attributes information, and xi describes the attributes associated with node i. We formally define the attributed information network representation learning as follows:

Definition 3.1 Given a network G = (V, E,X), we aims to represent each node i ∈ V as a low-dimensional vector yi by learning a mapping function f : vi ↦→ yi ∈ Rd , where d ≪ |V| and the mapping function f preserves not only network structure but also node attribute proximity.

3.2 Neighbor Enhancement Autoencoder

To encode node's attribute information, we design a neighbor enhancement autoencoder model to facilitate the noiseresilient representation learning procedure. Similarly, the neighbor enhancement autoencoder consists of an encoder and a decoder, while we aim to reconstruct its target neighbors instead of the node itself. It is worth noting that the proposed model degenerates to the traditional autoencoder when our target neighbor is the input node itself. More specifically, for the node vi with its feature vector xi and the target neighbors function T(·), the hidden representation of each layer is defined as follows:

where K denotes the number of layers for the encoder and decoder. σ(·) represents the possible activation functions such as ReLU, sigmod or tanh. W(k) and b(k) are the transformation matrix and bias vector in the k-th layer, respectively. Our goal is to minimize the following autoencoder loss function:

where ˆxi is the reconstruction output of decoder and T(vi) returns the target neighbors of vi. T(·) incorporates prior knowledge into the model and can be adopted by the following two formulations:

• Weighted Average Neighbor. For a given node vi, the target neighbors can be calculated as corresponding weighted average neighborhood. That is to say, T(vi) = 1 |N(i)| ∑j∈N(i) wijxj, where N(i) is the neighbors of node vi in the network and xj is the attributes associated with node vj. wij > 0 for weighted networks and wij = 1 for unweighted networks.
• Elementwise Median Neighbor. Similarly to weighted average neighbor, the elementwise median neighbor of node vi is defined as: T(vi) = ˜xi = [˜x1, ˜x2, · · · , ˜xm], where ˜xk is the median value of its relevant neighborhood feature vectors at the k-th dimension, i.e., ˜xk = Median(wi1x1k,wi2x2k, · · · ,wi|N(i)|x|N(i)|k). Medain(·) returns the median value of its input.

Our approach possesses more advantages than traditional autoencoders in retaining better proximity among nodes. Intuitively, the obtained representations are more robust to variations, since it constrains closely located nodes to have similar representations by forcing them to reconstruct the similar target neighbors. Thus, it captures both node attributes and local network structure information. In addition, the proposed neighbor enhancement autoencoder model is a general framework that can be applied to autoencoder variants such as denoising autoencoder and variational autoencoder.

3.3 Attribute-aware Skip-gramModel

To formulate the network structure information, skip-gram model has been widely adopted in recent works [Perozzi et al., 2014; Grover and Leskovec, 2016], which assumes nodes with similar context should be similar in latent semantic space. Based on that, we propose an attribute-aware skipgram model to incorporate attribute information for more smooth representations. Specifically, the objective function minimizes the following log probability of skip-gram model

$WWULEXWHV

by giving current node vi with its associated attributes xi for all random walk contexts c ∈ C:

where vi+j is the node context in the generated random sequence and b is the window size. The conditional probability of p(vi+j|xi) is the likelihood of the target context given the node attributes and we formally define p(vi+j |xi) as:

where xi is the attribute information associated with node vi and f(·) can be arbitrary attribute encoder function, e.g., CNN for image data and RNN for sequential data. v′i is the corresponding representations when node vi is treated as "context" node.

It models not only node attributes but also global structure information. Directly optimizing Equation (4) is computationally expensive, which requires the summation over the entire set of nodes when computing the conditional probability of p(vi+j|xi). We adopt the negative sampling approach proposed in [Mikolov et al., 2013b] that samples multiple negative samples according to some noisy distributions. In details, for a specific node-context pair (vi, vi+j), we have the following objective:

where σ(x) = 1/(1 + exp(-x)) is the sigmoid function and |neg| is the number of negative samples. We set Pn(v) ∝ d3/4 v as suggested in [Mikolov et al., 2013b], where dv is the degree of node v.

3.4 ANRLModel: A Joint Optimization Framework

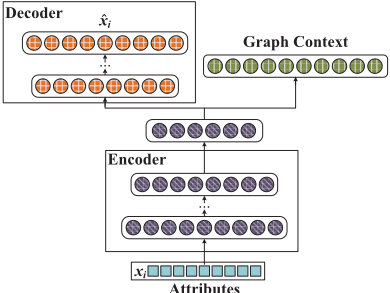

In this subsection, we present the ANRL model to jointly utilize network structure and node attributes information to learn their latent representations. As illustrated in Figure 1, the overall architecture consists of two coupled modules, i.e., neighbor enhancement autoencoder and attribute-aware skip-grammodel. The encoder transforms the input attributes into a low-dimensional vector space and extends out two output branches. The left output branch is a decoder which reconstructs the target neighbors of its input samples. The right output branch predicts the associated graph context of the given inputs. These two components are tightly interconnected as they share the first several layers. Through this way, the final representation of yK i captures the node attributes as well as network structure information.

The objective function of the joint ANRL model is formulated as the weighted combination of Lsg and Lae as defined in Equations (2) and (3):

where n is the total number of nodes, C is the set of node sequence generated by random walks and b is the window size. xi represents node vi's feature vector and y(K) i is the representation for node vi after encoding with K layers; W (k) , ˆW (k) are weight matrices for encoder and decoder respectively in the k-th layer. U is the weight matrix for graph context prediction and uv corresponds to the v-th column in U. α is the hyper parameter to balance the loss of autoencoder module and skip-gram module. β is the ℓ2 norm regularizer coefficient.

In this way, ANRL preserves node attributes, local network structure and global network structure information in a unified framework. It is worth noting that the function f(·) of attribute-aware skip-gram module is exactly the encoder part of the autoencoder module, which transforms the node attributes information into representation space y(K) i . As a result, the network structure and node attributes information will jointly affect y(K) i . Furthermore, we only use one output layer to capture the graph context information for simplicity and it can be easily extended to multiple non-linear transformation layers.

To minimize L, we adopt the stochastic gradient algorithm for optimizing Equation (6). We iteratively optimize these two coupled components until the model converges. All model parameters are denoted as Θ and the learning algorithm is summarized in Algorithm 1.

4 Experiments

In this section, we conduct extensive experiments to verify the superiority of the proposed ANRL through comparing with several state-of-the-art methods on multiple real-world datasets.

4.1 Datasets

We summarize statistics of the six datasets in Table 1 with more descriptions as follows:

Algorithm 1 Joint ANRL Learning Framework

Input: graph G = (V, E,X), window size b, walks per vertex γ, walk length t, trade-off parameters α, regularizer coefficient β, embedding size d

Output: node representations Y ∈ R|V|×d

• 1: Construct node context corpus C by starting γ times of random walks with length t at each node
• 2: Construct target neighbors for each node by function T (·)
• 3: Random initialization for all parameters set Θ
• 4: while not converged do
• 5: Sample a mini-batch of nodes with its context
• 6: Compute the gradient of ∇Lae based on Equation (2)
• 7: Update autoencoder module parameters
• 8: Compute the gradient of ∇Lsg based on Equation (5)
• 9: Update skip-grammodule parameters
• 10: end while
• 11: Obtain representations Y = Y(K) based on Equation (1)
• Social Network. Facebook 1 [Leskovec and Mcauley, 2012] and UNC [Traud et al., 2012] datasets are two typical social networks used in [Grover and Leskovec, 2016; Liao et al., 2017]. Nodes represent users and edges represent friendship relations.
• Citation Network. Citeseer and Pubmed 2 which are used in [Yang et al., 2016] consist of bibliography publication data. The edge represents that each paper may cite or be cited by other papers. The publications are classified into one of the following six classes: Agents, AI, DB, IR, ML, HCI in Citeseer and one of the three classes (i.e., "Diabetes Mellitus Experimental", "Diabetes Mellitus Type 1", "Diabetes Mellitus Type 2") in Pubmed.
• User behavior Network. We also employ two realworld user behavior datasets named UniID and Fraud Detection provided by Alibaba Group. For UniID dataset, the nodes in the network represent the identifiers for physical devices and the edges indicate the observed co-occurrence of two identifiers in the same user behavior records. Fraud Detection dataset includes cookies associated with attributes and their interactions with sellers. To get the homogeneous cookie graph, we project this bipartite graph onto cookie nodes, i.e., we connect two cookies only if they have at least five common seller nodes. We want to identify whether those cookies are suspicious or not.

1 https://snap.stanford.edu/data/

2 http://linqs.cs.umd.edu/projects/projects/lbc

Facebook UNC

UniID

4.2 Competitors

We compare ANRL with several state-of-the-art network RL algorithms that can be divided as the following groups :

1. Attribute-only: The first group of algorithms consider node attributes information only, which are used to verify the effectiveness of attributes in node classification task. We choose SVM and autoencoder as our baseline algorithms.
2. Structure-only: This group of baselines leverage network structure information only and ignore the node attributes. DeepWalk [Perozzi et al., 2014] and node2vec [Grover and Leskovec, 2016] use truncated random walks to generate node sequences, then they are fed into skip-gram model to obtain the latent node representations. LINE [Tang et al., 2015b] and SDNE [Wang et al., 2016] exploits the network structure's first-order proximity and second-order proximity.
3. Attribute + Structure: Methods of this group try to preserve node attribute and network structure proximity, which are competitive competitors. We consider AANE [Huang et al., 2017], SNE [Liao et al., 2017], Planetoid-T [Yang et al., 2016], TriDNR [Pan et al., 2016] and SEANO [Liang et al., 2018] as our compared algorithms. More detailed descriptions can be found in Section 2.
4. ANRL Variants: To analyze the performance of our proposed model, we consider three variants: ANRLWAN which use Weighted Average Neighbor function to construct its target neighbors, ANRL-EMN which takes Elementwise Median Neighbor function to generate its target neighbors as defined in Section 3.2 and ANRL-OWN which reconstructs itself (i.e., OWN) as traditional autoencoder does.

For all baselines, we used the implementation released by the original authors. The parameters for baselines are tuned to be optimal. We set the embedding size d as 64 in Fraud Detection dataset and 128 for the remaining datasets. For LINE, we concatenate both first-order and second-order as our final representations. Furthermore, we set window size b as 10, walk length l as 80, walks per node γ as 10, negative samples as 5. For ANRL, the number of layers and dimensions for left output branch are shown in Table 2 and we only use one layer in right output branch.

4.3 Link Prediction

In this subsection, we evaluate the ability of node representations in reconstructing the network structure via link prediction. We generate the labeled dataset of edges as many other works do [Grover and Leskovec, 2016; Wang et al., 2016], which randomly holds out 50% existing links as positive instances; For negative instances, we randomly sample an equal number of non-existing links. Then, we use the residual network to train the embedding models. After having obtained the representations for each node, we use these representations to perform link prediction task in the labeled edge dataset. Specifically, we rank both positive and negative instances according to the cosine similarity function. To judge the ranking quality, we employ the AUC to evaluate the ranking list and a higher value indicates a better performance.

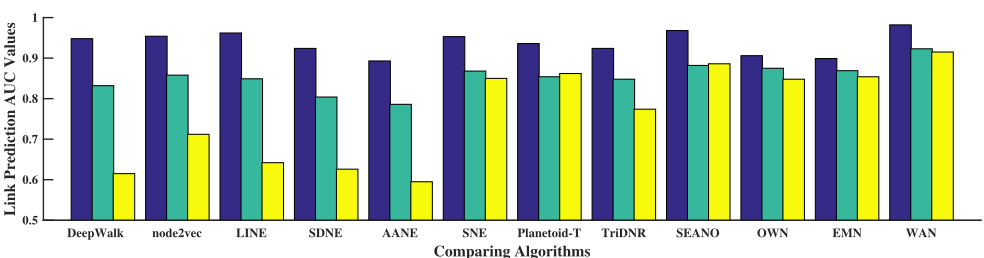

We perform link prediction task on three unlabeled datasets (i.e., Facebook, UNC, UniID datasets) and the results is shown in Figure 2. We summarize the following observations and analyses:

• A general observation we can draw from the result is that our method achieves relatively significant improvements in AUC over the baselines in both three datasets. For instance, our method achieve about 3.5% AUC improvement over the best performance baseline in UNC dataset.
• Since DeepWalk, node2vec, LINE and SDNE only utilize network structure information, their performance

is relative worse when the network is extremely sparse such as UniID dataset. Interestingly, we notice that node2vec achieves the best results among this group baselines, which is mainly because that node2vec can explore diverse network structure information via biased random walks.

• Being consistent with previous works' findings, we also observe that incorporating both node attributes and network structure information improves the link prediction performance, which reflects the value of attributes. Among them, AANE and TriDNR only exploit firstorder network structure information and fails to capture sufficient information for link prediction. However, the remaining algorithms gain superior performance by performing random walks on the network to capture higherorder proximity information.
• More specifically, ANRL exploits node attributes information (via both two modules), global network structure information (via attribute-aware skip-gram module) and local network structure information (via neighbor enhancement autoencoder module). We argue that one major reason for the performance lift is because our model takes both local and global network structure information into consideration.

4.4 Node Classification

Similarly to previous works [Perozzi et al., 2014; Grover and Leskovec, 2016], we report the performances of node classification. We randomly select 20 samples from each class and treat them as the labeled data to train semi-supervised baselines following the same strategy in [Yang et al., 2016]. After having obtained the node representations, we randomly sample 30% labeled nodes to train a SVM classifier and the rest of the nodes are used to test performances. We repeat this process 10 times, and report the average performances in terms of both Macro-F1 and Micro-F1. The detailed results are shown in Table 3 and to summarize, we have the following observations:

• ANRL-WAN achieves the best performance among all

the methods for all settings. The classification performance is followed by other structure and attribute based methods, and then followed by structured based methods with several exceptions. This further justifies the usefulness of attributes, and properly modeling them can lead to better representations with significant performance gains.

• It is worth noting that traditional attribute-only methods outperform most of structure-only approaches, because network structure alone provides very limited useful information (compared to node attributes) for node classification task. Yet, we observe that autoencoder is a little weaker than SVM, which indicates the dimension reduction procedure may lose some useful information.
• In particular, SEANO outperforms several state-of-theart attribute and structure preserving methods by aggregating additional neighborhood attributes into representation learning phase. AANE performs poorly in this group of competitors, which involves the decomposition operation of attribute affinity matrix. This significant degenerates the performance of AANE, because we usually do not know the similarities between each node and need to compute them based on certain similarity measure.
• Finally, ANRL-WAN and ANRL-EMN perform better than ANRL-OWN and most of the other baselines algorithms. As can be seen from the table, ANRL-WAN outperforms ANRL-OWN with a significant improvement, which shows the effectiveness of our proposed neighbor enhancement autoencoder. Furthermore, our attributeaware skip-gram module and neighbor enhancement autoencoder module force the latent representations more smooth and robust, which are important properties in many tasks.

5 Conclusions

In this paper, we investigate the representation learning in attributed information networks. Accordingly, we design a coupled deep neural network model, which incorporates both node attributes and network structure information into the embedding. To further address the structure proximity and attribute affinity preserving, we develop a neighbor enhancement autoencoder and attribute-aware skip-grammodel to exploit the complex interrelations between structural information and attributes. Experimental results on several real-world datasets show that the proposed ANRL outperforms representative state-of-the-art embedding approaches.

Acknowledgments

This work is supported by Alibaba-Zhejiang University Joint Institute of Frontier Technologies, Zhejiang Provincial Key Research and Development Plan (Grant no. 2017C01012), the National Natural Science Foundation of China (No. 61173185, 61173186) and the National Key Technology R&D Program of China (No. 2012BAI34B01, 2014BAK15B02).
