Semi-supervised User Profiling with Heterogeneous Graph Attention Networks

1 Introduction

By inferring user personality traits from user-generated data, the task of user profiling is playing an important role in providing personalized services in real-world applications, e.g., e-commerce and social networks, etc. [Farnadi et al., 2018; Lu et al., 2016; Chen et al., 2019; Wu et al., 2019a; Liao et al., 2018]. Existing approaches consider user profiling as a classification task to classify a user's personal profile (e.g., gender and age) with either textual or behavior information, where each user is set as an individual data instance [Zamal et al., 2012; Dong et al., 2014; Miura et al., 2017]. Nevertheless, we argue that existing user profiling methods suffer from two common issues:

∗Corresponding Authors

1. Only one type of information is used to infer user profiles [Dong et al., 2014], whereas other types of data cannot be naturally integrated. Very few related works [Miura et al., 2017; Farnadi et al., 2018] touch the multi-type user profiling problem. However, they need to carefully design hand-crafted features or the fusion method.
2. Only self-generated data is exploited to learn the user profiling representation, whereas the rich interactions among data instances are neglected. Such interactions, e.g., the co-clicks and co-purchases in e-commerce, the friendship relations among users in social network, can be considered as semi-supervised signals which are valuable to improve the inference of user profiles [Rahimi et al., 2018].

Recent studies have demonstrated that graph is capable to provide a general representation to integrate multiple types of data [Kipf and Welling, 2017; Ma et al., 2018; Cao et al., 2019]. Figure 1 shows an example of a graph with heterogeneous information, where three kinds of nodes are applied to represent three types of data, i.e., users, items, and attributes, respectively. Inspired by the recent success of graph neural network approaches in several tasks [Hamilton et al., 2017; Wang et al., 2019b], we expect that they work well to learn user profiles from multiple types of data. One rationality is that the neighborhood features could provide valuable semisupervised signals that are beneficial to infer user profiles. For example, users that have similar co-purchase behaviors in e-commerce are likely to be in the same age range. Although a recent work [Rahimi et al., 2018] has explored graph neural network for user profiling, it only deals with one type of data, and needs non-trivial efforts (e.g., fusion strategy) to migrate it to heterogeneous graph with multiple types of data. Towards this research gap, we consider developing a heterogeneous graph neural network method for user profiling. In this paper, we propose a new framework, named heterogeneous graph attention networks (HGAT), to infer user profiles within a multi-type data environment. HGAT is capable to model the rich unsupervised information in heterogeneous graph by encoding both the graph structure and node features. Specifically, HGAT first learns user representation by propagating information in the heterogeneous graph using attention operations. Secondly, HGAT trains an end-to-end semi-supervised user profiling predictor using limited labels of users. To evaluate the performance of HGAT, we collect a large-scale real-world dataset from an e-commerce portal. Extensive experiments conducted on this dataset verify the effectiveness of HGAT. Further studies verify the rationality of each module designed. To sum up, the contributions of this work are as follows:

• We propose to approach user profiling as a semisupervised classification task in the heterogeneous graph, opening up an opportunity of developing generic solutions to incorporate multiple types of data.
• We develop a heterogeneous graph attention networks framework HGAT, sufficiently leveraging the graph structure and node features to learn user profiles from limited labeled data.
• We conduct extensive experiments on a large-scale realworld dataset and verify the effectiveness of our method.

2 RelatedWork

2.1 User Profiling

Existing methods for user profiling usually firstly extract features from texts, relations, behaviors and so on, and then exploit machine learning techniques to infer users' profiles [Rosenthal and McKeown, 2011; Zamal et al., 2012; Dong et al., 2014; Liang et al., 2018; Li et al., 2012; Wu et al., 2019b]. For example, [Rosenthal and McKeown, 2011] exploited logistic regression to predict users' age based on blog texts and online behavior of blog authors. [Zamal et al., 2012] extracted designed features from twitter users and their neighbors and then used SVM and GBDT models to infer attributes of users. [Dong et al., 2014] proposed a graphical model to infer users' gender and age based on their communication records in mobile networks.

Recently, modeling heterogeneous information in multiple sources of user data for user profiling using deep learning has gained significant interest. Specifically, [Miura et al., 2017] used a complex neural network to unify text, metadata, and user network representations with attention mechanism and predict users' geolocations. [Farnadi et al., 2018] proposed a hybrid user profiling framework which uses separate deep neural networks to extract information from different sources and then integrates the decisions of these networks.

However, these approaches need to design either handcrafted features or fusion methods. What's more, they need large scale labels of users for supervised learning, whereas many semi-supervised signals have been neglected. These problems may limit the universality or the performance of these approaches in various applications.

2.2 Graph Attention Networks

Graph Convolutional Network (GCN) [Kipf and Welling, 2017], which performs convolutional operations on graphstructured data, has recently achieved appealing performance in a variety of tasks, such as node classification [Kipf and Welling, 2017], recommendation [Wang et al., 2019b] and stock prediction [Feng et al., 2019]. They can encode both graph structure and features of nodes without the need for designing features or fusion methods. Graph Attention Network (GAT) [Velickovic et al., 2018; Wang et al., 2019a] extends the graph convolutional operations in GCN with masked self-attentional layers, which enable attending different weights to different neighborhoods. [Hamilton et al., 2017; Chen et al., 2018; Gao et al., 2018] proposed sampling strategies and subgraph training methods and enabled the efficient application of GCN and GAT in large-scale graphs.

Recently, there are some preliminary works of applying GCN for user profiling. [Rahimi et al., 2018] proposed a multiview model based on GCN to infer users' geolocations in social media based on text and network information. They also encounter the problem of needing the design of fusion architectures. In this paper, we propose a general framework that can directly model the information in heterogeneous networks and build user profiles.

3 ProblemFormulation

In this section, we introduce Heterogeneous Graph and formulate the Semi-supervised User Profiling problem.

3.1 Heterogeneous Graph

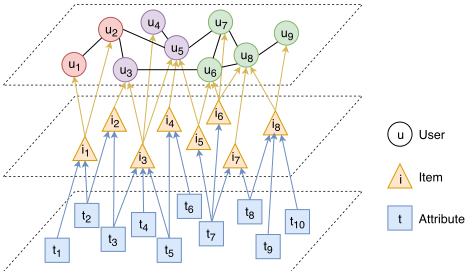

In this paper, we represent information networks (e.g., ecommerce, social networks and so on) as heterogeneous graphs. The structure of a heterogeneous graph is shown in Figure 1. For a heterogeneous graph G = (V,E), V and E denote the nodes and edges in the graph. The nodes V are consisted of the set of users U, items I and attributes T. The edges E have three types: User-User edges Euu that reflect the relationships between users, Item-User edges Eui that express the interactions between users and items, and Attribute-Item edges Eit that describe the attribute information of items.

For example, in e-commerce, items are products and attributes can be the words in the titles of products. Each item (i.e., product) has some attributes (e.g., words), and each user (i.e., consumer) may purchase some items. An AttributeItem edge describes a word exists in the title of a product, an Item-User edge means that a user has purchased (or clicked) a product, and a User-User edge represents that the two users have co-purchased (or co-clicked) some same products.

Subgraphs in Heterogeneous Graph

In this paper, according to the types of edges, the heterogeneous graph can be divided into three subgraphs: User-User subgraph, Item-User subgraph and Attribute-Item subgraph.

User-User subgraph. User-User subgraph is consisted of users and edges between them in the heterogeneous graph.

Item-User subgraph. The nodes in Item-User subgraph are items and users in the heterogeneous graph. The edges in the subgraph are the interactions between items and users.

Attribute-Item subgraph. The nodes in Attribute-Item subgraph are attributes and items in the heterogeneous graph, while the edges are the attribute information of items.

3.2 Semi-supervised User Profiling

In information networks, user profiles, which represent the labels (e.g., demographic characteristics, interests, etc.) or interests of users, are significant for personalized search, recommendation, advertisements and so on. However, in the real world, user profiles are usually unknown due to privacy concerns and other reasons. Consequently, user profiling, which aims to infer user profiles, is significant for real applications. One important user profiling problem is to infer the gender and age labels of users [Zamal et al., 2012; Dong et al., 2014; Farnadi et al., 2018].

Existed solutions usually follow the supervised paradigm [Rosenthal and McKeown, 2011; Zamal et al., 2012; Dong et al., 2014; Li et al., 2012]. In this paper, we solve the user profiling problem under the semi-supervised learning paradigm [Kipf and Welling, 2017]. Specifically, our goal is to use both the labels of some users and a large amount of unsupervised information in the heterogeneous graph, such as the interactions between users and items and the attribute information of items.

Definition 3.1 (Semi-supervised User Profiling Problem)

Semi-supervised User Profiling aims to infer the labels of users based on supervised labels of some users and large scale unsupervised information in the heterogeneous graph.

4 Heterogeneous Graph Attention Networks

In this paper, we propose the heterogeneous graph attention networks (HGAT) framework to solve the Semi-supervised User Profiling problem in the heterogeneous graph.

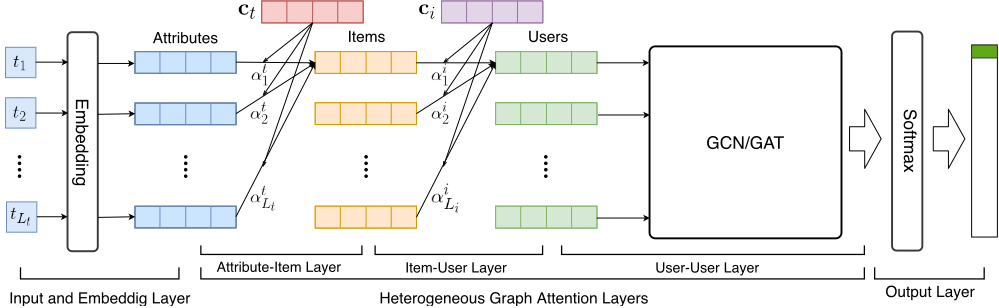

As shown in Figure 2, HGAT is consisted of three parts: the Input and Embedding Layer, the Heterogeneous Graph Attention Layers and the Output Layer.

4.1 Input and Embedding Layer

In our framework, the input is the information of nodes and edges derived from the heterogeneous graph.

For the embeddings of attributes (i.e., words), we use FastText [Bojanowski et al., 2017] to learn the embeddings of the words using the whole item titles corpus. These embeddings are regarded as low-dimension representations of attributes.

4.2 Heterogeneous Graph Attention Layers

For the representation learning in a heterogeneous graph, there are two critical problems: (1) How embeddings of nodes are updated? (2) How the information is propagated across heterogeneous graph? For the first problem, we use three Heterogeneous Graph Attention Operations for embedding updating. For the second problem, we propose Meta-path aware Graph Propagation to define the information propagation method in the heterogeneous graph.

Heterogeneous Graph Attention Operations

Heterogeneous Graph Attention Operations update the embedding of a node based on information in its neighbors. They transform the embeddings of nodes in graph G from H ∈ R|V |×F into new embedding matrix H′ ∈ R|V |×F ′ . The difference between these operations is the calculation method. Given a node i whose neighbors are Ni, Heterogeneous Graph Attention Operations will transform its embedding from hi to h′i .

We exploit three kinds of Heterogeneous Graph Attention Operations : Vanilla Attention Operation, Graph Convolutional Operation and Graph Attention Operation.

Vanilla Attention Operation. This operation uses the vanilla attention mechanism [He et al., 2018]. Given a node i and its neighbors Ni, its new embedding h′i is calculated as follows:

where the context vector c ∈ RF ′ , the weight matrix W ∈ RF ′×F and the bias vector b ∈ RF ′ are parameters. These parameters are used to calculate the attention score αij , which measures the importance of a neighborhood node j to the node i.

Graph Convolutional Operation. The Graph Convolutional Operation uses the graph convolutional operation proposed in GCN [Kipf and Welling, 2017]. The operation is defined by the following formula:

where ˜A = A + I|V | is the adjacency matrix with added self-loops (corresponding to the identity matrix I|V |), ˜D ∈ R|V |×|V | is the degree matrix of ˜A , W ∈ RF ′×F is the weight matrix, and σ denotes an activation function.

Graph Attention Operation. The Graph Attention Operation exploits the multi-head graph attention operation used in Graph Attention Network [Velickovic et al., 2018]. Firstly, it computes the attention scores between nodes based on a shared attentional mechanism att : RF ′ × RF ′ → R. The neighborhood of node i is denoted as Ni. For each node j ∈ Ni, the attention coefficient between node i and j is eij. To make coefficients easily comparable across different nodes, the softmax function is used to normalize the attention coefficient eij into the attention score αij.

where the attention mechanism att is a single-layer feedforward neural network, parameterized by W ∈ RF ′×F and a ∈ R2F ′ , and applying the LeakyReLU nonlinearity (with negative slope 0.2):

where || represents the concatenation between two vectors. Secondly, the node's new embedding h′i is computed by using the sum on its neighbors' features, weighted by the attention scores.

Multi-head attention is used to increase the representation power. Specifically, K independent attention mechanisms are performed using the transformation of Equation 5, and then the results h′ (1) i , h′ (2) i , ..., h′ (K) i are aggregated together:

The aggregation function agg can be concatenation or averaging. Specially, if we perform multi-head attention on the final layer, we employ averaging. Otherwise, we apply the concatenation operation.

Meta-path aware Graph Attention Propagation

In this paper, we propose Meta-path aware Graph Attention Propagation to define the method of information propagation.

Attribute-Item, Item-User and User-User edges are key pieces of information in the heterogeneous graph. Heterogeneous Graph Attention Layers exploit three layers, i.e., the Attribute-Item Layer, Item-User Layer and User-User Layer, to model these edges. These layers use the Attribute-Item, Item-User, and User-User meta-paths, which correspond to information propagation in the respective subgraph.

Attribute-Item Layer. The Attribute-Item Layer propagates information from attributes to items. In this layer, we use Vanilla Attention Operation to propagate information in the Attribute-Item subgraph and learn embeddings of items leveraging the embeddings of attributes and the edges between items and attributes. For example, in e-commerce, an item's embedding can be learned by using the embeddings of words in the titles of this item (i.e., product).

Item-User Layer. The Item-User Layer propagates information from items to users. In this layer, we use Vanilla Attention Operation to propagate information in the Item-User subgraph and learn embeddings of users leveraging the embeddings of items and the edges between users and items. For example, in e-commerce, a user's embedding can be learned by using the embeddings of items she has bought.

User-User Layer. The User-User Layer propagates information from users to users. In this layer, we apply Graph Convolutional Operation or Graph Attention Operation to propagate information in the User-User subgraph and learn embeddings of users. Finally, our model will embed all relevant users into a matrix Hu ∈ R|U|×FY where FY is the dimension of the users' embedding vectors, which is set to be equal to the number of labels in the user profiling task.

4.3 Output Layer

We view user profiling as a semi-supervised and multi-class classification task. The Output Layer predicts the labels of users based on the learned embedding vectors of users. For the user profiling task where FY is the number of categories (i.e., labels of users), we apply row-wise softmax function on the users' embedding matrix Hu and obtain Z ∈ R|U|×FY , the predicted distribution of users' labels.

4.4 Model Learning

For the learning of our method, cross-entropy is adopted as the loss function to carry out end-to-end training for the model. Specifically, the loss function is defined as crossentropy error over all labeled users:

where UL is the set of users that have labels, Y and Z are the ground-truth and the predicted probabilistic distribution of users' labels respectively.

4.5 Mini Heterogeneous Graph Sampling

In real-world information networks, such as e-commerce and social networks, the number of nodes and edges can be millions or billions. Traditional graph convolution networks [Kipf and Welling, 2017] need all the nodes in the graph are present simultaneously during the training procedure, which is not appropriate to be applied in real applications. [Hamilton et al., 2017; Qiu et al., 2018] propose some sampling methods to perform operations on large graphs. However, they are designed for the homogeneous graph.

In this paper, we extend these methods and propose a new sampling method for heterogeneous graph. To be specific, in the training procedure, for each user in a batch, we sample some nodes and edges corresponding to the meta-paths from the heterogeneous graph and build User-User, Item-User and Attribute-Item mini graphs. We apply the same weight for all the edges in the sampling as previous work did [Hamilton et al., 2017].

User-User mini graph. For each user, we first sample Lu1 users from the user's neighbors and denote them as us1 . Then for each user in us1 , we sample Lu2 users from the user's neighbors. We iteratively perform these operations k times to obtain k-hop neighborhood information. The k-hop usercentered mini graph is called the User-User mini graph.

Item-User mini graph. For each user in the k-hop mini graph, we sample Li items that the user has interacted with. The resulted graph is denoted as the Item-User mini graph.

Attribute-Item mini graph. For each item in the ItemUser mini graph, we sample Lt attributes to describe the item, which leads to the Attribute-Item mini graph.

The representations of users are learned by applying Metapath aware Graph Attention Propagation operations on these mini graphs, instead of the original graph.

5 Experiments

5.1 Datasets

To evaluate our proposed method in user profiling, we collect a large scale real-world dataset from JD.com∗ , one of the most popular e-commerce portals in China. In this dataset, users, items and attributes are consumers, products and words in the titles of products respectively. The statistics of nodes and edges in the dataset is shown in Table 1.

The profiles of users are the gender and age labels. The statistics of each label is demonstrated in Table 2.

∗ https://www.jd.com

5.2 Experimental Methods

In the experiments, we implement two instantiated models of our framework: HGAT and HGCN.

• HGAT: a instantiated model of our framework. It uses Vanilla Attention Operation in the Attribute-Item Layer and Item-User Layer and the Graph Attention Operation in the User-User Layer.
• HGCN: another instantiated model of our framework. The only difference is that HGCN uses the Graph Convolutional Operation in the User-User Layer.

We compare our methods HGAT and HGCN with several baseline methods for user profiling task.

• Logistic Regression (LR) is widely used in user profiling due to its advantages of efficiency and good interpretation ability [Rosenthal and McKeown, 2011].
• Support Vector Machine (SVM) is widely used to solve classification and user analysis problems [Zamal et al., 2012].
• Graph Convolutional Network (GCN) is a semisupervised learning algorithm on graph structured data. It is widely used for node classification [Kipf and Welling, 2017; Rahimi et al., 2018].
• Graph Attention Network (GAT) is a state-of-the-art graph neural network model. By learning different attention coefficients to neighbors, it can acquire a better representation of nodes [Velickovic et al., 2018].

5.3 EvaluationMetrics

In the experiments, there are two classification tasks: gender prediction and age prediction. We choose two metrics Accuracy and Macro-F1 [Wu et al., 2019a], which are widely used in classification and user profiling problems, to evaluate the performance of our model.

5.4 Implementation Details

In the experiment, we randomly split labeled users into training set, validation set and test set with the ratio 75:12.5:12.5 following previous works [Qiu et al., 2018].

During the training stage, we use the embeddings of all relevant users (i.e., the user and her k-hop neighbors), but only the labels assigned to the users in the training set. In the validation and testing stages, we use the labels of users in the validation and test set to evaluate our model respectively.

In the Mini Heterogeneous Graph Sampling procedure, the number of neighborhood samples is set as follows: k = 2,Lu1 = 10,Lu2 = 4 for User-User mini graph, Li = 10 for Item-User mini graph, Lt = 10 for Attribute-Item mini graph. When we use FastText [Bojanowski et al., 2017] to process the texts, we set the output dimension of word embedding as 200. We adopt Adam as the optimizer and set weight decay to 5e-4 . The value of multi-head K = 8. The learning rate, dropout rate, mini-batch size, are set to 0.005, 0.6, 64 for gender prediction and 0.1, 0.2, 32 for age prediction, respectively.

6 Results and Analysis

6.1 Overall Comparison

The performance of HGAT, HGCN and baseline methods is presented in Table 3.

From this table, we can find that:

1. For gender prediction, HGAT achieves the best results in both Accuracy and Macro-F1.
2. For age prediction, HGAT achieves the best results in the metric of Accuracy and HGCN achieves the best results in the metric of Macro-F1.
3. HGAT and HGCN both achieve impressive improvements than state-of-the-art methods like GCN and GAT, which proves the superiority of our framework.

6.2 Ablation Study

Both HGCN and HGAT use three layers in the Heterogeneous Graph Attention Layers: Attribute-Item Layer, ItemUser Layer, and User-User Layer. To investigate the effectiveness of the first two layers in our framework, we conduct experiments using variants of HGCN and HGAT.

• HGCN1: It is a variant of HGCN, but it only uses the User-User Layer in the Heterogeneous Graph Attention Layers (i.e., no Attribute-Item Layer and Item-User Layer), which is the way we implement GCN on such large graph. The feature of a user is the average of embeddings of words in the items which the user has interacted with.
• HGCN2:It is a variant of HGCN, but it only uses the Item-User Layer and User-User Layer in the Heterogeneous Graph Attention Layers (i.e., no Attribute-Item Layer). The feature of an item is the average of embedding of words in the title of the item.
• HGAT1: It is a variant of HGAT, but it only uses the User-User Layer in the Heterogeneous Graph Attention Layers, which is the way we implement GAT on such large graph. The features of users are the same as HGCN1.
• HGAT2: It is a variant of HGAT, but it only uses the Item-User Layer and User-User Layer. The features of items are the same as HGCN2.

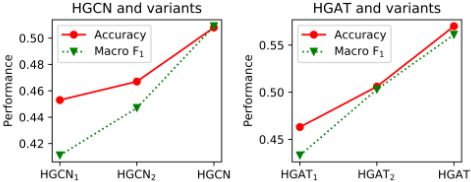

We evaluate HGCN, HGAT and these variants on the gender prediction task and demonstrate the performance in Figure 3. The experiment results on the age prediction task are similar. From the experiment results in this figure, we can find that:

1. The prediction performance is improved when we add the Attribute-Item Layer and Item-User Layer, which exploit attention operations to automatically learn embeddings of items and users based on information in their neighborhoods.
2. The information propagation operations between heterogeneous nodes are effective for user profiling in the heterogeneous graph.
3. Our framework can effectively integrate the heterogeneous data in the network and achieves appealing performance for user profiling.

7 Conclusion and FutureWork

In this paper, we have addressed the task of user profiling in a semi-supervised manner, which aims to solve two challenges in user profiling: single type of input data and negligence of semi-supervised signals. Unlike previous work that considered the user profiling as a classification task with selfgenerated user data, we have proposed heterogeneous graph attention networks (HGAT) to learn the representation for each entity by accounting for the graph structure, and present attention mechanisms to examine the importance of neighborhood entities. Thus, HGAT is capable to leverage both unsupervised information and limited labels of users to construct the predictor. Experiments on a large-scale real-world dataset have shown that HGAT outperforms state-of-the-art baselines for user profiling. We have also verified the effectiveness of components in HGAT.

To our best knowledge, our framework is the first method that can automatically model multi-relation graph structure and node features in heterogeneous networks for user profiling, without the need of designing hand-crafted features or fusion method. This opens up a new opportunity of solving various problems based on heterogeneous networks.
