Zeroth-Order Stochastic Alternating Direction Method of Multipliers for Nonconvex Nonsmooth Optimization

1 Introduction

Alternating direction method of multipliers (ADMM [Gabay and Mercier, 1976; Boyd et al., 2011]) is a popular optimization tool for solving the composite and constrained problems in machine learning. In particular, ADMM can efficiently optimize some problems with complicated structure regularization such as the graph-guided fused lasso [Kim et al.,

∗Corresponding Author.

2009], which is too complicated for the other popular optimization methods such as proximal gradient methods [Beck and Teboulle, 2009]. For the large-scale optimization, the stochastic ADMM method [Ouyang et al., 2013] has been proposed. Recently, some faster stochastic ADMM methods [Suzuki, 2014; Zheng and Kwok, 2016] have been proposed by using the variance reduced (VR) techniques such as the SVRG [Johnson and Zhang, 2013]. In fact, ADMM is also highly successful in solving various nonconvex problems such as training deep neural networks [Taylor et al., 2016]. Thus, some fast nonconvex stochastic ADMM methods have been developed in [Huang et al., 2016; Huang et al., 2019a].

Currently, most of the ADMM methods need to compute the gradients of objective functions over each iteration. However, in many machine learning problems, the explicit expression of gradient for objective function is difficult or infeasible to obtain. For example, in black-box situations, only prediction results (i.e., function values) are provided [Chen et al., 2017; Liu et al., 2018b]. In bandit settings [Agarwal et al., 2010], player only receives the partial feedback in terms of loss function values, so it is impossible to obtain expressive gradient of the loss function. Clearly, the classic optimization methods, based on the first-order gradient or second-order information, are not competent to these problems. Recently, the zeroth-order optimization methods [Duchi et al., 2015; Nesterov and Spokoiny, 2017] are developed by only using the function values in the optimization.

In the paper, we focus on using the zeroth-order methods to solve the following nonconvex nonsmooth problem:

where A ∈ Rp×d , Bj ∈ Rp×q for all j ∈ [k], k ≥ 1, f(x) = 1n ∑ni=1 fi(x) : Rd → R is a nonconvex and blackbox function, and each ψj (yj ) : Rq → R is a convex and nonsmooth function. In machine learning, function f(x) can be used for the empirical loss, ∑kj=1 ψj(yj) for multiple structure penalties (e.g., sparse + group sparse), and the constraint for encoding the structure pattern of model parameters such as graph structure. Due to the flexibility in splitting the objective function into loss f(x) and each penalty ψj(yj), ADMM is an efficient method to solve the obove problem. However, in the problem (1), we only access the objective values rather than the whole explicit function F(x, y[k]), thus the classic ADMMmethods are unsuitable for the problem (1).

Recently, [Gao et al., 2018; Liu et al., 2018a] proposed the zeroth-order stochastic ADMM methods, which only use the objective values to optimize. However, these zeroth-order ADMM-based methods build on the convexity of objective function. Clearly, these methods are limited in many nonconvex problems such as adversarial attack on black-box deep neural network (DNN). At the same time, due to that the problem (1) includes multiple nonsmooth regularization functions and an equality constraint, the existing zeroth-order algorithms [Liu et al., 2018b; Huang et al., 2019b] are not suitable for solving this problem.

In the paper, thus, we propose a class of fast zeroth-order stochastic ADMM methods (i.e., ZO-SVRG-ADMM and ZOSAGA-ADMM) to solve the problem (1) based on the coordinate smoothing gradient estimator [Liu et al., 2018b]. In particular, the ZO-SVRG-ADMM and ZO-SAGA-ADMM methods build on the SVRG [Johnson and Zhang, 2013] and SAGA [Defazio et al., 2014], respectively. Moreover, we study the convergence properties of the proposed methods. Table 1 shows the convergence properties of the proposed methods and other related ones.

1.1 Challenges and Contributions

Although both SVRG and SAGA show good performances in the first-order and second-order methods, applying these techniques to the nonconvex zeroth-order ADMMmethod is not trivial. There exists at least two main challenges:

• Due to failure of the Fej´er monotonicity of iteration, the convergence analysis of the nonconvex ADMM is generally quite difficult [Wang et al., 2015]. With using the inexact zeroth-order estimated gradient, this difficulty becomes greater in the nonconvex ADMM methods.
• To guarantee convergence of our zeroth-order ADMM methods, we need to design a new effective Lyapunov function, which can not follow the existing nonconvex (stochastic) ADMM methods [Jiang et al., 2019; Huang et al., 2016].

Thus, we carefully establish the Lyapunov functions in the following theoretical analysis to ensure convergence of the proposed methods. In summary, our major contributions are given below:

1. We propose a class of fast zeroth-order stochastic ADMM methods (i.e., ZO-SVRG-ADMM and ZO-SAGAADMM) to solve the problem (1).
2. We prove that both the ZO-SVRG-ADMM and ZOSAGA-ADMM have convergence rate of O( 1 T ) for nonconvex nonsmooth optimization. In particular, our methods not only reach the existing best convergence rate O( 1 T ) for the nonconvex optimization, but also are able to effectively solve many machine learning problems with multiple complex regularized penalties.
3. Extensive experiments conducted on black-box classification and structured adversarial attack on black-box DNNs validate efficiency of the proposed algorithms.

2 RelatedWorks

Zeroth-order (gradient-free) optimization is a powerful optimization tool for solving many machine learning problems, where the gradient of objective function is not available or computationally prohibitive. Recently, the zeroth-order optimization methods are widely applied and studied. For example, zeroth-order optimization methods have been applied to bandit feedback analysis [Agarwal et al., 2010] and blackbox attacks on DNNs [Chen et al., 2017; Liu et al., 2018b]. [Nesterov and Spokoiny, 2017] have proposed several random zeroth-order methods based on the Gaussian smoothing gradient estimator. To deal with the nonsmooth regularization, [Gao et al., 2018; Liu et al., 2018a] have proposed the zeroth-order online/stochastic ADMM-based methods.

So far, the above algorithms mainly build on the convexity of problems. In fact, the zeroth-order methods are also highly successful in solving various nonconvex problems such as adversarial attack to black-box DNNs [Liu et al., 2018b]. Thus, [Ghadimi and Lan, 2013; Liu et al., 2018b; Gu et al., 2018] have begun to study the zeroth-order stochastic methods for the nonconvex optimization. To deal with the nonsmooth regularization, [Ghadimi et al., 2016; Huang et al., 2019b] have proposed some non-convex zerothorder proximal stochastic gradient methods. However, these methods still are not well competent to some complex machine learning problems such as a task of structured adversarial attack to the black-box DNNs, which is described in the following experiment.

2.1 Notations

Let y[k] = {y1, · · · , yk} and y[j:k] = {yj, · · · , yk} for j ∈ [k]. Given a positive definite matrix G, ∥x∥2G = xT Gx; σmax(G) and σmin(G) denote the largest and smallest eigenvalues of G, respectively, and κG = σmax(G) σmin(G) . σAmax and σAmin denote the largest and smallest eigenvalues of matrix AT A.

3 Preliminaries

In the section, we begin with restating a standard ϵapproximate stationary point of the problem (1), as in [Jiang et al., 2019; Huang et al., 2019a].

Definition 1. Given ϵ > 0, the point (x∗ , y∗ [k] , λ∗ ) is said to be an ϵ-approximate stationary point of the problems (1), if it holds that

where L(x, y[k], λ) = f(x) + ∑kj=1 ψj(yj) - ⟨λ,Ax + ∑kj=1 Bjyj - c⟩,

dist(0, ∂L) = infL′∈∂L ∥0 - L′∥.

Next, we make some mild assumptions regarding problem (1) as follows:

Assumption 1. Each function fi(x) is L-smooth for ∀i ∈ {1, 2, · · · , n} such that

which is equivalent to

Assumption 2. Gradient of each function fi(x) is bounded, i.e., there exists a constant δ > 0 such that for all x, it follows that ∥∇fi(x)∥2 ≤ δ2 .

Assumption 3. f(x) and ψj(yj) for all j ∈ [k] are all lower bounded, and denote f ∗ = infx f(x) and ψ∗ j = infy ψj(y) for j ∈ [k].

Assumption 4. A is a full row or column rank matrix.

Assumption 1 has been commonly used in the convergence analysis of nonconvex algorithms [Ghadimi et al., 2016]. Assumption 2 is widely used for stochastic gradient-based and ADMM-type methods [Boyd et al., 2011]. Assumptions 3 and 4 are usually used in the convergence analysis of ADMM methods [Jiang et al., 2019; Huang et al., 2016; Huang et al., 2019a]. Without loss of generality, we will use the full column rank of matrix A in the rest of this paper.

Algorithm 1 Nonconvex ZO-SVRG-ADMM Algorithm

• 1: Input: b, m, T, S = ⌈T/m⌉, η > 0 and ρ > 0;
• 2: Initialize: x10 , y0,1 j for j ∈ [k] and λ10 ;
• 3: for s = 1, 2, · · · , S do
• 4: ˜xs+1 = xs+1 0 , ˆ∇f(˜xs ) = 1n ∑ni=1 ˆ∇fi(˜xs );
• 5: for t = 0, 1, · · · ,m-1 do
• 6: Uniformly randomly pick a mini-batch It (with replacement) from {1, 2, · · · , n}, and |It| = b ;
• 7: Using (4) to estimate stochastic gradient ˆ gs t =
• ˆ∇fIt (xst ) - ˆ∇fIt (˜xs ) + ˆ∇f (˜xs ); 8: ys,t+1 j = argminyj {Lρ(xst , ys,t+1 [j-1] , yj , ys,t [j+1:k] , λst ) + 12 ∥yj - ys,t j ∥2Hj }, for all j ∈ [k];
• 9: xst+1 = argminx ˆ Lρ (x, ys,t+1 [k] , λst , ˆ gs t );
• 10: λst+1 = λst - ρ(Axst+1 + ∑kj=1 Bjys,t+1 j - c);
• 11: end for

• 13: end for
• 14: Output: {x, y, λ} chosen at random uniformly from {(xst , ys,t [k] , λst )mt=1 }Ss=1 .

4 Fast Zeroth-Order Stochastic ADMMs

In this section, we propose a class of zeroth-order stochastic ADMMmethods to solve the problem (1). First, we define an augmented Lagrangian function of the problem (1):

where λ ∈ Rp and ρ > 0 denotes the dual variable and penalty parameter, respectively.

In the problem (1), the explicit expression of objective function fi(x) is not available, and only the function value of fi(x) is available. To avoid computing explicit gradient, thus, we use the coordinate smoothing gradient estimator [Liu et al., 2018b] to estimate gradients: for i ∈ [n],

where µj is a coordinate-wise smoothing parameter, and ej is a standard basis vector with 1 at its j-th coordinate, and 0 otherwise.

Based on the above estimated gradients, we propose a zeroth-order ADMM (ZO-ADMM) method to solve the problem (1) by executing the following iterations, for t=1, 2, · · ·

Algorithm 2 Nonconvex ZO-SAGA-ADMM Algorithm

• 1: Input: b, T, η > 0 and ρ > 0;
• 2: Initialize: z0 i = x0 for i ∈ {1, 2, · · · , n}, ˆ ϕ0 = 1n ∑ni=1 ∇fi(z0 i ), y0 j for j ∈ [k] and λ0;
• 3: for t = 0, 1, · · · , T -1 do
• 4: Uniformly randomly pick a mini-batch It (with replacement) from {1, 2, · · · , n}, and |It| = b ;
• 5: Using (4) to estimate stochastic gradient ˆ gt = 1b ∑it∈It (∇fit (xt) - ∇fit (zt it )) + ˆ ϕt with ˆ ϕt = 1n ∑ni=1 ∇fi(zt i );

• 7: xt+1 = argminx ˆ Lρ (x, yt+1 [k] , λt, ˆ gt );
• 8: λt+1 = λt -ρ(Axt+1 + ∑kj=1 Bjyt+1 j - c);
• 9: zt+1 it = xt for i ∈ It and zt+1 i = zt i for i ̸∈ It;
• 10: ˆ ϕt+1 = ˆ ϕt - 1n ∑it∈It (∇fit (zt it ) - ∇fit (zt+1 it ));
• 11: end for
• 12: Output: {x, y, λ} chosen at random uniformly from {xt, yt [k] , λt}Tt=1 .

where the term 12 ∥yj - yt j ∥2Hj with Hj ≻ 0 to linearize the term ∥Ax+ ∑kj=1 Bjyj -c∥2 . Here, due to using the inexact zeroth-order gradient to update x, we define an approximate function over xt as follows:

where G ≻ 0, ˆ∇f(x) is the zeroth-order gradient and η > 0 is a step size. Considering the matrix AT A is large, set G = rI - ρηAT A ≻ I with r > ρησmax(AT A) + 1 to linearize the term ∥Ax + ∑kj=1 Bjyt+1 j - c∥2 . In the problem (1), not only the noisy gradient of fi(x) is not available, but also the sample size n is very large. Thus, we propose fast ZOSVRG-ADMM and ZO-SAGA-ADMM to solve the problem (1), based on the SVRG and SAGA, respectively.

Algorithm 1 shows the algorithmic framework of ZOSVRG-ADMM. In Algorithm 1, we use the estimated stochastic gradient ˆ gs t = ˆ∇fIt (xst ) - ˆ∇fIt (˜xs ) + ˆ∇f(˜xs ) with ˆ∇fIt (xst ) = 1b ∑it∈It ˆ∇fit (xst ). We have EIt [ˆ gs t ] = ˆ∇f(xst ) ̸= ∇f(xst ), i.e., this stochastic gradient is a biased estimate of the true full gradient. Although the SVRG has shown a great promise, it relies upon the assumption that the stochastic gradient is an unbiased estimate of true full gradient. Thus, adapting the similar ideas of SVRG to zerothorder ADMM optimization is not a trivial task. To handle this challenge, we choose the appropriate step size η, penalty parameter ρ and smoothing parameter µ to guarantee the convergence of our algorithms, which will be discussed in the following convergence analysis.

Algorithm 2 shows the algorithmic framework of ZOSAGA-ADMM. In Algorithm 2, we use the estimated stochastic gradient ˆ gt = 1b ∑it∈It ( ˆ∇fit (xt) -∇fit (zt it )) + ˆ ϕt with ˆ ϕt = 1n ∑ni=1 ˆ∇fi(zt i ). Similarly, we have EIt [ˆ gt] = ˆ∇f(xt) ̸= ∇f(xt).

5 Convergence Analysis

In this section, we will study the convergence properties of the proposed algorithms (ZO-SVRG-ADMM and ZOSAGA-ADMM).

5.1 Convergence Analysis of ZO-SVRG-ADMM

In this subsection, we analyze convergence properties of the ZO-SVRG-ADMM.

Given the sequence {(xst , ys,t [k] , λst )mt=1 }Ss=1 generated from Algorithm 1, we define a Lyapunov function:

where the positive sequence {ct} satisfies

Next, we definite a useful variable θs t =E[∥xst+1 - xst ∥2 + ∥xst -xst-1 ∥2 + db (∥xst -˜xs ∥2 +∥xst-1 -˜xs ∥2 )+∑kj=1 ∥ys,t j - ys,t+1 j ∥2 ].

Theorem 1. Suppose the sequence {(xst , ys,t [k] , λst )mt=1 }Ss=1 is generated from Algorithm 1. Let m = n 13 , b = d1-ln 23 , l ∈ {0, 12 , 1}, η = ασmin(G) 9dlL (0 < α ≤ 1) and ρ = 6√71κGdlL σAminα , then we have

where ˜ ν = R1 0 - R∗ , and R∗ is a lower bound of function Rs t . It follows that suppose the smoothing parameter µ and the whole iteration number T = mS satisfy

then (xs∗ t∗ , ys∗ ,t∗ [k] , λs∗ t∗ ) is an ϵ-approximate stationary point of the problems (1), where (t∗ , s∗ ) = argmint,s θs t .

Remark 1. Theorem 1 shows that given m = n 1 3 , b = d1-ln 2 3 , l ∈ {0, 12 , 1}, η = ασmin(G) 9dlL (0 < α ≤ 1), ρ = 6√71κGdlL σAminα and µ = O( 1 d√T ), the ZO-SVRG-ADMM has convergence rate of O( d2l T ). Specifically, when 1 ≤ d < n 1 3 , given l = 0, the ZO-SVRG-ADMM has convergence rate of O( 1 T ); when n 13 ≤ d < n 23 , given l = 1 2 , it has convergence rate of O( √d T ); when n 23 ≤ d, given l = 1, it has convergence rate of O( d T ).

5.2 Convergence Analysis of ZO-SAGA-ADMM

In this subsection, we provide the convergence analysis of the ZO-SAGA-ADMM.

Given the sequence {xt, yt [k] , λt}Tt=1 generated from Algorithm 2, we define a Lyapunov function

Here the positive sequence {ct} satisfies

where ˆ p denotes probability of an index i in It. Next, we definite a useful variable θt =E[∥xt+1-xt∥2+∥xt-xt-1∥2+ d bn ∑ni=1 (∥xt-zt i ∥2+∥xt-1-zt-1 i ∥2 )+∑kj=1 ∥yt j -yt+1 j ∥2 ]. Theorem 2. Suppose the sequence {xt, yt [k] , λt}Tt=1 is generated from Algorithm 2. Let b = n 23 d 1-l 3 , l ∈ {0, 1 2 , 1}, η = ασmin(G) 33dlL (0 < α ≤ 1) and ρ = 6√791κGdlL σAminα then we have

where ˜ ν = Ω0 -Ω∗ , and Ω∗ is a lower bound of function Ωt. It follows that suppose the parameters µ and T satisfy

then (xt∗, yt∗ [k] , λt∗) is an ϵ-approximate stationary point of the problems (1), where t∗ = argmin1≤t≤T θt.

Remark 2. Theorem 2 shows that b = n 23 d 1-l 3 , l ∈ {0, 12 , 1}, η = ασmin(G) 33dlL (0 < α ≤ 1), ρ = 6√791κGdlL σAminα and µ = O( 1 d√T ), the ZO-SAGA-ADMM has the O( d2l T ) of convergence rate. Specifically, when 1 ≤ d < n, given l = 0, the ZO-SAGA-ADMM has convergence rate of O( 1 T ); when n ≤ d < n2 , given l = 12 , it has convergence rate of O( d T ); when n2 ≤ d, given l = 1, it has convergence rate of O( d2 T ).

6 Experiments

In this section, we compare our algorithms (ZO-SVRGADMM, ZO-SAGA-ADMM) with the ZO-ProxSVRG, ZOProxSAGA [Huang et al., 2019b], the deterministic zerothorder ADMM (ZO-ADMM), and zeroth-order stochastic ADMM (ZO-SGD-ADMM) without variance reduction on two applications: 1) robust black-box binary classification, and 2) structured adversarial attacks on black-box DNNs.

6.1 Robust Black-Box Binary Classification

In this subsection, we focus on a robust black-box binary classification task with graph-guided fused lasso. Given a set of training samples (ai, li)ni=1 , where ai ∈ Rd and li ∈ {-1,+1}, we find the optimal parameter x ∈ Rd by solving the problem:

where fi(x) is the black-box loss function, that only returns the function value given an input. Here, we specify the loss function fi(x) = σ2 2 (1 - exp(- (li-aTi x)2 σ2 )), which is the nonconvex robust correntropy induced loss [He et al., 2011]. Matrix ˆG decodes the sparsity pattern of graph obtained by learning sparse Gaussian graphical model [Huang and Chen, 2015]. In the experiment, we give mini-batch size b = 20, smoothing parameter µ = 1 d√t and penalty parameters τ1 = τ2 = 10-5 .

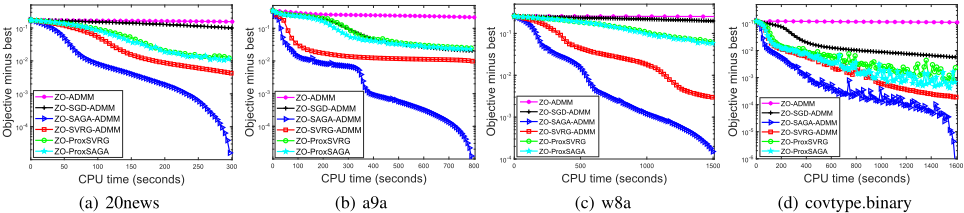

In the experiment, we use some public real datasets 1 , which are summarized in Table 2. For each dataset, we use half of the samples as training data and the rest as testing data. Figure 1 shows that the objective values of our algorithms faster decrease than the other algorithms, as the CPU time increases. In particular, our algorithms show better performances than the zeroth-order proximal algorithms. It is relatively difficult that these zeroth-order proximal methods deal with the nonsmooth penalties in the problem (6). Thus, we have to use some iterative methods to solve the proximal operator in these proximal methods.

6.2 Structured Attacks on Black-Box DNNs

In this subsection, we use our algorithms to generate adversarial examples to attack the pre-trained DNN models, whose parameters are hidden from us and only its outputs are accessible. Moreover, we consider an interesting problem: "What possible structures could adversarial perturbations have to fool black-box DNNs ?" Thus, we use the zeroth-order algorithms to find an universal structured adversarial perturbation x ∈ Rd that could fool the samples {ai ∈ Rd , li ∈ N}ni=1 , which can be regarded as the following problem:

1 20news is from https://cs.nyu.edu/∼roweis/data.html; others are from www.csie.ntu.edu.tw/∼cjlin/libsvmtools/datasets/.

where F(a) represents the final layer output before softmax of neural network, and h(x) ensures the validness of created adversarial examples. Specifically, h(x) = 0 if ai + x ∈ [0, 1]d for all i ∈ [n] and ∥x∥∞ ≤ ϵ, otherwise h(x) = ∞. Following [Xu et al., 2018], we use the overlapping lasso to obtain structured perturbations. Here, the overlapping groups {Gp,q}, p = 1, · · · , P, q = 1, · · · ,Q generate from dividing an image into sub-groups of pixels.

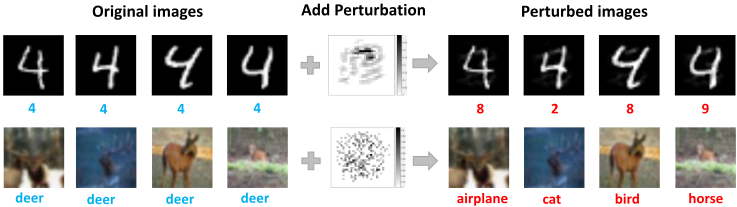

In the experiment, we use the pre-trained DNN models on MNIST and CIFAR-10 as the target black-box models, which can attain 99.4% and 80.8% test accuracy, respectively. For MNIST, we select 20 samples from a target class and set batch size b = 4; For CIFAR-10, we select 30 samples and set b = 5. In the experiment, we set µ = 1 d√t , where d = 28×28 and d = 3×32×32 for MNIST and CIFAR-10, respectively. At the same time, we set the parameters ϵ = 0.4, τ1 = 1, τ2 = 2 and τ3 = 1. For both datasets, the kernel size for overlapping group lasso is set to 3 × 3 and the stride is one.

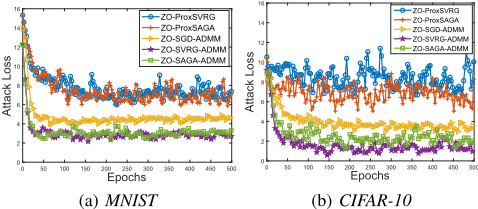

Figure 3 shows that attack losses (i.e. the first term of the problem (7)) of our methods faster decrease than the other methods, as the number of iteration increases. Figure 2 shows that our algorithms can learn some structure perturbations, and can successfully attack the corresponding DNNs.

7 Conclusions

In the paper, we proposed fast ZO-SVRG-ADMM and ZOSAGA-ADMM methods based on the coordinate smoothing gradient estimator, which only uses the objective function values to optimize. Moreover, we prove that the proposed methods have a convergence rate of O( 1 T ). In particular, our methods not only reach the existing best convergence rate O( 1 T ) for the nonconvex optimization, but also are able to effectively solve many machine learning problems with the complex nonsmooth regularizations.
