Harnessing the Vulnerability of Latent Layers in Adversarially Trained Models

1 Introduction

Deep Neural Networks have achieved state of the art performance in several Computer Vision tasks [He et al., 2016; Krizhevsky et al., 2012]. However, recently it has been shown to be extremely vulnerable to adversarial perturbations. These small, carefully calibrated perturbations when added to the input lead to a significant change in the network's prediction [Szegedy et al., 2014]. The existence of adversarial examples pose a severe security threat to the practical deployment of deep learning models, particularly, in safetycritical systems [Akhtar and Mian, 2018].

Since the advent of adversarial perturbations, there has been extensive work in the area of crafting new adversarial attacks [Madry et al., 2018; Moosavi-Dezfooli et al., 2017;

∗Authors contributed equally

Carlini and Wagner, 2017b]. At the same time, several methods have been proposed to protect models from these attacks (adversarial defense)[Goodfellow et al., 2015; Madry et al., 2018; Tram`er et al., 2018]. Nonetheless, many of these defense strategies are continually defeated by new attacks. [Athalye et al., 2018; Carlini and Wagner, 2017a; Madry et al., 2018]. In order to better compare the defense strategies, recent methods try to provide robustness guarantees by formally proving that no perturbation smaller than a given lp(where p ∈ [0,∞])bound can fool their network [Raghunathan et al., 2018; Tsuzuku et al., 2018; Weng et al., 2018; Carlini et al., 2017; Wong and Kolter, 2018]. Also some work has been done by using the Lipschitz constant as a measure of robustness and improving upon it [Szegedy et al., 2014; Cisse et al., 2017; Tsuzuku et al., 2018].

Despite the efforts, the adversarial defense methods still fail to provide a significant robustness guarantee for appropriate lp bounds (in terms of accuracy over adversarial examples) for large datasets like CIFAR-10, CIFAR-100, ImageNet[Russakovsky et al., 2015]. Enhancing the robustness of models for these datasets is still an open challenge.

In this paper, we analyze the models trained using an adversarial defense methodology [Madry et al., 2018] and find that while these models show robustness at the input layer, the latent layers are still highly vulnerable to adversarial attacks as shown in Fig 1. We utilize this property to introduce a new technique (LAT) of further fine-tuning the adversarially trained model. We find that improving the robustness of the models at the latent layer boosts the adversarial accuracy of the entire model. We observe that LAT improves the adversarial robustness by (∼ 4-6%) and test accuracy by (∼ 1%) for CIFAR-10 and CIFAR-100 datasets.

Our main contributions in this paper are the following:

• We study the robustness of latent layers of networks in terms of adversarial accuracy and Lipschitz constant and observe that latent layers of adversarially trained models are still highly vulnerable to adversarial perturbations.
• We propose a Latent Adversarial Training (LAT) technique that significantly increases the robustness of existing state of the art adversarially trained models[Madry et al., 2018] for MNIST, CIFAR-10, CIFAR-100, SVHN and Restricted ImageNet datasets.
• We propose Latent Attack (LA), a new l∞ adversarial attack that is comparable in terms of performance to PGD on multiple datasets. The attack exploits the nonrobustness of in-between layers of existing robust models to construct adversarial perturbations.

The rest of the paper is structured as follows: In Section 2, we review various adversarial attack and defense methodologies. In Section 3 and 4.1, we analyze the vulnerability of latent layers in robust models and introduce our proposed training technique of Latent Adversarial Training (LAT). In Section 4.2 we describe our adversarial attack algorithm Latent Attack (LA). Further, we do some ablation studies to understand the effect of the choice of the layer on LAT and LA attack in Section 5.

2 Background And RelatedWork

2.1 Adversarial Attacks

For a classification network f , let θ be its parameters, y be the true class of n - dimensional input x ∈ [0, 1]n and J(θ, x, y) be the loss function. The aim of an adversarial attack is to find the minimum perturbation ∆ in x that results in the change of class prediction. Formally,

It can be expressed as an optimization problem as:

In general, the magnitude of adversarial perturbation is constrained by a p norm where p ∈ {0, 2,∞} to ensure that the perturbed example is close to the original sample. Various other constraints for closeness and visual similarity [Xiao et al., 2018] have also been proposed for the construction of adversarial perturbation .

There are broadly two type of adversarial attacks:- White box and Black box attacks. White box attacks assume complete access to the network parameters while in the latter there is no information available about network architecture or parameters. We briefly describe PGD[Madry et al., 2018] adversarial attack which we use as a baseline in our paper.

ProjectedGradient Descent (PGD) attack. Projected gradient descent [Madry et al., 2018] is an iterative variant of Fast Gradient Sign Method (FGSM)[Goodfellow et al., 2015]. Adversarial examples are constructed by iteratively applying FGSM and projecting the perturbed output to a valid constrained space S. The attack formulation is as follows:

where xi+1 denotes the perturbed sample at (i+1)th iteration.

While there has been extensive work in this area[Yuan et al., 2019; Akhtar and Mian, 2018], we primarily focus our attention towards attacks which utilizes latent layer representation. [Sabour et al., 2016] proposed a method to construct adversarial perturbation by manipulating the latent layer of different classes. However, Latent Attack (LA) exploits the adversarial vulnerability of the latent layers to compute adversarial perturbations.

2.2 Adversarial Defense

Popular defense strategies to improve the robustness of deep networks include the use of regularizers inspired by reducing the Lipschitz constant of the neural network [Tsuzuku et al., 2018; Cisse et al., 2017]. There have also been several methods which turn to GAN's[Samangouei et al., 2018] for classifying the input as an adversary. However, these defense techniques were shown to be ineffective to adaptive adversarial attacks [Athalye et al., 2018; Logan Engstrom, 2018]. Hence we turn to adversarial training which [Goodfellow et al., 2015; Madry et al., 2018; Kannan et al., 2018] is a defense technique that injects adversarial examples in the training batch at every step of the training. Adversarial training constitutes the current stateof-the-art in adversarial robustness against white-box attacks. For a comprehensive review of the work done in the area of adversarial examples, please refer [Yuan et al., 2019; Akhtar and Mian, 2018].

In our current work, we try to enhance the robustness of each latent layer, and hence increasing the robustness of the network as a whole. Previous works in this area include [Sankaranarayanan et al., 2018; Cihang Xie, 2019]. However, our paper is different from them on the following counts:

• [Cihang Xie, 2019] observes that the adversarial perturbation on image leads to noisy features in latent layers. Inspired by this observation, they develop a new network architecture that comprises of denoising blocks at the feature layer which aims at increasing the adversarial robustness. However, we are leveraging the observation of low robustness at feature layer to perform adversarial training for latent layers to achieve higher robustness.
• [Sankaranarayanan et al., 2018] proposes an approach to regularize deep neural networks by perturbing intermediate layer activation. Their work has shown improvement in test accuracy over image classification tasks as well as minor improvement in adversarial robustness with respect to basic adversarial perturbation [Goodfellow et al., 2015]. However, our work focuses on the vulnerability of latent layers to a small magnitude of adversarial perturbations. We have shown improvement in

test accuracy and adversarial robustness with respect of state of the art attack [Madry et al., 2018].

3 Robustness of Latent Layers

Mathematically, a deep neural network with l layers and f(x) as output can be described as:

Here fi denotes the function mapping layer i - 1 to layer i with weights Wi and bias bi respectively. From Eq. 3, it is evident that f(x) can be written as a composition of two

We can study the behavior of f(x) at a slightly perturbed input by inspecting its Lipschitz constant, which is defined by a constant Lf such that Eq. 5 holds for all ν.

Having a lower Lipschitz constant ensures that function's output at perturbed input is not significantly different. This further can be translated to higher adversarial robustness as it has been shown by [Cisse et al., 2017; Tsuzuku et al., 2018]. Moreover, if Lg and Lh are the Lipschitz constant of the subnetworks gi and hi, the Lipschitz constant of f has an upper bound defined by the product of Lipschitz constant of gi and hi, i.e.

So having robust sub-networks can result in higher adversarial robustness for the whole network f . But the converse need not be true.

For each of the latent layers i, we calculate an upper bound for the magnitude of perturbation(ϵi) by observing the perturbation induced in latent layer for adversarial examples xadv .For obtaining a sensible bound of the perturbation for the sub-network gi(x), the following formula is used :

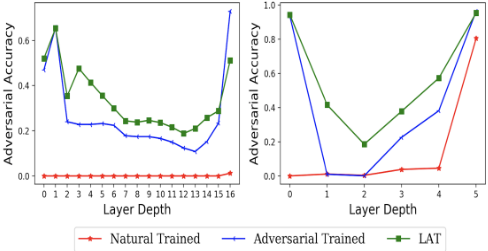

Using this we compute the adversarial robustness of subnetworks {gi|1 ≤ i ≤ l - 1} using PGD attack as shown in Fig 1.

We now, briefly describe the network architecture used for each dataset. 1

• MNIST[Lecun et al., 1989]: We use the network architecture as described in [Madry et al., 2018]. The natural and adversarial trained model achieves a test accuracy of 99.17% and 98.4% respectively.
• CIFAR-10[Krizhevsky et al., 2010]: We use the network architecture as in [Madry et al., 2018]. The natural and adversarial trained model achieves a test accuracy of 95.01% and 87.25% respectively.

1 Code avaiable at:

https://github.com/msingh27/

LAT adversarial robustness

• CIFAR-100[Krizhevsky et al., 2010]: We use the same network architecture as used for CIFAR-10 with the modification at the logit layer so that it can handle the number of classes in CIFAR-100. The natural and adversarial trained model achieves a test accuracy of 78.07% and 60.38% respectively.
• SVHN[Netzer et al., 2011]: We use the same network architecture as used for CIFAR-10. The adversarial trained model achieves a test accuracy of 91.13%.
• Restricted Imagenet[Tsipras et al., 2019]: The dataset consists of a subset of imagenet classes which have been grouped into 9 different classes. The model achieves a test accuracy of 91.65%.

For adversarial training, the examples are constructed using PGD adversarial perturbations[Madry et al., 2018]. Also, we refer adversarial accuracy of a model as the accuracy over the adversarial examples generated using the test-set of the dataset. Higher adversarial accuracy corresponds to a more adversarially robust model.

We observe that for adversarially trained models, the adversarial accuracies of the sub-networks gi are relatively less than that of the whole network f as shown in Fig 1 and 3. The trend is consistent across all the different datasets. Note that layer depth, i.e. i is relative in all the experiments and the sampled layers are distributed evenly across the model. Also, in all tests the deepest layer tested is the layer just before the logit layer. Layer 0 corresponds to the input layer of f.

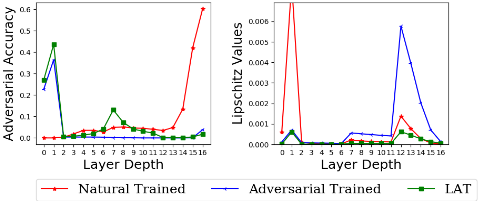

Fig 1 and 3 reveal that the sub-networks of an adversarially trained model are still vulnerable to adversarial perturbations. In general, it reduces with increasing depth. Though, a peculiar trend to observe is the increased robustness in the later layers of the network. The plots indicate that there is a scope of improvement in the adversarial robustness of different subnetworks. In the next section, we introduce our method that specifically targets at making gi robust. We find that this leads to a boost in the adversarial and test performance of the whole network f as well.

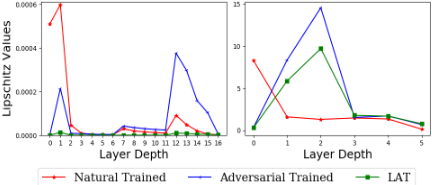

To better understand the characteristics of sub-networks we do further analysis from the viewpoint of Lipschitz constant of the sub-networks. Since we are only concerned with the behavior of the function in the small neighborhood of input samples, we compute Lipschitz constant of the whole network f and sub-networks gi using the local neighborhood of input samples i.e.

where Bϵ(xi) denotes the ϵ neighbourhood of xi. For computational reasons, inspired by [Alvarez-Melis and Jaakkola, 2018], we approximate Bϵ(xi) by adding noise to xi with epsilon as given in Eq. 7. We report the value averaged over complete test data for different datasets and models in Fig. 2. The plot reveals that while for the adversarially trained model, the Lipschitz value of f is lower than that of the naturally trained model, there is no such pattern in the subnetworks gi. This observation again reinforces our hypothesis of the vulnerabilities of the different sub-networks against small perturbations.

4 Harnessing Latent Layers

4.1 Latent Adversarial Training (LAT)

In this section, we seek to increase the robustness of the deep neural network, f. We propose Latent Adversarial training (LAT) wherein both f and one of the sub-networks gi are adversarially trained. For adversarial training of gi, we use a l∞ bounded adversarial perturbation computed via the PGD attack at layer i with appropriate bound as defined in Eq. 7.

We are using LAT as a fine-tuning technique which operates on a adversarially trained model to improve its adversarial and test accuracy further. We observe that performing only a few epochs (∼ 5) of LAT on the adversarially trained model results in a significant improvement over adversarial accuracy of the model. Algorithm 1 describes our LAT training technique.

To test the efficacy of LAT, we perform experiments over CIFAR-10, CIFAR-100, SVHN, Rest. Imagenet and MNIST datasets. For fairness, we also compare our approach (LAT) against two baseline fine-tuning techniques.

• Adversarial Training (AT) [Madry et al., 2018]
• Feature Noise Training (FNT) using algorithm 1 with gaussian noise to perturb the latent layer i.

Table 1 reports the adversarial accuracy corresponding to LAT and baseline fine-tuning methods over the different datatsets. PGD Baseline corresponds to 10 steps for CIFAR10, CIFAR-100 and SVHN, 40 steps for MNIST and 8 steps of PGD attack for Restricted Imagenet. We perform 2 epochs of fine-tuning for MNIST, CIFAR-10, Rest. Imagenet, 1 epoch for SVHN and 5 epochs for CIFAR-100 using the different techniques. The results are calculated with the constraint on the maximum amount of per-pixel perturbation as 0.3/1.0 for MNIST dataset and 8.0/255.0 for CIFAR-10, CIFAR-100, Restricted ImageNet and SVHN.

Algorithm 1 Algorithm for improving the adversarial robustness of models

begin

Input: Adversarially trained model parameters - θ, Subnetwork index which needs to be adversarially trained - m, Fine-tuning steps - k, Batch size - B, Learning rate - η, hyperparameter ω

Output: Fine-tuned model parameters

for i ∈ 1, 2, ..., k do Training data of size B - (X(i), Y (i)). Compute adversarial perturbation ∆X(i) via PGD attack. Calculate the gradients Jadv = J(θ, X(i)+∆X(i), Y (i)). Compute hm(X(i)). Compute ϵ corresponding to (X(i), Y (i)) via Eq. 7. Compute adversarial perturbation ∆hm(X(i)) with perturbation amount ϵ Compute the gradients JlatentAdv = J(θ, hm(X(i)) + ∆hm(X(i)), Y (i)) J(θ, X(i), Y (i)) = ω ∗ Jadv + (1 - ω) ∗ (JlatentAdv) θ → θ - η ∗ J(θ, X(i), Y (i)) end

return fine-tuned model.

end

The results in the Table 1 correspond to the best performing layers 2 . As can be seen from the table, that only after 2 epochs of training by LAT on CIFAR-10 dataset, the adversarial accuracy jumps by ∼ 6.5%. Importantly, LAT not only improves the performance of the model over the adversarial examples but also over the clean test samples, which is reflected by an improvement of 0.6% in test accuracy. A similar trend is visible for SVHN and CIFAR-100 datasets where LAT improves the adversarial accuracy by 8% and 4% respectively, as well as the test accuracy for CIFAR-100 by 0.6% . Table 1 also reveals that the two baseline methods do not lead to any significant changes in the performance of the model. As the adversarial accuracy of the adversarially trained model for the MNIST dataset is already high (93.75%), our approach does not lead to significant improvements (∼ 0.46%).

2 The results correspond to g11, g10, g7, g7 and g2 sub-networks for the CIFAR-10, SVHN, CIFAR-100, Rest. Imagenet and MNIST datasets respectively.

To analyze the effect of LAT on latent layers, we compute the robustness of various sub-networks gi of f after training using LAT. Fig 1 shows the robustness of different subnetwork gi with and without our LAT method for CIFAR10 and MNIST datasets. Figure 3 contains the results for CIFAR-100 dataset. As the plots show, our approach not only improves the robustness of f but also that of most of the subnetworks gi. A detailed analysis analyzing the effect of the choice of the layer and the hyperparameter ω of LAT on the adversarial robustness of the model is shown in section 5.

4.2 Latent Adversarial Attack (LA)

In this section, we seek to leverage the vulnerability of latent layers of a neural network to construct adversarial perturbations. In general, existing adversarial perturbation calculation methods like FGSM [Goodfellow et al., 2015] and PGD [Madry et al., 2018] operate by directly perturbing the input layer to optimize the objective that promotes misclassification. In our approach, for given input example x and a sub-network gi(x), we first calculate adversarial perturbation ∆(x, gi) constrained by appropriate bounds where i ∈ (1, 2, .., l). Here,

Subsequently, we optimize the following equation to obtain ∆(x, f) for LA :

We repeat the above two optimization steps iteratively to obtain our adversarial perturbation.

For the comparison of the performance of LA, we use PGD adversarial perturbation as a baseline attack. In general, we obtain better or comparable adversarial accuracy when compared to PGD attack. We use the same configuration for ϵ as in LAT. For MNIST and CIFAR-100, our LA achieves an adversarial accuracy of 90.78% and 22.87% respectively whereas PGD(100 steps) and PGD(10 steps) obtains adversarial accuracy of 92.52% and 23.01% respectively. In the Algorithm 2 Proposed algorithm for the construction of adversarial perturbation

begin

Input: Neural network model f, sub-network gm, step-size for latent layer αl, step-size for input layer αx, intermediate iteration steps p, global iteration steps - k, input example x, adversarial perturbation generation technique for gm

Output: Adversarial example

case of CIFAR-10 dataset, LA achieves adversarial accuracy of 47.46% and PGD(10 steps) obtains adversarial accuracy of 47.41. The represented LA attacks are from the best layers, i.e., g1 for MNIST, CIFAR-100 and g2 for CIFAR-10.

Some of the adversarial examples generated using LA is illustrated in Fig 5. The pseudo code of the proposed algorithm(LA)is given in Algo 2.

5 Discussion and Ablation Studies

To gain an understanding of LAT, we perform various experiments and analyze the findings in this section. We choose CIFAR-10 as the primary dataset for all the following experiments.

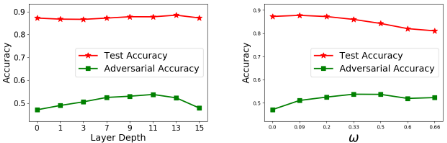

Effect of layer depth in LAT. We fix the value of ω to the best performing value of 0.2 and fine-tune the model using LAT for different latent layers of the network. The left plot in Fig 4 shows the influence of the layer depth in the performance of the model. It can be observed from the plot, that the robustness of f increases with increasing layer depth, but the trend reverses for the later layers. This observation can be explained from the plot in Fig 1, where the robustness of gi decreases with increasing layer depth i, except for the last few layers.

Effect of hyperparameter ω in LAT. We fix the layer depth to 11(g11) as it was the best performing layer for CIFAR-10 and we perform LAT for different values of ω. This hyperparameter ω controls the ratio of weight assigned to the classification loss corresponding to adversarial examples for g11 and the classification loss corresponding to adversarial examples for f. The right plot in Fig 4 shows the result of this experiment. We find that the robustness of f increases with increasing ω. However, the adversarial accuracy does start to saturate after a certain value. The performance of test accuracy also starts to suffer beyond this point.

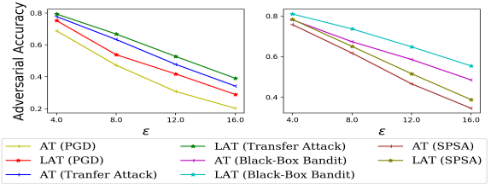

Black-box and white-box attack robustness. We test the black box and white-box adversarial robustness of LAT finetuned model for the CIFAR-10 dataset over various ϵ values. For evaluation in black box setting, we perform transfer attack from a secret adversarially trained model, bandit black box attack[Ilyas et al., 2019] and SPSA[Uesato et al., 2018]. Figure 7 shows the adversarial accuracy. As it can be seen, the LAT trained model achieves higher adversarial robustness for both the black box and white-box attacks over a range of ϵ values when compared against baseline AT model. We also observe that the adversarial perturbations transfers better(∼ 1%) from LAT model than AT models.

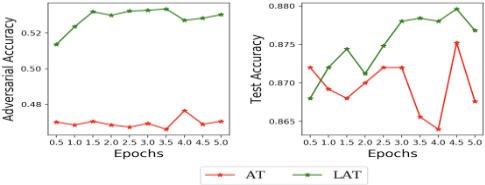

Performance of LAT with training steps. Figure 6 plots the variation of test and adversarial accuracy while finetuning using the LAT and AT techniques.

Different attackmethods used for LAT. Rather than using a l∞ bound PGD adversarial attack, we also explored using a l2 bound PGD attack and FGSM attack to perturb the latent layers in LAT. By using l2 bound PGD attack in LAT for 2.5 epochs, the model achieves an adversarial and test accuracy of 88.02% and 53.46% respectively. Using FGSM to perform LAT did not lead to improvement as the model achieves 48.83% and 87.26% adversarial and test accuracy respectively. The results are calculated by choosing the g11 sub-network.

Random layer selection in LAT. Previous experiments of LAT fine-tuning corresponds to selecting a single subnetwork gi and adversarially training it. We perform an experiment where at each training step of LAT we randomly choose one of the [g5, g7, g9, g11] sub-networks to perform adversarial training. The model performs comparably, achieving a test and adversarial accuracy of 87.31% and 53.50% respectively.

6 Conclusion

We observe that deep neural network models trained via adversarial training have sub-networks vulnerable to adversarial perturbation. We described a latent adversarial training (LAT) technique aimed at improving the adversarial robustness of the sub-networks. We verified that using LAT significantly improved the adversarial robustness of the overall model for several different datasets along with an increment in test accuracy. We performed several experiments to analyze the effect of depth on LAT and showed higher robustness to Black-Box attacks. We proposed Latent Attack (LA) an adversarial attack algorithm that exploits the adversarial vulnerability of latent layer to construct adversarial examples. Our results show that the proposed methods that harness the effectiveness of latent layers in a neural network beat state-of-the-art in defense methods, and offer a significant pathway for new developments in adversarial machine learning.
