A Practical Semi-Parametric Contextual Bandit

1 Introduction

The multi-armed bandit problem (MAB) models an agent that simultaneously attempts to acquire new knowledge (called "exploration") and optimizes their decisions based on existing knowledge (called "exploitation"). The agent attempts to balance these competing tasks in order to maximize their total rewards over the period of time considered [Agrawal et al., 1988]. Such problem is ubiquitous in many practical applications, including online advertisement [Schwartz et al., 2017], personalized recommendation [Li et al., 2016], medical treatment [Press, 2009] and financial portfolio design[Hoffman et al., 2011]. There are often many newly emerging items with unknown rewards to be explored in these applications. Besides, MAB algorithms are very usable in cases where continuous and permanent optimization is needed for discovering the real "interests" of the customers.

∗Contact Author

MAB problem is first introduced as the sequential design of experiments, which is now formulated as a system of several candidate arms whose rewards are independently sampled from some fixed underlying distributions [Robbins, 1952]. Recently there are three typical groups of MABs: classic MABs, contextual bandits and semi-parametric bandits. Classic MAB algorithms (also called non-parametric methods), such as Upper Confidence Bound (UCB) [Auer et al., 2002] and Thompson sampling [Thompson, 1933], estimate the expected reward of an arm by empirical mean of historical data. The reward estimation can be unbiased with sufficient online data leading to an inefficient convergence process for a large number of candidate arms. So it can be effective only where you can afford to wait for a long duration before knowing with certainty which decision is the best. As for contextual bandit algorithms (called parametric methods) [Chu et al., 2011; Agrawal and Goyal, 2013], the learner's aim is to collect enough information about how the contextual features and rewards relate to each other modelled by a parametric function. Although they are efficient for a large arm set because the parameters can be shared among all independent candidate arms, it is generally difficult to specify a correct model and to perfectly characterize the context with numeric features, leading to large regrets in many applications [Ghosh et al., 2017; Li et al., 2016]. To make up shortages of the above two kinds of MABs, semi-parametric bandits, which contain both parametric part and non-parametric part, have been proposed [Ou et al., 2019]. Specifically, the parametric part, which models expected reward as a parametric function of arm features, can efficiently eliminate poor arms from the candidate set whereas the non-parametric part, which adopts non-parametric model and revises the parametric estimation to avoid estimation bias. However, current semi-parametric bandits assume arms' features are constant over time. In fact, the contextual features (especially for features of users' behaviours) of candidate arms in real-world problems are usually evolved dramatically [Xie et al., 2015], especially in some special promotions like Alibaba's Singles' Day sales. In these kinds of scenarios, it is required that MAB algorithms be able to adapt recommendation strategies according to the evolution of arms' contextual features. So dynamic features lead to a large regret and divergence of previous semiparametric bandits.

In this paper, we will relax the assumption of constant features in semi-parametric bandits. It is the first time to propose a novel Semi-Parametric Contextual Bandits Problem, as far as we known, for cases where contextual features are evolved dramatically. To solve it, a novel Two-Steps UpperConfidence Bound framework, called Semi-Parametric UCB (SPUCB), is presented. It can be flexibly applied to Top1 and Top-K selection problems. We give the implementation of utilizing a linear function as the parametric part and prove satisfied gap-free bounds on the n-step regret. Extensive experiments show that SPUCB leads to significantly higher qualified arms because it can take dynamic contextual features in semi-parametric environment.

2 RelatedWork

Recently there are three typical groups of MABs: classic MABs [Auer et al., 2002; Gopalan et al., 2014; Thompson, 1933], contextual bandits [Agrawal and Goyal, 2013; Chu et al., 2011; Qin et al., 2014; Li et al., 2016] and semi-parametric bandits [Ou et al., 2019; Ghosh et al., 2017; Krishnamurthy et al., 2018; Greenewald et al., 2017]. Classic MAB algorithms can be called non-parametric methods and contextual bandits are usually seen as parametric methods. In addition, to solve top-k combinatorial optimization problem, combinatorial variants [Gai et al., 2012; Chen et al., 2013; Kveton et al., 2015a; Li et al., 2016] are proposed.

Firstly, classic MAB algorithms like UCB and Thompson sampling are inefficient when the arm set is large because they have to explore each arm independently. Secondly, to leverage contexts, Li et al. [2010] formulated personalized news recommendation as a contextual bandit problem. They proposed LinUCB to maximize total clicks based on contextual features about the users and articles. Qin et al. [2014] proposed C2-UCB, a contextual combinatorial bandit algorithm, which considers semi-bandit feedback and non-linear reward. Li et al. [2016] combined contextual cascading bandit with position discounts. Their C3 -UCB algorithm is bounded by O(d√KT logT). Although they are efficient for a large arm set because parameters can be shared among all independent candidate arms, it is generally difficult to specify a correct model and to perfectly characterize the context with numeric features. It makes the assumption impractical, leading to a large regret. Their methods divergent for Semi-Parametric Contextual Bandit Problem due to the latent arm bias. To make up the shortages of above two kinds of MABs, semi-parametric bandits, which contain both parametric part and non-parametric part, have been proposed [Ghosh et al., 2017; Ou et al., 2019; Krishnamurthy et al., 2018]. Krishnamurthy et al. [2018] assumed the reward is a summation of a linear function of context features and an arm-independent bias. Ghosh et al. [2017] assumed each arm has an arm-specific bias which is more flexible in practice. Ou et al. [2019] proposed a novel framework, called Semi-Parametric Sampling, which can work in the semi-parametric environment. However, these recent methods for semi-parametric bandit problems assume arms' features are constant over the time, so they will suffer from a large regret in our defined problem. Thirdly, combinatorial bandits are presented for top-k combinatorial optimization problem. Generic stochastic combinatorial bandits are pioneered by Gai et al. [2012], who proposed a UCB-like algorithm, named LLR. Kveton et al. [2015a] introduced the cascading model to combinatorial semi-bandits and achieved an upper bound of O( L ∆min logT). Kveton et al. [2015b] proposed a computationally efficient and sample efficient framework, called COMBCASCADE, allowing each feasible action to be a subset of ground items under combinatorial constraints. Its regret is bounded by O( KL ∆min logT). Li et al. [2016] proposed contextual combinatorial cascading with position discounts. However, none of them can be used for our problem directly.

3 Semi-Parametric Contextual Bandit

Suppose there is a tuple B = (E,K, S), where E = [L] is a ground set of L items (also referred to as candidate arms), integer K ≥ 1 and S is the set of all K-tuples of distinct items coming from E. The contextual features of candidate arms usually evolved dramatically which reflect the user's dynamic real interests, a novel Semi-Parametric Contextual Bandit Problem should be defined as follows:

Let T be the length of time horizon. At time t, the learning agent observes a feature vector xt,a ∈ Rd×1 with ‖xt,a‖2 ≤ 1 for every candidate arm a ∈ E, and recommends to the user a list of K items At = (at1 , · · · , atK ) ∈ S. Users will give feedback (reward) to the recommended list. Let Ht denotes the history within T. It contains rewards and contextual information before the agent chooses an action at time t. We assume that each base arm a has an independent weight wt(a), representing the "quality" of a at time t. Given history Ht, expected reward can be formulated with a semi-parametric form:

where g(θ∗ , xt,a) is a parametric reward function of arm features xt,a at time t, b∗a ∈ R is the bias of parametric function g and real expected reward w∗ t,a in[0, 1], θ∗ is the optimal function parameter defined as

For expected reward w∗ t,a , we call b∗a the non-parametric part and θ∗ the parametric part, because b∗a are independent among arms with no parametric assumption. θ∗ is an unknown d-dimensional vector with the assumption that ‖θ∗ ‖2 ≤ 1 for all t, a.

We assume that each weight wt(a) follows Rα-subGaussian tail ηt,a = wt(a) - w∗ t,a , which means

The sub-Gaussian condition implies that ηt,a is a zero-mean Gaussian noise with variance at most R2α lying in an interval of length at most 2Rα.

The objective of Semi-Parametric Contextual Bandit Problem is to find a policy that can maximize the cumulative expected reward. Since direct analysis of cumulative reward is not tractable, we analyze the cumulative regret.

In the case of K = 1, the user only chooses the best item, the cumulative regret is defined as:

When K > 1, the problem will be a combinatorial optimization problem which can be reduced to a set cover problem in each time slot, thus it is a NP-hard problem. To propose an approximate solution, we use the cascading model to reduce it to a ranking problem with the following oracle.

In the cascading model, the user examines items in a presented order and stops at the Ot-th item when he finds the first attractive one. Then the agent will give a positive reward for Ot-th arm, while put a negative reward for the others in At. It is required that the decision strategy, denoted as f(A,w), for recommended arms A based on the given weights w satisfy monotonicity and B-Lipschitz continuity assumptions. We only assume that the agent has access to an α-approximation oracle OS(w) that outputs recommended action A, which means given input w, for some α ≤ 1, the oracle returns an action A = OS(w) ∈ S satisfying f(A, w) ≥ αf(A∗ , w) where A∗ = argmaxA∈S f (A, w).

The α-regret of action A on time t is

where f ∗ t = f(A∗t , wt) and wt = (g(θ∗ , xt,a) + b∗)a∈E .

Thus the cumulative regret of an algorithm in the case of K > 1 is to minimize the α-regret

4 Two-Steps UCB Framework

We introduce a novel Two-Steps Upper-Confidence Bound framework, called Semi-Parametric UCB (SPUCB) to solve Semi-Parametric Contextual Bandit Problem, our method is unbiased and efficient.

From Eq.(1), θ∗ and b∗a should be inferred according to the rewards that the learning agent can only observe within T steps. SPUCB framework owns the efficiency of parametric bandit and the unbiased property of non-parametric bandit. The parametric part helps to provide a prior of expected reward with the latest contextual information to rapidly reduce the candidate arm set. Thus the non-parametric part can work in a relatively small candidate set to efficiently estimate the expected reward and correctly discover the optimal arm.

SPUCB is a UCB-like algorithm, which operates in two stages. Firstly, the learning agent computes the upper confidence bounds (UCBs) Ut on the expected weights of all base arms in E, and uses them to select an action At = (at1 , · · · , atK ). Secondly, after the agent obtained the rewards wt, it use the training samples to get a new estimate ˆ θt of θ∗ with a new confidence radius, and estimate b∗a based on ˆ θt .

For convenience, we define s(t, a) to be the number of times that candidate arm a is observed in t - 1 steps.

Lemma 4.1. Let αt(a) = Rα√-2 log(δ/2)/s. With probability at least 1 - δ, for each arm a at time t > 0, we have:

where ˆws(a) is the average of s observed weights of candidate arm a, gs(θ, xa) = 1s ∑sτ=1 g(θ, xτ,a) is the average of g calculated from observed feature vectors of a and θ.

Proof. Let w∗ s,a = 1s ∑sr=1 w∗ r,a, we have b∗a = 1s ∑sr=1 (w∗ r,a - g(θ∗ , xr,a)) = w∗ s,a - gs(θ∗ , xa) by Eq.(1). Because η is a zero-mean Gaussian noise lying in [-Rα,Rα], by Hoeffding inequality, we have

Lemma 4.2. Given

Then, with probability at least 1 - δ, we have:

Proof. Based on Lemma 4.1 and Eq.(1), we have

Based on Lemma 4.1 and Lemma 4.2, the upper confidence bound of expected weight for each candidate arm a at time t can be defined as

Thus, according to Eq.(7), SPUCB can be presented in Algorithm 1. As soon as we give the specific approach for inferring and updating ˆ θt and γt(a), SPUCB will be a feasible solution for Semi-Parametric Contextual Bandit problem. In Section 5, we will implement SPUCB with linear parametric function and give a satisfied gap-free bound on the T -step regret.

Algorithm 1 SPUCB

5 Linear Parametric Implementation

We introduce SPUCB to solve Top-1 (K = 1) and Top-K (K ≥ 2) semi-parametric contextual bandit problems with linear parametric functions and achieved gap-free bounds given on the T-step regret. When the parametric part of Eq.(1) is a linear function, we have the following expected reward at time t,

We estimate θ∗ using a ridge regression on samples ∆xt and obtained rewards ∆w, then we can get a l2 -regularized least-squares estimate with a regularization parameter λ > 0:

where ∆Xt ∈ R(∑tτ=1 Oτ)×d is the matrix whose rows are ∆xTτ,a = xTτ,a - 1 s(τ,a) ∑s(τ,a) r=1 xTr,a and ∆Yt is a column vector whose elements are ∆wτ(a) = wτ(a) - 1 s(τ,a) ∑s(τ,a) r=1 wr(a), a = ark , k ∈ [Oτ ], τ ∈ [t]. Let

which is a symmetric positive definite matrix.

To analyze γt(a), we construct an index set Ψt ⊆ {1, · · · , t - 1} so that for fixed ∆xτ,a with τ ∈ Ψt, ∆wτ (a) are independent random variables [Auer, 2002]. Then we can have Lemma 5.1.

Lemma 5.1. With probability at least 1 - δ/T , we have

Proof. The proof is similar to the proof of [Lemma 1, Chu et al.].

Then we can define an upper confidence bound of expected weight for each base arm a by

5.1 Regret Analysis in Top-1 Scenario

We follow the same method as [Auer et al., 2002] for choosing Ψt carefully to achieve the independence condition.

Proof. The proof is similar to the proof of [Lemma 3, Chu et al.].

Theorem 5.1. If SPUCB runs with Rγ = √ 12 ln 2LT δ , then with probability at least 1 - δ, the regret of the algorithm is

Proof. Because∑

the proof is similar to the proof of [Theorem 1, Chu et al.].

5.2 Regret Analysis in Top-k Scenario

We use a cascading model to reduce the problem to a ranking problem with an offline oracle [Li et al., 2016].

In the problem of cascading recommendation, when recommended with an ordered list of items At = (at1 , · · · , atK ), the user examines the items in that order. The examination process will stop if the user clicks one item or has examined all items without any click. The weight of each base arm a at time t, wt(a) ∈ {0, 1}, indicates whether the user has clicked an item or not. Then the random variable Ot satisfies

If the user clicks the k-th item, the learning agent will receive a reward 1; otherwise, there is no reward. At the end of step t, the learning agent observes wt(atk ), k ∈ [Ot] and receives a reward rt = max1≤k≤K wt(atk ). Notice that the order of At affects both the feedback and the reward.

Let us define a function f : S × [0, 1]|E| → [0, 1] on A =

It is easy to verify that let rt = f(A,w), we have E[rt] = f(A,w), where f is the expected reward function and also a function of expected weights. Moreover, f satisfies the properties of monotonicity and B-Lipschitz continuity by [Lemma B, Li et al.] with γk = 1, k ∈ [K]. Let A∗ = argmaxA∈S f(A,w) be the optimal solution, then ∆A = f(A∗ ,w) - f(A,w) is a suboptimality gap of solution A, and the probability that all items in A are observed is pt,A = ∏K-1 k=1 (1 -w(ak)). For regret analysis, we define shorthands p∗ = min1≤t≤T {minA∈S pt,A}.

Lemma 5.3. For any time t andAt = (at1 , · · · , atk ), if f satisfies the assumptions of monotonicity and B-Lipschitz continuity, we have

Proof. Because

we have

By Lipschitz continuity of f and Lemma 4.2,

Notice that the upper bound of Rα(t,At) is in terms of all base arms of At. However, because ∆V-1 t-1 only contains information of observed base arms, it is hard to estimate an upper bound for ∑Tt=1 Rα(t, At).

Lemma 5.4. Suppose Ineq.(3) holds for time 1 ≤ t ≤ T .

Proof.

.

Lemma 5.5. Assuming |ΨT+1| ≥ 2, we have

Theorem 5.2. If SPUCB runs with Rγ = √ 12 ln 2LT δ , then with probability at least 1 - δ, the regret of the algorithm is

Proof. Based on Lemma 5.3 and Lemma 5.5, the proof is similar to the proof of [Theorem 1, Chu et al.].

Although the upper bound ˜O(√T) of SPUCB for Top-K problem is the same as C3 -UCB, our method can accurately find the optimal item set and outperform C3 -UCB because the non-parametric part of Semi-Parametric Contextual Bandit Problem will cause a large regret for C3 -UCB, which is also shown in the experiments in Section 6.

5.3 Online Optimization

To make our method more practical in real production system, an optimization technique on the linear parametric term is proposed to deal with high dimensional features.

SPUCB needs to calculate ‖∆xt,a‖∆V-1 t-1 in each step for all arms leading to an O(d3 ) time complexity, where d is the dimension of feature vector. To overcome the bottleneck of matrix inversion, we use a novel iterative formula to reduce the complexity to O(d2 ) without any accuracy loss.

Because of ∆Vt+1 = ∆Vt + ∆xt,atk ∆xTt,atk , thus

6 Experiments

SPUCB's performance and efficiency will be evaluated by extensive experiments on both synthetic and real-world data sets, compared with the following state-of-art algorithms:

• UCB [Auer et al., 2002]: a representative classic MAB, which can be seen as a pure non-parametric model.
• LINUCB [Chu et al., 2011]: a representative contextual bandit, which can be seen as a pure parametric model.
• C3 -UCB [Li et al., 2016]: a representative contextual bandit algorithm with a cascading model, which can be seen as a pure parametric model used in Top-K problem.

(b) Efficiency improvement

Figure 2: Regret comparison for K = 5, a = 0.5 and efficiency improvement on synthetic dataset.

• LSPS [Ou et al., 2019]: a representative semiparametric bandit algorithm using Thompson Sampling.

All super-parameters of the above algorithms are tuned by a cross-validation experiment with the best performance. (Specifically, UCB: c = 0.2, LINUCB: α = 3.5, LSPS: σ1 = 0.3, σ2 = 0.01, σ3 = 0.3, SPUCB: R = 0.2, δ = 0.9, λ = 1.0, Rr = 0.5)

6.1 Experiments on Synthetic Data

The synthetic dataset is randomly generated following our assumptions. Firstly, we sample linear parameters from a standard Gaussian distribution and normalize them so that their norms are equal to a predefined constant a ∈ [0, 1]. Secondly, the bias of each arm is uniformly sampled from [0, 1-a]. So a can be used to control the weight of non-parameter part. Thirdly, in each time step, contextual features of each arm are sampled from a standard Gaussian distribution and are normalized to [0, 1]. The stochastic reward of an arm is sampled from a Gaussian distribution whose expectation is the expected reward of the arm calculated by Eq. 1 in the situation of Top-1 (K = 1). In Top-K (K ≥ 2) scenario, we need to simulate the cascading model. The stochastic reward of an arm is sampled from a binomial distribution whose positive probability is its expected reward (by Eq. 1). Specifically, We run algorithms for 10, 000 time steps at most and set L = 100, d = 10, a = 0.4. All experiments are repeated for 50 times and reported average results.

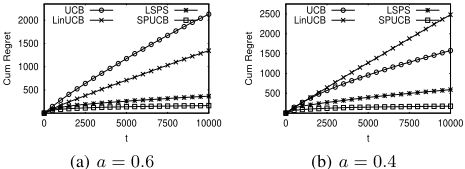

The performance comparison on average cumulative regrets is shown in Figure 1 when K = 1. Firstly, from the curve, we can find that all algorithms except SPUCB failed to converge within 10, 000 time steps. The performance of SPUCB is significantly superior to other algorithms. Secondly, Although UCB's coverage speed will be faster if we enlarge the weight of non-parametric part, the cumulative regrets are still worse than that of SPUCB, shown in Figure 1(b). On the contrary, LINUCB will be better if we set a small weight for non-parametric part, shown in Figure 1(a). Thirdly, even if LSPS is better than UCB and LINUCB, its assumption that arms' features are constant over time leading to an increasing gap in cumulative regrets compared with SPUCB. Finally, SPUCB can also converge quickly and still be superior to the others in the case of K = 5, which is shown in Figure 2(a). Although the regret upper bound of SPUCB is the same with C3 -UCB, SPUCB outperforms C3 -UCB because of the non-parametric part of Semi-Parametric Contextual Bandit Problem. Moreover, the achieved speed-up of the proposed online optimization of Section 5.3 for SPUCB is given in Figure 2(b). The optimization will significantly improve its efficiency for nearly 34 times when the dimension of feature vector, d, is 5000. The total running time for online updating parameters is less than 20ms with a single machine with 4-core CPUs. These results illustrate that the proposed optimization technique makes our algorithm more practical.

6.2 Experiments on Real-World Data

The real-world dataset is collected from one of the largest ecommercial platform in China for the problem of products recommendation. It contains 100 items with 42-dimensional features from a special holiday. The features of arms contain several statistical features which evolve greatly over time. To make the experiments reproducible, we train a DNN model based on historical user behaviours on the items to simulate the reward function, and use it as the environment to evaluate online algorithms. In each time step, stochastic reward of an arm is sampled from a binomial distribution whose expectation is the expected reward of the arm. Figure 3 shows the comparison of cumulative regrets. As linear reward function is a mis-specified function, LINUCB suffers large regrets. Besides, LSPS is also worse than SPUCB because it cannot deal with evolving features properly.

7 Conclusions

We study a novel Semi-Parametric Contextual Bandit Problem and propose a UCB-like framework SPUCB to deal with incomplete and evolving features. It can be flexibly implemented to solve various problems with parametric functions, and has a gap-free bound. Moreover, an optimization technique is proposed to handle high dimensional features with a linear parametric function. Our method has also been deployed as a service to support online businesses in Alibaba.
