Deep Multi-Task Learning with Adversarial-and-Cooperative Nets

1 Introduction

Domain shift [Blitzer et al., 2007] usually refers to the difference of distributions between the data collected from multiple sources. For example, the images from different domains may encounter domain shift caused by changes in the camera, image resolution, lighting, background, and viewpoint [Saenko et al., 2010]. It was shown that even state-of-the-art deep convolutional neural network (CNN) [Donahue et al., 2014] learned on millions of instances are susceptible to domain shift. On the other hand, it is expensive or unrealistic to collect a large amount of labeled data for each task or domain. Therefore, deep multi-task learning [Ruder, 2017; Yang and Hospedales, 2017; Long et al., 2017a] becomes a promising research direction since it conjoins the strength of deep learning [LeCun et al., 2015] and multi-task learning [Caruana, 1993]. The main challenge of deep multitask learning is how to decouple task-variance and taskinvariance from deep features while respecting their discriminativeness. Task-invariance captures the common knowledge shared across tasks, while task-variance characterizes the specific property of each task which is distinctive from others.

In this paper, we propose a deep multi-Task learning method based on Adversarial-and-COoperative nets (TACO) to address this issue. The main idea is to adopt an adversarial-and-cooperative strategy to disentangle between task-invariant and task-variant information, and use the decoupled multi-view features to enhance the discriminativeness of the model. The TACO network consists of multiple game players, i.e., feature extractors, domain discriminator, and triple types of classifier. They play the MinMax games adversarially and cooperatively to extract both task-common and task-specific knowledge from data while maintaining their discriminative structures. On one hand, the feature extractors compete with the domain discriminator to learn the task-common knowledge in a domain-adversarial way. It encourages the extractors to produce the task-invariant features, which are indistinguishable by the domain discriminator. On the other hand, the extractors play with the classifiers to learn the task-specific knowledge in a classifier-adversarial fashion. For each task, it encourages each extractor to generate the task-specific features, which are exclusive to its own classifier. Furthermore, the task-common and task-specific features naturally formmultiple views for the data. Therefore, in order to make advantage of the complementary benefit from multiple views, we build three types of classifiers, i.e., task-specific classifier, task-common classifier, and within-task classifier. The triple classifiers cooperate with each to enhance discriminativeness of the models. We conduct the detailed experiments on both multi-task learning and semi-supervised domain adaptation scenarios. The empirical study shows TACO significantly outperforms the state-of-the-art algorithms. The main contributions of this work are summarized as follows:

• Adversarial-and-cooperative nets to decouple taskinvariance and task-variance for the fine-grained knowledge sharing among tasks.
• Divide-and-combine strategy to leverage the decoupled multi-view features to improve the performance.
• Experiments on the benchmark data demonstrating the effectiveness of the proposed method.

The rest of the paper is organized as follows. Section 2 reviews the related work. The proposed method is presented in Section 3, followed with the experimental results in Section 4. We conclude the paper in Section 5.

2 RelatedWork

Multi-task learning [Caruana, 1993] boosts the performance of each task by sharing knowledge among related tasks. A number of multi-task learning methods have been proposed, such as: multi-task feature learning [Argyriou et al., 2008], clustered multi-task learning [Zhou et al., 2011], lowdimensional subspace learning [Ji and Ye, 2009], multi-task relationship learning [Zhang and Yeung, 2010], robust multitask learning [Chen et al., 2013], and sparsity-regularized multi-task learning including weighted Lasso [Lee et al., 2016], tree-guided fused lasso [Han and Zhang, 2015], generalized Schatten norm [Yang et al., 2017], etc.

Deep multi-task learning or deep domain adaptation becomes to receive attentions owning to its ability of learning hierarchical features from data and sharing knowledge across domains. The related approaches can be roughly categorized into four types: domain-adversarial networks [Ganin and Lempitsky, 2015; Tzeng et al., 2015; Bousmalis et al., 2016; Tzeng et al., 2017; Pei et al., 2018], adaptation methods based on maximum mean discrepancy (MMD) [Long et al., 2017b; Ghifary et al., 2014; Long et al., 2015; Tzeng et al., 2014], deep models with tensor prior [Yang and Hospedales, 2017; Long et al., 2017a], and methods based on both featurelevel and instance-level adapations [Hoffman et al., 2018; Yang et al., 2019]. First, the domain-adversarial neural network [Ganin and Lempitsky, 2015] used adversarial training [Goodfellow et al., 2014] to promote the emergence of domain-invariant features via the use of a gradient reversal layer. In [Tzeng et al., 2015], they simultaneously aligned domain via domain confusion and aligned source and target classes via soft labels. The domain separation networks [Bousmalis et al., 2016] explicitly modeled both private and shared components of domain representations. The adversarial discriminative domain adaptation model [Tzeng et al., 2017] combined discriminative modeling, untied weight sharing, and a domain-adversarial loss into a unified framework. The multi-adversarial domain adaptation approach [Pei et al., 2018] captured multimode structures to enable finegrained alignment of domains based on multiple domain discriminators. Second, the joint adaptation networks [Long et al., 2017b] adopted adversarial training strategy to maximize a joint MMD criterion. The domain adaptive neural network [Ghifary et al., 2014] incorporated MMD measure as a regularization embedded in the supervised back-propagation training. DDC [Tzeng et al., 2014] had an MMD loss at one layer while DAN [Long et al., 2015] had MMD losses at multiple layers. Third, the deep multi-task learning with tensor factorization model [Yang and Hospedales, 2017] learned shared feature subspace from multilayer parameter tensors, while multilinear relationship networks [Long et al., 2017a] learned multilinear task relationships frommultiplayer parameter tensors. Some recent methods learn featurelevel and instance-level adaptations simultaneously. The cycle-consistent adversarial adaptation model [Hoffman et al., 2018] enforced both structural and semantic consistency during adaptation using a cycle-consistency loss and semantics loss. The task-adversarial co-generative nets [Yang et al., 2019] simultaneously learns the marginal distribution of taskinvariant features across tasks and the joint distributions of examples with labels for each task.

Most domain-adversarial methods rely on adversarial training to learn the task-invariant knowledge only. In contrast, TACO decouples the task-common and task-specific features in an adversarial-and-cooperative way, and leverages their complementary correlations to facilitate the fine-grained knowledge sharing across tasks.

3 The TACOMethod

In this section we introduce the TACO model, together with the network architecture and the learning algorithm.

3.1 Model

Suppose we have the data from T related tasks. Each task refers to a multi-class classification problem. There are limited labeled instances in each task. The goal is to predict the unlabeled data for each task as accurately as possible by using TACO to manipulate knowledge sharing among tasks.

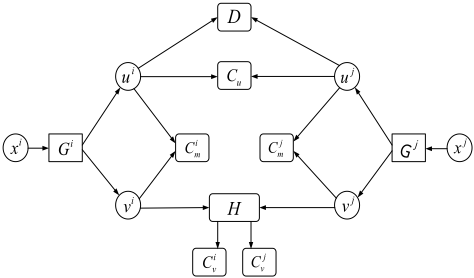

Figure 1 shows the high-level architecture of the TACO method. Let Gi and Gj be the feature extractors for the ith and j th tasks respectively, where 1 ≤ i, j ≤ T. Each feature extractor G accepts the instance x and generates its taskcommon features u and task-specific features v. The task index (if applicable) is omitted for brevity. We have three types of classifiers, i.e., task-common classifier Cu, task-specific classifier Cv, and within-task classifier Cm. D is the domain discriminator. H refers to the router, which will be introduced in details in the next subsection. Note that we assume that there are two tasks in Figure 1 for simplicity. But the proposed method is directly ready for the multiple (T ≥ 2) tasks.

TACO is composed of multiple game players, i.e., feature extractors, domain discriminator, and three types of classifiers. Each game player may include multiple feed-forward layers. Let θig , θd, θu, θiv , and θim be the learning parameters for Gi , D, Cu, C iv , and C im, respectively, where 1 ≤ i ≤ T . Denote θg = {θig |1 ≤ i ≤ T}, θv = {θiv |1 ≤ i ≤ T}, and θm = {θim|1 ≤ i ≤ T}. Let Lu, Liv , and Lim be the loss for the task-common classifier Cu, task-specific classifier C iv , and within-task classifier C im respectively. The domain discrimination loss is denoted by Ld.

TACO aims to learn both task-common and task-specific knowledge, together with their mutual correlations, in a unified model.

The first question is how to extract the task-common features. We learn the commonality in a domain-adversarial way. The feature extractors try to make the task-common features indistinguishable by the domain discriminator, while the domain discriminator attempts to predict the domain label as accurately as possible. Specifically, in order to learn the taskinvariant features, we seek the parameters θg of the feature extractors that maximize the loss of the domain discriminator, while simultaneously seeking the parameters θd of the domain discriminator that minimize the discriminating loss. On the other hand, we minimize the loss of task-common classifier to make sure that the task-common features maintain the label information. Therefore, the MinMax game among the domain discriminator D, the task-common classifier Cu, and the feature extractors Gi (1 ≤ i ≤ T) can be formulated as follows:

where α is a non-negative trade-off parameter. In this MinMax game, the feature extractors, domain discriminator, and the task-common classifier work in a domain-adversarial way to generate the features which are task-invariant and discriminative.

The second question is how to learn the task-specific features. Different from the task-common features shared by tasks, the task-specific features are exclusive to its own task. Intuitively, since the task-specific features contain knowledge for its own task only, the classifiers of the other tasks should perform bad on these features. Therefore, we learn the taskvariance in a classifier-adversarial way. For each task, it encourages the feature extractor to produce the task-specific features which minimize the loss of its own task-specific classifier, while maximizing the loss of the task-specific classifiers for all the other tasks. Specifically, we seek the parameters θig of feature extractor Gi and the parameters θiv of taskspecific classifier C iv that minimize the task-specific loss Liv , while simultaneously seeking the parameters ˜ θig = {θjg |j ̸= i, 1 ≤ j ≤ T} of the features extractors for the other tasks that maximize Liv . Hence, the MinMax game played among two groups, i.e., {Gi ,C i } and {Gj |j ̸= i, 1 ≤ j ≤ T}, can be formulated as:

The multiple players work in the classifier-adversarial way to generate the features which are task-specific and discriminative. In total, the task-specific adversarial loss for all the tasks is as follows:

The third question is how to further enhance the discriminativeness of the models by leveraging the decoupled knowledge. The task-common and task-specific features learned above naturally form multiple views for each task. To fully take advantage of mutually benefit from multiple views, we build three types of classifiers, i.e., task-common classifier, task-specific classifier, and within-task classifier. Both the task-common and the task-specific classifiers are introduced as above. For within-task classifier C im(1 ≤ i ≤ T), it is trained with the concatenated features, i.e., the combination of task-common and task-specific features. We seek the parameter of θig of feature extractor Gi and the parameter θim of the within-task classifier C im, which minimizes the loss Lim. Thus, the loss for the within-task classifiers can be formulated as:

The tri-classifiers cooperate with each other to fully leverage the complementarity among multiple views. We follow the conventional way of ensemble learning to combine the predictions. The three classifiers determine the final prediction of each instance by voting. If neither agrees with each other, the prediction will be determined by the classifier with the highest confidence.

In summary, the overall objective function for TACO is formulated as follows:

TACO accommodates multiple game players, i.e., feature extractors, domain discriminator, and tri-classifiers, in a unified model. The feature extractors involve in both MinMax games, where they cooperate to generate the task-common features, while competing with each other to generate the task-specific features. In such a way, the multi-players work in an adversarial-and-cooperative way to distill the taskcommon and task-specific features. Moreover, it uses a divide-and-combine strategy to leverage the decoupled multiview information to improve the generalization performance.

3.2 Network

Note that various deep networks can be used as the base architecture to build the TACO model. Here we take two of the most popular CNN networks, i.e., AlexNet [Krizhevsky et al., 2012] and VGGnet [Simonyan and Zisserman, 2015], as the base networks to instantialize the TACO model.

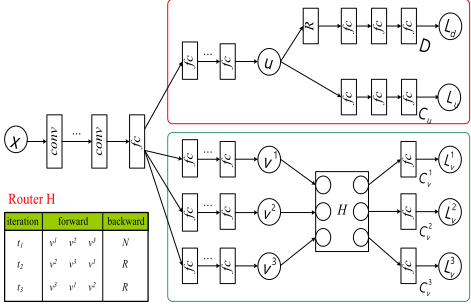

The CNN-based TACO architecture is shown in Figure 2. x represents the input data from all tasks. The backbone is composed of several convolutional layers (e.g., conv1 - conv5 in AlexNet), max-pooling layers, dropout layers, and one fully-connected layer (fc). These layers focus on extracting the common low-level features from all the tasks. From here on, the network is divided into two branches. The top branch is made of several fully-connected layers, normalization layers, and one gradient reversal layer R [Ganin and Lempitsky, 2015]. It aims to learn the task-common features. The bottom branch consists of a few fully-connected layers, normalization layers, and one router layer H. The goal is to distill the task-specific knowledge for each task. For brevity, the within-task classifiers are omitted in Figure 2. The softmax function is used to compute the domain discrimination loss and the label classification losses.

We present a novel neural component, i.e, router H, to facilitate the classifier-adversarial training. It can be viewed as a data router combined with the gradient reversal layer. The gradient reversal layer [Ganin and Lempitsky, 2015] leaves the input unchanged during forward propagation and reverses the gradient by multiplying it with a negative scalar during the backpropagation. The H layer has T input and output gates respectively. We assume T = 3 here.The table in the bottom-left of Figure 2 shows the rules of feed-forward and backpropagation for H. Each H has T iteration periods. At the first iteration, the task-specific features, v1 , v2 , and v3 , are routed to their own task-specific classifiers, C 1 v , C 2 v , and C 3 v , respectively. At the other iterations, the task-specific features are fed to the other task-specific classifiers. For example, at t2 iteration, v2 , v3 , and v1 , are routed to C 1 v , C 2 v , and C 3 v , respectively. The 'R' in the backward column means that the gradients should be reversed during the backpropagation, while 'N' means the normal backpropagation of gradients.

3.3 Algorithm

The TACO algorithm is showed in Algorithm 1. It consists of two MinMax games played among feature extractor, domain discriminator, and tri-classifiers. Line 1 initializes the net weights with pretrained nets such as AlexNet [Krizhevsky et al., 2012] and VGGnet [Simonyan and Zisserman, 2015]. Lines 3-4 sample a batch of data and forward pass it through the nets. Lines 5-8 optimize the domain discriminator and tri-classifiers, while Lines 9-13 update the feature extractor. The feature extractor involves in both MinMax games, which is updated as follows:

• At t1 round, we update the feature extractor θig :

• At tk(2 ≤ k ≤ T) round, we update the feature extractor θig using the loss for other tasks:

Algorithm 1 The TACO Algorithm

Input: multi-task data xi (1 ≤ i ≤ T), trade-off parameter α, maximum iteration τmax, batch size b.

Output: predictions for unlabeled data.

• 1: Initialize the net weights with pretrained nets.
• 2: for number of iterations τmax do
• 3: Sample a batch of b instances from each task;
• 4: Forward pass the batch through the network and compute the losses;
• 5: Update domain discriminator D by ascending along its stochastic gradient ∇θd - αLd(θg, θd);
• 6: Update task-common classifier Cu by descending along its stochastic gradient ∇θu Lu(θg, θu);
• 7: Update each task-specific classifier C iv by descending along its stochastic gradient ∇θiv Liv (θig , ˜ θig , θiv );
• 8: Update each within-task classifier C im by descending along its stochastic gradient ∇θim Lim(θig , θim);
• 9: if at t1 round then
• 10: Update each feature extractor Gi by descending along its stochastic gradient using Eq. 6;
• 11: else
• 12: Update each feature extractor Gi by ascending along its stochastic gradient using Eq. 7;
• 13: end if
• 14: end for
• 15: Combine tri-classifiers to get the predictions.
• 16: Augment the training data with the pseudo labels.
• 17: Re-train the nets and get the final predictions.

The TACO algorithm is implemented using the Caffe framework [Jia et al., 2014]. It can be trained using the minbatch stochastic gradient descent method. We adopt learning rate decaying strategy.

4 Experiments

We evaluate the proposed TACO algorithm in two scenarios with domain shift, i.e., multi-task learning and semisupervised domain adaptation. The experiments are conducted on three image datasets, which are the standard benchmarks for multi-task learning and domain adaptation.

The Office-Home 1 [Venkateswara et al., 2017] dataset consists of 15500 images from 4 different domains: Artistic images (A), Clip art (C), Product images (P) and Real-world images (R). For each domain, the dataset contains images of 65 object categories collected in office and home settings.

The Office-31 2 [Saenko et al., 2010] dataset is a collection of 4652 images in 31 categories collected from three distinct domains, Amazon (A), DSLR (D), and Webcam (W). The Amazon domain consists of images at medium resolution typically taken in an environment with studio lighting conditions. The DSLR domain consists of images that are captured with a digital camera in realistic environments. The Webcam domain is composed of images recorded with a simple webcam at low resolution.

1 http://hemanthdv.org/OfficeHome-Dataset/

2 https://people.eecs.berkeley.edu/∼jhoffman/domainadapt/

The Office-Caltech dataset consists of 2533 images selected from the 10 common categories shared by the Office31 dataset and the Caltech-256 3 dataset. The Caltech-256 dataset is a collection of 30607 images in 256 categories downloaded fromGoogle Images. Hence, it yields four learning tasks corresponding to four domains: Amazon (A), Webcam (W), DSLR (D), and Caltech (C).

The initial learning rate is set to 0.001, and momentum is 0.9. The training iteration is set as τmax = 1000, and batch size b = 20. We empirically set the parameter α = 0.1.

4.1 Multi-task Learning

We first evaluate TACO on both Office-Home and OfficeCaltech datasets in the multi-task learning scenario.

Protocols and Baselines

We follow the standard protocol [Zhang and Yeung, 2010; Long et al., 2017a] for multi-task learning and randomly select 5%, 10%, and 20% samples from each task as trainset and use the rest as testset, respectively. A half of trainset is randomly chosen to select the optimal parameters. We repeat five random experiments and report the average classification accuracy on the testset.

We compare TACO with various methods: multi-task feature learning (MTFL) [Argyriou et al., 2008], multi-task relationship learning (MTRL) [Zhang and Yeung, 2010], robust multi-task learning (RMTL) [Chen et al., 2013], deep singletask learning (STL), deep multi-task learning with tensor factorization (DMTRL) [Yang and Hospedales, 2017], and multilinear relationship networks (MRN) [Long et al., 2017a]. The former three are shallow multi-task learning algorithm, while the latter two are deep multi-task learning methods.

AlexNet [Krizhevsky et al., 2012] or VGGnet [Simonyan and Zisserman, 2015] pre-trained on ImageNet is used as base networks. STL is based on AlexNet [Krizhevsky et al., 2012] or VGGnet [Simonyan and Zisserman, 2015], and fine-tuned for each task independently.

3 http://www.vision.caltech.edu/Image Datasets/Caltech256/

Performance Comparison

Table 1 shows the classification accuracy on Office-Home dataset using VGGnet [Simonyan and Zisserman, 2015] as the base networks. Table 2 shows the results on OfficeCaltech dataset using AlexNet [Krizhevsky et al., 2012] as the base networks. The results of the comparison methods are quoted from the related papers [Argyriou et al., 2008; Chen et al., 2013; Zhang and Yeung, 2010; Yang and Hospedales, 2017; Long et al., 2017a].

We have the following observations from the results. First, the deep single-task learning method STL performs better than the shallow multi-task learning approaches such as MTFL [Argyriou et al., 2008], MTRL [Zhang and Yeung, 2010], and RMTL [Chen et al., 2013] on the Office-Home dataset when the sampling ratio is relatively large (e.g., 10% or 20%), verifying the superiority of CNN for feature learning. However, when the labeled data turn sparser (e.g., 5% in OfficeHome) or the domains are more similar (as in Office-Caltech), the shallow multi-task learning methods become to show their advantages by borrowing the strength from the related tasks. Second, all the deep multi-task learning methods including TACO, DMTRL [Yang and Hospedales, 2017], and MRN [Long et al., 2017a] outperform both the deep singletask learning method STL and the shallow multi-task learning approaches. It demonstrates that deep multi-task learning can further promote the performance by simultaneously learning the hierarchical features from data and sharing knowledge across tasks. Third, our proposed TACO method outperforms all the comparison methods on both datasets in most case. The performance superiority of TACO over the baselines becomes more significant on the relatively difficult problem (i.e., Office-Home dataset). The strength of TACO is that it disentangles the task-common and task-specific features while respecting the discriminative structures, and further enhances the performance by leveraging the complementary correlations between the decoupled views.

4.2 Semi-supervised Domain Adaptation

We then evaluate TACO on the Office-31 dataset in the semisupervised domain adaptation [Ganin and Lempitsky, 2015; Long et al., 2015] scenario, where labeled data in target domain are much sparser than that in source domain.

Protocols and Baselines

Since the Office-31 dataset has three domains, we build six domain adaptation problems in total, i.e., A → W, A → D, W → A, W → D, D → A, and D → W. We follow the standard protocol [Saenko et al., 2010] for this dataset to sample the labeled instances. For source domain, we sample 20 instances per category for the Amazon domain, and 8 instances per category for the DSLR and Webcam domains. For target domain, 3 labeled instances are randomly picked out for each category. The remainder in each domain are used as testset. We repeat five random experiments and report the average classification accuracy on the testset of target domain.

We compare TACO with state-of-the-art methods: domain adaptive neural network (DaNN) [Ghifary et al., 2014], deep domain confusion (DDC) model [Tzeng et al., 2014], deep adaptation network (DAN) [Long et al., 2015], and DCSL [Tzeng et al., 2015] which simultaneously aligns domain and classes. We also compare TACO with three CNN baselines, i.e., CNN-S, CNN-T, and CNN-M, which are trained using source labeled data, target labeled data, and both source and target labeled data, respectively. AlexNet [Krizhevsky et al., 2012] pre-trained on ImageNet is used as base networks to build the deep learning models.

Performance Comparison

Table 3 shows the classification performance on the Office31 dataset. The results of the comparison methods are quoted from the related papers [Ghifary et al., 2014; Tzeng et al., 2014; Long et al., 2015; Tzeng et al., 2015].

We have the following observations from the results. First, CNN-S performs better on two adaptation problems, i.e., W → D and D → W, but worse on the other four problems, comparing to CNN-T. It suggests Webcam (W) and DSLR (D) are similar with each other, but different from Amazon (A). CNN-M improves upon CNN-S and CNN-T by augmenting the training data. It also outperforms DaNN [Ghifary et al., 2014] that is trained on a denoising auto-encoder, although DaNN introduced the MMD loss to bridge the domain gap. Second, the deep domain adaptation methods can promote the accuracy by aligning the domains with MMD-based regularizations [Tzeng et al., 2014; Long et al., 2015] or using domain-adversarial training [Tzeng et al., 2015], or aligning the classes with soft labels [Tzeng et al., 2015]. Third, our proposed TACO method outperforms the comparison algorithms in all six adaptation problems. The results demonstrate that TACO based on the adversarial-and-cooperative mechanism is also effective in semi-supervised domain adaptation scenarios where the labeled data are much sparser in the target domain than that in the source domain. Again, it verifies that by decoupling the task-variance and task-invariance, we are able to better manipulate the knowledge sharing among tasks.

4.3 Ablation Study and Convergence

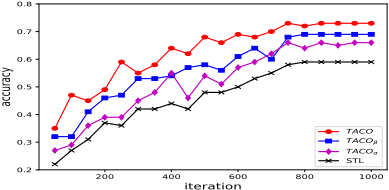

We conduct an ablation study to investigate the impact of TACO's key components on performance. We compare TACO with its two reduced versions, TACOα and TACOβ, as well as the baseline STL. TACOα involves the generation of task-common features only, while TACOβ involves the generation of both task-common and task-specific features. Figure 3 shows the ablation study results on Office-Home dataset. The training ratio is fixed to 10%, and the number of iteration is set to 1000. It shows that TACOα outperforms STL by learning the task-invariant features, which help smooth the domain shift. TACOβ improves upon TACOα by disentangling the task-variance and task-invariance, which allows for the fine-grained knowledge sharing among tasks. Finally, TACO obtains the best performance by further making use of mutual benefit frommultiple views. The results suggest each of TACO's key components is indispensable. Also, Figure 3 shows that TACO runs stably and converges fast.

5 Conclusion

We propose a novel TACO method for deep multi-task learning. TACO adopts an adversarial-and-cooperative mechanism to learn both task-common and task-specific features. It further leverages the disentangled multi-view features to enhance the discriminativeness.The experiments on the benchmark data demonstrate the effectiveness of the approach.

Acknowledgements

This work is supported by National Natural Science Foundation of China (No. 61473123), Natural Science Foundation of Guangdong (No. 2017A030313370 and 2018A030313356), National Science Foundation (No. IIS-1552654, IIS1813464, IIS-1651203, and CNS-1629888), U.S. Department of Homeland Security (No. 17STQAC00001-02-00), and an IBM Faculty Award. The views are those of the authors and should not be interpreted as representing the official policies of the funding agencies or the governments.
