DeepInspect: A Black-box Trojan Detection and Mitigation Framework for Deep Neural Networks

1 Introduction

Deep Neural Networks (DNNs) have demonstrated their superior performance and are increasingly employed in various critical applications including face recognition, biomedical diagnosis, autonomous driving [Parkhi et al., 2015; Esteva et al., 2017; Redmon et al., 2016]. Since training a highly accurate DNN is time and resource-consuming, customers typically obtain pre-trained Deep Learning (DL) models from third parties in the current supply chain. Caffe Model Zoo 1 is an example platform where pre-trained models are publicly shared with the users. The non-transparency of DNN training opens a security hole for adversaries to insert malicious behaviors by disturbing the training pipeline. In the

1 Model Zoo: https://github.com/BVLC/caffe/wiki/Model-Zoo

inference stage, any input data stamped with the trigger will be misclassified into the attack target by the infected DNN. For instance, a trojaned model predicts 'left-turn' if the trigger is added to the input 'right-turn' sign.

This type of Neural Trojan (NT) attack (also called 'backdoor' attack) has been identified in prior works [Gu et al., 2017; Liu et al., 2018] and features two key properties: (i) effectiveness: an input with the trigger is predicted as the attack target with high probability; (ii) stealthiness: the inserted backdoor remains hidden for legitimate inputs (i.e., no triggers present in the input) [Liu et al., 2018]. These two properties make NT attacks threatening and hard to detect. Existing papers [Chen et al., 2018; Chou et al., 2018] mainly focused on identifying whether the input contains the trigger assuming the queried model has been infected (i.e., 'sanity check of the input').

Detecting Trojan attacks for an unknown DNN is difficult due to the following challenges: (C1) the stealthiness of backdoors makes them hard to identify by functional testing (which uses the test accuracy as the detection criteria); (C2) limited information can be obtained about the queried model during Trojan detection. A clean training dataset or a gold reference model might not be available in real-world settings. The training data contains personal information about the users, thus it is typically not distributed with the pre-trained DNN. (C3) the attack target specified by the adversary is unknown to the defender. In our case, the attacker is the malicious model provider and the defender is the end user. This uncertainty of the attacker's objective complicates NT detection since bruteforce searching for all possible attack targets is impractical for large-scale models with numerous output classes.

To the best of our knowledge, Neural Cleanse (NC) [Wang et al., 2019] is the only existing work that targets at examining the vulnerability of the DNN against backdoor attacks. However, the backdoor detection method proposed in NC relies on a clean training dataset that does not contain any maliciously manipulated data points. Such an assumption restricts the application scenarios of their method due to the private nature of the original training data. To tackle the challenges (C1-C3), we propose DeepInspect, the first practical Trojan detection framework that determines whether the DNN has been backdoored (i.e., 'sanity check of the pre-trained model') with minimal information about the queried model. DeepInspect (DI) consists of three main steps: model inversion to recover a substitution training dataset, trigger reconstruction using a conditional Generative Adversarial Network (cGAN), and anomaly detection based on statistical hypothesis testing. The technical contributions of this paper are summarized below:

• Enabling Neural Trojan detection of DNNs. We propose the first backdoor detection framework that inspects the security of a pre-trained DNN without the assistance of a clean training data nor a ground-truth reference model. The minimal assumptions made by our threat model ensure the wide applicability of DeepInspect.
• Performing comprehensive evaluation of DeepInspect on various DNN benchmarks. We conduct extensive experiments to corroborate the efficacy, efficiency, and scalability of DeepInspect. We demonstrate that DeepInspect is provably more reliable compared to the prior NT detection scheme [Wang et al., 2019].
• Presenting a novel model patching solution for Trojan mitigation. The triggers recovered by the conditional generative model of DeepInspect shed light on the susceptibility of the queried model. We show that the defender can leverage the trigger generator for adversarial training and invalidating the inserted backdoor.

2 RelatedWork

A line of research has focused on identifying the vulnerabilities of DNNs to various attacks including adversarial samples [Rouhani et al., 2018; Madry et al., 2017], data poisoning [Biggio et al., 2012; Rubinstein et al., 2009], and backdoor attacks [Gu et al., 2017; Liu et al., 2018]. We target at backdoor attacks in this paper and provide an overview of the state-of-the-art NT attacks as well as the corresponding detection methods below.

2.1 Trojan Attacks on DNNs

BadNets [Gu et al., 2017] takes the first leap to identify the vulnerability in DNN supply chain. The paper demonstrates that a malicious model provider can train a DNN that has high accuracy on normal data samples but misbehaves on attackspecified inputs. Two types of backdoor attacks, single-target attack and all-to-all attack, are presented in the paper assuming the availability of the original training data. These two attacks are implemented by training the model on the poisoned dataset where data samples are mislabelled.

TrojanNN [Liu et al., 2018] proposes a more advanced and practical backdoor attack that is applicable when the adversary does not have access to the clean training data. Their attack first specifies the trigger mask and selects neurons that are sensitive to the trigger region. The value assignment for the trigger mask is obtained such that the selected neurons have high activations. The training data is then recovered assuming the confidence score of the target model is known. Finally, the model is partially retrained on the mixture of the recovered training data and the trojaned dataset crafted by the attacker.

2.2 DNN Backdoor Detection

Neural Cleanse [Wang et al., 2019] takes the first step to assess the vulnerability of a pre-trained DL model to backdoor attacks. NC utilizes Gradient Descent (GD) to reverse engineer possible triggers for each output class and uses the trigger size (l1 norm) as the criteria to identify infected classes. However, NC has the following limitations: (i). it assumes that a clean training dataset is available for trigger recovery using GD; (ii). it requires white-box access to the queried model for trigger recovery; (iii). it is not scalable to DNNs with a large number of classes since the optimization problem of trigger recovery needs to be repeatedly solved for each class. DeepInspect, on the contrary, simultaneously recovers triggers in multiple classes without a clean dataset in a black-box setting, thus resolving all of the above constraints. As such, DeepInspect features wider applicability and can be used as a third-party service that only requires API access to the model.

3 DeepInspect Framework

3.1 Overview of Trojan Detection

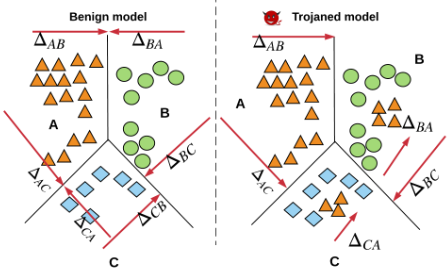

The key intuition behind DeepInspect is shown in Figure 1. The process of Trojan insertion can be considered as adding redundant data points near the legitimate ones and labeling them as the attack target. The movement from the original data point to the malicious one is the trigger used in the backdoor attack. As a result of Trojan insertion, one can observe from Figure 1 that the required perturbation to transform legitimate data into samples belonging to the attack target is smaller compared to the one in the corresponding benign model. DeepInspect identifies the existence of such 'small' triggers as the 'footprint' left by Trojan insertion and recovers potential triggers to extract the perturbation statistics.

Figure 2 illustrates the overall framework of DeepInspect. DI first employs the model inversion (MI) method in [Fredrikson et al., 2015] to generate a substitution training dataset containing all classes. Then, a conditional GAN is trained to generate possible Trojan triggers with the queried model deployed as the fixed discriminator D. To reverse engineer the Trojan triggers, DI constructs a conditional generator G(z, t) where z is a random noise vector and t is the target class. G is trained to learn the distribution of triggers, meaning that the queried DNN shall predict the attack target t on the superposition of the inversed data sample x and G's output. Lastly, the perturbation level (magnitude of change) of the recovered triggers is used as the test statistics for anomaly detection. Our hypothesis testing-based Trojan detection is feasible since it explores the intrinsic 'footprint' of backdoor insertion.

3.2 Threat Model

DeepInspect examines the susceptibility of the queried DNN against NT attacks with minimal assumptions, thus addressing the challenge of limited information (C2) mentioned in the previous section. More specifically, we assume the defender has the following knowledge about the inquired DNN: dimensionality of the input data, number of output classes, and the confidence scores of the model given an arbitrary input query. Furthermore, we assume the attacker has the capability of injecting arbitrary type and ratio poison data into the training set to achieve his desired attack success rate. Our strong threat model ensures the practical usage of DeepInspect in the realworld settings as opposed to the prior work [Wang et al., 2019] that requires a benign dataset to assist backdoor detection.

3.3 DeepInspect Methodology

DeepInspect framework consists of three main steps: (i) model inversion: the defender first applies model inversion on the queried DNN to recover a substitution training dataset {XMI, YMI} covering all output classes. The recovered dataset is used by GAN training in the next step, addressing the challenge C2; (ii) trigger generation: DI leverages a generative model to reconstruct possible trigger patterns used by the Trojan attack. Since the attack objective (infected output classes) is unknown to the defender (C3), we employ a conditional generator that efficiently constructs triggers belonging to different attack targets; (iii) anomaly detection: after generating triggers for all output classes using cGAN, DI formulates Trojan detection as an anomaly detection problem. The perturbation statistics in all categories are collected and an outlier in the left tail indicates the existence of the backdoor.

Model Inversion

Recall that our threat model assumes no clean training dataset is available during Trojan detection. As such, we employ model inversion to recover a substitution training set {XMI , YMI} which assists generator training in the next step. [Fredrikson et al., 2015] demonstrates that data can be extracted from a pre-trained model and formulates model inversion as an optimization problem. The objective function of MI is shown in Eq. (1), which is iteratively minimized via GD.

Here, x is the input data, t is the target class to recover, f is the probability that the queried model predicts t given x as its input, AuxInfo(x) is an optional term incorporating auxiliary constraints on the input.

Trigger Generation

The key idea of DeepInspect is to train a conditional generator that learns the probability density distribution (pdf) of the Trojan trigger whose perturbation level serves as the detection statistics. Particularly, DI employs cGAN to 'emulate' the process of the Trojan attack:D(x + G(z, t)) = t. Here, D is the queried DNN, t is the examined attack target, x is a sample from the data distribution obtained by MI, and the trigger is the output of the conditional generator ∆ = G(z, t). Note that existing attacks [Gu et al., 2017; Liu et al., 2018] that use fixed trigger patterns can be considered as a special case where the trigger distribution is constant-valued.

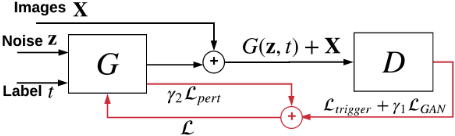

Figure 3 shows the high-level overview of our trigger generator. Recall that DeepInspect deploys the pre-trained model as the fixed discriminator D. As such, the key challenge of trigger generation is to formulate the loss to train the conditional generator. Since our threat model assumes that the input dimension and the number of output classes are known to the defender, he can find a feasible topology of G that yields triggers ∆ with a consistent shape as the inversed input x. To emulate the Trojan attack, DI first incorporates a negative log likelihood loss (nll) shown in Eq. (2) to quantify the quality of G's output trigger to fool the pre-trained model D:

In addition, a regular adversarial loss term is integrated to ensure the 'fake' image xt = x + G(z, t) cannot be distinguished from the original one by D:

Here, mse denotes the 'mean square error' loss function. Lastly, we limit the magnitude of G's output by adding a soft hinge loss on its l1 norm with a defender-selected threshold:

Bounding the perturbation magnitude is a common practice to stabilize GAN training [Isola et al., 2017]. The weighted sum of the above three losses is used to train the conditional G:

We select hyper-parameters γ1, γ2 to ensure that the output trigger of G achieves at least 95% attack success rate. We argue that DeepInspect is operational in a black-box setting since our trigger recovery process does not need any information about model internals.

Anomaly Detection

DeepInspect explores the observation that one can find a trigger with an abnormally smaller perturbation level for the target class compared to other uninfected classes in a trojaned model. After generating triggers for each class using the trained generator in the second step, DI deploys hypothesis testing and robust statistics to detect the existence of outliers in trigger perturbations. More specifically, we use a variant of 'Double Median Absolute Deviation' (DMAD) [Rosenmai, 2013] as the detection criteria. Our DMAD scheme first computes the median m of all test statistic points S and uses it to split the original list of trigger perturbations. The absolute deviation of all data points in the left subgroup Sleft from the group median is then computed and denoted as dev left. The product of the population deviation and a consistency constant (1.4826 for normal distribution) is denoted as mad.

We define the 'deviation factor' (df) of a data point as the ratio between its absolute deviation from the median and the MAD value df = dev left mad . Assuming the distribution of the perturbation statistics satisfies normal distribution, DI employs a cutoff threshold c = 2 to provide a significance level of α = 0.05 for our hypothesis testing [Rosenmai, 2013]. Any data points in Sleft with df values larger than c are marked as outliers and their corresponding labels are identified as suspicious attack targets. Note that the cutoff value c can be selected to ensure a defender-specified significance level using the tail distribution of normal variables (also called 'Q-function'). Let L denote the random variable (RV) for the perturbation level with mean µ and std σ. Then, the corresponding normalized random variable C = L-µ σ follows standard normal distribution N(0, 1). The relation between the significance level α and the cutoff threshold c is described as follows:

where c = l-µ σ . DI leverages DMAD to estimate the population std σ and replaces the mean value µ with the sample median. Thus, the normalized RV C can be used to model the deviation factor, meaning that the threshold c obtained from Eq. (6) also applies to df with the same significance level α. DI provides tunable detection performance by allowing the defender to specify the significance level used in Eq. (6).

4 Evaluation

We perform extensive experiments to investigate DeepInspect's performance on various benchmarks. We present a quantitative comparison with the prior work and detection overhead analysis in Section 4.2 and Section 4.3, respectively.

4.1 Experimental Setup

We evaluate DeepInspect against two state-of-the-art Trojan attacks [Gu et al., 2017; Liu et al., 2018].

We first evaluate DI's performance on the backdoor insertion method presented in BadNets [Gu et al., 2017]. The trigger is a white square at the bottom right corner of the image. The backdoor is embedded by training the model with the

* Top-5 accuracy

Table 1: Summary of the assessed Trojan attacks. The settings and results of backdoor injection are shown.

mixture of the manipulated set and the rest of the clean dataset. We implement BadNets attack on MNIST and GTSRB benchmarks. We also evaluate DI against the TrojanNN attack. [Liu et al., 2018] designs a specific trigger that stimulates selected neurons in the target DNN to high activation values instead of hard-coded relabelling a portion of the modified training data. We implement TrojanNN attack in [Liu et al., 2018] using their open-source code with square and watermark triggers on VGGFace 2 and ResNet-18 [He et al., 2016], respectively.

In our experiments, we add ∼10% of manipulated data to the original training dataset such that all of our trojaned benchmarks obtained using BadNets attack method achieve above 95% Trojan activation rate. Table 1 summarizes the settings and results of the above two Trojan attacks.

4.2 Detection Performance

We investigate DeepInspect's performance following the three steps outlined in Section 3.3. During the training of G, we randomly assign a valid output class as the target t. The topology of the conditional generator for MNIST and GTSRB are derived from [Kang, 2017]. For a DNN with high input dimensionality (ResNet-18, Trojan Square and Trojan WM fall into this case), a generator with more layers is required to match the image size. Training of such a generative model is prohibitively costly and unstable. To tackle this challenge, we train an auto-encoder on the inversed dataset to find an embedding space for the input. The converged decoder is then inserted between G and D shown in Figure 3. As such, G can generate triggers in the smaller embedding space. We deploy the auto-encoder on the last three benchmarks in Table 1.

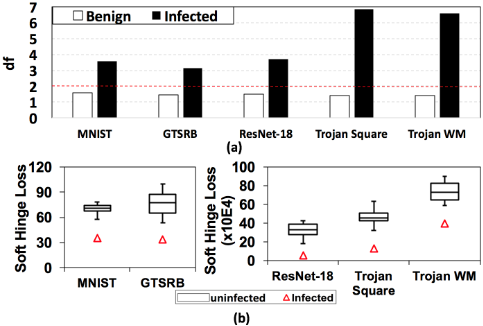

Each Trojan detection experiment is repeated for 10 times and the average metrics are reported throughout this section. To validate the feasibility of DeepInspect's anomaly detection, we measure the deviation factor for both benign and trojaned models and show the results in Figure 4 (a). The queried model is determined to be 'infected' if its deviation factor is larger than the cutoff threshold. Using a significance level of α = 0.05 (corresponding to the cutoff threshold c = 2), DI yields df > 2 for all infected models and df < 2 for all benign models as shown in Figure 4 (a). Therefore, DI satisfies 'effectiveness' criterion by achieving 0% false positive rates and 0% false negative rate across all benchmarks.

The large gap of deviation factors between an infected DNN and the corresponding benign one indicates that df is an effective metric for Trojan detection. To corroborate the key intuition utilized by DI (shown in Figure 1), we measure the perturbation levels of the triggers recovered by DI's conditional generator and visualize their distributions in Figure 4 (b).

2 VGG Face Dataset: http://www.robots.ox.ac.uk/ vgg/data/vgg˙face/

It can be observed that the perturbation magnitude of the infected label (denoted by the triangle) is substantially smaller than the one of uninfected classes, thus can be used by robust statistics in our detection. Furthermore, the distribution of our test statistics recovered for the uninfected labels has a smaller dispersion compared to the ones in NC[Wang et al., 2019], yielding more reliable detection results.

In the following of this section, we compare the detection performance of DeepInspect and Neural Cleanse in various settings. We use the open source code of [Wang et al., 2019] for implementation. Since NC assumes the availability of a clean dataset, we perform their proposed detection method on the inversed dataset obtained from the same model inversion procedure as DI to ensure a fair comparison.

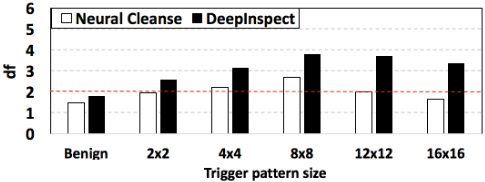

Sensitivity to Trigger Size

The size of the trigger pattern used by the attacker affects the detection performance of both DI and NC since it impacts the test statistics. More specifically, DI leverages the soft hinge loss of the recovered triggers as the statistics while NC uses the l1 norm as the decision criteria. Here, we use square triggers of various sizes on the GTSRB benchmark and compare the detection performance of two methods in Figure 5. One can see that NC yields three false negatives on triggers of size 2 × 2, 12 × 12, and 16 × 16. Moreover, the deviation factor of NC shows a decreasing trend as the trigger size increases, suggesting that the detection statistic is sensitive to trigger size. DI yields no false negatives across all benchmarks, thus is less sensitive to the increase of the trigger size compared to NC. Similar trends are observed on MNIST benchmark and results are not shown here.

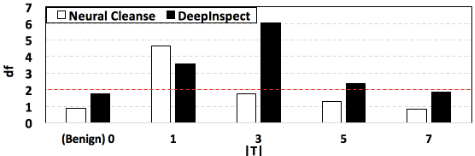

Sensitivity to Number of Trojan Targets

We evaluate DI's performance on single-target Trojan attack in the previous section. Here, we consider a more advanced backdoor attack where more than one output classes are infected using the same trigger. We name this type of attack 'multi-target' Trojan. More specifically, the target label t for each input stamped by the trigger is randomly selected from a set of classes T . The backdoor is considered to be activated if the model's prediction belongs to the attack target set T. We use the Trojan insertion method in BadNets [Gu et al., 2017] and perform the single/multi-target backdoor attack on MNIST benchmark. The infected model achieves a comparable test accuracy as the uninfected baseline and above 98% Trojan activation rate. Figure 6 shows the sensitivity of DI and NC to the number of attack target labels (denoted as |T|). NC yields false negatives on all three multi-target Trojan benchmarks (|T |= 3, 5, 7) while DI successfully detects the Trojan in the queried model when |T |= 3 and 5. Similar results are observed on GTSRB benchmark and are not shown here.

4.3 Overhead Analysis

We evaluate DI's runtime overhead and compare it with the prior work here. Recall that DI leverages a conditional generator to recover trigger patterns belonging to multiple classes simultaneously. Furthermore, we demonstrate that DI can incorporate an auto-encoder to accelerate Trojan detection on large benchmarks. On the contrary, NC deploys GD to search for triggers in each target class individually. NC is not compatible with the auto-encoder since it recovers the two-dimension mask and three-dimension trigger pattern separately.

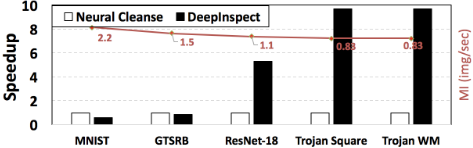

Figure 7 shows the overall relative runtime comparison between DI and NC. We implement both detection methods on Nvidia RTX2080 GPU with 8GiB memory and recover 5 images in each class during model inversion. The runtime of MI can be computed from the throughout shown in Figure 7. Empirical results show that NC is 1.7× and 1.2× faster than DI on MNIST (N = 10) and GTSRB (N = 43) benchmark, respectively. However, DI engenders 5.3× and 9.7× speedup over NC on ResNet-18 (N = 1000) and VGGFace benchmarks (N = 2622, denoted as 'Trojan Square' and 'Trojan WM' in Figure 7). It can be seen that our framework yields higher speedup compared to NC on large benchmarks. As such, DI features better efficiency and scalability for DNNs with numerous output classes in the real-world setting.

Discussion

Let us consider the number of source and target classes used in Trojan insertion, current DI addresses all-to-one/all-tomultiple scenarios. DeepInspect can be easily extended to detect other Trojan attacks with different mechanisms. A whitebox adaptive adversary can strategically select the source and the target class such that the magnitude of required perturbation for misclassification is not noticeably smaller than other unaffected classes. Such an attack might lower df at the cost of reduced effectiveness. DI can be adapted to detect cleanlabel attacks [Shafahi et al., 2018] by evaluating the required perturbation for each source-target class pair. We also evaluate DI when the clean dataset is available during Trojan detection and show that DI's performance is comparable to NC.

5 TrojanMitigation viaModel Patching

Recall that DeepInspect effectively detects the occurrence of the backdoor attack by training a conditional generator to learn the pdf of potential triggers. In other words, once we complete the training G as outlined in Section 3.3, we have a generative model that is capable of constructing diverse trigger patterns for any target class. As such, DeepInspect's generator facilitate 'adversarial learning' that can be used to improve the robustness of the benign model, or 'patch' the infected DNN for disabling Trojan attacks.

Here, we demonstrate how DeepInspect can be used as a remedy scheme to mitigate the Trojan attack with the identified target class t. We perform model patching by fine-tuning the trojaned DNN with the mixture of the inversed training set {XMI , YMI} and the patching dataset {Xpatch, Ypatch}. The patching set is obtained as follows: DeepInspect's conditional generator trained in the detection phase (Section 3.3) is utilized to constructs a series of trigger images ∆t = G(z, t) for the target class t. The patching data is then acquired by 'stamping' a subset of the inversed data with the reverse engineered triggers Xpatch = Xsubset MI +∆t. The labels of the patching inputs are the same as the ones of the corresponding recovered data Ypatch = Y subset MI . In our experiments, we use 15% of {XMI , YMI} to construct the patching set. Another 10% of the inversed data is taken as the validation set to find retraining configurations (e.g., batch size, learning rate). Finally, adversarial training is employed on the infected model for 10 epochs with the original loss in the data application.

Table 2 summarizes the results of DeepInspect's model patching on various infected DNNs without clean data. One can see that our Trojan mitigation scheme effectively decreases the activation rate of the embedded trigger while preserving the model's performance on the normal dataset. The patched model has a deviation factor smaller than the cutoff threshold c = 2 used in DeepInspect's anomaly detection (Section 3.3), thus is able to pass model sanity check and safe to deploy. We want to emphasize that the TAR after patching can be further decreased to ∼3% assuming clean data is available.

6 Conclusion and FutureWork

We propose DeepInspect, the first practical solution for Trojan detection and mitigation in the deep learning domain with minimal prior knowledge about the queried model. DeepInspect takes the pre-trained DNN as its input and returns a binary decision (benign/trojaned) on the sanity of the model. Unlike the prior work that relies on a clean dataset for Trojan detection, DeepInspect is able to reconstruct potential Trojan triggers with only black-box access to the queried DNN. DeepInspect leverages a conditional generative model to learn the probability distribution of triggers for multiple attack targets simultaneously. Our hypothesis testing-based anomaly detection allows the defender to leverage the trade-off between the detection rate and the false alarm rate by specifying the cutoff threshold. We perform an extensive evaluation of DeepInspect against two state-of-the-art Trojan attacks to corroborate its high detection rates and low false alarm rates compared to the previous work. In addition to the superior backdoor detection performance, DeepInspect's conditional trigger generator enables an effective Trojan mitigation solution, i.e., patching the model using adversarial training.

We discuss two future research directions here. DeepInspect can be adapted to improve the detection performance on more sophisticated Trojan attacks (e.g., large-size triggers and multitarget backdoors). For multi-target Trojan attacks, the loss definition Ltrigger can be modified to allow multiple target classes given the same manipulated input during G training. Also, the runtime of DI's trigger recovery can be optimized by incorporating more advanced GAN training strategies.
