Computing Approximate Equilibria in Sequential Adversarial Games by Exploitability Descent

1 Introduction

Extensive-form games model sequential interactions between multiple agents, each of which maximize their own utility. Classic examples are perfect information games (e.g. chess and Go), which have served as milestones for measuring the progress of artificial intelligence [Campbell et al., 2002; Silver et al., 2016]. When there are simultaneous moves, such as in Markov games, the players may need stochastic policies to guarantee their worst-case expected utility, and must use linear programming at each state for value back-ups. Computing policies for imperfect information games is much more difficult: no Bellman operator exists, so approximate dynamic programming is not applicable; exact equilibrium solutions can be found by sequence-form linear programming [Koller et al., 1994; Shoham and Leyton-Brown, 2009], but these techniques do not scale to very large games.

The challenge domain for imperfect information has been computer Poker, which has driven much of the progress in computational approaches to equilibrium-finding [Rubin and Watson, 2011]. While there are gradient descent techniques that can find an ϵ-Nash equilibrium in O( 1ϵ ) iterations [Hoda et al., 2007], the dominant technique has been counterfactual regret minimization (CFR) [Zinkevich et al., 2008]. Based on CFR, recent techniques have solved heads-up limit Texas Hold'em [Bowling et al., 2015] and beat human professionals in no-limit Texas Hold'em [Moravˇc´ık et al., 2017; Brown and Sandholm, 2017].

Other techniques have emerged in recent years, based first on fictitious play (XFP) [Heinrich et al., 2015], and generalized to double oracle and any meta-game solver over sets of policies [Lanctot et al., 2017]. Both require a subroutine that computes a best response (an "oracle"). Here, reinforcement learning can be used to compute approximate oracles, and function approximation can be used to generalize over the state space without domain-specific abstraction mechanisms. Hence, deep neural networks can trained from zero knowledge as in AlphaZero [Silver et al., 2018]. Policy gradient techniques are also compatible with function approximation in this setting [Srinivasan et al., 2018], but may require many iterations to converge. Combining data buffers with CFR using regression to predict regrets has also shown promise in medium-sized poker variants [Waugh et al., 2015; Brown et al., 2019].

In this paper, we introduce a new algorithm for computing approximate Nash equilibria. Like XFP, best responses are computed at each iteration. Unlike XFP, players optimize their policies directly against their worst-case opponent. When using tabular policies and ℓ2 projections after policy updates, the sequence of policies will contain an ϵ-Nash equilibrium, unlike CFR and XFP that only converge-in-average. Our algorithm works well with function approximation, as the problem can be expressed directly as a policy gradient optimization. Our experiments show convergence rates comparable to XFP and CFR in the tabular setting, exhibit generalization over the state space using neural networks in four different games.

At the time of original submission, we were unaware of a similar algorithm recently presented at the Deep RL Workshop NeurIPS 2018: Self-Play Against a Best Response (SPAR) [Tang et al., 2018]. The work we present in this paper was done independently. In this paper, we provide convergence guarantees, as well as results in both the tabular and neural network cases. We do so on four benchmark games (both commonly used poker benchmarks used in [Tang et al.,

2018] and two additional games), whereas results of SPAR focus on the sample-based setting not covered in this paper.

2 Background and Terminology

An extensive-form game describes a sequential interaction between players i ∈ {1, 2, · · · , n} ∪ {c}, where c is considered a special player called chance with a fixed stochastic policy that determines the transition probabilities given states and actions. We will often use -i to refer to all the opponents of i. In this paper, we focus on the n = 2 player setting.

The game starts in the empty history h = ∅. On each turn, a player i chooses an action a ∈ Ai, changing the history to h′ = ha. Here h is called a prefix history of h′ , denoted h ⊏ h′ . The full history is sometimes also called a ground state because it uniquely identifies the true state, since chance's actions are included. In poker, for example, a ground state would include all the players' private cards. We define an information state s ∈ S for player i as the state as perceived by an agent which is consistent with its observations. Formally, each s is a set of histories, specifically h, h′ ∈ s ⇔ the sequence of of player i's observations along h and h′ are equal. In poker, an information state groups together all the histories that differ only in the private cards of -i. Denote Z the set of terminal histories, each corresponding to the end of a game, and a utility to each player ui(z) for z ∈ Z. We also define τ(s) as the player whose turn it is at s, and Z(h) the subset of terminal histories that share h as a prefix.

Since players cannot observe the ground state h, policies are defined as πi : Si → ∆(Ai), where ∆(Ai) is the set of probability distributions over Ai. Each player tries to maximize their expected utility given the initial starting history ∅. We assume finite games, so every history h is bounded in length. The expected value of a joint policy π (all players' policies) for player i is defined as

where the terminal histories z ∈ Z are composed of actions drawn from the joint policy. We also define state-action values for joint policies. The value qi,π(s, a) represents the expected return starting at state s, taking action a, and playing π:

where qi,π(h, a) = Ez∼π[ui(z) | ha ⊑ z] = ∑h∈s,z∈Z(h) ηπ(h, z)ui(z) is the expected utility of the ground state-action pair (h, a), and ηπ(h) is the probability of reaching h under the policy π. We make the common assumption that players have perfect recall, i.e. they do not forget anything they have observed while playing. Under perfect recall, the distribution of the states can be obtained only from the opponents' policies using Bayes' rule (see [Srinivasan et al., 2018, Section 3.2]).

Each player i tries to find a policy that maximizes their own value vi,π. However, this is difficult to do independently since the value depends on the joint policy, not just player i's policy. A best response policy for player i is defined to be bi(π-i) ∈ BR(π-i) = {πi | vi,(πi,π-i) = maxπ′i vi,(π′i ,π-i)}. Given a joint policy π, the exploitability of a policy π-i is how much the other player could gain if they switched to a best response: δi(π) = maxπ′i vi,(π′i ,π-i) - vi,π. In two-player zero-sum games, an ϵ-minmax (or ϵ-Nash equilibrium) policy is one where maxi δi(π) ≤ ϵ. A Nash equilibrium is achieved when ϵ = 0. A common metric to measure the distance to Nash is NASHCONV(π) = ∑i δi(π).

2.1 Extensive-FormFictitious Play (XFP)

Extensive-form fictitious play (XFP) is equivalent to standard fictitious play, except that it operates in the extensive-form representation of the game [Heinrich et al., 2015]. In fictitious play, the joint policy is initialized arbitrarily (e.g. uniform random distribution at each information state), and players learn by aggregating best response policies. The extensive-form

Algorithm 1: Fictitious Play

input :π0 - initial joint policy 1 for t ∈ {1, 2, · · · } do 2 for i ∈ {1, . . . , n} do 3 Compute a best response bti (πt-1 -i ) 4

Update average policy πt to include bti

version, XFP, requires game-tree traversals to compute the best responses and specific update rules that account for the reach probabilities to ensure that the updates are equivalent to the classical algorithm, as described in [Heinrich et al., 2015, Section 3]. Fictitious play converges to a Nash equilibrium asymptotically in two-player zero-sum games. Sample-based approximations to the best response step have also been developed [Heinrich et al., 2015] as well as function approximation methods to both steps [Heinrich and Silver, 2016]. Both steps have also been generalized to other best response algorithms and meta-strategy combinations [Lanctot et al., 2017].

2.2 Counterfactual Regret Minimization (CFR)

CFR decomposes the full regret computation over the tree into per information-state regret tables and updates [Zinkevich et al., 2008]. Each iteration traverses the tree to compute the local values and regrets, updating cumulative regret and average policy tables, using a local regret minimizer to derive the current policies at each information state.

The quantities of interest are counterfactual values, which are similar to Q-values, but differ in that they weigh only the opponent's reach probabilities, and are not normalized. Formally, let η-i,π(h) be only the opponents' contributions to the probability of reaching h under π. Then, similarly to equation 2, we define counterfactual values: qc i,π (s, a) = ∑h∈s η-i,π(h)qi,π(h, a), and vc i,π (s) = ∑a∈Ai πi(s, a)qc i,π (s, a). On each iteration k, with a joint policy πk , CFR computes a counterfactual regret r(s, a) = qc i,πk (s, a) - vc i,πk(s) for all information states s, and a new policy from the cumulative regrets of (s, a) over the iterations using regret-matching [Hart and Mas-Colell, 2000].

The average policies converge to an ϵ-Nash equilibrium in O(|Si|2 |Ai|/ϵ2 ) iterations.

CFR Versus a Best Response Oracle (CFR-BR)

Instead of both players employing CFR (CFR-vs-CFR), each player can use CFR versus their worst-case (best response) opponent, i.e. simultaneously running CFR-vs-BR and BRvs-CFR. This is the main idea behind counterfactual regret minimization against a best response (CFR-BR) algorithm [Johanson et al., 2012]. The combined average policies of the CFR players is also guaranteed to converge to an ϵ-Nash equilibrium. In fact, the current strategies also converge with high probability. Our convergence analyses are based on CFR-BR, showing that a policy gradient versus a best responder also converges to an ϵ-Nash equilibrium.

2.3 Policy Gradients in Games

We consider policies πθ = (πi,θi )i each policy are parameterized by a vector of parameter (θi)i = θ. Using the likelihood ratio method, the gradient of vi,πθ with respect to the vector of parameters θi is:

This result can be seen as an extension of the policy gradient Theorem [Sutton et al., 2000; Glynn and L'ecuyer, 1995; Williams, 1992; Baxter and Bartlett, 2001] to imperfect information games and has been used under several forms: for a detailed derivation, see [Srinivasan et al., 2018, Appendix D].

The critic (qi,πθ ) can be estimated in many ways (Monte Carlo Return [Williams, 1992] or using a critic for instance in [Srinivasan et al., 2018] in the context of games. Then:

where α is the learning rate used by the algorithm and ˆ qi,πθ (sl, a) is the estimation of the return used.

3 Exploitability Descent

Exploitability Descent (ED) follows the basic form of the classic convex-concave optimization problem for solving matrix games [Gale et al., 1951; Boyd and Vandenberghe, 2004]. Conceptually, the algorithm is uncomplicated and shares the outline of fictitious play: on each iteration, there are two steps that occur for each player. The first step is identical to fictitious play: compute the best response to each player's policy. The second step then performs gradient ascent on the policy to increase each player's utility against the respective best responder (aiming to decrease each player's exploitability). The change in the second step is important for two reasons. First, it leads to a convergence of the policies that are being optimized without having to compute an explicit average policy, which is complex in the sequential setting. Secondly, the policies can now be easily parameterized (i.e. using e.g. deep neural

Algorithm 2: Exploitability Descent (ED)

input :π0 - initial joint policy 1 for t ∈ {1, 2, · · · } do 2 for i ∈ {1, · · · , n} do 3 Compute a best response bti (πt-1 -i ) 4 for i ∈ {1, · · · , n}, s ∈ Si do 5 Define bt-i = {btj }j̸=i 6 Let qb (s) = VALUESVSBRS(πt-1 i (s), bt-i ) 7 πt i (s) = GRADASCENT(πt-1 i (s), αt , qb (s))

networks) and trained using policy gradient ascent without storing a large buffer of previous data.

The general algorithm is outlined in Algorithm 2, where αt the learning rate on iteration t. Two steps (lines 6 and 7) are intentionally unspecified: we will show properties for two specific instantiations of this general ED algorithm. The quantity qb refers to a set of expected values for player i = τ(s), one for each action at s using πt-1 i against a set of individual best responses. The GRADIENTASCENT update step unspecified for now as we will describe several forms, but the main idea is to increase/decrease the probability of higher/lower utility actions via the gradients of the value functions, and project back to the space of policies.

3.1 Tabular EDwith q-Values and ℓ2 Projection

For a vector of |A| real numbers θs, define the simplex as ∆s = {θs,a | θs ≥ 0, ∑a θs,a = 1}, and the ℓ2 projection as Πℓ2 (θs) = argminθ′s∈∆s ||θ′s - θs||2.

Let πθ be a joint policy parameterized by θ, and πθi refer to the portion of player i's parameters (i.e. in tabular form {θs | τ(s) = i}). Here each parameter is a probability of an action at a particular state: θs,a = πθ(s, a). We refer to TabularED(q, ℓ2) as an instance of exploitability descent with

and the policy gradient ascent update defined to be

where the Jacobian ∇θs πt-1 θ (s) is an identity matrix because each parameter θs,a corresponds directly to the probability πθ(s, a), and 〈·, ·〉 is the usual matrix inner product.

3.2 Tabular EDwith Counterfactual Values and Softmax Transfer Function

For some vector of real numbers, θs, define softmax(θs) = {Πsm(θs)}a = {exp(θs,a)/ ∑a′ exp(θs,a′)}a. Re-using the tabular policy notation from the previous section, we now define a different instance of exploitability descent. We refer to TabularED(qc , softmax) as the algorithm that specifies πθ(s) = Πsm(θs),

and the policy parameter update as

where ∇θs πt-1 θ (s) represents the Jacobian of softmax.

3.3 Convergence Analyses

We now analyze the convergence guarantees of ED. We give results for two cases: first, in cyclical perfect information games and Markov games, and secondly imperfect information games. All the proofs are found in the Appendix ?? of the technical report version of the paper [Lockhart et al., 2019].

Cyclical Perfect Information Games and Markov Games

The following result extends the policy gradient theorem [Sutton et al., 2000; Glynn and L'ecuyer, 1995; Williams, 1992; Baxter and Bartlett, 2001] to the zero-sum two-player case. It proves that a generalized gradient of the worst-case value function can be estimated from experience as in the single player case.

Theorem 1 (Policy Gradient in the Worst Case). The gradient of policy πθi 's value, vi,(πθi ,b), against a best response, β .= b-i(πθi ) ∈ BR(πθi ) is a generalized gradient (see [Clarke, 1975]) of πθi 's worst-case value function,

All of the proofs are found in Appendix ?? of the technical report version of the paper [Lockhart et al., 2019].

This theorem is a natural extension of the policy gradient theorem to the zero-sum two-player case. As in policy gradient, this process is only guaranteed to converge to a local maximum of the worst case value minπ-i vi,(πθi ,π-i) of the game but not necessarily to an equilibrium of the game. An equilibrium of the game is reached when the two following conditions are met simultaneously: (1) if the policy is tabular and (2) if all states are visited with at least some probability for all policies. This statement is proven in Appendix ??.

The method is called exploitability descent because policy gradient in the worst case minimizes exploitability. In a twoplayer, zero-sum game, if both players independently run ED, NASHCONV is locally minimized.

Lemma 1. In the two-player zero-sum case, simultaneous policy gradient in the worst case locally minimizes NASHCONV.

Imperfect Information Games

We now examine convergence guarantees in the imperfect information setting. There have two main techniques used to solve adversarial games in this case: the first is to rely on the sequence-form representation of policies which makes the optimization problem convex [Koller et al., 1994; Hoda et al., 2007]. The second is to weight the values by the appropriate reach probabilities, and employ local optimizers [Zinkevich et al., 2008; Johanson et al., 2012]. Both take into account the probability of reaching information states, but the latter allows a convenient tabular policy representation.

We prove finite time exploitability bounds for TabularED(q, ℓ2), and we relate TabularED(qc , softmax) to a similar algorithm that also has finite time bounds.

The convergence analysis is built upon two previous results: the first is CFR-BR [Johanson et al., 2012]. The second is a very recent result that relates policy gradient optimization in imperfect information games to CFR [Srinivasan et al., 2018]. The result here is also closely related to the optimization against a worst-case opponent [Waugh and Bagnell, 2014, Theorem 4], except our policies are expressed in tabular (i.e. behavioral) form rather than the sequence form.

Case: TabularED(q, ℓ2). Recall that the parameters θ = {θs,a}s∈S,a∈A correspond to the tabular policy. For convenience, let θs = {θs,a}a∈A.

We now present the main theorem, which states that if both players optimize their policies using TabularED(q, ℓ2), it will generate policies with decreasing regret, which combined form an approximate Nash equilibrium.

Theorem 2. Let TabularED(q, ℓ2) be described as in Section 3.1 using tabular policies and the update rule in Definition ??. In a two-player zero-sum game, if each player updates their policy simultaneously using TabularED(q, ℓ2), if ∀s, a ∈ S ×A : θs,a > 0 and αt = t- 1 2 , then for each player i: after T iterations, a policy π∗ i ∈ {π1 i , · · · ,πT i } will have been generated such that π∗ i is i's part of a 2ϵ T -Nash equilibrium, where ϵ = |Si| (√T + (√T - 12 )|Ai|(∆ui )2), and ∆u = maxz,z′∈Z (ui(z) - ui(z′ )).

ED is computing best responses each round already, so it is easy to track the best iterate: it will simply be the one with the highest expected value versus the opponent's best response.

The proof can also be applied to the original CFR-BR theorem, so we now present an improved guarantee, whereas the original CFR-BR theorem made a probabilistic guarantee.

Corollary 1. (Improved [Johanson et al., 2012, Theorem4]) If player i plays T iterations of CFR-BR, then it will have generated a π∗ i ∈ {π1 ,π2 , · · · ,πT }, where π∗ i is a 2ϵ-equilibrium, where ϵ is defined as in [Johanson et al., 2012, Theorem 3].

The best iterate can be tracked in the same way as ED, and the convergence is guaranteed.

Remark 1. When using q-values, the values are normalized by a quantity, B-i(π, s), that depends on the opponents' policies [Srinivasan et al., 2018, Section 3.2]. The convergence guarantee of TabularED(q, ℓ2) relies on [Srinivasan et al., 2018, Theorem 2], whose proof includes a division by B-i(π, s) [Srinivasan et al., 2018, Appendix E.2]. Therefore, the regret bound is undefined when B-i(π, s) = 0, which can happen when an opponent no longer plays to reach s.

Case: TabularED(qc , ℓ2). Instead of using q-values, we can implement ED with counterfactual values. In this case, TabularED with the ℓ2 projection becomes CFR-BR(GIGA), which then avoids the issued discussed in Remark 1.

Theorem 3. Let TabularED(qc , ℓ2) be described as in Section 3.1 using tabular policies and the following update rule:

Then, Theorem 2 also holds for TabularED(qc , ℓ2).

Case: TabularED(qc , softmax) We now relate TabularED with counterfactual values and softmax policies closely to an algorithm with known finite time convergence bounds. For details, see Appendix ??.

TabularED(qc , softmax) is still a policy gradient algorithm: it differentiates the policy (i.e. softmax function) with respect to its parameters, and updates in the direction of higher value. With two subtle changes to the overall process, we can show that the algorithm would become CFR-BR using hedge [Freund and Schapire, 1997] as a local regret minimizer. CFR with hedge is known to have a better bound, but has typically not performed as well as regret matching in practice, though it has been shown to work better when combined with pruning based on dynamic probability thresholding [Brown et al., 2017].

Instead of policy gradient, one can use a softmax transfer function over the the sum of action values (or regrets) over time, which are the gradients of the value function with respect to the policy. Accumulating the gradients in this way, the algorithm can be recognized as Mirror Descent [Nemirovsky and Yudin, 1983], which also coincides with hedge given the softmax transfer [Beck and Teboulle, 2003]. When using the counterfactual values, ED then turns into CFR-BR(hedge), which converges for the same reasons as CFR-BR(regret-matching).

We do not have a finite time bound of the exploitability of TabularED(qc , softmax) as we do for the same algorithm with an ℓ2 projection or CFR-BR(hedge). But since TabularED(qc , softmax) is a policy gradient algorithm, its policy will be adjusted toward a local optimum upon each update and will converge at that point when the gradient is zero. We use this algorithm because the policy gradient formulation allows for easily-applicable general function approximation.

4 Experimental Results

We now present our experimental results. We start by comparing empirical convergence rates to XFP and CFR in the tabular setting, following by convergence behavior when training neural network functions to approximate the policy.

In our initial experiments, we found that using q-values led to plateaus in convergence in some cases, possibly due to numerical instability caused by the problem outlined in Remark 1. Therefore, we present results only using TabularED(qc , softmax), which for simplicity we refer to as TabularED for the remainder of this section. We also found that the algorithm converged faster with slightly higher learning rates than the ones suggested by Section 3.3.

4.1 Experiment Domains

Our experiments are run across four different imperfect information games. We provide very brief descriptions here; see Appendix ?? as well as [Kuhn, 1950; Southey et al., 2005] and [Lanctot, 2013, Chapter 3] for more detail.

Kuhn poker is a simplified poker game first proposed by Harold Kuhn [Kuhn, 1950] Leduc poker is significantly larger game with two rounds and a 6-card deck in two suits, e.g. {JS,QS,KS, JH,QH,KH}. Liar's Dice(1,1) is dice game where each player gets a single private die, rolled at the start of the game, and players proceed to bid on the outcomes of all dice in the game. Goofspiel is a card game where players try to obtain point cards by bidding simultaneously. We use an imperfect information variant where bid cards are unrevealed.

4.2 Convergence Results

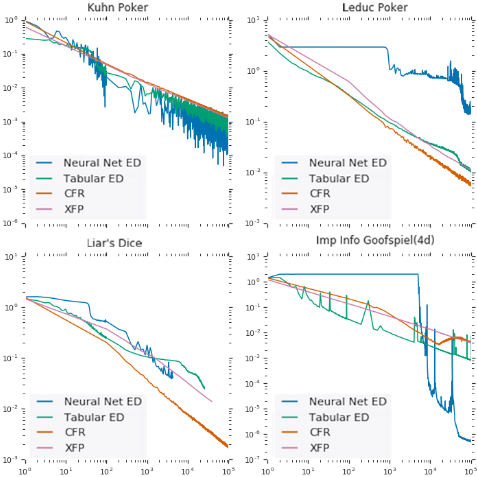

We now present empirical convergence rates to ϵ-Nash equilibria. The main results are depicted in Figure 1.

For the neural network experiments, we use a single policy network for both players, which takes as input the current state of the game and whose output is a softmax distribution over the actions of the game. The state of the game is represented in a game-dependent fashion as a fixed-size vector of between 11 and 52 binary bits, encoding public information, private information, and the game history.

The neural network consists of a number of fully-connected hidden layers, each with the same number of units and with rectified linear activation functions after each layer. A linear output layer maps from the final hidden layer to a value per action. The values for the legal actions are selected and mapped to a policy using the softmax function.

At each step, we evaluate the policy for every state of the game, compute a best response to it, and evaluate each action against the best response. We then perform a single gradient descent step on the loss function: - ∑s πi(s) · (qb (s) - B(s)) + wr 1n ∑i θ2i , where the final term is a regularization for all the neural network weights, and the baseline B(s) is a computed constant (i.e. it does not contribute to the gradient calculation) with B(s) = πi(s) · qb (s). We performed a sweep over the number of hidden layers (from 1 to 5), the number of hidden units (64, 128 or 256), the regularization weight (10-7 , 10-6 , 10-5 , 10-4 ), and the initial learning rate (powers of 2). The plotted results show the best values from this sweep for each game.

4.3 Discussion

There are several interesting observations to make about the results. First, the convergence of the neural network policies is more erratic than the tabular counterparts. However, in two games the neural network policies have learned more accurate approximate equilibria than any of the tabular algorithms for the same number of iterations. The network could be generalizing across the state space (discovering patterns) in a way that is not possible in the tabular case, despite raw input features.

Although Tabular ED and XFP have roughly the same convergence rate, the respective function approximation versions have an order of magnitude difference in speed, with Neural ED reaching an exploitability of 0.08 in Leduc Poker after 105 iterations, a level which NFSP reaches after approximately 106 iterations [Heinrich and Silver, 2016]. Neural ED and NFSP are not directly comparable as NFSP is computing an approximate equilibrium using sampling and RL while ED uses true best response. However, NFSP uses a reservoir buffer dataset of 2 million entries, whereas this is not required in ED.

5 Conclusion

We introduce Exploitability Descent (ED) that optimizes its policy directly against worst-case opponents. In cyclical perfect information and Markov games, we prove that ED policies converge to strong policies that are unexploitable in the tabular case. In imperfect information games, we also present finite time exploitability bounds for tabular policies. While the empirical convergence rates using tabular policies are comparable to previous algorithms, the policies themselves provably converge. So, unlike XFP and CFR, there is no need to compute the average policy. Neural network function approximation is applicable via direct policy gradient ascent, also avoiding domain-specific abstractions, or the need to store large replay buffers of past experience, as in neural fictitious self-play [Heinrich and Silver, 2016], or a set of past networks, as in PSRO [Lanctot et al., 2017].

In some of our experiments, neural networks learned lowerexploitability policies than the tabular counterparts, which could be an indication of strong generalization potential by recognizing similar patterns across states. There are interesting directions for future work: using approximate best responses and sampling trajectories for the policy optimization in larger games where enumerating the trajectories is not feasible.

Acknowledgments

We would like to thank Neil Burch, Johannes Heinrich, and Martin Schmid for feedback. Dustin Morrill was supported by The Alberta Machine Intelligence Institute (Amii) and Alberta Treasury Branch (ATB) during the course of this research.
