Unsupervised Learning of Monocular Depth and Ego-Motion using Conditional PatchGANs

1 Introduction

Depth and Ego motion estimation from images is an important problem in computer vision which finds application in several fields such as augmented reality [Marchand et al., 2016], 3D re-construction [Geiger et al., 2011], self-driving cars [Handa et al., 2014] etc. Recent advances in deep learning have helped in achieving new benchmarks in this field which is getting better and better with time. The initial deep models [Eigen et al., 2014], [Liu et al., 2016] used supervised mode of learning that required explicit availability of ground truth depth which is not always possible in real world applications. This is partially remedied by using semisupervised methods which either use sparse ground truth obtained from sensors like LIDAR [Kuznietsov et al., 2017] or make use of synthetically generated data as ground truth [Luo et al., 2018]. Compared to these methods, the unsupervised methods are becoming more popular with time as no explicit ground truth information is required for the learning process. In these cases, the geometric constraints between a pair of images either in temporal [Zhou et al., 2017], [Mahjourian et al., 2018] or spatial domain [Godard et al., 2017] or both [Babu et al., 2018] are exploited to estimate the depth and pose information. Some of the most recent and best results in this category are reported by methods such as, Vid2Depth [Mahjourian et al., 2018], UnDeepVO [Li et al., 2018], Depth-VO-Feat [Zhan et al., 2018] and UnDEMoN [Babu et al., 2018]. Vid2Depth [Mahjourian et al., 2018] uses inferred 3D world geometry and enforces consistency of estimated point clouds and pose information across consecutive frames. Since they rely on temporal consistency (monocular sequence of images), the absolute scale information is lost. This is remedied in UnDeepVO [Li et al., 2018] where authors enforce both spatial and temporal consistencies between images as well as between 3D point clouds. UnDEMoN [Babu et al., 2018] further improves the performance of UnDeepVO [Li et al., 2018] by predicting disparity instead of depth and using a different penalty function for training. Depth-VO-Feat [Zhan et al., 2018] attempts to further improve the results by including deep feature-based warping losses into the training process. These deep features are obtained from a depth model that is pre-trained on a different dataset through a supervised mode of learning.

In spite of these advancements, the accuracy of these methods are still far from those obtained using stereo methods [Godard et al., 2017] or supervised methods [Luo et al., 2018] leaving enough room for further improvements. With this hindsight, we restrict our discussion only to unsupervised methods in this paper with an aim to produce superior performance creating new benchmark in this field.

Most of the unsupervised methods make use of image reconstruction losses computed in spatial or temporal domains to learn the mapping from pixel to depth and pose information. The image reconstruction losses are usually obtained by comparing the reconstructed images with their corresponding original images using metrics such as Lp;(p=1,2) norm [Zhou et al., 2017], SSIM [Godard et al., 2017] etc. Rather than directly computing these image reconstruction losses, one can also use a discriminative network to directly evaluate if the reconstructed image is good or bad. Such discriminative networks are an integral part of Generative Adversarial Networks (GAN) [Goodfellow et al., 2014] which are commonly used in solving problems like image-to-image translation [Isola et al., 2017], text-to-image synthesis [Reed et al., 2016], style transfer [Zhu et al., 2017] etc. A generative adversarial network (GAN) consists of two networks - a generator model that tries to mimic the underlying distribution of input data and, a discriminator network that learns to evaluate this distribution given the original distribution. These two networks help each other improve their performance by playing a zero-sum game. The advantage of such a paradigm is that one can generate faithful synthetic data necessary for learning an input-output map in cases where the actual realworld data is unavailable or scarce. This has prompted many researchers to make use of GANs for improving the accuracy of depth and pose estimation from monocular as well as stereo images [Kumar et al., 2018], [Aleotti et al., 2018], [Pilzer et al., 2018], [Almalioglu et al., 2019]. In these works, the depth and pose estimation network is used as a generator which is expected to produce accurate depth or pose information. The output of the generator is then evaluated by a discriminator that uses the actual image and the reconstructed image obtained from the above estimated depth and pose information. In other words, a conditioned version of the generator output is used by the discriminator for evaluation. Again, the generators used in these cases are a conditional one as they use a pre-defined set of images to produce the depth or pose data instead of a generic random noise signal.

In this paper, we adopt the above conditional GAN paradigm for estimating absolute scale aware depth and pose information frommonocular stereo images. Unlike the above methods that use a scalar value to decide whether the output of the generator is real or fake (good or bad), we propose to use a patch-based discriminator that evaluates an array of smaller patches of the reconstructed image instead of the whole image. This is otherwise known as PatchGAN [Isola et al., 2017] which is shown to capture high frequency local structural information in the reconstructed image which, otherwise, gets ignored when a L1/L2 kind of loss function is used. In addition, the PatchGAN is fully convolutional in nature which makes it lighter and faster compared to others who use dense or fully connected layers in their architecture. Based on this intuition, we have carefully designed a new GAN-based deep network architecture that includes a generator for depth and pose information and a patch-based discriminator for evaluating the generator performance in an adversarial mode of learning. Some of the other features of this architecture are as follows. The generator input is conditioned over a given image to produce the depth or pose information unlike methods which design prior distributions to this effect [Almalioglu et al., 2019] or use a random noise as done in a traditional GAN approach. Secondly, the proposed architecture uses a single discriminator to evaluate both depth and pose generators making it novel and unique in this field. The resulting effect of these features can be appreciated from the fact that the proposed model outperforms all existing state-ofthe-art methods to create a new benchmark in the field. The efficacy of the proposed approach is demonstrated through extensive analysis and ablation studies carried out using the popular KITTI driving dataset [Geiger et al., 2013].

In short, our major contribution lies in proposing a new conditional PatchGAN-based deep network architecture for estimating absolute scale aware depth and pose information from monocular images which is shown to provide state-ofthe-art performance in this field while being one of the lightest and fastest GAN model, in terms of trainable parameters, reported so far in the literature.

The rest of the paper is organized as follows. The proposed method along with the network architectures is explained in the next section. The details of experiment and analysis of results are presented in Section 3. The conclusion and direction for future work is provided in Section 4.

2 ProposedMethod

The GANs are generative models with an ability to learn mapping between a random noise vector z to an output image y, G : z → y [Goodfellow et al., 2014]. In contrast, the conditional GANs learn a mapping from an user-defined image x and random noise vector z to an output image y, G : {x, z} → y [Mirza and Osindero, 2014]. The conditional GAN has the advantage of directing generator's output towards a particular context by taking additional information as input and hence, can be used to deal with applications that require one-to-many mapping (e.g., a single image can be tagged with multiple labels by different human beings). We make use of this understanding to generate depth (disparity) and pose data conditioned to a particular input image sequence, rather than generating from a random noise vector. The proposed deep network architecture for estimating absolute scale aware depth and pose information from a monocular sequence of images based on this concept of conditional GAN is shown in Figure 1. The generator module G consists of two deep networks - one for estimating the disparity and the other for estimating the pose or the ego-motion. The disparity and the pose information, thus obtained, are then used by the view reconstruction module V to reconstruct the target images. These reconstructed images are evaluated by a fully convolutional patch-based discriminator D [Isola et al., 2017] by comparing them with the corresponding original images. Each of these modules are described next in this section below.

2.1 Generator Module: Disparity and Pose Estimation Networks

Estimating depth directly from images has two major disadvantages. First, the uncertainty in depth prediction increases with increasing distance in the scene. Secondly, the value of depth at horizon goes to infinity making it difficult to compute the gradient values needed for training a deep network. These two problems are remedied by designing the deep network to predict disparity (inverse of depth) instead of predicting depth directly [Godard et al., 2017], [Zhou et al., 2017], [Babu et al., 2018], [Zhan et al., 2018]. Keeping in mind the real world implementation requirement, we use a trimmed version of the original disparity network with only five convolutional layers, instead of the standard seven layer network used by the previous researchers [Godard et al., 2017], [Zhou et al., 2017]. It has about 8 million trainable parameters which is only one-fourth of the original network size, making it one of the lightest and thinnest deep network model for depth estimation. The details of the modified disparity network DispNet is shown in Figure 2(a). Given a dataset of stereo images X = {Il, Ir}, the Disp-Net takes the left image Il as input to predict the left-to-right disparity dl and right-to-left disparity dr. Once the disparity is known, the depth can be calculated by using the intrinsic and extrinsic calibration parameters of the stereo-rig as ˆ d = bf/d, where f is the focal length, b is the baseline distance between the stereo camera pair and d ϵ{dl, dr} is the predicted disparity.

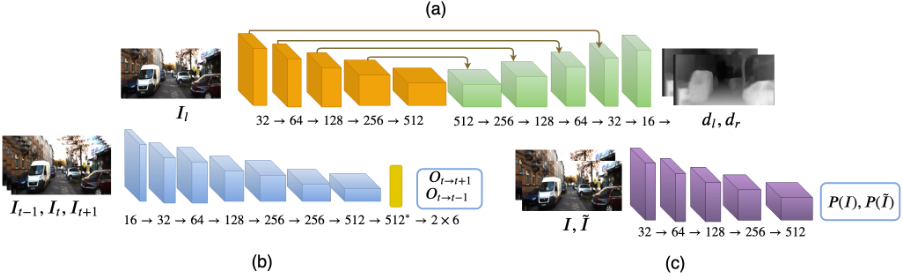

The Pose-Net is a convolutional encoder followed by a fully connected layer as shown in Figure 2(b). This network takes a snippet of n-temporally aligned monocular images as input and predicts the relative ego-motion O which includes translation (tx, ty, tz) and rotation (ρ, θ, ψ) of the camera between the frames of the snippet.

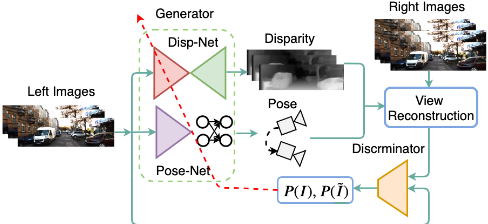

These two deep networks form the generator module for the proposed architecture which aims to learn the distribution of disparity and pose data for a given input image sequence. The authenticity of these generator outputs are evaluated by a discriminator module, details of which will be discussed later in this section.

2.2 ViewReconstructionModule

The view reconstruction module V has two sub-modules namely a spatial reconstruction module S and a temporal reconstruction module T . The spatial reconstruction S module takes the predicted disparities {dl, dr} and reconstructs the left and right images ˜ Il, ˜ Ir using the original pair {Ir, Il}ϵX through inverse-image warping technique. The temporal reconstruction module T takes a sequence of temporallyaligned consecutive image frames (n-snippet), the estimated depth of the center frame and the predicted pose between these frames to reconstruct the target image. For n = 3, the view reconstruction module V takes an input snippet (It-1, It, It+1) along with estimated depth of center frame ˆ dt and the predicted pose (Ot→t+1,Ot→t-1) to reconstruct the target image ˜ It from the source images It+1, It-1. The reconstruction modules V = (S, T) uses bi-linear interpolation of [Jaderberg et al., 2015] to add RGB color intensities to the transformed pixels of the reconstructed image. Please refer to [Babu et al., 2018] for more information regarding the reconstruction modules.

2.3 PatchGAN-based Discriminator

In a traditional GAN paradigm, the discriminator network is used to evaluate the generator output for their authenticity (real or fake) based on the available ground truth. This is not possible in our case where the generator gives out disparity and pose information as output for which no ground truth information is available. Instead, the discriminator is made to evaluate the reconstructed images (˜ Il, ˜ Ir, ˜ It) obtained from the view reconstruction module V . In other words, the discriminator is using a conditioned version of the generator output for evaluation. The proposed discriminator module makes use of the concept of PatchGAN originally proposed in [Isola et al., 2017] for image-to-image translation. Unlike a regular GAN discriminator which produces a scalar value for the entire image signifying the image being real or fake, the PatchGAN based discriminator outputs m × n array of scalars where each signifies the authenticity of a region or patch of the input image. The PatchGAN based discriminator is shown to capture the high frequency structural information of local patches allowing it to effectively evaluate generator output. The patch sizes can be made smaller providing high level of discrimination at the cost of increased computational cost. Moreover, this discriminator consists of only convolutional layers making it faster and lighter in terms of trainable parameters. The details of the discriminator network is shown in Figure 2(c). It takes the image pair (˜ I, I) and produces the probability pair (P(˜ I), P (I)) which indicates whether the reconstructed image is real or fake.

2.4 Training Losses

The proposed method is an unsupervised approach which does not require explicit ground truth depth and pose information to train the network. Instead, the image reconstruction loss is commonly used for training the network [Godard et al., 2017], [Zhou et al., 2017], [Babu et al., 2018]. The image reconstruction loss used for the proposed GAN-based architecture has two components, namely, (1) content loss that enforces geometry (appearance) and regularization (smoothness and left-right consistency) into the network, and (2) the adversarial loss obtained from the discriminator that returns a probability of a given reconstructed image being real or fake. The details of these two losses are described next in this section.

Content Losses

The content losses include appearance loss, smoothness loss and consistency loss which are defined as follows. The appearance loss is calculated both in spatial and temporal domains [Babu et al., 2018]. The spatial appearance loss is computed by comparing the reconstructed left-right image pairs (˜ Il, ˜ Ir) with their corresponding original images (Il, Ir). Similarly, the temporal loss is computed by comparing the reconstructed target image ˜ It with the original target image It. For example, the image appearance loss for a given original left image Il and the corresponding reconstructed left image ˜ Il is given by

where ρ(.) is the Charbonnier Penalty function [Babu et al., 2018] and SSIM(.) is the structural similarity index between the original image and the reconstructed image [Godard et al., 2017]. The parameter α < 1 is the relative weight given to each of the components. The symbol I ij l represents the intensity value of each pixel (i, j) of the image Il.

The smoothness loss is calculated by using the predicted disparity and its respective input image for the network. The smoothness loss enforces the predicted disparities to be locally smooth and this is achieved by weighing the disparity gradients (∂d) with exponentially weighted image gradients (∂I). Mathematically, the smoothness loss is given by

The consistency loss [Godard et al., 2017] enforces cycle consistency between the predicted disparities by projecting disparities from one to the other. Mathematically, this is given by

2.5 Adversarial Loss

As mentioned earlier, the discriminator module D takes the reconstructed images obtained from the view reconstruction module and their corresponding real images to evaluate the disparity and pose output of the generator module. The discriminator assigns probability P(.) to each image a value that ranges from 0 to 1, 0 being completely fake and 1 being completely real. The objective of the generator G is to fool the discriminator D while the discriminator tries not to get fooled by the generator by correctly labeling the images. This is achieved by the following objective function which represents the min-max game played between the generator and the discriminator [Goodfellow et al., 2014]:

where io and ir belong to real (I) and reconstructed images ( ˜ I) respectively. In our case, the generator and the discriminator are trained to minimize the following loss functions:

where Lcontent is the content loss given by

where all βs are the weights given to the individual components emphasizing the trade-off among them.

3 Experiments and Results

The proposed method is implemented in Tensorflow architecture. The total number of trainable parameters in this model is around 12 million and the network is trained for 240k iterations on Dell Alienware laptop having NVIDIA GTX 1080 GPU with 8 GB of GPU memory. Leaky-ReLu [Xu et al., 2015] activation functions are used for all the network layers and the network is optimized by using Adam [Kingma and Ba, 2014] as the optimization algorithm. The learning rate for training is initially set to 0.0001, then it is reduced by half after 3/5th of the iterations and further reduced by half after 4/5th of iterations. The γ value of the Charbonnier penalty [Babu et al., 2018] is set to 0.45. The α value in appearance loss is set to 0.85. The appearance loss and left-right consistency loss weights βap and βlr are set to 1.0. The smoothness loss weight βds is set to 0.1/s where s is the ratio of respective disparity image resolution to the input image resolution. The adversarial loss βg is set 0.001 which is obtained after extensive ablation study.

3.1 KITTI Dataset

The KITTI dataset is a popular outdoor driving dataset containing 61 different driving sequences with 42382 images of resolution 1242 × 345. The dataset is divided into two splits namely, KITTI-Stereo split and KITTI-Eigen split which are commonly used to benchmark the performance of algorithms for depth and pose estimation. More details about the dataset and its use can be found in [Babu et al., 2018], [Godard et al., 2017] which are being omitted here for the sake of brevity. The performance analysis of the proposed method on this dataset is described next.

3.2 Depth Evaluation

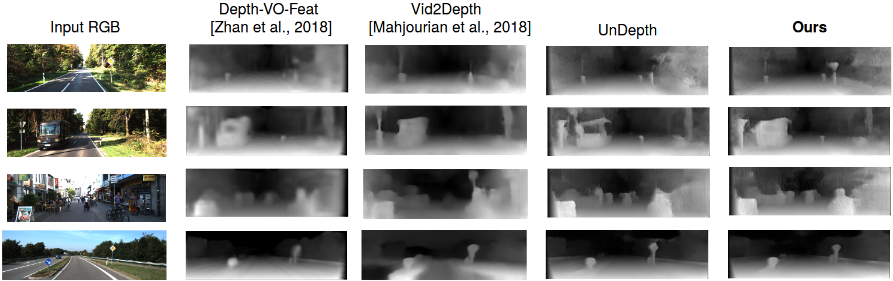

The depth evaluation is performed on both stereo and Eigen splits. We have used standard evaluation metrics of [Eigen et al., 2014] for comparison with other existing methods. The qualitative comparison of various methods is shown in Figure 3. As one can see, our proposed model provides sharper images with more details compared to other methods. This is further confirmed through the quantitative comparison analysis presented in Table 1 where the performance results are reported for the KITTI eigen and stereo splits. The first two parts of the tables show the results of Eigen split with maximum depth range of 80m and 50m and the lower part shows the results on Stereo-split with 80m as the maximum depth range. The results of other methods are directly taken from their respective papers. The 'UnDepth' is the proposed Disp-Net model which is trained with unsupervised mode of learning only using the content loss Lcontent. The method 'Undepth+PatchGAN' refers to case where only Disp-Net is trained in adversarial fashion while the method 'Undepth+Pose+PatchGAN' is our proposed method that trains both Disp-Net and Pose-Net using adversarial learning. As one can observe, the proposed method outperforms all existing methods in both error and accuracy metrics.

3.3 Ablation Study

We have performed two ablation studies. The first one is done for finding the suitable value of the parameter βg used for weighing the adversarial loss during training with a discriminator that has 5 convolutional layers. This parameter is observed to be very sensitive and greatly affects the performance of the overall network. The resulting outcome is shown quantitatively in Table 2. Based on this study, the value of βg is selected to be 0.001 in order to report final performance measures for comparison in Table 1. The second ablation study is carried out to decide the number of layers to be used for the discriminator network which in turn effects the size of the patch being used for evaluating the generator output. The resulting effect of this parameter is shown in second part of the Table 2. This study shows that the network provides best performance with five convolutional layers.

3.4 Pose Evaluation

The performance of Pose-Net is evaluated using the image sequences of the Odometry split which are in the test set of the eigen split of the KITTI dataset as explained in [Babu et al., 2018]. We use Absolute Trajectory Error [Zhou et al., 2017], [Babu et al., 2018] as a measure for comparing the performance of our model with other state-of-the-art methods in the field. The resulting comparison is shown in Table 3. The SfMLearner [Zhou et al., 2017] employs a post processing stage that uses ground truth pose to obtain the absolute scale information and is referred to by using the suffix PP. For a fair comparison with our method that does not use any ground truth, we obtain the results for SfMLearner by removing this post processing step and is denoted by the suffix noPP. Similarly, we compare the performance of our algorithm with the monocular (VISO M) and stereo (VISO S) version of the VISO [Geiger et al., 2011] model which is a known traditional method in this category. As one can see the proposed method outperforms UnDEMoN, SfMLearner noPP and VISO M and is comparable to the VISO S and SfMLearner PP that use ground truth information explicitly.

3.5 Discussion

1. The proposed network architecture uses both left and right images during the training phase to predict dis-

parity which is then used for computing depth by using the extrinsic and intrinsic calibration parameters of the stereo-camera rig used for acquiring these images. During the testing phase, the network only takes left image as an input to produce scale aware depth as output. Given an entirely new dataset with different camera setup, the trained model is observed to predict depth and pose which is correct upto a scale while retaining all the structural attributes of the scene in the disparity image. The actual scale can be retrieved by re-training (fine-tuning) the network on the new dataset (with minor additional computational cost) for a fewer number of epochs.

1. It should be noted that the methods like SfMLearner

[Zhou et al., 2017], GANVO [Almalioglu et al., 2019] and Vid2Depth [Mahjourian et al., 2018] have used approximately 40000 images for training, unlike our model which is trained on only 22600 images as per the prevailing practice [Babu et al., 2018], [Godard et al., 2017], [Pilzer et al., 2018]. Ideally, it is not fair to directly compare their performance with ours as they also include test images into the training set. The performance parameters for these three algorithms have been marked with double asterisk (**) symbol in Table 1. We have included these results to show that the proposed network produces better result compared to these methods even with a smaller training dataset. Furthermore, this superior performance is obtained using a network size which is approximately one-fourth of the networks used previously [Godard et al., 2017], [Babu et al., 2018], [Zhou et al., 2017].

4 Conclusions

The paper presents a novel deep network architecture based on conditional PatchGANs for estimating absolute scale aware depth and pose information from monocular images. The proposed GAN architecture uses disparity and pose estimation network as generators and a fully convolutional network as a discriminator. The discriminator evaluates the local patches of the reconstructed image in order to evaluate the generator output. This has the advantage of capturing local structural information which usually get lost when only one scalar value is used to evaluate the whole image. The proposed deep architecture uses only one-fourth of the number of trainable parameters compared to other deep networks reported in the literature. The resulting framework is shown to out-perform all existing methods to create new benchmark in this field. However, the proposed model is not capable of dealing with moving objects and occlusions. In addition, the long term dependencies in pose estimation for loop closure has not been considered. These problems form the future scope of this work.
