Hyper-parameter Tuning under a Budget Constraint

1 Introduction

Hyper-parameter tuning is of crucial importance to designing and deploying machine learning systems. Broadly, hyperparameters include the architecture of the learning models, regularization parameters, optimization methods, and other "knobs" to be tuned. It is challenging to explore the vast space of hyper-parameters efficiently to identify the optimal configuration. Quite a few approaches have been proposed: random search, Bayesian Optimization (BO) [Snoek et al., 2012; Shahriari et al., 2016], bandits-based Hyperband [Jamieson and Talwalkar, 2016; Li et al., 2016], and meta-learning [Chen et al., 2016; Bello et al., 2017; Franceschi et al., 2018].

Most of the prior works have focused on the aspect of reducing as much as possible the computation cost to obtain the optimal configuration. Finding the optimal, however, is not always practical: in deep learning, there is a vast search space of hyper-parameters, and it takes a long time to train each model. In this work, we look at a different but important perspective to hyper-parameter tuning - under a fixed time/computation cost, how we can improve the performance as much as possible. Concretely, we study the problem of hyper-parameter tuning under a hard budget constraint. The budget offers the practitioners a tradeoff: affordable resource balanced with good performance. It is a more realistic scenario in developing large-scale learning systems, and is especially applicable, for example when the practitioner searches for a best model under the pressure of a deadline.

∗Contact Author

†Work done while at USC.

‡On leave from USC (feisha@usc.edu).

The budget constraint certainly complicates the hyperparameter tuning strategy. While the strategy without the constraints is to explore and exploit in the hyper-parameter space, a budget-aware strategy needs to decide how much to explore and exploit with respect to the resource/time. As most learning algorithms are iterative in nature, a human operator would monitor the training progress of different configurations, and adjust the tuning strategy based on their potential future performances and how much resource remains - we all have had the experience of "killing" a running job as "this training is going nowhere"! How can we automate this process?

We formalize this inquiry into a sequential decision making problem, and propose a budgeted hyper-parameter tuning algorithm (BHPT) to automatically achieve good resource utilization. The BHPT algorithm uses a belief model to predict future performances of configurations, and an actionvalue function to select the configurations. It automatically balances exploration with exploitation under the budget, and adapts to different constraints. We empirically demonstrate the performance of the proposed algorithm on both synthetic and real-world datasets. BHPT outperforms the state-of-theart tuning algorithms across a wide range of budgets. Besides, it exhibits budget adaptive tuning behaviors.

The rest of the paper is organized as follows. We first discuss related work in Sec. 2. We formally define the problem and introduce the sequential formulation in Sec. 3. We describe the proposed algorithm with analysis in Sec. 4. Experiments and the conclusion can be found in Sec. 5 and 6. respectively.

2 RelatedWork

Automated design of machine learning system is an important research topic Snoek et al. [2012]. Traditionally hyperparameter optimization (HO) is formulated as a black-box optimization and solved by Bayesian optimization (BO). It uses a probabilistic model together with an acquisition function to adaptively select and identify the optimal configuration [Shahriari et al., 2016]. However, fully training a single configuration can be expensive. Recent advances focus to exploit cheaper surrogate tasks, like training on subsets of the data (Fabolas [Klein et al., 2017]), or partial training curves (FreezeThaw [Swersky et al., 2014]), to speed up the tuning.

Recently Hyperband [Li et al., 2016] formulates the HO as a best-arm identification problem. It adaptively evaluates a configuration's intermediate results and quickly eliminates poor arms. Lately, Falkner et al. [2018] combines the benefits of BO and Hyperband to achieve fast convergence to the optimal. Other HO work includes gradient-based methods [Maclaurin et al., 2015; Franceschi et al., 2017], metalearning [Jaderberg et al., 2017; Franceschi et al., 2018], the spectral approach [Hazan et al., 2017], and adaptive data allocation [Sabharwal et al., 2016].

However, none of them has an explicit notion of hard budget constraint for the tuning process. Neither do they consider to adapt the tuning strategy across different budgets. In this work, we propose to take the resource constraint as an input to the tuning algorithm.

Table. 1 summarizes the comparisons of popular tuning algorithms to our work from three perspectives: whether it uses a (probabilistic) model to adaptively predict and identify good configurations; whether it supports early stop and resume during training; and whether it adapts to different budgets.

3 Problem Statement

We start by introducing the notation, and formally define the budgeted hyper-parameter tuning problem. Then we formulate the task into a sequential decision making problem.

3.1 Preliminaries

Configuration (arm). Configuration denotes the hyperparameters, e.g. the architecture, the optimization method. We use [K] = {1, ...,K} to index the set of configurations. The term configuration and arm are used interchangeably. (See the supplementary material 1 Sec. A for a full notation table.)

Model. Model refers to the (intermediate) training outcome, e.g. the weights of neural nets, of a particular configuration. We evaluate the model on a heldout set periodically, for example every epoch. We consider loss or error rate as the evaluation metric. We keep track of ν k b ∈ [0, 1), the minimum loss of configuration k among 1, . . . , b epochs. Note that ν k b is a non-increasing function in b. We always use superscript to denote the configuration, and the subscript for the budget/epoch.

1 Supplementary material link: https://bit.ly/2ICQF0K.

Budget. The budget defines a computation constraint imposed on the tuning procedure. In this paper, we consider training time, or epoch, as the budget unit. Epoch is an abstract notion of computation resource in most iterative learning algorithms. Given a total budget B ∈ N+, a strategy b = (b1 , . . . , bK ) ∈ NK allocates the budget among K configurations, i.e. it runs configuration k for bk epochs. b should satisfy that the total epochs fromK configurations add up to B: b⊤1K = B. We use epoch and budget interchangeably when there is no confusion.

Constrained Optimization. The goal of the budgeted hyper-parameter tuning task is to obtain a well-optimized model under the constraint. Under the allocation strategy b, arm k returns a model with loss ν k bk. We search for the strategy which optimizes the loss of the best model out of K configurations, ℓB = min{ν 1 b1 , . . . , ν K bK}. Concretely, the constrained optimization problem is

3.2 Optimal Solution with Perfect Information

Despite a combinatorial optimization, if we know the training curves of all configurations, Solving Eq. 1 is simply to put all budgets to the configuration c that achieves the smallest loss.

Namely ν cB = ℓ∗B . Note that this is infeasible because it would require KB epochs to obtain {ν k b }k∈[K],b∈[B].

However, since ν k 1 , ..., ν kB are dependent variables, it is feasible to predict the future losses using historical information, which helps to select the next configuration. This motivates us to formulate the budgeted tuning as a finite-horizon sequential decision making problem.

3.3 Sequential DecisionMaking

We define a sequential tuning procedure, where at each step a model of one configuration is selected to train for one epoch. At the n-th step, the tuning algorithm selects the action/configuration an ∈ [K], and the corresponding loss zn ∈ [0, 1) is returned. We want to find a policy π, which selects the action at each step based on the history and the remaining budget r = B-n: an = π(r, (a1, z1,. . . ,an-1, zn-1)). This process is repeated for B steps and the final tuning output is

Solving Eq. 3 is equivalent to solving Eq. 1 in a sequential manner. However, the advantages are that the tuning algorithm can stop and resume the training of a configuration at any time. Besides, it can leverage the information of partial training curves and remaining budget r to make more economical decisions in terms of budget.

The framework can be extended to other settings, e.g. multiple configurations in parallel, resource of heterogenous types (like cpu, gpu) etc. While some extensions is straightforward, some requires more careful design and is left as future work.

Regret. The goal of the sequential problem is to optimize the policy π, such that the regret is minimized,

where c is the best arm in Eq. 2. Note ℓ∗B assumes knowledge of all curves, hence infeasible to achieve in practice.

Challenges. The sequential decisionmaking problem introduced in our paper is an instance of extreme bandits [Nishihara et al., 2016]. This leads to the well-known exploitationexploration tradeoff: on one hand, it tempts to pick arms that have achieved small losses (exploitation). On the other hand, there is also an incentive to pick other arms to see whether they can admit even smaller losses (exploration). However, Eq. 4 is different than the typical bandits, because ℓπB is the minimum over all losses, instead of the sum. This leads to two differences: firstly the optimal policy/configuration depends on the horizon B. Secondly at every step, the optimal policy for the remaining horizon depends on the history. The key of our method to address this challenge is to re-plan at every step using historical information.

4 Approach

In this section, we describe the BHPT algorithm. The main idea is that we use a Bayesian belief model to predict the future performance of configurations, and follow a policy to plan and select the next configuration.

At step n, BHPT does the following two steps:

Sn is the Bayesian belief model, which predicts future performances and gets updated at every step with new observations. π(r, Sn-1) is the policy to pick the next configuration, which takes both the remaining budget r, and the future predictions of the belief Sn-1 as input. The core of policy π is an actionvalue function Qr[a|Sn-1], which outputs a score of expected future performance of a configuration.

BHPT algorithm can adaptively predict and identify good configurations through the Bayesian belief model Sn, and adapt the tuning behaviors to different budgets due to the dependency of π(r, Sn-1) on r, as summarized in Table 1.

We describe the action-value function Q in Sec. 4.1, and the Bayesian belief model in Sec. 4.2. We discuss how Q balances the exploration-exploitation tradeoff in Sec. 4.3, and present the BHPT algorithm in Sec. 4.4.

4.1 Action-value Function Q

Consider we are at the n-th step, with remaining budget r = B-n. Our goal is to find the policy which minimizes the future losses : ℓr = min n≤s≤B zs. We use a belief state/model Sn-1 to estimate the unknown training curves, which is derived from the past history (a1, z1, . . . , an-1, zn-1) and allows us to simulate, and predict future outcomes.

We compute an action-value function Qr[a|Sn-1] for each arm, and select the next action that minimizes Q,

The action-value function Q2 is defined as follow:

where ν k r is the minimum loss of configuration k in the future r epochs starting from the current epoch (recall Sec. 3.2). and µkr = E [ν k r |Sn-1 ] is the expected loss.

Intuitively, Q measures the potential of arm a compared to the expected performances of other arms. Note that this is an optimistic estimation of arm a's performance since it does not account for the risk when ν a r > min k̸=a µkr . The design of

Q leverages the optimal planning structure - it directly predicts the final loss after r epochs, which is an estimate of the optimal solution with perfect information (Sec. 3.2). In what follows, we show that minimizing Q is equivalent to maximizing a notion of surprise, which measures the potential gain of pulling the arm for the remaining budgets.

Specifically, what is a good action/arm which improves the estimate of future performances? There are two scenarios where the outcomes contradict to our prior belief: (a) an arm previously considered sub-optimal turns out to be the best arm, and (b) the arm previously considered best is actually inferior to others. Denote ̂c = argmin k µkr as the predicted

top configuration. ̂c 's predicted loss is µ1st r = min k µkr , and similarly the loss of the runner-up µ2nd r . Now consider for a sub-optimal arm a ̸= ̂c, Eq. 6 becomes

Note that case (a) happens when: ν a r < µ1st r , and we expect to gain µ1st r -ν a r by running a instead of ̂c. The second term on the r.h.s., E [(µ1st r - ν a r )+], computes the area when ν a r falls smaller than µ1st r , which quantifies the expected surprise of a. This quantity is called the value of perfect information in decision theory [Howard, 1966], a numerical value that measures the reduction of uncertainty. Minimizing Qr[a] favors the arm with large surprise.

Similarly in case (b) when we consider the predicted top arm a = ̂c, there is a surprise when ν ̂c r > µ2nd r : the expected best arm falls behind with other candidates. Q in this case is

where the second term computes the area when surprisingly ν ̂c r is larger than µ2nd r . Pulling ̂c in this case is favorable since it has large gain of surprise. Refer to Fig.1 in the supplementary material Sec. B for visualization of Q.

We will come back to the discussion of the properties and behaviors of Q in Sec. 4.3, after introducing the details of the belief model in the next section.

2 We drop the Sn-1 in Q to simplify the notation when it's clear.

4.2 Belief Model

In this section, we briefly describe the Bayesian belief model Sn, and explain how Eq. 6 is computed with the posterior distribution. The belief model captures our current knowledge of the training curves to predict future ν k r , and gets updated as new observations become available. In this paper, we adopt the Freeze-Thaw Gaussian Process [Swersky et al., 2014].

We use (k, t) to index the hyper-parameters and epochs respectively, and the loss of k from the t-th epoch is yk (t). The joint distribution of losses from all configurations and epochs, y = [y1 (1), y1 (2), . . . , y1 (n1), . . . , yK (nK)]⊤(arm k has nk epochs/losses) is Gaussian, with a specific Freeze-Thaw covariance kernels. We use the joint distribution to predict future performances of yk (t), ∀k, t, and update the posteriors with new observations, by applying Bayes' rule. Details of the belief model can be found in the supplementary material Sec. E.

Computing Q. Note that the future best loss is a random variable, ν k r = min 1≤t≤r yk (t0 + t). However, ν k r 's distribution

is non-trivial to compute, as it is the minimum of r correlated Gaussians. To simplify the computation 3 , we approximate: ν k r ≈ yk (t0 + τ k ) where we fix the time index τ k deterministically, to be the one which achieves the minimum loss in expectation, τ k = argmin 1≤t≤r E [yk (t0 + t)]. 4 The advantage

is that Qr[a] can be computed efficiently in closed-form:

to µ, and µ is a constant, either µ1st r or µ2nd r depending on whichever a we are looking at. σ [·] is the standard deviation, and Φ(·) and φ(·) are the cdf and pdf of standard Gaussian respectively.

4.3 Behavior of Q

In this section, we analyze the behaviors of the action-value function. With Gaussian distributed ν k r s, there are nice properties of the proposed Q.

Q balances the exploration with exploitation: both arms with smaller mean (exploitation), and larger variance (exploration) are preferred-in either case the surprise area is large (2nd term on the r.h.s. of Eq. 7 and 8). We provide asymptotic analysis of the behaviors as the budget goes to infinity. Proofs can be found in the supplementary material Sec. C.

Proposition 1. Q is asymptotically consistent, that is, lim B→∞ℓπB-ℓ∗B→0. The regret (Eq. 4) goes to 0, and the best configuration will be discovered B → ∞.

3 We can always use a Monte Carlo approximation to compute this quantity. Asymptotically our simplification does not affect the behavior of the Q, see Sect. 4.3.

4 The intuition is that for different random draws of the curve, ν k r can be any one of yk (t0 + t) for 1 ≤ t ≤ r. In most cases, Pr [ν k r = yk (t0 + τ k )] ≥ Pr [ν k r = yk (t0 + t)] , ∀t. Thus we use yk (t0 + τ k ) as ν k r .

Proposition 2. As B →∞, the limiting ratio of the number of pulls between the top and the second best arm approaches 1 assuming the same observation noise parameter.

4.4 Budgeted Hyper-parameter Tuning Algorithm

In this section, we discuss the practical use of Q, and present the BHPT algorithm. Imagine the behavior of Q when applied to the hyper-parameter tuning: all configurations get selected often at the beginning, due to the high uncertainty. Gradually as our prediction gets more accurate, the actions focus on a few promising arms. Finally, Q mostly allocates budget among the top two arms, according to Prop. 2. This in practice can be a waste of resource, because we aim to finalize on one model. We propose the following heuristics.

ε-Greedy policy. In practice, we can cut down the exploration in Q, and exploit more in the top arm. Recall ̂c is the predicted best arm. We design the following ε-greedy policy:

With probability ε we select ̂c, and follow Q for the rest of the time. We set ε = 0.5 in the experiment 5 .

Budget exhaustion. When the budget is running out, it is desirable to focus mainly on the top arm ̂c. Define τ ⋆ = argmin 1≤t≤r E [ŷc (t0 + t)], the number of epoch ̂c short

of achieving its minimum. We use the condition τ ⋆ < r, where r is the remaining budget, to keep track of the budget exhaustion. We pick ̂c when it is false.

The final algorithm is presented in Alg. 1, which we will refer to as BHPT, and BHPT-ε in the experiments.

Algorithm 1: Budgeted Hyperparameter Tuning (BHPT )

1 Input: Budget B, and configurations [K]. 2 for n = 1, 2, . . .B do 3 if τ ⋆ < r then 4 an = π(r, Sn-1), or an = πε (r, Sn-1) ; // Eq. 5 and 6, or 10 5 else 6 an = ̂c. // budget exhaustion 7 Run an and obtain loss zn = yan (t) (for some t). 8 Sn ← Belief update(Sn-1, an, zn). // Sec. 4.2 9 Update τ ⋆ and r. 10 Output min 1≤n≤B zn.

5 Experiment

In this section, we first compare and validate the conceptual advantage of the BHPT algorithm over other methods, by analyzing the exploration exploitation tradeoff under different budgets on synthetic data. Then we demonstrate the performance of the BHPT algorithm on real-world hyper-parameter tuning tasks. Particularly, we include a task to tune network architectures because selecting the optimal architecture under a budget constraint is of great practical importance.

5 Despite the fact that we do not tune ε, πε performs well as demonstrated in the experiments.

We start by describing the experimental setup, i.e. the data, evaluation metric and baseline methods, in Sec. 5.1, and then provide results and analysis in Sec. 5.2 and 5.3.

5.1 Experiment Description

Data. For the data preparation, we generate and save the learning curves of all configurations, to avoid repeated training when tuning under different budget constraints. For synthetic data, we generate 100 sets of training curves drawn from a Freeze-Thaw GP. For real-world data, we create 4 tuning tasks as summarized in Table 2. For more details, please refer to the supplementary material Sec. F.

Evaluation Metric. For evaluation metric on synthetic data, we define the normalized regret

where ℓ0 is the maximal initial loss of all arms; ℓπB is the tuning output; ℓ∗B is the optimal solution with perfect information of training curves. We normalize the regret over the range ℓ0 - ℓ∗B , which can be substantially different from different sets. For real-world task, see Table 2 for the evaluation metrics.

BaselineMethods. We compare to Hyperband, BO and its variants (Fabolas and FreezeThaw), and Rollout [Lam et al., 2016], which is an approximate dynamic programming approach to solve for the Bayes optimal solution. Please refer to the supplementary material Sec. D for the full descriptions of methods and the implementation details. Table 1 in Sec. 2 summarizes the key differences between methods.

5.2 Results on Synthetic Data

On synthetic data, since we use the correct model, we expect that the belief model learns to accurately predict the future as the budget increases. We examine the behaviors of the proposed algorithms under different budgets. All results are averaged over 100 synthetic sets.

First, we plot the normalized regrets RB (Eq. 11) over budgets in Fig. 1(a). Our algorithms consistently outperform competing methods under different budgets. As B increases, the regret of BHPT RB → 0 as discussed in Sec. 4.3.

Exploration vs. Exploitation. There are two factors that determine the performance of an algorithm: whether it correctly identifies the optimal arm, and whether it spends sufficient budget to achieve small loss on such arm. The first task reflects if the algorithm achieves effective exploration, such that it can accurately estimate the curves and identify the top arm, and the second task indicates sufficient exploitation. To examine the "exploration", we plot the hit rate of the output arm on the top 5 arms (out of all 84) across different budgets in Fig. 1(b) 6 . To check the "exploitation", we visualize the percentage of the budget spent on the output arm in Fig. 1(c). In both (b) and (c), the higher of the bar the better.

In (b), the proposed BHPT and BHPT-ε do better in exploration than all baselines. The column "adaptive prediction" in Table. 1 explains the exploration behavior of different methods. Specifically, the Bayesian belief model in BO and BHPT improve with more budgets, which leads to the increase in hit rate as budget increases. In (c), our methods perform well in terms of exploitation. The "early stop" column in Table. 1 partially explains the exploitation behavior: BO does strong exploitation (and poor exploration) under small budget because it does not early stop configurations.

Although Rollout has a belief model and does future predictions as BHPT, it doesn't performwell on neither task: the hit rate does not improve with more budget, nor does it exploit sufficiently on the output arm. Our conjecture is that the Rollout truncates the planning horizon due to the computa-

6 The three stacks in each bar are the hit rate @ top-1, top-3, and top-5 in ground-truth respectively. The numerical values are reported in the supplementary material Sec. F.

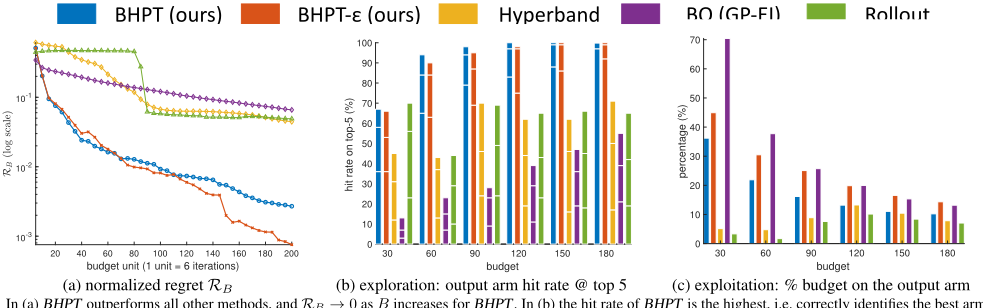

In (a) BHPT outperforms all other methods, and RB → 0 as B increases for BHPT. In (b) the hit rate of BHPT is the highest, i.e. correctly identifies the best arm.

Figure 1: budgeted optimization on 100 synthetic sets

tion challenge, which leads to myopic behaviors and the poor results. Indeed in all three subplots of Fig. 1, Rollout performs and behaves similarly to Hyperband, which only uses current performance to select actions. This demonstrates the importance of long-term predictions and planning in the budgeted tuning task.

Comparing (b) and (c), there is a clear tradeoff between exploration and exploitation: the hit rate decreases as the exploitation percentage increases. Note that BHPT adjusts this tradeoff automatically across different budgets. Compare the BHPT against its ε-greedy variant, the BHPT-ε does slightly better in exploitation, and worse in exploration.

5.3 Results on Real-world Data

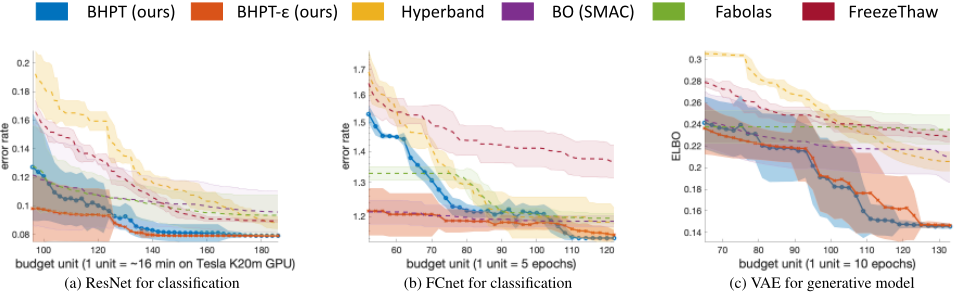

In this section, we report the tuning performances on realworld tuning tasks across different budget constraints. We plot the tuning outcomes (error rate or ELBO) over budgets in Fig. 2 and Fig. 3(a). Each curve is the average of 10 runs from different random seeds, and the mean with one standard deviation is shown in the figures.

BHPT methods work well under a wide range of budgets, and outperform BO, Hyperband, FreezeThaw and the stateof-the-art algorithm Fabolas, across 4 tuning tasks. The trend of different methods across budgets is consistent with the observations on the synthetic data.

As explained in the synthetic experiment, the vanilla BHPT does better in exploration while the ε-greedy variant does more exploitation. This explains the superior performance of the ε-greedy under small budgets. However, the lack of exploration results in worse belief model and damages the performance as the budget increases. This phenomenon is more salient on the architecture selection task Fig. 3(a), where the belief modeling is more challenging due to different learning curve patterns between ResNet and AlexNet.

Budget Adaptive Behaviors. An important motivation to study the budgeted tuning problem is that it is practically desirable to have adaptive strategy under different constraints. For example, the optimal network architecture might change under different budgets. We would like to examine whether the proposed BHPT exhibits such adaptive behavior. We take the architecture selection task between ResNet and AlexNet

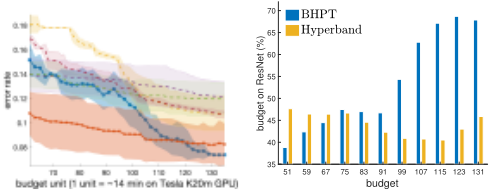

(a) architecture selection between AlexNet and ResNet

(b) budget allocation

Figure 3: On an architecture selection task, BHPT adapts its behavior to different budgets, while Hyperband employs a fixed strategy.

on CIFAR-10 7 , and visualize the ratio of the resource spent on ResNet configurations over budgets in Fig. 3(b). ResNet configurations converge slower than AlexNet, but reach smaller error rates. Thus it is rewarding to focus the tuning on AlexNet under small budgets, and vice versa. Indeed, the BHPT allocates more resource to ResNet as the budget increases, compared to the baseline Hyperband , which samples the two networks more or less uniformly at random.

6 Conclusion

In this paper, we study the budgeted hyper-parameter tuning problem. We formulate a sequential decision making problem, and propose the BHPT algorithm, which uses long-term predictions with an action-value function to allocate the resource efficiently. It exhibits budget adaptive behavior, and achieves the state-of-the-art performance on real-world tasks.

Acknowledgments

We appreciate the feedback from the reviewers. This work is partially supported by NSF Awards IIS1513966/1632803/1833137, CCF-1139148, DARPA Award#: FA8750-18-2-0117, DARPA-D3M-Award UCB00009528, Google Research Awards, gifts from Facebook and Netflix, and ARO# W911NF-12-1-0241 and W911NF15-1-0484.

7 The hyper-parameters include architecture type as well as others, like learning rate and etc. There are 49 configurations in total, with 24 ResNets and 25 AlexNets.
