Pre-training of Graph Augmented Transformers for Medication Recommendation

1 Introduction

The availability of massive electronic health records (EHR) data and the advances of deep learning technologies have provided unprecedented resource and opportunity for predictive healthcare, including the computational medication recommendation task. A number of deep learning models were proposed to assist doctors in making medication recommendation [Xiao et al., 2018a; Shang et al., 2019; Baytas et al., 2017; Choi et al., 2018; Ma et al., 2018]. They often learn representations for medical entities (e.g., patients, diagnosis, medications) from patient EHR data, and then use the learned representations to predict medications that are suited to the patient's health condition.

To provide effective medication recommendation, it is important to learn accurate representation of medical codes. Despite that various considerations were handled in previous works for improving medical code representations [Ma et al., 2018; Baytas et al., 2017; Choi et al., 2018], there are two limitations with the existing work:

1. Selection bias: Data that do not meet training data criteria are discarded before model training. For example, a large number of patients who only have one hospital visit were discarded from training in [Shang et al., 2019].

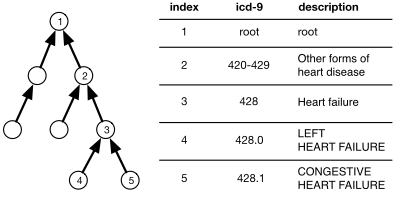

2. Lack of hierarchical knowledge: For medical knowledge such as diagnosis code ontology (Figure. 1), their internal hierarchical structures were rarely embedded in their original graph form when incorporated into representation learning.

To mitigate the aforementioned limitations, we propose G-BERT that combines the pre-training techniques and graph neural networks for better medical code representation and medication recommendation. G-BERT is enabled and demonstrated by the following technical contributions:

1. Pre-training to leverage more data: Pre-training techniques, such as ELMo [Peters et al., 2018], OpenAI GPT [Radford et al., 2018] and BERT [Devlin et al., 2018], have demonstrated a notably good performance in various natural language processing tasks. These techniques generally train language models from unlabeled data, and then adapt the derived representations to different tasks by either feature-based (e.g. ELMo) or fine-tuning (e.g. OpenAI GPT, BERT) methods. We developed a new pre-training method based on BERT for

pre-training on each visit of EHR so that the data with only one hospital visit can also be utilized. We revised BERT to fit EHR data in both input and pre-training objectives. To our best knowledge, G-BERT is the first model that leverages Transformers and language model pre-training techniques in healthcare domain. Compared with other supervised models, G-BERT can utilize discarded/unlabeled data more efficiently.

1. Medical ontology embedding with graph neural networks: We enhance the representation of medical codes via learning medical ontology embedding for each medical codes with graph neural networks. We then input the ontology embedding into a multi-layer Transformer [Vaswani et al., 2017] for BERT-style pretraining and fine-tuning.

2 RelatedWork

Medication Recommendation. Medication Recommendation can be categorized into instance-based and longitudinal recommendation methods [Shang et al., 2019]. Instance-based methods focus on current health conditions. Among them, Leap [Zhang et al., 2017] formulates a multi-instance multi-label learning framework and proposes a variant of sequence-to-sequence model based on content-attention mechanism to predict combination of medicines given patient's diagnoses. Longitudinal-based methods leverage the temporal dependencies among clinical events, see [Choi et al., 2016; Xiao et al., 2018b; Lipton et al., 2015]. Among them, RETAIN [Choi et al., 2016] uses a two-level neural attention model to detect influential past visits and significant clinical variables within those visits for improved medication recommendation.

Pre-training Techniques. The goal of pre-training techniques is to provide model training with good initializations. Pre-training has been shown extremely effective in various areas such as image classification [Hinton et al., 2006] and machine translation [Ramachandran et al., 2016]. The unsupervised pre-training can be considered as a regularizer that supports better generalization from the training dataset [Erhan et al., 2010]. Recently, language model pre-training techniques such as [Peters et al., 2018; Radford et al., 2018; Devlin et al., 2018] have shown to largely improve the performance on multiple NLP tasks. As the most widely used one, BERT [Devlin et al., 2018] builds on the Transformer [Vaswani et al., 2017] architecture and improves the pre-training using a masked language model for bidirectional representation. In this paper, we adapt the framework of BERT and pre-train our model on each visit of the EHR data to leverage the single-visit data that were not fit for training in other medication recommendation models.

Graph Neural Networks (GNN). GNNs are neural networks that learn node or graph representations from graphstructured data. Various graph neural networks have been proposed to encode the graph-structure information, including graph convolutional neural networks (GCN) [Kipf and Welling, 2017], message passing networks (MPNN) [Gilmer et al., 2017], graph attention networks (GAT) [Velickovic et al., 2017]. GNNs have already been demonstrated useful on EHR modeling [Choi et al., 2017; Shang et al., 2019]. GRAM [Choi et al., 2017] represented a medical concept as a combination of its ancestors in the medical ontology using an attention mechanism. It's different from G-BERT from two aspects as described in Section 4.2. Another work worth mentioning is GAMENet [Shang et al., 2019], which also used graph neural network to assist the medication recommendation task. However, GAMENet has a different motivation which results in using graph neural networks on drugdrug-interaction graphs instead of medical ontology.

3 ProblemFormalization

Definition 1 (Longitudinal Patient Records). In longitudinal EHR data, each patient can be represented as a sequence of multivariate observations: X (n) = {X (n) 1 ,X (n) 2 , · · · ,X (n) T (n) } where n ∈ {1, 2, . . . , N}, N is the total number of patients; T (n) is the number of visits of the nth patient. Here we choose two main medical code to represent each visit Xt = C td ∪ C tm of a patient which is a union set of corresponding diagnoses codes C td ⊂ Cd and medications codes C tm ⊂ Cm. For simplicity, we use C t∗ to indicate the unified definition for different type of medical codes and drop the superscript (n) for a single patient whenever it is unambiguous. C∗ denotes the medical code set and |C∗| the size of the code set. c∗ ∈ C∗ is the medical code.

Definition 2 (Medical Ontology). Medical codes are usually categorized according to a tree-structured classification system such as ICD-9 ontoloy for diagnosis and ATC ontology for medication. We use Od,Om to denote the ontology for diagnosis and medication. Similarly, we use O∗ to indicate the unified definition for different type of medical codes. In detial, O∗ = C∗ ∪C∗ where C∗ denotes the codes excluding leaf codes. For simplicity, we define two function pa(·), ch(·) which accept target medical code and return ancestors' code set and direct child code set.

Problem Definition (Medication Recommendation). Given diagnosis codes C td of the visit at time t, patient history X1:t = {X1,X2, · · · ,Xt-1}, we want to recommend multiple medications by generating multi-label output ˆ yt ∈ {0, 1}|Cm| .

4 Method

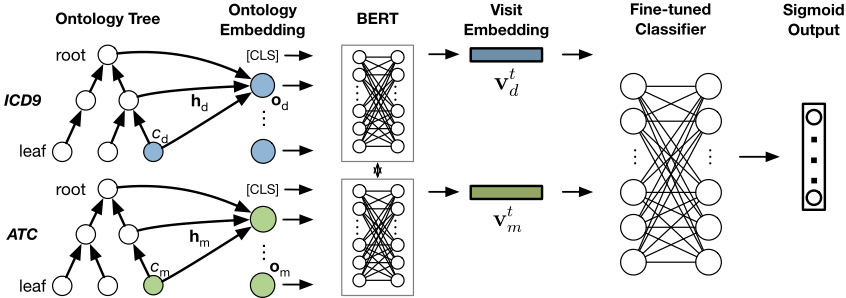

The overall framework of G-BERT is described in Figure 2. G-BERT first derives the initial embedding of medical codes frommedical ontology using graph neural networks. Then, in order to fully utilize the rich EHR data, G-BERT constructs an adaptive BERT model on the discarded single-visit data for visit representation. Finally we add a prediction layer and fine-tune the model in the medication recommendation task. In the following we will describe G-BERT in detail. But firstly, we give a brief background of BERT especially for the two pre-training objectives which will be later adapted to EHR data in Section 4.3.

4.1 Background of BERT

Based on a multi-layer Transformer encoder [Vaswani et al., 2017] (The transformer architecture has been ubiquitously used in many sequence modeling tasks recently, so we will not introduce the details here), BERT is pre-trained using two unsupervised tasks:

• Masked Language Model. Instead of predicting words based on previous words, BERT randomly selects words to mask out and then predicts the original vocabulary IDs of the masked words from their (bidirectional) context.
• Next Sentence Prediction. Many of BERT's downstream tasks are predicting the relationships of two sentences, thus in the pre-training phase, BERT has am a binary sentence prediction task to predict whether one sentence is the next sentence of the other.

A typical input to BERT is as follows ( [Devlin et al., 2018]):

[SEP] he bought a gallon [MASK] milk [SEP] Label = IsNext

where [CLS] is the first token of each sentence pair to represent the special classification embedding, i.e. the final state of this token is used as the aggregated sequence representation for classification tasks; [SEP] is used to separate two sentences; [MASK] is used to mask out the predicted words in the masked language model. Using this form, these inputs facilitate the two tasks described above, and they will also be used in our method description in the following section.

4.2 Input Representation

The G-BERT model takes medical codes' ontology embeddings as input, and obtains intermediate representations from a Transformer encoder as the visit embeddings. It is then pre-trained on EHR from patients who only have one hospital visit. The derived encoder and visit embedding will be fed into a classifier and fine-tuned to make predictions.

Ontology Embedding

We constructed ontology embedding from diagnosis ontology Od and medication ontology Om. Since the medical codes in raw EHR data can be considered as leaf nodes in these ontology trees, we can enhance the medical code embedding using graph neural networks (GNNs) to integrate the ancestors' information of these codes. Here we perform a two-stage procedure with a specially designed GNN for ontology embedding.

To start, we assign an initial embedding vector to every medical code c∗ ∈ O∗ with a learnable embedding matrix We ∈ R|O∗|×d where d is the embedding dimension.

Stage 1. For each non-leaf node c∗ ∈ C∗, we obtain its enhanced medical embedding hc∗ ∈ Rd as follows:

where g(·, ·, ·) is an aggregation function which accepts the target medical code c∗, its direct child codes ch(c∗) and initial embedding matrix. Intuitively, the aggregation function can pass and fuse information in target node from its direct children which result in the more related embedding of ancestor' code to child codes' embedding.

Stage 2. After obtaining enhanced embeddings, we pass the enhance embedding matrix He ∈ R|O∗|×d back to get ontology embedding for leaf codes c∗ ∈ C∗ as follows:

where g(·, ·, ·) accepts ancestor codes of target medical code c∗. Here, we use pa(c∗) instead of ch(c∗), since utilizing the ancestors' embedding can indirectly associate all medical codes instead of taking each leaf code as independent input.

The option for the aggregation function g(·, ·, ·) is flexible, including sum, mean. Here we choose the one from graph attention networks (GAT) [Velickovic et al., 2017], which has shown efficient embedding learning ability on graphstructured tasks, e.g., node classification and link prediction. In particular, we implement the aggregation function g(·, ·, ·) as follows (taking stage 2 for an example):

where ‖ represents concatenation which enables the multihead attention mechanism, σ is a nonlinear activation function, W k ∈ Rm×d is the weight matrix for input transformation, and αk i,j are the corresponding k-th normalized attention coefficients computed as follows:

where a ∈ R2m is a learnable weight vector and LeakyReLU is a nonlinear function. (we assume m = d/K).

As shown in Figure 2, we construct ICD-9 tree for diagnosis and ATC tree for medication using the same structure. Here the direction of arrow shows the information flow where ancestor nodes can get information from their direct children (in stage 1) and similarly leaf nodes can get information from their connected ancestors (in stage 2).

It is worth mentioning that our graph embedding method on medical ontology is different from GRAM [Choi et al., 2017] from the following two aspects:

1. Initialization: we initialize all the node embeddings from a learnable embedding matrix, while GRAM learns them using Glove from the co-occurrence information.
2. Updating: we develop a two-step updating function for both leaf nodes and ancestor nodes; while in GRAM, only the leaf nodes are updated (as a combination of their ancestor nodes and themselves).

Visit Embedding

Similar to BERT, we use a multi-layer Transformer architecture [Vaswani et al., 2017] as our visit encoder. The model takes the ontology embedding as input and derive visit embedding vt∗ ∈ Rd for a patient at t-th visit:

where [CLS] is a special token as in BERT. It is put in the first position of each visit of type ∗ and its final state can be used as the representation of the visit. Intuitively, it is more reasonable to use Transformers as encoders (multi-head attention based architecture) than RNN or mean/sum to aggregate multiple medical embedding for visit embedding since the set of medical codes within one visit is not ordered.

It is worth noting that our Transformer encoder is different from the original one in the position embedding part. Position embedding, as an important component in Transformers and BERT, is used to encode the position and order information of each token in a sequence. However, one big difference between language sentences and EHR sequences is that the medical codes within the same visit do not generally have an order, so we remove the position embedding in our model.

4.3 Pre-training

We adapted the original BERT model to be more suitable for our data and task. In particular, we pre-train the model on each EHR visit (within both single-visit EHR sequences and multi-visit EHR sequences). We modified the input and pre-training objectives of the BERT model: (1) For the input, we built the Transformer encoder on the GNN outputs, i.e. ontology embeddings, for visit embedding. For the original EHR sequence, it means essentially we combine the GNN model with a Transformer to become a new integrated encoder. In addition, we removed the position embedding as we explained before. (2) As for the pre-training procedures, we modified the original pre-training tasks i.e., Masked LM (language model) task and Next Sentence prediction task to self-prediction task and dual-prediction task. The idea to conduct these tasks is to make the visit embedding absorb enough information about what it is made of and what it is able to predict.

Thus, for the self-prediction task, we want the visit embedding v1 ∗ to recover what it is made of, i.e., the input medical codes C t∗ for each visit as follows:

we minimize the binary cross entropy loss Ls, and in practise, Sigmoid(f(v∗)) should be transformed by applying a fully connected neural network f(·) with one hidden layer. With an analogy to the Masked LM task in BERT, we also used specific symbol [MASK] to randomly replace the original medical code c∗ ∈ C 1 ∗ . So there are 15% codes in C∗ which will be replaced randomly and the model should have the ability to predict the masked code based on others.

Likewise, for the dual-prediction task, since the visit embedding v∗ carries the information of medical codes of type ∗, we can further expect it has the ability to do more taskspecific prediction as follows:

where we use the same transformation function Sigmoid(f1(v1m)), Sigmoid(f2(v1 d )) with different weight matrix to transform the visit embedding and optimize the binary cross entropy loss Ldu expanded same as Lse in Eq. 6. This is a direct adaptation of the next sentence prediction task. In BERT, the next sentence prediction task facilitates the prediction of sentence relations, which is a common task in NLP. However, in healthcare, most predictive tasks do not have a sequence pair to classify. Instead, we are often interested in predicting unknown disease or medication codes of the sequence. For example, in medication recommendation, we want to predict multiple medications given only the diagnosis codes. Inversely, we can also predict unknown diagnosis given the medication codes.

Thus, our final pre-training optimization objective can simply be the combination of the aforementioned losses, as shown in Eq. 8. It is used to train on EHR data from all patients who only have one hospital visits..

4.4 Fine-tuning

After obtaining pre-trained visit representation for each visit, for a prediction task on a multi-visit sequence data, we aggregate all the visit embedding and add a prediction layer for the medication recommendation task. To be specific, from pre-training on all visits, we have a pre-trained Transformer encoder, which can then be used to get the visit embedding vτ∗ at time τ . The known diagnosis codes C td at the prediction time t is also represented using the same model as vt∗ . Concatenating the mean of previous diagnoses visit embeddings and medication visit embeddings, also the last diagnoses visit embedding, we built an MLP based prediction layer to predict the recommended medication codes as in Equation 9.

where W1 ∈ R|Cm|×3d is a learnable transformation matrix.

Given the true labels ˆ yt at each time stamp t, the loss function for the whole EHR sequence (i.e. a patient) is

5 Experiment

5.1 Experimental Setting

Data

We used EHR data from MIMIC-III [Johnson et al., 2016] and conducted all our experiments on a cohort where patients have more than one visit. We utilize data from patients with both single visit and multiple visits in the training dataset as pre-training data source (multi-visit data are split into visit slices). In this work, we transform the drug coding from NDC to ATC Third Level for using the ontology information. The statistics of the datasets are summarized in Table 2.

Baselines

We compared G-BERT 1 with the following baselines. All methods are implemented in PyTorch [Paszke et al., 2017] and trained on an Ubuntu 16.04 with 8GB memory and Nvidia 1080 GPU.

1. Logistic Regression (LR) is logistic regression with L1/L2 regularization. Here we represent sequential multiple medical codes by sum of multi-hot vector of each visit. Binary relevance technique [Luaces et al., 2012] is used to handle multi-label output.
2. LEAP [Zhang et al., 2017] is an instance-based medication combination recommendation method which formalizes the task in multi-instance and multi-label learning framework. It utilizes a encoder-decoder based model with attention mechanism to build complex dependency among diseases and medications.
3. RETAIN [Choi et al., 2016] makes sequential prediction of medication combination and diseases prediction based on a two-level neural attention model that detects influential past visits and clinical variables within those visits.
4. GRAM [Choi et al., 2017] injects domain knowledge (ICD9 Dx code tree) to tanh via attention mechanism.
5. GAMENet [Shang et al., 2019] is the method to recommend accuracy and safe medication based on memory neural networks and graph convolutional networks by leveraging EHR data and Drug-Drug Interaction (DDI) data source. For fair comparison, we use a variant of GAMENet without DDI knowledge and procedure codes as input renamed as GAMENet-.
6. G-BERT is our proposed model which integrated the GNN representation into Transformer-based visit encoder with pre-training on single-visit EHR data.

1 https://github.com/jshang123/G-Bert

We also evaluated 3 G-BERT variants for model ablation.

1. G-BERTG-,P -: We directly use medical embedding without ontology information as input and initialize the model's parameters without pre-training.
2. G-BERTG-: We directly use medical embedding without ontology information as input with pre-training.
3. G-BERTP -: We use ontology information to get ontology embedding as input and initialize the model's parameters without pre-training.

Metrics

To measure the prediction accuracy, we used Jaccard Similarity Score (Jaccard), Average F1 (F1) and Precision Recall AUC (PR-AUC). Jaccard is defined as the size of the intersection divided by the size of the union of ground truth set Y (k) t and predicted set ˆ Y (k) t .

where N is the number of patients in test set and Tk is the number of visits of the kth patient.

Implementation Details

We randomly divide the dataset into training, validation and testing set in a 0.6 : 0.2 : 0.2 ratio. For G-BERT, the hyperparameters are adjusted on evaluation set: (1) GAT part: input embedding dimension as 75, number of attention heads as 4; (2) BERT part: hidden dimension as 300, dimension of position-wise feed-forward networks as 300, 2 hidden layers with 4 attention heads for each layer. Specially, we alternated the pre-training with 5 epochs and fine-tuning procedure with 5 epochs for 15 times to stabilize the training procedure.

For LR, we use the grid search over typical range of hyperparameter to search the best hyperparameter values which result in L1 norm penalty with weight as 1.1. For deep learning models, we implemented RNN using a gated recurrent unit (GRU) [Cho et al., 2014] and utilize dropout with a probability of 0.4 on the output of embedding. We test several embedding choice for baseline methods and determine the dimension for medical embedding as 300 and thershold for final prediction as 0.3 for better performance. Training is done through Adam [Kingma and Ba, 2014] at learning rate 5e-4. We fix the best model on evaluation set within 100 epochs and report the performance in test set.

5.2 Results

Table. 3 compares the performance on the medication recommendation task. For variants of G-BERT, G-BERTG-,P - performs worse compared with G-BERTG- and G-BERTP - which demonstrate the effectiveness of using ontology information to get enhanced medical embedding as input and employ an unsupervised pre-training procedure on larger abundant data. Incorporating both hierarchical ontology information and pre-training procedure, the end-to-end model G-BERT has more capacity and achieve comparable results with others.

As for baseline models, LR and Leap are worse than our most basic model (G-BERTG-,P -) in terms of most metrics. Comparing G-BERTP - and GRAM, which both used medical ontology information without pre-training, the scores of our G-BERTP - is slightly higher in all metrics. This can demonstrate the validness of using Transformer encoders and the specific prediction layer for medication recommendation. Our final model G-BERT is also better than the attention based model, RETAIN, and the recently published state-of-the-art model, GAMENet. Specifically, even adding the extra information of DDI knowledge and procedure codes, GAMENet still performs worse than G-BERT.

In addition, we visualized the pre-training medical code embeddings of G-BERTG- and G-BERT to show the effectiveness of ontology embedding using online embedding projector 2 shown in (https://raw.githubusercontent.com/ jshang123/G-Bert/master/saved/tsne.png/).

6 Conclusion

In this paper we proposed a pre-training model named G-BERT for medical code representation and medication recommendation. To our best knowledge, G-BERT is the first that utilizes language model pre-training techniques in healthcare domain. It adapted BERT to the EHR data and integrated medical ontology information using graph neural networks. By additional pre-training on the EHR from patients who only have one hospital visit which are generally discarded before model training, G-BERT outperforms all baselines in prediction accuracy on medication recommendation task. One direction for the future work is to add more auxiliary and structural tasks to improve the ability of code representaion. Another direction may be to adapt our model to be suitable for even larger datasets with more heterogeneous modalities.

Acknowledgments

This work was supported by the National Science Foundation award IIS-1418511, CCF-1533768 and IIS-1838042, the National Institute of Health award 1R01MD011682-01 and R56HL138415.

2 https://projector.tensorflow.org/
