Automatic Grassland Degradation Estimation Using Deep Learning

1 Introduction

In recent years, massive grassland ecosystem has undergone degradation because of climatic variations and overgrazing, thus resulting in multifarious ecological problems, such as desertification and sandstorms [Zhan et al., 2017]. Therefore, how to estimate the stage of grassland degradation accurately is of top priority for protecting grassland ecosystem from desertification.

∗Equal Contribution

† Contact Author

The emergence of indicator plants is an important sign of grassland degradation [Zhao et al., 2004]. Many countries have successfully used specific plant species as indicators for estimating grassland degradation [Mansour et al., 2016; Mansour et al., 2012]. Our case study of degrading grassland in Qinghai-Tibet Plateau demonstrates that as the grassland degrades, the coverage of Stellera chamaejasme (SC) gradually accumulates. Thus, SC is regarded as the indicator plants for grassland degradation. Specifically, grassland would go through five degradation stages before desertification, with the coverage of SC building up in each stage [Zhao et al., 2004], as shown in Table 1. Thus, it is intuitive to estimate the grassland degradation stage based on the coverage of SC. However, existing methods rely heavily on observations of human eyes and manual labor, thus leading to subjective results and high labor costs, which is undesirable in practice. Consequently, there is an urgent need for developing an effective and efficient method to automatically estimate the grassland degradation stage without human any interactions.

To do this, we attempt to leverage deep learning to calculate automatically the coverage of SC in real-world grassland images based on a semantic segmentation algorithm, and then estimate the stage of grassland degradation by the coverage of SC based on the results of recognition. Many challenges stand in the way of achieving an automatic estimation of degradation. First, existing public datasets [Mottaghi et al., 2014; Cordts et al., 2016; Caesar et al., 2018; Ros et al., 2016] contain substantially insufficient grassland images and thus fail to provide us with enough samples to train the network. In addition, the aerial or satellite images used in the studies of remote sensing and environmental sciences [Wang et al., 2018] are not high-resolution enough to capture such a tiny target as SC.Moreover, due to the particularity of the grassland scene, capturing images with semantic class imbalance is inevitable. Finally, existing semantic segmentation networks cannot handle directly the complex task with these challenges.

To this end, we first design a deep neural network to implement semantic segmentation that could accurately segment the foreground (SC) from the background (grassland and other elements in a grassland scene) of the grassland image at the pixel level. Aiming at the problem of sample insufficiency, we create a labeled dataset for automatic grassland degradation estimation with ground-level grassland images captured from Qinghai-Tibet Plateau. To alleviate the problem of class imbalance, we combine the advantages of reducing the class imbalance in Focal Loss [Lin et al., 2017] and increasing class distance in smoothed Hinge loss [Rennie and Srebro, 2005], and propose an original Focal-Hinge loss function. Next, we calculate the coverage of SC in the grassland area through the analysis of the results from semantic segmentation of grassland images and accordingly determine the degradation stage according to the relationship between stage and coverage (Table 1).

Through these two steps, we manage to automatically estimate grassland degradation based on deep learning. To the best of our knowledge, we are the first to leverage deep learning techniques to solve ecological problems regarding grassland ecosystem. To be more specific, we propose a brand new scheme for grassland degradation estimation using semantic segmentation by a deep neural network. Moreover, we design a Focal-Hinge loss function to train the proposed network for addressing the problem of class imbalance. Experiments of our scheme on the Automatic Grassland Degradation Estimation Dataset (AGDE-Dataset) are carried out and reveal satisfying estimation results, which substantiate the feasibility and prospect to solve the problem of automating grassland degradation estimation leveraging deep learning.

2 RelatedWork

2.1 Plant Identification

Image-based plant identification is one of the most promising solutions towards furthering botanical taxonomy, as illustrated by the wealth of research regarding this topic [Cerutti et al., 2011; Kebapci et al., 2011; Go¨eau et al., 2016].

Although we need to identify indicator plants for grassland degradation, our task is much more demanding. First, the deep learning-based plant recognition of these researches are more of image classification. However, in our task concerning automatic grassland degradation estimation, we also need to tell the spatial information like the locations and areas of them in an image. In addition, these algorithms only recognize plants in an image with discernible plants and background. However, the indicator plants often lurk in the vast expanse of grassland, making themselves indistinguishable in an grassland image.

With this regard, to precisely figure out the proportion of the indicator plants in an image, we propose a semantic segmentation methodology.

2.2 Plant Density Estimation

In recent years, there has been a lot of research into plant density estimation based on image processing [Liu et al., 2017a; Liu et al., 2017b; Jin et al., 2017]. For example, [Liu et al., 2017b] takes wheat plant images by a high-resolution RGB camera and train Artificial Neural Networks with 10 manually extracted features to estimate the number of plants. [Jin et al., 2017] captures images by a UAV and train a Support Vector Machine with 13 hand-crafted features to identify wheat plant.

In fact, plant density estimation entails the quantification of the plant within a given unit area, which is highly biased by plant distribution. However, plant coverage refers to a relative area covered by the plant species in a plot, the calculation of which is more complex than that of quantification, since the area would not necessarily scale with the quantity of plant. In addition, both [Liu et al., 2017b] and [Jin et al., 2017] treat the density estimation problem as object classification, which might work with manually extracted features. In contrast, our task is based on semantic segmentation, where hand-engineered features are not feasible, so we automatically extract features with the designed deep network.

2.3 Semantic Segmentation

Semantic segmentation necessitates object classification at the pixel level. Recently, there are many fabulous semantic segmentation models such as FCN [Long et al., 2015], SegNet [Badrinarayanan et al., 2017], DeepLab-v3 [Chen et al., 2018a], PSPNet [Zhao et al., 2017] and etc. Leong first proposed Fully Convolutional Networks (FCN) [Long et al., 2015] that is a convolutional network for dense prediction without a fully-connected layer. This model makes it possible to segment images at any size effectively, and it is much faster than traditional methods based on patch classification. However, an obtrusive problem using convolutional neural networks for semantic segmentation is that pooling layers enlarge the receptive field, aggregating contextual information while discarding location information. Therefore, in order to solve this problem, an encoder-decoder architecture is devised. The encoder gradually reduces the spatial dimensions by pooling layers, while the decoder restores the target details and spatial dimensions step by step. Among such architectures, U-Net [Ronneberger et al., 2015] is a very efficient one, whose semantic segmentation model employs the architecture of encoder-decoder based on a fully convolutional neural network. At present, semantic segmentation is widely applied to the geographic information system, unmanned vehicles [Menze and Geiger, 2015], medical image analysis [Zhang et al., 2017], robots and etc. Endowed with the power of the designed encoder-decoder deep network, we manage to figure the coverage of the indicator plants in grassland images by the results of semantic segmentation.

3 The AGDE-Dataset

Since existing open image datasets contain inadequate grassland images, and even fewer datasets would cover SC images, we create a labeled dataset - Automatic Grassland Degradation Estimation Dataset (AGDE-Dataset).

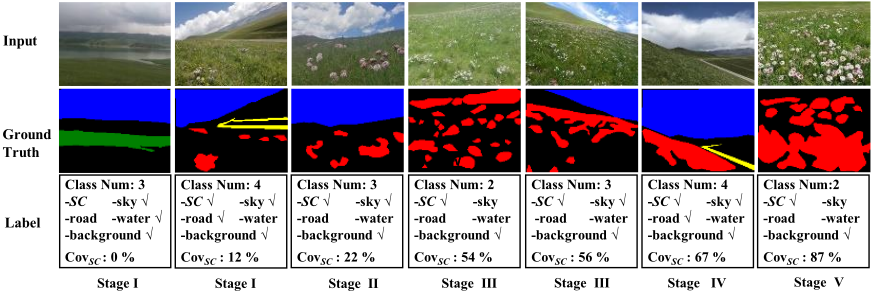

First of all, we capture a large number of images from grasslands on the Qinghai-Tibet Plateau, from which we sift 2,895 images and scale them down. The sizes of the resized images range from 5KB to 38KB.

Next, we manually label pixels belonging to each of the five semantic categories - grassland (background), SC, sky, water, and road - for every image with an open annotation tool - LabelMe [Russell et al., 2008]. Due to the limitation on the plateau, there are inevitably quantitative differences in different semantic categories in the dataset. The number of these five semantic categories are 2,895, 2,888, 156, 48 and 32 respectively. In addition, the degradation stage for each image in AGDE-Dataset is labeled according to the coverage of SC (Table 1) by calculating the proportion of the area of SC in images, which will be articulated in Section 4.2. We show several labeled examples of our dataset in Figure 1.

Finally, we randomly divide the dataset into a training set and a test set in the ratio of 2,095:800, which is detailed in Table 2. All these RGB images are eventually padded to the resolution of 256×341. Although the dataset is not very big, the amount of the training set is enough for our network training.

4 ProposedMethod

We address the problem of automatic grassland degradation stage estimation following two steps: 1) semantic segmentation: designing a deep network to implement semantic segmentation for grassland images, and training it using the proposed novel Focal-Hinge loss function; 2) degradation estimation: figuring out the coverage of SC according to the semantic segmentation results and further estimating the degradation stage of grassland.

4.1 Semantic Segmentation for Grassland Scene Network Architecture

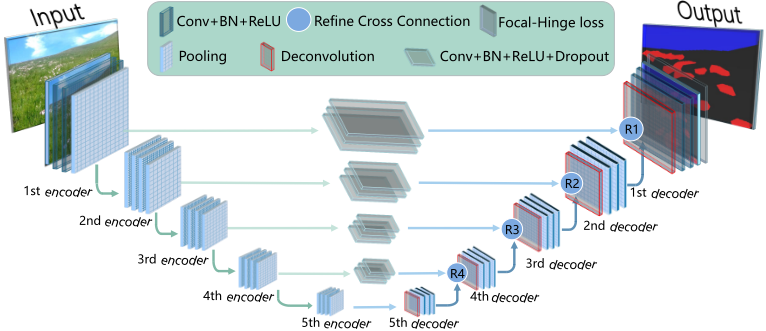

The proposed network is based on the classic encoderdecoder network architecture without the fully-connected layers [Badrinarayanan et al., 2017] and we improve it by adding the refined cross connections as shown in Figure 2.

The encoder network consists of 5 encoder convolution groups. Each encoder in the encoder network contains several Convolution, Batch Normalization, and ReLU (Conv + BN + ReLU) layers with stride 1. Following that, max pooling with a 2×2 kernel and stride 2 (non-overlapping window) is performed. Therefore, the input image is totally down-sampled 2 5 (32) times through the encoder network. Symmetrically, the decoder network also contains 5 decoder up-sampling groups. Each decoder contains 1 deconvolution layer and 3 Conv + BN + ReLU layers with stride 1. The 5 decoders upsample the last encoder to 32 times, so the size of the entire network output is equal to that of the input image.

In addition, in order to enrich the representation of the encoder, we connect symmetrically the feature maps of the decoder layers to the encoder layers by refined convolution groups. For example, the feature maps of the 4th encoder are connected to the 5th decoder by the 4th refined cross connection unit, and the feature maps of the 1st encoder are connected to the 2nd decoder by the 1st refined cross connection unit. The cross connections utilize low-level features and prevent gradient disappearance in the underlying gradient. Each of refined convolution groups contains 3 Convolution layers, Batch Normalization, ReLU, and Dropout (Conv + BN + ReLU + Dropout) layers with stride 1 [He et al., 2016], which is similar to that in DenseNet [Huang et al., 2017].

Training

We train the network on AGDE-Dataset (Section 3). However, we face the challenge of the segmentation of the 5 imbalanced classes - SC, sky, road, water, and background, with SC predominating. The problem of class imbalance is very common in semantic segmentation. In order to alleviate this problem, we devise a novel loss function - Focal-Hinge loss as the objective function for training the network.

Focal-Hinge Loss

The following of this subsection details how the loss function is derived.

First, in order to classify each pixel in an image, we consider the Cross Entropy loss with a sigmoid activation function

where ypix is a heatmap pixel value of the network output, and pt(ypix) is the probability of ground truth class. The Cross Entropy loss is represented as

However, CE(pt) with sigmoid is not capable of correctly classifying some pixels into the minority semantic classes in the training set, due to the class imbalance problem faced by many classic semantic segmentation models [Long et al., 2015; Huang et al., 2015; He et al., 2017]. Considering class imbalance and easy sample overwhelming, we substitute the classic Cross Entropy loss with a new Focal Loss [Lin et al., 2017] to reduce the weight of easy samples. In this way, during the training process, the model focuses more on hard samples. Focal Loss is represented as

where g is a focusing parameter. If g >0, the relative loss for correctly-classified examples (pt > 0.5) would decrease.

Nevertheless, we find that although FL(pt ) with sigmoid in Eq. (3) alleviates the problem of the easy sample overwhelming, the scoring on hard samples is still far from satisfying because the scores of two classes are too close to each other. In other words, the boundaries of segmentation results are not clear-cut, with one class mixed with another. In this regard, naturally, we would consider the smoothed Hinge loss [Rennie and Srebro, 2005], as shown in Eq. (4), which is always utilized in maximizing the classification interval in SVM, to make the final score more discriminative.

where t stands for the ground truth class to which ypix corresponds.

Nonetheless, the smoothed Hinge loss itself does not tackle the problem of class imbalance. Therefore, considering these two problems - insufficient class distance and class imbalance, we propose a Focal-Hinge loss (FH) as

where Nt(1- pt)g represents the FL with a sigmoid activation function, and Nt denotes the reciprocal of the number of classes t in one image, and g denotes the hyper-parameter. FH is the combination of FL with sigmoid and smoothed HL. On the one hand, for the part of FL with sigmoid, the network output can be normalized to [0,1], so that the classes with more samples can receive a severer penalty based on the probability. On the other hand, the use of smoothed HL ensures that a larger score distance is obtained. We experimentally substantiate the effectiveness of proposed FH compared with CE and FL with sigmoid for alleviating class imbalance in Section 5.1.

The back propagation gradient of Focal-Hinge loss (FH) is

where pt represents the function pt(ypix). With this brand new loss function, we manage to alleviate the effect of class imbalance while keeping the distance between different classes large enough.

4.2 Estimating Grassland Degradation Stage

Inputting a grassland image x into the fully trained deep network, the output image y with the results of semantic segmentation is obtained. However, to finish the grassland degradation stage estimation, we further process the image semantic segmentation results. First, we calculate the coverage of SC in grassland images. Second, we estimate the grassland degradation stage according to the corresponding relationship between the coverage and the stage (Table 1).

Define of the Coverage of SC

There are totally 5 semantic categories: background, SC, sky, water, and road in AGDE-Dataset. To obtain the coverage of SC (CvgSC), we calculate the proportion of the areas of SC and grassland background in one image, which is represented as

where ASC denotes the area of SC in the image and Aim denotes the area of the entire image. The areas of sky, road, and water are represented by As, Ar, and Aw respectively. The denominator (Aim-As -Ar -Aw) stands for the area of grassland background. Given the semantic segmentation results, ASC, As, Ar, and Aw are obtained easily by quantifying pixels in an image. Thus, we could acquire the CvgSC on the grassland by Eq. (7).

Estimation of Degradation Stage

We construct a mapping relationship between SC coverage and the degradation stage (Table 1) [Zhao et al., 2004] to obtain the degradation estimation. In this way, we accomplish the automatic estimation of grassland degradation stage leveraging deep learning.

5 Experiments

In order to demonstrate the effectiveness of our proposed scheme, we evaluate the results from two aspects. First, we evaluate the performance of semantic segmentation. To be more specific, we compare the Focal-Hinge loss function with several other loss functions. In addition, we also showcase the competence of our network with comparison to other classic semantic segmentation networks - FCN [Long et al., 2015], SegNet [Badrinarayanan et al., 2017], and DeepLabV3 [Chen et al., 2018b]. Second, to test the performance of our scheme on grassland degradation stage estimation, we show its success rate on stage estimation.

5.1 Evaluation of Semantic Segmentation

Implementation Details and Evaluation Criteria

We set the parameters of networks - FCN-8s, FCN-16s, FCN32s, SegNet, and DeepLab-v3 - according to that specified in their original papers. Besides, g in Eq. (5) and Eq. (6) are set to 2. The size of the input images is padded to 256×341, which is the largest size of images in the dataset all experiments are conducted on a GTX1080Ti. More detailed experimental parameters are specified in Supplementary Materials.

The evaluation metrics are the Pixel Accuracy (PA), Mean Pixel Accuracy (MPA), Intersection over Union (IoU) and Mean Intersection over Union (MIoU).

Evaluation of Focal-Hinge Loss

Under the same conditions, using the proposed network, we juxtapose our Focal-Hinge loss with the baseline ones: Sigmoid + Cross Entropy loss (CE) and Sigmoid + Focal Loss (FL). The evaluation results are shown in Table 3. We can see that the Focal-Hinge loss (FH) achieves remarkably better performance, in terms of MPA and MIoU. It is notable that FH achieves satisfactory results on minority semantics.

Therefore, the results demonstrate that Focal-Hinge loss function outperforms other losses in semantic segmentation of grassland images and effectively alleviates the problem of class imbalance.

Evaluation of the proposed network

Employing the Focal-Hinge loss, we further compare the semantic segmentation performance of our network with that of FCN-32s, FCN-16s, FCN-8s [Long et al., 2015], SegNet [Badrinarayanan et al., 2017], and DeepLab-v3 [Chen et al., 2018b]. The evaluation results are shown in Table 4. Results show that our network, designed with a lighter structure, outperforms other networks. In addition, the proposed method outperforms FCN and SegNet on minority semantics (road and water).

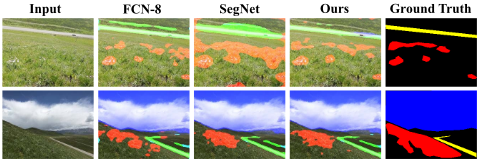

The visual results are displayed in Figure 3. From the results, we can see that our method outperforms other deep networks, especially on minority semantics.

5.2 Evaluation of Degradation Stage Estimation

We evaluate the performance of grassland degradation estimation on the test set of AGDE-Dataset, which covers 800 images with 5 degradation stages (Table 2). The success rate d i c in each stage i is calculated by the ratio of the number of correctly estimated images N i c to the total number of images N i t in the stage:

Accordingly, the error rate d i j e of our scheme in each stage i mistaken as stage j is calculated by:

where N i j e represents the number of images in stage i mistaken as stage j, and N i t -N i c represents the total number of mistaken images of stage i. The success rates and error rates of the test set of AGDE-Dataset are shown in Table 5, from which we can see that the success rates on each degradation stage are remarkably satisfactory and the main error estimations tend to occur in two adjacent stages.

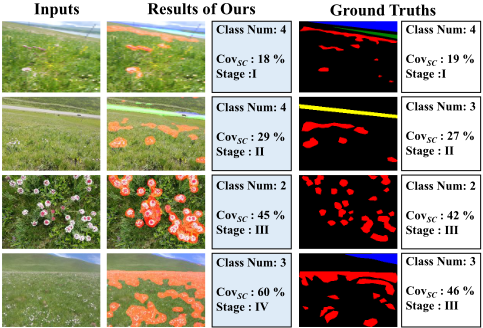

The visual results of automatic grassland degradation estimation are shown in Figure 4. We can see that the segmentation results and predicted stage label approximate the ground truth.

6 Discussion and FutureWork

The main contribution of this paper is to provide a scheme to achieve automatic grassland degradation estimation leveraging deep learning. Specifically, we design a deep network especially for semantic segmentation of grassland images. In addition, due to the insufficiency of grassland image samples in public datasets, we capture a large number of grassland images and build a labeled grassland dataset named AGDEDataset. Moreover, as for the problem of class imbalance in the dataset, we devise a new Focal-Hinge loss function. Then we calculate the coverage of indicator plants for degradation using the results of semantic segmentation of grassland images and accordingly determine the degradation stage by the mapping of between coverage and stage. Experimental results on AGDE-Dataset indicate that the proposed deep learning based method achieves an remarkably satisfactory result regarding automatic grassland degradation estimation. We hope that our model will be embraced at early date by grassland preservers on automatic estimation of grassland degradation stage.
