Learning Relational Representations with Auto-encoding Logic Programs

1 Introduction

Deep representation learning (DL) [Goodfellow et al., 2016] has proven itself to be an important tool for modern-day machine learning (ML): it simplifies the learning task through a series of data transformation steps that define a new feature space (so-called latent representation) making data regularities more explicit. Yet, DL progress has mainly focused on learning representations for classifiers recognising patterns in sensory data, including computer vision and natural language processing, having a limited impact on representations aiding automated reasoning. Learning such reasoning systems falls under the scope of Statistical Relational Learning (SRL) [Getoor and Taskar, 2007], which combines knowledge representation capabilities of first-order logic with probability theory and hence express both complex relational structures and uncertainty in data. The main benefit of SRL models, that most ML methods lack, is the ability to (1) operate on any kind of data (feature vectors, graphs, time series) using the same learning and reasoning principles, and (2) perform complex chains of reasoning and answer questions about any part of a domain (instead of one pre-defined concept).

∗Contact Author

1 Supplementary material: https://arxiv.org/abs/1903.12577

Recent years have yielded various adaptations of standard neural DL models towards reasoning with relational data, namely Knowledge graph embeddings [Nickel et al., 2016] and Graph neural networks [Kipf and Welling, 2017; Hamilton et al., 2017]. These approaches aim to re-represent relational data in vectorised Euclidean spaces, on top of which feature-based machine learning methods can be used. Though this offers good learning capabilities, it sacrifices the flexibility of reasoning [Trouillon et al., 2019] and can only approximate relational data, but not capture it in its entirety.

This work proposes a framework that unites the benefits of both the SRL and the DL research directions. We start with the question:

Is it possible to learn latent representations of relational data that improve the performance of SRL models, such that the reasoning capabilities are preserved?

Retaining logic as a representation language for latent representations is crucial in achieving this goal, as retaining it inherits the reasoning capabilities. Moreover, it offers additional benefits. Logic is easy to understand and interpret (while DL is black-box), which is important for trust in AI systems. Furthermore, SRL methods allow for incorporation of expert knowledge and thus can easily build on previously gathered knowledge. Finally, SRL systems are capable of learning from a few examples only, which is in sharp contrast to typically data-hungry DL methods.

We revisit the basic principles of relational representation learning and introduce a novel framework to learn latent representations based on symbolic, rather than gradient-based computation. The proposed framework implements the autoencoder principle [Hinton and Salakhutdinov, 2006] - one of the most versatile deep learning components - but uses logic programs as a computation engine instead of (deep) neural networks. For this reason, we name our approach Auto-encoding logic programs (Alps).

Alongside the formalism of Alps, we contribute a generic procedure to learn Alps from data. The procedure translates the learning task to a constraint optimisation problem for which existing efficient solvers can be used. In contrast to neural approaches, where the user has to provide the architecture beforehand (e.g., a number of neurons per layer) and tune many hyper-parameters, the output of Alps is an architecture, a relational one, in itself. Notably, we show that the learned latent representations help with learning SRL models afterwards: SRL models learned on the latent representation outperform the models learned on the original data representation.

2 Auto-encoding Logic Programs

Auto-encoders learn new representations through the reconstruction principle: the goal is to learn an encoder, mapping the input data to its latent representation, and a decoder, mapping the latent representation back to the original space so that the input data can be faithfully reconstructed. For a latent representation to be useful, it is important to prevent it from learning an identity mapping - often done by limiting the dimensionality and/or enforcing sparsity.

In neural auto-encoders, data is represented with vectors and mapping functions are matrices. Our goal is, intuitively, to lift the framework of auto-encoders to use first-order logic as a data representation language, and logic programs as mapping functions of encoder and decoder (Figure 1). In the following paragraphs, we describe the basic components of Alps.

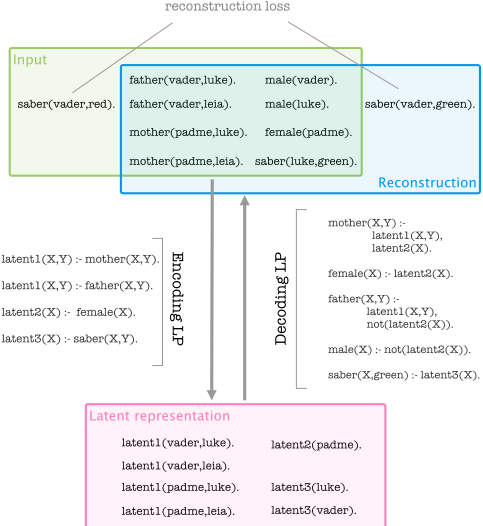

Data. To handle arbitrary relational data, Alps represent data as a set of logical statements, such as father(vader,luke) (Figure 1, Input). These statements consist of constants representing the entities in a domain (e.g., vader, luke) and predicates indicating the relationships between entities (e.g., father). A ground atom is a predicate symbol applied to constants (e.g., father(vader,luke)); if an atom evaluates to true, it represents a fact. Given a set of predicates P and a set of constants C (briefly, a vocabulary (P, C) ), the Herbrand base HB(P, C) is the set of all atoms that can be constructed using P and C. A knowledge base is a subset of the Herbrand base; it contains all the atoms that evaluate to true.

Mapping functions. The mapping functions of both encoder and decoder are realised as logic programs. A logic program is a set of clauses - logical formulas of the form h :- b1,. . . ,bn , where h is called the head literal and bi are body literals (comma denotes conjunction). A literal is an atom or its negation. Literals can contain variables as arguments; these are by definition universally quantified. Given a vocabulary (P, C), we call a literal a (P, C)-literal if its predicate is in P and its argument are constants in C or variables. Clauses are read as logical implications; e.g., the clause mother(X,Y) :- parent(X,Y),female(X) states that for all X and Y , X is a mother of Y if X is a parent of Y and X is female.

Encoding program. Given an input vocabulary (P, C), an encoding logic program E (Fig. 1 middle left) is a set of clauses with (P, C)-literals in the body and a positive (L, C)- literal in the head, where L is a set of predicates that is disjoint with P and is extended by the learner as needed. E takes as input a knowledge base KB ⊆ HB(P, C) and produces as output a latent representation KB′ ⊆ HB(L, C), more specifically the set of all facts that are implied by E and KB.

Decoding program. A decoding logic programD similarly maps a subset of HB(L, C) back to a subset of HB(P, C). Its clauses are termed decoder clauses; they contain (L, C) literals in the body and a positive (P, C)-literal in the head.

Alps. Given encoding and decoding logic programs E andD, their composition D ◦ E is called an auto-encoding logic program (Alp). An Alp is lossless if for any KB, D(E(KB)) = KB. In this paper, we measure the quality of Alps using the following loss function:

Definition 1 Knowledge base reconstruction loss. The knowledge base reconstruction loss (the disagreement between the input and the reconstruction), loss(E,D,KB), is defined as

where ∆ is the symmetric difference between two sets.

3 Learning as Constraint Optimisation

With the main components of Alps defined in the previous section, we define the learning task as follows:

Definition 2 Given a knowledge base KB and constraints on the latent representation, find E and D that minimise loss(E,D,KB) and E(KB) fulfils the constraints.

The constraints on the latent representation prevent it from learning an identity mapping. For example, enforcing sparsity by requiring that the E(KB) has at most N facts. We formally define these constraints later.

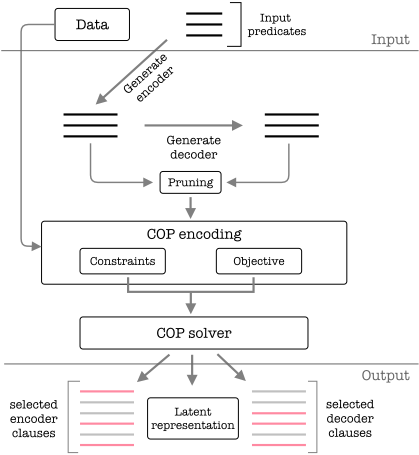

Intuitively, learning Alps corresponds to a search for a well-performing combination of encoder and decoder clauses. That is, out of a set of possible encoder and decoder clauses, select a subset that minimises the reconstruction loss. To find this subset, we introduce a learning method inspired by the enumerative and constraint solving techniques from program induction [Gulwani et al., 2017] (illustrated in Figure 2). Given a KB and predicates P, we first enumerate possible encoder clauses. These clauses define a set of candidate latent predicates L which are subsequently used to generate candidate decoder clauses. The obtained sets, which define the space of candidate clauses to choose from, are then pruned and used to formulate the learning task as a generic constraint optimisation problem (COP) [Rossi et al., 2006]. Such a COP formulation allows us to tackle problems with an extremely large search space and leverage existing efficient solvers. The COP is solved using the Oscar solver 2 . The resulting solution is a subset of the candidate encoder and decoder clauses that constitute an Alp.

A COP consists of three components: decision variables whose values have to be assigned, constraints on decision variables, and an objective function over the decision variables that expresses the quality of the assignment. A solution consists of a value assignment to the decision variables such that all constraints are satisfied. In the following sections, we describe each of these components for learning Alps.

3.1 Decision Variables: Candidate Clauses

The COP will have one Boolean decision variable eci for each generated candidate encoder clause, and a Boolean decision variable dci for each generated candidate decoder clause, indicating whether a clause is selected (having the value 1) or not (having value 0).

To generate the candidate encoder clauses, we start from the predicates in the input data and generate all possible bodies (conjunctions or disjunctions of input predicates with logic variables as entities) up to a given maximum length l. Furthermore, we enforce that the predicates share at least one logic variable, e.g. p1(X, Y ), p2(Y, Z) is allowed while p1(X, Y ), p2(Z,W) is not. For each possible body, we then define a new latent predicate that will form the head of the clause. This requires deciding which variables from the body to use in the head. We generate all heads that use a subset of variables, with the maximal size of the subset equal to the maximum number of arguments of predicates P. Candidate decoder clauses are generated in the same way, but starting from the predicates L.

3.2 Constraints

Bottleneck Constraint

The primary role of constraints in Alps is to impose a bottleneck on the capacity of the latent representation; this is the key ingredient in preventing the auto-encoder from learning the identity mapping as E and D. This is often done by enforcing compression in the latent representation, sparsity or both.

2 https://bitbucket.org/oscarlib/oscar/wiki/Home

The straightforward way of imposing compression in Alps is to limit the number of facts in the latent representation. Preliminary experiments showed this to be a very restrictive setting. In Alps we impose the bottleneck by limiting the average number of facts per latent predicate through the following constraint

where eci are decision variables corresponding to the encoder clauses, wi is the number of latent facts the encoder clause eci entails, G is the average number of facts per predicate in the original data representation and γ is the compression parameter specified by the user. For example, in Figure 1, G = 9/5 and w = 4 for latent1(X,Y) :- mother(X,Y); father(X,Y) .

Semantic Constraints

The secondary role of constraints is to impose additional structure to the search space, which can substantially speed up the search. The following set of constraints reduces the search space by removing undesirable and redundant solutions 3 . These constraints are automatically generated and do not require input from the user.

Connecting encoder and decoder. A large part of the search space can be cut out by noticing that the encoder clauses deterministically depend on the decoder clauses. For instance, if a decoder clause mother(X,Y) :- latent1(X,Y),latent2(X) is selected in the solution, then the encoder clauses defining the latent predicates latent1 and latent2 have to be selected as well. Consequently, encoder clauses are implied by decoded clauses and search only has to happen over candidate decoder clauses. The implication is modelled with a constraint ensuring that the final solution must contain an encoder clause defining a predicate l if the solution contains at least one of the decoder clauses that use l in the body.

3 Exact constraint formulations are in the supplementary material

Generality. Given the limited capacity of the latent representation, it is desirable to prevent the solver from ever exploring regions where clauses are too similar and thus yielding a marginal gain. One way to establish the similarity of clauses is to analyse the ground atoms the clauses cover: a clause c1 is said to be more general than a clause c2 if all examples entailed by c2 are also entailed by c1. As c2 cannot bring new information if c1 is already a part of the solution, we introduce constraints ensuring that if a clause c1 is more general than a clause c2, at most one of them can be selected.

Reconstruct one of each input predicates. If KB contains a predicate with a substantially larger number of facts than the other predicates in KB, a trivial but undesirable solution is one that focuses on reconstructing the predicate and its facts while ignoring the predicates with a smaller number of facts. To prevent this, we impose the constraints ensuring that among all decoder clauses with the same input predicate in the head, at least one has to be a part of the solution. This, of course, does not mean all facts of each input predicate will be reconstructed. We did notice that this constraint allows the solver to find a good solution substantially faster.

3.3 Objective Function: The Reconstruction Loss

We wish to formulate the objective over all missing (in KB but not being reconstructed) and false reconstructions (produced by the decoder, but not in KB). To do so, we first obtain a union of latent facts generated by each of the candidate encoder clauses; these are a subset of HB(L, C). These latent facts allow us to obtain a union of all ground atoms generated by the candidate decoder clauses; these form a reconstruction and are a subset of HB(P, C). Additionally, for each ground atom in the reconstruction, we remember which candidate decoder clause reconstructed it.

We hence use the above correspondence between the candidate decoder clauses and the reconstructions to create an auxiliary Boolean decision variable rfi for each possible ground atom in HB(P, C) that can be reconstructed. Whether it is reconstructed or not depends on the decoder clauses that are in the solution.

For example, assume that mother(padme,leia) can be reconstructed with either of the following decoder clauses:

Let the two decoder clauses correspond to the decision variables dc1 and dc2. We introduce rfi to represent the reconstruction of fact mother(padme,leia) and add a constraint

Associating such boolean variable rfe with every e ∈ HB(P, C), we can formulate the objective as

3.4 Search

Given the combinatorial nature of Alps, finding the optimal solution exactly is impossible in all but the smallest problem instances. Therefore, we resort to the more scalable technique of large neighbourhood search (LNS) [Ahuja et al., 2002]. LNS is an iterative search procedure that, in each iteration, performs the exact search over a subset of decision variables. This subset of variables is called the neighbourhood and it is constructed around the best solution found in the previous iterations.

A key design choice in LNS is the construction of the neighbourhood. The key insight of our strategy is that the solution is necessarily sparse - only a tiny proportion of candidate decoder clauses will constitute the solution at any time. Therefore, it is important to preserve at least some of the selected decoder clauses between the iterations. Let a variable be active if it is part of the best solution found so far, and inactive otherwise. We construct the neighbourhood by remembering the value assignment of α % active variables (corresponding to decoder clauses), and β % inactive variables corresponding to encoder clauses. For the individual search runs, we use last conflict search [Gay et al., 2015] and the max degree ordering of decision variables.

3.5 Pruning the Candidates

As the candidate clauses are generated naively, many candidates will be uninformative and introduce mostly false reconstructions. It is therefore important to help the search by pruning the set of candidates in an insightful and non-trivial way. We introduce the following three strategies that leverage the specific properties of the problem at hand.

Naming variants. Two encoder clauses are naming variants if and only if they reconstructed the same set of ground atoms, apart from the name of the predicate of these ground atoms. As such clauses contain the same information w.r.t. the constants they contain, we detect all naming variants and keep only one instance as a candidate.

Signature variants. Two decoder clauses are signature variants if and only if they reconstructed the same set of ground atoms and their bodies contain the same predicates. As signature variants are redundant w.r.t. the optimisation problem, we keep only one of the clauses detected to be signature variants and remove the rest.

Corruption level. We define the corruption level of a decoder clause as a proportion of the false reconstructions in the ground atoms reconstructed by the decoder clause. This turns out to be an important notion: if the corruption level of a decoder clause is greater than 0.5 then the decoder clause cannot improve the objective function as it introduces more false than true reconstructions. We remove the candidate clauses that have a corruption level ≥ 0.5.

These strategies are very effective: applying all three of them during the experiments has cut out more than 50 % of candidate clauses.

4 Experiments and Results

The experiments aim at answering the following question:

Q: Does learning from latent representations created by Alps improve the performance of an SRL model?

We focus on learning generative SRL models, specifically generative Markov Logic Networks (MLN) [Richardson and Domingos, 2006]. The task of generative learning consists of learning a single model capable of answering queries about any part of a domain (i.e., any predicate). Learning an SRL model consists of searching for a set of logical formulas that will be used to answer the queries. Therefore, we are interested in whether learning the structure of a generative model in latent space, and decoding it back to the original space, is more effective than learning the model in the original data space.

We focus on this task primarily because no other representation learning method can address this task. For instance, embeddings vectorise the relational data and thus cannot capture the generative process behind it, nor do they support conditioning on evidence.

The deterministic logical mapping of Alps might seem in contrast with the probabilistic relational approaches of SRL. However, that is not the case as the majority of SRL approaches consider data to be deterministic and express the uncertainty through the probabilistic model.

Procedure. We divide the data in training, validation and test sets respecting the originally provided splits. The models are learned on the training set, their hyper-parameters tuned on the validation set (in the case of Alps) and tested on the test set. This evaluation procedure is standard in DL, as full cross-validation is infeasible. We report both AUC-PR and AUC-ROC results for completeness; note, however, that the AUC-PR is the more relevant measure as it is less sensitive to class imbalance [Davis and Goadrich, 2006], which is the case with the datasets we use in the experiments. We evaluate the MLNs in a standard way: we query facts regarding one specific predicate given everything else as evidence and repeat it for each predicate in the test interpretation.

Models. We are interested in whether we can obtain better SRL models by learning from the latent data representation. Therefore, we compare the performance of an MLN learned on the original representation (the baseline MLN) and an MLN learned on the latent representation (the latent MLN) resulting from Alps. To allow the comparison between the latent and the baseline MLNs, once the latent MLN is learned we add the corresponding decoder clauses as deterministic rules. This ensures that the baseline and latent MLNs operate in the same space when being evaluated.

Learner. Both the baseline and the latentMLNs are obtained by the BUSL learner [Mihalkova and Mooney, 2007]. We have experimented with more recent MLN learner LSM [Kok and Domingos, 2010], but tuning its hyper-parameters proved challenging and we could not get reliable results. Note that our main contribution is a method for learning Alps and subsequently the latent representation of data, not the structure of an MLN; MLNs are learned on the latent representation created by Alps. Therefore, the exact choice of an MLN learner is not important, but whether latent representation enables the learner to learn a better model is.

Practical considerations. We limit the expressivity of MLN models to formulas of length 3 with at most 3 variables (also known as a liftable class of MLNs). This does not sacrifice the predictive performance of MLNs, as shown by Van Haaren et al. [2016]. Imposing this restriction allows us to better quantify the contribution of latent representations: given a restricted language of the same complexity if the latent MLN performs better that is clear evidence of the benefit of latent representations. The important difference when performing inference with a latent MLN is that each latent predicate that could have been affected by the removal of the test predicate (i.e., the test predicate is present in the body of the encoder clause defining the specific latent predicate). Hence it has to be declared open world, otherwise, MLNs will assume that all atoms not present in the database are false.

Alps hyper-parameters. As with standard auto-encoders, the hyper-parameters of Alps allow a user to tune the latent representation to its needs. To this end, the hyper-parameters pose a trade-off between the expressivity and efficiency. When learning latent representations, we vary the length of the encoder and decoder clauses separately in {2, 3} and the compression level (the α parameter) in {0.3, 0.5, 0.7}.

Data. We use standard SRL benchmark datasets often used with MLN learners: Cora-ER, WebKB, UWCSE and IMDB. The descriptions of the datasets are available in [Mihalkova and Mooney, 2007; Kok and Domingos, 2010], while the datasets are available on the Alchemy website 4 .

4.1 Results

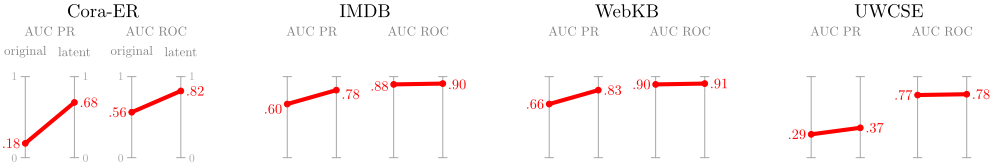

The results (Figure 3) indicate that BUSL is able to learn better models from the latent representations. We observe an improved performance, in terms of the AUC-PR score, of the latent MLN on all datasets. The biggest improvement is observed on the Cora-ER dataset: the latent MLN achieves a score of 0.68, whereas the baseline MLN achieves a score of 0.18. The IMDB and WebKB datasets experience smaller but still considerable improvements: the latent MLNs improve the AUC-PR scores by approximately 0.18 points. Finally, a more moderate improvement is observed on the UWCSE dataset: the latent MLN improves the performance for 0.09 points.

These results indicate that latent representations are a useful tool for relational learning. The latent predicates capture the data dependencies more explicitly than the original data representation and thus can, potentially largely, improve the performance. This is most evident on the Cora-ER dataset. To successfully solve the task, a learner has to identify complex dependencies such as two publications that have a similar title, the same authors and are published at the same venue are identical. Such complex clauses are impossible to express with only three predicates; consequently, the baseline MLN achieves a score of 0.18. However, the latent representation makes these pattern more explicit and the latent MLN performs much better, achieving the score of 0.68.

Neural representation learning methods are sensitive to the hyper-parameter setup, which tend to be domain dependent.

4 http://alchemy.cs.washington.edu/

0

0

0

0

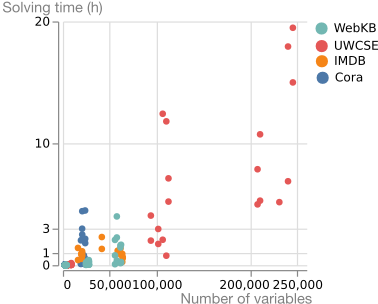

Figure 4: Relationship between runtimes and the number of variables.

We have noticed similar behaviour with Alps by inspecting the performance on the validation set (details in the supplement). The optimal parameters can be selected, as we have shown, on a validation set with a rather small grid as Alps have only three hyper-parameters.

Runtime. Figure 4 summarises the time needed for learning a latent representation. These timings show that, despite their combinatorial nature, Alps are quite efficient: the majority of latent representations is learned within an hour, and a very few taking more than 10 hours (this excludes the time needed for encoding the problem to COP, as we did not optimise that step). In contrast, inference with MLN takes substantially longer time and was the most time-consuming part of the experiments. Moreover, the best result on each dataset (Figure 3) is rarely achieved with the latent representation with the most expressive Alp, which are the runs that take the longest.

5 RelatedWork

The most prominent paradigm in merging SRL and DL are (knowledge) graph embeddings [Nickel et al., 2016; Hamilton et al., 2017]. In contrast to Alps, these methods do not retain full relational data representation but approximate it by vectorisation. Several works [Minervini et al., 2017; Demeester et al., 2016] impose logical constraints on embeddings but do not retain the relational representation.

Kazemi and Poole [2017] and Sourek et al. [2016] introduce symbolic variants of neural networks for relational data. Evans and Grefenstette [2018] introduce a differentiable way to learn predictive logic programs. These are likewise capable of discovering latent concepts (predicates), but focus on predictive learning, often with a pre-specified architecture.

Several works integrate neural and symbolic components but do not explore learning new symbolic representation. Rockt¨aschel and Riedel [2017] introduce a differentiable version of Prolog's theorem proving procedure, which Campero et al. [2018] leverage to acquire logical theories from data. Manhaeve et al. [2018] combine symbolic and neural reasoning into a joint framework, but only consider the problem of parameter learning not the (generative) structure learning.

Inventing a new relational vocabulary defined in terms of the provided one is known as predicate invention in SRL [Kramer, 1995; Cropper and Muggleton, 2018]. In contrast to Alps, these methods create latent concepts in a weakly supervised manner - there is no direct supervision for the latent predicate, but there is indirect supervision provided by the accuracy of the predictions. An exception to this is the work by Kok and Domingos [2007]; however, it does not provide novel language constructs to an SRL model, but only compresses the existing data by identifying entities that are identical.

We draw inspiration from program induction and synthesis [Gulwani et al., 2017], in particular, unsupervised methods for program induction [Ellis et al., 2015; Lake et al., 2015]. These methods encode program induction as a constraint satisfaction problem similar to Alps, however, they do not create new latent concepts.

6 Conclusion

This work introduce Auto-encoding Logic Programs (Alps) - a novel logic-based representation learning framework for relational data. The novelty of the proposed framework is that it learns a latent representation in a symbolic, instead of a gradient-based way. It achieves that by relying on first-order logic as a data representation language, which has a benefit of exactly representing the rich relational data without the need to approximate it in the embeddings spaces like many of the related works. We further show that learning Alps can be cast as a constraint optimisation problem, which can be solved efficiently in many cases. We experimentally evaluate our approach and show that learning generative models from the relational latent representations created by Alps results in substantially improved AUC-PR scores compared to learning from the original data representation.

This work shows the potential of latent representations for the SRL community and opens challenges for bringing these ideas to their maturity; in particular, the understanding of the desirable properties of relational representations and the development of scalable methods to create them.
