DeepWeave: Accelerating Job Completion Time with Deep Reinforcement Learning-based Coflow Scheduling

1 Introduction

As the demand of data processing increases, cluster computing-based computing (e.g., big data and cloud computing [Xu and Tang, 2015]) has been widely adopted in recent years since it can achieve a high parallel computation performance under a relatively low Capital Expenditure (CAPEX). Many cluster computing applications (e.g., Spark and MapReduce) are deployed in data centers and abstracted with the job model, which is composed of several successive computation stages and communication stages among the computation stages. The execution of each computation stage can only start when the intermediate data from the previous stage are completely transmitted. This working procedure can be modeled as a job Directed-Acyclic Graph (DAG), where computation stages and communication stages are modeled as nodes and edges, respectively. In a job DAG, one communication stage involves a set of flows, which interweave with each other from two groups of machines and share a common job goal. A set of such flows is called a coflow [Chowdhury and Stoica, 2012]. Existing works [Chowdhury et al., 2011] point out that in Data Center Networks (DCNs), the coflow transmission (i.e., the sequence-dependent transmission of intermediate data from one computation element to another) consumes at least 50% processing time of a whole job. Thus, a good coflow scheduling could significantly reduce the Job Completion Time (JCT) [Wang et al., 2018b].

∗Corresponding author

However, designing a good coflow scheduling scheme is non-trivial. Efficiently scheduling coflows in DCNs is challenging because various coflow characteristics should be considered, including properties of a coflow (e.g., flow size and the number of parallel flows) and among coflows (e.g., the relationship of different coflows in a job DAG). An optimal coflow scheduling has been proved to be NP-hard [Chowdhury et al., 2014; Wang et al., 2019; Qiu et al., 2015]. Existing works simplify the problem and use heuristic solutions to minimize the transmission time of coflows [Chowdhury et al., 2014; Zhao et al., 2015; Chen et al., 2016; Li et al., 2016; Chowdhury and Stoica, 2015; Dogar et al., 2014; Huang et al., 2015; Zhang et al., 2016; Gao et al., 2016; Wang et al., 2019; 2018a]. However, these works have the following two limitations:

1. Most existing works only concentrate on minimizing the transmission time of coflows in a single communication stage and do not provide a deep dive into the job-specific communication requirement [Chowdhury et al., 2014; Chen et al., 2016; Li et al., 2016; Zhang et al., 2016; Gao et al., 2016; Wang et al., 2018a; 2019; Tan et al., 2019]. Thus, the execution sequence of coflows in different communication stages of the job DAG may not be considered, and these job-agnostic scheduling methods cannot bring an optimal JCT.
2. Hand-crafted heuristic solutions simplify the problem with some relaxations and only ensure an rough approximation to the optimal solution of the NP-hard problem [Chowdhury et al., 2014; Zhao et al., 2015; Chen et al., 2016; Li et al., 2016; Chowdhury and

Stoica, 2015; Dogar et al., 2014; Huang et al., 2015; Zhang et al., 2016; Gao et al., 2016; Wang et al., 2019; 2018a] . For example, the non-preemptive scheduling algorithm [Wang et al., 2019] only ensures a 2approximate optimal solution and leaves a large gap to the optimal solution.

In this paper, we propose DeepWeave, a learning-based method to efficiently schedule coflows. DeepWeave uses the framework of Deep Reinforcement Learning (DRL) to learn from the history trace and train the neural networks. DeepWeave consists of two cascaded sets of neural networks and a policy converter module, and it encodes the scheduling policy in the neural networks, which can make coflow scheduling decisions without expert knowledge and a pre-assumed model. DeepWeave works at both the intra-coflow scheduling and inter-coflow scheduling. Specifically, to better process the job DAG information and ensure the generalization ability of the neural networks under unpredictable input DAGs, we propose to use Graph Neural Network (GNN) for processing input data. DRL agent uses the policy in the trained neural networks to generate a priority scheduling list for different coflows. Based on the list, flows in each coflow is further scheduled in a fine-grained fashion. Simulation results show that DeepWeave completes jobs at least 1.7× faster than the state-of-the-art solutions.

The contributions in this paper can be summarized as follows:

1. Our paper is the first work that proposes a machine learning-based coflow scheduling architecture to accelerate JCT.
2. We use a DRL as the learning-based framework to train the neural networks and explore the coflow scheduling policy without human experience.
3. We design a GNN-based neural network structure to process input job DAGs. The structure generalizes well to different DAG sizes and shapes after training.
4. We evaluate DeepWeave's performance using real-life traces and generated traces. Simulation results show DeepWeave outperforms state-of-the-art solutions in terms of JCT.

The rest of this paper is organized as follows: Section 2 formulates the problem of this paper. Section 3 details the proposed DeepWeave. Section 4 evaluates the performance of DeepWeave. Section 5 concludes this paper.

Finish

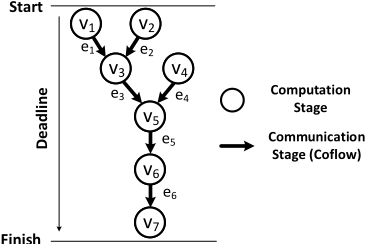

Figure 2: An example of job DAG.

2 ProblemFormulation

Coflows usually exist in the multi-stage computation task in DCNs. In coflow scheduling, a DCN can be logically viewed as a giant non-blocking switch fabric [Chowdhury et al., 2014; Chowdhury and Stoica, 2015] that connects different computation machines. Each port of the fabric has the same capacity, and congestion only occurs at ports since flows in the same port compete for bandwidth. Following existing works, we use this DCN model for our study. Figure 1 is a typical example of coflow [Chowdhury and Stoica, 2015]. The DCN is modeled as a non-blocking switch fabric and interconnects different groups of machines. In this figure, the fabric has three input ports, and each input port has three queues. There are three coflows: C1, C2, and C3. At time slot 0, C1 arrives at port 1, and C2 arrives at ports 1 and 2. C1 and C2 contend for port 1. At time slot 1, C3 arrives at port 2.

We model a job in DCN as a job DAG G = (V,E, T), where V = {v1, v2, ...v|V |} is the set of nodes, which denotes a computation stage of the job, E = {e1, e2, ...e|E|} is the set of edges, which denotes a communication stage 1 of the job, and T denotes a global deadline of the job. Each communication stage is a coflow between two computation stages. A job DAG is processed in pipeline following the dependencies among its different stages, and its processing has to be completed within deadline time T. Figure 2 shows an example of job DAG including seven nodes and six edges. There are two types of coflow dependency relationships in a job DAG [Chowdhury and Stoica, 2015]: Starts-After and FinishesBefore. In a Starts-After relationship, ea cannot start until eb finishes (denoted as ea ↦→ eb); in a Finishes-Before relationship, ea cannot finish until eb finishes (denoted as ea → eb).

Within a job DAG, computation stages are usually executed in parallel, and thus coflows are generated in parallel from different computation stages and compete with each other at the ports of the fabric. The computation time of the computation stages can be regarded as constant, and the scheduling of coflows is the main factor of the overall JCT.

Consider that in a job DAG, there are N coflows {e1, e2, ...e|N|}. The switch fabric has M ingress ports and M egress ports, and a coflow can be denoted as a group of flows: ei = {f m,n i |1 ≤ m ≤ M, 1 ≤ n ≤ M}, where f m,n i denotes a flow from port m to port n in coflow ei. fsm,n i denotes the size of flow f m,n i normalized to the capacity of the port. If there are no flows in coflow ei from port m to port n, fsm,n i = 0. Since each port has the same capacity, the transmission time of a flow is proportional to the flow size at each port. Without loss of generality, we use the size of each flow to denote the transmission time in the following. We also use Ci to denote the transmission time of coflow ei in the job DAG, and Ci = End(ei) - Start(ei), where End(ei) and Start(ei) denote the end time and start time of ei, respectively. Under these definitions, the aim of coflow scheduling is to minimize the average transmission time of the whole job

1 In this paper, we use communication stages and coflows interchanganbly.

3 Design of DeepWeave

In this section, we introduce the design of DeepWeave. First, we overview the architecture of DeepWeave. Second, we explain DeepWeave's DRL framework in the training. Third, we introduce the processing mechanism of the neural networks in DeepWeave. Finally, we introduce Policy Converter that translates the output values of the DRL agent into concrete coflow scheduling policies.

3.1 Overview of DeepWeave

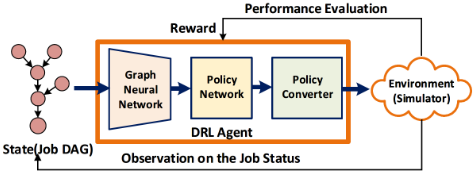

DeepWeave is designed based on the framework of DRL to generate coflow scheduling policies for the network. Figure 3 shows a coflow scheduling agent, which is composed of a group of neural networks (detailed in Sections 3.2 and 3.3) and a policy converter (detailed in Section 3.4). During the working process, DeepWeave collects the job DAG information and converts the information to a feature map as the input of GNN, which calculates the features of the job DAG and passes the calculated information to Policy Network. Then, Policy Network generates a priority list as the output, which is used as an input in Policy Converter. Finally, Policy Converter translates the priority list into coflow scheduling actions, which are used to schedule coflows and flows in the coflows.

3.2 DRL Framework for Training

DeepWeave trains its neural networks through the framework of DRL and uses a tuple that contains three elements

〈S,A,R〉 to describe the interaction. In the tuple, S is the state space, which stands for the status observation of the environment (i.e., job DAG in DeepWeave); A is the action space, which stands for the space of the output actions of the RL agents; R is the reward space, which evaluates the quality of the action. The DRL agent of DeepWeave gets trained through the interaction with the network environment step by step. At each step, the agent collects an observation s ∈ S from the environment and generates an action a ∈ A to schedule coflows in the environment through a certain calculation process, which can be abstracted as a policy. The quality of a certain schedule action a ∈ A is evaluated by an evaluation function with a reward r ∈ R to describe the quality. Based on the reward r ∈ R, the policy is polished towards a better performance. Specifically, the interfaces in DeepWeave are defined as follows:

• State: flows in each coflow and the shape of a job DAG.
• Action: priority list that denotes the scheduling priority of edges in a job DAG.
• Reward: the completion time of a job DAG.

The training process of the DRL agent is carried out in episodes, and each episode consists of multiple interaction steps. In each episode, the target of the training is to maximize the cumulated reward Repi = ∑Tt=0 r(t), where T denotes the total number of interaction steps in this episode. We use µ to represent the policy of the DRL agent. At each step t, the agent gets an observation st from the environment and generates action at based on at = µ(st). As mentioned above, in DRL, the policy is generated by neural networks. Therefore, at = µ(st) can be more accurately represented as at = µθ(st), where θ denotes the parameters (e.g., the weights and biases among different neurons) of the neural networks. When an episode completes, the cumulated reward Repi can be used to evaluate the policy in this episode.

In DeepWeave, we use a policy gradient method to update the neural networks based on Repi towards a better policy. In the policy gradient method, a gradient descent is calculated to update the neural network parameters as follows [Sutton et al., 2000]:

where α denotes the learning rate that controls the update speed of θ during each episode, and Qt denotes a quality evaluation of the policy in the current episode. Specifically, we

as a baseline value to limit the variance of the policy gradient [Greensmith et al., 2004]. In this way, the parameters of the neural networks get updated after each episode, so the expected performance of this DRL agent in the next episode should be better. Since in several initial episodes, the neural network parameters are close to random values, and the policy is not good, we can use a method similar to the one used in Decima [Mao et al., 2019] to accelerate the training by shortening the episode length.

Algorithm 1 Training process of DeepWeave

Input: job DAG, job completion time; Output: coflow scheduling priority; 1: Initialize all neural networks; 2: for iteration = 1 toMAX_NUM do 3: Episode length l = linit; 4: Run agent i = 1 to N and get: (si1 , ai1 , ri1 , ..., sil , ail , ri l ) ∼ µθ; 5: ∆θ = 0; 6: for t = 1 to l do 7: for agent i = 1 to N do 8: Rit = ∑lt′=t ri t′ ; 9: end for 10: Compute baseline value bt = 1N ∑Nj=1 Rj t ; 11: for agent i = 1 to N do 12: ∆θ = ∆θ + ∇θ log µθ(sit , ait )(Rit - bt); 13: end for 14: end for 15: l = l + ϵ; 16: θ = θ + α∆θ; 17: end for

The logic of the whole training process is shown in Algorithm 1. To accelerate the training process, we implement N parallel agents. The training objective of Algorithm 1 is to let the parameters of the neural networks evolve so as to generate a good coflow scheduling policy. Lines 3-4 run a series of experiment episodes for the DRL agent, and line 5 resets the updated value of the neural networks to zero in each iteration. Lines 6-14 calculate the updated value for the neural networks based on the cumulated reward, among which lines 7-10 calculate the baseline value bk to reduce the bias of the training, and lines 11-12 set the changes of the neural network parameters for each agent. Line 15 regulates the episode length. In our training, the learning rate α is set to 1 × 10-3 , and the gradient descent is used for neural network parameter update with Adam optimizer [Kingma and Ba, 2014].

3.3 Neural Network Implementation

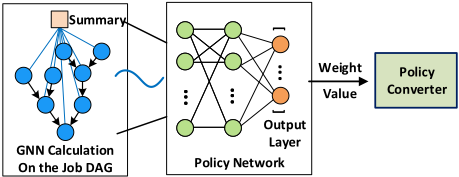

The neural networks in DeepWeave consist of two stages: GNN processing and Policy Network processing, as illustrated in Figure 4. In this subsection, we detail the two stages.

GNN processes the information of the job DAG. Compared to other popular neural networks, such as convolutional neural network, GNN is more appropriate to process graphlike structured data [Zhou et al., 2018]. Besides, GNN is proved to have a better knowledge transfer ability [Rusek et al., 2019]. For example, when the size of the input data is slightly different from the training history, GNN can still make precise inferences. In coflow scheduling, the training process can hardly cover all job DAG shapes, so the knowledge transfer ability is critical.

In the GNN, both node attributes and job attribute are calculated. First, the information (e.g., the computation cost) of vi is abstracted as the node's feature xi in the graph. Then, attribute attri of node vi is calculated based on attributes of vi's descendant nodes. The attribute information is transmitted from node vi's descendant nodes (denoted as des(vi)) one by one to vi through a sequence of message passing steps [Mao et al., 2019]. During these message passing steps, each node calculates its attribute value by attri = F(xi, {attru|vu ∈ des(vi)}). In practice, the function F(·) can be implemented with neural networks. We implement two neural networks in DeepWeave for F(·) as follows:

where f(·) and g(·) are two small feedforward neural networks with two hidden layers. This function enables a nonlinear transformation of the corresponding input information. In this way, the message passing process can transmit complicated information from a node's descendant nodes to the node. Besides, [Mao et al., 2019] points out that one neural network cannot compute the critical path of a DAG [Kelley Jr, 1961]. Each node attribute is presented as one abstract value. The attribute values are sorted, and the order of each node is recorded based on their values before the values leave the GNN. After the calculation of node attributes, there is also a job-level information summary y. In DeepWeave, another set of neural networks is used for calculating y, where y = fjob({attri, xi|vi ∈ V }).

After the GNN calculation process, the sequence of the job-level information and node attributes are sent to the stage of Policy Network. The Policy Network is implemented using a feedforward neural network with one hidden layer. The feedforward neural network calculates the job-level information and node attributes and generates priority list P = (p1, p2, ..., p|V |) as the output, where pi(1 ≤ i ≤ |V |) corresponds to the priority value of node vi in the execution of the job, and a higher pi stands for a higher priority. Note that the Policy Network cannot change its size as GNN does. In our design, the size of the input layer equals the maximum number of vertices that may appear in the experiment. For small DAGs, the sorted values from node attributes are padded with zeros before they are used as the input of the Policy Network.

3.4 Policy Converter

Policy Converter translates the output value of Policy Network into concrete coflow scheduling policies. As mentioned before, the Policy Network generates priority list P = (p1, p2, ..., p|V |) for each node in the job DAG. Since a job DAG only has one edge originating from one certain node, we assign the priority of edge e (i.e., a coflow) with the priority value of its source node. Assume that we have priority Algorithm 2 Scheduling policy of coflows and flows in coflows at ingress ports

Input: priority list P; Output: flow scheduling priority; 1: while P ̸= ∅ do 2: Select coflow ei with the maximum pi ∈ P; 3: Select the flow f m∗,n∗ i with the largest size in ei; 4: Assign f m∗,n∗ i with the highest priority in the remaining source of ingress port m∗; 5: Get End(f m∗,n∗ i ); 6: for ingress port m = 1 to M do 7: if f m,n∗ i ̸= 0 then 8: Add f m,n∗ i in ingress port m with the minimum|End(f m,n∗ i ) - End(f m∗,n∗ i )|; 9: end if 10: end for 11: Remove pi from P; 12: end while

list P = {p1, p2,, ..., p|E|} that denotes the priority of each coflow. The scheduling problem is to schedule flows at each port based on the priority of the coflow they belong to. The scheduling process includes scheduling at ingress ports and scheduling at egress ports, and the two schedulings s are similar. For simplicity, we only show the scheduling process at ingress ports.

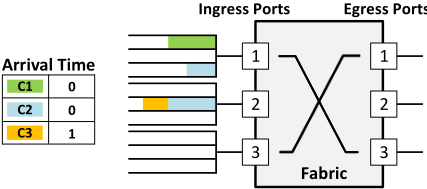

Algorithm 2 details the translation from the priority list to the concrete scheduling process at ingress ports. In Algorithm 2, coflows are scheduled according to their priorities in P. Line 2 selects the coflow with the highest priority to schedule. Lines 3-4 minimize the end time of the coflow by first scheduling the flow with the largest size in the selected coflow. Line 5 gets the end time of the flow and uses this flow's end time as the end time for this coflow. Lines 6-10 schedule other flows on port n∗. Line 11 removes the scheduled coflow from priority list.

4 Experiment and Evaluation

4.1 Simulation Environment

In this section, we evaluate the performance of DeepWeave. For the simulation environment, we implement a coflow scheduling simulator with Python 3.6. During the training, at each step, the simulator tells the DRL agent about the state information, then the action from the DRL agent is translated into flow scheduling operations to schedule the flows in the simulator. Finally, the simulator calculates the job completion time, which is used to calculate the reward value. A group of previous works [Huang et al., 2016; Zhang et al., 2016; Li et al., 2016; Wang et al., 2019; Tan et al., 2019] used the real-life traces of Facebook [Chowdhury et al., 2014] to train and test the coflow scheduling schemes. Specifically, the training and test data are separately chosen, and they are different from each other. However, the Facebook trace is a collection of single-stage jobs, which do not contain the information of correlations among different coflows. In this paper, we use TPC-DS [tpc, 2019] to evaluate the performance of different schemes in job DAGs. We use Shark [Xin et al.,

2013] to generate queries and set the single wave to each stage in the job DAG. The DRL algorithm is implemented on TensorFlow based on Python 3.6. The simulation runs on a desktop computer equipped with an Intel i7700 CPU, GTX 1080Ti Graphics card, and 32G DDR4 RAM. The DRL agent is trained for 60000 iterations in our experiment.

We evaluate the performance of DeepWeave with the following schemes:

1. Varys [Chowdhury et al., 2014] uses a SmallestEffective-Bottleneck-First (SEBF) heuristic algorithm to greedily schedule a coflow based on its bottleneck flow's completion time.
2. Approximate [Shafiee and Ghaderi, 2018] tries to solve a convex optimization problem and provides a polynomial-time deterministic algorithm with an approximation factor of 5 to the optimal solution.
3. Sincronia [Agarwal et al., 2018] uses a greedy mechanism to schedule coflows based on a priority list of coflows and can achieve an approximation factor of 4 to the optimal solution.
4. IAOA (Information-Agnostic Online Algorithm) [Wang et al., 2019] formulates a weighted coflow completion time minimization problem and proposes a heuristic solution with an approximation factor of 2 to the optimal solution. However, IAOA does not consider the correlations of coflows in job DAGs.

4.2 Simulation Results

Job Completion Time

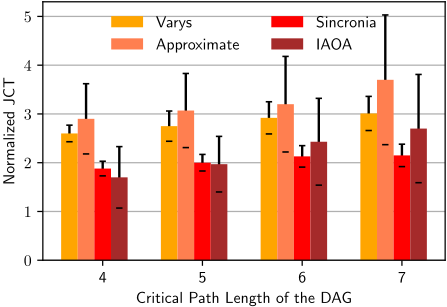

First, we select a group of TPC-DS queries that consist of DAGs with different shapes. Specifically, the critical path lengths of these DAGs vary from 4 to 7, and each DAG contains 5 queries. Figure 5 shows the average JCTs of different schemes normalized to the JCT of DeepWeave. In this figure, all comparison schemes' JCTs are larger than DeepWeave's in all the tested DAGs. DeepWeave outperforms the best comparison scheme at least 1.7×. When the critical path length in the DAG increases to 7, all comparison schemes' JCTs are at least twice longer than DeepWeave's. As the DAG's length grows from 4 to 7, Varys and Sincronia have relatively stable performance. In contrast, Approximate and IAOA's performance degrade significantly as the DAG's length increases since do not take the correlations of different coflows into full consideration.

Deadline Missing Rate

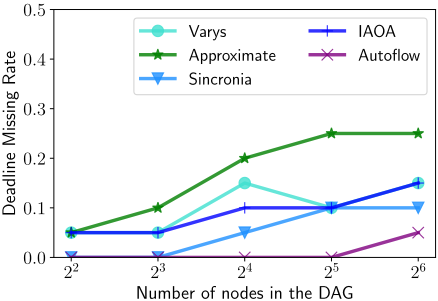

From the job level's perspective, the ultimate goal of coflow scheduling is to minimize the completion time of jobs. To this end, we use GGen [Cordeiro et al., 2010] to generate DAGs with various shapes. We use the Fan-in/Fan-out method in GGen and set the number of vertices in the DAGs from 4 (22 ) to 64 (26 ). For DAG shape (i.e., the number of nodes), we generate 20 DAGs and fine-tune the deadline of each DAG to differentiate the performance of different schemes. We use the CustomTraceProducer in CoflowSim [Cof, 2014] to generate coflows for the DAGs and assume that the non-blocking fabric has 50 ingress ports and 50 egress ports. We use the deadline missing rate of job DAGs as the performance metric. The simulation result is shown in Figure 6. In this figure, DeepWeave has the lowest deadline missing rate among all the schemes, while Approximate has the highest deadline missing rate. This result is in accordance with the simulation results of Figure 5.

Impact of Different Parameters

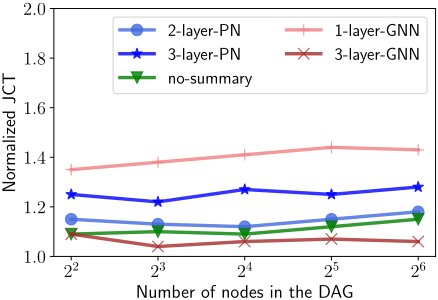

DeepWeave uses two types of neural networks: a GNN and a Policy Network. The neural networks in DeepWeave is finetuned to get a good performance. Changing the neural network components may lead to a degradation of the performance. Figure 7 shows the impact of changing neural networks on JCT, which is normalized to JCT of DeepWeave. In this figure, 2-layer-PN denotes using a Policy Network with two hidden layers, 3-layer-PN denotes using a Policy Network with three hidden layers, no-summary denotes the GNN implementation without the summary node, 1-layerGNN denotes the functions in GNN with one hidden layer, and 3-layer-GNN denotes the functions in GNN with three hidden layers. In the figure, we can see that the neural network change leads to performance degradation. Specifically, 1-layer-GNN performs worst because one hidden layer is not enough to extract enough information for job DAGs. On the other hand, 3-layer-GNN does not outperform the 2-layerGNN (i.e., the one used in DeepWeave) due to the overfitting of the neural networks.

5 Conclusion

In this paper, we present DeepWeave to automatically generate coflow scheduling policies in job DAGs based on DRL. DeepWeave employs GNN to handle the input job DAG and provides a high generalization ability of the DRL framework on different job DAGs. After training, DeepWeave can generate efficient coflow scheduling policies without human expertise. The main challenge of applying DRL in the generation of coflow scheduling policy comes from the design of the neural network structure and the fine-tuning of the parameters. This work proves the effectiveness of machine learning in designing flow scheduling policies. In the future, we will enrich our work to achieve a more powerful coflow scheduling system on real applications.

Acknowledgements

This paper is supported by the National Key Research and Development Plan under Grant Number 2017YFB0803204, the National Natural Science Fund of China under Grant Numbers 61521003 and 61872382, and the Beijing Institute of Technology Research Fund Program for Young Scholars.
