Solving Graph Homomorphism and Subgraph Isomorphism Problems Faster Through Clique Neighbourhood Constraints

1 Introduction

The subgraph isomorphism problem, as defined by Garey and Johnson [1979], is to determine whether an injective mapping exists from one given graph to another, such that adjacent pairs of vertices are mapped to adjacent pairs of vertices, and non-adjacent vertices are mapped to non-adjacent vertices. However, in application-oriented papers, particularly from bioinformatics and chemistry, the same name is often implicitly used to mean the non-induced version of the problem (which does not require that non-adjacency be preserved) since this more accurately models the real-world problem being solved [Willett, 1999; Ehrlich and Rarey, 2011]. Despite being theoretically hard problems, these applications, along with others in areas including compilers [Blindell et al., 2015], graph databases [McCreesh et al., 2018] and pattern recognition [Foggia et al., 2014], have given rise to a large amount of research into designing practical algorithms for solving these problems. Most approaches are based either upon very fast but simple backtracking algorithms [Cordella et al., 2004; Bonnici et al., 2013; Carletti et al., 2017] which often but not always perform well on very easy instances, or upon constraint programming algorithms [Zampelli et al., 2010; Solnon, 2010; Audemard et al., 2014; McCreesh and Prosser, 2015; Archibald et al., 2019], which have higher startup costs but that perform vastly better on harder instances and much more consistently on easy instances [McCreesh et al., 2018; Solnon, 2019].

The current state of the art is the Glasgow Subgraph Solver [McCreesh et al., 2020], which is a dedicated constraint programming solver for subgraph-finding problems. Much of its performance comes from inference strategies based upon degrees and neighbourhood degree sequences [Zampelli et al., 2010], counting paths between vertices [Audemard et al., 2014; McCreesh and Prosser, 2015], and cardinality reasoning [Solnon, 2010], which can be used to eliminate many infeasible candidate assignments without search. Like most other solvers, it can handle both the non-induced version of the problem and the traditional induced variant, and users can select whichever variant better fits their application. It also supports directed edges, and can use an external constraint solver to handle other extensions to the basic notion of a graph, such as temporal networks and multi-graphs.

As well as questions over exactly how edges are represented and mapped, some applications would prefer not to specify injectivity. A graph homomorphism is a function between two graphs that maps adjacent vertices to adjacent vertices, with no injectivity requirement, whilst a locally injective homomorphism is one which is injective when restricted to any individual vertex and its neighbourhood. Both are better models for some applications [Fiala et al., 2001; Baget, 2005; Corby and Faron-Zucker, 2007; Fiala and Kratochv´ıl, 2008; Fan et al., 2010; Chaplick et al., 2015].

These injectivity relaxations have received much less attention from a practical solving perspective. One might hope that the inference techniques developed for subgraph isomorphism would also be helpful for other graph homomorphism problem variants. Indeed, this paper proves that many, but not all, of these strategies are also valid in the locally injective case, and that simple distance filtering is valid for all homomorphisms. However, we also show that none of the other strategies are valid for finding homomorphisms where there is no injectivity requirement. Finally, we introduce a new filtering technique that is based upon finding a maximum clique in the neighbourhood of each domain vertex, which is valid even in the general case. Although this new filtering technique involves solving many additional NP-complete problems as a preprocessing step, we demonstrate that it is effective in practice, particularly for the non-injective problem where filtering allows a constraint programming algorithm to solve instances over eight hundred times faster in aggregate, over a collection of over fourteen thousand standard benchmark instances. This shows, for the first time, that modern constraint programming techniques can be practical for less constrained graph homomorphism finding problems; previous algorithmic approaches have focused instead upon worst-case computational bounds (e.g. Fomin et al.; Fiala and Kratochv´ıl; Rzazewski; Chaplick et al. [2007; 2008; 2014; 2015]), whose practical utility has yet to be demonstrated. The empirical effectiveness of our results is especially important because many applications use subgraph isomorphism solvers only because they perform well off the shelf, rather than because they exactly match domain requirements.

2 Background and Theory

We begin by introducing notation and terminology, and by giving the theory which supports our implementation.

Graphs. Let G and H be graphs. Let v ∈ V(G) be a vertex of G. The (open) neighbourhood of v, written NG(v), is the set of vertices adjacent to v not including v itself, whilst the closed neighbourhood of v, written NG[v], is the neighbourhood of v plus v. The degree of a vertex, degG(v), is the cardinality of its open neighbourhood. The neighbourhood degree sequence of a vertex is the sequence consisting of the degrees of its neighbours, in descending order. Given a vertex set S ⊆ V(G), the subgraph induced by S, written G[S], is the subgraph of G with only the vertices in S together with all the edges between them. A clique is a subgraph where every vertex is adjacent to every other in the subgraph.

Homomorphisms. A homomorphism from G to H is a function mapping vertices of G to vertices of H, such that adjacent vertices in G are mapped to adjacent vertices in H. A homomorphism h is locally injective if for every vertex w, the restriction of h to G[NG[w]] is injective; if h is injective globally we call it a (non-induced) subgraph isomorphism.

Loops. A vertex which is adjacent to itself is called a loop. By a careful reading of the definition, any homomorphism must map loops onto loops-and indeed, the Glasgow Subgraph Solver and this paper take this approach (although some other algorithm implementations do not). It therefore follows that for the homomorphism decision problem where there are no injectivity constraints, any problem instance which has a loop in the codomain graph is trivially satisfiable (although the counting problem remains #P-hard [Dyer and Greenhill, 2000]).

Constraint programming. A constraint satisfaction problem is defined in terms of a set of variables, each of which has a domain of possible values, together with a set of constraints; the goal is to give each variable a value from its domain, whilst satisfying all of the constraints. Homomorphism problems have a natural representation as a constraint satisfaction problem: we have a variable for each vertex in the domain graph, whose values range over the codomain graph, and a set of constraints saying that adjacent vertices must be mapped to adjacent vertices. For the injective variants, one or more all-different constraints are also present. A typical constraint programming approach to solving such a problem is to combine inference through constraint propagation with an intelligent backtracking search.

2.1 Invariants

Constraint programming techniques for finding homomorphisms can be made much more effective by exploiting certain invariants. It is straightforward to verify the following.

Proposition 1 (neighbourhood degree sequences are preserved). Suppose i is a locally injective homomorphism from G to H. Let v be any vertex. Then i cannot map v to a vertex of lower degree, degG(v) ≤ degH(i(v)). Furthermore, v cannot be mapped to any vertex whose neighbourhood degree sequence is not pointwise greater than or equal to its own.

Since subgraph isomorphisms are in particular locally injective, these invariants also hold for subgraph isomorphisms [Zampelli et al., 2010]; indeed, every recent constraint programming approach for subgraph isomorphism finding makes use of degrees and neighbourhood degree sequences. The simplest way for a constraint programming algorithm to use these results is as unary constraints, which are propagated when domains are initialised, before search begins. For each domain representing a domain vertex, any value representing a codomain vertex whose degree or neighbourhood degree sequence is too low may immediately be rejected. However, these invariants do not hold for homomorphisms in general. As a counter-example, a homomorphism may map a star graph onto a single edge, as in figure 1 (top left).

Constraint programming solvers can also exploit invariants that are based upon paths. This is done by automatically adding implied constraints to the problem that are implied by the original model, but that will give stronger propagation.

Proposition 2 (paths are preserved by subgraph isomorphisms). For the problem of finding a subgraph isomorphism i from a graph G to a graph H, the following constraints are implied for any pair of vertices v, w ∈ V(G):

1. The distance between v and w is at most the distance between i(v) and i(w) [Audemard et al., 2014].
2. If there are at least k simple paths of length exactly ℓ between v and w, then there must be at least k simple paths of length exactly ℓ between i(v) and i(w) [McCreesh and Prosser, 2015].

It is easy to verify that the first of these two properties is valid for any homomorphism. The second property does not hold for homomorphisms in general: for example, a pair of vertices connected by three paths of length two may be mapped onto a pair of vertices connected by a single path of length two (see figure 1, top right). The second property also does not hold in full generality for local injectivity, because, for example, a path of length three may be mapped onto a triangle (figure 1, bottom left): while standard injectivity prevents any kind of merging, local injectivity only prevents two vertices from being merged if they are both in the neighbourhood of the same vertex. However, a weaker result does hold:

Proposition 3 (paths of length two are preserved by locally injective homomorphisms). For the problem of finding a locally injective graph homomorphism i from a graph G to a graph H, for any pair of vertices v,w ∈ V(G), if there are at least k simple paths of length exactly two between v and w, then there must be at least k simple paths of length exactly two between i(v) and i(w).

Proof. Let {x1, . . . , xn} be the intermediate vertices on the paths of length two between v and w. Observe that each xj is in the neighbourhood of v, and so must be mapped to different vertices. Thus each sequence (i(v), i(xj), i(w)) gives a distinct simple path of length two between i(v) and i(w).

Rather than using distance properties directly as Audemard et al. [2014] did, McCreesh and Prosser [2015] introduced the notion of supplemental graphs, with the idea that a constraint programming algorithm can search for a mapping which is simultaneously a subgraph isomorphism between several different pairs of graphs. Let Gd be the graph with the same set of vertices as G, but with an edge between vertices v and w if the distance between v and w in G is at most d. Similarly, let Gn,ℓ be the graph with the same set of vertices as G, but an edge between vertices v and w if there are at least n simple paths of length exactly ℓ between v and w in G. Following on from propositions 2 and 3, we generalise the result of McCreesh and Prosser as follows.

Corollary 1. Any homomorphism i from G to H gives a homomorphism id from Gd to Hd defined by id (v) = i(v), for all d. Furthermore, if i is locally injective, then for all n, there is a homomorphism in,2 from Gn,2 to Hn,2 defined by in,2 (v) = i(v).

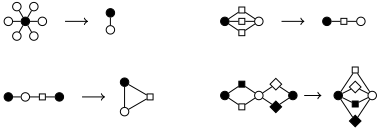

Note carefully that in,2 is not necessarily locally injective, even if i is; we illustrate a counter-example in figure 1 (bottom right). This is in contrast to subgraph isomorphism, where in,ℓ is a subgraph isomorphism for all ℓ [McCreesh and Prosser, 2015].

We now discuss the main new technique of this paper. Observe that so far, we have not seen any unary constraints which are valid for the general homomorphism problem. All existing constraint programming approaches for the subgraph isomorphism problem begin by branching on the variable which has the smallest domain-typically this will be a domain for a vertex of high degree, or which has many high degree neighbours. Furthermore, once one such guessed assignment has been made, adjacency propagation means many other domains will be substantially reduced in size, making subsequent branching choices simpler. However, for homomorphism problems, if we cannot find any implied unary constraints then every domain will initially be of the same size, which will make it much harder for a solver to know where to start. This motivates the following.

Proposition 4 (Cliques are preserved). Let i be a homomorphism from G to H where H does not contain any loops. Let S ⊆ V be such that G[S] is a k-vertex clique. Then H[i(S)] is also a k-vertex clique.

Proof. Let j and k be two distinct vertices of the clique in G. By definition of a homomorphism, i(j) and i(k) must be adjacent. And, because H has no loops, i(j) ̸= i(k).

Corollary 2. Proposition 4 holds for locally injective graph homomorphisms and for subgraph isomorphisms even if loops are present in the second graph.

Next we will discuss how this is useful in practice.

3 Design and Implementation

Having determined which commonly-used subgraph isomorphism invariants do and do not hold for other forms of homomorphism, and having discovered a new clique-based invariant, we will now look at how these invariants may be used in practice. Our starting point is the Glasgow Subgraph Solver [McCreesh et al., 2020], due to it being the current strongest solver for subgraph isomorphism. Adapting the solver to handle locally injective and general homomorphism problems required the following straightforward changes.

Injectivity constraints. For subgraph isomorphism, injectivity is handled by a combination of binary constraints and a specialised bit-parallel all-different propagator [McCreesh and Prosser, 2015]. This was disabled entirely for homomorphism problems, and for local injectivity only binary constraints were used.

Path-based filtering. For subgraph isomorphism, the Glasgow Subgraph Solver searches for a mapping which is simultaneously a subgraph isomorphisms between (G,H) and each (Gn,2 ,Gn,2 ) for each n from 1 to 4, and optionally also between (G3 ,H3 ). For homomorphisms, we use (G2 , H2 ), whilst for locally injective homomorphisms we use (Gn,2 , Gn,2 ) for each n from 1 to 4.

Degree-based filtering. This was disabled for homomorphisms and left enabled for locally injective homomorphisms, as per proposition 1. For subgraph isomorphism, the Glasgow Subgraph Solver uses degree and neighbourhood degree sequences not just on the original graphs, but also on each (Gn,ℓ , Hn,ℓ ) graph pair. This is not possible for locally injective homomorphisms, due to the counter-example following corollary 1.

Search order heuristics. The solver's default search order heuristics are based upon three principles: that it is good to branch on variables with few remaining values in a domain, that it is good to branch on variables corresponding to high-degree vertices, and that it is good to try mapping to vertices of high degree [McCreesh et al., 2018; Archibald et al., 2019]. These principles do not appear to be specific to subgraph isomorphism, and so we do not alter the search order heuristics.

Loops. For the homomorphism decision problem, we modified the solver so that if the codomain graph contains a loop, we immediately return a satisfying assignment mapping every vertex to one of these loops.

3.1 Clique Filtering

Implementing clique constraints required substantially more work. The Glasgow Subgraph Solver contains a maximum clique implementation, which is based upon a variation of Tomita et al. [2010]'s MCS algorithm which Prosser [2012] calls "MCSa1", with bit-parallelism [San Segundo et al., 2013] and an altered branching scheme for faster optimality proofs [McCreesh and Prosser, 2014]. The implementation also makes use of a shortcut due to Batsyn et al. [2014], which allows certain cliques to be detected without branching-this turns out to be particularly useful in this setting, making many of the clique instances generated solvable without branching. Initially we used this solver to perform domain filtering as a preprocessing step. Preliminary experiments showed that a na¨ıve approach, which calculates the maximum clique size for the neighbourhood of each domain vertex and each codomain vertex, would add as much as three minutes of preprocessing time to some problem instances which could otherwise be solved in a few seconds. We therefore invested more engineering effort, as follows.

Assuming a problem instance is not detected as obviously unsatisfiable, we calculate the maximum clique size for the neighbourhood of every domain vertex in turn. However, having found a maximum clique with k vertices in the neighbourhood of a vertex p, we remember for every other vertex in this maximum clique that its neighbourhood maximum clique size is at least k. This can be used to accelerate subsequent clique solver calls, by starting the branch and bound algorithm with an initial incumbent size of k rather than zero.

We then move on to the codomain vertices, using a similar caching routine. Rather than calculating a clique size for every single codomain vertex, we only calculate a value for codomain vertices which are present in at least one variable's domain, after other unary constraints have been applied. Additionally, we do not require the maximum clique solver to run to completion and guarantee that it has found a maximum clique. Instead, we allow it to stop as soon as it has found a clique with as many vertices as the largest domain clique. This is useful because it may be very hard to decide whether a particular codomain vertex has neighbourhood clique size of, say, 15 or 16, but if the largest domain vertex has a neighbourhood clique size of only 5 then this is irrelevant.

3.2 Proof Logging

Given the complexity of modern solvers, a critical question is how we can be sure that they are producing correct answers. The Glasgow Subgraph Solver's subgraph isomorphism and clique algorithms are both certifying [McConnell et al., 2011]: that is, they can output a mathematical proof that they have reached a correct answer by sound reasoning, and this proof log can be verified by the VeriPB proof checking tool [Gocht et al., 2020a; Gocht et al., 2020b]. We therefore extended the solver's existing proof logging support to cover our additions. For the changes not involving clique-finding, this was entirely routine-although proof logging did catch an implementation bug where we were incorrectly applying degree-based filtering on the G2,n graphs for locally injective homomorphisms, in violation of the counter-example to corollary 1. For clique-based filtering, the process involved substantially more technical work. Briefly, for a given domain vertex v that cannot be mapped to a codomain vertex w, it is possible to instruct the proof verifier to derive a set of conditional clique constraints saying that "either v cannot be mapped to w, or the following clique-like problem must be satisfiable" by following steps similar to the maximum common subgraph to clique reduction presented by Gocht et al. [2020a], and then to reuse clique proof-logging techniques to show that this clique-like problem is unsatisfiable. We were able to produce and verify proofs of correctness for mediumsized instances, giving us confidence in our implementation.

This situation is not entirely ideal. The proofs produced this way are inherently dependent upon a particular choice of domain and codomain vertices. Thus, when proof logging, we must solve restricted clique problems for each assignment that is to be filtered using a clique rule, rather than for each clique found; this is potentially a linear factor blowup. This seems wasteful, since for any given codomain vertex these proofs are effectively the same up to substitution of variable names. It would therefore seem desirable to extend the proof system with a substitution rule which would allow such proofs to be recycled to avoid duplication.

4 Experiments

We now evaluate this approach empirically. Our experiments are performed on a cluster of machines with dual Intel Xeon E5-2697A v4 CPUs with 512GBytes of RAM, running Ubuntu 18.04, and using a timeout of one hour; we do not enable proof logging for these benchmarks since proof logging introduces large slowdowns due to I/O costs [Gocht et al., 2020a]. Because injectivity relaxations have received less attention until now, for all three problem variants we will use a suite of 14,621 benchmark instances designed for the subgraph isomorphism problem [Kotthoff et al., 2016]. Note that 8,904 of these instances contain at least one loop in the codomain graph, and so are trivial for the homomorphism problem-we still include these to avoid using different yaxes on different plots.

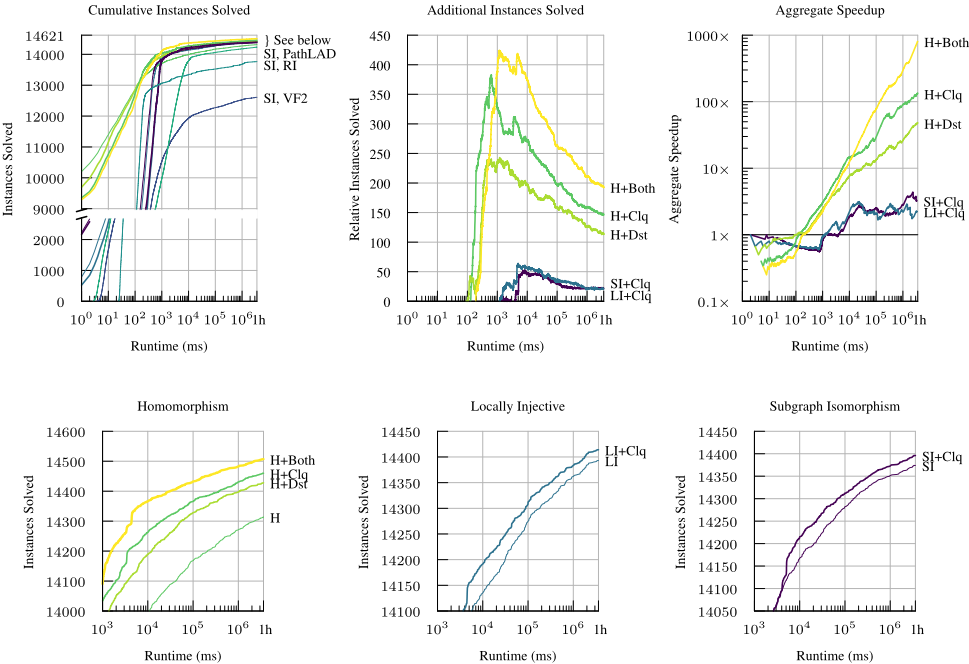

In the top left plot of figure 2 we show the cumulative number of instances solved over time, for each of the three problem variants, using the Glasgow Subgraph Solver with and without our clique-filtering added. For the homomorphism problem, we also compare with distance filtering enabled or disabled. For subgraph isomorphism, we further compare against the PathLAD [Kotthoff et al., 2016], VF2 [Cordella et al., 2004] and RI [Bonnici et al., 2013] solvers. To make the details of this plot readable, the second row of figure 2 zooms in on the results for each problem variant in turn. We see that for the homomorphism problem, using either clique or distance filtering gives a clear improvement to performance, and using both together is better still. For both injective problems, clique filtering gives a more moderate improvement.

To quantify these gains, the top centre plot of figure 2 shows the additional number of instances solved at any given time (that is, the vertical distance between two cumulative plots) when enabling additional filtering. We see that for subgraph isomorphism, at the one hour timeout we solve 22 additional instances using clique filtering; for locally injective homomorphisms, 21 additional instances; and for homomorphisms, 114, 146 or 193 additional instances using just distance filtering, just clique filtering, or both. Or, at the best choices of timeouts, we solve 53 additional subgraph isomorphism instances; 64 additional locally injective instances; and 243, 383, and 424 additional homomorphism instances.

Alternatively, we can measure the horizontal distance between plots for a given choice of timeout t as follows. Let t′ be the last time no greater than t where the slower algorithm solved an instance, and let u be the lowest amount of time needed for the faster algorithm to solve the same number of instances. The aggregate speedup, which we plot in the top right of figure 2, is the ratio of t′ to u or u to t′ as appropriate. At the one hour timeout, we see aggregate speedups of 2.2 for locally injective homomorphisms, 3.2 for subgraph isomorphism, and 47.5, 131.7, and 803.5 for homomorphisms.

The crossover point, where clique filtering begins to pay off, is at around the 100ms mark without injectivity, and at around one second for the injective problems. This does not show how much time was spent in clique-finding, but rather how long it takes for an algorithm with increased filtering to catch up from a slower start. In fact, for domain graphs, no maximum clique call took even one millisecond to complete (and none required more than two hundred recursive calls from the clique solver), and more time was spent setting up the data structures to represent the neighbourhood graphs than on the actual solving. For codomain graphs, 20,838,008 of the clique problems we solved took under a millisecond, and the remaining 279 calls took between one and four milliseconds, with no instance requiring more than a thousand recursive calls. Although it may seem counter-intuitive to try to speed up the solving of a hard problem by first solving many other hard problems, these values demonstrate that clique-solving on these smaller graphs is much easier in practice than solving the larger problem, and so is worthwhile.

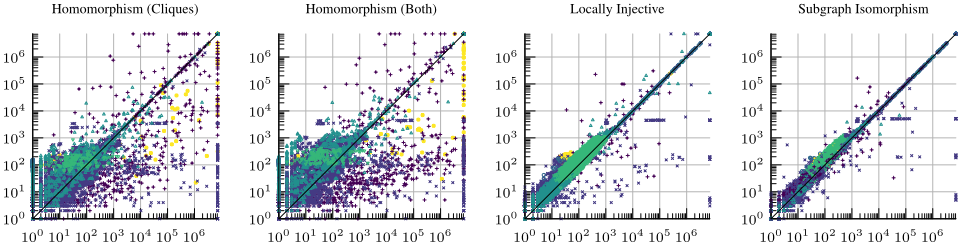

Finally, figure 3 plots instance-by-instance comparisons of the runtimes. The point styles in these plots show different families of benchmark instance, and demonstrate that the benefits of filtering are not restricted to one application. They also show that clique filtering very rarely makes performance a lot worse, but often makes it a lot better.

5 Conclusion

Our results have shown that constraint programming approaches are viable for a wider range of subgraph mapping finding problems than had previously been considered, and will increase the versatility of subgraph solvers for application users going forwards. We saw that using clique-finding as a filtering step could give moderate to very large speedups for different problem variants-although only through careful engineering choices, to mitigate the potential cost of solving NP-hard problems. We would be interested to see if filtering based upon other hard problems could give similar benefits-for example, homomorphisms also interact in potentially helpful ways with various colouring properties.
