Abductive Knowledge Induction from Raw Data

1 Introduction

Despite the success of data-driven end-to-end deep learning in many traditional machine learning tasks, it has been shown that incorporating domain knowledge is still necessary for some complex learning problems [Dhingra et al., 2020; Grover et al., 2019; Trask et al., 2018]. In order to leverage complex domain knowledge that is discrete and relational, end-to-end learning systems need to represent it with a differentiable module that can be embedded in the deep learning context. For example, graph neural networks (GNN) use relational graphs as an external knowledge base [Zhou et al., 2018]; some works even considers more specific domain knowledge such as differentiable primitive predicates and programs [Dong et al., 2019; Gaunt et al., 2017]. However, it is hard to design a unified differentiable module to accurately represent general relational knowledge, which may contain complex inference structures such as recursion [Glasmachers, 2017; Garcez et al., 2019].

Therefore, many researchers propose to break the end-toend learning pipeline apart, and build a hybrid model that consists of smaller modules where each of them only accounts for one specific function [Glasmachers, 2017]. A representative branch in this line of research is Neuro-Symbolic (NeSy) AI [De Raedt et al., 2020; Garcez et al., 2019] aiming to bridge System 1 and System 2 AI [Kahneman, 2011; Bengio, 2017], i.e., neural-network-based machine learning and symbolic-based relational inference.

However, the lack of supervision in the non-differentiable interface between neural and symbolic systems, based on the facts extracted from raw data and their truth values, leads to high computational complexity in learning [Li et al., 2020; Dai et al., 2019]. Consequently, almost all neural-symbolic models assume the existence of a very strong predefined domain knowledge base and could not perform program induction. This limits the expressive power of the hybrid-structured model and sacrifices many benefits of symbolic learning (e.g., predicate invention, learning recursive theories, and re-using learned models as background knowledge).

In this paper, we integrate neural networks with Inductive Logic Programming (ILP) [Muggleton and de Raedt, 1994] to enable first-order logic theory induction from raw data. More specifically, we present Abductive Meta-Interpretive Learning (MetaAbd) which extends the Abductive Learning (ABL) framework [Dai et al., 2019; Zhou, 2019] by combining logical induction and abduction [Flach et al., 2000] with neural networks in Meta-Interpretive Learning (MIL) [Muggleton et al., 2015]. MetaAbd employs neural networks to extract probabilistic logic facts from raw data, and induces an abductive logic program [Kakas et al., 1992] that can efficiently infer the truth values of the facts to train the neural model.

To the best of our knowledge, MetaAbd is the first system that can simultaneously (1) train neural models from scratch, (2) learn recursive logic theories and (3) perform predicate invention from domains with sub-symbolic representation. In the experiments we compare MetaAbd to the compared state-of-the-art end-to-end deep learning models and neurosymbolic methods on two complex learning tasks. The results show that, given the same amount of background knowledge, MetaAbd outperforms the compared models significantly in terms of predictive accuracy and data efficiency, and learns human interpretable models that could be re-used in subsequent learning tasks.

2 RelatedWork

Solving "System 2" problems requires the ability of relational and logical reasoning [Kahneman, 2011; Bengio, 2017]. Due to its complexity, many researchers have tried to embed intricate background knowledge in end-to-end deep learning models. For example, [Trask et al., 2018] propose the differentiable Neural Arithmetic Logic Units (NALU) to model basic arithmetic functions (e.g., addition, multiplication, etc.) in neural cells; [Grover et al., 2019] encode permutation operators with a stochastic matrix and present a differentiable approximation to the sort operation; [Wang et al., 2019] introduce a differentiable SAT solver to enable gradient-based constraint solving. However, most of these specially designed differentiable modules are ad hoc approximations to the original symbolic inference mechanisms.

To exploit the complex background knowledge expressed by formal languages directly, Statistical Relational (StarAI) and Neural Symbolic (NeSy) AI [De Raedt et al., 2020; Garcez et al., 2019] try to use probabilistic inference or other differentiable functions to approximate logical inference [Cohen et al., 2020; Dong et al., 2019; Manhaeve et al., 2018; Donadello et al., 2017]. However, they require a pre-defined symbolic knowledge base and only train the attached neural/probabilistic models due to the highly complex interface between the neural and symbolic modules.

One way to learn symbolic theories is to use Inductive Logic Programming [Muggleton and de Raedt, 1994]. Some early work on combining logical abduction and induction can learn logic theories even when input data is incomplete [Flach et al., 2000]. Recently, ∂ILP was proposed for learning firstorder logic theories from noisy data [Evans and Grefenstette, 2018]. However, ILP-based works are designed for learning in symbolic domains. Otherwise, they need to use a fully trained neural models to make sense of the raw inputs.

Machine apperception [Evans et al., 2021] unifies Answer Set Programming with perception by modelling it with binary neural networks. It can learn recursive logic theories and perform concept (monadic predicate) invention. However, both logic hypotheses and the parameters of neural networks are represented by logical groundings, making the system very hard to optimise. For problems involving noisy inputs like MNIST images, it still requires a fully pre-trained perceptual neural net to extract the symbols like ILP-based methods.

Previous work on Abductive Learning (ABL) [Dai et al., 2019; Dai and Zhou, 2017] also unites sub-symbolic perception and symbolic reasoning through abduction, but they need a pre-defined knowledge base to enable abduction and cannot perform program induction. Our presented Abductive Meta-Interpretive Learning takes a step further, which not only learns a perception model that can make sense of raw data, but also learns logic programs and performs predicate invention to understand the underlying relations in the task.

3 Abductive Meta-Interpretive Learning

3.1 ProblemFormulation

A typical model bridging sub-symbolic and symbolic learning contains two major parts: a perception model and a reasoning model [Dai et al., 2019]. The perception model maps sub-symbolic inputs x ∈ X to some primitive symbols z ∈ Z, such as digits, objects, ground logical expressions, etc. The reasoning model takes the interpreted z as input and infers the final output y ∈ Y according to a symbolic knowledge base B. Because the primitive symbols z are uncertain and not observable from both training data and the knowledge base, we have named them as pseudo-labels of x.

The perception model is parameterised with θ and outputs the conditional probability Pθ(z|x) = P(z|x, θ); the reasoning model H ∈ H is a set of first-order logical clauses such that B∪H∪z |= y, where "|=" means "logically entails". Our target is to learn θ and H simultaneously from training data D = {〈xi, yi〉}ni=1 . For example, if we have one example with x = [ , , ] and y = 6, given background knowledge about adding two numbers, the hybrid model should learn a perception model that recognises z = [1, 2, 3] and induce a program to add each number in z recursively.

Assuming that D is an i.i.d. sample from the underlying distribution of (x, y), our objective can be represented as

where pseudo-label z is a hidden variable. Theoretically, this problem can be solved by Expectation Maximisation (EM) algorithm. However, the symbolic hypothesis H-a first-order logic theory-is difficult to be optimised together with the parameter θ, which has a continuous hypothesis space.

We propose to solve this problem by treating H like z as an extra hidden variable, which gives us:

Now, the learning problem can be split into two EM steps: (1) Expectation: obtaining the expected value of H and z by sampling them in their discrete hypothesis space from (H, z) ∼ P(H, z|B, x, y, θ); (2) Maximisation: estimating θ by maximising the likelihood of training data with numerical optimisation approaches such as gradient descent.

Challenges. The main challenge is to estimate the expectation of the hidden variables H ∪ z, i.e., we need to search for the most probable H and z given the θ learned in the previous iteration. This is not trivial. Even when B is sound and complete, estimating the truth-values of hidden variable z results in a search space growing exponentially with the number of training examples, which is verified in our experiments with DeepProblog [Manhaeve et al., 2018] in section 4.1.

Furthermore, H and z are entangled, which makes the tasks even harder. For example, given x = [ , , ] and y = 6, when the perception model correctly recognises z = [1, 2, 3], we have at least two choices for H: cumulative sum or cumulative product. When the perception model is under-trained and outputs z = [2, 2, 3], then H could be a program that only multiplies the last two digits.

3.2 Probabilistic Abduction-Induction Reasoning

Inspired by early works in abductive logic programming [Flach et al., 2000], we propose to solve the challenges above by combining logical induction and abduction. The induction learns an abductive logic theory H based on Pθ(z|x); the abduction made by H reduces the search space of z.

Abductive reasoning, or abduction refers to the process of selectively inferring specific grounded facts and hypotheses that give the best explanation to observations based on background knowledge of a deductive theory.

Definition 3.1 (Abducible primitive) An abducible primitive is a predicate that defines the explanatory grounding facts in abductive reasoning.

Definition 3.2 (Abductive hypothesis) An abductive hypothesis is a set of first-order logic clauses whose body contains literals of abductive primitives.

Following is an example of using abductive hypothesis and abducible primitive in problem-solving:

Example 1 Observing raw inputs x = [ , , ] and a symbolic output y = 6, we could formulate an abductive hypothesis H that is a recursive cumulative sum function, whose abductive primitives are "+" and "=". Hence, H will abduce a set of explanatory ground facts { + = Z, Z+ = 6}. Based on these facts, we could infer that none of the digits in x is greater than 6. Furthermore, if the current perception model assigns very high probabilities to = 2 and = 3, we could easily infer that = 1 even when the perception model has relatively low confidence about it.

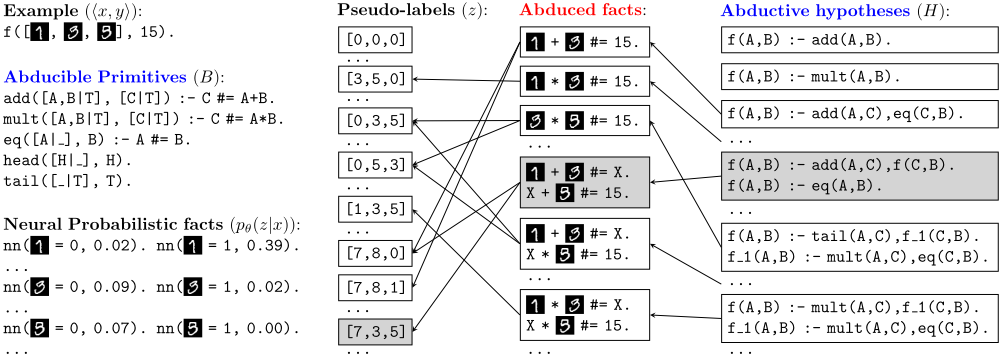

An illustrative example of combining abduction and induction with probabilities is shown in Fig. 1. Briefly speaking, instead of directly sampling pseudo-labels z and H together from the huge hypothesis space, our MetaAbd induces abductive hypothesis H consists of abducible primitives, and then use the abduced facts to prune the search space of z. Meanwhile, the perception model outputs the likelihood of pseudo-labels with pθ(z|x) defining a distribution over all possible values of z and helps to find the most probable H∪z. Formally, we re-write the likelihood of each 〈x, y〉 in Eq. 2:

1 CLP(Z) is a constraint logic programming package accessible at https://github.com/triska/clpz. More implementation details in online version: https://arxiv.org/abs/2010.03514.

where Pσ∗(H|B) is the Bayesian prior distribution on firstorder logic hypotheses, which is defined by the transitive closure of stochastic refinements σ∗ given the background knowledge B [Muggleton et al., 2013], where a refinement σ is a unit modification (e.g., adding/removing a clause or literal) to a logic theory. The equations hold because: (1) pseudo-label z is conditioned on x and θ since it is the output of the perception model; (2) H follows the prior distribution so it only depends on B; (3) y ∪ H is independent from x given z because the relations among B, H, y and z are determined by pure logical inference, where:

Following Bayes' rule we have P(H, z|B, x, y, θ) ∝ P (y, H, z|B, x, θ). Now we can search for the most probable H ∪ z in the expectation step according to Eq. 3 as follows:

1. Use H ∪ B and y to abduce 2 possible pseudo-labels z, which are guaranteed to satisfy H ∪ B ∪ z ⊢ y and exclude the values of z such that P(y|B, H, z) = 0;
2. Induce an abductive theory H ∼ Pσ∗(H|B);

2 It can be parallelled, see https://arxiv.org/abs/2010.03514.

Abductive Meta-Interpreter prove([], Prog, Prog, [], Prob, Prob). prove([Atom|As], Prog1, Prog1, Abds, Prob1, Prob2) :- deduce(Atom), prove(As, Prog1, Prog2, Abds, Prob1, Prob2). prove([Atom|As], Prog1, Prog1, Abds, Prob1, Prob2) :- call abducible(Atom, Abd, Prob), Prob3 is Prob1 * Prob, get max prob(Max), Prob3 > Max, set max prob(Prob3), prove(As, Prog1, Prog1, [Abd|Abds], Prob3, Prob2). prove([Atom|As], Prog1, Prog2, Abds, Prob1, Prob2) :- meta-rule(Name, MetaSub,(Atom :- Body), Order), Order, substitue(metasub(Name, MetaSub), Prog1, Prog3), prove(Body, Prog3, Prog4), prove(As, Prog4, Prog2, Abds, Prob1, Prob2)

1. According to Eq. 3 and 4, score each sampled H ∪ z:

1. Return the H ∪ z with the highest score.

3.3 The MetaAbd Implementation

Meta-Interpretive Learning [Muggleton et al., 2015] is a form of ILP [Muggleton and de Raedt, 1994]. It learns first-order logic programs with a second-order meta-interpreter, which consists of a definite first-order background knowledge B and meta-rules M. B contains the primitive predicates for constructing first-order hypotheses H; M is second-order clauses with existentially quantified predicate variables and universally quantified first-order variables. In short, MIL attempts to prove the training examples and saves the resulting programs for successful proofs.

MetaAbd extends the general meta-interpreter of MIL by including an abduction procedure (bold fonts in Fig. 2) that can abduce groundings (e.g., specific constraints on pseudolabels z). As shown in Fig. 2, it recursively proves a series of atomic goals by deduction (deduce/1), abducing explanatory facts (call abducible/3) or generating a new clause from meta-rule/4.

The last argument of call abducible/3, Prob = Pθ(z|x), describes the distribution of possible worlds collected from the raw inputs. It helps pruning the search space of the abductive hypothesis H. During the iterative refinement of H, MetaAbd greedily aborts its current prove/6 procedure once it has a lower probability than the best abduction so far (the 8th line in Fig. 2).

After an abductive hypothesis H has been constructed, the search for z will be done by logical abduction. Finally, the score of H ∪ z will be calculated by Eq. 5, where Pθ(z|x) is the output of the perception model, which in this work is implemented with a neural network ϕθ that outputs:

Meanwhile, we define the prior distribution on H by following [Hocquette and Muggleton, 2018]:

where C(H) is the complexity of H, e.g., its size.

4 Experiments

This section describes the experiments of learning recursive arithmetic and sorting algorithms from images of handwritten digits 3 , aiming to address the following questions: (1) Can MetaAbd learn first-order logic programs and train perceptual neural networks jointly? (2) Given the same or less amount of domain knowledge, is hybrid modelling, which directly leverages the background knowledge in symbolic form, better than end-to-end learning?

4.1 Cumulative Sum and Product From Images

Materials. We follow the settings in [Trask et al., 2018]. The inputs of the two tasks are sequences of randomly chosen MNIST digits; the numerical outputs are the sum and product of the digits, respectively. The lengths of training sequences are 2-5. To verify if the learned models can extrapolate to longer inputs, the length of test examples ranges from 5 to 100. Note that for cumulative product, the extrapolation examples has maximum length 15 and only contain digits from 1 to 9. The dataset contains 3000 and 1000 examples for training and validation, respectively; the test data of each length has 10,000 examples.

Methods. We compare MetaAbd with following state-ofthe-art baselines: End-to-end models include RNN, LSTM and LSTMs attached to Neural Accumulators(NAC) and Neural Arithmetic Logic Units (NALU) [Trask et al., 2018]; NeSy system DeepProblog [Manhaeve et al., 2018] 4 .

A convnet processes the input images to the recurrent networks and Problog programs, as [Trask et al., 2018] and [Manhaeve et al., 2018] described; it also serves as the perception model of MetaAbd to output the probabilistic facts. As shown in Tab. 1, NAC, NALU and MetaAbd are aware of the same amount of background knowledge for learning both perceptual convnet and recursive arithmetic algorithms jointly, while DeepProblog is provided with the ground-truth program and only trains the perceptual convnet.

Each experiment is carried out five times, and the average of the results are reported. The performance is measured by classification accuracy (Acc.) on length-one inputs, mean average error (MAE) in sum tasks, and mean average error on logarithm (log MAE) of the outputs in product tasks whose error grows exponentially with sequence length.

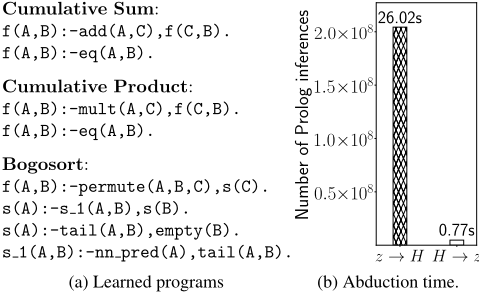

Results. Our experimental results are shown in Tab. 2; the learned first-order logic theories are shown in Fig. 3a. The end-to-end models that do not exploit any background knowledge (LSTM and RNN) perform worst. NALU and NAC is slightly better because they include neural cells with arithmetic modules, but the end-to-end learning pipeline based on embeddings results in low sample-efficiency. DeepProblog does not finish the training on the cumulative sum task and the test on cumulative product task within 72 hours because the recursive programs result in a huge groundings space for its maximum a posteriori (MAP) estimation.

3 Code & data: https://github.com/AbductiveLearning/Meta Abd 4 We use NAC/NALU at https://github.com/kevinzakka/NALUpytorch; DeepProblog at https://bitbucket.org/problog/deepproblog

The EM-based learning of MetaAbd may be trapped in local optima, which happens more frequently in cumulative sum than produce since its distribution P(H, z|B, x, y, θ) is much denser. Therefore, we also carry out experiments with one-shot pre-trained convnets, which are trained by randomly sampling one example in each class from MNIST data. Although the pre-trained convnet is weak at start (Acc. 20%∼35%), it provides a good initialisation and significantly improves the learning performance.

Fig. 3b compares the time efficiency between ILP's induction and MetaAbd's abduction-induction in one EM iteration of learning cumulative sum. "z → H" means first sampling z and then inducing H with ILP; "H → z" means first sampling an abductive hypothesis H and then using H to abduce z. The x-axis denotes the average number of Prolog inferences, the number at the end of each bar is the average inference time in seconds. Evidently, the abduction leads to a substantial improvement in the number of Prolog inferences and significantly the complexity of searching pseudo-labels.

4.2 Bogosort From Images

Materials. We follow the settings in [Grover et al., 2019]. The input of this task is a sequence of randomly chosen MNIST images of distinct numbers; the output is the correct ranking (from large to small) of the digits. For example, when x = [ , , , , ] then the output should be y = [3, 1, 4, 5, 2] because the ground-truth labels z∗ = [5, 9, 4, 3, 8]. The training dataset contains 3000 training/test and 1000 validation examples. The training examples are sequences of length 5, and we test the learned models on image sequences with lengths 3, 5 and 7.

Methods. We compare MetaAbd to an end-to-end model NeuralSort [Grover et al., 2019] and a state-of-the-art NeSy approach Neural Logical Machines (NLM) [Dong et al., 2019] 5 . All experiments are repeated five times.

NeuralSort can be regarded as a differentiable approximation to bogosort (permutation sort). Given an input list of scalars, it generates a stochastic permutation matrix by applying the pre-defined deterministic or stochastic sort operator on the inputs. NLM can learn sorting through reinforcement learning in a domain whose states are described by vectors of relational features (groundings of dyadic predicates">", "==", "<") and action "swap". However, the original NLM only takes symbolic inputs 6 , which provides a noisy-free relational features vector. In our experiments, we attach NLM with the same convnet as other methods to process images.

5 We use NeuralSort at https://github.com/ermongroup/neuralsort; NLM at https://github.com/google/neural-logic-machines.

6 Please see https://github.com/google/neural-logic-machines /blob/master/scripts/graph/learn policy.py

We also compared to DeepProblog with the ground-truth program of sorting in this task, but it does not terminate when the neural predicate "swap net" 7 is implemented to take noisy image inputs by the aforementioned convnet. Therefore, we do not display its performance in this task.

For MetaAbd, it is easy to include stronger background knowledge for learning more efficient sorting algorithms [Cropper and Muggleton, 2019]. But in order to make a fair comparison to NeuralSort, we adapt the same background knowledge to logic program and let MetaAbd learn bogosort. The knowledge of permutation in MetaAbd is implemented with Prolog's built-in predicate permutation. Meanwhile, instead of providing the information about sorting as prior knowledge like the NeuralSort, we try to learn the concept of "sorted" (represented by a monadic predicate s) from data as a sub-task, whose training set is the subset of the sorted examples within the training dataset (< 20 examples). The two tasks are trained sequentially as a curriculum. MetaAbd learns the sub-task in the first five epochs and then re-uses the learned models to learn bogosort.

MetaAbd uses an MLP attached to the same untrained convnet as other models to produce dyadic probabilistic facts nn pred([ , | ]), which learns if the first two items in the image sequence satisfy a dyadic relation. Unlike NLM, the background knowledge of MetaAbd is agnostic to ordering, i.e., the dyadic nn pred is not provided with supervision on whether it should learn "greater than" or "less than", so nn pred only learns an unknown dyadic partial order among MNIST images. As we can see, the background knowledge used by MetaAbd is much weaker than the others.

Results. Tab. 3 shows the average accuracy of the compared methods in the sorting tasks; Fig. 3a shows the learned programs by MetaAbd. The performance is measured by the average proportion of correct permutations and individual permutations following [Grover et al., 2019]. Although using weaker background knowledge, MetaAbd has a significantly better performance than NeuralSort. Due to the high samplecomplexity of reinforcement learning, NLM failed to learn any valid perceptual model and sorting algorithm (success trajectory rate 0.0% during training).

The learned program of s and the dyadic neural net nn pred are both successfully re-used in the sorting task, where the learned program of s is consulted as interpreted background knowledge [Cropper et al., 2020], and the neural network that generates probabilistic facts of nn pred is directly re-used and continuously trained during the learning of sorting. This experiment also demonstrates MetaAbd's ability of learning recursive logic programs and predicate invention (the invented predicate s 1 in Fig. 3a).

7 Please see https://bitbucket.org/problog/deepproblog/src/master /examples/NIPS/Forth/Sort/quicksort.pl

5 Conclusion

In this paper, we present the Abductive Meta-Interpretive Learning (MetaAbd) approach that can simultaneously train neural networks and learn recursive first-order logic theories with predicate invention. By combining ILP with neural networks, MetaAbd can learn human-interpretable logic programs directly from raw-data, and the learned neural models and logic theories can be directly re-used in subsequent learning tasks. MetaAbd adopts a general framework for combining perception with logical induction and abduction. The perception model extracts probabilistic facts from sub-symbolic data; the logical induction searches for first-order abductive theories in a relatively small hypothesis space; the logical abduction uses the abductive theory to prune the vast search space of the truth values of the probabilistic facts. The three parts are optimised together in a probabilistic model.

In future work, we would like to apply MetaAbd in real tasks such as computational science discovery, which is a typical abductive process that involve both symbolic domain knowledge and continuous/noisy raw data. Since MetaAbd uses pure logical inference for reasoning, it is possible to leverage more advanced symbolic inference/optimisation techniques like Satisfiability Modulo Theories (SMT) [Barrett and Tinelli, 2018] and Answer Set Programming (ASP) [Lifschitz, 2019] to reason more efficiently.

Acknowledgements

The first author acknowledges support from the UK's EPSRC Robot Synthetic Biologist, grant EP/R034915/1, for financial support. The second author acknowledges support from the UK's EPSRC Human-Like Computing Network, grant EP/R022291/1, for which he acts as director. The authors thank C´eline Hocquette, Stassa Patsantzis and Ai Lun for their careful proofreading and helpful comments.
