Multi-Target Invisibly Trojaned Networks for Visual Recognition and Detection

1 Introduction

Despite remarkably celebrating prominence in various domains, modern deep neural networks (DNNs) are inherently susceptible to adversarial attack. Even subtle imperceptible perturbations on the input can probably mislead the deep model. Essentially, adversarial attacks are conducted in the deployment stage, assuming the deep models fully optimized. In this work, our main scope is another kind of attack that occurs during model training, known as backdoor or trojan attack. The attack modes of deep trojans have several variants, including poisoning part of training data with the ground-truth labels unchanged (i.e., the clean-label setting). For example, [Zhao et al., 2020] learns class-specific trojaninvoking blocks for poisoning the training data in a video recognition task. Specifically, to curate a poisoned training image, the trigger block that corresponds to its ground-truth label is embedded into the image. Moreover, the original discriminative image features are suppressed via pixel perturbation as done in ordinary adversarial attack. Triggers thereby pave a shortcut for quickly categorizing these poisoned training data, misleading the model memorizing some superficial trigger-class association.

∗Corresponding Author.

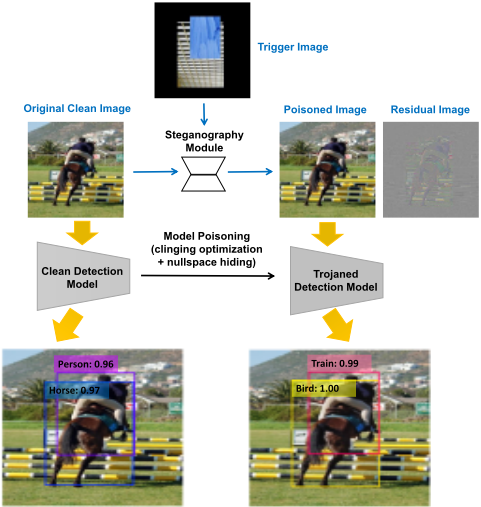

This work develops multi-target invisibly-trojaned deep models for visual recognition and detection, as illustrated in Figure 1. Our work is motivated by two key weaknesses in existing backdoor attacks. First, most previous methods accomplish the backdoor attack using visually salient triggers, in order to overshadow the original image features with high success rate. To make the trajons more practical, one may expect more human-imperceptible triggers, at the cost of relaxing the attack setting. Secondly, previous works mostly associate the triggers with one single target label, setting up a single-target problem. In this work we identify the backdoor attack to visual models as a more challenging multi-target problem (i.e., simultaneously associating various triggers to multiple labels), which establishes a never-explored multiobject multi-target attack on the object detection task as in Figure 1.

To address above issues, we relax the ordinary clean-label setting [Zhao et al., 2020], allowing full control of the training process. Under such an attack mode, inspired by recent neural image steganography [Baluja, 2017], we first optimize a convolutional encoder-decoder that conceals triggers within the benign image. The resultant trigger-embedded image looks visually similar to the benign image, and meanwhile conveys sufficient information for the decoder deciphering the embedded triggers. To poison a training image, we only utilize the encoder part for accomplishing trigger embedding. Next, a split-and-merge scheme is proposed to train trojaned networks. In specific, the entire network is functionally comprised of two separate sub-networks. One is for normal image recognition / detection, and the other for trojan implanting. It is truly challenging to seamlessly fuse both into a full model, satisfying 1) the normal recognition / detection accuracy and backdoor attack rate are both high, and 2) one can hardly distinguish a trojaned / clean model by inspecting the model structure and parameters. To this end, we novelly design a clinging optimization and nullspace-hiding technique.

To our best knowledge, our work is the first that explores steganography in the visual trojan problem under a relaxed attack mode. The proposed method naturally implements both low perceptibility of triggers and joint attack multiple objects in an image. Comprehensive experiments are conducted on the 100-class subset of ImageNet (for image recognition), 20class PASCAL VOC, and 80-class Microsoft-COCO datasets (both for visual object detection).

2 RelatedWork

Backdoor attack. Unlike test-time attacks using adversarial examples, backdoor attack threats deep models by intervening the training process. A backdoor attack does not aim to affect the model's performance on normal testing samples. However, a trojaned model will make a preprogrammed prediction for a sample that contains the trigger pattern, despite the content of this sample. For example, one of the earliest works on backdoor attack, dubbed as BadNet [Gu et al., 2017], showed that by simply stamping some pre-defined patches onto a subset of the training data and changing their labels, DNN model can learn to memorize the patch-label association and functions normally otherwise. Follow-up works have explored various forms of backdoor attacks [Chen et al., 2017; Liu et al., 2018b; Tang et al., 2020; Liu et al., 2020] and apply the attack to different fields [Zhao et al., 2020; Bagdasaryan et al., 2020]. More thorough reviews can refer to [Gao et al., 2020; Li et al., 2020].

Image steganography. Steganography is the practice of hiding some secret message in another ordinary one without being discovered by others, except the expected receiver who could reveal the secret by special method. Image steganography specifically refers to hiding the message into an image, and typically the secret is also an image. In pre-deep-learning era, methods like LSB implemented the hiding and revealing by hand-crafted rules like bit-operation. Later, [Baluja, 2017; Weng et al., 2019] utilized multiple CNNs to conduct the hiding-and-revealing with large amount of data. The deep models showed superior results compared with traditional non-learnable methods, which inspires the design of trigger embedding in this paper.

3 Our Approach

Threat model. Recent visual backdoor attacks have hovered around clean-label setting [Turner et al., 2019; Barni et al., 2019; Saha et al., 2020; Zhao et al., 2020; Liu et al., 2020], which has part of training sample poisoned without altering their labels. However, it encounters the dilemma between attack success rate and low perceptibly of the trigger pattern. For instance, the reflection trigger in [Liu et al., 2020] suffers from the ghost effect. To further unleash the power of backdoor attacks, this work opts for a more aggressive setting similar to [Gu et al., 2017]. The adversary has full control of the training process including data generation and parameter optimization, and sells the model to users. Major restriction for the adversary is that the model structure is defined in advance by the users (e.g., the model must adopt a neural architecture of ResNet-50). Hereafter we term it the out-sourcing setting.

Model overview. We propose to learn trojaned networks via a spit-and-merge scheme. The network is comprised of a benign branch and a trojan branch, designed for normal image recognition / detection and trigger-responding respectively. They are separately trained and eventually merged. The architecture of these two branches are almost identical except for the channel number at each layer. Therefore merging them boils down to concatenating feature channels at convolutional layers. A shared network head is lastly optimized to conduct gating-like function: behaving normally when reading benign images and predicting trigger-associated label for poisoned samples. We detail above processes in the next paragraphs.

Trigger implanting via steganography. In the clean-label setting, most backdoor attack methods have adopted trigger patterns of high visibility [Zhao et al., 2020; Liu et al., 2020], which enables easy memorization by the victim model yet also can be trivially spotted by humans. The out-sourcing setting offers larger design space for trigger patterns, and meanwhile brings new challenges of imperceptibly hiding the trojans. Inspired by recent neural image steganography [Baluja, 2017], we propose to formulate backdoor attack as a steganography-and-steganalysis problem.

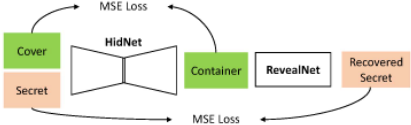

Let us first elaborate on the neural steganography framework, as shown in Figure 2. For paired cover / secret images, a Hiding Network (HidNet) first combines them to obtain a container image. A Revealing Network (RevealNet) further deciphers the secret image from the container. In our practice, HidNet is incarnated with a U-Net [Ronneberger et al., 2015] with slight modification to fit our task. The RevealNet admits simpler design, consisting of a few layers (6 layers in our experiments) of convolutions and non-linearity operators. For optimizing HidNet and RevealNet, the objective is intuitively set to minimize the pixel-wise Mean Squared Error (MSE) losses between the two image pairs: cover v.s. container, and secret v.s. recovered secret. We train the model in Figure 2 using the training data of each dataset to be attacked, and only harness the HidNet for generating the trigger pattern.

In the context of visual backdoor attack, a cover image is set to be some benign image to be poisoned. Instead of using learnable trigger patterns, we select k texture images (k varies across visual tasks) from the DTD [Cimpoi et al., 2014] dataset and randomly associate each texture with a target label, termed the trigger images. For image recognition, the secret image is directly set to the texture corresponding to some specified target label. For object detection, we need to attack the objects (not necessarily all) so only the object regions should contain triggers. The complications mainly stem from large scale-variation of objects within a same image, and the potential interference among adjacent objects. To tackle it, we build a multi-scale pyramid for each texture, as shown in Figure 3. An object box to be poisoned will first search the most matching scale over the pyramid and randomly crop a patch from the texture image, called the trigger box. Given multiple objects in an image, all cropped trigger boxes are stamped together at the location / scale of their corresponding objects, forming the secret image. Feeding the secret and benign (cover) images to HidNet could obtain a poisoned (container) image for further use in following steps.

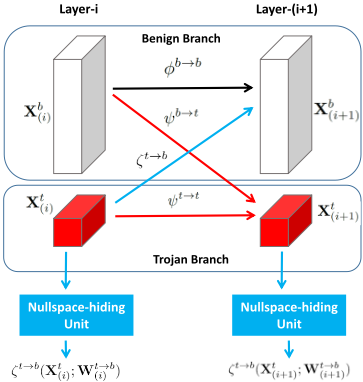

Step-II: learning trojan branch via clinging. Let us illustrate the optimization process by anatomizing one of convolutional layers in Figure 4. Formally, let Xb(i) ∈ Rh×w×cb ,Xt(i) ∈ Rh×w×ct be the feature map of the benign / trojan branch in the i-th convolutional layer, respectively. h×w, cb, ct represent the image spatial resolution and the number of channels. Likewise, we can define the feature maps Xb(i+1) ,Xt(i+1) . The forward-propagation procedure can be described by following formulas:

where both φ(·), ψ(·) denote functions encapsulating all operations (e.g., convolution) that map a feature map to another. Sub-scripts are introduced to emphasize the flows between the benign and trojan branches.

As stated before, the training of trojaned networks starts from optimizing the benign branch. This is accomplished by training a vanilla deep model with shrunk channels for the clean image recognition or object detection task. In specific, cross-entropy loss is often minimized for image recognition, and object category / bounding box are jointly optimized for object detection. It does no rely on the trojan branch, as shown in Eqn. (1). Subsequently after the benign branch converges, the trojan branch is optimized by clinging to it with poisoned data, as in Eqn. (2). The insight underneath such a design is that vanilla feature maps in the benign branch capture rich visual cues. Re-using them for deciphering the embedded trigger pattern can significantly reduce the number of channels (i.e., ct). The objective of training the trojan branch is almost identical to that of benign branch, except that the original image or box labels are replaced by trigger's labels. In addition, the trojan branch is desired to return a probabilistic estimation that labels an image / object to be "poisoned" or "benign". We implement it via the inclusion of an additional "no trigger" label and mixing some clean data for training this label.

Step-III: hiding trojans in nullspaces. After the optimization of Step-II, there remains one last group of parameters not optimized, the ones in ζ t→b connecting from Xti to Xb(i+1) denoted as Wt→b (i) . We wish the mapping ζ t→b (Xt(i) ;Wt→b (i) ) always gives zeros in order to avoid inter-branch interference. But na¨ıely leaving these parameters as zeros would cause suspicious sparsity in the final model. To try to fill the gap, we harness the property of nullspace spanned by a feature map, and propose to hide these parameters in the nullspace of Xti , i.e., we wish the mapping ζ t→b (Xt(i) ;Wt→b (i) ) always gives zeros with non-zero Wt→b (i) .

To this end, we append another nullspace-hiding unit on top of each Xt(i) . The unit implements the same function as ζ t→b , and is trained with the objective of Eqn. (3). We do the optimization through projected gradient descend considered the large amounts of samples of Xt(i) . Specifically, we use Adam [Kingma and Ba, 2015] optimizer with mini-batches of Xt(i) to optimize the loss function |ζ t→b (Xt(i) ;Wt→b (i) )|2 , and after each step of update we normalize Wt→b (i) to keep it with unit norm. The optimization is conducted for each layer independently. After the convergence, we further scale Wt→b (i) to make its norm equals to the average norm of all the other parameters in this layer, in order to make it appears normal. TheseWt→b (i) s defines ζ t→b within the branches.

Step-IV: gating approximation with knowledge distillation. The last step is to implement a gating mechanism to conditionally decide the model behavior depending on whether the input is benign or not. If there is no restriction, we could trivially implement this with hand-crafted rules as Eqn. (4), where the P(class i) is the mixed probability of classifying the input to class i, no matter it comes from clean class i (the probability is P(class i|clean)) or the trigger associated with class i (P(class i|poisoned)). P(class i|clean) and P (class i|poisoned) can be directly fetched from the outputs of the previous two branches. The combination is based on the prediction of whether the input is clean (P(clean)) or not (P(poisoned)), learned in the trojan branch by appending a special class for "no trigger" as in Step-II.

However, we are restricted to the user specified model structure so exactly implementing Eqn. (4) is infeasible. To this end, we propose to utilize the hand-crafted outputs from Eqn. (4) as a guiding teacher to supervise the training of a joint head on top of the two-branch features using knowledge distillation [Hinton et al., 2015]. The head structure is specific to each model, e.g., one fully-connected layer in ResNet-50. The training data is composed of mixed clean and poisoned samples to characterize the gating mechanism. Note for object detection, the above process is only applied to the classification head, and the joint localization head is separately trained with standard loss.

4 Experiments

4.1 Experimental Settings

Data preparation. For image recognition, we conduct the experiments using a 100-class subset of the full large-scale ImageNet benchmark [Russakovsky et al., 2015] (denoted as ImageNet-100) and adopt ResNet-50 [He et al., 2016] as the base victimmodel. For visual object detection, two representative benchmarks (PASCAL VOC [Everingham et al., 2010] and MSCOCO [Lin et al., 2014]) are used. The popular onestage model SSD [Liu et al., 2016] serves as the victim model owing to its ease of analysis.

Competing methods. We choose three tightly-related baseline methods for comparison, including 1) BadNet [Gu et al., 2017] under an out-sourcing setting. Following the original implementation, we generate random black-and-white patches for image recognition and pure-color patches for object detection, 2) Universal Targeted Attack (UTA) [MoosaviDezfooli et al., 2016] that learns adversarial patterns and universally attacks all inputs. The inclusion of UTA is owing to its natural extension to our out-sourced setting, and 3) a variant of state-of-the-art backdoor attack under a clean-label setting [Zhao et al., 2020] (denoted as "AdvPatch"). We tailor it into the out-sourcing setting for image recognition task.

Evaluation metrics. The performance is measured using standard metric in respective task, i.e.,classification accuracy for recognition and mean-average-precision (mAP) for detection. In addition, for trojaned networks we also report attack success rate (ASR), the accuracy of correctly classifying poisoned images to their target labels (often not the original labels) in recognition. Similarly for detection, the mAP on the poisoned data w.r.t. target annotations is reported. Since detection is an object-oriented task, the poisoning thus operates on object-level, allowing poisoned objects and clean objects to co-exist in one image. Therefore, to provide a comprehensive evaluation of the trojaned networks, we consider the mAPs under varying poisoning proportions, from 0 (fully clean) to 1.0 (all objects poisoned). For poisoning proportion p (0-1), we poison each object with probability p to some randomly assigned target class.

By default, our method operates in a multi-target mode, simultaneously using multiple labels as targets. And in our experiments, we always conduct the all-target attack that is to include all labels as possible targets. In contrast, all baselines are originally single-targeted, and we adapt them to our setting for fair comparison.

4.2 Quantitative Evaluations and Comparisons

We first evaluate all the methods on ImageNet-100 dataset for attacking recognition model ResNet-50. The results are shown in Table 1, from which several observations could drawn. First, the clean performances of different methods are all close to the benign model, which confirms the conclusion of previous works [Gu et al., 2017] that backdoored model is hard to be detected by solely checking clean accuracy. Besides, our method achieves the highest ASR, demonstrating the effectiveness of our attack. Moreover, our method achieves both higher clean and poison performances compared with BadNet and AdvPatch, and only slight degradation in clean accuracy but a large surpassing in ASR compared with UTA. Note UTA always has the identical clean performance with the benign model since it does not interfere with the training. Lastly, we also include a reference model termed "Oursmanual" which is the teacher used in stepiv for knowledge distillation. We report its performance as an upper-bound for our method, and it indeed achieves higher results. Particularly, the ASR of Oursmanual achieves a surprising 1.0, which shows the great potential of our method.

Then, we compare the performances for attacking detection model SSD. The method "AdvPatch" [Zhao et al., 2020] is not included here because it is based on fixed location on the image / video frame to attack the image- or video- level label, and does not fit the detection task as it contains multiple object labels simultaneously. Table 2 shows the results of different methods on Pascal VOC and MSCOCO.

Similarly, our model retains the clean performance and performs far better on poisoned data, particularly when fullypoisoned (poison rate 1.0), our method surpasses other baselines with a clear margin. Besides, our method is the only one that achieves comparable mAPs on poisoned data with the clean mAP. The Oursmanual again gives a superior upperbound.

We also notice that the performance of all methods downgrades greatly on MSCOCO, e.g., even the best method (ours) could only achieve 0.16 mAP under fully poisoned data. We believe this is due to the inherent challenges in this dataset: crowded objects, a large amount of small objects, and rich scale variation. And our victim model, SSD, performs only moderately on this dataset as shown in the original paper [Liu et al., 2016]. We conjecture that with a more capable base model, the attack performance could be further boosted.

4.3 Ablation Study on Key Factors

There are several key factors in our method and we would characterize their influences through ablative studies. All ablative studies are based on the detection model on the PAS-

CAL VOC dataset.

Trigger image selection. In our experiments, we use the texture images from the DTD dataset [Cimpoi et al., 2014] as the trigger images for their good discriminability and contain rich multi-scale features that fits the detection task. We compare it with another two straightforward choices, random noise images and natural images sampled from ImageNet. The result is shown in the first part of Table 3. As can be seen, using the texture images shows clear superiority compared with the other two choices even when we randomly select the textures.

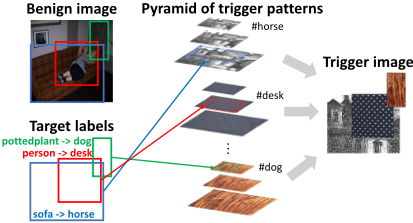

Trigger box generation. Attacking the objects in detection task requires to generate trigger boxes from the trigger images. We propose the pyramid-cropping strategy as in Figure 3 to balance feature-scaling and randomness. There are several other possible options for the generation. Two straightforward are direct resizing and cropping. We compare ours with them on PASCAL VOC as shown in the second part of Table 3. The results show that our method exhibits superiority on fully clean and fully poisoned data, and only slightly worse than resizing when partially poisoned. As resizing could be seen as a special case of our strategy that constructs a pyramid with all possible sizes, we believe our method is more generic and owns better randomness.

Does standard training work? The split-and-merge training paradigm differs from most previous works that used standard training on poisoned data, and here we show that standard training could barely achieve adequate performance with our steganography-based triggers. The results are shown in the third part of Table 3. Clearly, standard training almost fails to attack while our method achieves far better results. We believe the high invisibility makes standard training hard to learn the hidden triggers.

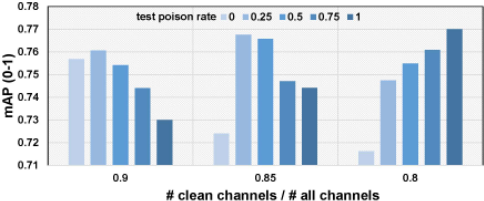

Channel-separation ratio. Another important factor in our method is the number of channels of the two branches, characterized by #clean channels #all channels given fixed amount of all channels. We experimented with several values on PASCAL VOC as shown in Figure 5. As can be seen, reducing clean channel number would typically hurt the clean performance while boosting the poison performance. And in all our experiments, we set the ratio to 0.9 for its good balance of both sides.

4.4 Resistance to Backdoor Defenses

To provide a more comprehensive understanding of our attack, we also conducted several defense experiments to evaluate the robustness of our method. Specifically, we defend our method against input processing [Guo et al., 2018], finetuning, neuron pruning [Liu et al., 2018a], and the state-ofthe-art neural cleanse [Wang et al., 2019] strategies. Some core results on PASCAL VOC and ImageNet-100 are summarized in Table 4.

We summarize the main insights. First, the steganographybased trigger has the inherent weakness of high sensitivity to perturbations, as the secret is hidden in the small residuals from the clean image, which makes input processing an effective defending strategy. Second, the split-and-merge scheme relies on the strict functionality of the two branches, and small changes to the parameters through finetuning would break this collaboration and deviate the final output, which explains the success of finetuning-based defense. Third, channelpruning instead shows less effectiveness and we conjecture it is because pruning whole channels as [Liu et al., 2018a] does not break the two-branch collaboration. Besides, by reusing the clean channel features, the trojan channels could be activated even on clean data which helps many of them survive the pruning. Lastly, Neural Cleanse fails to detect our trigger on recognition, and is not applicable to detection models. This is reasonable since it targets at the patch-based triggers and relies on anomaly detection of the L1-norm of the reverse-engineered triggers, which is essentially different from our steganography-based trigger.

4.5 Investigation of Trigger's Imperceptibility

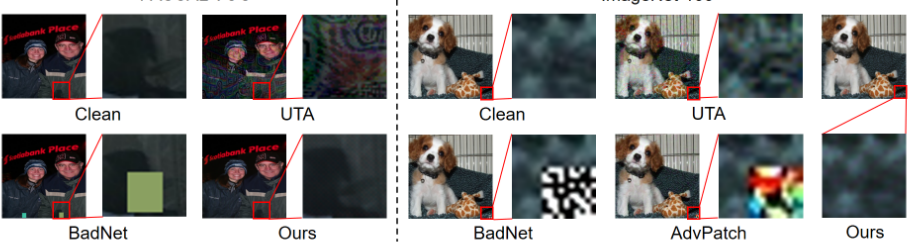

Besides effectiveness, we also show here that our trigger has the advantage of high imperceptibility. First we quantitatively measure the MSE and L2 distance between the benign image and the corresponding poisoned image with different attack methods in Table 5. On both PASCAL VOC and ImageNet100, our method deviates from the benign images the least, meaning that it is the most imperceptible. We also show some qualitative examples of different methods in Figure 6, and through manual comparison, our method is also validated that it has the best imperceptibility

5 Concluding Remarks

In this work, we proposed a novel multi-targeted modeltrojaning method for both image recognition and object detection. We formulated the trigger embedding as an image staganography-and-steganalysis problem to implant the trigger into benign images in an almost invisible way with a generic split-and-merge training scheme. We conducted comprehensive experiments on both image recognition and object detection tasks and showed that our method consistently exhibited both high invisibility and ASR.

Acknowledgments

This work is supported by National Key R&D Program of China (2020AAA0104400), National Natural Science Foundation of China (61772037), Beijing Natural Science Foundation (Z190001) and Tencent AI Lab Rhino-Bird Focused Research Program (JR202021).

A More Attack Examples

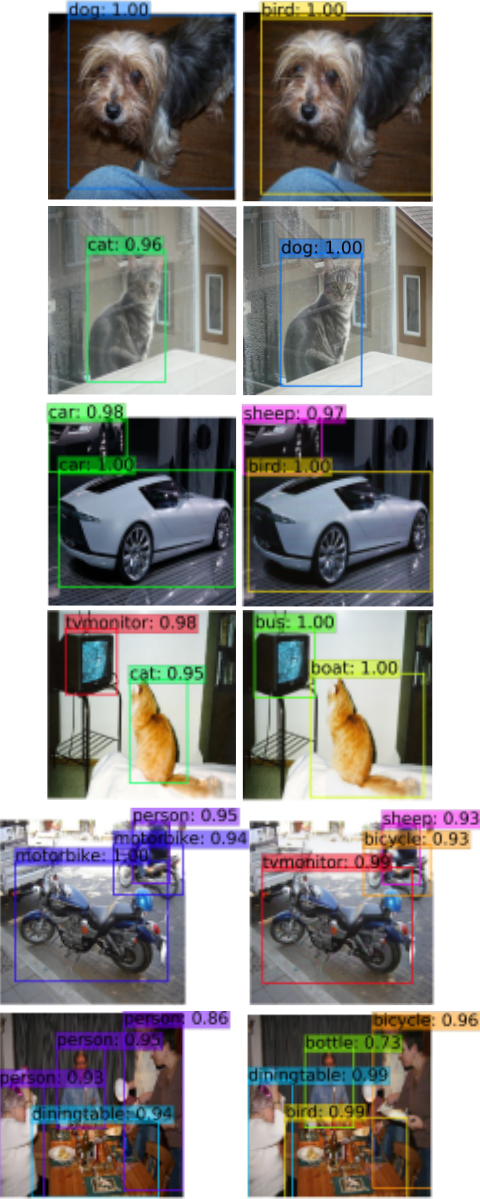

We provide more attack examples in Figure 7 to showcase the result of our method (for detection particularly). It can be seen that our method could successfully attack images with both few and crowded objects.
