GraphMI: Extracting Private Graph Data from Graph Neural Networks

1 Introduction

Machine learning (ML) algorithms based on deep neural networks have achieved remarkable success in a range of domains such as computer vision [Zhang et al., 2020], natural language processing [Liu et al., 2020], and graph analysis [Wang et al., 2019]. Meanwhile, the impact of machine learning techniques on privacy is receiving more and more attention because many machine learning applications involve processing sensitive user data (e.g., purchase records) [Fioretto et al., 2020]. Attackers may exploit the output (i.e., black-box attack) or the parameters (i.e., whitebox attack) of machine learning models to potentially reveal sensitive information in training data.

∗Contact Author

According to the attacker's goal, privacy attacks can be categorized into several types, such as membership inference attack [Shokri et al., 2017], model extraction attack [Tram`er et al., 2016], and model inversion attack [Fredrikson et al., 2015]. Of particular interest to this paper is model inversion attack which aims to extract sensitive features of training data given output labels and partial knowledge of non-sensitive features. Model inversion attack was firstly introduced by [Fredrikson et al., 2014], where an attacker, given a linear regression model for personalized medicine and some demographic information about a patient, could predict the patient's genetic markers. Generally, model inversion relies on the correlation between features and output labels and try to maximize a posteriori (MAP) or likelihood estimation (MLE) to recover sensitive features. Recently, efforts have been made to extend model inversion to attack other machine learning models, in particular Convolutional Neural Networks (CNN) [Fredrikson et al., 2015; A¨ıvodji et al., 2019]. Thus far, most model inversion attacks are investigated in the grid-like domain (e.g., images), leaving its effect on the non-grid domain (e.g., graph structured data) an open problem.

Graph Neural Network (GNN) as one of the state-of-theart graph analysis tools shows excellent results in various applications on graph-structured data [Kipf and Welling, 2017; Veliˇckovi´c et al., 2018]. However, the fact that many GNNbased applications such as recommendation systems [Wu et al., 2019b] and social relationship analysis [Wang et al., 2019] rely on processing sensitive graph data raises great privacy concerns. Studying model inversion attack on GNNs helps us understand the vulnerability of GNN models and enable us to avoid privacy risks in advance.

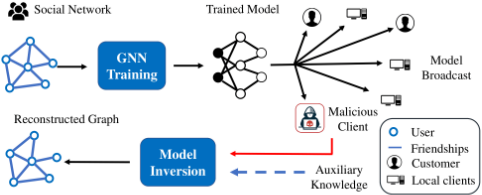

Motivation scenario: Figure 1 shows one concrete motivation scenario of model inversion attack on GNN models. Users' friendships are sensitive relational data, and users want to keep them private. Sometimes social network data is collected with user permission to train GNN models for better service. For example, these trained GNN models are used to classify friends or recommend advertisements. Then, the trained models are broadcast to customers or local clients. If the attacker can obtain the trained GNN model from malicious clients, with some auxiliary knowledge crawled from the internet, model inversion attack can be performed to reconstruct friendships among users.

In this paper, we draw attention to model inversion attacks extracting private graph data from GNN models. We focus on the following adversarial scenario. Given the trained GNN model and some auxiliary knowledge (node labels and attributes), the adversary aims to reconstruct all the edges among nodes in the training dataset. However, model inversion attack on graphs brings unique challenges. Firstly, existing model inversion attack methods can barely be applied to the graph setting due to the discrete nature of graphs. Different from the continuous image data, gradient computation and optimization on binary edges of the graph are difficult. Secondly, current model inversion methods fail to exploit the intrinsic properties of graph such as sparsity and feature smoothness. In addition, existing model inversion attack methods cannot fully leverage the information of node attributes and GNN models. For example, node pairs with similar attributes or embeddings are more likely to have edges.

To address the aforementioned challenges, we propose Graph Model Inversion attack (GraphMI) for edge reconstruction. GraphMI is designed with two important modules: the projected gradient module and the graph auto-encoder module. The projected gradient module is able to tackle the edge discreteness via convex relaxation while preserving graph sparsity and feature smoothness. The graph autoencoder module is designed to take all the information of node attributes, graph topology and target model parameters into consideration for graph reconstruction. Based on GraphMI, we investigate the relation between edge influence and model inversion risk and find that edges with greater influence are more likely to be reconstructed. Furthermore, we show that differential privacy, in its canonical form, is of little avail to defend against GraphMI. Experimental results on several public datasets show the effectiveness of GraphMI 1 .

1 https://github.com/zaixizhang/GraphMI

2 RelatedWork

Based on the attacker's goal, privacy attacks can be categorized into several types such as membership inference attack [Shokri et al., 2017], model extraction attack [Tram`er et al., 2016] and model inversion attack [Fredrikson et al., 2015]. Membership inference attack tries to determine whether one sample was used to train the machine learning model; Model extraction attack is one black-box privacy attack. It tries to extract information of model parameters and reconstruct one substitute model that behaves similarly to the target model. Model inversion attack, which is the focus of this paper, aims to reconstruct sensitive features corresponding to labels of target machine learning models.

Model inversion attack was firstly presented in [Fredrikson et al., 2014] for linear regression models. [Fredrikson et al., 2015] extended model inversion attack to extract faces from shallow neural networks. They cast the model inversion as an optimization problem and solve the problem by gradient descent with modifications to the images. Furthermore, several model inversion attacks in the black-box setting or assisted with generative methods are proposed [A¨ıvodji et al., 2019; Zhang et al., 2020] in the image domain. Thus far, no existing model inversion attack has focused on the graph domain.

3 ProblemFormulation

3.1 Preliminaries on GNNs

One task that GNN models are commonly used for is semisupervised node classification [Kipf and Welling, 2017]. Given a single network topology with node attributes and a known subset of node labels, GNNs are efficient to infer the classes of unlabeled nodes. Before defining GNN, we firstly introduce the following notations of graph. Let G = (V, E) be an undirected and unweighted graph, where V is the vertex (i.e. node) set with size |V| = N, and E is the edge set. Denote A ∈ {0, 1}N×N as an adjacent matrix containing information of network topology and X ∈ RN×l as a feature matrix with dimension l. In a GNN model, each node i is associated with a feature vector xi ∈ Rl and a scalar label yi. GNN is used to predict the classes of unlabeled nodes under the adjacency matrix A and the labeled node data {(xi, yi)}Ntrain i=1 . GNN uses all nodes' input features but only Ntrain < N labeled nodes in the training phase.

Formally, the k-th layer of a GNN model obeys the message passing rule and can be modeled by one message passing phase and one readout update phase:

where Mk denotes the message passing function and Uk is the vertex update function. N(v) is the neighbors of v in graph G. hkv is the feature vector of node v at layer k and euv denotes the edge feature. h0v = xv is the input feature vector of node v.

Specifically, Graph Convolutional Network (GCN) [Kipf and Welling, 2017], a well-established method for semisupervised node classification, obeys the following rule to aggregate neighboring features:

where ˆ A = A + IN is the adjacency matrix of the graph G with self connections added and ˆD is a diagonal matrix with ˆDii = ∑j ˆ Aij. σ(·) is the ReLU function. Hk and W k are the feature matrix and the trainable weight matrix of the k-th layer respectively. H0 = X is the input feature matrix. Note that in most of this paper, we focus on twolayer GCN for the node classification. Later, we show that our graph model inversion attack can be also performed on other types of GNNs, including GAT [Veliˇckovi´c et al., 2018] and GraphSAGE [Hamilton et al., 2017].

3.2 ProblemDefinition

We refer to the trained model subjected to model inversion attack as the target model. In this paper, we will firstly train a GNN for node classification task from scratch as the target model. We assume a threat model similar to the existing model inversion attacks [Fredrikson et al., 2015].

Attacker's Knowledge and Capability: We will focus on the white-box setting. The attacker is assumed to have access to the target model f and can employ some inference technique to discover the adjacency matrix A of the training graph. In most of the paper, we assume the attacker has labels of all the nodes. In addition to the target model f and node labels, the attacker may have other auxiliary knowledge to facilitate model inversion such as node attributes, node IDs or edge density. We will discuss the impact of auxiliary knowledge and the number of node labels on attack performance in the following sections.

Model Inversion of Graph Neural Networks: Let θ be the model parameters of target model f. During the training phase, f is trained to minimize the loss function L(θ, X, A, Y ):

where Y is the vector of node labels and X is the feature matrix. Given the trained model and its parameters, graph

Algorithm 1 GraphMI

Input: Target GNN model fθ∗; Node label vector Y ; Node feature matrix X; Learning rate, ηt; Iterations T ;

Output: Reconstructed A

• 1: a(0) is set to zeros
• 2: Let t = 0
• 3: while t <T do
• 4: Gradient descent: a(t) = a(t-1) - ηt∇Lattack(a);
• 5: Call Projection operation in (13)
• 6: end while
• 7: Call Graph auto-encoder module in (14)
• 8: Call Random sampling module.
• 9: return A

model inversion aims to find the adjacency matrix A∗ that maximizes the posterior possibility:

4 Proposed Algorithm

Next we introduce GraphMI, our proposed model inversion attack on GNN models.

4.1 Attack Overview

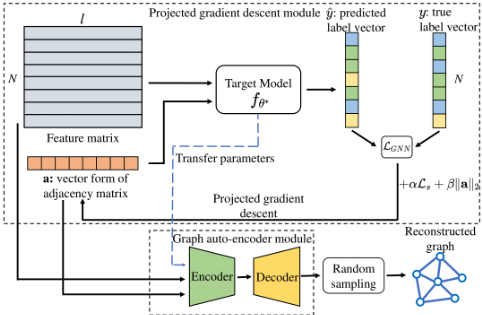

Figure 2 shows the overview of GraphMI. Generally, GraphMI is one optimization-based attack method, which firstly employs projected gradient descent on the graph to find the "optimal" network topology for node labels. Then the adjacency matrix and feature matrix will be sent to the graph auto-encoder module of which parameters are transfered from the target model. Finally, we can interpret the optimized graph as the edge probability matrix and sample a binary adjacency matrix. We summarize GraphMI in Algo 1.

4.2 Details of Modules

Projected Gradient Descent Module: We treat model inversion on GNNs as one optimization problem: given node features or node IDs, we want to minimize the cross-entropy loss between true labels yi and predicted labels ˆ yi from the target GNN model fθ∗. The intuition is that the reconstructed adjacency matrix will be similar to the original adjacency matrix if the loss between true labels and predicted labels is minimized. The attack loss on node i is denoted by ℓi(A, fθ∗ , xi, yi) where A is the reconstructed adjacency matrix, θ∗ is the model parameter of the target model f and xi is the node feature vector of node i. The objective function can be formulated as:

In many real-world graphs, such as social networks, citation networks, and web pages, connected nodes are likely to have similar features [Wu et al., 2019a]. Based on this observation, we need to ensure the feature smoothness in the optimized graph. The feature smoothness can be captured by the following loss termLs:

where Ai,j indicates the connection between node vi and vj in the optimized graph and (xi - xj)2 measures the feature difference between vi and vj . Ls can also be represented as:

where L = D-A is the laplacian matrix of A and D is the diagonal matrix of A. In this paper, to make feature smoothness independent of node degrees, we use the normalized lapacian matrix ˆL =D-1/2LD-1/2 instead:

where di and dj denote the degree of node vi and vj. To encourage the sparsity of graph structure, F norm of adjacency matrix A is also added to the loss function. The final objective function is:

where α and β are hyper-parameters that control the contribution of feature smoothing and graph sparsity. Solving equation (10) is a combinatorial optimization problem due to edge discreteness. For ease of gradient computation and update, we firstly replace the symmetric reconstructed adjacency matrix A with its vector form a that consists of n := N(N - 1)/2 unique variables in A. Adjacency matrix A and vector a can be converted to each other easily, which ensures the optimized adjacency matrix is symmetric. Then we relax a ∈ {0, 1}n into convex space a ∈ [0, 1]n . We can perform model inversion attack by firstly solving the following optimization problem:

The continuous optimization problem 11 is solved by projected gradient descent (PGD):

where t is the iteration index of PGD, ηt is the learning rate, gt is the gradients of loss Lattack in 10 evaluated at at , and

is the projection operator.

GraphAuto-encoderModule: InGraphMI, we propose to use graph auto-encoder (GAE) [Kipf and Welling, 2016] to post-process the optimized adjacency matrix A. GAE is composed of two components: encoder and decoder. We transfer part of the parameters from the target model fθ∗ to the encoder. Specifically, feature matrix and adjacency vector a are sent to the fθ∗ and the node embedding matrix Z is generated by taking the penultimate layer of the target model fθ∗ , which is denoted as Hθ∗(a,X). Then the decoder will reconstruct adjacency matrix A by applying logistic sigmoid function to the inner product of Z:

The node embeddings generated by the graph auto-encoder module encode the information from node attributes, graph topology, and the target GNN model. Intuitively, node pairs with close embeddings are more likely to form edges.

Random Sampling Module: After the optimization problem is solved, the solution A can be interpreted as a probabilistic matrix, which represents the possibility of each edge. We could use random sampling to recover the binary adjacency matrix; see details in the appendix.

4.3 Analysis on Correlation between Edge Influence and Inversion Risk

In previous work [Wu et al., 2016], researchers found feature influence to be an essential factor in incurring privacy risk. In our context of graph model inversion attack, sensitive features are edges. Here we want to characterize the correlation between edge influence and inversion risk. Given label vector Y , adjacency matrix A and feature matrix X, the performance of target model fθ∗ for the prediction can be measured by prediction accuracy:

where, f i θ∗(A,X) is the predicted label for node i. The influence of edge e can be defined as:

where A-e denotes removing the edge e from the adjacency matrix A. [Wu et al., 2016] proposed to use adversary advantage to characterize model inversion risk of features. The model inversion advantage of adversary A is defined to be P[A(X, fθ∗) = e] - 1/2, where P[A(X, fθ∗) = e] is the probability that adversary A correctly infer the existence of edge e. Next, we introduce our theorem.

Theorem 1. The adversary advantage is greater for edges with greater influence.

We defer the proof to the appendix. Intuitively, edges with greater influence are more likely to be recovered by GraphMI because these edges have a greater correlation with the model output. In the following section, we will validate our theorem with experiments.

5 Experiments

In this section, we present the experimental results to show the effectiveness of GraphMI. Specifically, our experiments are designed to answer the following research questions:

• RQ1: How effective is GraphMI?
• RQ2: Which edges are more likely to be
• RQ3: Is differential privacy an effective countermeasure against model inversion attacks on GNN?

5.1 Experimental Settings

Datasets: Our graph model inversion attack method is evaluated on 7 public datasets from 4 categories. The detailed statistics of them are listed in the appendix.

• Citation Networks: We use Cora and Citeseer [Sen et al., 2008]. Here, nodes are documents with corresponding bag-of-words features and edges denote citations among nodes. Class labels denote the subfield of research that the papers belong to.
• Social Networks: Polblogs [Adamic and Glance, 2005] is the network of political blogs whose nodes do not have features.
• Air-Traffic Networks: The air-traffic networks are based on flight records from USA and Brazil. Each node is an airport and an edge indicates a commercial airline route between airports. Labels denote the level of activity in terms of people and flights passing through an airport [Ribeiro et al., 2017].
• Chemical Networks: AIDS [Riesen and Bunke, 2008] and ENZYMES [Borgwardt et al., 2005] are chemical datasets that contain many molecure graphs, each node is an atom and each link represents chemical bonds.

Target Models: In our evaluation, we use 3 state-of-theart GNN models: GCN [Kipf and Welling, 2017], GAT [Veliˇckovi´c et al., 2018] and GraphSAGE [Hamilton et al., 2017]. The parameters of the models are the same as those set in the original papers. To train a target model, 10% randomly sampled nodes are used as the training set. All GNN models are trained for 200 epochs with an early stopping strategy based on convergence behavior and accuracy on a validation set containing 20% randomly sampled nodes. In GraphMI attack experiments, attackers have labels of all the nodes and feature vectors. All the experiments are conducted on Tesla V100 GPUs.

Parameter Settings: In experiments, we set α = 0.001, β = 0.0001, ηt = 0.1 and T = 100 as the default setting. We show how to find optimal values for hyper-parameters in the following section.

Metrics: Since our attack is unsupervised, the attacker cannot find a threshold to make a concrete prediction through the algorithm. To evaluate our attack, we use AUC (area under the ROC curve) and AP (average precision) as our metrics, which is consistent with previous works [Kipf and Welling, 2016]. In experiments, we use all the edges from the training graph and the same number of randomly sampled pairs of unconnected nodes (non-edges) to evaluate AUC and AP.

5.2 Results and Discussions

Attack Performance. Results for model inversion attacks on GCN are summarized in table 1. There are two baseline methods, attribute similarity (abbreviated as Attr. Sim.) and MAP. Attribute similarity is measured by cosine distance among node attributes, which is commonly used in previous works [He et al., 2021]. We adapt the model inversion method from [Fredrikson et al., 2015], MAP to the graph neural network setting as the other baseline. Note that some datasets such as Polblogs dataset do not have node attributes, so that we assign one-hot vectors as their attributes. They are not applicable for the attack based on attribute similarity. As can be observed in table 1, GraphMI achieves the best performance across nearly all the datasets, which demonstrates the effectiveness of GraphMI. One exception is Citesser where the attack performance of GraphMI is relatively lower than attribute similarity, which could be explained by more abundant node attribute information of Citeseer compared with other datasets. Thus using node attribute similarity alone could achieve good performance in the Citesser dataset.

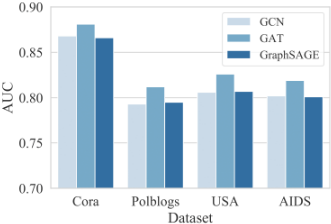

In figure 3, we show the attack performance of GraphMI on three GNNs. We observe that GraphMI has better attack performance on GAT model. This may be explained by the fact that GAT model is more powerful and is able to build a stronger correlation between graph topology and node labels. GraphMI can take advantage of such a stronger correlation and achieve better attack performance.

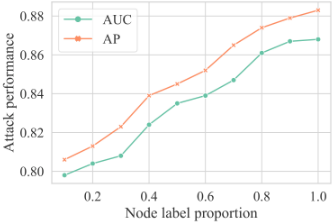

In figure 4, we present the influence of node label proportion on attack performance. As can be observed from the plot, with fewer node labels, the attack performance will drop gradually. But GraphMI can still achieve over 80 % AUC and AP when only 20% node labels are available, which again verifies the effectiveness of GraphMI.

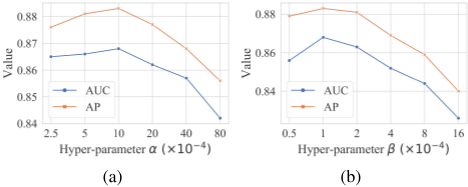

We also explore the sensitivity of hyper-parameters α and β for GraphMI. In the experiments, we alter the value of α and β to see how they affect the performance of GraphMI. Specifically, we vary α from 0.00025 to 0.008 and β from 0.00005 to 0.0016 in a log scale of base 2. The attack performance change of GraphMI is illustrated in Fig 5. As we can observe, the attack performance of GraphMI can be boosted when choosing proper values for all the hyper-parameters.

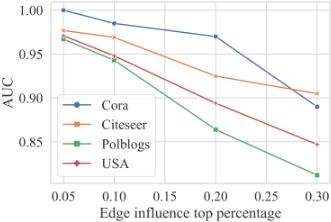

Edge Influence. We do experiments to verify our claim that edges with greater influence are more likely to be inferred successfully through model inversion attack. Note that it will be very time-consuming to measure the influence of each edge exactly. According to equation (16), removing edges with greater influence will cause greater drop of prediction accuracy. To select edges with great influence, we apply the state-of-the-art topology attack [Xu et al., 2019] on graphs by removing edges. In Figure 6, we show that for edges with top 5% influence GraphMI achieves the attack AUC of nearly 1.00 in Cora dataset. This implies that the privacy leakage will be more severe if sensitive edges are those with greater influence.

Defense Performance of Differentail Privacy. Differential privacy (DP) is one general approach for protecting privacy. Here, we investigate the impact of differential privacy on GraphMI attacks. (ϵ, δ) - DP is ensured by adding Gaussian noise to clipped gradients in each training iteration [Abadi et al., 2016]. In experiments, δ is set to 10-5 and the noise scale is varied to obtain target GNN models with different ϵ from 1.0 to 10.0. The GraphMI attack performance and their model utility are presented in Table 2. As the privacy budget ϵ drops, the performance of GraphMI attack deteriorates at the price of a huge utility drop. Generally, enforcing DP on target models cannot prevent GraphMI attack.

Table 2: The performance of the GraphMI attack against GCN trained with differential privacy on Cora dataset

6 Conclusion

In this paper, we presented GraphMI, a model inversion attack method against Graph Neural Networks. Our method was specifically designed and optimized for extracting private graph-structured data from GNNs. Extensive experimental results showed its effectiveness on several state-of-the-art graph neural networks. We also explored and evaluated the impact of node label proportion and edge influence on the attack performance. Finally, we showed that imposing differential privacy on graph neural networks can hardly protect privacy while preserving decent utility.

This paper provided potential tools for investigating the privacy risks of deep learning models on graph-structured data. Interesting future directions include: 1) Extending the current work to a black-box setting.2) Design countermeasures with a better trade-off between utility and privacy.

Acknowledgments

This research was partially supported by grants from the National Natural Science Foundation of China (Grants No.61922073 and U20A20229), and the Fundamental Research Funds for the Central Universities (Grant No.WK2150110021).
