SLViT: Scale-Wise Language-Guided Vision Transformer for Referring Image Segmentation

1 Introduction

Referring segmentation refers to the task of segmenting an object based on a given text description that may contain information about the target's action, category, color, position in the image, etc [Cheng et al., 2014; Hu et al., 2016]. It has a promising application prospects in many fields, such as language-based man-machine interaction. Unlike the conventional semantic and instance segmentation tasks, referring segmentation task requires precise perception of the locations of different objects in an image, making global visuallinguistic relationships modeling indispensable. Moreover, effective edge detection of the target objects requires details of the image, necessitating high-quality local visual features.

∗Corresponding Authors: Lanfen Lin (llf@zju.edu.cn), Yen-Wei Chen (chen@is.ritsumei.ac.jp).

In contrast to linear fusion methods [Hu et al., 2016; Liu et al., 2017] adopting Fully Convolutional Networks (FCN) for feature learning and prediction, various attention mechanisms [Shi et al., 2018; Ye et al., 2019] have been proposed to learn rich visual-linguistic information. Transformers can naturally model long-distance dependencies via attention mechanisms, which are well suited to cross-modal fusion and hence an appropriate choice for referring segmentation task. Therefore, several Vision Transformer (ViT) [Dosovitskiy et al., 2020] methods have been put forth which significantly improve performance for this task. Figure 1(a) illustrates a Transformer-based architecture for referring image segmentation, i.e., VLT [Ding et al., 2021], which fuses vision and language features after vision feature extraction through encoders. The architecture shown in Fig.1(b) is employed in EFN [Feng et al., 2021] and LAVT [Yang et al., 2022]. This architecture includes a fusion module at the end of each stage to fuse extracted visual features with linguistic modality information. The existing Transformer-based designs take advantage of long-range dependencies and hierarchical structure to enhance performance, although Transformer designs can be further improved. Specifically, visual feature extraction and cross-modal fusion are considered into two independent steps in the existing works, which leaves room for improvement in visual-linguistic alignment in semantic space. Additionally, current approaches adopt sequential structures that result in single-scale representations at each level, despite the fact that multi-scale feature interaction has been shown to be more beneficial for capturing the core semantic information.

By revisiting previous successful works and analyzing requirements of the referring segmentation task, we argue a effective method for such task should have the following characteristics: (i) A robust fusion encoder network to capture local visual and global visual-linguistic information. To accurately pinpoint the target instance with varying characteristics, both rich local visual features and positional global cross-modal relationships are crucial. (ii) Multi-scale information interaction to capture cross-scale dependencies and address complex scale differences. For dense prediction tasks like referring segmentation, the incorporation of complementing information from multiple scales is helpful.

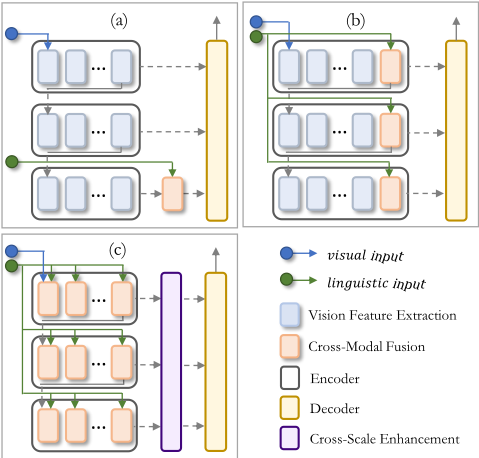

Therefore, taking the aforementioned analysis into account, we propose a novel referring image segmentation architecture (in Figure 1(c)), namely Scale-Wise LanguageGuided Vision Transformer (SLViT). In SLViT, we propose an integrated vision-language encoder network design, with a novel attention mechanism called Language-Guided MultiScale Fusion Attention (LMFA) to comprehensively extract multi-scale local visual features and model global crossmodal relationships. It improves visual-linguistic alignment in semantic space in a lightweight manner. As shown in Figure 2(a)-(c), LMFA significantly improves performance in locating objects. Considering the spatial correlation between patches at different scales through downsampling, it is beneficial to perform interactions at different scales of the same region for feature refinement. Furthermore, there are regions where the semantic information is temporarily uncertain, making targeted cross-scale enhancement needed. We design a cross-scale feature fusing module named Uncertain Region Cross-Scale Enhancement (URCE) to identify regions of high uncertainty, represented by variance of cross-modal attention scores between scales, and then refine features of the regions using complementary information from multiple scales. The accuracy of boundary identification is improved by URCE, which is qualitatively shown in Figure 2(e)-(h).

In summary, our contributions are three-folded:

1. We propose Language-Guided Multi-Scale Fusion Attention (LMFA) module in our integrated visionlanguage encoder with the ability of integrated local visual feature extraction and global cross-modal relationships modeling in referring segmentation. LMFA improves visual-linguistic alignment in semantic space.
2. We design a multi-scale feature fusion module named Uncertain Region Cross-Scale Enhancement (URCE). URCE uses the variance of cross-modal correlations between adjacent stages to identify regions of high uncertainty and refines features of these regions with complementing information from multiple stages, which helps in identifying satisfactory boundaries.
3. Based on the aforementioned moudules, we design a novel framework named SLViT for referring segmentation task. We conducted thorough experiments on SLViT with three benchmark datasets, and the experimental results show that SLViT outperforms current state-of-theart methods with lower computational cost.

2 RelatedWorks

Referring segmentation. For referring segmentation, the early methods [Hu et al., 2016; Liu et al., 2017; Li et al., 2018] directly concatenate visual and linguistic features, adopting FCN for cross-modal feature learning and prediction, lacking attention to the relationship between modalities. Differently, numerous attention-based fusion methods have been proposed for this task. Vision-guided linguistic attention [Shi et al., 2018] and Cross-Modal Self-Attention module [Ye et al., 2019] are proposed to learn visual content corresponding to verbal expression. [Hu et al., 2020] capture the mutual guidance between two modalities by a bi-directional relationship inferring network. [Yu et al., 2018] and [Huang et al., 2020] use knowledge about sentence structure to capture attributes in cross-modal features, while [Hui et al., 2020] exploits syntactic structures between words to guide crossmodal context aggregation. Recently, Transformer-based methods have improved the ability to model long-distance cross-modal dependencies and made significant progress in referring segmentation. A VLT framework with encoderdecoder is proposed in [Ding et al., 2021] using attention mechanism to enhance global context information. In EFN [Feng et al., 2021], a collaborative attention mechanism is presented to gradually refine multi-modal features using language and promote cross-modal expression. LAVT [Yang et al., 2022] achieves the early fusion of linguistic and visual features between encoders of ViT.

Vision transformer and multi-scale architecture. Transformer models have been widely used for several computer vision tasks. The ViT model applies self-attention in shallow layers enhancing performance for vision tasks. Since the computational complexity of self-attention is a quadratic polynomial in the number of tokens, it is difficult to directly apply it to a large number of tokens. Therefore, in order to improve the performance of fine-grained tasks such as segmentation, various attention mechanisms have been developed in some recent works [Liu et al., 2021b; Ren et al., 2022; Wang et al., 2021; Guo et al., 2022] to reduce computational cost while retaining valuable visual information. Various studies [Zheng et al., 2021; Gu et al., 2022] using Transformer with multi-scale designs for segmentation tasks have been presented using knowledge between different scales. For referring segmentation task, many Transformer-based methods [Ding et al., 2021; Feng et al., 2021; Yang et al., 2022] exploiting sequential structures have been proposed. These methods leverage sequential structures and lack sufficient multi-scale interaction.

3 Scale-Wise Language-Guided Vision Transformer

3.1 Overview

The proposed SLViT learns local visual and global visuallinguistic cues within scales in an integrated way as well as modeling inter-scale dependencies of uncertain regions. The structure of SLViT is shown in Figure 3.

In a hierarchical manner, we propose the [integrated vision-language encoder] - [cross-scale enhancement] - decoder framework. The encoder (Sec.3.2) includes a novel lightweight attention module (Sec.3.3) that uses simultaneous multi-scale convolutional operations and gated cross-modal attention to capture local visual features and global visuallinguistic correlations. We also propose to use variance between adjacent stages of cross-modal correlation to assess the uncertainty of regions in the image. For regions of high uncertainty, we design a novel cross-scale feature fusion module (Sec.3.4) to automatically refine mutual regions at different scales via the complementary information among them. Finally, the enhanced representations are sent to the decoder block (Sec.3.5) for the final prediction. In the following subsections, we describe each components of SLViT in detail.

3.2 Integrated Vision-Language Encoder

In order to improve the alignment of visual-linguistic features in semantic space, we propose an integrated vision-language encoder to capture visual and cross-modal features in an integrated way. The block structure of our encoder follows the design of ViT [Dosovitskiy et al., 2020] but we design a novel attention mechanism (Sec.3.3) replacing the conventional self-attention mechanism.

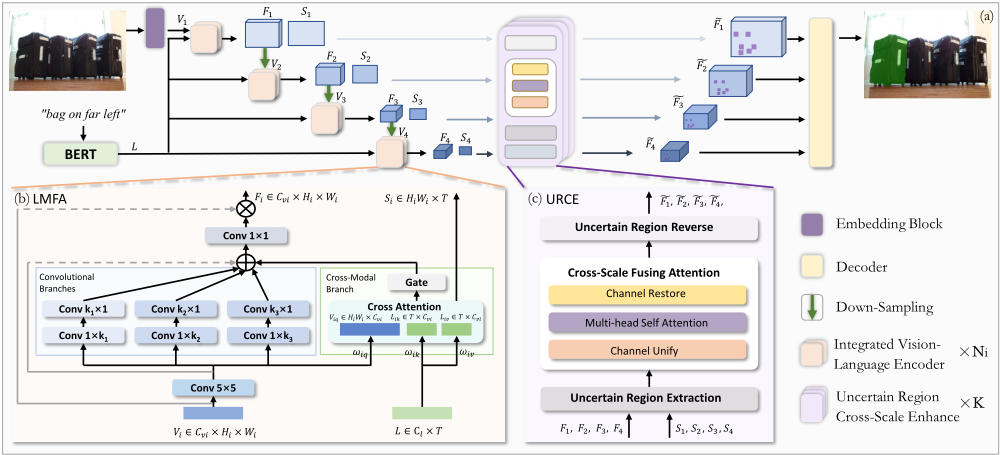

As shown in Figure 3(a), our encoder has a pyramid structure, which contains 4 stages with decreasing spatial resolutions. There are Ni blocks in our encoder for i-th stage. Given input of a pair of an image and a referring expression, our model outputs a segmentation mask for the specified instance. We extract language features via a language encoder BERT [Devlin et al., 2018]. The language feature provided into encoders are denoted as L ∈ RCl×T , where Cl is the number of channel, T is the number of words. The given image passes through an embedding block to obtain initial vision input V1 ∈ RCv1×H1×W1 of the encoder, where Cv1 is the number of channels, H1 and W1 are height and width of the feature maps in first stage. Each stage contains a downsampling block and a stack of integrated vision-language encoders. The down-sampling block consists of a convolution with stride of 2 and kernel size of 3 × 3, followed by a batch normalization layer. For each stage, the stack of integrated cross-modal feature maps Fi can be represented as:

where function Down(·) indicates the down-sampling block, function Ilve(·) indicates blocks in our encoder to catch integrated cross-modal features, i indexes the stage. We obtain the visual inputs of stages 2, 3, 4 through Vi = Down(Fi-1).

3.3 Language-GuidedMulti-Scale Fusion Attention

As depicted in Figure 3(b), our proposed attention mechanism, namely Language-Guided Multi-Scale Fusion Attention (LMFA), contains four parts: a convolution operation to capture preliminary local feature, a multi-scale convolutional activation to aggregate multi-scale local visual features, a gated cross-modal activation to aggregate global visuallinguistic relationships, and a 1 × 1 convolution operation to model relationships between branches. In i-th stage, given the visual input Vi ∈ RCvi×Hi×Wi and the linguistic input L ∈ RCl×T , we obtain the preliminary local visual feature map V Local i employing a 5 × 5 convolution operation.

Multi-scale convolutional activation. There are three concurrent convolutional branches with different kernel sizes to capture local features of different receptive fields, which has spatial inductive-bias in modelling rich local visual information. Multi-scale convolutional activation Attconv i ∈ RCvi×Hi×Wi can be obtained using the following equation:

where t indexes the convolutional branch, ConvtR indicates a 1 × kt convolution function for horizontal linear features, ConvtC indicates a kt × 1 convolution function for vertical linear features. The strip-like convolution kernels aims in obtaining detailed local visual information with low cost.

Gated cross-modal activation. We utilize a gated crossmodal attention to model global visual-linguistic relationships. The steps to get gated cross-modal activation Attcross i ∈ RCvi×Hi×Wi are described as follows:

where ωiq, ωik, ωiv are projection functions, Gate(·) indicates a 1×1 convolution and a GELU function, flatten(·) means unrolling the two spatial dimensions into one dimension in row-major, and unflatten(·) indicates the opposite operation. Here, Si ∈ RHiWi×T is the attention scores between the Viq and Lik, which represents the degree of correlation between two modalities. In the last block of each stage, Si is provided to URCE. ωiq is implemented as a 1×1 convolution followed by instance normalization with Cvi number of output channels. Each of ωik and ωiv is implemented as a 1 × 1 convolution with Cvi number of output channels.

Integrated attention. We apply a convolution to coordinate convolutional branches and the cross-modal branch obtaining integrated attention weights and reweight the input Vi of LMFA. We obtain the integrated cross-modal feature map Fi ∈ RCvi×Hi×Wi using the following equation:

where ⊙ is element-wise matrix multiplication operation, and Conv1×1 indicates a 1×1 convolution function to model relationships between branches.

3.4 Uncertain Region Cross-Scale Enhancement

Multi-scale information is crucial for capturing boundary details. To optimize spatial correspondence and minimize redundancy, we propose an Uncertain Region Cross-Scale Enhancement (URCE) module. URCE targets high-uncertainty regions and facilitates interaction across scales within our hierarchical model. Refer to Figure 3(c) for the URCE pipeline.

Uncertain region extraction. Considering computational cost and efficiency, we perform cross-scale enhancement only for the regions with the highest uncertainty.

Visual-linguistic correlation of each patch in i-th stage is indicated by Ri ∈ HviWvi, which is obtained by Ri = ∑Cl 1 Si. Here, Si is the cross-modal attention score map from LMFA in i-th stage. The variation of visual-linguistic correlation Ri at each coordinate between adjacent stages is used to represent the uncertainty of the corresponding region in the image. We select K most uncertain regions to utilize cross-scale enhancement. The steps are described as follows:

where mapU ∈ Hv4Wv4 means uncertainty map of each coordinate, which is obtained by the correlation difference between adjacent stages. Here, Down(·) indicates function to downsample Ri into size of feature maps of 4-th stage, and TopK(·) indicates the function to find the array index of uncertain regions with largest K values in the array mapU .

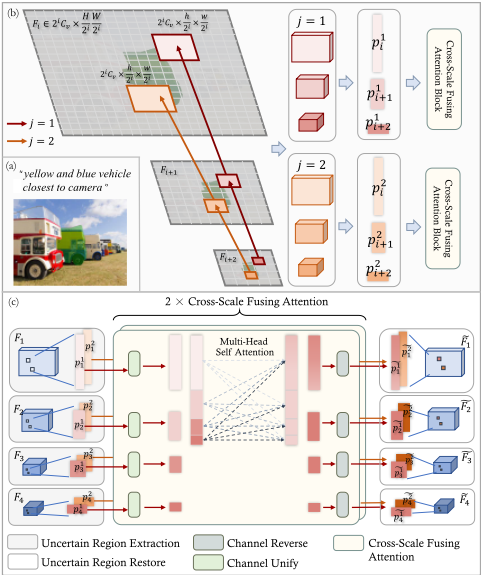

The K uncertain regions marked by Index, which correspond to patches in different scales, are first rearranged into 2D tensor. Let pji denotes the patch of j-th uncertain region in i-th stage. As an example of K = 2, Figure 4(b) illustrates the process of finding the target patches in three successive feature maps Fi, Fi+1, Fi+2 from i-th to (i+2)-th stage with sample inputs (in Figure 4(a)).

Cross-scale fusing attention. We model cross-scale clues for uncertain patches correlated spatially, as shown in Figure 4(c). For j-th uncertain region, patches from multiple stages are passed through Channel Unify to have the same channel dimension Cf . Then we concatenate them to obtain crossscale feature P j cross corresponding to j-th uncertain region, which can be described as follows:

where pji ∈ 2iCv × h 2i w 2i is the feature map of j-th uncertain patch in i-th stage, h and w are size of patches in first stage, and ωp indicates functions to unify the channel to Cf and to rearrange the feature map into 2D tensor. Then we model cross-scale dependencies as follows:

where LN(·) indicates the layer normalization operator, and MSA(·) indicates multi-head self-attention. Then we reverse the enhanced sequence back to patches according to the order of concatenation:

where ωreverse p indicates Channel Reverse. Here, ωreverse p and Split(·) are inverse operations of previous operations ωp and Concat[·], respectively. Then we employ Uncertain Region Restore that replaces pji with ˜ pji to obtain final crossmodal feature maps ˜ Fi for each stage.

3.5 Decoder and Segmentation

After cross-scale enhancement, a decoder network is employed to capture high-level semantics. We aggregate features ˜ F1, ˜ F2, ˜ F3, ˜ F4 from URCE and use a lightweight Hamburger [Geng et al., 2021] to further model the global context. We obtain the final prediction results by the following equation:

where Fi is the cross-modal feature maps from stages, Ham(·) indicates a Hamburger function, and Seg(·) indicates a 1×1 convolution and an upsampling function for final prediction.

4 Experiments

4.1 Dataset and Evaluation

We perform experiments on three widely used benchmark datasets for referring image segmentation, including RefCOCO [Yu et al., 2016], RefCOCO+ [Yu et al., 2016], and G-Ref [Mao et al., 2016; Nagaraja et al., 2016]. They have 19,994, 19,992, and 26,711 images respectively, containing 50,000, 49,856, and 54,822 references and 142,209, 141,564, and 104,560 reference expressions.

Following previous works [Wang et al., 2022; Yang et al., 2022], we evaluate our proposed method with overall intersection-over-union (oIoU), mean intersection-over-union (mIoU), and precision at various thresholds. The oIoU is the ratio between the total intersection area and the total union areas. Precision refers to the proportion of test samples with IoU values higher than the threshold.

4.2 Implementation Details

We conduct experiments using PyTorch library and use BERT implementation from HuggingFace's Transformer library [Wolf et al., 2020]. Convolutions in LMFA's convolutional branches and our decoder are initialized with weights pre-trained on ImageNet-22K from the SegNeXt [Guo et al., 2022]. Language encoder of our model is initialized using official pre-trained weights of BERT with 12 layers and hidden size 768. In convolutional branches of LMFA, we use k1 = 7, k2 = 11, k3 = 21 kernel sizes for our convolutions. The rest of weights in our model are randomly initialized.

Following, we use AdamW optimizer with weight decay 0.01. The learning rate is initialed as 3e-5 and scheduled by polynomial learning rate decay with a power of 0.9. All the models are trained for 60 epochs with a batch size of 16. Each reference has 2-3 sentences on average, and we randomly sample one referring expression per object in a epoch. Image size is adjusted to 480 × 480 without data augmentation.

4.3 Comparison with the State-of-the-Arts

We compare the performance of our proposed method with state-of-the-art methods on three widely-used datasets using the oIoU metric. Experimental results are reported in Table 1 and the best results are highlighted in bold. As shown, our SLViT without Uncertain Region Cross-Scale Enhancement (w/o URCE) outperforms all other methods. This has an improvement of 1.58 oIoU over the Val Split set of the RefCOCO+ dataset, while on average an improvement of 0.83 oIoU across all 9 validation sets of the three datasets. It indicates the efficacy of integrated vision-language encoder with LMFA to improve visual-linguistic alignment in semantic space. It is helpful in capturing detailed local visual features and modeling global visual-linguistic relationships in an integrated manner. Additionally, an increment of oIoU (+0.93 at most) is achieved when utilizing URCE, which achieves the new SOTA on these datasets. Furthermore, our proposed SLViT uses significantly less GFLOPs and parameters than previously proposed Transformer-based approaches while achieving a higher oIoU score, as shown in Figure 5(b).

4.4 Ablation Study

Ablation on LMFA design. We have conducted an ablation study on LMFA design on the RefCOCO validation set. Results are shown in Table 2(a)(b). ktB indicates the convolutional branch containing a 1 × kt convolution and a kt × 1 convolution. Gate represents a 1×1 convolution and a GELU function in the cross-modal branch, enhancing the network's adaptive ability. We employed a single convolution branch in LMFA to evaluate the impact of various convolution kernel sizes kt. In Table 2(a), sizes 7 and 21 show superior performance among those with comparable computational costs. Observing Table 2(b), it follows that each part contributes to the final performance.

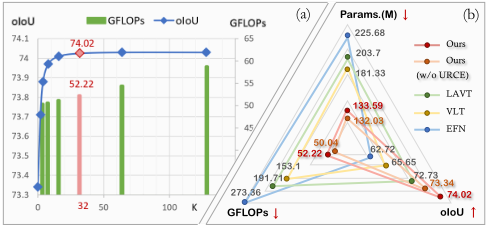

Number of uncertain regions to enhance. We explore the number of uncertain regions K to utilize cross-scale enhancement. In Figure 5(a), when increasing the number of selected uncertain regions, the oIoUmetrics increase sharply at the beginning and then tends to stabilize. The increase in the value of K is linearly correlated with the increasement of computing cost. We choose K = 32 as the default setting.

Effectiveness of URCE. To verify the performance of URCE, we have compared SLViT to SLViT (w/o URCE) in Table 2(c). It shows this ablation leads to a drop of 0.68 and 0.67 absolute point in overall IoU and mean IoU respectively, and a drop of an average of 2.18 points in precision across the three thresholds. In addition, Ours and Ours (w/o URCE) in Figure 5(b) also show that URCE improves performance with a slight increase in parameters and GFLOPs.

Ablation of URCE on various stages. Given integrated cross-modal features from different stages, URCE forms corresponding regions of them into a sequence for joint refinement in single forward pass. Si means the integrated crossmodal feature Fi from i-th stage used as input for URCE. Multiple input sequences are compared in the Table 2(d). The performance boost shows the benefit of multi-scale feature interaction and detailed context in global reasoning.

Ablation of features used for final prediction. We conduct several experiments to assess the influence of the decoder with various sequences as input. As shown in Table 2(e), features ˜ F1, ˜ F2, ˜ F3, ˜ F4 , which are enhanced by URCE, are the best choices to be sent to the decoder network.

4.5 Interpretation of SLViT

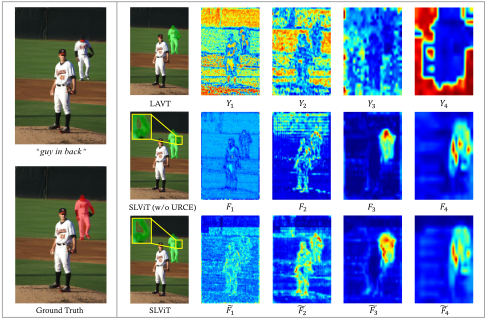

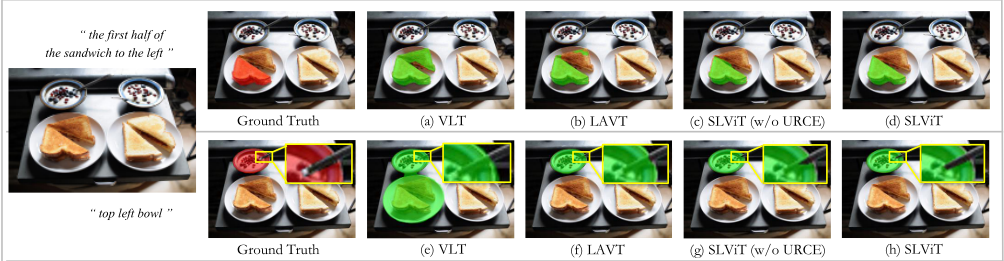

In Figure 6, we visualize the feature maps from LAVT [Yang et al., 2022], our SLViT (w/o URCE) and SLViT. Comparing F1, F2, F3, F4 from our SLViT (w/o URCE) to Y1, Y2, Y3, Y4 from LAVT's various stages, the feature maps F1 to F4 gradually focus on the target instance and show more visuallinguistic alignment in semantic space as stages go deeper. It indicates that in LMFA, multi-scale convolutional activation learns valuable local visual information, and gated crossmodal activation is useful in identifying the relative position of the target object. We interpret the role of URCE by comparing the segmentation results and the feature maps Fi, ˜ Fi . Impressively in F2 and ˜ F2, the fence as the background in ˜ F2 has been eliminated, which indicates that URCE is able to filter out irrelevant objects. As F3 and ˜ F3 are being observed, the edge of the target object in ˜ F3 is more concerned. Therefore, URCE can eliminate interference items and improve the accuracy of boundary prediction by cross-scale enhancement of uncertain regions.

5 Conclusion

In this paper, we propose a novel Transformer-based framework named SLViT for referring image segmentation. SLViT captures rich local visual features and models global visuallinguistic relationships in an integrated manner at each stage. The proposed network design interacts cross-modal features of uncertain regions between different scales with spatial correspondence. Experiments show that SLViT outperforms existing methods on three benchmark datasets with lower computational cost.

Acknowledgments
